When it comes to selecting the right material for industrial applications, understanding the nuances between different types of steel is crucial. Two commonly debated options are 13Cr Steel and SS 410, both known for their unique properties and specific uses. So, what sets them apart? In this article, we will delve into the key differences between these two martensitic stainless steels, focusing on their chemical composition, mechanical properties, and corrosion resistance. We’ll also explore which material is better suited for various applications, ensuring you make an informed decision for your next project. Ready to uncover the specifics that could influence your choice? Let’s dive in and compare 13Cr Steel and SS 410.
13Cr steel is known for its high chromium content, typically between 12-14%. This significant chromium concentration classifies it as a martensitic stainless steel. The carbon content in 13Cr steel generally falls between 0.15-0.22%, providing a balance between hardness and toughness. Modified versions of 13Cr steel may include additional alloying elements such as nickel (4-5%) and molybdenum (1-2%), which enhance the steel’s corrosion resistance and mechanical properties, making it more suitable for demanding applications.
SS 410 contains slightly less chromium than 13Cr steel, with a range of 11.5-13.5%. The carbon content in SS 410 is lower, ranging from 0.08-0.15%. Unlike 13Cr steel, SS 410 does not typically include significant amounts of nickel or molybdenum in its basic form. This simpler composition makes SS 410 more cost-effective but also limits its corrosion resistance and mechanical strength compared to the modified versions of 13Cr steel.
Both 13Cr steel and SS 410 have high chromium content, which is essential for their corrosion resistance. However, 13Cr steel has a slightly higher range of chromium, contributing to better performance in corrosive environments.
The higher carbon content in 13Cr steel allows for greater hardness and strength, making it more suitable for demanding applications. SS 410, with its lower carbon content, offers good hardness and strength but not to the same extent as 13Cr steel.
The addition of nickel and molybdenum in modified 13Cr steel significantly improves its corrosion resistance, especially in environments with CO2, chlorides, and H2S. SS 410, lacking these additional alloying elements, is more suitable for less aggressive environments.
The unique chemical compositions of 13Cr steel and SS 410 directly influence their suitability for different applications. 13Cr steel, with its enhanced alloying elements, is ideal for oilfield equipment and other applications where high corrosion resistance and mechanical strength are critical. SS 410 is more commonly used in general engineering applications where the environment is less aggressive, and cost-effectiveness is a priority. Understanding these differences is essential for selecting the appropriate material to ensure optimal performance and longevity.
Comparing the tensile and yield strengths of 13Cr steel and SS 410 reveals several key differences.
Tensile and Yield Strength
13Cr steel generally exhibits higher tensile and yield strengths compared to SS 410. The tensile strength of 13Cr steel is approximately 85 ksi (586 MPa), while its yield strength is about 75 ksi (517 MPa). Modified versions, such as M13Cr, can achieve even higher yield strengths, up to 110 ksi (758 MPa). On the other hand, SS 410 has a tensile strength of about 80 ksi (552 MPa) and a yield strength of approximately 60 ksi (414 MPa), making it suitable for applications requiring moderate strength.
Hardness and Machinability
Both 13Cr steel and SS 410 offer distinct hardness and machinability characteristics. The hardness of 13Cr steel can vary depending on the specific grade and treatment, with modified grades like Super 13Cr typically having a hardness of around 32 HRC. This steel offers a balance of strength and machinability, making it versatile for various applications. SS 410 is generally easier to machine when annealed or tempered, but machining difficulty increases if hardness exceeds 30 HRC. SS 410 requires pre-heating and post-weld annealing to prevent cracking during welding processes.
Temperature Stability
Temperature stability is crucial for mechanical performance. 13Cr steel exhibits excellent stability at high temperatures, making it suitable for high-temperature applications such as turbine blades and exhaust systems. SS 410 provides good scaling resistance up to 650°C. However, it experiences degradation in mechanical properties between 400-580°C, which can limit its use in certain high-temperature applications.
Impact Toughness
Impact toughness measures how well a material absorbs energy during deformation. Typically, 13Cr steel has superior impact toughness, making it more resistant to cracking and suitable for applications involving dynamic loads. SS 410 offers good impact toughness but generally lower than that of 13Cr steel, making it less favorable for applications requiring high impact resistance.
Fatigue Resistance
Fatigue resistance is vital for materials under repeated stress. 13Cr steel demonstrates high fatigue resistance, which is essential for applications in the oil and gas industry where components are exposed to continuous stress cycles. SS 410 provides moderate fatigue resistance, making it suitable for general-purpose applications but less ideal for demanding cyclic loading conditions.
Ductility and Formability
Ductility and formability are key aspects for manufacturing processes. 13Cr steel offers good ductility and formability, allowing it to be shaped into complex geometries without compromising its mechanical integrity. SS 410 also provides decent ductility and formability, but its lower carbon content and simpler composition may limit its performance in more demanding forming processes.
Wear Resistance
Wear resistance is vital for components exposed to abrasive conditions. 13Cr steel has enhanced wear resistance due to its higher hardness and alloying elements, making it suitable for applications involving significant wear. SS 410 provides adequate wear resistance but not as high as 13Cr steel, which may limit its use in highly abrasive environments.
13Cr steel, containing 12% to 14% chromium, is a martensitic stainless steel known for its notable corrosion resistance. The addition of nickel (4-5%) and molybdenum (1-2%) further enhances its ability to withstand corrosive environments. Molybdenum, in particular, significantly improves resistance to sulfide stress cracking (SSC) and corrosion in environments containing CO₂.
SS 410, another martensitic stainless steel, comprises 11.5% to 13.5% chromium. While it provides basic corrosion resistance due to its chromium content, SS 410 lacks the additional alloying elements found in 13Cr steel, making it less suitable for highly corrosive environments.
13Cr steel performs exceptionally well in environments containing CO₂ and moderate levels of chlorides. The presence of molybdenum significantly improves its resistance to pitting and crevice corrosion. Thanks to its enhanced alloy composition, 13Cr steel provides superior corrosion resistance compared to SS 410, especially in chloride-rich environments.
SS 410 offers good corrosion resistance in milder conditions, but its effectiveness diminishes in environments with high chloride levels or oxidative conditions. Heat treatment is crucial to improve SS 410’s corrosion resistance. Without additional alloying elements, SS 410 is more prone to corrosion in aggressive environments, making it less suitable for demanding applications.
In high chloride environments, 13Cr steel outperforms SS 410 due to its molybdenum content, which provides enhanced resistance to chloride-induced corrosion. This makes 13Cr steel suitable for marine and offshore applications where exposure to chlorides is a concern. SS 410, on the other hand, is less effective in such conditions and may not provide the same level of protection.
Modified 13Cr steel, with its enhanced composition, provides greater resistance to SSC, making it ideal for H₂S-rich environments like the oil and gas industry. This makes 13Cr steel a more reliable choice for applications where exposure to H₂S is a concern.
13Cr steel is generally more expensive than SS 410. The higher cost is attributed to its increased chromium and molybdenum content, which enhance its corrosion and mechanical properties. This makes 13Cr steel a more cost-effective solution in the long run for applications requiring superior corrosion resistance.
13Cr steel is preferred in high-stress, corrosive environments such as oil and gas applications. Its superior corrosion resistance and mechanical properties make it suitable for demanding conditions. SS 410 is better suited for applications requiring strength in less corrosive environments, as it is less effective in highly aggressive conditions. This makes SS 410 a more cost-effective choice for general engineering applications where the environment is not excessively aggressive.
Martensitic stainless steel stands out for its unique properties. Known for its strength, hardness, and resistance to wear, it belongs to the AISI 4xx series and typically contains 11% to 18% chromium. The carbon content, ranging from 0.08% to 1.20%, enhances its hardenability through heat treatment. With low nickel content, usually below 2.5%, its distinct characteristics are further defined.
Martensitic stainless steel achieves high strength and hardness through heat treatment. The formation of martensite, a hard and brittle crystalline structure, significantly boosts these mechanical properties. This makes it ideal for applications demanding robust material performance.
Another notable feature is its wear resistance. The hardness and toughness of martensitic stainless steel make it suitable for components exposed to high friction and wear, such as cutting tools, bearings, and pump shafts, ensuring durability and longevity in industrial applications.
While martensitic stainless steel offers moderate corrosion resistance, it is less effective in highly corrosive environments compared to austenitic or duplex stainless steels. The chromium content provides basic protection against corrosion, making it suitable for less aggressive environments. Additional alloying elements like molybdenum may be necessary for applications requiring higher corrosion resistance.
Unlike austenitic stainless steels, which are generally non-magnetic, martensitic stainless steel is magnetic. This makes it useful in applications where magnetic detection or separation is needed.
Several grades of martensitic stainless steel are commonly used, each offering specific properties and applications.
AISI 410 (EN 1.4006) is a versatile grade known for its ease of machining and welding, offering a good balance of strength and corrosion resistance for various applications, including cutlery and surgical instruments.
AISI 420 (EN 1.4028) provides higher hardness compared to AISI 410, making it ideal for applications requiring wear resistance, such as surgical instruments and cutting tools. Its ability to achieve a high polish also makes it suitable for aesthetic applications.
AISI 431 (EN 1.4057) offers superior corrosion resistance compared to AISI 410 and AISI 420, thanks to its higher chromium content. It is often used in marine and chemical environments where enhanced corrosion protection is essential.
Martensitic stainless steels are compared with other types of stainless steels, such as austenitic and duplex steels, to highlight their unique properties and suitability for specific applications.
The unique properties of martensitic stainless steel make it suitable for a variety of applications across different industries.
Martensitic stainless steel is widely used in the production of knives, scissors, and other kitchen tools due to its high hardness and ability to maintain sharp edges.
The high polishability and wear resistance of martensitic stainless steel make it ideal for surgical instruments and medical devices.
Components such as shafts, gears, and fasteners in the aerospace and automotive industries benefit from the high strength and wear resistance of martensitic stainless steel.
Martensitic stainless steel is used in the manufacturing of valves, pumps, and wear-resistant parts, where durability and performance are critical.
The oil and gas industry heavily relies on 13Cr steel because of its outstanding strength and resistance to corrosion. It is commonly used in high-stress components like wellheads, tubulars, and downhole equipment, and is preferred in environments with CO₂ and mild H₂S due to its combined strength and corrosion resistance.
13Cr steel’s stability at high temperatures makes it ideal for parts like turbine blades and exhaust systems. These applications benefit from the steel’s ability to maintain strength and resist oxidation at elevated temperatures, ensuring reliable performance under demanding conditions.
13Cr steel is used in chemical processing environments needing good corrosion resistance, but not as demanding as those requiring SS 316. Its alloying elements, including chromium and molybdenum, provide enhanced protection against corrosive agents, making it suitable for various chemical industry applications.
SS 410 is popular for general-purpose uses because it balances strength and moderate corrosion resistance. Common uses include food processing equipment, medical instruments, and automotive parts such as disc brakes. These applications benefit from the material’s ability to offer sufficient strength and corrosion protection at a lower cost.
The high hardness and wear resistance of SS 410 make it ideal for components exposed to abrasive conditions, such as fasteners and machinery parts. This steel is particularly effective in applications where durability and resistance to wear are critical for maintaining performance and longevity.
13Cr steel offers superior corrosion resistance compared to SS 410, especially in environments containing CO₂ and moderate levels of chlorides. This makes 13Cr steel the preferred choice for applications in the oil and gas industry and chemical processing plants, where exposure to corrosive agents is a significant concern. SS 410, with its simpler composition, is more suitable for less aggressive environments where moderate corrosion resistance is sufficient.
The enhanced tensile and yield strengths of 13Cr steel make it suitable for high-stress applications that require robust material performance. In contrast, SS 410, while providing good mechanical properties, is better suited for applications requiring moderate strength. The oil and gas industry, which demands higher mechanical performance, often favors 13Cr steel for critical components.
Cost is a significant factor in material selection. 13Cr steel, due to its higher chromium and molybdenum content, is generally more expensive than SS 410. However, its superior properties justify the cost for applications where enhanced corrosion resistance and mechanical strength are necessary. SS 410 offers a cost-effective alternative for applications where the environment is less aggressive, and moderate corrosion resistance and strength are adequate.
Below are answers to some frequently asked questions:

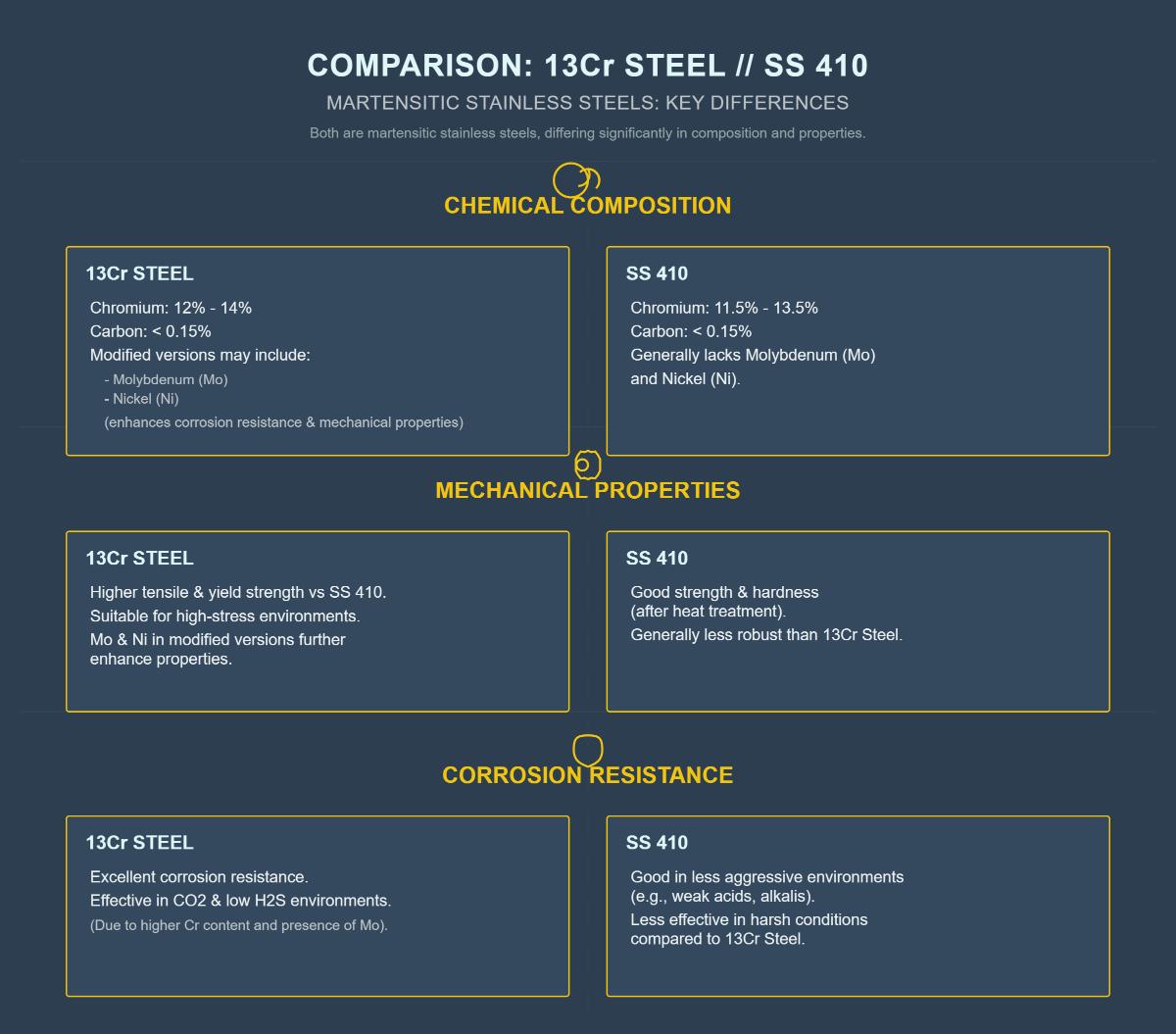

13Cr Steel and SS 410 are both martensitic stainless steels, but they differ significantly in their composition and properties.
Chemical Composition:
13Cr Steel contains 12% to 14% chromium, and modified versions include elements like molybdenum and nickel to enhance corrosion resistance and mechanical properties. Its carbon content is typically less than 0.15%. SS 410, on the other hand, has a chromium content of 11.5% to 13.5% and generally lacks molybdenum and nickel. It also contains less than 0.15% carbon.
Mechanical Properties:
13Cr Steel offers higher tensile strength and yield strength compared to SS 410, making it more suitable for high-stress environments. The inclusion of nickel and molybdenum in modified versions further enhances its mechanical properties. SS 410 exhibits good strength and hardness after heat treatment but is generally less robust than 13Cr Steel.
Corrosion Resistance:
13Cr Steel provides excellent corrosion resistance, especially in environments containing CO2 and low concentrations of H2S, due to its higher chromium content and the presence of molybdenum. SS 410 offers good corrosion resistance in less aggressive environments, such as weak acids and alkalis, but is less effective in harsh conditions compared to 13Cr Steel.
13Cr steel is particularly suitable for applications in the oil and gas industry, including downhole components, wellheads, and tubing, due to its high corrosion resistance in CO2 environments and its strength in sweet and mild sour conditions. It is also used in chemical processing plants for components exposed to aggressive chemicals, and in power plants for handling steam and water under controlled conditions.
On the other hand, SS 410 is more commonly used for general industrial purposes such as machinery parts, tools, and fasteners, thanks to its balance of strength, hardness, and cost-effectiveness. It is also favored in the automotive industry for disc brakes and high-wear parts, and in the kitchenware sector for cutlery and utensils due to its moderate corrosion resistance and wear resistance.
Thus, 13Cr steel is ideal for high-stress, high-temperature environments requiring superior corrosion resistance, while SS 410 is better suited for general industrial applications where a balance of cost, strength, and moderate corrosion resistance is needed.
When comparing 13Cr Steel and SS 410 in terms of cost, it is important to note that 13Cr Steel is generally more expensive than SS 410. This higher cost is due to its greater chromium content, typically between 12% to 14%, and the inclusion of molybdenum, which enhances its corrosion resistance and strength. Additionally, the manufacturing process for 13Cr Steel is more complex, involving additional alloying and heat treatment steps, contributing further to its higher cost.
Despite the modest cost difference, which can be a few dollars per pound, 13Cr Steel’s superior performance in high-stress, corrosive, and high-temperature environments can justify the additional expense. In contrast, SS 410 is more cost-effective for applications requiring moderate corrosion resistance and high mechanical properties. Therefore, the choice between the two materials often depends on balancing initial costs with long-term performance benefits, with 13Cr Steel offering potential long-term savings in demanding environments due to its enhanced durability.
13Cr Steel and SS 410 are not entirely interchangeable in industrial applications due to their distinct properties and the specific demands of different environments. 13Cr Steel, with its higher yield strength and enhanced corrosion resistance due to the addition of molybdenum, is particularly suited for high-stress applications such as those in the oil and gas industry. In contrast, SS 410, being more cost-effective and versatile, is suitable for general-purpose applications requiring moderate corrosion resistance and good mechanical properties, such as in valves, pumps, and automotive parts.
The choice between the two materials should be based on the specific requirements of the application, including the need for corrosion resistance, mechanical strength, and budget constraints. For example, in environments with CO(_2) and H(_2)S, 13Cr Steel would be more appropriate due to its superior resistance. Therefore, while there may be some overlap in their applications, they cannot be considered fully interchangeable.
In harsh environments, 13Cr Steel generally has a longer lifespan compared to SS 410. This is due to its superior mechanical properties and enhanced corrosion resistance, particularly in environments with CO₂ and moderate H₂S presence. 13Cr Steel’s higher tensile and yield strength (approximately 85 ksi and 75 ksi, respectively) make it more suitable for high-stress applications, such as in the oil and gas industry. Additionally, modified versions of 13Cr Steel with added nickel and molybdenum further improve its resistance to sulfide stress cracking and other forms of corrosion.
On the other hand, SS 410, while still offering good corrosion resistance, is more prone to sulfide stress cracking in H₂S environments and has lower mechanical strength (about 80 ksi tensile and 60 ksi yield). SS 410’s properties can degrade significantly between 400°C and 580°C, reducing its effectiveness in very harsh conditions.
Therefore, in environments characterized by high mechanical stress and moderate corrosion, 13Cr Steel typically outperforms SS 410, leading to a longer operational lifespan. However, the choice between the two should be based on the specific environmental and operational requirements of the application.
13Cr Steel generally offers superior corrosion resistance compared to SS 410 due to its higher chromium content (12-14%) and the presence of molybdenum (1.5-2.5%). Molybdenum enhances resistance to pitting and crevice corrosion, particularly in environments containing CO₂. On the other hand, SS 410, with its chromium content of 11.5-13.5% and minimal nickel, lacks molybdenum, making it less resistant to chloride-induced corrosion and unsuitable for high hydrogen sulfide (H₂S) environments. Therefore, 13Cr Steel is better suited for mildly corrosive conditions, especially in the oil and gas industry, while SS 410 is more appropriate for applications requiring moderate corrosion resistance in less aggressive environments.
