16 Common Types of Welding Defects, Causes, Remedies

Welding is a critical skill in construction and manufacturing, but even seasoned welders can encounter frustrating defects that compromise the integrity and appearance of their work. From unsightly porosity to dangerous cracks, understanding the root causes of these defects is essential for producing strong, reliable welds. Have you ever wondered why your welds sometimes suffer from issues like lack of fusion or penetration? These problems often stem from factors such as inadequate shielding gas, improper technique, or incomplete fusion. In this article, we will delve into 16 common welding defects, exploring their causes and providing practical remedies to help you achieve flawless results. Join us as we uncover the secrets to mastering welding techniques and improving the quality of your welds. Ready to enhance your welding skills and prevent those pesky defects? Let’s dive in!

Introduction to Welding Defects

Definition of Welding Defects

Welding defects are irregularities in a weld that can affect the strength, performance, and appearance of the welded component. These defects can occur in various forms and are critical to identify and address to ensure the reliability and safety of welded structures.

Importance of Identifying Welding Defects

These defects can compromise structural integrity, performance, and appearance, making it essential to identify and address them to ensure the reliability and safety of welded structures. Identifying welding defects is crucial for several reasons:

• Safety: Defective welds can lead to structural failures, posing significant safety risks in applications such as construction, shipbuilding, and aerospace.
• Performance: Welding defects can reduce the mechanical properties of a joint, affecting its ability to withstand loads and stresses.
• Aesthetics: In industries where appearance is important, such as automotive and consumer products, visible defects can be unacceptable.
• Cost: Detecting and correcting defects early can prevent costly rework, production delays, and material wastage.

Overview of Common Welding Defects

Welding defects can be categorized into three main types: dimensional imperfections, discontinuities, and surface defects.

Dimensional Imperfections

Dimensional imperfections occur when the weld does not meet the required geometric specifications. Common types include:

• Insufficient Filler Material: The weld bead does not have enough filler material, leading to a weaker joint.
• Undercut: A groove formed at the weld toe, reducing the thickness of the base metal and potentially leading to stress concentrations.
• Overlap: Excess weld metal extends beyond the weld toe without fusing properly with the base metal.
• Too Much Filler Material: Excessive filler material on the weld bead, which can increase the risk of cracking under stress.
• Burn Through: Excessive heat causes the weld to penetrate through the base material, creating holes.

Discontinuities

Discontinuities are interruptions in the weld that can weaken the joint. For example, if the weld metal does not bond properly with the base metal, it results in a weak joint, known as lack of fusion. Other types include:

• Lack of Fusion: The weld metal fails to properly bond with the base metal, resulting in weak joints.
• Lack of Penetration: The weld does not penetrate deeply enough into the base material, leading to insufficient bonding.
• Cracks: Fractures that can occur within or on the surface of the weld, potentially propagating and causing failure.

Surface Defects

Surface defects affect the external appearance and integrity of the weld. Common types include:

• Inclusions: Non-metallic materials, such as slag or oxides, trapped in the weld metal or at the bond between the weld metal and the base metal.
• Porosity: Air or gas bubbles trapped in the weld, creating voids that weaken the joint.
• Spatter: Small droplets of molten metal expelled during welding that do not form part of the weld, creating a rough and uneven surface.

Causes of Welding Defects

Poor Welding Techniques and Instructions

Improper welding techniques and instructions are a leading cause of welding defects. This encompasses several factors:

• Inadequate Preheating or Post-Heating: Failing to properly preheat or post-heat the material can result in thermal stresses that lead to cracking. Preheating helps to reduce the cooling rate of the weld, minimizing the risk of cracks.
• Incorrect Welding Speed, Current, or Voltage: Incorrect welding speed, current, or voltage can lead to issues like porosity, undercutting, or poor penetration. For instance, too high a welding speed can result in undercuts, while too low a speed can cause excessive heat input and burn-through.
• Improper Electrode Angle or Size: The angle and size of the electrode must be appropriate for the welding process. Incorrect angles can lead to poor fusion and overlaps, while improper sizes can affect the weld’s strength and integrity.

Material and Design Issues

The choice of materials and the design of the weld joint are critical factors that can contribute to welding defects.

• Incompatible Filler Metals, Shielding Gases, or High Carbon or Sulfur Content: Using incompatible filler metals, shielding gases, or base metals with high carbon or sulfur content can cause defects like porosity, slag inclusions, and cracking. These impurities can create brittle phases in the weld, leading to a higher likelihood of fractures.
• Design-Induced Stresses: Weld joint designs that induce high levels of restraint or do not accommodate thermal expansion can lead to distortion or cracking. Proper design should consider the mechanical and thermal stresses that will act on the weld.

Environmental and Equipment Factors

Environmental conditions and the state of welding equipment also play a significant role in the occurrence of welding defects.

• Contaminants: Contaminants such as dirt, oil, or rust on the base metal or filler material can result in defects like porosity and inclusions. Proper cleaning and preparation of the materials are essential to avoid these issues.
• Insufficient Shielding Gas: Shielding gases protect the weld pool from atmospheric contamination. Insufficient or improper shielding can lead to gas entrapment and porosity in the weld.
• Poor Equipment Maintenance: Worn or improperly maintained welding equipment can result in inconsistent weld quality. Regular maintenance and calibration of welding machines are necessary to ensure optimal performance.

Insufficient Training and Workmanship

The skill and experience of the welder are crucial in preventing welding defects.

• Lack of Proper Instruction: Welders lacking proper training and instruction are more prone to creating defective welds. Training should cover all aspects of the welding process, including material preparation, parameter selection, and post-weld treatment.
• Overwelding or Excessive Heat Input: Applying too much heat or welding excessively can cause defects such as burn-through, distortion, and weakened joints. Control of heat input and adherence to welding procedures are essential for high-quality welds.

Common Welding Defects

Porosity

Porosity occurs when gas becomes trapped in the weld pool as it solidifies, leading to the formation of small holes or voids within the weld metal. These gas pockets weaken the weld, reducing its ability to withstand stress and potentially causing failure.

Causes:

• Contaminants such as oil, grease, or moisture on the welding surface or filler material.
• Improper shielding gas coverage, allowing atmospheric gases to contaminate the weld pool.
• Excessive welding speed, which can trap gas bubbles before they can escape.

Prevention:

• Ensure all surfaces and materials are clean and free of contaminants before welding.
• Use the appropriate shielding gas and ensure it covers the weld pool adequately.
• Adjust welding speed to allow gas bubbles to escape before solidification.

Slag Inclusions

Slag inclusions are non-metallic particles trapped within the weld metal that act as stress concentrators, weakening the weld and making it more prone to cracking.

Causes:

• Inadequate cleaning between weld passes, leaving slag from previous passes.
• Incorrect welding parameters, such as low current or improper electrode angle.
• Using improper welding techniques, such as excessive weaving.

Prevention:

• Clean the weld area thoroughly between passes to remove slag.
• Use correct welding parameters and techniques as per the welding procedure specification (WPS).
• Maintain proper electrode angle and avoid excessive weaving.

Cracks

Cracks are fractures within or on the weld surface that can significantly weaken the welded joint.

Causes:

• High thermal stresses due to rapid cooling or improper preheating.
• Incompatible materials or filler metals.
• Excessive welding speed or improper joint design.

Prevention:

• Preheat the base material as needed and control the cooling rate.
• Use compatible materials and filler metals.
• Follow proper joint design and welding procedures to minimize residual stresses.

Undercut

Undercut is a groove melted into the base metal adjacent to the weld toe, which is not filled by the weld metal. This defect can act as a stress riser, reducing the base metal’s thickness and strength, which may lead to failure.

Causes:

• Excessive welding current or travel speed.
• Incorrect electrode angle or position.
• Improper welding technique.

Prevention:

• Adjust welding parameters to appropriate levels.
• Maintain the correct electrode angle and travel speed.
• Use proper welding techniques to ensure adequate fusion without excessive heat input.

Overlap

Overlap occurs when excess weld metal flows beyond the weld toe without fusing properly with the base metal. This defect can lead to weak joints and potential separation under stress.

Causes:

• Low welding speed, causing excessive deposition of weld metal.
• Incorrect electrode angle.
• Poor welding technique.

Prevention:

• Increase welding speed to reduce excess weld metal deposition.
• Maintain the correct electrode angle.
• Improve welding techniques to ensure proper fusion of weld metal with the base metal.

Incomplete Fusion

Incomplete fusion happens when the weld metal does not properly bond with the base metal or preceding weld beads. This defect creates weak spots in the weld joint, which can lead to failure under stress.

Causes:

• Insufficient heat input or incorrect welding parameters.
• Poor joint preparation or cleaning.
• Incorrect electrode angle or travel speed.

Prevention:

• Ensure adequate heat input and correct welding parameters.
• Properly prepare and clean the joint area.
• Maintain the correct electrode angle and travel speed to ensure complete fusion.

Spatter

Spatter consists of small metal droplets expelled from the weld pool that adhere to the surrounding surface. While primarily an aesthetic issue, excessive spatter can also affect the quality of the weld if it contaminates the weld pool.

Causes:

• High welding current or voltage.
• Incorrect arc length or electrode angle.
• Improper shielding gas flow.

Prevention:

• Use appropriate welding current and voltage settings.
• Maintain the correct arc length and electrode angle.
• Adjust shielding gas flow to the correct level.

Incomplete Penetration

Incomplete penetration happens when the weld doesn’t go through the full thickness of the base material, creating a weak joint.

Causes:

• Insufficient heat input or incorrect welding parameters.
• Poor joint design or preparation.
• Incorrect welding technique.

Prevention:

• Ensure adequate heat input and correct welding parameters.
• Use proper joint design and preparation techniques.
• Maintain correct welding technique to achieve full penetration.

Remedies for Welding Defects

Optimizing Welding Parameters

Optimizing welding parameters is crucial for preventing defects and ensuring high-quality welds. The key parameters to consider include welding speed, current, voltage, and electrode angle.

Adjusting Welding Speed

Achieving the right welding speed is crucial for good fusion and penetration, preventing defects such as undercut and overlap. A slow welding speed can lead to excessive heat input and burn-through, while a fast speed can cause incomplete fusion and undercut. Adjust the welding speed to ensure a balanced heat input and thorough penetration of the weld.

Setting Appropriate Current and Voltage

Welding current and voltage directly affect the heat input and stability of the weld pool. Incorrect settings can cause defects like porosity, spatter, and incomplete penetration, so it’s important to use the recommended current and voltage settings based on the welding procedure specification (WPS) for the specific material and process.

Electrode Angle and Position

Keeping the right electrode angle and position is key to proper fusion and avoiding defects like overlap and undercut. The electrode should be positioned at the right angle to allow for uniform distribution of heat and filler material.

Proper Joint Preparation

Proper joint preparation involves cleaning and preparing the base metal to ensure a defect-free weld.

Cleaning the Base Metal

Oil, grease, rust, and dirt can cause defects like porosity and slag inclusions. Thoroughly clean the base metal before welding using appropriate methods such as wire brushing, grinding, or chemical cleaning.

Ensuring Proper Fit-Up

Proper fit-up of the joint is essential to achieve complete fusion and penetration. Misalignment or gaps can lead to defects like incomplete fusion and underfill. Ensure the joint is correctly aligned and gaps are minimized before starting the welding process.

Improving Welding Techniques

Enhancing welding techniques can significantly reduce the occurrence of defects and improve the overall quality and durability of the welded structures. By employing advanced welding technologies, such as automated robotic welding systems, laser welding, and friction stir welding, manufacturers can achieve greater precision and consistency in their welds.

Controlled Heat Input

Controlling heat input is essential to prevent defects like cracking and burn-through. Use techniques such as preheating the base metal, controlling the cooling rate, and applying post-weld heat treatment to manage thermal stresses.

Consistent Welding Motion

A consistent welding motion helps to achieve uniform weld beads and avoid defects like spatter and undercut. Practice and maintain a steady hand and uniform motion to ensure consistent deposition of weld material.

Ensuring Adequate Shielding Gas

Adequate shielding gas coverage is vital to protect the weld pool from atmospheric contamination, which can lead to porosity and oxidation.

Selecting the Right Shielding Gas

Choose the appropriate shielding gas based on the welding process and material. For instance, use argon or helium for non-ferrous metals and a mix of argon and carbon dioxide for ferrous metals. Ensure the gas flow rate is sufficient to cover the weld pool.

Monitoring Gas Flow

Regularly monitor the gas flow rate to ensure consistent coverage. Adjust the flow rate as needed to avoid gas entrapment and contamination.

By implementing these remedies, welders can effectively reduce the occurrence of welding defects, resulting in stronger, more reliable welds.

Improving Welding Techniques for Better Quality

Importance of Technique in Preventing Defects

Implementing proper welding techniques is crucial for minimizing defects and ensuring high-quality welds. Effective techniques help control heat input, maintain structural integrity, and achieve consistent results.

Tips for Improving Welding Techniques

Proper Heat Control

Controlling the heat input during welding is essential for preventing defects such as warping, cracking, and burn-through. Use the following strategies:

• Preheating: Preheat the base metal to reduce thermal gradients and minimize the risk of cracking, especially for thicker materials.
• Heat Management: Apply heat evenly and adjust the welding current, voltage, and travel speed based on the material’s thickness and type to avoid excessive heat input.
• Cooling Rate: Control the cooling rate by using post-weld heat treatments or insulating blankets to prevent rapid cooling, which can lead to residual stresses and cracking.

Optimal Welding Speed

Maintaining an optimal welding speed ensures consistent penetration and reduces the likelihood of defects like undercutting and incomplete fusion.

• Consistent Speed: Maintain a steady welding speed to ensure uniform bead formation and adequate fusion.
• Adjustments: Adjust the speed based on the welding process, material type, and thickness to achieve the desired penetration and bead profile.

Electrode Selection and Handling

Choosing the right electrode size and type, as well as handling it correctly, is vital for high-quality welds:

• Electrode Type: Choose an electrode that matches the base material and welding process, like using a low-hydrogen electrode for high-strength steels to prevent cracking.
• Angle and Position: Maintain the correct electrode angle (typically 15-20 degrees) and position to ensure proper fusion and minimize defects like overlap and undercut.
• Handling: Store electrodes in a dry environment and handle them carefully to avoid contamination and moisture absorption, which can lead to porosity and inclusions.

Consistent Welding Motion

A consistent welding motion helps achieve uniform weld beads and reduces the occurrence of defects:

• Steady Hand: Practice keeping a steady hand to ensure even weld material deposition and avoid irregularities.
• Pattern: Use appropriate welding patterns, such as weaving or stringer beads, based on the joint configuration and desired bead profile.

Equipment and Tools to Enhance Welding Quality

Using the right equipment and maintaining it properly can significantly improve welding quality:

Regular Maintenance

Ensure that welding equipment is well-maintained to prevent inconsistencies and defects:

• Inspection: Regularly inspect welding machines, torches, and cables for wear and damage.
• Calibration: Calibrate welding machines to ensure accurate current, voltage, and gas flow settings.

Proper Settings

Set welding parameters correctly to achieve the desired results and minimize defects:

• Voltage and Current: Adjust voltage and current settings based on the material type, thickness, and welding process.
• Shielding Gas Flow: Ensure adequate shielding gas flow to protect the weld pool from atmospheric contamination, which can lead to porosity and oxidation.

Advanced Welding Tools

Utilize advanced welding tools and technologies, like welding simulators for training and practice, to enhance weld quality and improve skills.

• Automated Welding Systems: Consider automated or robotic welding systems for consistent and high-quality welds, especially in repetitive or complex applications.

Frequently Asked Questions

Below are answers to some frequently asked questions:

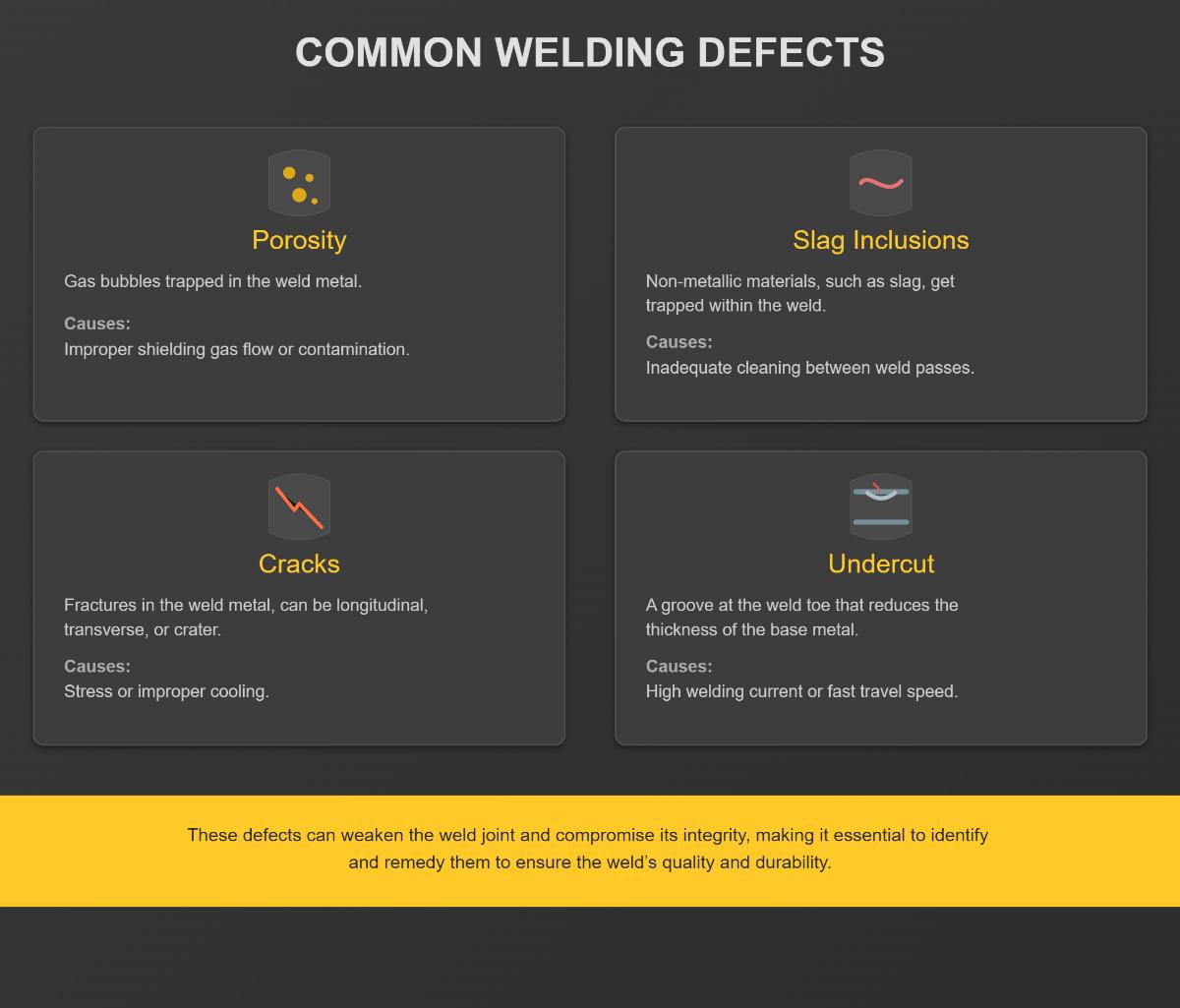

What are the most common types of welding defects?

The most common types of welding defects include porosity, slag inclusions, cracks, and undercut.

Porosity occurs when gas bubbles become trapped in the weld metal, often due to improper shielding gas flow or contamination. Slag inclusions happen when non-metallic materials, such as slag, get trapped within the weld, typically resulting from inadequate cleaning between weld passes. Cracks, which can be longitudinal, transverse, or crater, are fractures in the weld metal caused by stress or improper cooling. Undercut is a groove at the weld toe that reduces the thickness of the base metal, generally caused by high welding current or fast travel speed.

These defects can weaken the weld joint and compromise its integrity, making it essential to identify and remedy them to ensure the weld’s quality and durability.

How can I prevent or fix common welding defects?

To prevent or fix common welding defects, several strategies can be employed:

1. Optimizing Welding Parameters: Adjust heat input, travel speed, and current settings to ensure proper fusion and minimize defects like porosity and undercut.
2. Proper Joint Preparation: Clean and dry surfaces before welding to avoid contamination that causes defects like porosity and inclusions.
3. Improving Welding Techniques: Use correct angles, consistent travel speeds, and appropriate heat inputs. For instance, avoiding excessive heat can prevent undercut and overlap.
4. Ensuring Adequate Shielding Gas: Use the correct type and flow rate of shielding gas to protect the weld pool from atmospheric contamination, thereby preventing porosity and spatter.
5. Preheating and Post-Weld Treatments: Preheat materials to reduce thermal stress and control cooling rates to avoid cracks and distortion.
6. Equipment and Materials: Choose compatible electrodes, filler materials, and equipment to match the welding application, preventing issues like slag inclusions and incomplete fusion.

What causes welding defects like lack of fusion or penetration?

Welding defects like lack of fusion and lack of penetration can compromise the integrity of welded structures. Lack of fusion occurs when the weld metal does not adequately bond with the base metal. This defect can result from insufficient heat input, poor joint preparation, or incorrect welding techniques, such as using the wrong electrode type, incorrect torch angle, or improper travel speed.

Lack of penetration happens when the weld fails to reach the necessary depth, often due to incorrect joint geometry or inadequate welding parameters. Specifically, using too low a current or too high a welding speed can prevent proper penetration.

Preventing these defects involves ensuring proper joint preparation, using appropriate welding methods and parameters, and maintaining correct torch angles and travel speeds. Proper material selection and cleanliness are also crucial in minimizing welding defects.

What welding techniques can help prevent defects?

Preventing welding defects involves a combination of proper technique, material preparation, and equipment setup. Key welding techniques that help avoid common defects include:

• Proper Material Preparation: Clean the surfaces of contaminants like oil, rust, or moisture to prevent porosity and slag inclusions. Preheat materials if necessary to reduce thermal stress and avoid cracking.
• Optimal Welding Parameters: Adjust current and voltage settings to suit the specific welding process and materials, ensuring proper penetration without excessive heat. Maintain an appropriate travel speed to fill the joint adequately and prevent defects like undercut and burn-through.
• Correct Electrode Angle and Technique: Use a 15-30 degree electrode angle for good penetration and avoid cold laps, especially in SMAW processes. Employ weaving techniques for butt joints and push techniques for lap joints to ensure full penetration and avoid slag entrapment.
• Shielding Gas Management: Ensure the proper flow of shielding gas to prevent porosity and maintain weld quality.
• Slag Removal: Thoroughly remove slag between passes to prevent slag inclusions and ensure a clean weld surface.
• Heat Input Control: Control heat input by adjusting amperage and voltage to prevent overheating, which can cause burn-through and excessive spatter.
• Monitoring and Adjustment: Use tools like welding cameras to monitor the welding process in real-time, allowing for immediate adjustments to prevent defects.
• Proper Cooling: Allow adequate cooling time to prevent rapid contraction and cracking.

Implementing these techniques can significantly reduce welding defects, leading to stronger and more reliable welds.

Which equipment is best for minimizing welding defects?

To minimize welding defects, it is essential to use high-quality equipment tailored to the specific welding process. Precision TIG welding equipment is highly recommended for intricate welding tasks, as it allows for better control and uses high-quality shielding gases like argon or helium to prevent porosity and ensure clean welds. Additionally, proper shielding gas systems with optimized flow rates and pressures are crucial to maintain a clean weld environment, preventing defects like tungsten contamination and porosity.

Using high-quality welding electrodes, especially low-hydrogen variants, can significantly reduce the risk of cracking, particularly in ferrous metals. Maintaining clean, sharp electrodes is also vital for preventing tungsten contamination. Pre-heating equipment helps ensure uniform thermal expansion, reducing distortion and preventing thermal stress cracks. Furthermore, CNC cutting machinery provides precise cuts, minimizing defects related to improper fit-up and alignment.

How does shielding gas affect welding quality?

Shielding gas plays a crucial role in welding quality by protecting the weld area from atmospheric gases like oxygen, nitrogen, and water vapor, which can cause defects such as oxidation and porosity. This protection ensures that the molten metal solidifies without unwanted interactions, resulting in superior weld quality. Inert gases, such as argon, provide a stable arc, essential for consistent and high-quality welds, maintaining a controlled weld pool and reducing defects like spatter. The choice of shielding gas also influences the mechanical properties of the weld, such as tensile strength and ductility, and affects the weld bead’s appearance and penetration depth. Proper selection and optimization of shielding gas are critical to achieving optimal weld quality and minimizing common welding defects.
