Comprehensive Guide to AISI 303 Stainless Steel Properties
When it comes to selecting the right stainless steel for your engineering projects, understanding the specific properties of each grade…
When it comes to choosing the right stainless steel for your project, the decision often narrows down to two popular grades: 303 and 316. Each offers distinct advantages, but how do you determine which is better suited for your needs? Whether you’re looking for the best option for marine applications or trying to understand the key differences in their chemical compositions, this comparative guide will provide the insights you need. We’ll delve into the corrosion resistance, machinability, and real-world applications of both 303 and 316 stainless steel, helping you make an informed choice. So, which one will come out on top for your specific requirements? Let’s find out.
303 stainless steel is an austenitic grade known for its excellent machinability, achieved through the addition of sulfur and phosphorus. The primary elements in its composition are:
Sulfur in 303 stainless steel forms manganese sulfide inclusions, which act as chip breakers and improve machinability. However, the presence of sulfur reduces the corrosion resistance compared to other austenitic stainless steels.
316 stainless steel, also an austenitic grade, is distinguished by its superior corrosion resistance, especially in chloride environments. The key elements in 316 stainless steel include:
Molybdenum in 316 stainless steel greatly improves its resistance to pitting and crevice corrosion, especially in chloride environments. The lower sulfur content in 316 stainless steel enhances its corrosion resistance compared to 303.
Both 303 and 316 stainless steels contain high levels of chromium, essential for forming a passive layer that resists corrosion. 303 stainless steel has a slightly higher chromium content (17-19%) compared to 316 stainless steel (16-18%). Nickel is another crucial element that provides the austenitic structure and enhances corrosion resistance. 316 stainless steel contains more nickel (10-14%) compared to 303 stainless steel (8-10%), contributing to its better corrosion resistance, especially in harsh environments.
The most notable differences between the two grades are in their sulfur and molybdenum content:
The differences in chemical composition between 303 and 316 stainless steel have practical implications for their use:
Knowing the chemical composition of these grades helps engineers and fabricators choose the right material for their needs.
The corrosion resistance of stainless steel largely depends on its chemical composition. Key elements like chromium, nickel, sulfur, and molybdenum determine how well the steel resists corrosion.
303 stainless steel, with 8-10% nickel and 0.15-0.35% sulfur, is more machinable due to the sulfur but is less resistant to corrosion, especially in chloride-rich environments.
316 stainless steel includes 10-14% nickel and 2-3% molybdenum. Molybdenum greatly improves its resistance to pitting and crevice corrosion, particularly in salty environments. The higher nickel content also enhances its
The suitability of 303 and 316 stainless steels varies greatly depending on the environmental conditions they are exposed to.
303 stainless steel is suitable for applications in mild environments where its excellent machinability is a significant advantage. However, it is not ideal for conditions involving prolonged exposure to corrosive substances like saltwater or acidic solutions.
316 stainless steel is better suited for harsh environments, including marine and coastal areas, due to its superior resistance to chlorides and industrial solvents. Its enhanced protection against pitting and crevice corrosion makes it a preferred choice for applications in highly corrosive settings.
The differences in corrosion resistance between 303 and 316 stainless steel directly influence their practical applications.
303 stainless steel is ideal for making screws, nuts, bushings, and bearings due to its excellent machinability. These applications typically involve environments where the risk of severe corrosion is minimal.
316 stainless steel is often utilized in marine hardware, chemical processing equipment, and medical devices, where high corrosion resistance is critical. Its ability to withstand aggressive environments makes it suitable for use in coastal infrastructure and equipment exposed to seawater.
Machinability refers to how easily a material can be cut, shaped, or finished using machine tools. Factors like hardness, strength, and thermal properties affect machinability. For stainless steels, particularly 303 and 316 grades, machinability is crucial for balancing production efficiency, tool life, and product quality.
303 stainless steel is designed for enhanced machinability. The addition of sulfur and phosphorus creates manganese sulfide inclusions, acting as chip breakers. These inclusions improve chip formation, reduce tool wear, and allow for faster cutting speeds, making 303 stainless steel ideal for high-volume production of precision parts such as fasteners, bushings, and bearings.
However, the presence of sulfur in 303 stainless steel can negatively impact its weldability and corrosion resistance, making it less suitable for certain applications.
316 stainless steel is known for its superior corrosion resistance, which comes at the cost of reduced machinability. Without sulfur and with added molybdenum, 316 stainless steel is harder and more prone to work hardening. This makes machining 316 stainless steel more challenging and can lead to higher tool wear and longer machining times.
Despite these challenges, 316 stainless steel offers excellent weldability and maintains its mechanical properties after welding, making it suitable for critical applications in harsh environments.
| Property | 303 Stainless Steel | 316 Stainless Steel |
|---|---|---|
| Machinability | Excellent | Challenging |
| Tool Wear | Low | High |
| Production Cost | Lower | Higher |
| Weldability | Compromised by sulfur content | Superior due to low carbon content |
The machinability of 303 stainless steel makes it an attractive choice for industries that require high-volume production of components with precise dimensions. It is frequently used in the automotive, aerospace, and electronics sectors. However, its compromised weldability means it is less suited for applications where welding is necessary.
Despite its machining challenges, 316 stainless steel is favored for its superior corrosion resistance and weldability. Its ability to withstand harsh environments and maintain mechanical integrity post-welding makes it ideal for marine, chemical, and pharmaceutical industries.
The choice between 303 and 316 stainless steel should be guided by the specific requirements of the project, balancing factors such as machinability, production efficiency, and environmental conditions.
303 stainless steel is highly valued for its exceptional machinability, making it ideal for industrial applications requiring complex and precise machining.
303 stainless steel is commonly used for precision components like screws, nuts, bolts, and bushings due to its ability to be machined quickly and accurately, essential for the automotive and aerospace industries.
Due to its high machinability, 303 stainless steel is ideal for producing a variety of fittings and fasteners, which are crucial for the proper functioning of machinery and equipment in various industries.
316 stainless steel, known for its resistance to chlorides and seawater, is widely used in marine applications like boat fittings, marine hardware, and coastal architecture due to its durability in harsh marine conditions.
316 stainless steel is extensively used in the chemical processing industry. Its resistance to a wide range of chemicals, including acids, alkalis, and chlorides, makes it ideal for constructing tanks, pipes, and other equipment used in chemical processing plants. The material’s durability ensures that it can handle the aggressive chemicals and high temperatures often encountered in these settings.
For applications where extensive machining is necessary, such as in the production of detailed mechanical components, 303 stainless steel is preferred. Its machinability allows for faster production times and lower tool wear, making it cost-effective for high-volume production runs. However, its lower corrosion resistance limits its use in harsh environments.
In contrast, 316 stainless steel is chosen for environments where corrosion resistance is paramount. Its ability to resist pitting and crevice corrosion, especially in chloride-rich environments, makes it suitable for marine and chemical applications. Although it is more challenging to machine, its durability and resistance to harsh chemicals justify its use in these demanding applications.
In the medical field, 316 stainless steel is used for surgical instruments and implants because it is biocompatible and resistant to corrosion from bodily fluids, making it a safe and reliable choice for medical devices.
Both 303 and 316 stainless steels are used in the food and beverage industry, but for different reasons. 316 stainless steel is preferred for equipment that comes into direct contact with food and beverages, due to its superior resistance to corrosion and ease of cleaning. On the other hand, 303 stainless steel may be used in parts of machinery that require extensive machining but are not directly exposed to harsh cleaning agents or food products.
The choice between 303 and 316 stainless steel depends on the specific requirements of the application. For environments demanding high machinability and precision, 303 stainless steel is advantageous. Conversely, for applications exposed to harsh chemicals or marine environments, 316 stainless steel offers the necessary corrosion resistance and durability. Each type of stainless steel serves distinct roles, ensuring that the most suitable material is used for the intended application.
316 stainless steel is extensively used in marine applications due to its superior resistance to chloride-induced corrosion. Components like boat fittings, cleats, and deck hardware benefit from 316 stainless steel’s resistance to the harsh, salty sea environment. The presence of molybdenum in 316 stainless steel provides enhanced protection against pitting and crevice corrosion, which are common issues in marine settings.
For coastal infrastructure, 316 stainless steel is preferred for constructing handrails, balustrades, and structural supports. Its robustness in resisting corrosion from salt-laden air and seawater ensures longevity and minimal maintenance, making it an ideal choice for buildings and structures near the coast.
303 stainless steel is favored in automotive and aerospace sectors for its excellent machinability, allowing for the production of precision parts like screws, nuts, and sensor housings with tight tolerances. The sulfur content in 303 stainless steel reduces tool wear and enhances productivity during the machining process.
In aerospace applications, 303 stainless steel is used for components in fuel systems where high machinability is crucial. Parts like fuel injectors and fittings benefit from the material’s ability to be easily machined into intricate shapes while maintaining adequate corrosion resistance for less aggressive environments.
316 stainless steel is the material of choice for chemical processing equipment, including storage tanks, reactors, and pressure vessels. Its resistance to a wide range of chemicals, including acids and alkalis, ensures that the equipment remains durable and reliable under harsh chemical exposure. Its resistance to high-temperature corrosion makes it ideal for demanding applications.
In chemical plants, 316 stainless steel is used for piping systems that transport corrosive chemicals. The alloy’s robustness against both internal and external corrosion ensures the integrity and safety of the pipeline network, reducing the risk of leaks and maintenance downtime.
303 stainless steel is used for surgical instruments such as forceps and scalpels due to its machinability, allowing for the precise manufacturing of intricate shapes. Although it offers good corrosion resistance, it’s usually used for instruments that don’t need frequent sterilization.
316 stainless steel is preferred for medical implants and prosthetics that require high corrosion resistance and biocompatibility. The alloy’s ability to withstand the corrosive environment of the human body and its resistance to rigorous sterilization processes make it a reliable material for long-term medical applications.
316 stainless steel is extensively used in the food and beverage industry for processing equipment such as mixers, conveyors, and storage tanks. Its resistance to food acids and cleaning chemicals keeps the equipment hygienic and durable, preventing contamination and ensuring health compliance.
303 stainless steel is used for components in food processing machinery that require extensive machining but are not directly exposed to harsh cleaning agents or food products. Its machinability allows for the efficient production of detailed parts, such as gears and shafts, essential for the smooth operation of the machinery.
Corrosion resistance is a key factor when comparing the cost-effectiveness of 303 and 316 stainless steel.
Machinability is another crucial aspect to consider in the cost-benefit analysis.
The initial material cost is a significant factor in the cost-benefit analysis.
Mechanical properties also influence the cost-benefit analysis.
The specific uses of each type of stainless steel further illustrate the cost-benefit considerations.
Below are answers to some frequently asked questions:

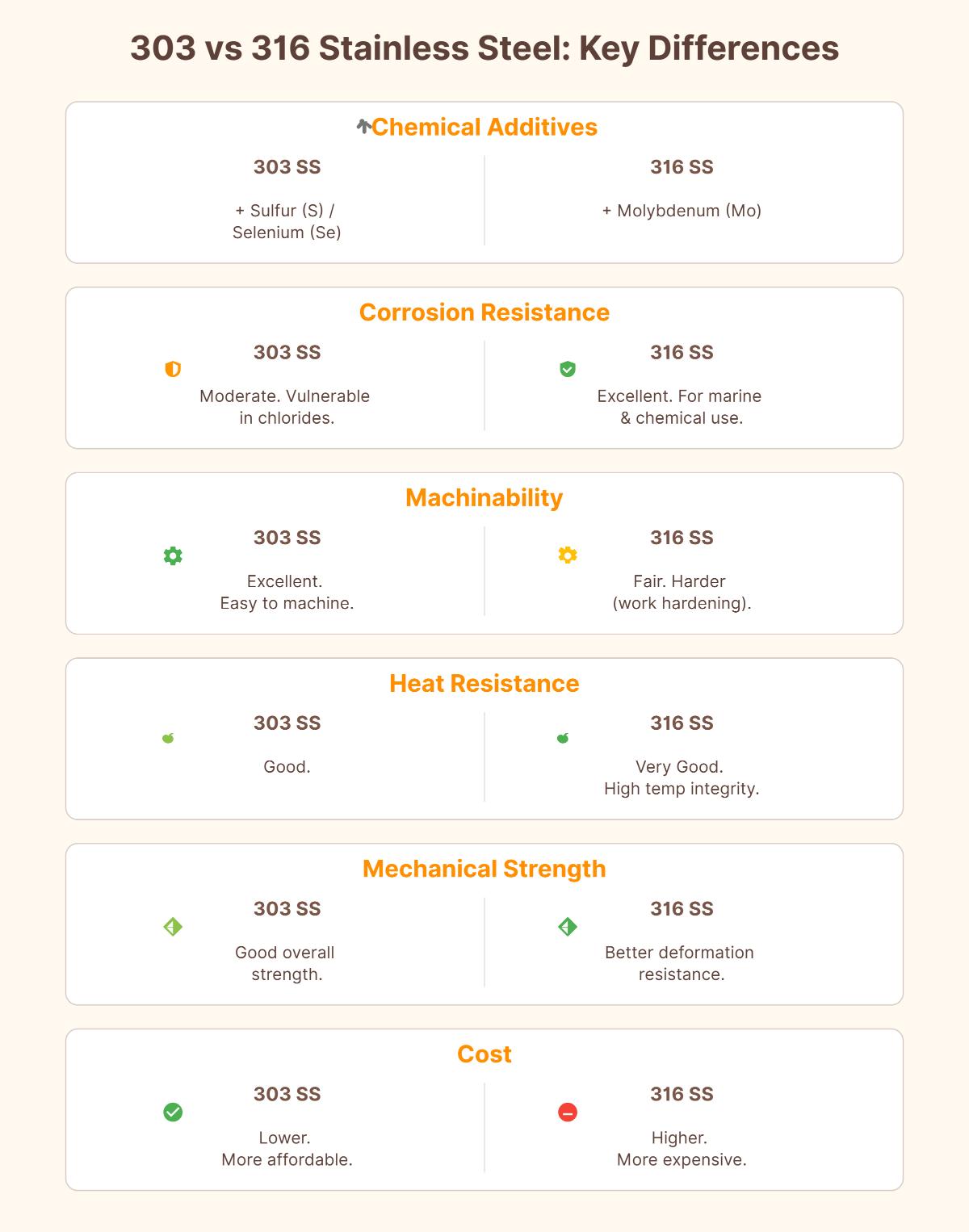

The key differences between 303 and 316 stainless steel lie in their chemical composition, corrosion resistance, machinability, heat resistance, mechanical properties, and cost.
303 stainless steel contains sulfur or selenium, which enhances machinability but slightly reduces corrosion resistance, making it less suitable for harsh environments. It is more susceptible to pitting and crevice corrosion in chloride-rich environments. Conversely, 316 stainless steel includes molybdenum, significantly improving its resistance to corrosion, particularly in marine and chemical processing applications.
In terms of machinability, 303 stainless steel is designed for ease of machining, making it ideal for precision parts. However, 316 stainless steel is more challenging to machine due to its molybdenum content, causing work hardening.
For heat resistance, 316 stainless steel can withstand higher temperatures, maintaining its structural integrity in continuous use, unlike 303. Mechanically, 303 offers good strength, but 316 provides better resistance to deformation under load.
Cost-wise, 303 is generally more affordable and widely available, while 316 is more expensive due to its enhanced corrosion resistance.
For marine applications, 316 stainless steel is superior to 303 stainless steel due to its enhanced corrosion resistance. The presence of molybdenum in 316 significantly improves its resistance to pitting and crevice corrosion in chloride-rich environments like seawater. This makes 316 ideal for marine hardware, propeller shafts, and dock structures, where exposure to harsh conditions is constant. While 303 stainless steel offers better machinability and lower cost, its reduced corrosion resistance makes it less suitable for marine use. Therefore, for long-term durability and performance in marine environments, 316 stainless steel is the preferred choice.
When comparing the costs of 303 and 316 stainless steel, 303 stainless steel is generally more affordable. This is due to its simpler composition, which includes sulfur or selenium to enhance machinability, making it suitable for applications where high corrosion resistance is not critical. On the other hand, 316 stainless steel is more expensive because it contains molybdenum, which significantly enhances its corrosion resistance and heat tolerance. This increased cost is justified by its superior performance in harsh environments, making it ideal for marine, chemical processing, and pharmaceutical industries.
When choosing between 303 and 316 stainless steel, several factors should be considered:
Industries have distinct preferences between 303 and 316 stainless steel based on their unique requirements.
303 stainless steel is highly favored in the aerospace and automotive industries due to its excellent machinability. It is commonly used for manufacturing precision components like fittings, valves, and fasteners, where efficient production is crucial.
On the other hand, 316 stainless steel is the material of choice for marine and coastal environments, chemical and pharmaceutical industries, and the medical sector. Its superior corrosion resistance, especially against chlorides and industrial chemicals, makes it ideal for marine hardware, chemical processing equipment, and medical devices that require exposure to harsh conditions.
In general manufacturing, 303 stainless steel is preferred for high machinability applications such as nuts, bolts, and screws, while 316 stainless steel is chosen for its strength and corrosion resistance despite the machining challenges.
The maintenance requirements for 303 and 316 stainless steel primarily differ due to their varying levels of corrosion resistance. 303 stainless steel, which contains sulfur to improve machinability, is more susceptible to corrosion, especially in environments with high moisture and chlorides. Regular cleaning with soap or mild detergent and warm water is generally sufficient for 303 stainless steel, but in more corrosive settings, more frequent cleaning is necessary to prevent pitting and crevice corrosion.
In contrast, 316 stainless steel, enriched with molybdenum, offers superior corrosion resistance and is ideal for harsh environments, including marine applications. It requires regular cleaning every 3-6 months with mild soap and water to maintain its appearance and prevent oxidation. In coastal environments, where chloride concentrations are high, more frequent cleaning is crucial, and using a marine-grade polish can help mitigate tea staining and surface rust.
Overall, while 303 stainless steel requires less maintenance in mild environments, 316 stainless steel demands more frequent upkeep in harsh, chloride-rich environments to maintain its protective surface layer and longevity.
