SS 316L vs CF3M Steel: Key Differences and Applications
When it comes to selecting the right material for your industrial applications, the choice between SS 316L and CF3M steel…
When it comes to choosing the right stainless steel for your project, the stakes are high—especially in critical fields like medical, marine, and industrial applications. Two popular choices, 316L and 316LVM stainless steel, often come under scrutiny for their unique properties and performance capabilities. But what really sets them apart? From differences in corrosion resistance to biocompatibility, understanding these distinctions can be crucial for making an informed decision.
Is one better suited for medical applications? How does the manufacturing process influence the properties of 316LVM? This article dives into these questions and more, providing a comprehensive comparison to help you determine which stainless steel meets your specific needs. Let’s explore the key differences and discover which alloy is the best fit for your next project.
Both 316L and 316LVM stainless steels are part of the austenitic family, known for their excellent corrosion resistance and mechanical properties. Despite their similarities, their chemical composition differences significantly affect their properties and applications.
316L stainless steel is a low-carbon variant of 316 stainless steel, with a maximum carbon content of 0.03%. This low carbon content reduces carbide precipitation during welding, enhancing resistance to intergranular corrosion. The primary alloying elements in 316L include:
The presence of molybdenum improves the alloy’s resistance to pitting and crevice corrosion, particularly in chloride environments.
316LVM (Vacuum Melted) stainless steel is a purer, higher-performance version of 316L. The chemical composition of 316LVM includes:
Both 316L and 316LVM have very low carbon content (less than 0.03%), which helps prevent carbide precipitation. However, 316LVM undergoes additional vacuum melting processes, resulting in a cleaner microstructure.
While both alloys contain similar amounts of chromium, nickel, and molybdenum, 316LVM includes vanadium, which enhances its strength and wear resistance without compromising ductility. The vanadium addition is a key differentiator, particularly for applications requiring higher mechanical performance.
316LVM is produced using Vacuum Induction Melting (VIM) followed by Vacuum Arc Remelting (VAR) or Electro-Slag Remelting (ESR). These processes significantly reduce inclusions and improve alloy cleanliness. This high level of purity makes 316LVM particularly suitable for medical and high-precision applications.
The differences in chemical composition between 316L and 316LVM result in varied mechanical properties, corrosion resistance, and biocompatibility. The presence of vanadium in 316LVM enhances its strength and resistance to pitting and crevice corrosion. Additionally, the vacuum melting processes ensure higher purity, making 316LVM more suitable for critical applications, especially in the medical field where biocompatibility is paramount.
316L and 316LVM stainless steels both exhibit excellent corrosion resistance, but their performance can differ due to their composition and manufacturing processes.
316L stainless steel is highly resistant to corrosion in various environments. Its low carbon content helps minimize carbide precipitation, which can occur during welding and lead to intergranular corrosion. The presence of molybdenum enhances its resistance to pitting and crevice corrosion, particularly in chloride-rich environments. This makes 316L suitable for applications where exposure to seawater or aggressive chemicals is expected.
316LVM, produced through advanced vacuum melting techniques, offers superior corrosion resistance compared to 316L due to significantly reduced impurities and non-metallic inclusions. The vacuum melting process results in a more homogeneous and clean microstructure, which enhances the material’s resistance to pitting and crevice corrosion. Additionally, the potential inclusion of elements like vanadium further boosts its corrosion resistance in harsh environments.
Biocompatibility is a critical property for materials used in medical applications, and both 316L and 316LVM have their strengths in this area.
316L stainless steel is generally biocompatible and can be used in medical devices and implants. However, its lower purity compared to 316LVM means it may need additional processing to meet strict medical standards. The presence of impurities and inclusions can be a concern in sensitive medical applications, potentially leading to adverse biological reactions.
316LVM is highly regarded for its excellent biocompatibility. The vacuum melting processes used in its production result in a highly pure material with minimal impurities. This high purity and fewer inclusions make 316LVM ideal for medical implants and surgical instruments. It meets stringent medical standards, such as ASTM F138, ensuring its safety and effectiveness in the human body.
Tensile strength is a measure of a material’s ability to withstand tension and is an important factor in many applications.
316L stainless steel offers good tensile strength, making it suitable for a wide range of applications. Its combination of strength, ductility, and toughness allows it to perform well under mechanical stress. However, its tensile strength is not as high as that of 316LVM, which can limit its use in more demanding applications.
316LVM exhibits higher tensile strength compared to 316L, primarily due to the addition of elements like vanadium and nitrogen during its production. The vacuum melting process also contributes to its enhanced mechanical properties by producing a cleaner, more homogenous microstructure. This increased tensile strength makes 316LVM suitable for high-performance applications where superior mechanical properties are required.
Durability is a crucial performance characteristic when comparing 316L and 316LVM stainless steels. Both materials exhibit excellent durability due to their austenitic structure, which provides high strength and toughness. However, the differences in their composition and manufacturing processes result in varying degrees of durability.
316L stainless steel is known for its outstanding durability in a wide range of environments. The low carbon content reduces the risk of intergranular corrosion, especially after welding, thereby extending its lifespan in harsh environments. The presence of molybdenum further improves its resistance to pitting and crevice corrosion, making it suitable for applications in marine and chemical environments.
316LVM stainless steel, being a purer form of 316L, offers enhanced durability. Advanced vacuum melting processes, like Vacuum Arc Remelting or Electro-Slag Remelting, result in fewer impurities and inclusions. This high level of purity contributes to its superior resistance to wear and fatigue, making 316LVM ideal for high-stress applications, such as medical implants and surgical instruments. Additionally, the inclusion of vanadium in 316LVM enhances its strength and wear resistance without compromising its ductility.
Load-bearing capacity is another important factor to consider when evaluating the performance characteristics of 316L and 316LVM stainless steels.
316L stainless steel offers good load-bearing capacity due to its balanced combination of strength and ductility. It can withstand significant mechanical stress without deforming, making it suitable for structural applications in construction, marine, and industrial settings. However, its load-bearing capacity falls short compared to 316LVM, making it less suitable for more demanding applications.
316LVM stainless steel exhibits a higher load-bearing capacity compared to 316L, primarily due to the addition of vanadium and nitrogen. These elements enhance the material’s yield and tensile strength, allowing it to bear higher loads without failure. These enhanced mechanical properties make 316LVM ideal for applications demanding high precision and reliability, such as aerospace and medical devices.
Fatigue resistance is essential for materials subjected to cyclic loading, where the material is repeatedly stressed over time.
316L stainless steel demonstrates good fatigue resistance, attributed to its austenitic structure and balanced mechanical properties. It can endure cyclic loading without significant degradation, making it suitable for components subjected to repeated stress, such as in marine and industrial applications.
316LVM stainless steel offers superior fatigue resistance compared to 316L. The vacuum melting processes used in its production result in a cleaner microstructure with fewer inclusions, which are often the initiation sites for fatigue cracks. The high purity and improved mechanical properties of 316LVM make it perfect for critical applications needing long-term reliability under cyclic loading, such as medical implants and high-performance mechanical components.
Wear resistance is crucial for materials exposed to abrasive conditions or friction.
316L stainless steel provides good wear resistance, suitable for many industrial and marine applications. Its composition, including chromium and molybdenum, contributes to its ability to withstand abrasive environments. However, its wear resistance is not as high as that of 316LVM, which can be a limitation in more demanding applications.
316LVM stainless steel exhibits enhanced wear resistance due to its higher purity and the addition of vanadium. The advanced manufacturing processes result in a more uniform microstructure, reducing the likelihood of wear and tear. This makes 316LVM particularly suitable for applications where high wear resistance is essential, such as in surgical instruments and high-precision components.
316L stainless steel is widely used in the medical industry because it resists corrosion and is biocompatible. It is commonly used for surgical instruments, orthopedic implants, and medical devices, as the low carbon content minimizes the risk of carbide precipitation during welding, ensuring the integrity and longevity of medical components. This makes it suitable for applications where the material will come into direct contact with bodily fluids and tissues.
316LVM stainless steel is preferred for more demanding medical applications due to its superior purity and biocompatibility. The vacuum melting process produces a cleaner microstructure with fewer impurities, which is crucial for medical implants. 316LVM meets stringent medical standards such as ASTM F138, making it ideal for cardiovascular stents, orthopedic screws, and other high-precision medical devices. Its enhanced corrosion resistance and mechanical properties ensure reliability and performance in the human body.
316L stainless steel is popular in marine environments because it resists saltwater corrosion. It is commonly found in the construction of ship components, such as hulls, railings, and fittings. The presence of molybdenum in 316L enhances its resistance to pitting and crevice corrosion, which are prevalent in chloride-rich environments. This makes 316L a reliable choice for various marine applications where exposure to seawater is a constant factor.
Although 316LVM is not as commonly used in marine applications as 316L, its enhanced corrosion resistance and higher purity can be advantageous in specialized marine components. The addition of vanadium and nitrogen in 316LVM provides additional strength and resistance to corrosion, potentially benefiting applications that require higher performance and durability under harsh marine conditions.
316L stainless steel is extensively used in various industrial applications due to its excellent corrosion resistance and mechanical properties. It is commonly employed in the manufacturing of chemical processing equipment, pharmaceutical reactors, and food processing machinery. Its low carbon content ensures good weldability and resistance to intergranular corrosion, making it ideal for environments with aggressive chemicals and high temperatures.
316LVM stainless steel finds applications in industries that demand higher purity and mechanical strength. It is particularly useful in the oil and gas industry for manufacturing structural components and fasteners that require high strength and corrosion resistance. The vacuum melting processes used to produce 316LVM result in fewer inclusions, enhancing its reliability and performance in critical industrial applications. Additionally, its superior wear resistance makes it suitable for high-stress environments where durability is paramount.
316L stainless steel is primarily produced using the Argon-Oxygen Decarburization (AOD) process. In this method, a mixture of argon and oxygen is injected into the molten steel to remove impurities and adjust the carbon content.
The key steps in the AOD process include melting the raw materials in an electric arc furnace, followed by injecting argon and oxygen to lower the carbon content and remove impurities. Next, the refining stage adjusts the chemical composition by adding alloying elements such as chromium, nickel, and molybdenum. The molten steel is then cast into molds to form ingots or slabs, which are subsequently hot rolled to reduce their thickness. The AOD process produces high-quality 316L stainless steel with excellent corrosion resistance and mechanical properties for various applications.
316LVM stainless steel undergoes more advanced and stringent manufacturing processes compared to 316L. The primary methods include Vacuum Induction Melting (VIM) followed by secondary processes like Vacuum Arc Remelting (VAR) or Electro-Slag Remelting (ESR). These processes significantly enhance the purity and micro-cleanliness of the steel, making it ideal for critical applications.
VIM involves melting the raw materials in a vacuum environment using electromagnetic induction. This process minimizes the presence of gases and impurities, resulting in a cleaner and more homogeneous alloy.
Key steps in VIM include creating a vacuum environment to reduce gas absorption and contamination, using induction heating to melt the raw materials, adding alloying elements to achieve the desired chemical composition, and casting the molten steel into molds to form ingots or billets.
To further enhance the purity and properties of 316LVM, secondary remelting processes like VAR or ESR are employed:
The differences in manufacturing processes between 316L and 316LVM have a significant impact on their properties and suitability for various applications.
316LVM has higher purity due to the vacuum melting and remelting processes, which reduce impurities and inclusions. The advanced manufacturing of 316LVM enhances mechanical properties like higher tensile strength and improved fatigue resistance, and its increased purity offers superior corrosion resistance in harsh environments. The stringent manufacturing processes ensure that 316LVM meets high biocompatibility standards, making it ideal for medical implants and devices.
These advanced manufacturing techniques make 316LVM a preferred choice for applications that demand high performance, reliability, and purity, such as medical implants, surgical instruments, and high-precision components. In contrast, 316L remains widely used in less demanding applications due to its excellent balance of cost, performance, and corrosion resistance.
316L stainless steel is known for its strong corrosion resistance, especially in salty or chloride-rich environments. This makes it ideal for marine and chemical processing industries, as its low carbon content reduces the risk of carbide precipitation and enhances resistance to intergranular corrosion.
316LVM stainless steel, produced through vacuum melting, offers even better corrosion resistance thanks to its high purity and refined microstructure. The vacuum melting process significantly reduces impurities and non-metallic inclusions, resulting in a cleaner alloy. This high level of purity is especially beneficial in environments requiring strict corrosion control, such as medical implants and high-precision components.
316L stainless steel is biocompatible and used in various medical devices, though it may need extra processing to meet strict standards for implants. It is often used in less demanding medical devices but is not the preferred choice for critical applications like implants.
In contrast, 316LVM stainless steel is highly biocompatible and specifically designed for medical applications. Its high purity, achieved through vacuum melting processes, significantly reduces impurities and inclusions, making it ideal for surgical and dental implants. 316LVM meets rigorous biocompatibility standards such as ASTM F138, ensuring its safety and effectiveness for use within the human body.
316L stainless steel has good strength, ductility, and weldability, essential for industrial applications like food processing and construction, but it may not match the higher strength and formability of 316LVM.
316LVM stainless steel shows enhanced mechanical properties due to the presence of vanadium and nitrogen. These elements increase its yield and tensile strength, making it suitable for high-precision and heavy-duty applications where superior strength and formability are required. The advanced manufacturing processes used to produce 316LVM result in a cleaner microstructure, further enhancing its mechanical properties.
In the chemical processing industry, both 316L and 316LVM stainless steels are utilized due to their excellent corrosion resistance. However, the enhanced strength of 316LVM stainless steel is particularly beneficial in environments that require high mechanical integrity.
In the marine industry, 316L stainless steel is commonly used in shipbuilding due to its resistance to saltwater corrosion. While 316LVM could be used in marine applications, its higher cost often makes 316L a more economical choice for such environments.
For medical implants and surgical instruments, 316LVM stainless steel is preferred over 316L due to its higher purity and biocompatibility. The superior quality of 316LVM ensures safety and long-term durability in critical applications such as cardiac stents and dental implants. This material’s enhanced mechanical properties and corrosion resistance make it ideal for use in medical devices that require high performance and reliability.
Below are answers to some frequently asked questions:

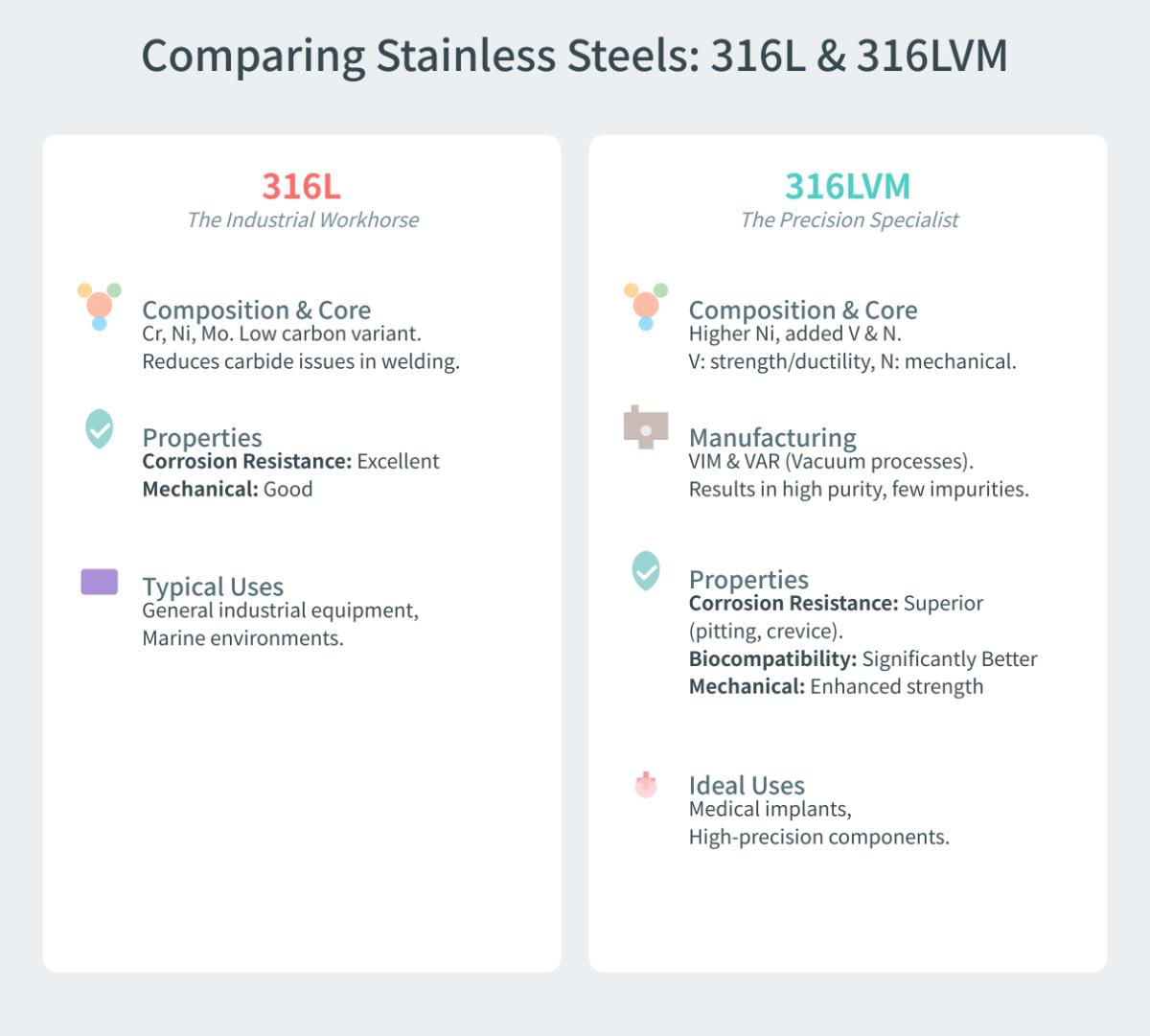

The key differences between 316L and 316LVM stainless steel lie in their composition, manufacturing processes, and resulting properties.
316L is a low-carbon version of 316 stainless steel, designed to reduce carbide precipitation and improve corrosion resistance, particularly in welding environments. It contains chromium, nickel, and molybdenum, offering excellent corrosion resistance and good mechanical properties, suitable for various industrial applications.
316LVM, on the other hand, is a modified version of 316L, with added vanadium and nitrogen. The presence of vanadium enhances strength without compromising ductility, while nitrogen improves mechanical properties. 316LVM has a higher nickel content and is produced using advanced techniques like Vacuum Induction Melting (VIM) and Vacuum Arc Remelting (VAR), ensuring higher purity and minimal impurities.
These differences give 316LVM superior corrosion resistance, especially against pitting and crevice corrosion, and significantly better biocompatibility, making it ideal for medical implants and precision components. In contrast, 316L is commonly used in industrial and marine applications where good corrosion resistance and durability are sufficient.
For medical applications, 316LVM stainless steel is better suited than 316L. While both alloys offer excellent corrosion resistance and biocompatibility, 316LVM undergoes additional processing, such as vacuum arc remelting (VAR) or electro-slag remelting (ESR), which significantly enhances its purity by reducing impurities like sulfur and phosphorus. This results in superior biocompatibility and corrosion resistance, making 316LVM ideal for surgical implants and other high-precision medical applications. Moreover, the enhanced mechanical properties of 316LVM, including higher yield and tensile strength, further ensure its suitability for demanding medical environments, thereby making it the preferred choice over 316L for medical uses.
The manufacturing process significantly affects the properties of 316LVM stainless steel by enhancing its purity, corrosion resistance, and biocompatibility. Unlike 316L, which is typically produced using the Argon-Oxygen Decarburization (AOD) process, 316LVM undergoes advanced melting techniques such as Vacuum Arc Remelting (VAR) or Electro-Slag Remelting (ESR). These processes involve multiple remelting steps in a vacuum environment, which effectively reduce impurities like sulfur and phosphorus. The result is a cleaner, more homogeneous alloy with superior mechanical properties. This higher purity level leads to improved corrosion resistance and better surface passivation, making 316LVM more resistant to pitting and crevice corrosion. Additionally, the enhanced purity and reduced impurities contribute to its higher biocompatibility, making 316LVM particularly suitable for medical applications where stringent standards are required.
Yes, 316LVM can be used in marine environments. Both 316L and 316LVM stainless steels are known for their excellent corrosion resistance, which is crucial for applications exposed to seawater and chloride-rich conditions. The primary advantage of 316LVM over 316L in marine environments lies in its enhanced mechanical properties and superior corrosion resistance due to its vacuum melting process, which reduces impurities. This results in better resistance to pitting and crevice corrosion, making 316LVM a more durable and reliable choice for demanding marine applications. While 316L is suitable for general marine use, 316LVM’s improved durability and performance make it preferable for more critical or heavy-duty marine components.
316L stainless steel is extensively used in various industrial applications due to its excellent corrosion resistance, mechanical strength, and durability. In the marine industry, it is commonly employed in shipbuilding and marine equipment where resistance to saltwater corrosion is crucial. The food processing industry benefits from 316L’s durability and resistance to harsh cleaning chemicals, making it ideal for tanks, piping systems, and surfaces in direct contact with food. In the chemical processing industry, 316L is used for storing and processing aggressive chemicals, acids, and solvents due to its ability to withstand high temperatures and pressures.
On the other hand, 316LVM stainless steel is selected for applications requiring higher purity and enhanced mechanical properties. Its high biocompatibility and corrosion resistance make it suitable for medical and surgical applications, including implants and surgical instruments. The aerospace industry utilizes 316LVM for high-precision components where reliability and cleanliness are critical. Additionally, the oil and gas industry employs 316LVM for heavy-duty structural components and fasteners, benefiting from its superior strength and corrosion resistance.
316LVM stainless steel is more biocompatible than 316L primarily due to its manufacturing process, which results in higher purity and reduced impurities. While 316L is produced using argon-oxygen decarburization (AOD), which effectively lowers carbon content, 316LVM undergoes more advanced vacuum melting techniques such as Vacuum Arc Remelting (VAR) and sometimes Vacuum Induction Melting (VIM). These processes significantly reduce impurities like sulfur and phosphorus, which are detrimental to biocompatibility. The higher purity of 316LVM means it meets stringent medical standards like ASTM F138, making it ideal for medical implants and surgical instruments. Additionally, the reduced impurities enhance its corrosion resistance, further contributing to its suitability for biomedical applications.
