Flux is a term used in science and engineering to describe how quickly a property flows through a given area. It is essential for understanding the movement of quantities such as electric fields, magnetic fields, and fluids through surfaces or boundaries.
Flux is crucial in metallurgy, where it helps remove impurities, prevents oxidation, and improves metal quality. Fluxes are substances added to molten metals during refining, smelting, and welding to enhance these processes.
The concept of flux dates back to ancient times, when early metallurgists used substances like charcoal, limestone, and clay to improve metal quality. Over the centuries, the understanding of flux evolved, leading to the development of specialized fluxes for modern metallurgical processes.
Today, fluxes are engineered to optimize properties like melting point and reactivity, making metal processing more efficient and producing higher quality metals. Continuous research and development in flux chemistry contribute to advancements in metal processing technologies, enabling the production of superior metals more efficiently.
Acid fluxes mainly consist of strong acids like hydrochloric acid (HCl) or zinc chloride (ZnCl2). These fluxes are characterized by their highly aggressive nature, making them effective at removing stubborn oxides and impurities from metal surfaces. Their composition allows rapid reactions with metal oxides, breaking them down and facilitating the formation of clean, metallic surfaces ready for soldering or welding.
Acid fluxes are widely used in applications where metals have significant oxide layers or contamination. They are particularly effective in soldering and brazing operations involving metals like stainless steel and copper. Acid fluxes quickly clean metal surfaces, ensuring strong and reliable joints. However, their aggressive nature requires careful handling and thorough cleaning post-application to prevent corrosion.
Rosin fluxes are derived from natural resin extracted from pine trees. Rosin fluxes are available in various activity levels—non-activated (R-Type), mildly activated (RMA), and fully activated (RA)—determined by the concentration of activating agents that enhance oxide removal. These fluxes typically contain a high solids content, providing a robust medium for effective oxide removal.
Rosin fluxes are primarily used in the electronics industry for soldering components onto printed circuit boards (PCBs). They are favored for their excellent wetting properties and ability to create strong, reliable solder joints. Mildly activated rosin fluxes (RMA) are commonly used for delicate electronic applications where minimal residue is desired. Activated rosin fluxes (RA) are used for more challenging applications requiring greater oxide removal. The main advantage of rosin fluxes is their balance of activity and ease of cleaning.
Water-soluble fluxes are formulated with organic acids and other water-soluble compounds. They are highly active and effective at removing oxides from metal surfaces. These fluxes typically contain a high solids content, contributing to their strong cleaning action. Water-soluble fluxes are designed to be easily washed away with water, making them convenient for applications where thorough post-soldering cleaning is necessary.
Water-soluble fluxes are essential for applications requiring strong oxide removal, like high-reliability electronics manufacturing and specific metal fabrication processes. Their high activity level ensures clean, oxide-free surfaces, resulting in strong and durable joints. The primary benefit of water-soluble fluxes is their effectiveness in challenging applications, but they require diligent cleaning to prevent corrosion or conductive residues.
No-clean fluxes are formulated with a lower solids content compared to other flux types, typically ranging from 2-8%. They are designed to leave minimal residue after the soldering process, which is non-corrosive and non-conductive. The composition of no-clean fluxes allows them to effectively clean metal surfaces while minimizing the need for post-soldering cleaning.
No-clean fluxes are popular in electronics manufacturing, especially in surface-mount technology (SMT) and selective soldering, as they eliminate the cleaning step, simplifying the process and reducing costs. However, the effectiveness of no-clean fluxes can be limited in applications with heavy oxide contamination, and their residues must be carefully managed to ensure they do not impact circuit performance.
Each flux type offers distinct advantages and is chosen based on specific application requirements, considering factors such as metal type, oxide levels, and post-process cleaning capabilities.
Flux is essential in soldering, especially in electronics, as it helps create dependable electrical connections.
During soldering, flux cleans the metal surfaces by removing oxides and impurities, ensuring a clean surface for the solder to adhere to. This is crucial for forming strong solder joints. The flux also prevents further oxidation by forming a protective barrier over the cleaned surfaces during the heating process. Fluxes used in soldering typically contain activators that chemically react with metal oxides. For instance, rosin fluxes contain natural resin acids that break down oxides on metal surfaces. Water-soluble fluxes use organic acids for more aggressive cleaning. These reactions result in the formation of volatile compounds that evaporate or are encapsulated in the flux residue, leaving a clean surface for the solder to bond.
Flux helps solder bond better to metal surfaces, reduces surface tension for smoother solder flow, and protects against oxidation during heating. Common challenges include the need for post-soldering cleaning, especially with rosin and water-soluble fluxes, to remove residues that can be corrosive or conductive. No-clean fluxes mitigate this issue but may not be as effective in removing heavy oxides.
In brazing, flux cleans and keeps the metal surfaces clean while heating.
The brazing process involves heating the metals to a temperature above the melting point of the filler metal but below the melting point of the base metals. Flux is applied to the joint area before heating. As the metals heat up, the flux becomes active, cleaning the surfaces and forming a barrier against oxidation. The filler metal, once melted, flows into the joint by capillary action, creating a strong bond upon cooling.
Advantages of using flux in brazing include enhanced joint strength and reliability, prevention of oxidation during the heating process, and improved flow and distribution of the filler metal.
To braze effectively, choose the right flux for your metals and temperature, apply it evenly, and manage the heating to prevent burning off the flux too soon. Maintaining clean workpieces and using the right amount of flux can significantly improve brazing outcomes.
In metallurgy, fluxes are indispensable for refining and purifying metals. Fluxes like limestone, silica, and fluorspar are used in smelting and refining to remove impurities from molten metals. These fluxes react with unwanted substances, forming a slag that can be easily separated from the purified metal.
In welding, fluxes play a critical role in protecting the molten weld pool from atmospheric contamination. They can also introduce alloying elements to the weld, improving its properties.
Flux is essential in plumbing for soldering copper pipes. Flux cleans the pipe surfaces and facilitates the flow of solder into the joint, ensuring leak-free connections. The flux prevents oxidation and promotes even solder distribution, resulting in durable and reliable pipe joints.
Specialized fluxes are used in automotive and manufacturing industries for tasks like soldering aluminum components. Aluminum’s tough oxide layer poses a challenge for soldering. Specialized fluxes are formulated to break down this oxide layer, ensuring proper solder adhesion and strong joints even at high temperatures.
While not a chemical flux, heat flux is crucial in processes like welding and forging. In industrial processes, controlling heat flux is essential for maintaining product quality. Proper management of heat flux ensures that the desired temperatures are achieved and maintained, leading to consistent and high-quality outcomes in welding, forging, and other heat-intensive processes.
Choosing the right flux for industrial processes involves evaluating various factors to ensure optimal performance and reliability. These factors include the type of metals being joined, the specific application requirements, and the characteristics of the flux itself.
The compatibility of the flux with the metals being joined is critical. Different metals oxidize and react differently, affecting how well the flux works. For example, acid fluxes are highly effective for cleaning metals with significant oxide layers, such as stainless steel and copper, while rosin fluxes are typically used for electronics involving metals like tin and lead.
The activity level of the flux determines its ability to remove oxides and contaminants from metal surfaces. High-activity fluxes, like acid and water-soluble types, are best for tough cleaning tasks. In contrast, no-clean fluxes have lower activity levels and are used when minimal residue and reduced cleaning are priorities.
The type and amount of residue left by the flux can impact the post-process cleaning requirements and the
Consider the environmental conditions under which the flux will be used. Temperature, humidity, and exposure to corrosive elements can all impact how well the flux performs. For instance, brazing fluxes must withstand high temperatures without degrading, while fluxes used in electronics must be stable in varying humidity levels to avoid compromising the integrity of the connections.
It’s crucial to choose a flux that meets industry standards like J-STD-004 and ISO 9454 to maintain quality and safety. Compliance guarantees that the flux has been tested for reliability, residue characteristics, and environmental impact, providing assurance of its suitability for the intended application.
Evaluating the performance of a flux involves several key metrics that help determine its effectiveness and suitability for specific applications.
The wetting ability of the flux is crucial for ensuring proper flow and adhesion of the solder or filler metal. A flux with good wetting properties will facilitate smooth, even distribution, resulting in strong and reliable joints.
The efficiency with which the flux removes oxides and contaminants from metal surfaces is a primary performance metric. High-activity fluxes typically offer superior cleaning efficiency, making them suitable for challenging applications. However, the ease of removing the flux residue post-process is also a consideration.
The impact of flux residues on the finished product must be assessed, particularly in sensitive applications like electronics. Residues should be non-corrosive and non-conductive to prevent any adverse effects on the performance and reliability of the joint.
The thermal stability of the flux ensures it remains effective under the high temperatures encountered during soldering, brazing, or welding processes. Fluxes used in high-temperature applications must not decompose or lose their cleaning properties at elevated temperatures.
Examining real-world applications of flux in various industries provides valuable insights into their selection and performance.
In the electronics industry, no-clean fluxes are commonly used in the assembly of printed circuit boards (PCBs). These fluxes ensure reliable solder joints without the need for post-soldering cleaning, reducing production time and costs. For instance, a manufacturer of consumer electronics might use no-clean flux in surface-mount technology (SMT) to streamline the assembly process while maintaining high-quality connections.
In construction, water-soluble fluxes are often employed for soldering and brazing copper pipes in plumbing systems. These fluxes provide the necessary cleaning action to ensure strong, leak-free joints. A case study might involve a large-scale commercial building project where water-soluble flux was used to join extensive networks of copper piping, ensuring the durability and reliability of the plumbing system.
Adhering to standards such as J-STD-004 ensures that the flux used in industrial processes meets stringent quality and safety criteria. This standard classifies fluxes based on their composition, activity level, and residue characteristics, providing a framework for selecting the appropriate flux for specific applications.
J-STD-004 classifies fluxes into categories such as rosin, water-soluble, and no-clean, with each category further divided based on activity levels. The standard outlines testing methods for evaluating flux properties, including wetting performance, residue characteristics, and corrosion potential.
Compliance with J-STD-004 ensures that the flux has been rigorously tested and meets the necessary quality and safety standards. This compliance is particularly important in industries like electronics and aerospace, where the reliability of solder joints is critical to the By carefully considering these factors and performance metrics, and ensuring compliance with relevant standards, manufacturers can select the most appropriate flux for their industrial processes, optimizing performance and reliability.
Innovations in renewable energy and efficiency are key to promoting sustainability. One of the most promising advancements is in perovskite solar cells, which have shown significant potential for enhancing solar energy efficiency. Researchers and startups are actively exploring the integration of AI-powered solar tracking systems to optimize energy production by dynamically adjusting the orientation of solar panels to capture maximum sunlight.
Another noteworthy development is the deployment of offshore wind platforms. Floating wind turbines are increasingly being adopted, particularly in regions with limited land availability. These platforms can be installed in deeper waters where traditional fixed-bottom turbines are not feasible, thereby expanding the potential for wind energy generation.
Solid-state batteries represent a significant leap in energy storage technology. These batteries offer enhanced efficiency and stability, which are critical for the widespread adoption of electric mobility and renewable energy systems. Their improved energy density and safety profiles make them a promising alternative to conventional lithium-ion batteries.
The circular bioeconomy is gaining traction as industries seek to minimize waste and maximize resource reuse. Waste-to-resource technologies, such as insect biotechnology, are being developed to convert organic waste into valuable products like animal feed and biofuels, thereby reducing waste and creating economic opportunities. This approach supports sustainable value chains by reducing waste and creating economic opportunities.
Circular economy models are being adopted by companies to reduce their environmental footprint. These models focus on recycling and refurbishing products, extending their lifecycle and reducing the need for raw materials. For instance, electronics manufacturers are increasingly implementing recycling programs to recover valuable materials from old devices, contributing to resource conservation and reducing electronic waste.
Efficient water use is a critical aspect of sustainability. Smart irrigation systems, using IoT technology, are transforming agriculture by optimizing water use based on real-time weather and soil data. These systems help reduce water waste and ensure that crops receive the precise amount of water needed for optimal growth.
Greywater recycling systems are becoming more common in residential and commercial settings. These systems treat and repurpose domestic wastewater for non-potable uses, such as irrigation and toilet flushing, reducing the demand for fresh water and promoting water conservation.
Air-to-water generators are innovative devices that extract moisture from the air and convert it into drinking water. These systems are particularly valuable in areas with limited access to fresh water, providing a sustainable solution to water scarcity.
Environmental, Social, and Governance (ESG) integration is becoming a standard practice for businesses aiming to balance profit with social responsibility and environmental stewardship. Mandatory disclosures, such as the EU’s Corporate Sustainability Reporting Directive (CSRD), are driving companies to adopt standardized sustainability reporting practices. This enhances transparency and accountability, allowing stakeholders to make informed decisions based on a company’s sustainability performance.
The transportation sector is rapidly moving towards sustainability with the increasing adoption of electric vehicles (EVs) driven by consumer demand and regulations aimed at reducing carbon emissions. Electric vehicles are becoming more accessible, and advancements in charging infrastructure are supporting their widespread adoption.
In addition to transportation, the use of sustainable materials is gaining momentum. Bamboo, for example, is emerging as an eco-friendly alternative to traditional wood products. Its high growth rate and ability to sequester carbon make it an attractive material for various applications, from construction to consumer goods.
AI is crucial in improving sustainability across industries by optimizing energy efficiency, predicting supply chain risks, and enhancing ESG reporting. By analyzing large datasets, AI can identify patterns and provide insights that help reduce environmental impact and improve operations.
Digital platforms are also being leveraged to manage and disclose sustainability data. These platforms facilitate the collection, analysis, and reporting of sustainability metrics, ensuring that companies meet stakeholder demands for transparency and accountability.
Below are answers to some frequently asked questions:

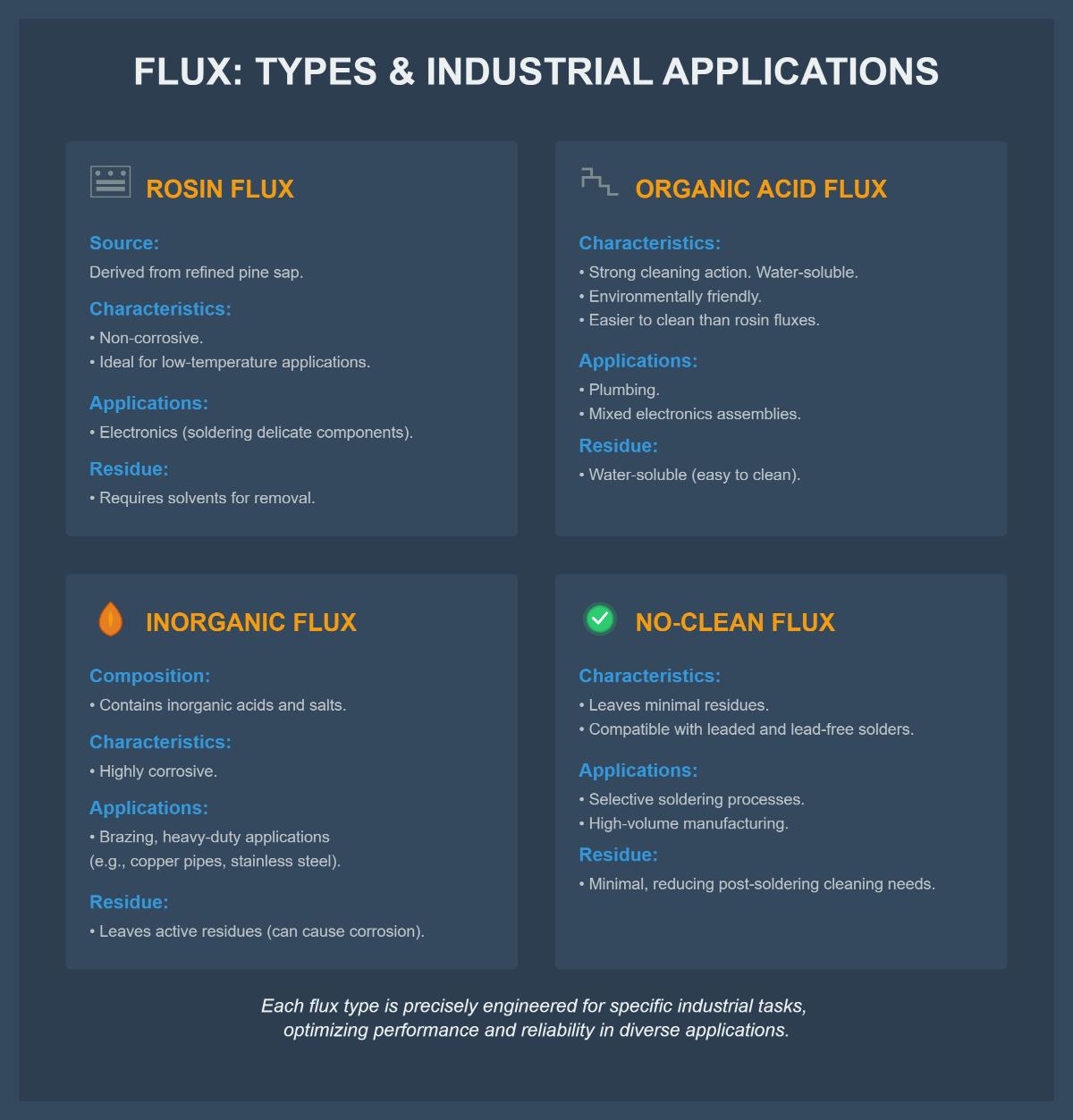

The main types of flux used in different applications include rosin flux, organic acid flux, inorganic flux, and no-clean flux.
