Corrosion resistance is a critical factor when selecting stainless steel for specific applications, as it determines the material’s ability to withstand deterioration in various environments.
316 stainless steel is an austenitic grade renowned for its exceptional corrosion resistance. This resistance is largely attributed to its high chromium, nickel, and molybdenum content. The addition of molybdenum, in particular, enhances the material’s ability to resist corrosion, especially in environments rich in chlorides and acids. Molybdenum forms a protective oxide layer on the surface of the steel, making it highly resistant to oxidation and reducing susceptibility to pitting and crevice corrosion. Pitting corrosion occurs when localized breakdown of the protective oxide layer creates small pits, while crevice corrosion develops in confined spaces where oxygen access is limited.
Marine Environments: 316 stainless steel excels in marine conditions due to its ability to resist saltwater corrosion. For example, it is commonly used in offshore platforms, seawater desalination plants, and shipbuilding, where resistance to chloride-induced corrosion is crucial. In fact, 316 stainless steel has been shown to maintain its integrity in environments with salinity levels of up to 35 ppt (parts per thousand) without significant degradation over decades.
Acidic and Chloride-Rich Environments: Its superior resistance to acidic substances and chlorides makes it ideal for applications in chemical processing, food and beverage manufacturing, and coastal structures. For instance, 316 stainless steel is frequently used in chemical reactors, heat exchangers, and tanks exposed to harsh chemicals like sulfuric and hydrochloric acids. In these environments, the material’s ability to resist pitting and crevice corrosion significantly extends the lifespan of equipment.
High-Temperature Corrosion Resistance: 316 stainless steel maintains its corrosion resistance at elevated temperatures, making it suitable for applications involving heat and corrosive agents. It is often employed in power generation facilities, heat exchangers, and furnace parts, where it can endure temperatures up to 870°C (1600°F) without significant loss of corrosion resistance.
416 stainless steel, a martensitic grade, offers moderate corrosion resistance. While it contains chromium that provides basic protection against oxidation, its corrosion resistance is limited compared to 316 stainless steel due to the presence of sulfur, which is added to enhance machinability. The sulfur content, however, can disrupt the formation of the protective oxide layer, making 416 more prone to localized corrosion in aggressive environments.
Mild Environments: 416 stainless steel performs well in less aggressive environments such as fresh water, mild alkaline solutions, and non-chloride-containing atmospheres. It is often used in applications like shafts, pumps, and valves where the corrosion environment is less severe. In these cases, its ease of machining, combined with moderate corrosion resistance, makes it an economical choice.
Limitations in Harsh Conditions: The sulfur content reduces the material’s ability to resist pitting and crevice corrosion, rendering it less suitable for environments rich in chlorides or marine conditions. For example, it would not be ideal for use in seawater, coastal areas, or environments exposed to high levels of industrial chemicals like bleach or sodium hydroxide.
High-Temperature Performance: While it resists oxidation at moderate temperatures, its corrosion resistance diminishes under continuous exposure to high temperatures or corrosive substances. For applications involving high heat and corrosion, 316 stainless steel would be a better choice.
| Property | 316 Stainless Steel | 416 Stainless Steel |
|---|---|---|
| Corrosion Resistance | Excellent, especially in marine and acidic environments. | Moderate; suitable for mild environments but less resistant to chlorides and acids. |
| Machinability | Lower machinability due to its higher alloy content. | Excellent machinability due to sulfur addition. |
| Common Applications | Marine environments, chemical processing, heat exchangers. | Shafts, pumps, valves, less aggressive environments. |
| Temperature Resistance | Good up to 870°C (1600°F). | Moderate, limited at high temperatures and corrosive conditions. |
| Cost | Higher due to alloy content and corrosion resistance. | More affordable, often chosen for cost-sensitive applications. |
When selecting between 316 and 416 stainless steel, it is essential to consider the specific environmental conditions and performance requirements. 316 stainless steel is the preferred material for applications requiring high resistance to corrosion, particularly in marine, chemical, and high-temperature settings. In contrast, 416 stainless steel is better suited for environments with lower corrosion risks, where ease of machining and cost-effectiveness are more important.
416 stainless steel is highly regarded for its exceptional machinability, often ranking as one of the best among all stainless steel grades. This advantage stems primarily from its sulfur content, which typically ranges between 0.15% and 0.35%. The sulfur improves chip-breaking during machining, reducing tool wear and enabling smoother operations such as turning, drilling, and milling. However, this high sulfur content comes with trade-offs, as it can reduce the material’s ductility, toughness, and corrosion resistance when compared to lower-sulfur grades.
Classified as a free-machining grade, 416 stainless steel is particularly advantageous for precision applications where ease of machining and cost-effectiveness are critical. To further enhance machinability, this grade is often used in its sub-critical annealed condition, a heat-treatment process designed to soften the steel and improve dimensional stability without fully recrystallizing the material. Sub-critical annealing involves heating the steel to a temperature just below its critical transformation range, typically between 620°C and 700°C (1150°F to 1290°F), and then allowing it to cool slowly. This process enhances machinability by reducing internal stresses and hard spots, making it easier to machine.
Industries favor 416 stainless steel for components requiring high machining efficiency, such as pump shafts, gears, fasteners, and valve components. Its ease of machining translates into faster production speeds and lower costs, making it suitable for large-scale manufacturing where high precision and cost-effectiveness are paramount.
316 stainless steel, by contrast, is known for its superior corrosion resistance and mechanical properties, making it a preferred choice for demanding environments. However, its lower sulfur content, typically less than 0.03%, presents significant challenges during machining. Unlike 416 stainless steel, 316 lacks the chip-breaking benefits associated with higher sulfur levels, resulting in longer machining times and higher tool wear. Furthermore, 316 stainless steel is prone to work-hardening, where the material becomes harder and more difficult to cut as machining progresses. This characteristic can lead to excessive heat generation, reduced tool life, and diminished surface finishes if not properly managed.
To address these challenges, machining 316 stainless steel requires specialized techniques. The use of carbide-tipped tools, slower cutting speeds, and higher cutting forces is common practice. Additionally, effective lubrication and cooling fluids are essential to minimize friction, dissipate heat, and preserve tool longevity. While these factors increase production complexity and cost, they are offset by the material’s excellent corrosion resistance, toughness, and durability.
316 stainless steel is widely used in applications where exposure to aggressive environments is common. Typical uses include marine equipment, chemical processing vessels, medical devices, and architectural components. Its resistance to pitting and crevice corrosion makes it particularly suitable for use in chloride-rich environments, such as seawater or industrial chemical applications.
The primary distinction between 416 and 316 stainless steels lies in their machinability versus performance trade-offs. While 416 stainless steel excels in machinability due to its higher sulfur content, this advantage comes at the expense of reduced corrosion resistance and mechanical toughness. For instance, 416 is ideal for components such as shafts, screws, and couplings that require efficient, large-scale machining but are not subjected to highly corrosive environments.
Conversely, 316 stainless steel prioritizes corrosion resistance and mechanical strength over machinability. Its superior resistance to pitting, tensile strength, and toughness makes it suitable for components exposed to harsh conditions, such as pump casings, marine hardware, and medical implants. However, its work-hardening tendency increases machining complexity, necessitating careful planning and the use of advanced cutting techniques.
The choice between these two grades ultimately depends on the application. If machining speed and efficiency are critical, 416 stainless steel is the optimal choice. However, for applications demanding durability and resistance to harsh environments, 316 stainless steel provides unmatched performance despite its machining challenges. By understanding the trade-offs and leveraging appropriate processing techniques, manufacturers can achieve the best results for their specific needs.
The comparison between 416 and 316 stainless steels is essential for understanding their respective advantages and limitations in diverse industrial applications. These materials, widely used for their mechanical properties and corrosion resistance, serve critical roles in sectors such as manufacturing, marine engineering, and chemical processing. By examining their distinct characteristics, we can better determine their suitability for specific uses.
416 stainless steel, a martensitic grade, is often selected for its high hardness and machinability. After heat treatment, it achieves Brinell hardness values of up to 302 HB and tensile strength in the range of 517 to 758 MPa. For example, it is commonly used in components such as gear shafts and fasteners, where high mechanical stress and dimensional stability are critical.
In contrast, 316 stainless steel, an austenitic grade, offers a broader Brinell hardness range of 160 to 360 and tensile strength between 520 and 1180 MPa. Its superior toughness makes it ideal for marine applications, where resistance to impact and corrosion is essential. Heat exchangers and pressure vessels also benefit from its reliable strength under harsh conditions.
The elastic modulus of 416 stainless steel is approximately 190 GPa, indicating its ability to resist deformation under stress. It offers moderate ductility, with elongation at break values between 13% and 31%, depending on heat treatment. These properties make it a preferred choice for precision-machined components like pump shafts.
On the other hand, 316 stainless steel exhibits a slightly higher elastic modulus of 200 GPa and superior ductility, with elongation at break values ranging from 8% to 55%. This enhanced flexibility allows it to endure dynamic loads and high-strain environments, such as in flexible piping systems and dynamic support structures.
316 stainless steel outperforms 416 in terms of toughness and impact resistance. Its austenitic microstructure (characterized by a face-centered cubic lattice) enhances its ability to absorb energy and resist cracking, even in extreme conditions like subzero temperatures. This makes 316 an excellent material for cryogenic tanks and marine hardware exposed to saltwater.
By comparison, the higher sulfur content of 416 stainless steel, while improving machinability, reduces toughness due to the formation of inclusions that can act as stress concentrators. As a result, 416 is less suitable for applications requiring resistance to mechanical shocks or cyclic loading.
Wear resistance is a notable strength of 416 stainless steel, especially after heat treatment, which hardens the surface and extends its lifespan in applications involving repetitive mechanical contact. For instance, 416 is frequently employed in manufacturing parts like bearings and valve components that demand good wear performance under controlled conditions.
Meanwhile, 316 stainless steel offers better wear resistance in environments where corrosion is a factor. Its ability to form a protective oxide layer reduces degradation from abrasive or chemical agents, making it ideal for applications such as food processing equipment and chemical storage tanks.
The performance of these steels diverges significantly under high-temperature conditions. 416 stainless steel is suitable for moderate heat resistance, with a maximum service temperature of approximately 680°C. However, prolonged exposure to elevated temperatures can reduce its hardness and strength.
In contrast, 316 stainless steel maintains its mechanical properties at higher temperatures, tolerating conditions up to 870°C. This capability makes it a preferred material for furnace components, heat exchangers, and other applications requiring sustained high-temperature exposure.
The environmental performance of 316 stainless steel is superior, particularly in aggressive chemical or marine settings. Its molybdenum content enhances resistance to pitting and crevice corrosion, making it ideal for desalination plants, offshore platforms, and chemical reactors. By contrast, 416 stainless steel is more susceptible to corrosion due to its lower chromium and nickel content, limiting its use in highly corrosive environments.
The cost and machinability of these materials also influence their selection. 416 stainless steel, with its excellent machinability, is often preferred for projects requiring extensive machining, reducing production costs and time. Conversely, 316 stainless steel is more expensive but provides long-term savings in demanding environments due to its durability and resistance to degradation.
By considering these distinct properties, engineers and material scientists can make informed decisions to ensure optimal performance and cost-effectiveness in their respective applications.
Weldability is a critical factor when selecting stainless steel for various applications. The weldability of 416 stainless steel and 316 stainless steel differs significantly due to their unique chemical compositions and metallurgical properties, making them suited for different uses and industries.
316 stainless steel is renowned for its excellent weldability and versatility. This austenitic stainless steel is widely used in industries that demand superior corrosion resistance and ease of fabrication.
Corrosion Resistance Post-Welding
One of the main advantages of 316 stainless steel is its ability to retain corrosion resistance after welding. This makes it particularly suitable for marine environments, chemical processing facilities, and food production equipment, where exposure to harsh or corrosive elements is common.
Welding Methods
Common fusion and resistance welding techniques, such as TIG (Tungsten Inert Gas), MIG (Metal Inert Gas), and spot welding, are highly effective for 316 stainless steel. No preheating or post-weld heat treatment is necessary, simplifying the welding process. Using a low-carbon variant like 316L helps mitigate carbide precipitation, a phenomenon where chromium carbides form at grain boundaries, potentially leading to intergranular corrosion.
Mechanical Properties
The mechanical properties of 316 stainless steel, including its tensile strength (typically around 485 MPa) and yield strength (approximately 170 MPa), are largely unaffected by welding. This allows it to maintain its toughness and ductility, even in welded joints.
Real-World Example
In the pharmaceutical and food industries, 316 stainless steel is often used to fabricate tanks and pipes. Its superior weldability ensures seamless joints that resist corrosion from cleaning agents and processing chemicals.
416 stainless steel, a martensitic grade, presents more challenges during welding due to its higher sulfur content, which improves machinability but compromises weldability.
Welding Challenges
The sulfur content in 416 stainless steel can lead to hot cracking and reduced weld strength if not carefully managed. Preheating to temperatures between 200°C and 300°C is often necessary to reduce thermal stress and prevent cracking. Post-weld heat treatment is usually required to restore mechanical properties and reduce brittleness caused by welding.
Welding Methods
While TIG and MIG welding are feasible for 416 stainless steel, oxyacetylene welding is not recommended because of its higher risk of inducing defects. Selecting appropriate filler materials and slow cooling methods can help improve the quality of welds.
Mechanical Properties Post-Welding
Welding can negatively impact the material’s strength and toughness. For instance, the tensile strength (typically around 620 MPa) and yield strength (around 440 MPa) may decrease if welding procedures are not properly controlled. The formation of brittle phases further highlights the need for careful heat treatment post-welding.
Real-World Example
In the manufacturing of pump shafts and valve components, where machining precision is paramount, 416 stainless steel is preferred despite its weldability challenges. Its use is generally limited to applications where welding is infrequent or can be carefully controlled.
| Feature | 316 Stainless Steel | 416 Stainless Steel |
|---|---|---|
| Corrosion Resistance | Retains excellent resistance post-welding | Reduced corrosion resistance after welding |
| Ease of Welding | Highly weldable without preheating or special care | Requires preheating and post-weld heat treatment |
| Common Welding Methods | TIG, MIG, and spot welding | TIG, MIG; oxyacetylene not recommended |
| Mechanical Properties | Maintains toughness and strength | May develop brittleness; mechanical properties degrade |
| Applications | Marine, chemical, and food industries | Pump shafts, valves, and machined components |
The welding of 316 stainless steel is more environmentally friendly due to reduced heat treatment requirements and lower potential for material waste. Conversely, the additional energy needed for preheating and post-weld heat treatment in 416 stainless steel can increase its environmental footprint, making it less favorable for projects with sustainability goals.
Understanding the weldability of stainless steels like 316 and 416 helps ensure appropriate material selection, optimizing both performance and efficiency in engineering applications.
The diverse range of applications for 416 and 316 stainless steels arises from their distinct properties, each tailored to meet specific performance needs. These materials are chosen based on their strength, corrosion resistance, machinability, and suitability for various industrial environments.
416 stainless steel is valued for its excellent machinability, moderate corrosion resistance, and high strength. These characteristics make it an ideal choice for applications where parts need to be easily shaped, yet durable enough to withstand moderate wear and corrosion. The addition of sulfur to 416 enhances its machinability, making it easier to machine into precise shapes compared to other stainless steels. However, this also reduces its overall corrosion resistance, which limits its use in more aggressive environments.
Typical applications of 416 stainless steel include:
While 416 stainless steel is ideal for many applications, its reduced corrosion resistance means it is not suitable for use in highly corrosive environments, such as marine or chemical processing settings.
316 stainless steel is widely known for its exceptional corrosion resistance, high strength, and good weldability, making it the material of choice for demanding applications where both durability and resistance to harsh environments are critical. The inclusion of molybdenum (typically around 2–3%) in the alloy significantly enhances its resistance to pitting and crevice corrosion, particularly in chloride-rich environments like seawater.
Key applications of 316 stainless steel include:
Although 316 stainless steel offers superior performance in corrosive environments, it is more expensive than materials like 416, which may be a limiting factor in cost-sensitive applications. Additionally, 316 is not as easy to machine as 416, which can increase production costs for complex parts.
In summary, both 416 and 316 stainless steels are indispensable materials across various industries, chosen based on their specific properties such as machinability, corrosion resistance, and strength. Each has distinct advantages and limitations that make them suitable for different applications, from everyday machinery parts to advanced chemical and marine equipment.
Below are answers to some frequently asked questions:

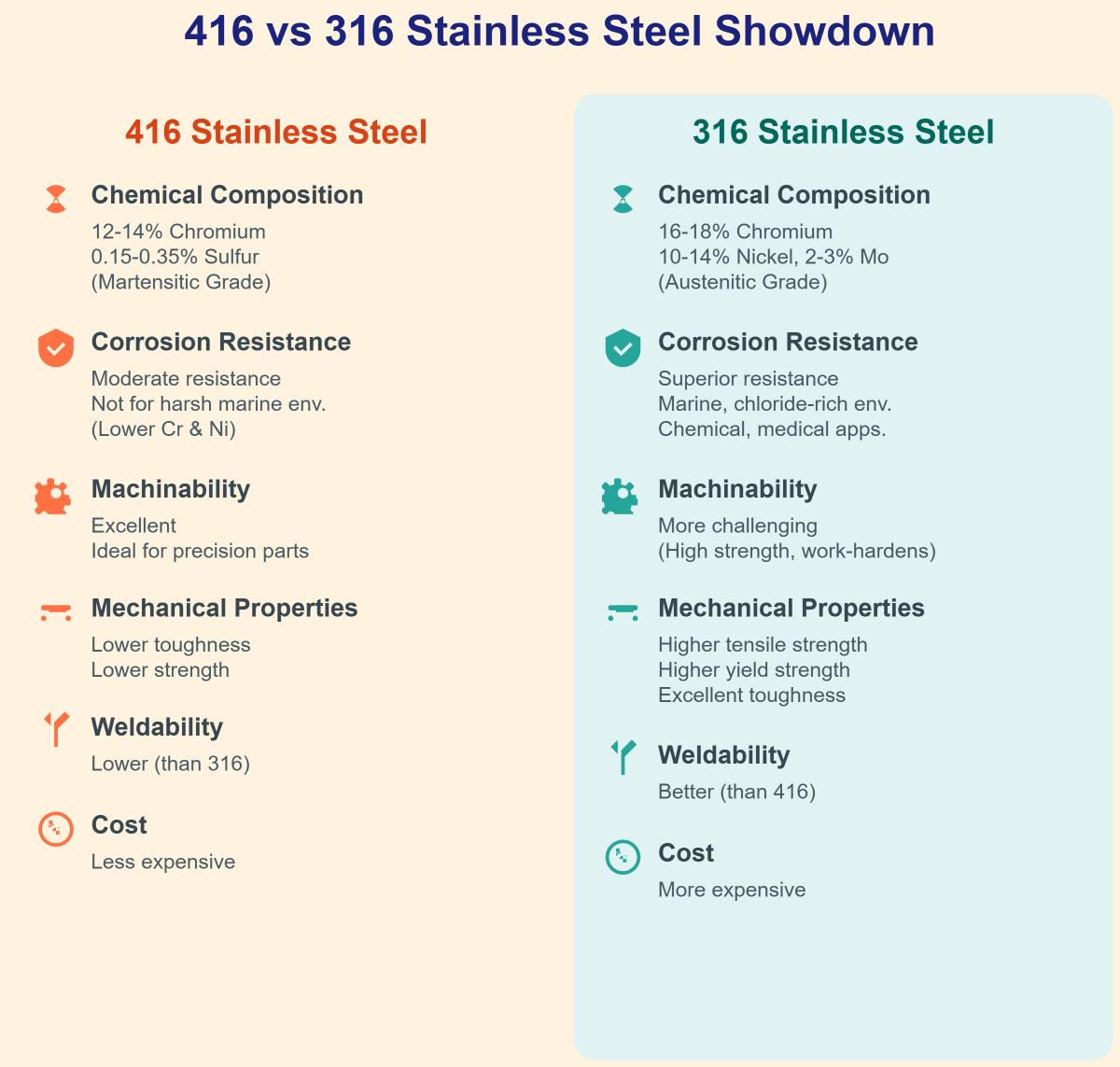

The key differences between 416 and 316 stainless steel lie in their composition, properties, and applications. 416 stainless steel is a martensitic, free-machining grade with added sulfur for enhanced machinability, making it ideal for highly machined parts like gears and bolts. However, this sulfur content reduces its corrosion resistance, making it unsuitable for marine or chloride-rich environments. In contrast, 316 stainless steel is an austenitic grade containing chromium, nickel, and molybdenum, which provide superior corrosion resistance, particularly in harsh marine and chemical settings.
416 excels in machinability, with a rating of 10 out of 10, while 316 is harder to machine with a rating of about 5 out of 10. Regarding weldability, 416 performs poorly due to its sulfur content, whereas 316 welds easily and is suitable for standard welding techniques. Mechanically, 416 offers high strength and can be hardened but has lower ductility, limiting its ability to be shaped or bent. On the other hand, 316 provides a wider tensile strength range and better formability.
While 416 is more cost-effective and preferred for machining-intensive applications, 316 is favored for environments requiring high corrosion resistance, such as marine, food processing, and chemical industries. The choice between the two depends on the application’s need for machinability versus corrosion resistance.
For marine environments, 316 stainless steel is the superior choice over 416 stainless steel. The key factor is corrosion resistance. 316 stainless steel is highly resistant to saltwater, chlorides, and other corrosive elements typically found in marine environments, making it ideal for such applications. It performs well against issues like pitting and crevice corrosion, which are common in seawater exposure.
In contrast, 416 stainless steel, while strong and machinable, has significantly lower corrosion resistance, particularly in chloride-rich environments. Its sulfur content, which improves machinability, makes it more susceptible to rust and staining in marine conditions. Moreover, 416 is more prone to surface corrosion and is not recommended for use in harsh, corrosive environments like those found at sea.
Therefore, for long-term durability and performance in marine settings, 316 stainless steel is the better option.
Yes, 416 stainless steel is more machinable than 316 stainless steel. This is because 416 contains sulfur and phosphorus, which enhance its machinability, making it easier to cut, machine, and shape. It has a higher machinability rating, typically around 85-90% compared to free-machining carbon steel. In contrast, 316 stainless steel lacks these free-machining additives, making it more challenging to machine. Its higher toughness and resistance to forming chips result in slower and more labor-intensive machining processes. Therefore, 416 is the preferred choice for applications that require high precision machining, while 316 is better suited for environments requiring superior corrosion resistance.
Yes, 416 stainless steel can be welded, but it is more challenging compared to other grades like 316. The material’s poor weldability is due to its sulfur content, which enhances machinability but complicates the welding process. To successfully weld 416 stainless steel, preheating to temperatures between 200 to 300 °C is necessary, and post-weld heat treatment, including annealing at 650-675 °C, is required to prevent brittleness. Special care should be taken when selecting filler metals, such as E312 series, to avoid issues like hydrogen-induced porosity and hot cracking. Overall, welding 416 stainless steel requires precise control to maintain its mechanical properties and minimize the risk of brittleness.
416 stainless steel is widely used in applications where high machinability, moderate corrosion resistance, and good strength are essential. Its primary uses include the production of screw machine parts such as screws, bolts, and nuts, as it is one of the most machinable stainless steel grades available. It is commonly employed in industrial and mechanical components like gears, pump shafts, valve components, and spindles, where strength and wear resistance are critical.
In the automotive and aerospace sectors, it is used for parts like gears, shafts, fasteners, and valve components due to its ability to be machined efficiently while maintaining adequate corrosion resistance. Additionally, 416 stainless steel is utilized in medical instruments and food processing equipment, as its corrosion resistance and machinability make it suitable for surgical tools, dental drills, blades, screws, and mixer shafts.
While it is occasionally used for cutlery, washing machine parts, and kitchen utensils, its applications are generally focused on areas where machining efficiency and cost-effectiveness outweigh the need for superior corrosion resistance, distinguishing it from 316 stainless steel, which is better suited for harsh environments.
When comparing the strength of 416 and 316 stainless steel, 316 stainless steel is generally stronger. It has a higher ultimate tensile strength (520–1180 MPa) and yield strength (230–850 MPa) compared to 416 stainless steel, which has a tensile strength of 510–800 MPa and a yield strength of 290–600 MPa. Additionally, 316 stainless steel has a higher elastic modulus (200 GPa) than 416 (190 GPa), indicating greater stiffness under load. While 416 stainless steel excels in machinability and is often used for precision-machined components, 316 stainless steel is better suited for applications requiring higher strength and durability, particularly in environments where superior corrosion resistance is also necessary.
