Comprehensive Guide to ASTM SAE AISI 52100 Steel Properties
In the world of high-performance engineering, few materials command as much respect as 52100 steel. Renowned for its exceptional hardness…
When it comes to crafting the perfect blade, choosing the right steel can make all the difference. Among the myriad of options, 52100 and 1095 steel stand out as popular choices, each with its own unique set of properties and advantages. But what truly sets them apart? In this article, we will delve into the key differences between these two steels, examining their hardness, toughness, and corrosion resistance. We’ll also explore their metallurgical characteristics and edge-holding capabilities to help you determine which is better suited for your knife-making needs. Ready to uncover the secrets of these two formidable steels? Let’s dive in.
The chemical composition of steel plays a crucial role in determining its properties. Here, we compare the chemical compositions of 52100 and 1095 steel.
52100 steel is characterized by its relatively high carbon content (0.98-1.10%) and significant chromium presence (1.30-1.60%), which contribute to its hardness and wear resistance. It also contains manganese (0.25-0.45%) and silicon (0.15-0.35%).
1095 steel contains a high carbon percentage (0.90-1.03%) but lacks significant alloying elements like chromium, which affects its corrosion resistance. This steel is known for its excellent edge retention and hardness, making it a popular choice for knives and cutting tools.
Physical properties such as density and melting point are essential for understanding how the steel will behave under different conditions.
Both steels have similar densities, meaning they weigh about the same for the same volume.
52100 steel has a melting point of 1450°C (2642°F), while 1095 steel ranges from 1425-1510°C (2597-2750°F).
Mechanical properties such as hardness, tensile strength, and elongation provide insight into how the materials will perform under mechanical stress.
52100 steel can reach up to 66 HRC, making it harder than 1095 steel, which can reach up to 62 HRC. This higher hardness makes 52100 steel more suitable for applications requiring high wear resistance.
52100 steel has a tensile strength of 800-1200 MPa, which is beneficial for components subjected to significant mechanical loads.
The yield strength of 52100 steel ranges from 600-1000 MPa, allowing it to withstand high stress before deforming.
52100 steel exhibits good elongation, with values between 12-15%, indicating a balance between strength and ductility.
Thermal properties such as thermal conductivity and impact toughness are critical for applications involving temperature variations.
Both steels have similar thermal conductivities, with 52100 steel at 46 W/m·K and 1095 steel approximately at 44.5 W/m·K. This affects their ability to conduct heat.
52100 steel has higher impact toughness, approximately 40-47 J/cm², compared to 1095 steel, which is around 30 J/cm². This makes 52100 steel more resistant to impact and shock loads.
The presence of chromium in 52100 steel improves its corrosion resistance compared to 1095 steel. However, it is not stainless steel and still requires proper maintenance to prevent rust.
1095 steel, with minimal alloying elements, has poor corrosion resistance and is more prone to rusting, necessitating regular maintenance and protective coatings.
Edge holding properties describe how well a material can maintain a sharp edge during use. This characteristic is crucial for applications such as cutting tools and blades, where prolonged sharpness can significantly impact performance and efficiency.
52100 steel is highly regarded for its exceptional edge holding capabilities. This high-carbon chromium steel benefits from its unique composition, which includes approximately 1.0% carbon and 1.5% chromium. The chromium content in 52100 steel forms hard carbides during heat treatment, enhancing wear resistance and maintaining a sharp edge over extended periods.
1095 steel, containing approximately 0.95% carbon, is also known for its excellent edge retention. However, it lacks the chromium content found in 52100 steel, which influences its corrosion resistance.
Comparing the edge holding properties of 52100 and 1095 steels highlights their unique strengths and ideal uses:
Understanding the specific requirements of your application will help in selecting the appropriate steel, ensuring optimal performance and longevity.
The key metallurgical differences between 52100 and 1095 steels lie in their alloy compositions, impacting their properties and uses.
52100 steel is a high-carbon, chromium-bearing steel. Its composition typically includes:
Chromium in 52100 steel enhances toughness and wear resistance by forming hard chromium carbides. This makes 52100 steel highly durable and suitable for high-stress applications.
1095 steel is simpler in composition, primarily consisting of:
The simplicity of 1095 steel contributes to its ease of sharpening but results in lower wear resistance and corrosion resistance compared to 52100 steel.
The mechanical properties of these steels are critical in determining their performance in various applications.
Edge retention and sharpening ease are important factors for cutting tools and knives.
Both 52100 and 1095 steels have poor corrosion resistance due to their high carbon content.
These metallurgical differences result in varied applications for 52100 and 1095 steels.
52100 steel is known for its exceptional hardness and wear resistance, making it ideal for bearings. The high carbon and chromium content allow it to withstand significant mechanical stress and maintain its structural integrity under high-load conditions. This makes 52100 steel perfect for ball bearings, roller bearings, and anti-friction bearings, ensuring smooth operation and longevity in various machinery.
1095 steel, while less common in bearings, is suitable for applications requiring high hardness but lower mechanical loads. It can be used in scenarios where the bearing is subject to less intense mechanical stress.
52100 steel’s superior hardness and edge retention make it a preferred material for high-precision cutting tools. Its wear resistance makes it perfect for both industrial blades and precision cutting instruments, like surgical tools, ensuring the tools remain sharp over extended periods.
Similarly, 1095 steel is highly valued in knife making for its excellent edge retention and ease of sharpening. It is often chosen for hunting knives, bushcraft knives, and artisanal knives, providing a balance between hardness and toughness, suitable for outdoor activities and custom knife making.
52100 steel is ideal for high-performance springs in automotive and industrial machinery due to its high fatigue strength and resilience. Its ability to withstand repeated stress ensures durability and reliability in shock absorption and load-bearing applications.
1095 steel is also used in the production of springs, particularly in applications where ease of fabrication and high hardness are essential. It is commonly utilized in automotive springs and hand tools, providing necessary hardness and strength for vehicle components and durable edges for tools like chisels and saw blades.
The high fatigue strength and wear resistance of 52100 steel make it suitable for critical components in aerospace and automotive industries. It is used in aircraft parts and automotive components subjected to high mechanical loads, such as gears and axles, ensuring reliability and durability under extreme conditions.
1095 steel, while less common in high-stress aerospace applications, is used in automotive hand tools and industrial blades. It is preferred for tools that require frequent sharpening and a high degree of hardness, making it suitable for various manufacturing processes.
52100 steel is occasionally used in artisanal applications where high wear resistance and hardness are desired. However, its primary use remains in industrial settings.
On the other hand, 1095 steel is a popular choice for artisans and craftsmen due to its ease of forging and ability to achieve a sharp, durable edge. It is commonly used in custom knives and decorative tools, allowing for the creation of bespoke tools and blades with intricate designs.
When choosing between 52100 and 1095 steel, consider your specific application requirements. Both steels have distinct properties that make them suitable for different uses. Knowing these differences helps you choose wisely.
For high-wear and high-load applications, 52100 steel, with its high carbon and chromium content, is ideal for bearings and heavy-duty industrial components. Its superior hardness and toughness allow it to withstand significant mechanical stress and maintain performance over time.
If your application involves cutting tools or knives where edge retention and ease of sharpening are critical, 1095 steel is often preferred. Its high carbon content ensures excellent hardness, making it suitable for precision cutting instruments. Additionally, 1095 steel, known for its ease of sharpening, is perfect for outdoor or demanding environments.
Different applications require specific mechanical properties such as hardness, toughness, and tensile strength. 52100 steel can achieve higher hardness levels (up to 64 HRC) compared to 1095 steel (up to 62 HRC). This makes 52100 steel more suitable for applications where maximum hardness is necessary to prevent wear. While both steels offer good toughness, 52100 steel has a slight edge due to its chromium content, which enhances its ability to withstand impact and shock loads.
Neither 52100 nor 1095 steel offers significant corrosion resistance due to their high carbon content. However, the chromium in 52100 steel provides a slight improvement over 1095 steel. Both steels need regular maintenance and protective coatings to prevent rust, especially in humid conditions.
The ease of sharpening can be a critical factor, especially for tools and knives that require frequent resharpening. Due to its hardness and carbide content, 52100 steel can be more challenging to sharpen, requiring specialized tools and techniques. In contrast, 1095 steel is easier to sharpen, making it suitable for users who need to maintain a sharp edge without access to advanced sharpening equipment.
For components subjected to high mechanical loads, such as gears, axles, and bearings, 52100 steel’s superior mechanical properties make it the preferred choice. Its ability to maintain structural integrity under stress ensures reliability and longevity. For custom knife making and artisanal projects, 1095 steel’s ease of forging and sharpness make it a popular choice. It allows for intricate designs and a sharp, durable edge, suitable for various cutting tasks.
Both steels are relatively affordable, but the choice may depend on the specific cost constraints of your project. 52100 steel may have a higher initial cost due to its superior properties, but its durability can result in lower long-term costs due to reduced maintenance and replacement needs. 1095 steel, while potentially lower in initial cost, might require more frequent maintenance and resharpening, which could increase operational costs over time.
Below are answers to some frequently asked questions:

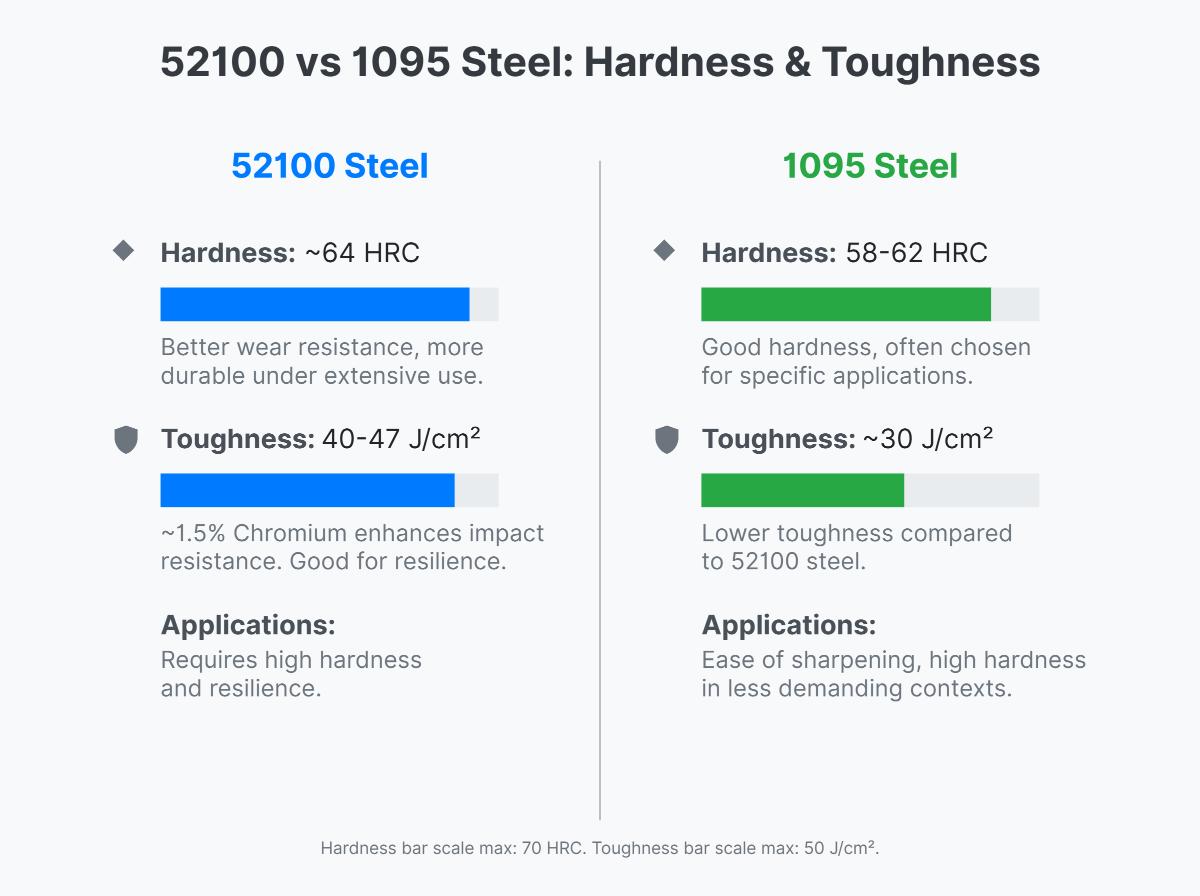

The differences in hardness and toughness between 52100 and 1095 steel are notable due to their distinct compositions and properties.
52100 steel typically achieves a higher hardness, reaching around 64 HRC, while 1095 steel ranges from 58 to 62 HRC when properly heat-treated. This higher hardness in 52100 translates to better wear resistance, making it more durable under extensive use.
In terms of toughness, 52100 steel outperforms 1095 due to its chromium content (approximately 1.5%), which enhances its ability to withstand stress and impact without fracturing. The impact toughness of 52100 ranges from 40 to 47 J/cm², whereas 1095 exhibits lower toughness, around 30 J/cm². This makes 52100 more suitable for applications requiring both high hardness and resilience, while 1095 is often chosen for its ease of sharpening and high hardness in less demanding contexts.
The chromium content in 52100 steel, which ranges from approximately 1.4 to 1.6%, significantly enhances its corrosion resistance compared to 1095 steel. This chromium presence allows 52100 to form a protective oxide layer on its surface, reducing the likelihood of corrosion by shielding the underlying material from environmental factors like moisture and oxygen. In contrast, 1095 steel lacks significant chromium content and is thus highly susceptible to rust and corrosion. This makes 52100 steel more suitable for applications where moderate exposure to corrosive environments is expected, although it still requires regular maintenance, such as oiling, to prevent rust. 1095 steel, on the other hand, demands more diligent upkeep to prevent corrosion, making it less ideal for moist or corrosive environments.
When deciding between 52100 and 1095 steel for knife making, both have their strengths and are suited for different applications.
52100 steel is known for its superior edge retention and lateral strength, thanks to its chromium content, which also provides moderate corrosion resistance. This makes it an excellent choice for high-performance knives that require durability and can withstand significant wear and tear. However, it can be more challenging to sharpen due to its higher hardness.
On the other hand, 1095 steel is easier to sharpen, making it more suitable for those who prioritize ease of maintenance or are less experienced in sharpening. It offers excellent edge retention due to its high carbon content but lacks the corrosion resistance of 52100, requiring more frequent maintenance to prevent rust.
When comparing the edge holding properties of 52100 and 1095 steel, several factors such as composition and hardness play crucial roles. 52100 steel, with its high-carbon chromium alloy and approximately 1.5% chromium content, offers superior edge retention due to enhanced wear resistance. This makes it ideal for applications requiring long-term sharpness and durability. In contrast, 1095 steel, known for its high carbon content (0.90-1.04%), also provides excellent edge retention but generally not as long-lasting as 52100 steel. However, 1095 is easier to sharpen and maintain, making it suitable for applications where frequent sharpening is acceptable. Therefore, while 52100 excels in edge retention, 1095 is preferred for ease of maintenance.
When considering tools best suited for 52100 steel versus 1095 steel, their distinct properties make them ideal for different applications.
52100 steel, with its higher chromium content, offers enhanced wear resistance and toughness. This makes it excellent for tools that require high durability and can withstand significant stress, such as bearings and heavy machinery parts. Its superior edge retention is also beneficial for high-performance knives, although it can be slightly more challenging to sharpen compared to 1095.
On the other hand, 1095 steel is known for its exceptional hardness and ease of sharpening due to its simpler carbon composition. This makes it particularly suitable for precision cutting tools like knives and saw blades, where maintaining a sharp edge with frequent sharpening is feasible. However, 1095 is less tough and more prone to corrosion, making it less ideal for applications involving high impact or exposure to harsh environments.
To choose the right steel between 52100 and 1095 for your specific application, you need to consider the unique properties and requirements of your project.
52100 steel, with its high carbon and chromium content, offers superior wear resistance and toughness, making it ideal for high-stress applications such as bearings and machinery components. Its chromium content also provides some corrosion resistance, although not to the level of stainless steel. If your application demands excellent edge retention and the ability to withstand significant wear, 52100 is a better choice despite its higher cost and more challenging sharpening process.
On the other hand, 1095 steel, known for its high carbon content, excels in applications where sharpness is critical, such as precision cutting tools and blades. It is easier to sharpen due to its simpler composition, but it lacks significant corrosion resistance and requires more frequent maintenance to prevent rust. If your project allows for regular sharpening and operates in a less corrosive environment, 1095 steel is a cost-effective option.
In summary, choose 52100 for high-stress, wear-resistant applications, and 1095 for precision cutting tools requiring frequent sharpening.
