Steel is the backbone of modern construction, from towering skyscrapers to robust bridges. Among the myriad of steel grades available, A36 and 44W stand out due to their widespread use and versatile applications. But how do you determine which one is right for your project? Whether you’re an engineer, a contractor, or simply someone with a keen interest in materials science, understanding the nuances between these two grades can be crucial. This article dives deep into the mechanical properties, chemical compositions, and specific applications of A36 and 44W steel. By the end, you’ll have a clear grasp of their differences, helping you make informed decisions for your structural and fabrication needs. Get ready to uncover the strengths and suitability of each steel grade in various contexts, ensuring your next project stands on a foundation of informed choices.
A36 and 44W steel are two popular grades used in construction and fabrication, each with unique properties. Understanding these differences is crucial for engineers, architects, and fabricators when selecting materials for their projects.
A36 steel is a hot-rolled mild steel known for its excellent weldability and machinability, with a minimum yield strength of 36,000 psi. It is widely used in structural applications such as buildings, bridges, and other infrastructure projects due to its versatility.
44W steel, commonly used in Canada, is a structural grade similar to A36 but with slightly higher mechanical properties, including a minimum yield strength of 44,000 psi. It is used in construction projects where higher strength is needed.
Choosing the right steel grade is crucial for ensuring the structural integrity and durability of a project. Factors such as yield strength, tensile strength, and elongation are key considerations. By understanding the properties of A36 and 44W steel, professionals can select the best material to meet their project needs and performance standards.
Yield strength is a crucial property that indicates the stress level at which a material begins to deform permanently. A36 steel has a minimum yield strength of 36,000 psi (248 MPa), making it suitable for structures that require moderate strength. Its lower yield strength allows for easier forming during manufacturing, providing flexibility for various applications.
In contrast, 44W steel boasts a higher minimum yield strength of 44,000 psi (303 MPa), making it ideal for demanding structural applications where greater load-bearing capacity is essential.
Tensile strength measures the maximum stress a material can withstand while being stretched or pulled before breaking. A36 steel’s tensile strength ranges from 58,000 to 80,000 psi (400 to 552 MPa), offering a balance between strength and flexibility, which is vital for many construction and manufacturing uses. On the other hand, 44W steel’s tensile strength ranges from 65,000 to 85,000 psi (448 to 586 MPa) and can even reach up to 90,000 psi. This higher tensile strength ensures that 44W steel can handle greater forces without failing, making it suitable for high-stress structural components.
Elongation measures a material’s ability to undergo significant deformation before rupture, indicating its ductility. A36 steel has a minimum elongation of 18% over 8 inches and 21% over 2 inches, demonstrating good ductility that allows it to absorb energy without breaking. In comparison, 44W steel has a minimum elongation of 20% over 8 inches and 23% over 2 inches, making it well-suited for applications that require significant deformation under stress.
In summary, A36 steel is versatile and easy to fabricate, making it ideal for general construction. Conversely, 44W steel, with its higher strength and ductility, is better suited for demanding structural applications where enhanced performance is crucial.
A36 steel consists of several key elements that significantly influence its mechanical properties and performance. The main components include:
44W steel generally contains a lower carbon content, with a maximum of around 0.30%, which improves its weldability and ductility compared to A36. The primary constituents of 44W steel include:
The differences in chemical composition between A36 and 44W steel significantly impact their mechanical properties and suitability for various applications:
Understanding the chemical composition of A36 and 44W steel is essential for engineers and fabricators to select the most suitable material for specific structural and fabrication needs.
A36 and 44W steel grades are commonly used in structural applications, each meeting different strength and performance needs.
A36 steel is used in various structural components like beams, columns, and plates, making it suitable for buildings, bridges, and other infrastructure projects. Thanks to its easy weldability and machinability, A36 is favored in manufacturing processes, making it a popular choice for fabricating machinery parts and structural frameworks.
44W steel is chosen for heavy-duty structures, such as machinery and structural beams, due to its higher strength. Frequently used in Canada, 44W steel meets local building codes that require higher mechanical properties and is commonly found in large-scale construction projects like commercial buildings and industrial facilities.
Both A36 and 44W steel are suitable for fabrication, but each has unique advantages depending on the project’s needs.
A36 steel is easier to machine and form, making it ideal for precise fabrication. Its lower carbon content allows for efficient cutting, shaping, and drilling, which is perfect for intricate designs and components.
A36 steel is easy to weld, making it a popular choice for projects that involve extensive welding work. Its ductility aids in achieving strong welds without significant risk of cracking.
Due to its higher carbon content, welding 44W steel requires careful control, and sometimes preheating or post-weld treatments are needed to avoid issues. Although 44W has good weldability, these precautions ensure the integrity of the welds in critical applications.
Choosing between A36 and 44W steel depends on the specific requirements of your project.
In summary, the choice between A36 and 44W steel hinges on the specific needs of the project, including structural integrity, fabrication processes, and compliance with regulatory standards.
A36 steel and 44W steel are governed by different standards: ASTM and CSA, respectively. The ASTM A36/A36M standard specifies the requirements for carbon structural steel used in the United States, detailing its mechanical properties, chemical composition, and testing procedures. Similarly, CSA-G40.21 outlines the requirements for structural quality steel in Canada, ensuring that 44W steel meets the necessary criteria for construction and fabrication.
A36 steel is predominantly used in the United States, where it is a common choice for general fabrication and structural applications. Its widespread availability and compliance with ASTM standards make it a go-to material for building infrastructure such as bridges and buildings. In contrast, 44W steel is mainly used in Canada, where it is favored for its higher yield strength and compliance with CSA standards. Canadian construction projects often specify 44W steel to meet local building codes and requirements, ensuring the material’s performance under the country’s specific environmental and structural demands.

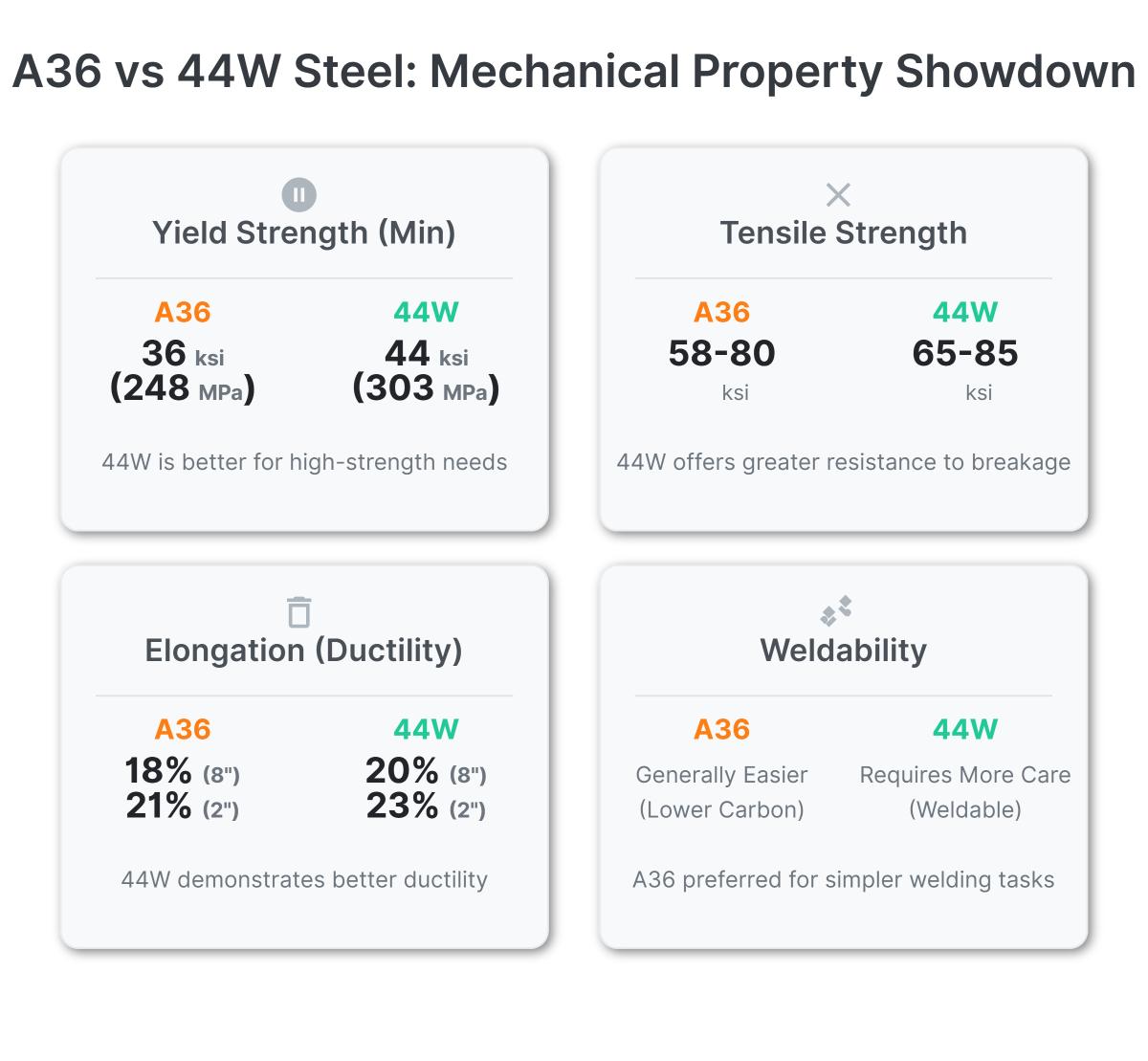

The most notable difference between A36 and 44W steel lies in their mechanical properties. A36 steel has a minimum yield strength of 36,000 psi, while 44W steel has a higher minimum yield strength of 44,000 psi, making it better for heavy load applications. This higher strength makes 44W steel ideal for structures that must support heavier loads.
In terms of tensile strength, A36 steel ranges from 58,000 to 80,000 psi, while 44W steel ranges from 70,000 to 90,000 psi. The higher tensile strength of 44W steel allows it to withstand greater forces without failing, making it ideal for high-stress applications.
The chemical composition of A36 and 44W steel also differs slightly. A36 steel typically contains up to 0.29% carbon. In contrast, 44W steel can have similar carbon content but often features higher levels of manganese and other alloying elements. These variations in composition contribute to the differences in mechanical properties and performance.
Understanding the differences between A36 and 44W steel is crucial for engineers and contractors to ensure compliance with local regulations. The regional standards and specifications for A36 and 44W steel can sometimes lead to confusion, especially for projects that span across the United States and Canada. It is essential to ensure that the correct steel grade is specified and used according to the relevant local standards.
When selecting between A36 and 44W steel, it is essential to consider the project’s geographical location and the applicable standards. Using the correct steel grade ensures compliance with local regulations and guarantees the structural integrity and performance of the finished product.
Although A36 and 44W steels are commonly used in construction and fabrication, their differences in standards, geographical usage, and mechanical properties make each more suitable for specific applications and regions. Understanding these differences is key to selecting the appropriate material for any given project. Choosing the right steel is crucial for ensuring the safety and performance of construction projects.
When choosing between A36 and 44W steel, it’s essential to consider your project’s specific needs.
Load-Bearing Capacity: Determine the maximum loads the structure will need to support. For applications with higher load requirements, 44W is typically the better choice due to its superior yield strength.
Environmental Conditions: For projects exposed to harsh or corrosive environments, additional protective measures may be needed for both steel grades.
Regulatory Standards: Check the local building codes and standards for your project. If the project is located in Canada, 44W may be required to comply with CSA standards, whereas A36 is more common in the United States under ASTM standards.
Fabrication needs can vary by project, affecting the choice between A36 and 44W steel:
Welding Requirements: For projects requiring extensive welding, A36 steel is often preferable due to its excellent weldability. However, if using 44W, ensure proper welding techniques are employed to manage its higher carbon content.
Machining and Forming: For projects requiring precise machining or intricate designs, A36 is generally easier to work with. If high strength isn’t crucial, A36 might be better for detailed fabrication.
Cost is a major factor when choosing materials:
Material Costs: A36 steel is typically more cost-effective and widely available, making it ideal for budget-conscious projects. In contrast, 44W may be more expensive due to its higher strength properties.
Long-Term Value: While A36 might save money initially, 44W could be better long-term if your project needs higher strength and durability.
Here are some examples of projects using A36 and 44W steel:
A36 Steel Projects:
Small to medium-sized commercial buildings where structural loads are moderate.
Fabrication of machinery components that require ease of machining and forming.
Infrastructure projects like pedestrian bridges where high strength is not critical.
44W Steel Projects:
Heavy industrial structures that must support significant loads, such as manufacturing plants.
High-rise buildings in seismic zones where enhanced strength is crucial for safety.
Large-scale infrastructure projects, like bridges or overpasses, where compliance with Canadian standards is required.
By carefully considering these aspects, you can make an informed decision on whether A36 or 44W steel is the right choice for your specific project needs.
Below are answers to some frequently asked questions:
The mechanical properties of A36 and 44W steel are crucial for understanding their applications and performance in construction and fabrication.
ASTM A36 steel has a minimum yield strength of 36,000 psi (250 MPa) for sections less than 8 inches thick, with a slightly lower yield strength of 32,000 psi (220 MPa) for thicker sections. Its ultimate tensile strength ranges from 58,000 to 80,000 psi (400 to 550 MPa), and it has an elongation at break of 20% in a 200 mm sample and 23% in a 50 mm sample.
On the other hand, 44W steel, commonly used in Canada, has a higher minimum yield strength of 44,000 psi (303 MPa). Its ultimate tensile strength typically ranges from 60,000 to 80,000 psi (414 to 552 MPa). The elongation at break for 44W steel is generally around 20-25%, indicating good ductility similar to A36.
Both steels have comparable modulus of elasticity values, around 200 GPa (29,000 ksi), and similar densities of approximately 7.85 g/cm³ (0.284 lb/in³). They also share similar properties for welding and machining, with A36 being particularly noted for its excellent welding properties.
In summary, while both A36 and 44W steel share many mechanical properties, 44W steel offers a higher yield strength, making it more suitable for applications requiring higher strength.
A36 and 44W steel differ significantly in terms of yield strength and tensile strength. A36 steel has a minimum yield strength of 36,000 psi, while 44W steel boasts a higher minimum yield strength of 44,000 psi, making 44W more suitable for applications requiring greater strength. In terms of tensile strength, A36 steel ranges from 58,000 to 80,000 psi, whereas 44W steel ranges slightly higher, from 65,000 to 85,000 psi. This higher tensile strength in 44W steel contributes to its enhanced durability and performance, particularly in structural applications.
44W steel is more suitable for structural applications requiring higher strength due to its higher yield strength of 44,000 psi compared to A36 steel’s 36,000 psi. This makes 44W steel better suited for demanding structural applications such as bridge construction and high-load bearing members, where enhanced strength and toughness are essential.
The primary differences in the chemical composition between A36 and 44W steel are as follows:
A36 steel contains a maximum of 0.29% carbon, whereas 44W steel has a maximum carbon content of 0.22%. Both A36 and 44W steel have a maximum phosphorus content of 0.04%, but A36 has a higher maximum sulfur content of 0.05%, compared to 44W’s 0.03%. A36 steel typically includes manganese in the range of 0.80-1.20% and silicon up to 0.40%, though specific manganese and silicon values for 44W are not detailed, suggesting they may not be significantly different or specified in the same way. These variations in chemical composition affect their mechanical properties, with 44W steel having a higher yield strength compared to A36 steel.
A36 and 44W steel are not fully interchangeable in construction projects due to their differing specifications and properties. While A36 steel has a minimum yield strength of 36,000 psi, 44W steel has a higher minimum yield strength of 44,000 psi. Additionally, the tensile strength of 44W steel is generally higher than that of A36. This makes 44W more suitable for applications requiring greater structural integrity. However, many US steel mills produce materials that meet both ASTM A36 and CSA 44W specifications, allowing for some overlap in their usage. Despite this, careful consideration must be given to the specific mechanical and chemical requirements of the project to ensure the appropriate steel grade is selected.
