In the world of high – performance alloys, AISI 300M stands out as a powerhouse. This alloy steel is celebrated for its exceptional strength and toughness, making it a top choice in aerospace and motorsports. With a unique chemical composition, it offers a remarkable balance of mechanical properties that few other alloys can match. Whether you’re an intermediate professional seeking in – depth technical knowledge or simply curious about advanced materials, this comprehensive reference will take you on a technical deep – dive. Ever wondered how AISI 300M compares to other well – known alloys in real – world applications? Let’s find out.
AISI 300M alloy steel is a high-strength, low-alloy steel known for its exceptional performance in demanding applications. AISI 300M is a modified version of the widely used AISI 4340 steel, enhanced to provide superior strength, toughness, and resilience due to its higher levels of silicon, vanadium, carbon, and molybdenum.
One of the primary attributes of AISI 300M alloy steel is its remarkable strength and toughness. This material can withstand high stress and strain without yielding, making it ideal for applications where high load-bearing capacity is essential. Its tensile strength typically ranges from 280 to 305 ksi (1930 to 2100 MPa), and it has a yield strength of around 230 ksi (1586 MPa).
AISI 300M performs better because it has more silicon, vanadium, carbon, and molybdenum than AISI 4340. These elements contribute to the steel’s improved mechanical properties and resistance to wear and fatigue.
AISI 300M alloy steel contains a balanced mix of elements that provide its superior properties. The typical chemical composition includes:
AISI 300M alloy steel exhibits a range of mechanical properties that make it suitable for high-performance applications:
These properties show the alloy’s ability to maintain its structure under high stress and resist deformation.
AISI 300M alloy steel is commonly used in sectors where high strength and reliability are paramount. Key applications include:
The typical heat treatment process includes austenitizing, quenching, and tempering, which helps achieve a balance between strength and toughness. This process is critical for optimizing the steel’s hardness, ductility, and fatigue resistance.
AISI 300M alloy steel complies with several industry standards, ensuring its quality and performance. Key standards include:
The production of AISI 300M alloy steel often involves vacuum melting to enhance its purity and mechanical properties. This method is particularly important for aerospace and other critical applications where high performance and reliability are essential.
The chemical composition of 300M steel is finely tuned to enhance its mechanical properties and performance in demanding applications. The primary elements and their typical ranges are as follows:
| Element | Range (%) |
|---|---|
| Carbon | 0.38–0.46 |
| Manganese | 0.60–0.90 |
| Silicon | 1.45–1.80 |
| Phosphorus | ≤0.010 |
| Sulfur | ≤0.010 |
| Chromium | 0.70–0.95 |
| Nickel | 1.65–2.00 |
| Molybdenum | 0.30–0.50 |
| Vanadium | ≥0.05 |
| Copper | ≤0.35 |
| Iron | Balance |
Carbon plays a vital role in steel, significantly enhancing its hardness and strength. In 300M steel, the carbon content is optimized to balance strength and toughness, contributing to its high tensile and yield strengths.
Manganese improves hardenability and tensile strength while also enhancing resistance to wear. It is essential for the steel’s heat treatment process, ensuring uniformity and stability in the final product.
Silicon increases strength and elasticity. The higher silicon content in 300M steel enhances its toughness and fatigue resistance, making it suitable for applications involving cyclic loads.
Both phosphorus and sulfur are kept to minimal levels as they can negatively affect the steel’s toughness and ductility. Low levels of these elements ensure the steel maintains its high – performance characteristics.
Chromium improves hardenability, corrosion resistance, and wear resistance. In 300M steel, chromium contributes to its
Nickel increases toughness, strength, and corrosion resistance. It helps improve the steel’s ability to perform under high stress and in extreme conditions, which is critical for aerospace and motorsport applications.
Molybdenum boosts hardenability and strength at high temperatures. It also improves the steel’s resistance to softening during tempering, making 300M steel suitable for applications requiring high thermal stability.
Vanadium is added to increase strength and grain refinement, which improves the
Copper is included in small amounts to enhance corrosion resistance without significantly affecting other mechanical properties. This addition makes 300M steel more durable in corrosive environments.
Iron is the base element, making up the balance of the alloy. It provides the fundamental matrix within which all other alloying elements interact to impart the desired properties.
The precise control of these elements is critical to achieving the desired balance of strength, toughness, and fatigue resistance in 300M steel. Each element plays a specific role in enhancing the Knowing the chemical composition helps engineers and metallurgists optimize 300M steel’s processing and application, ensuring it meets the strict demands of industries like aerospace and motorsports.

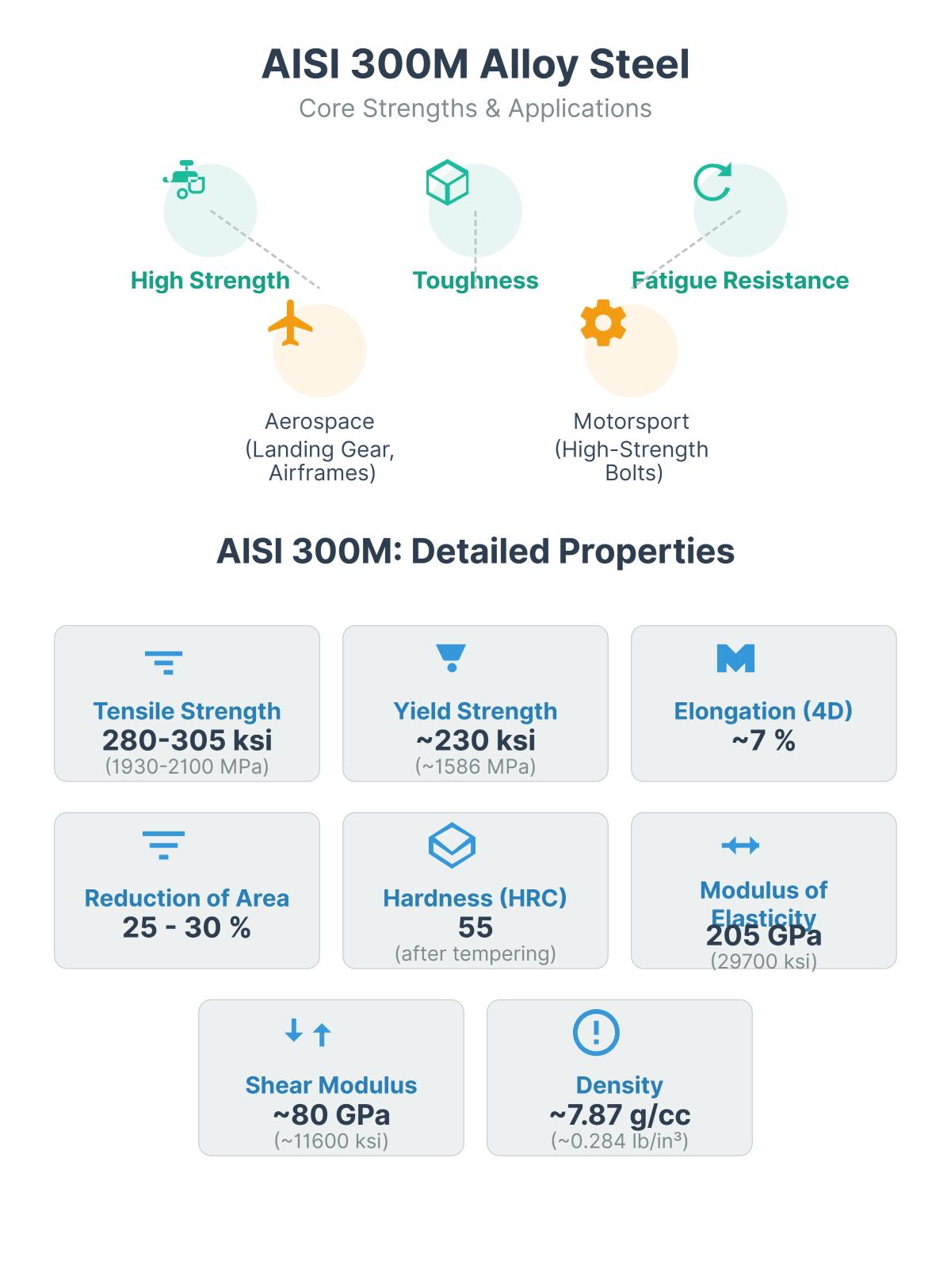

300M steel is known for its impressive tensile strength, usually between 280 and 305 ksi (1930 to 2100 MPa). With a yield strength at 0.2% offset around 230 ksi (1586 MPa), 300M steel starts to deform plastically at this stress level, making it ideal for high load-bearing applications like aircraft landing gear and high-performance automotive driveshafts.
The elongation in 4D is about 7%, which means the steel can stretch by this amount before breaking under tension. This 7% elongation indicates that 300M steel is fairly ductile, important for applications that might involve some deformation. Additionally, it has a reduction of area between 25% and 30%.
After tempering, 300M steel typically has a hardness of around 55 HRC (Rockwell C scale). This high hardness makes it resistant to wear and abrasion, which is beneficial in applications like high-strength gears and bearings.
The modulus of elasticity of 300M steel is 29700 ksi (205 GPa). This property describes the material’s stiffness or its ability to return to its original shape after being deformed elastically. A high modulus of elasticity means that the steel can resist elastic deformation under load. The shear modulus is 11600 ksi (80 GPa), representing the material’s resistance to shear stress. These modulus values are important for understanding how the steel will behave under different types of loading conditions, especially in applications where complex stress states are present.
The density of 300M steel is 0.284 lb/in³ (7.87 g/cm³). Density affects the weight of steel components. In aerospace and automotive industries, where reducing weight is crucial, knowing the density of 300M steel helps engineers design more efficient structures.
300M steel is a preferred choice for aircraft landing gear due to its exceptional strength. This allows the landing gear to support the aircraft’s weight during takeoff, landing, and ground operations. Its remarkable fatigue resistance ensures the landing gear can endure repeated stress cycles over its service life, which is crucial for safety. Additionally, the steel’s toughness enables it to absorb impact forces during landing without fracturing.
The high strength-to-weight ratio of 300M steel makes it ideal for airframe parts. Using 300M steel in structural components like wing spars and fuselage frames helps reduce the
Flight control components, such as ailerons, elevators, and rudders, require materials that provide reliable and precise control. The high strength and fatigue resistance of 300M steel make it suitable for these critical parts. It withstands the dynamic loads and stresses generated during flight maneuvers, ensuring the aircraft’s stability and safety.
Helicopter rotor blades experience high levels of stress and vibration during operation. 300M steel’s ability to endure these conditions makes it a preferred material for rotor blade construction. Its toughness and fatigue resistance ensure that the rotor blades maintain their shape and performance over time, contributing to the safe and efficient operation of the helicopter.
In the defense industry, 300M steel is used in missile components. Missiles undergo extreme conditions during launch, flight, and impact, including rapid acceleration, high stress, and intense temperatures. The strength and toughness of 300M steel make it suitable for these demanding phases, ensuring the missile’s structural integrity and performance under extreme conditions.
In motorsports, 300M steel is used for components like driveshafts and high-strength bolts. Driveshafts, which transmit power from the engine to the wheels, need to withstand high torque and rotational forces. The superior strength and fatigue resistance of 300M steel ensure that driveshafts operate reliably at high speeds and under extreme conditions. High-strength bolts are also crucial, as they secure components together under high stress and vibration.
300M steel’s enhanced mechanical properties make it ideal for engine components such as crankshafts and connecting rods. Crankshafts convert the up-and-down motion of the pistons into rotational motion, and they must handle high loads and stresses. Connecting rods transfer the force from the pistons to the crankshaft and also experience significant stress during engine operation. The high strength and toughness of 300M steel enable these engine components to withstand the high performance demands of motorsports engines.
The landing gear of the NASA Space Shuttle Orbiter is one of the most demanding aerospace applications, for which AISI 300M steel was chosen. The landing gear needs to absorb substantial impact forces during landing while maintaining structural integrity after numerous takeoffs and landings. The high strength and toughness of 300M steel made it an ideal choice, ensuring the safety and reliability of the landing gear system. This application showcases the steel’s ability to perform in extreme aerospace conditions, where failure is not an option.
In the Brazilian VLS (Veículo Lançador de Satélites) rocket project, AISI 300M steel was used for critical components requiring high mechanical strength and reliability. The rocket’s environment, marked by high stress and rapid acceleration, requires materials that maintain performance under these extreme conditions. The use of 300M steel in this project highlights its suitability for applications involving extreme mechanical demands, ensuring the structural integrity and successful operation of the rocket.
In high-performance racing, driveshafts must endure high torque and rotational forces, often under extreme conditions. AISI 300M steel is used in driveshafts due to its superior strength and fatigue resistance, which are critical for maintaining performance and reliability at high speeds. The steel’s ability to withstand cyclic loads without failure ensures that the driveshafts operate efficiently, contributing to the
Racing engines demand materials that can handle high stress and temperatures. AISI 300M steel is utilized in components such as crankshafts and connecting rods, which are subject to significant loads during engine operation. The steel’s high strength and toughness enable these components to perform reliably under the intense conditions of motorsport racing, providing durability and enhancing the engine’s performance.
Using AISI 300M steel in airframe parts, such as wing spars and fuselage frames, demonstrates its high strength-to-weight ratio, crucial for reducing aircraft weight while maintaining structural integrity. These components benefit from the steel’s strength, ensuring the aircraft can withstand various flight conditions and stresses. This application illustrates the importance of 300M steel in enhancing the performance and efficiency of modern aerospace structures.
Helicopter rotor blades experience high levels of stress and vibration during operation. AISI 300M steel’s toughness and fatigue resistance make it an excellent material for constructing rotor blades. These properties ensure that the rotor blades maintain their performance and structural integrity over time, contributing to the safe and efficient operation of helicopters.
Missile systems need materials that can withstand extreme conditions like rapid acceleration, high stress, and intense temperatures. AISI 300M steel is used in various missile components, providing the necessary strength and toughness to ensure the missile’s structural integrity throughout its lifecycle. This application underscores the steel’s capability to perform reliably in critical defense applications, where the highest levels of performance and durability are essential.
AISI 300M is an enhanced version of AISI 4340 steel, engineered for better mechanical properties. Here are the key differences between these two alloys:
HSLA steels are designed to offer better mechanical properties than standard carbon steels. Comparing AISI 300M to HSLA steels:
Stainless steels like 17-4PH are renowned for their excellent corrosion resistance. Here’s how AISI 300M compares:
300M steel is designed to meet stringent industry standards, ensuring its quality, reliability, and performance in critical applications. These standards guarantee that the steel can endure the extreme conditions and high-stress environments typical of aerospace, automotive, and military uses.
AMS standards focus on the chemical composition, mechanical properties, and heat treatment processes for 300M steel. They ensure the steel is capable of withstanding high stress and fatigue in demanding environments.
AMS 6257 and AMS 6419 cover specifications for 300M alloy steel bars, forgings, and tubing, emphasizing the material’s cleanliness and consistency to prevent impurities that could compromise performance. AMS 6417 involves vacuum arc remelted (VAR) processing, which is essential for producing high-purity steel with a uniform microstructure, thus enhancing its mechanical properties and fatigue resistance.
Transitioning to military standards, MIL-S-8844 details the chemical composition, mechanical properties, and heat treatment requirements for 300M steel. This ensures the steel can handle the rigorous demands of military applications, including high-stress and high-impact environments.
In the aerospace sector, standards such as BMS-7-26 (Boeing Material Specification) and DMS 1935 (Douglas Material Specification) outline the requirements for 300M steel in aircraft components. These standards guarantee that the steel meets stringent quality and performance criteria necessary for critical applications like landing gear and structural parts, ensuring reliability and safety under intense operational conditions.
Within the automotive industry, GM-1012 specifies the chemical composition, mechanical properties, and heat treatment processes for 300M steel. This standard ensures the steel meets the performance requirements for high-stress automotive components, such as suspension systems and driveshafts, providing durability and longevity.
ASTM A579 and ASTM A646 cover high-strength, low-alloy steel bars and structural steel, including 300M. These standards specify the necessary chemical composition, mechanical properties, and heat treatment processes to achieve desired performance characteristics, making the steel suitable for a variety of demanding applications.
By adhering to these standards, manufacturers ensure that 300M steel meets the stringent requirements of various industries, providing confidence to engineers and designers that the material will perform reliably under extreme conditions.
Below are answers to some frequently asked questions:
AISI 300M alloy steel is known for its remarkable strength, toughness, and fatigue resistance, making it ideal for high-stress applications. Key properties include:
These properties make AISI 300M alloy steel particularly suitable for critical aerospace and motorsport applications, such as aircraft landing gear, high-strength bolts, and airframe parts.
AISI 300M alloy steel, known for its high strength, toughness, fatigue resistance, and good ductility, has diverse applications. In the aerospace industry, it’s used for aircraft landing gear, airframe parts, and flight control components. In automotive and motorsports, it’s employed in high – performance driveshafts, racing suspension systems, and other high – strength parts. Defense applications include missile components. It’s also used in general engineering for high – strength bolts, fasteners, gears, and bearings. Additionally, it finds use in sports equipment like skis and mountaineering gear.
AISI 300M and AISI 4340 are both high-strength, low-alloy steels. 300M (4340 MOD) has higher silicon and vanadium content. In mechanical properties, 300M can reach a higher tensile strength (up to 310 ksi) compared to 4340 (up to 287 ksi), but 4340 has a higher yield strength (around 270 ksi vs. approximately 220 ksi for 300M). 4340 also offers better elongation and reduction of area, indicating higher toughness and ductility. 300M is often used in high-strength applications needing a balance of toughness and fatigue resistance, while 4340 is preferred where higher toughness and impact resistance are crucial. Additionally, 300M is vacuum arc-remelted and double tempered, unlike 4340.
AISI 300M steel complies with several stringent standards that ensure its high strength and performance for demanding applications. These include AMS 6417 and AMS 6419, which cover vacuum-melted 300M alloy steel bars and tubes, focusing on its purity and mechanical properties. AMS 6257 addresses bars and forgings that are normalized and tempered. ASTM A646 provides guidelines for high-strength, low-alloy structural steel, relevant to 300M. Military specifications MIL-S-8844 and MIL-S-83135 ensure compliance for aerospace and defense uses. Additionally, aerospace specifications BMS-7-26 and DMS-1935, along with British standard BS 5155, further validate its quality and applicability in high-stress environments. These standards collectively guarantee the material’s reliability, mechanical integrity, and suitability for critical applications.
AISI 300M steel is preferred in high-strength applications due to its exceptional mechanical properties. It exhibits an ultimate tensile strength of up to 1931 MPa (280 ksi) and a yield strength of 1586 MPa (230 ksi), allowing for the creation of lighter components without sacrificing performance. The alloy’s toughness and fatigue resistance are particularly noteworthy, as these properties are critical in applications subject to cyclic stresses, such as aircraft landing gear and other aerospace components. Additionally, 300M steel offers excellent wear resistance, which is beneficial for components that experience friction and abrasion. These combined attributes make 300M steel an ideal choice for demanding environments where high strength, reliability, and durability are essential.
Yes, there are several notable case studies showcasing the use of 300M steel. One prominent example is its use in the landing gear of military aircraft like the C-5A, where its high strength, excellent transverse ductility, and fatigue resistance are crucial. This steel has also been applied in general aviation for its durability and corrosion resistance. Additionally, a significant study demonstrated the benefits of Low Plasticity Burnishing (LPB) on 300M steel, improving its fatigue performance and stress corrosion cracking resistance in landing gear components. In manufacturing, Selective Laser Melting (SLM) has been explored for producing complex 300M steel parts, maintaining high mechanical properties. In motorsports, 300M steel is utilized for high-performance components like bolts and driveshafts, valued for its tensile strength and toughness. These examples underscore 300M steel’s versatility and reliability in demanding applications.
