Imagine a steel alloy that combines strength, toughness, and versatility, catering to a multitude of industrial applications. AISI SAE 8620 steel is precisely that marvel. This alloy stands out in the world of engineering materials, known for its exceptional properties and adaptability in various heat-treatment processes. As you delve into this comprehensive guide, expect to uncover the intricate details of its chemical composition, mechanical properties, and the sophisticated heat treatments that unlock its full potential. Additionally, you will explore its equivalents and comparisons with other steel grades, ensuring a thorough understanding of its place in the industry. Ready to discover why AISI SAE 8620 steel is a preferred choice for many engineers and manufacturers? Let’s dive deep into the fascinating world of this remarkable alloy.
AISI SAE 8620 steel is a low-alloy steel prized for its strength, toughness, and wear resistance in various industries. It is a versatile material, making it suitable for a wide range of engineering and manufacturing applications.
AISI SAE 8620 steel is primarily composed of carbon, manganese, phosphorus, sulfur, silicon, nickel, chromium, and molybdenum. These elements enhance the steel’s tensile strength, hardness, and resistance to wear and corrosion. The typical composition range includes:
AISI SAE 8620 steel has several desirable properties that make it suitable for demanding applications, including:
The robust properties of AISI SAE 8620 steel make it ideal for various industrial applications, including:
Various heat treatment processes like carburizing, annealing, normalizing, hardening, and tempering enhance the performance of AISI SAE 8620 steel. These treatments improve the material’s hardness, strength, and toughness, making it suitable for a wide range of engineering applications.
Carburizing, a common heat treatment for AISI SAE 8620 steel, involves heating the steel in a carbon-rich environment. This process increases the carbon content on the surface, resulting in a hard and wear-resistant outer layer while maintaining a tough and ductile core.

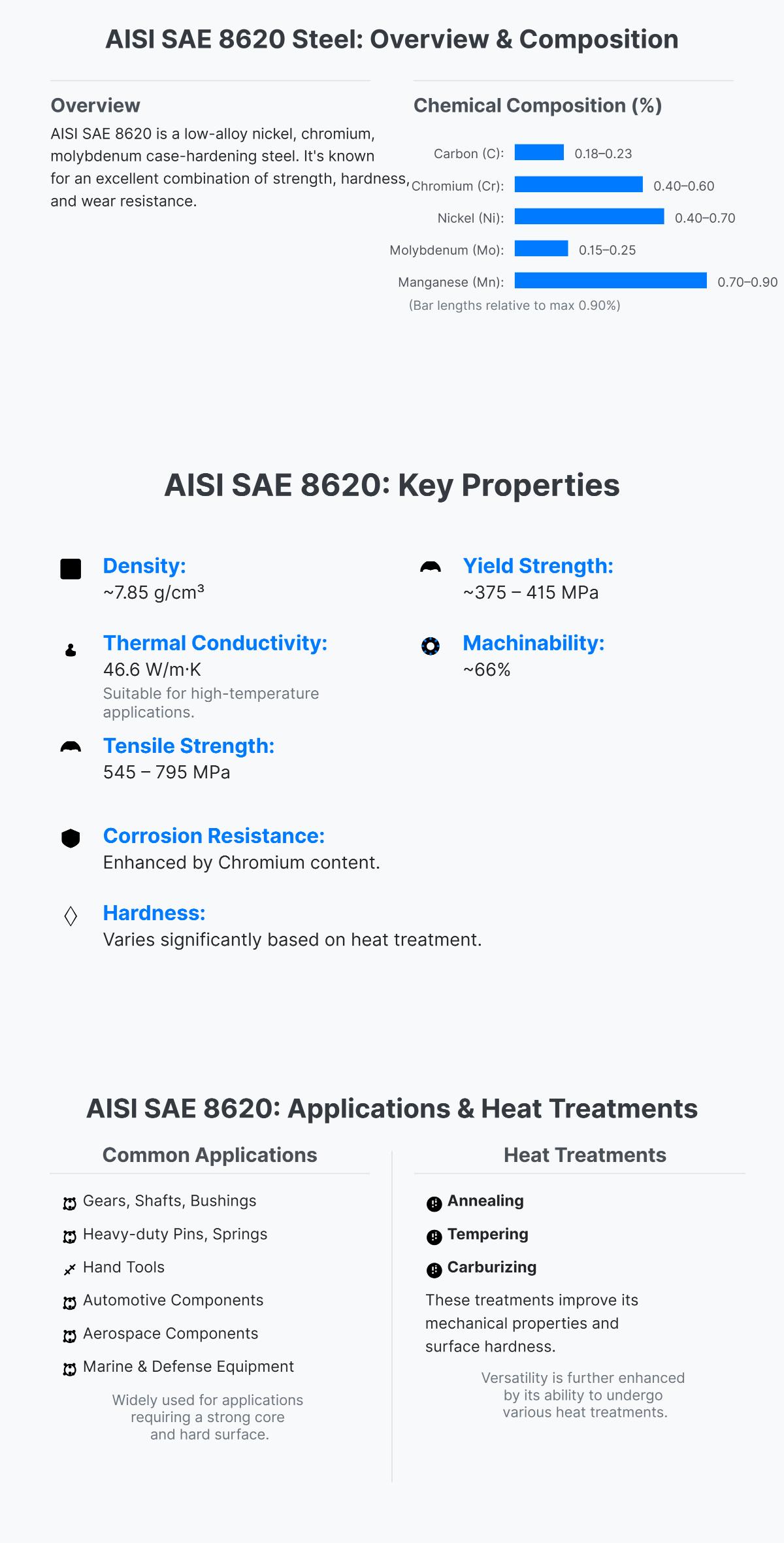

AISI SAE 8620 steel is a low-alloy steel known for its balanced chemical composition that contributes to its desirable mechanical properties. The elements in AISI SAE 8620 steel are carefully selected to boost strength, toughness, and wear resistance, making it ideal for various engineering uses.
| Element | Content (%) |
|---|---|
| Carbon (C) | 0.18–0.23 |
| Manganese (Mn) | 0.70–0.90 |
| Nickel (Ni) | 0.40–0.70 |
| Chromium (Cr) | 0.40–0.60 |
| Silicon (Si) | 0.15–0.35 |
| Molybdenum (Mo) | 0.15–0.25 |
| Sulfur (S) | ≤0.040 |
| Phosphorus (P) | ≤0.035 |
The combination of these elements allows AISI SAE 8620 steel to be effectively case-hardened. The case-hardening process creates a hard, wear-resistant surface layer while maintaining a tough and ductile core. This balance of properties is essential for components that experience both surface wear and impact loads.
AISI SAE 8620 steel’s carefully balanced chemical composition makes it a versatile and high-performance alloy suitable for a range of demanding engineering applications.
AISI SAE 8620 steel has several mechanical properties that make it ideal for demanding applications.
The tensile strength of AISI SAE 8620 steel, typically ranging from 545 MPa to 795 MPa, is crucial for components that need to withstand significant forces. Its yield strength, approximately 375 MPa, indicates the stress level at which the material begins to deform plastically, ensuring precise dimensional stability under load.
After heat treatment, AISI SAE 8620 steel can achieve high surface hardness, making it highly resistant to wear and surface deformation. This is particularly valuable for parts exposed to friction and abrasive conditions.
AISI SAE 8620 steel maintains excellent toughness, even at low temperatures. This ability to absorb energy and plastically deform without fracturing is essential for components that experience impact and dynamic loads.
The machinability of AISI SAE 8620 steel is rated at approximately 66%, indicating that it is relatively easy to machine compared to other steels. This is beneficial in manufacturing complex parts with precision and efficiency.
AISI SAE 8620 steel has a thermal conductivity of 46.6 W/m·K, allowing for efficient heat dissipation. This is particularly beneficial in automotive and aerospace components where effective thermal management is crucial.
The combination of high strength, toughness, wear resistance, and machinability makes AISI SAE 8620 steel suitable for a wide range of industrial applications.
AISI SAE 8620 steel’s balanced mechanical properties and versatility ensure reliable performance in both standard and specialized applications.
Heat treatment is a critical process for AISI SAE 8620 steel, significantly influencing its mechanical properties such as hardness, strength, toughness, and wear resistance. The primary heat treatment methods applicable to this steel include annealing, normalizing, hardening, tempering, and case hardening (carburizing). Each method has distinct objectives and procedures that contribute to the
Annealing heats the steel to 820°C to 850°C, then slowly cools it in a furnace. This process serves multiple purposes:
Normalizing is performed by heating AISI SAE 8620 steel above its critical temperature range, typically around 900°C to 925°C, and then cooling it in air. The main benefits of normalizing include a uniform microstructure, resulting in a more homogeneous and refined grain structure, improved mechanical properties by producing a balanced microstructure, and stress reduction to alleviate internal stresses accumulated during prior manufacturing processes.
Hardening, or austenitizing, heats the steel to 840°C to 870°C and then rapidly cools it in oil or water. The choice of quenching medium depends on the part’s size and complexity. This process is crucial for increasing hardness by converting the steel’s microstructure to martensite, achieving desired microstructure with proper control of the cooling rate, and avoiding undesirable microstructures that could impair the steel’s performance.
Tempering occurs after hardening, reheating the steel to 200°C to 704°C. The specific temperature is chosen based on the desired balance between hardness and toughness. Tempering aims to reduce brittleness introduced during the hardening process, improve toughness, and achieve desired mechanical properties by fine-tuning the hardness and toughness to match the application requirements.
Case hardening, specifically carburizing, is a surface-hardening process where the steel is heated in a carbon-rich environment at 900°C to 925°C. This process allows carbon to diffuse into the surface layer of the steel, followed by quenching to lock in the hard surface. The benefits of carburizing include enhanced surface hardness, creating a hard, wear-resistant surface layer while maintaining a tough and ductile core, improved wear resistance for parts subjected to high friction and wear, and balanced mechanical properties ensuring durability and performance in demanding applications.
Heat treatment processes like annealing and normalizing play a significant role in the machinability of AISI SAE 8620 steel. By reducing hardness and relieving internal stresses, these treatments make the steel easier to machine, resulting in lower cutting forces and reduced tool wear. Proper heat treatment is crucial for optimal machining results and longer tool life.
Through heat treatment, AISI SAE 8620 steel can achieve a desirable combination of high surface wear resistance and good internal strength. This makes it suitable for applications that require both durability and mechanical robustness, such as gears, shafts, and automotive components.
AISI SAE 8620 is a versatile low-alloy steel, popular in many industries because of its strong and durable properties. To ensure compatibility and standardization, several international equivalents match the chemical composition and mechanical properties of AISI SAE 8620 steel.
Comparing AISI SAE 8620 with other steel grades highlights its unique properties and suitability for specific applications.
AISI 8620, with its nickel content, offers enhanced toughness and core strength, making it ideal for applications needing these properties. In contrast, AISI 5120, primarily a chromium steel, provides high strength but lacks the added toughness of AISI 8620.
17CrNiMo6 has more chromium and nickel, offering better hardenability and strength than AISI 8620. However, its higher alloy content makes it more expensive, making AISI 8620 a cost-effective choice for less demanding applications.
Consider these key factors when choosing an equivalent steel grade:
Understanding the international equivalents and comparing AISI SAE 8620 with other steel grades helps in selecting the appropriate material for specific engineering and manufacturing applications, ensuring optimal performance and cost-effectiveness.
AISI SAE 8620 steel is highly valued in the automotive industry due to its excellent combination of surface hardness and core toughness. This makes it ideal for components that experience high wear and stress. Common applications include:
In the aerospace sector, AISI SAE 8620 steel is used for components that require a high level of toughness and reliability. Specific applications include:
Heavy machinery and industrial equipment benefit significantly from the properties of AISI SAE 8620 steel. Its applications in this sector include:
In the oil and gas industry, components like drill rig parts and valve components must endure harsh environments and high mechanical stresses. Examples include:
AISI SAE 8620 steel has been effectively used in the production of armored vehicle track pins. These components require extreme hardness and wear resistance to perform reliably under harsh conditions. By applying a boronizing treatment, the surface hardness of the steel is significantly increased, enhancing wear resistance and extending the service life of the track pins.
In precision gear manufacturing, the carburizing process is optimized to ensure a uniform and high-quality carburized layer. This is crucial for maintaining consistent performance in machinery where gears must operate under high loads and stresses. Vacuum carburizing is often preferred to avoid grain boundary oxidation, ensuring a clean and uniform surface layer.
For automotive engine components such as camshafts and crankshafts, the combination of carburizing and tempering processes is employed to achieve the desired mechanical properties. This treatment results in parts that can withstand the high cyclic stresses of engine operation, providing durability and reliability.
Advances in heat treatment processes, like vacuum carburizing and advanced tempering, have improved the performance of AISI SAE 8620 steel. These developments ensure more uniform hardening and reduce the risk of defects, making the steel even more suitable for high-precision and high-stress applications.
Recent advancements in heat treatment techniques have greatly improved the strength, toughness, and wear resistance of AISI SAE 8620 steel. Vacuum carburizing, for instance, has gained popularity due to its ability to create a uniform and high-quality carburized layer, free from surface oxidation. This method ensures superior surface hardness and enhances the steel’s overall performance in demanding applications.
Advanced tooling and machining strategies, including high-speed machining (HSM) techniques combined with optimized cutting tools, have increased efficiency, reduced machining time, and improved the surface finish of components. The implementation of computer numerical control (CNC) technology has enabled the manufacture of more complex geometries with greater accuracy.
Sustainability has become a critical focus in the production of AISI SAE 8620 steel. Efforts are being made to minimize the environmental impact of steel manufacturing processes. Using electric arc furnaces (EAF) that melt scrap steel instead of using new iron ore is becoming more common, significantly reducing the carbon emissions from steel production.
Researchers are continuously working to improve the composition of AISI SAE 8620 steel to enhance its properties. This involves fine-tuning the alloying elements to achieve a better balance between strength, toughness, and machinability. By adjusting the levels of chromium, nickel, and molybdenum, researchers are developing variants of AISI SAE 8620 steel that offer improved performance for specific applications.
Industry 4.0 technologies are revolutionizing how AISI SAE 8620 steel is manufactured and used. Smart manufacturing techniques, including the use of IoT (Internet of Things) sensors and data analytics, are enabling real-time monitoring and control of the production process. This leads to improved quality control, reduced downtime, and enhanced efficiency in steel manufacturing.
Additive manufacturing, commonly known as 3D printing, is emerging as a promising technique for producing components made from AISI SAE 8620 steel. This technology allows for the creation of complex and custom-designed parts that would be challenging to manufacture using traditional methods. The ability to produce near-net-shape components with minimal material waste makes additive manufacturing an attractive option for producing high-performance steel parts.
Surface treatment technologies for AISI SAE 8620 steel are continuously evolving to improve the material’s performance in demanding applications. Advanced coating techniques, such as physical vapor deposition (PVD) and chemical vapor deposition (CVD), are being employed to enhance surface hardness and wear resistance. These coatings provide an additional layer of protection, extending the service life of components exposed to harsh operating conditions.
Below are answers to some frequently asked questions:
AISI SAE 8620 steel is a low-alloy nickel, chromium, molybdenum case-hardening steel known for its excellent combination of strength, hardness, and wear resistance. Its chemical composition includes carbon (0.18–0.23%), chromium (0.40–0.60%), nickel (0.40–0.70%), molybdenum (0.15–0.25%), and manganese (0.70–0.90%). This steel offers a density of approximately 7.85 g/cm³ and a thermal conductivity of 46.6 W/m·K, making it suitable for high-temperature applications.
The mechanical properties of AISI SAE 8620 steel include a tensile strength range of 545 MPa to 795 MPa and a yield strength of approximately 375 MPa to 415 MPa. Its hardness can vary significantly based on heat treatment, and it has a machinability rating of about 66%. The alloy’s chromium content enhances its corrosion resistance.
AISI SAE 8620 steel is widely used in applications requiring a strong core and hard surface, such as gears, shafts, bushings, heavy-duty pins, springs, hand tools, automotive and aerospace components, and marine and defense equipment. This versatility is further enhanced by its ability to undergo various heat treatments, including annealing, tempering, and carburizing, which improve its mechanical properties and surface hardness.
AISI SAE 8620 steel is heat-treated using several key processes to enhance its mechanical properties.
These processes enable AISI SAE 8620 steel to achieve optimal performance for demanding applications such as gears and shafts.
AISI SAE 8620 steel, known for its balance of strength, toughness, and wear resistance, has several international equivalents that facilitate its use in global manufacturing and trade. These equivalents include:
These equivalents possess similar mechanical properties and chemical compositions, although slight variations may exist due to differing national standards. These steels are typically utilized in applications requiring high surface hardness and toughness, such as gears, shafts, and automotive parts.
AISI SAE 8620 steel is a low-alloy, case-hardening steel known for its excellent strength, toughness, and wear resistance. Compared to other steel grades, AISI 8620 offers a higher tensile strength (up to 795 MPa) and yield strength (up to 415 MPa) than AISI 1018, which has tensile and yield strengths up to 430 MPa and 240 MPa, respectively. While AISI 1018 is easier to machine, AISI 8620’s superior mechanical properties make it suitable for high-stress components like gears and shafts, whereas AISI 1018 is used in less demanding applications.
Compared to grades 8615 and 8617, AISI 8620 has higher core strength and can achieve greater surface hardness through carburizing, enhancing its wear resistance. The presence of chromium and nickel also provides improved corrosion resistance. AISI 8620 can undergo various heat treatments, making it versatile for different industrial applications, including automotive and aerospace sectors. Its international equivalents, like EN 10084 (1.6523) and JIS G4103 (SNCM220), ensure its consistent performance worldwide.
AISI SAE 8620 steel is widely used across several key industries due to its excellent mechanical properties, such as high tensile strength, toughness, and wear resistance. In the automotive industry, it is used for components like gears, camshafts, crankshafts, and transmission parts. The aerospace industry utilizes this steel for critical components like landing gear and transmission parts, where high stress and fatigue resistance are crucial. The machinery and equipment sector benefits from its toughness and durability in manufacturing gearboxes, shafts, and axles. Agricultural machinery also employs AISI SAE 8620 steel for its strength and wear resistance, ensuring long-lasting performance. Additionally, it is used in general engineering and tooling for parts that require a balance of toughness, machinability, and wear resistance. The defense and aerospace sectors value its precision machining capabilities and high strength, while the energy sector, particularly in renewable energy and power generation, uses it in turbines and high-wear components. Lastly, its corrosion resistance makes it suitable for marine and oilfield environments.
Recent trends in the use of AISI SAE 8620 steel highlight significant advancements in processing and applications. One notable development is the integration of AI-based digital carburizing control systems, which allow for real-time adjustments of carbon potential and temperature. This results in enhanced accuracy of the carburized layer depth, improving the steel’s performance characteristics.
Additionally, there is a growing trend towards composite surface treatments that combine traditional carburizing with physical vapor deposition (PVD) coatings, such as titanium aluminum nitride (TiAlN). This combination significantly reduces friction coefficients and enhances wear resistance, extending the service life of components.
Additive manufacturing techniques, particularly laser powder bed fusion (LPBF), are also being explored for producing complex gear geometries. This method refines the grain size of the steel, leading to a notable increase in fatigue strength.
Finally, there is a push towards green manufacturing practices. The adoption of bio-based quenching mediums and plasma carburizing processes helps reduce energy consumption and environmental impact, while still enhancing the properties of the carburized layer. These trends collectively contribute to the evolving landscape of AISI SAE 8620 steel applications, ensuring its continued relevance and utility in various high-performance industries.
