AR400 Steel: Composition, Properties, and Uses

Imagine a material tough enough to withstand the relentless wear and tear of industrial environments, yet versatile enough to be shaped into various forms. Welcome to the world of AR400 steel, a high-strength alloy renowned for its exceptional abrasion resistance and durability. From the rugged terrains of mining sites to the demanding conditions of construction projects, AR400 steel is a go-to choice for industries that require materials capable of enduring severe stress and impact.

This article delves into the intricate composition of AR400 steel, explaining how elements like carbon, manganese, and chromium contribute to its renowned hardness and mechanical properties. You’ll discover why AR400 steel is favored for manufacturing heavy-duty equipment such as buckets, blades, and liners, and learn about its role in extending the lifespan of machinery in high-abrasion settings. Moreover, we will explore the challenges and considerations involved in fabricating AR400 steel, including its weldability and formability, and address the complexities of galvanizing this robust material.

Whether you’re an engineer seeking the ideal material for your next project, a manufacturer interested in fabrication techniques, or a researcher comparing abrasion-resistant steels, this comprehensive guide will equip you with the knowledge needed to harness the full potential of AR400 steel. Join us as we uncover the secrets behind its widespread application and the factors that make it an indispensable component in today’s industrial landscape.

Introduction to AR400 Steel

AR400 Steel: A Durable Solution for Demanding Applications

AR400 steel is a high-carbon alloy known for its exceptional abrasion resistance and durability. Its unique composition and properties make it ideal for applications subject to significant wear and tear.

This type of steel typically has a hardness rating between 360 and 440 Brinell Hardness Number (BHN), making it one of the harder abrasion-resistant steels available. This high hardness level is a key factor in its superior wear resistance, enabling it to withstand harsh conditions that would quickly degrade other materials.

AR400 steel’s durability makes it a preferred material in industries facing high abrasion and impact. Its resistance to wear extends the lifespan of equipment and components, reducing maintenance costs and minimizing downtime. As a result, AR400 steel is extensively used in mining, construction, agriculture, and material handling, where its resilience is crucial for efficient operations.

Despite its hardness, AR400 steel is easy to weld and form. This versatility allows it to be used in various manufacturing and engineering applications, from heavy-duty machinery parts to protective linings.

AR400 steel is a robust, wear-resistant material that delivers high performance in demanding environments, making it essential for industries that need durable and reliable solutions.

Chemical Composition

Key Elements in AR400 Steel

AR400 steel is a durable, high-strength material designed for superior hardness and abrasion resistance. Its composition combines key elements and trace additions to perform well in tough conditions.

Primary Components

The base composition of AR400 steel includes the following elements:

• Carbon (C): Up to 0.25%. Carbon is essential for boosting hardness and strength by enabling heat-treated transformations. However, excessive carbon can reduce weldability, so its content is kept balanced.
• Manganese (Mn): Approximately 1.70% maximum. Manganese enhances toughness, wear resistance, and the steel’s ability to harden.
• Silicon (Si): Around 0.7% maximum. Silicon improves strength and removes impurities during production without reducing flexibility.
• Chromium (Cr): About 1.50% maximum. Chromium increases abrasion and corrosion resistance by forming hard carbides.
• Nickel (Ni): Around 0.70% maximum. Nickel boosts toughness and ensures durability in cold conditions.

Minor and Trace Elements

To fine-tune AR400 steel’s properties, small amounts of other elements are also included:

• Phosphorus (P) and Sulfur (S): Phosphorus and sulfur are kept low (0.025% and 0.015% max) to prevent brittleness and maintain machinability.
• Molybdenum (Mo): Approximately 0.5% maximum. Molybdenum strengthens the steel and improves wear resistance, especially at high temperatures.
• Boron (B): Up to 0.005%. Boron, in small amounts, enhances hardenability and strengthens the steel’s structure.

Micro-Alloying Additions

Micro-alloying elements like aluminum and titanium refine grain size, boosting toughness and reducing cracking risks.

Contribution of Composition to Abrasion Resistance

The balanced composition of AR400 steel ensures its hardness, strength, and toughness, making it highly resistant to abrasion and cracking even under heavy stress. Thanks to its precise composition, AR400 steel offers an exceptional balance of hardness, strength, and toughness, making it perfect for high-stress, high-wear applications.

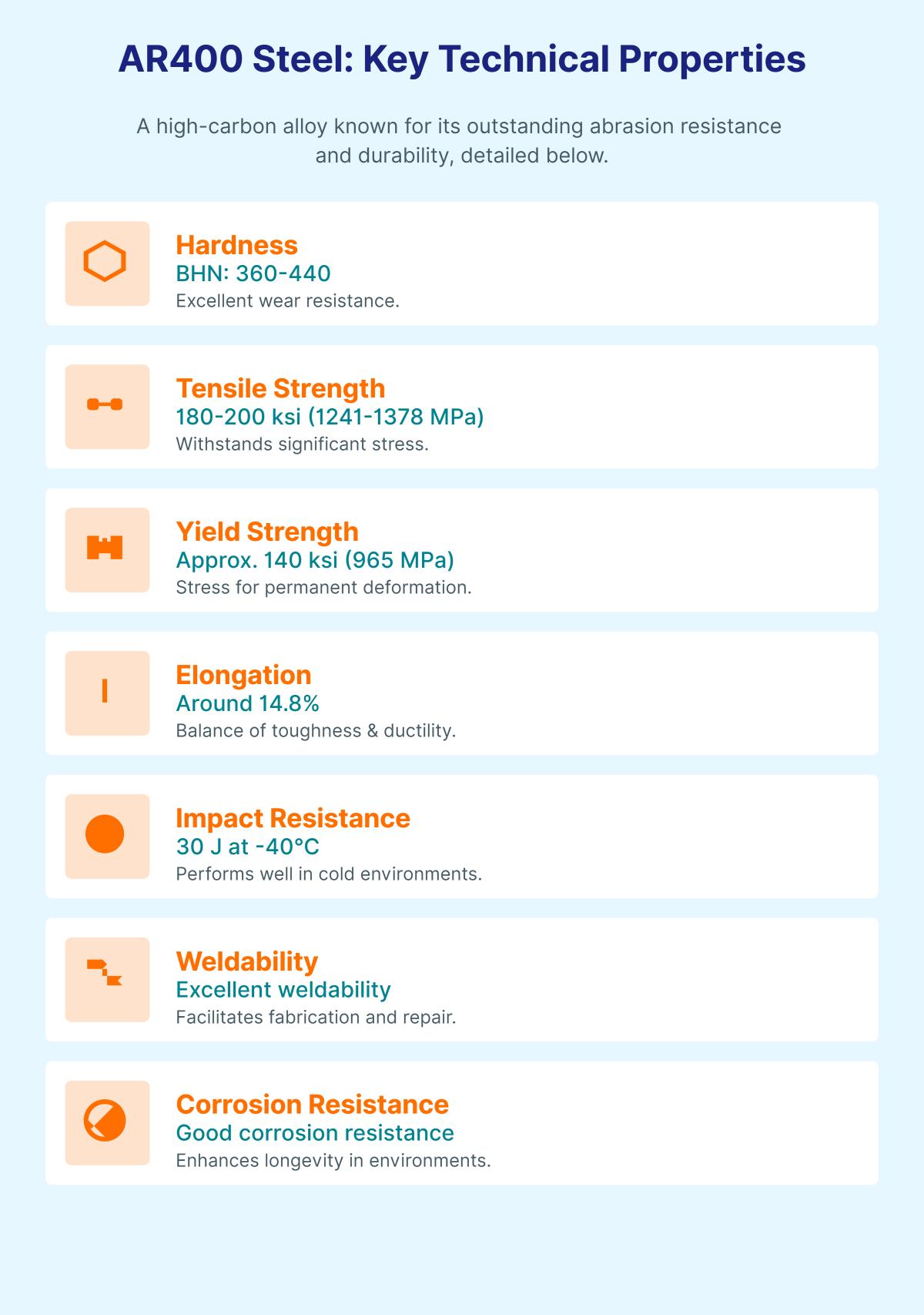

Mechanical Properties

Mechanical Properties of AR400 Steel

AR400 steel is celebrated for its impressive hardness and durability, making it a top choice for challenging industrial environments. Its unique combination of mechanical properties ensures exceptional performance in applications where wear resistance, strength, and longevity are paramount.

Hardness and Abrasion Resistance

The hallmark of AR400 steel is its remarkable hardness, with a Brinell Hardness Number (BHN) ranging from 360 to 440. This hardness stems from a special mix of its ingredients and a precise heat treatment process, which creates a tough, wear-resistant structure. As a result, AR400 steel excels in abrasive environments, resisting surface wear and deformation even under extreme conditions. This makes it a go-to material for applications like mining equipment, construction machinery, and other high-impact industries.

Strength Under Stress: Tensile and Yield Properties

AR400 steel’s high tensile strength (1241 to 1378 MPa) and yield strength (around 965 to 1000 MPa) enable it to withstand heavy mechanical stress without deforming. These properties make it ideal for demanding applications where the material must endure both static and dynamic forces, such as heavy-duty structural components and industrial machinery.

Elongation and Ductility

Despite its high hardness, AR400 steel retains a surprising level of ductility. It can stretch up to 14.8% before breaking, a quality that helps prevent sudden failures in high-stress situations. This balance between hardness and flexibility is critical for ensuring structural integrity in applications where the material must absorb impacts or adapt to varying loads.

Impact Resistance

AR400 steel is built to handle sudden impacts without cracking, thanks to its ability to absorb energy efficiently. Whether it’s withstanding the force of falling debris or enduring heavy collisions, this property ensures reliability in high-energy environments. Its impact resistance is particularly valued in industries like construction and material handling, where durability under stress is essential.

Fatigue Strength in Real-World Applications

Another standout feature of AR400 steel is its excellent fatigue strength. It can endure repeated cyclic loading without failure, making it a reliable choice for applications like conveyor systems, dump truck beds, and other equipment subjected to continuous vibration or repetitive stress. This durability ensures that machinery remains operational for extended periods, reducing downtime and increasing efficiency.

Wear Resistance and Longevity

AR400 steel’s mechanical properties make it a true powerhouse in industries like mining, construction, and material handling. Its superior wear resistance and ability to withstand abrasive conditions translate to longer service life and lower maintenance costs. For companies operating in harsh environments, AR400 steel provides an unmatched combination of performance and cost-efficiency.

Balancing Benefits and Challenges

While AR400 steel offers numerous advantages, its high hardness can present challenges during fabrication. Machining, welding, and forming require specialized techniques to preserve its integrity and ensure optimal performance. However, with the right expertise, these challenges can be effectively managed, allowing industries to fully leverage the benefits of this extraordinary material.

Applications and Industries

Industries and Applications of AR400 Steel

AR400 steel stands out for its remarkable strength and resistance to wear, making it a go-to material across industries that demand durability and performance under challenging conditions.

Mining and Quarrying

In the mining and quarrying industries, equipment faces relentless wear and tear from harsh environments. AR400 steel is commonly used in applications such as:

• Crusher Liners: Its wear-resistant properties allow it to endure the constant impact and abrasion from crushing hard rocks and minerals.
• Loader Buckets and Bulldozer Blades: AR400 steel enhances the durability of these components, reducing downtime and extending their lifespan in demanding operations.
• Dump Truck Beds: The steel’s toughness ensures dump truck beds can handle heavy, abrasive loads without succumbing to premature wear.

This steel’s ability to withstand both impact and abrasion makes it indispensable for mining operations that require reliability and efficiency.

Construction

The construction industry relies on AR400 steel for equipment that must perform under extreme conditions while resisting wear. Its versatility is showcased in applications such as:

• Dump Truck Liners: These liners protect truck bodies from damage caused by abrasive materials, minimizing maintenance and repair costs.
• Hoppers and Chutes: The steel’s toughness ensures that these components can efficiently handle abrasive materials without wearing down quickly, even during continuous use.
• Concrete Mixer Drums: AR400 steel effectively shields the inner surfaces of mixer drums from the abrasive nature of concrete, prolonging their operational life.

In construction, AR400 steel plays a vital role in ensuring equipment remains functional and reliable, even in the most demanding environments.

Agriculture

Agricultural machinery often operates in tough conditions, where durability is key to maintaining efficiency. AR400 steel is a trusted choice for essential tools and components, including:

• Plows: Its durability ensures plow blades can withstand tough soil and rocks, reducing the need for frequent replacements.
• Tillage Tools: AR400 steel enhances the longevity and effectiveness of tillage tools, allowing them to perform reliably in rugged agricultural settings.

By resisting wear and damage, AR400 steel helps farmers and agricultural workers maintain productivity while minimizing equipment downtime.

Material Handling

In material handling, where equipment must endure challenging conditions, AR400 steel proves invaluable for improving performance and reliability. Key applications include:

• Conveyors: The steel’s resilience ensures conveyor systems can handle abrasive materials efficiently, reducing wear and extending their operational lifespan.
• Feeders: AR400 steel is ideal for feeders transporting heavy or coarse materials, offering consistent durability and reducing maintenance needs.

Its ability to thrive in demanding scenarios makes AR400 steel a cornerstone of material handling systems.

General Engineering and Mechanical Handling

AR400 steel’s high strength and reliability make it a preferred choice for a variety of structural and mechanical applications. These include:

• Heavy Machinery Components: The steel provides the strength and reliability needed to endure extreme conditions, making it ideal for critical machinery parts.
• Structural Components: AR400 steel is used in beams, supports, and frameworks, offering both durability and wear resistance for industrial operations.

Its versatility ensures that AR400 steel meets the rigorous demands of general engineering projects while delivering long-lasting performance.

Conclusion

Thanks to its unmatched strength and wear resistance, AR400 steel delivers exceptional performance in even the harshest environments. Its versatility and durability make it an indispensable material across industries that demand long-lasting, high-performance solutions. Looking ahead, AR400 steel continues to set the standard for innovation and reliability in applications where durability is non-negotiable.

Fabrication and Maintenance

Weldability of AR400 Steel

AR400 steel is a high-hardness, abrasion-resistant material commonly used in demanding applications such as mining, construction, and heavy machinery. Its durability makes it a preferred choice for wear-resistant components, but welding it requires careful techniques to maintain its properties and ensure structural integrity.

Welding Techniques

When welding AR400 steel, precise methods are essential to prevent compromising its mechanical properties:

• Preheating: Preheating AR400 steel to 150–200°C (302–392°F) reduces cracking risks by minimizing thermal gradients and relieving internal stresses.
• Controlled Cooling: Cool the steel slowly after welding using insulating blankets or controlled environments to avoid stress and cracking.
• Low-Hydrogen Electrodes: Use low-hydrogen electrodes to prevent cracking caused by hydrogen, a critical step for maintaining AR400 steel’s integrity.
• Interpass Temperature Control: Keep interpass temperatures under 200°C (392°F) to maintain the steel’s hardness and toughness.

Challenges and Considerations

Welding AR400 steel presents several challenges that require careful attention:

• Cracking and Distortion: Proper preheating and gradual cooling reduce the risks of cracking and distortion, which are key challenges due to the steel’s high thermal expansion.
• Weld Metal Compatibility: Choosing the right filler metal ensures the welded joint matches the mechanical properties of AR400 steel.

Formability of AR400 Steel

Despite its high hardness, AR400 steel can be formed effectively using suitable techniques. Its formability allows for diverse applications while maintaining its wear resistance.

Bending and Shaping

Forming AR400 steel involves specific methods to accommodate its hardness:

• Minimum Bend Radius: Adhering to the minimum bend radius, typically 8 to 10 times the material thickness, is crucial to prevent cracking.
• Cold Forming: Cold forming is possible if done slowly and carefully, using gradual bends to prevent cracking.
• Hot Forming: For tighter bends or complex shapes, heat the steel below its critical range to improve ductility and reduce cracking risks.

Galvanizing AR400 Steel

Galvanizing AR400 steel provides additional corrosion protection but requires specific precautions to avoid issues such as cracking.

Precautions for Galvanizing

Galvanizing AR400 steel requires specific precautions to ensure success:

• Zinc Bath Temperature Control: Maintain the zinc bath temperature around 450°C (842°F) to prevent thermal shock and cracking.
• Stress Relief: Stress-relief heat treatment before galvanizing reduces cracking risks.
• Surface Preparation: Proper cleaning and surface preparation ensure good adhesion of the zinc coating, enhancing corrosion resistance.

Maintenance Considerations

AR400 steel’s wear resistance significantly reduces maintenance needs, but regular checks and care are still essential for longevity.

Regular Inspection

Routine inspections help identify wear patterns and address potential issues early:

• Wear Monitoring: Inspect wear surfaces regularly to catch and fix excessive wear before equipment fails.
• Surface Coating Checks: For galvanized components, inspect the zinc coating for wear or damage and reapply as necessary to maintain corrosion protection.

Part Replacement and Repair

Despite its durability, AR400 steel parts may eventually need replacement or repair:

• Replacement and Repair: Establish a replacement schedule based on operating conditions and wear patterns. Repairs should follow the same welding and forming guidelines to maintain material integrity and performance.

By applying these techniques, AR400 steel can deliver reliable, long-lasting performance in demanding environments.

Comparative Analysis

Comparing AR400, AR450, and AR500 Steel

Abrasion-resistant steels such as AR400, AR450, and AR500 are designed to endure harsh conditions, but they differ in hardness and performance tailored to specific uses. Understanding these differences is key to selecting the right material for your application.

Hardness and Wear Resistance

• AR400: AR400 has a hardness range of 360-444 BHN, offering a balance of wear resistance and machinability. This makes it versatile for a wide range of industrial applications.
• AR450: AR450 has a hardness range of 430-480 BHN, making it more wear-resistant but less machinable than AR400. It is ideal for environments where higher abrasion resistance is required.
• AR500: AR500, with a hardness of 470-540 BHN, provides superior wear resistance but is harder to machine and weld, making it suitable for the most demanding applications.

Applications

• AR400: AR400 is commonly used in mining, construction, and material handling for equipment like loader buckets, dump truck liners, and conveyors, where a balance of toughness and workability is needed.
• AR450: AR450 is ideal for high-impact environments and heavy-duty earthmoving equipment requiring greater abrasion resistance.
• AR500: AR500 is best suited for extreme wear applications like ballistic plates, shooting targets, and heavy-duty mining equipment requiring maximum abrasion resistance.

Selecting the Right Steel: Factors to Consider

• Wear Resistance: AR450 or AR500 are better for high abrasion and impact applications.
• Machinability: AR400 is easier to machine and weld, making it ideal for projects requiring these processes.
• Cost: Higher hardness steels like AR450 and AR500 may be more expensive, influencing your choice.

Understanding the differences in hardness, durability, and application suitability will help you choose the right abrasion-resistant steel for your needs.

Frequently Asked Questions

Below are answers to some frequently asked questions:

What is the chemical composition of AR400 steel?

AR400 steel is an abrasion-resistant material with a specific chemical composition that enhances its durability and hardness. The major elements in AR400 steel include carbon (0.17-0.25% or up to 0.25% max), manganese (up to 1.70% max), phosphorus (0.025% max), sulfur (0.035% max), silicon (up to 0.7% max), and chromium (0.2-1.00% or up to 1.50% max). Additionally, it may contain molybdenum (up to 1.00% max), nickel (0.70% max), boron (0.005% max), and sometimes aluminium and titanium as micro-alloy materials. These elements collectively contribute to the steel’s excellent abrasion resistance and mechanical strength, making it ideal for high-stress industrial applications.

What are the mechanical properties of AR400 steel?

AR400 steel exhibits excellent mechanical properties that make it ideal for high-abrasion applications. Its hardness ranges from 360 to 444 Brinell Hardness Number (BHN), providing superior wear resistance. It has a yield strength of approximately 1000 MPa (145,000 psi) and a tensile strength of about 1250 MPa (181,000 psi), ensuring high resistance to deformation and failure under stress. The steel demonstrates an elongation of 10% in 2 inches, offering moderate ductility, and its Charpy V-Notch impact toughness is typically around 30 J at -40°C (-40°F), indicating good performance in cold environments. These properties, combined with its excellent wear resistance, make AR400 steel suitable for demanding industrial applications.

What industries commonly use AR400 steel?

AR400 steel is commonly used in industries that require materials with high abrasion and wear resistance. These include the mining industry, where it is utilized in equipment such as liners, ore chutes, and conveyors; the material handling sector, for components like buckets, hoppers, and dump truck liners; and the construction industry, for earth-moving machinery and wear-resistant structural elements. It is also widely used in agriculture for machinery like plows and harvesters, as well as in the aggregate and quarrying industries for crushers, hoppers, and other high-wear applications. The steel’s durability and ability to withstand harsh conditions make it essential in these demanding environments.

Can AR400 steel be welded, and what are the challenges?

Yes, AR400 steel can be welded, but it presents several challenges due to its hardness and composition. The primary issues include the risk of cracking in the weld metal or heat-affected zone (HAZ), which can occur because of rapid cooling, highly restrained joints, and excessive hydrogen in the weld metal. To mitigate these risks, preheating the base metal is essential to reduce hydrogen levels and prevent rapid cooling. Selecting the right filler metal with low hydrogen content and appropriate tensile strength is also crucial. Additionally, designing weld joints to minimize restraint and using techniques that reduce heat input can help manage residual stresses and prevent cracking. Despite these challenges, AR400 steel remains a preferred material in high-abrasion environments due to its excellent abrasion resistance.

Is AR400 steel suitable for galvanizing?

AR400 steel is not suitable for galvanizing due to its high hardness, residual stresses, and fine grain structure. These characteristics make it prone to cracking during the hot-dip galvanizing process, particularly in the pickling stage where hydrogen can become trapped, leading to embrittlement. For applications requiring galvanizing, alternative materials like T-1 steel may be more appropriate.

How does AR400 steel compare to AR450 and AR500?

AR400, AR450, and AR500 steel differ primarily in hardness and abrasion resistance, with AR400 being the softest (360-440 BHN) and most formable, AR450 offering a balance between hardness (430-480 BHN) and machinability, and AR500 being the hardest (460-544 BHN) with superior abrasion resistance but reduced formability and weldability. AR400 is ideal for applications requiring moderate abrasion resistance and ease of fabrication, AR450 is suited for environments needing higher durability without sacrificing too much formability, and AR500 is best for severe wear conditions but is more prone to cracking and challenging to machine. The choice depends on the specific balance of abrasion resistance, formability, and impact tolerance required.
