AR400 Steel vs Mild Steel: A Comprehensive Comparison
When it comes to selecting the right type of steel for your project, understanding the differences between AR400 steel and…
In the realm of industrial materials, few substances offer the unique blend of durability and versatility as AR400 steel. This abrasion-resistant steel is a cornerstone in many industries, thanks to its high tensile strength and exceptional wear resistance. Understanding its chemical composition, which adheres to ASTM A6 standards, is crucial for unlocking its full potential. From mining equipment to construction machinery, AR400 steel’s applications are vast. But how does it stack up against other abrasion-resistant steels? Let’s delve deeper into its properties and uses.
Abrasion-resistant steels are alloy steels specifically designed to endure wear and tear from friction, impact, and abrasive actions. These steels are essential in industries like mining, construction, and material handling, where high resistance to wear is crucial. The primary characteristic that sets abrasion-resistant steels apart from other types of steels is their hardness, achieved through the addition of specific alloying elements and heat treatment processes.
AR400 steel is a specific type of abrasion-resistant steel known for its balanced combination of hardness and formability. The “AR” stands for abrasion-resistant, and “400” refers to its typical hardness level, measured in Brinell Hardness Number (BHN), ranging from 360 to 444. This high hardness level makes AR400 steel particularly effective in resisting surface damage from friction and material contact, which is essential for extending the lifespan of components in harsh environments.
AR400 steel is made from high-carbon alloy steel, which includes elements like carbon, manganese, chromium, and silicon. These elements contribute to the steel’s hardness and toughness, making it suitable for various demanding applications. Additionally, micro-alloying elements such as aluminum and titanium may be added to further enhance the steel’s properties.
The wear resistance of AR400 steel involves several key factors:
AR400 steel is utilized in various industries due to its exceptional wear resistance and durability. Some of the key applications include:
Abrasion-resistant steels, such as AR450 and AR500, are classified based on their hardness levels. Each grade offers varying degrees of hardness and wear resistance:
AR400 steel strikes a balance between hardness, formability, and cost-effectiveness, making it a popular choice for a wide range of industrial applications.
AR400 steel is a high-carbon alloy steel known for its exceptional wear resistance and durability. The chemical composition of AR400 steel is carefully designed to provide the desired mechanical properties. The key elements in AR400 steel and their functions are as follows:
Meeting ASTM A6 standards ensures AR400 steel has consistent chemical composition, precise dimensional tolerances, high surface quality, and reliable mechanical properties.
The adherence to ASTM A6 standards ensures that AR400 steel is manufactured to a high level of quality, making it suitable for use in applications where abrasion resistance and durability are critical.
AR400 steel is known for its impressive tensile strength, which ranges from 1,241 to 1,378 MPa. This high tensile strength allows the steel to withstand heavy mechanical stress without undergoing permanent deformation. In industrial applications where components are subjected to substantial pulling or stretching forces, such as in mining equipment and construction machinery, AR400 steel’s tensile strength ensures the structural integrity of these parts.
With a yield strength of about 965 to 1,000 MPa, AR400 steel can withstand significant stress before deforming plastically. For AR400 steel, this relatively high yield strength means that it can maintain its shape and function under significant stress, making it suitable for applications where maintaining a specific form is essential, even under extreme conditions.
The hardness of AR400 steel is measured using the Brinell Hardness Number (BHN), which ranges from 360 to 444. This hardness level is slightly lower than that of AR450 steel but still provides excellent wear resistance. This hardness comes from its unique chemical makeup and heat treatment.
Hardness is vital for AR400 steel, particularly in abrasive environments. Components made from AR400 steel, such as liners in mining equipment or wear straps in construction machinery, can resist surface damage from friction and material contact, thereby extending their service life.
AR400 steel is known for its excellent impact resistance. It can efficiently absorb impacts, making it a reliable choice for industries where both abrasion and impact are present, such as construction and material handling. AR400 steel’s impact resistance comes from its blend of hardness, strength, and toughness. In high – stress environments where components may be hit by heavy objects or experience sudden shocks, AR400 steel can prevent cracking and failure, ensuring the continuous operation of equipment.
The mining industry heavily relies on AR400 steel due to its exceptional abrasion resistance, which is crucial for handling abrasive materials like ore and rock. AR400 steel is used in various mining equipment components, including:
In the construction industry, AR400 steel is indispensable for manufacturing parts that encounter significant wear and impact. Common applications include:
AR400 steel’s versatility extends to manufacturing and agriculture, where equipment faces regular abrasion and impact. Applications include:
In a large quarry operation, AR400 steel was used to line the hoppers and chutes that handle the extracted stone. The quarry experienced significant downtime and high maintenance costs due to rapid component wear. After switching to AR400 steel, the operation saw a substantial increase in the service life of the hoppers and chutes. This change reduced maintenance costs and downtime, making the operation more efficient and cost-effective.
The real-world application of AR400 steel in this quarry operation highlights its ability to withstand harsh conditions and abrasive materials, proving its value in extending the service life of critical components and enhancing
The manufacturing of AR400 steel begins with melting high-carbon alloy steel in electric arc furnaces or oxygen furnaces. The molten steel is then cast into large slabs, which sets the foundation for the steel’s mechanical properties.
After casting, the steel slabs are heated and passed through rollers to achieve the desired thickness and dimensions. This hot rolling process not only shapes the steel but also refines its grain structure, enhancing its strength and toughness.
The hot-rolled steel undergoes quenching, where it is rapidly cooled in water or oil to harden the steel by transforming its microstructure to martensite. To reduce brittleness and relieve internal stresses introduced during quenching, the steel is then tempered. This involves reheating it to a lower temperature and allowing it to cool slowly, improving its toughness.
Welding AR400 steel requires specific techniques to maintain its integrity:
Cutting AR400 steel can be challenging due to its high hardness. Plasma or laser cutting methods are preferred for their precision and minimal heat-affected zones, preserving the steel’s properties. When using oxy-fuel cutting, preheating the steel can help achieve cleaner cuts and reduce the risk of cracking.
Forming AR400 steel requires careful handling to prevent cracking. Using large bend radii is advisable to distribute stress more evenly. For example, when bending thick plates, warming the steel can reduce the risk of cracking and improve formability. This ensures that the forming process does not introduce excessive stress or deformation that could compromise the steel’s performance.
The manufacturing and fabrication processes of AR400 steel are designed to maximize its wear resistance, strength, and toughness. By following proper techniques during fabrication, industries can fully leverage the benefits of AR400 steel, resulting in components that are both longer-lasting and more reliable.
AR400 steel is a high – carbon alloy steel that offers a good balance between hardness and formability. Its typical chemical composition includes up to 0.25% carbon for hardness and strength, around 1.5% manganese for toughness and impact resistance, a maximum of 0.025% phosphorus to ensure good ductility and weldability, 0.2 – 0.6% chromium for corrosion resistance, and up to 0.5% silicon to aid in forming a stable oxide layer.
As we move from AR400 to AR500, carbon and chromium content generally increase for enhanced hardness and wear – resistance. AR450 steel has a higher carbon content than AR400, along with a slightly higher chromium content. AR500 steel, on the other hand, has the highest carbon and chromium content among the three, offering maximum hardness and wear resistance. Manganese content remains relatively consistent across the three grades to provide toughness, and silicon content is comparable to aid in oxidation resistance.
AR400 steel’s Brinell Hardness Number (BHN) ranges from 360 to 444. AR450 steel has a BHN between 420 and 470, while AR500 steel’s BHN is in the range of 477 to 534. As the hardness increases from AR400 to AR500, wear resistance improves, but formability decreases.
AR400 steel has a tensile strength of approximately 1250 MPa and a yield strength of around 1000 MPa. AR450 steel has a slightly higher tensile strength than AR400 due to its increased carbon content, and a similar but slightly increased yield strength. AR500 steel, with the highest carbon content, has the highest tensile and yield strength among the three.
AR400 steel offers excellent impact resistance, especially in cold environments. AR450 steel also has good impact resistance but is less formable than AR400. AR500 steel provides superior impact resistance but is the hardest and least formable of the three.
AR400 steel finds applications in various industries. In the mining industry, it is used for liners, ore chutes, and conveyors. In material handling, it serves as buckets, hoppers, and dump truck liners. In construction, it is used for earth – moving machinery and wear – resistant structural elements, and in agriculture, it is used for plows and harvesters.
In contrast, AR450 and AR500 steels are suitable for more severe abrasion and high – impact environments. AR450 is used for high – wear plates and heavy – duty earth – moving equipment. AR500, with its superior hardness and impact resistance, is ideal for high – impact applications, including military and ballistic uses.
AR400 balances wear resistance and formability, making it versatile. However, AR450 and AR500 offer higher hardness and wear resistance but at the cost of reduced formability.
AR400 is generally more cost – effective. Its balance of hardness and ductility also helps reduce maintenance costs. In contrast, AR450 and AR500 have higher initial costs. Their specialized applications and reduced formability may also lead to potentially higher maintenance.
AR400 is suitable for temperatures under 250°C and has good corrosion resistance. AR450 and AR500 are designed for extreme wear conditions. AR500, in particular, is often used in ballistic applications due to its impact resistance.
AR400 steel promotes sustainability mainly through its durability and long service life. This wear-resistant steel significantly reduces the frequency of replacements and maintenance, leading to less material waste and lower consumption of resources over time. By using AR400 steel in high-wear applications, industries can minimize the environmental impact associated with frequent equipment turnover.
The production of AR400 steel can be aligned with sustainable practices, such as using recycled materials and energy-efficient manufacturing processes. Steel is inherently recyclable, and incorporating recycled content into the production of AR400 steel helps conserve natural resources and reduce the carbon footprint. Additionally, modern steelmaking techniques focus on minimizing energy consumption and emissions, further enhancing the sustainability of AR400 steel.
AR400 steel may have a higher initial cost than less wear-resistant materials. However, this upfront investment is offset by the steel’s long-term benefits. The high wear resistance of AR400 steel translates into a longer lifespan for components, reducing the need for frequent replacements, thus lowering
AR400 steel’s durability also leads to significant savings in maintenance costs. Components made from AR400 steel require less frequent repairs and replacements, which reduces downtime and maintenance expenses. This reliability is particularly valuable in industries such as mining and construction, where equipment downtime can lead to substantial financial losses.
When evaluating the total cost of ownership, AR400 steel proves to be a cost-effective choice. Its long service life, reduced maintenance needs, and minimal downtime contribute to lower
A life cycle analysis (LCA) shows AR400 steel’s environmental and economic benefits. The LCA considers the entire lifespan of the steel, from raw material extraction and manufacturing to usage and end-of-life recycling. AR400 steel’s extended service life reduces the need for new material production, thereby conserving resources and minimizing waste. Additionally, the recyclability of steel ensures that it can be reused in new products, further supporting sustainability goals.
While AR400 steel offers significant benefits, there are challenges associated with its fabrication and use. Its high hardness can make machining and welding more difficult, requiring specialized techniques and equipment. These fabrication challenges can increase initial costs and complexity. However, the long-term benefits of using AR400 steel often outweigh these initial hurdles.
Below are answers to some frequently asked questions:

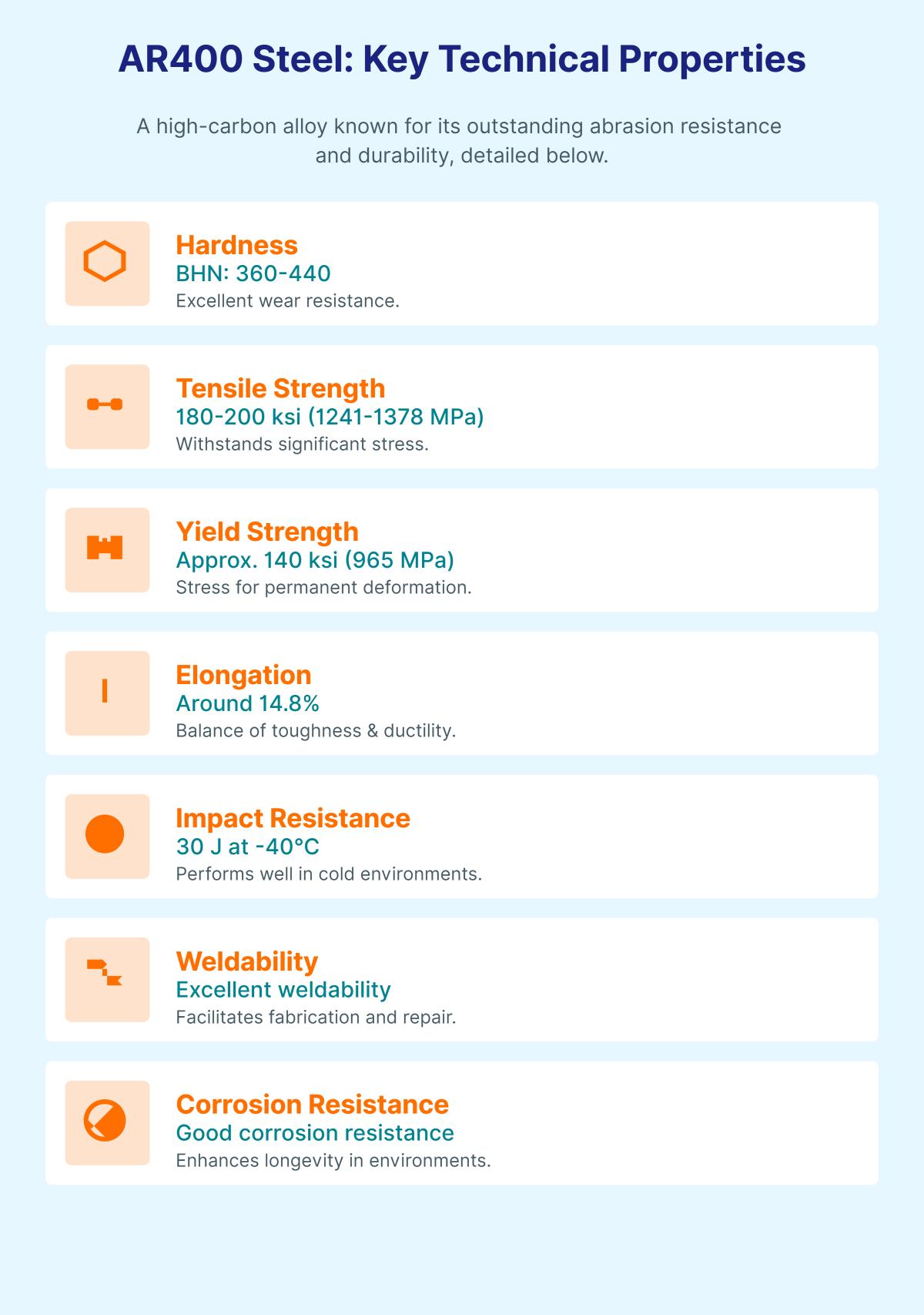

AR400 steel is a high-carbon alloy known for its outstanding abrasion resistance and durability. Key properties of AR400 steel include:
These properties make AR400 steel ideal for industries requiring high abrasion and impact resistance, such as mining, construction, and material handling.
AR400 steel, an abrasion-resistant steel with a BHN of 360 – 444, is used across various industries. In mining, it’s used for liners, ore chutes, and conveyors, enduring harsh, abrasive conditions and reducing maintenance costs. Construction employs it in earth – moving machinery and wear – resistant structures for reliable operation. For material handling, it’s in buckets, hoppers, and dump truck liners. In agriculture, it equips plows and harvesters. Additionally, it’s used in crushers and hoppers in the aggregate industry. Emerging trends suggest future use in robotics, renewable energy, aerospace, and sustainable manufacturing.
AR400 steel offers several advantages and disadvantages that make it suitable for specific applications.
Advantages include its excellent wear resistance and durability, due to its high hardness (typically 360-440 Brinell Hardness Number), which makes it ideal for high-impact and abrasive environments like mining and construction. It is also relatively formable and weldable with the right techniques, adding to its versatility in manufacturing. Additionally, its superior wear resistance contributes to longer service life and lower maintenance costs, making it a cost-effective choice for many industries.
However, AR400 steel has some drawbacks. There is a lack of strict industry standards, leading to potential variations in quality and hardness, especially with imported materials. Some AR400 steel may only have surface hardness, with a softer core that wears quickly once the surface is compromised. Forming AR400 steel can be challenging due to its hardness, requiring specialized techniques. Welding also demands specific procedures, like preheating and using low-hydrogen filler materials, to avoid issues like cracking. Lastly, while AR400 steel is hard, this can reduce its impact resistance, which can be a disadvantage in applications where both abrasion and impact resistance are needed.
AR400, AR450, and AR500 are abrasion-resistant steels, but they have distinct differences. AR400 has a Brinell Hardness Number (BHN) of 360 – 440 and offers a balance of hardness, strength, and toughness. It contains elements like carbon, manganese, and chromium, with micro – alloying for enhanced toughness. AR450 typically has a BHN of 430 – 480, offering higher hardness than AR400 while maintaining formability. AR500, with a BHN of 460 – 544, is the hardest and most abrasion – resistant but has reduced ductility due to higher carbon and alloy levels.
In terms of applications, AR400 is ideal for impact – resistant uses like dump truck liners. AR450 suits applications needing a bit more hardness than AR400. AR500 is used for high – wear scenarios such as ballistic armor.
Regarding machinability and weldability, AR400 is easier to weld and machine compared to AR500, which requires preheating.
AR400 steel offers multiple sustainability benefits. Its extended lifespan reduces resource consumption and waste, as it resists wear better than standard steel, leading to less frequent replacements and less steel waste in landfills. It also saves energy and cuts emissions, with less downtime for equipment maintenance and production. Being 100% recyclable, it supports a closed – loop production system, minimizing waste and raw material extraction. Cost – efficiency is another aspect, with long – term savings on maintenance and replacements. Its use in industries promotes social and environmental responsibility, helping them meet future sustainability goals.
Welding AR400 steel, known for abrasion resistance and high hardness, requires careful techniques. Preheat the base metal to 150°F – 300°F (66°C – 149°C) to slow cooling and prevent cracking, but avoid over – preheating. Use low hydrogen consumables like E7018 rod for stick welding to minimize hydrogen embrittlement. Select filler metals that meet or slightly exceed the base material’s strength; regular mild steel fillers are often adequate. Minimize weld restraint through joint design. After welding, allow slow cooling and peen hot weld beads to reduce residual stresses. Common welding processes include stick welding (E7018 rod), MIG welding (ER70S – 3 or ER70S – 6 wire), and flux core welding (ER71T – 1 or Lincoln NR – 212).
