A Complete Guide to Black Oxide Coating
Imagine a world where your metal tools and parts are shielded from corrosion, wear, and the ravages of time, all…
Imagine a world where your metal tools and parts resist rust, maintain their dimensions, and look sleek and professional—all thanks to a simple yet powerful process known as black oxide coating. This chemical conversion coating not only enhances the appearance of your components but also provides critical benefits such as corrosion resistance and surface hardness. Whether you’re an engineer, manufacturer, or industry professional, understanding the intricacies of black oxide can revolutionize your approach to metal treatment. So, what makes black oxide so special, and how can it be applied to your projects? Dive in to uncover the secrets and practical applications of this versatile coating method.

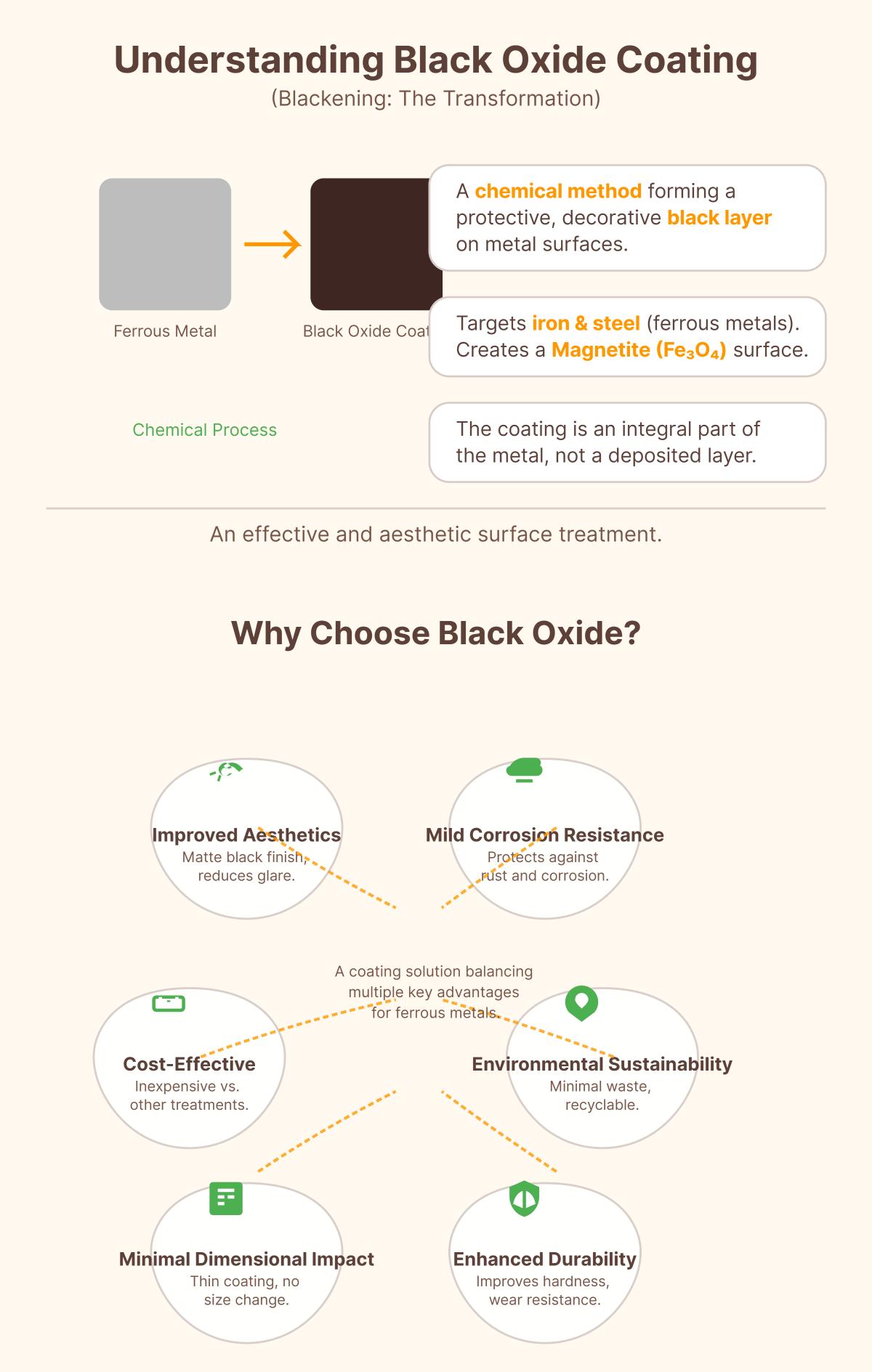

Black oxide, also known as blackening, is a chemical process that creates a black, protective coating on the surface of ferrous metals. This coating, primarily made of magnetite (Fe₃O₄), is formed through a controlled chemical reaction that alters the metal’s outer layer without significantly changing its dimensions.
There are three main types of black oxide processes: hot, mid-temperature, and cold. The hot process involves immersing metal parts in a hot alkaline bath at around 141°C (286°F) for about 10 minutes, quickly forming a magnetite layer. The mid-temperature process operates below the boiling point, taking 20 to 60 minutes and producing fewer fumes. The cold process occurs at room temperature, depositing a copper selenide layer that requires a sealant for better corrosion resistance.
The black oxide process involves several steps. First, the metal surface is cleaned with an alkaline detergent. Next, the parts are rinsed to remove any residue. If necessary, the surface undergoes acid pickling or alkaline de-scaling to remove impurities. The parts are then submerged in the black oxide chemical bath, followed by another rinse. Finally, a sealant, typically oil or wax, is applied to enhance corrosion resistance.
Black oxide offers several advantages. It provides an attractive black or dark bluish-black finish, available in glossy or matte. With a proper sealant, it significantly enhances corrosion resistance. The process preserves the parts’ dimensions and adds durability, making the coating resistant to chipping and peeling. It also improves lubrication and reduces galling, ideal for moving parts. Additionally, black oxide avoids hydrogen embrittlement, reduces glare, and does not affect weldability.
Black oxide coating significantly protects against corrosion, especially in humid and salty environments, making it ideal for such conditions. However, it is less effective in wet conditions and can degrade when exposed to excessive moisture or harsh chemicals. Applying a sealant, such as oil or wax, can enhance the corrosion resistance of the black oxide layer.
The uniform black appearance of the black oxide coating enhances the decorative properties of metal surfaces. This aesthetic quality is especially beneficial for applications requiring a non-reflective, matte black finish, such as optical devices, surgical tools, and various consumer products.
The black oxide film hardens the metal surface, enhancing wear and abrasion resistance, which is ideal for mechanical parts and tools under stress. This makes black oxide coating suitable for components that need to maintain their integrity over time.
One of the notable properties of black oxide coating is its minimal impact on the dimensions of the workpiece. The coating is extremely thin, typically around 1 to 2 microns, ensuring that the size and precision of the parts remain virtually unchanged. This makes it ideal for components with stringent dimensional requirements.
Black oxide coatings are thermally stable, withstanding high temperatures without losing protection, making them crucial for components like engines and industrial machinery.
The black oxide layer possesses a low friction coefficient, particularly when treated with lubricants like oil or wax. This property enhances the lubricity and prevents adhesive wear, or galling, between parts in sliding contact. It is particularly beneficial for the smoother operation and extended lifespan of mating parts.
The black oxide process is relatively straightforward and involves low equipment and material costs. Compared to other surface treatment methods like electroplating or painting, it is more economical, making it suitable for large-scale production and applications where cost-efficiency is a priority.
To enhance durability and corrosion resistance, a sealant like oil, wax, or lacquer is often applied to the black oxide coating. This sealant closes the pores, offering better protection and ensuring long-term performance.
While the black oxide coating itself offers some degree of corrosion resistance, the application of a sealant is crucial for maximizing this protection. Even with a sealant, parts may still experience corrosion in extremely harsh environments, but the overall resistance is significantly improved.
Black oxide coatings are commonly used for steel components, especially in low-moisture and low-chemical environments. They act as a primer for further treatments and are ideal for industrial and medical applications needing a durable, non-reflective surface.
Black oxide coating is most commonly applied to steel and iron, including cast iron. The coating provides enhanced corrosion resistance, improved surface hardness, and an attractive black finish, making it ideal for automotive parts, tools, fasteners, and machinery components.
Even though stainless steel is naturally resistant to corrosion, a black oxide coating can boost its durability and give it a non-reflective finish. This is particularly useful for medical instruments, aerospace components, and kitchenware.
Black oxide coating makes copper more durable, prevents tarnishing, and keeps its electrical conductivity intact. This is especially useful for items like electrical connectors, decorative pieces, and plumbing fixtures.
Zinc parts can be treated with black oxide coating to provide additional corrosion protection and an aesthetic black finish. This is frequently used for building hardware, fasteners, and various automotive components.
Brass benefits from black oxide coating by gaining a unique, aesthetically pleasing finish along with improved corrosion resistance. Applications include musical instruments, fittings, and decorative hardware.
Automotive Parts: Used on under-hood components like brackets, hinges, and suspension parts for corrosion protection and aesthetic appeal.
Machinery and Tools: Applied to gears, shafts, drills, wrenches, and screwdrivers to improve wear resistance and extend service life.
Firearms and Military Equipment: Coats gun frames, barrels, and bolts for durability and reduced light reflection.
Electronic Components: Ensures good conductivity and corrosion protection for electrical connectors and terminal blocks.
Decorative and Architectural Hardware: Provides a uniform black appearance and corrosion protection for door locks, hinges, and other hardware.
Medical Equipment: Used on surgical instruments and medical tools for high surface cleanliness and a non-reflective finish.
Industrial Components: Enhances durability and appearance while protecting against corrosion in machinery parts, valves, and fittings.
In the automotive industry, black oxide coating is widely used on fasteners, gears, shafts, engine assemblies, transmissions, and chassis components due to its moderate corrosion resistance and ability to maintain part dimensions. These parts endure high stress and exposure to environmental factors such as moisture and road salt, making the corrosion-resistant properties of black oxide essential for their longevity and performance.
The aerospace sector benefits from black oxide coating for precision components like bolts, screws, and pins. This coating provides the necessary corrosion resistance without affecting the dimensional accuracy of these parts, which is crucial in aerospace engineering. The lightweight and thin nature of the coating makes it an ideal choice for high-tech aerospace applications where weight and precision are critical.
Known as "bluing" in the firearms industry, black oxide coating is used to treat gun barrels, receivers, and other firearm components. This treatment protects firearms from corrosion while enhancing their appearance with a sleek, professional finish. The non-reflective nature of the coating is especially important in tactical or military settings to minimize glare.
In the medical field, black oxide coating is applied to surgical instruments and other devices to reduce light reflection and provide mild corrosion resistance, essential for extending the lifespan of these instruments. It is also suitable for use in photosensitive medical devices like X-ray machines, where glare reduction is important.
Hand tools like wrenches, pliers, and sockets often receive black oxide treatment to increase their lifespan and improve rust resistance. This ensures that tools can withstand exposure to moisture and harsh environments without significant wear or corrosion, making them more durable for industrial use.
Black oxide coating is applied to electrical components like connectors and brackets to prevent corrosion and reduce electrical resistance. This enhances the long-term reliability of electrical systems, particularly in outdoor or industrial settings where corrosion could cause failures.
Bearings, fasteners, and tools used in machinery often receive a black oxide coating to prevent rust and corrosion. This coating is also applied to machinery components, valves, fittings, and other metal parts to enhance their durability and appearance, ensuring they can withstand harsh industrial environments.
Black oxide coating is used on decorative items such as door knobs, hinges, and locks to enhance their appearance. It is also applied to consumer products like watches, jewelry, and home décor for aesthetic purposes, providing a uniform and attractive finish.
The application process involves cleansing, rinsing, descaling/pickling, and neutralizing the metal surface before applying the black oxide coating. This coating can be applied to various metals, including steel, iron, stainless steel, copper, and brass, making it versatile for a wide range of industrial uses.
Black oxide coating is cost-effective, making it a popular choice across various industries. Several factors contribute to its economic advantages, which are essential to consider when selecting a surface treatment method.
The black oxide coating process requires relatively simple equipment and materials, which reduces initial setup costs. Unlike more complex processes such as electroplating or powder coating, black oxide coating does not necessitate expensive machinery or extensive infrastructure, making it accessible to a broader range of manufacturers. Additionally, operating costs for black oxide coating are generally lower compared to other surface treatments. The chemicals and solutions used in the process are less costly, and the maintenance of the equipment is straightforward. This affordability extends to the scalability of the process, allowing for large-scale production without significant cost increases.
Black oxide coating uses resources efficiently, applying a very thin layer (1-2 microns) that still provides good protection and looks. This efficiency helps in maintaining the dimensional accuracy of the parts, which is crucial for applications requiring precision.
Implementing black oxide coating involves several practical considerations to ensure optimal results and maintain the longevity of the coating.
Adequate surface preparation is critical for achieving a uniform and durable black oxide finish. The process begins with thorough cleaning to remove any contaminants such as oils, dirt, or rust. Proper rinsing between each stage is essential to prevent cross-contamination between process tanks, which can affect the quality of the coating.
Maintaining the correct temperature and concentration of the black oxide solution is vital. For the hot black oxide process, the solution typically operates at temperatures around 140-150°C. Consistency in these conditions ensures that the coating forms correctly and uniformly. Overloading the solution tank with too many parts can cause a significant temperature drop, leading to inconsistent results.
While black oxide coating is more environmentally friendly than some other coating methods, it still involves the use of chemicals like nitrates and sodium hydroxide. Proper handling and disposal of these chemicals are necessary to minimize environmental impact. Adhering to best practices for waste management and ensuring compliance with environmental regulations are crucial steps in responsible coating operations.
Regular maintenance is essential to prolong the life of black oxide-coated surfaces. This includes periodic cleaning with soft, non-abrasive cloths and reapplication of sealants as needed. Sealants such as oils or waxes help maintain the integrity of the coating and enhance its corrosion resistance, ensuring long-term performance.
Looking ahead, the black oxide coating industry is shifting towards greener processes and innovative technologies. Advances in chemical formulations are leading to coatings that use fewer toxic chemicals and produce less waste. Additionally, automation in the coating process is improving efficiency and consistency, making black oxide coating more appealing for various high-tech and consumer applications.
Black oxide coating is widely applied across numerous industries due to its combination of cost-effectiveness and practical benefits. It enhances corrosion resistance, surface hardness, and aesthetic appeal, making it suitable for applications in automotive parts, tools, aerospace components, military equipment, medical instruments, and electrical components. The coating’s thermal stability, low friction, and maintenance of electrical conductivity further expand its versatility for high-performance applications.
Black oxide coating gives a unique matte black or dark blue-black finish. This distinctive appearance sets it apart from the variety of color options available with other surface treatments such as anodizing, electroplating, and powder coating. While black oxide is ideal for applications requiring a non-reflective, uniform black finish, other methods like powder coating offer a broader range of colors and finishes, including glossy, matte, and textured surfaces.
The black oxide coating process involves a chemical conversion rather than adding a layer on top of the metal. This process involves immersing the part in a solution that reacts with the surface to create a tightly bonded oxide layer. In contrast, methods like painting, powder coating, and electroplating involve depositing a separate layer onto the base material, which can be thicker and more susceptible to peeling or chipping.
Black oxide coating is extremely thin, typically 1 to 2 microns, ensuring that it does not significantly alter the dimensions of the workpiece. This is especially beneficial for parts that need high precision. Other treatments, such as galvanizing or powder coating, result in thicker coatings that can affect the dimensional tolerances of parts, potentially requiring post-coating machining.
Black oxide coating provides moderate corrosion protection, especially in humid and salt spray environments, and enhances the wear resistance of the metal surface. Although black oxide is more wear-resistant than many other treatments, powder coating and galvanizing may provide better corrosion resistance in harsh conditions.
The porous nature of black oxide coating allows it to absorb and retain after-finish sealants like oil, which enhances lubricity between moving parts. This characteristic is particularly advantageous for applications involving sliding or mating surfaces. Other coatings, such as anodizing or electroplating, may not provide the same level of inherent lubricity and often require additional treatments or lubricants.
Black oxide coating is more environmentally friendly than processes like electroplating or painting. It does not involve the use of heavy metals or other hazardous materials commonly found in other surface treatments. However, the chemicals used in black oxide processes, such as sodium hydroxide and nitrites, can still pose health risks if not handled properly. Proper waste management and safety protocols are essential to minimize environmental impact and ensure worker safety.
The black oxide coating process is relatively simple and cost-effective compared to other methods like electroplating or anodizing. It requires less expensive equipment and materials, making it suitable for large-scale production. Other treatments, such as powder coating, involve more complex setups and higher operational costs, which can be a consideration for manufacturers looking to balance performance and budget.
Black oxide coating can be applied to various metals, including ferrous metals (like carbon steel), stainless steel, copper, and zinc. This versatility makes it suitable for a wide range of applications across different industries. In contrast, some other treatments like anodizing are typically limited to specific materials, such as aluminum, which can restrict their applicability.
For applications requiring a thicker, more uniform appearance, alternatives like powder coating or anodizing might be preferable. These methods can provide a more robust visual finish and better protection in certain environments. However, for high-precision parts where maintaining dimensional stability and achieving a cost-effective, corrosion-resistant finish are critical, black oxide coating often stands out as the better choice.
Black oxide coatings are widely used in the automotive industry to enhance the durability and appearance of metal parts. These coatings improve corrosion resistance, ensuring that parts remain functional and visually appealing despite exposure to harsh environmental conditions like moisture and road salts. A notable case study involved a major automobile manufacturer that adopted black oxide-coated parts, resulting in increased corrosion resistance and a more aesthetically pleasing appearance of visible components, thereby contributing to overall vehicle durability.
In the aerospace sector, black oxide coatings are applied to precision components to reduce glare and improve visibility for pilots. Specific cockpit components benefit from these coatings as they reduce unwanted light interference, which is crucial for clear visibility of instruments and controls during flight operations.
Black oxide coatings, commonly referred to as "bluing" in the firearms industry, are used to improve the durability and concealment of firearms and tactical equipment. This coating is used on gun barrels, receivers, and other parts to protect against corrosion and wear. Additionally, the non-reflective finish is vital for military and tactical applications, where reduced light reflection aids in concealment and operational effectiveness.
In industrial and machinery applications, black oxide coatings are applied to bearings, fasteners, gears, shafts, drills, wrenches, and screwdrivers. This treatment prevents rust and corrosion, thereby extending the service life of these components.
The improved wear resistance ensures that machinery parts maintain their dimensional accuracy and functionality over time, which is essential for efficient and reliable industrial operations.
Electronic components, such as connectors and terminal blocks, benefit from black oxide coatings due to their excellent conductivity and corrosion protection properties. This coating helps minimize electrical interference and ensures reliable connections. For instance, copper components treated with black oxide retain good conductivity, making them suitable for various electronic applications, including connectors and circuit boards.
Medical instruments, including surgical tools, require high surface cleanliness and corrosion resistance. Black oxide coatings provide these properties, making them ideal for medical applications. The coating ensures that surgical instruments maintain their functionality and hygiene standards, which is critical in medical settings to prevent infections and ensure patient safety.
Black oxide coatings are commonly used on decorative and architectural hardware, such as door knobs, hinges, and locks, to enhance their appearance and provide corrosion protection. This treatment maintains the aesthetic appeal of these items while ensuring their durability and longevity in various environmental conditions.
In the consumer products sector, black oxide is applied to items like watches, jewelry, and home décor to give them a sleek, aesthetic appearance. The coating not only enhances the visual appeal but also provides a level of corrosion protection, extending the lifespan of these products.
Below are answers to some frequently asked questions:
Black oxide coating, also known as metal blackening or black passivating, is a chemical process that creates a thin, black oxide layer (Fe₃O₄) on the surface of ferrous metals such as iron and steel, and other materials like stainless steel, copper, and zinc. The process involves cleaning the metal, immersing it in a heated chemical bath to induce oxidation, and often applying a rust-preventive oil or wax post-treatment. This coating enhances corrosion resistance, provides a decorative black finish, and can be applied to various metals, making it a versatile surface treatment method.
Black oxide coating offers several benefits, including mild to moderate corrosion resistance, especially when paired with oil or wax post-treatments. It provides a uniform, matte black finish that enhances the aesthetic appeal of metal components. Additionally, it increases surface hardness and wear resistance, making it ideal for mechanical parts and tools. The coating is thermally stable and does not significantly alter the dimensions of the workpiece, making it suitable for precision parts. It is also cost-effective compared to other methods and maintains the metal’s electrical conductivity and magnetic properties, making it versatile for various applications.
Black oxide coating is commonly applied to materials such as carbon steel, stainless steel, copper, zinc, iron, and brass. These materials benefit from enhanced wear resistance, corrosion protection, and improved aesthetics. Carbon steel parts like tools and fasteners, stainless steel kitchen utensils, copper electronic connectors, zinc automotive parts, iron hand tools, and brass decorative items are typical applications. Additionally, black oxide can be used on copper-based alloys, powdered metals, and silver solder, providing similar protective and aesthetic advantages.
Black oxide coating is commonly used in several key industries due to its properties such as enhanced corrosion resistance, wear resistance, and a uniform matte black finish. These industries include automotive, where it is applied to fasteners and brake components; aerospace, for landing gear and avionic parts; electronics, for connectors and circuit board components; hand tools and hardware, like drills and gears; industrial and manufacturing, for machine components and rollers; firearms and tactical equipment, for non-reflective and durable finishes; medical, for surgical instruments; and architectural and consumer products, for aesthetically pleasing and durable finishes.
Black oxide coating is cost-effective compared to other methods due to several factors. The treatment liquid is inexpensive, and the process does not require electrodes or fixtures, reducing setup costs. Batch processing allows multiple components to be treated simultaneously, lowering per-unit costs. Mid-temperature processes cut heating expenses significantly. In-house application streamlines workflows, minimizing handling and shipping costs. The coating’s minimal thickness requires little to no additional machining, and affordable post-treatments enhance durability without substantial added costs. These combined factors make black oxide coating an economical choice for metal finishing.
Black oxide coating is unique compared to other surface treatments due to its thin, uniform layer that maintains dimensional stability, making it ideal for high-precision components. It provides moderate corrosion resistance, which can be enhanced with oil or wax, and delivers a matte black finish that reduces glare. In contrast, zinc plating and electroplating add more thickness, offering higher corrosion resistance but potentially impacting part dimensions. Painting provides various aesthetic options but requires frequent maintenance. Overall, black oxide is cost-effective and environmentally friendly, suitable for applications requiring tight tolerances and a non-reflective finish, as discussed earlier.
