Blackening Stainless Steel: A Comprehensive Guide

Imagine transforming the sleek, modern look of stainless steel into a bold, sophisticated black finish. Whether you’re a DIY enthusiast, metalworker, or engineer, blackening stainless steel opens up a world of creative and functional possibilities. But where do you start? What methods should you use, and how do you ensure a flawless finish? This comprehensive guide will walk you through everything you need to know about blackening stainless steel, from surface preparation and cleaning techniques to the various methods available—chemical, electrochemical, and thermal. We’ll also explore environmentally friendly solutions, application methods, and essential safety precautions. Ready to dive into the art and science of blackening stainless steel? Let’s get started!

Introduction to Blackening Stainless Steel

Blackening Stainless Steel

Blackening stainless steel involves applying a thin black oxide layer to enhance both its appearance and functionality. This process forms a durable surface finish that improves corrosion resistance, reduces glare, and provides an attractive black aesthetic without altering the underlying properties of the metal.

Methods of Blackening

Blackening can be achieved through chemical immersion, electrochemical processes, or thermal exposure, each offering unique benefits and limitations:

• Chemical Methods: Involves immersing stainless steel in a hot alkaline salt solution containing oxidizers. This method is cost-effective and suitable for large batches but may result in less control over uniformity.
• Electrochemical Methods: Utilizes an electric current in an electrolyte bath to form the black oxide layer. This approach provides precise control over the finish but requires specialized equipment.
• Thermal Methods: Exposes stainless steel to high temperatures in a controlled atmosphere, producing a deep black finish. While effective, this method carries a risk of warping if not carefully managed.

Pre-treatment Preparation

Proper preparation of the stainless steel surface is essential to ensure a uniform and durable black oxide layer. The following steps are typically involved:

• Cleaning: Remove dirt, grease, oils, and contaminants using alkaline cleaning agents or pickling solutions.
• Degreasing: Eliminate any remaining residues to prevent uneven blackening.
• Optional Abrasion: Lightly abrade the surface with fine grit sandpaper or blasting media to improve adhesion.
• Optional Activation: Treat the surface with a mild acidic solution to enhance the metal’s receptivity to the blackening process.

Post-treatment Finishing

Once the blackening process is complete, several post-treatment steps are performed to protect and enhance the final finish:

1. Neutralization and Rinsing: Stop the blackening reaction and thoroughly rinse the part to remove residual chemicals.
2. Drying: Ensure the component is completely dry to prevent rust or staining.
3. Optional Sealing: Apply a sealant to improve corrosion resistance and enhance appearance.
4. Optional Oiling: Use oil to add an extra layer of protection and enrich the depth of the black finish.

Applications and Benefits

Blackened stainless steel is widely used across various industries due to its functional and aesthetic advantages:

Key Industries:

• Optical Industry: For decorative and functional components.
• Electrical Appliances: Enhances both appearance and durability.
• Automotive and Medical Technology: Ideal for high-quality screws, springs, and precision parts.

Key Benefits:

• Uniform, non-slip finish.
• Resistance to alkaline media and brief exposure to weak acids.
• Cost-effective alternative to black chrome plating.
• Maintains dimensional accuracy of components.

By combining practical functionality with a sleek appearance, blackened stainless steel is a versatile solution for both industrial and decorative applications.

Surface Preparation and Cleaning Techniques

Surface Preparation for Blackening Stainless Steel

Proper surface preparation is essential for achieving a durable and uniform black oxide finish on stainless steel. Follow these steps to ensure optimal results:

Cleaning

Start by thoroughly cleaning the stainless steel to remove dirt, grease, and other contaminants. This ensures the black oxide layer forms properly. Use one of the following methods based on the nature of the surface:

• Chemical Cleaning: Apply alkaline cleaning agents or pickling solutions to dissolve organic residues effectively.
• Mechanical Cleaning: Use scrubbing, ultrasonic cleaning, or abrasive blasting to physically remove contaminants from the surface.

Degreasing

Degrease the surface using solvent baths or water-based solutions with detergents to ensure all oils and residues are removed. This step is crucial for preventing an uneven finish during the blackening process.

Abrasion and Activation (Optional)

Optional steps like light abrasion with fine grit sandpaper or mild acidic activation can enhance the adhesion of the black oxide layer. Light abrasion creates micro-scratches on the surface, while activation with diluted hydrochloric or sulfuric acid breaks down the passive chromium oxide layer, making the surface more receptive to the blackening process.

Descaling and Inspection

Remove any scale or oxide layers using chemical solutions or mechanical methods like wire brushing or abrasive blasting. Once the surface is clean, inspect it thoroughly to ensure it is ready for blackening. Perform a visual check for any remaining contaminants and, if necessary, use test kits to confirm the surface is properly prepared.

By following these steps, you can achieve a smooth, consistent, and long-lasting black oxide finish on stainless steel.

Methods for Blackening Stainless Steel: Chemical, Electrochemical, and Thermal

Chemical Blackening

Chemical blackening, also known as black oxide coating, is a widely used method for blackening stainless steel. In chemical blackening, stainless steel is dipped into a hot alkaline solution, which reacts with the surface to create a thin black oxide layer.

Process

1. Preparation: Clean and degrease the stainless steel surface to remove any contaminants.
2. Immersion: Submerge the stainless steel in a hot alkaline salt solution, usually at temperatures around 285-295°F (140-146°C).
3. Reaction: The solution reacts with the metal surface, forming a thin, uniform black oxide layer.
4. Rinsing and Sealing: Rinse the parts in water to remove any residual chemicals and optionally apply a sealant or oil to enhance corrosion resistance and improve the appearance.

Advantages

• Simple Setup: Requires basic equipment and is relatively easy to perform.
• Cost-Effective: Suitable for large batches and does not require expensive machinery.
• Corrosion Resistance: Provides some level of corrosion resistance to the treated parts.

Disadvantages

• Less Control: Offers less precise control over the depth and uniformity of the blackening.
• High Temperatures: The process requires high temperatures, often boiling.
• Hazardous Chemicals: The chemicals used can be hazardous and require proper handling and disposal.

Electrochemical Blackening

Electrochemical blackening, also known as anodic blackening, uses an electric current to control the formation of the black oxide layer on stainless steel. This method involves immersing the stainless steel in an electrolyte bath where it acts as the anode, and an electric current drives the oxidation process.

Process

1. Preparation: Clean and degrease the stainless steel surface thoroughly.
2. Electrolyte Bath: Immerse the stainless steel in an electrolyte solution.
3. Electric Current: Apply an electric current to the bath, with the stainless steel acting as the anode.
4. Control Parameters: The current and temperature are carefully adjusted to ensure a consistent and high-quality black finish.
5. Rinsing: Rinse the parts to remove any residual electrolyte.
6. Sealing: Optionally, apply a sealant or oil for enhanced protection and aesthetics.

Advantages

• Precise Control: Allows for precise control over the depth and uniformity of the blackening.
• Environmentally Friendly: Can avoid the use of hazardous chemicals, making it more environmentally friendly.
• Lower Temperatures: Can be performed at lower temperatures compared to chemical blackening.

Disadvantages

• Complex Setup: Requires specialized equipment and expertise to perform.
• Not Suitable for All Geometries: May not be ideal for parts with complex shapes or geometries.

Thermal Blackening

Thermal blackening heats stainless steel in a controlled environment to form a black oxide layer. The specific atmosphere and temperature used determine the oxide formed and the resulting black color.

Process

1. Preparation: Clean and degrease the stainless steel surface.
2. Controlled Atmosphere: Place the stainless steel in a furnace with a controlled atmosphere (e.g., nitrogen or vacuum).
3. Heating: Heat the stainless steel to a specific temperature, typically between 800-900°F (427-482°C).
4. Oxidation: Maintain the temperature to allow the formation of a black oxide layer.
5. Cooling: Gradually cool the parts to prevent warping or damage.

Advantages

• Adherent Finish: Produces a very adherent and corrosion-resistant black finish.
• Versatility: Can be used on a wider variety of metals.
• Aesthetics and Protection: Enhances visual aesthetics and provides corrosion resistance.

Disadvantages

• Specialized Equipment: Requires specialized equipment and high temperatures.
• Slow Process: Can be a slower process compared to other methods.
• Risk of Warping: If not carefully managed, the high heat can cause warping or damage.

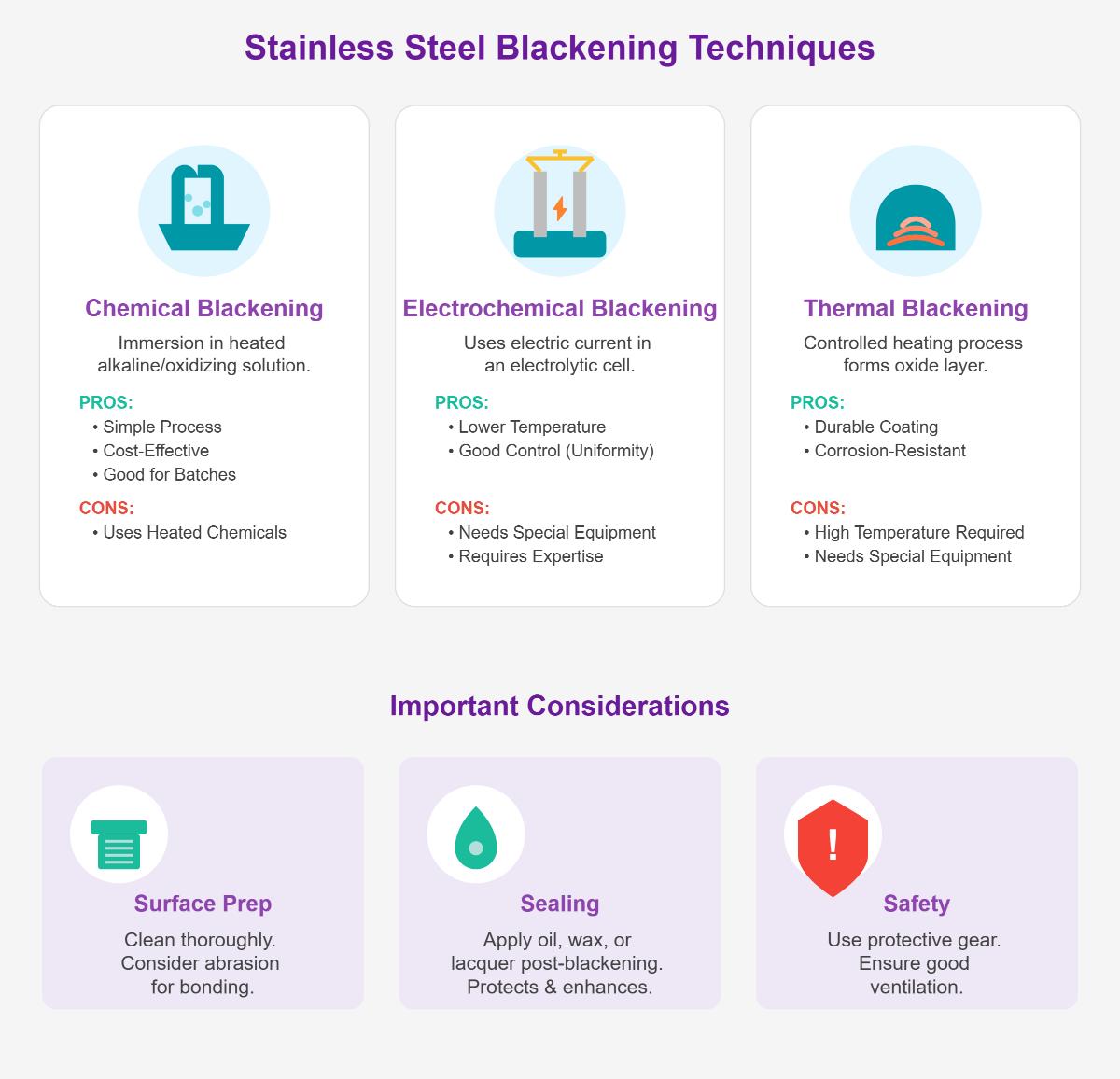

Comparison of Different Blackening Methods

Comparison of Different Blackening Methods

Knowing the different ways to blacken stainless steel helps you choose the best method for your needs. Here, we compare chemical, electrochemical, and thermal blackening methods based on their processes, advantages, and disadvantages.

Chemical Blackening

Chemical blackening, also known as black oxide coating, involves dipping stainless steel into a hot alkaline salt solution that reacts with the surface to create a black oxide layer.

• Process: Submersion in a hot alkaline solution.
• Advantages:
• Simple setup and cost-effective.
• Suitable for large batches.
• Provides some corrosion resistance.
• Disadvantages:
• Requires high, often boiling, temperatures and involves hazardous chemicals that need careful disposal.
• Less precise control over blackening depth and uniformity.

Electrochemical Blackening

Electrochemical blackening uses an electric current in a special bath to create a black oxide layer, allowing for precise control.

• Process: Immersion in an electrolyte bath with electric current.
• Advantages:
• Precise control over the thickness and uniformity of the black layer.
• Operates at lower temperatures than chemical blackening.
• More environmentally friendly by avoiding hazardous chemicals.
• Disadvantages:
• Complex setup requiring specialized equipment and expertise.
• May not be suitable for parts with complex geometries.

Thermal Blackening

Thermal blackening involves heating stainless steel in a controlled atmosphere to create a black oxide layer, resulting in a highly adherent and corrosion-resistant finish.

• Process: Heating in a controlled atmosphere.
• Advantages:
• Produces a very adherent and corrosion-resistant black finish.
• Suitable for a wider variety of metals.
• Results in a smooth and uniform surface.
• Disadvantages:
• Requires specialized, high-temperature equipment.
• It can be slow and may warp or damage parts if not carefully managed.

Key Considerations

When choosing a blackening method, consider the following factors:

• Precision: Electrochemical blackening offers the most precise control over the finish, ideal for applications requiring uniformity.
• Batch Size: Chemical blackening is cost-effective and suitable for large batches but may lack precision.
• Temperature Sensitivity: Thermal blackening requires high temperatures, which can pose a risk of warping, making it less suitable for temperature-sensitive components.
• Environmental Impact: Electrochemical blackening is more environmentally friendly, avoiding the use of hazardous chemicals involved in chemical blackening.
• Equipment Availability: The complexity of the setup varies, with electrochemical and thermal methods requiring more specialized equipment compared to chemical blackening.

By understanding these differences, you can select the most suitable blackening method for your specific needs, balancing factors such as cost, precision, and environmental considerations.

Environmentally Friendly Methods and Room-Temperature Blackening Solutions

Challenges with Traditional Blackening Methods

Traditional blackening methods for stainless steel, like chemical and thermal processes, often raise serious environmental and safety issues. These methods typically require high temperatures and involve the use of hazardous chemicals, which can lead to:

• Environmental Pollution: Disposing of caustic chemicals and byproducts demands costly pollution control measures to comply with regulatory standards.
• Health Risks: Using toxic substances and working in high temperatures increases the risk of chemical burns, respiratory problems, and accidents.
• Energy Consumption: Thermal blackening processes require significant energy to maintain high temperatures, leading to higher costs and increased carbon emissions.

These challenges have driven the development of more sustainable alternatives, such as room-temperature blackening solutions.

Advantages of Room-Temperature Blackening Solutions

Room-temperature blackening solutions are designed to mitigate the environmental and safety issues associated with traditional methods. Key benefits include:

• Energy Efficiency: By eliminating the need for heating, these processes significantly reduce energy consumption, making them more cost-effective and sustainable.
• Improved Safety: These solutions utilize mild, water-dilutable chemicals that are generally non-toxic, odorless, and do not require complex ventilation systems. This minimizes health risks for workers.
• Environmental Friendliness: Room-temperature methods are free from hazardous caustic chemicals and produce minimal waste, reducing the environmental footprint of the blackening process.
• Ease of Application: These solutions are often simple to apply, requiring less specialized equipment and training compared to hot processes.

Methods for Room-Temperature Blackening of Stainless Steel

Cold Blackening

Cold blackening involves immersing the stainless steel in a specially formulated solution at room temperature. This method is effective for achieving a uniform black finish without heat distortion or surface damage.

• Process: The stainless steel is cleaned, degreased, and immersed in the solution. The black oxide layer forms through a chemical reaction, which can be replenished as needed for multiple uses.
• Applications: Ideal for small to medium-sized parts in industries such as tooling and decorative hardware.

Presto Black® SSB

Presto Black® SSB is a proprietary solution specifically designed for room-temperature blackening of stainless steel. It offers excellent adhesion and a durable black finish.

• Key Features:
• Compatible with all stainless steel alloys.
• Can be applied via brush, spray, or immersion methods.
• Produces a consistent black oxide layer suitable for both decorative and functional applications.
• Environmental Benefits: This product is water-based and avoids the use of caustic chemicals, making it safer for both workers and the environment.

Compound Layer Blackening

This two-step process combines parkerizing with blackening in a room-temperature solution of copper(II) and selenous acid, creating a black copper-selenide layer that offers excellent corrosion resistance and durability.

• Advantages:
• Strong adhesion to stainless steel surfaces.
• Enhanced protection against environmental factors.
• Limitations: Requires more steps compared to simpler solutions like Presto Black® SSB.

Best Practices for Room-Temperature Blackening

Surface Preparation

Proper preparation is critical for ensuring a uniform and long-lasting black oxide finish. Steps include:

• Thorough Cleaning: Remove all contaminants such as rust, oil, and grease using abrasive methods or cleaning solutions.
• Degreasing: Ensure the surface is free of any residues that could interfere with the chemical reaction.
• Inspection: Visually inspect the surface to confirm it is clean and ready for treatment.

Sealing and Finishing

After the blackening process, apply a protective sealant or oil to enhance corrosion resistance and durability. Non-oily sealers are often preferred for applications requiring a clean, dry finish.

Limitations and Considerations

While room-temperature blackening solutions offer numerous advantages, they may not be suitable for all applications:

• Surface Compatibility: Some solutions may require specific grades of stainless steel for optimal results.
• Durability: The blackened layer may not be as robust as those formed through high-temperature processes in extremely harsh environments.

By understanding these factors, manufacturers can select the most appropriate method for their specific needs, balancing performance, safety, and environmental considerations.

Application Methods: Brush-On, Sprayer, and Immersion

Methods of Blackening Stainless Steel

Brush-On Method

The brush-on method is a simple way to blacken stainless steel, offering precision and control for small-scale projects or touch-ups.

1. Prepare the Surface: Clean and degrease the stainless steel thoroughly to remove any contaminants. Light abrasion can be done if needed to improve adhesion.
2. Apply the Solution: Use a clean brush, sponge, or cloth to apply the blackening solution evenly across the surface. Feather the edges to ensure a smooth, consistent finish.
3. Allow to React: Let the solution sit for the recommended time, usually 1-3 minutes, to allow the chemical reaction to take effect.
4. Rinse and Neutralize: Rinse the surface with water to remove excess solution and stop the reaction.
5. Seal the Finish: Optionally, apply a protective sealant or clear topcoat to enhance durability and corrosion resistance.

Advantages: This method is ideal for precision work and creating custom effects, such as patterns or textures. It requires minimal equipment and is accessible for DIY enthusiasts.
However, it can be labor-intensive and time-consuming, especially for large surface areas, and achieving a uniform finish may require extra effort.

Sprayer Method

The sprayer method is an efficient option for blackening larger surfaces or complex geometries. It allows for even and consistent application, making it suitable for both small and large projects.

1. Prepare and Spray: First, clean and degrease the surface thoroughly. Then, use a pump sprayer or airbrush to apply the blackening solution in smooth, overlapping passes for uniform coverage.
2. Allow to React: Let the solution sit for the specified time, typically a few minutes, as recommended by the product instructions.
3. Rinse and Finish: Rinse the treated surface to remove any remaining solution and stop the reaction. Finally, apply a sealant to protect the blackened finish.

Advantages: This method offers fast application and uniform results, even on contoured or complex surfaces. It is highly scalable, making it suitable for both small-scale projects and industrial use.
However, proper ventilation is essential to avoid inhaling the solution during spraying, and the initial setup requires investment in a sprayer or airbrush.

Immersion Method

The immersion method, also called dip blackening, is a practical solution for batch processing or high-volume production. By submerging stainless steel components in a blackening solution, this method ensures consistent and thorough coverage.

1. Prepare the Surface: Clean and degrease the parts to remove all contaminants. Abrasion or descaling may be necessary for optimal results.
2. Immerse the Components: Submerge the stainless steel parts into a tank filled with the blackening solution. Allow them to remain submerged for the recommended time, typically 12-15 minutes.
3. Rinse and Neutralize: Remove the parts from the tank and rinse thoroughly to stop the chemical reaction. Use a neutralizing bath if required.
4. Seal the Surface: Apply a protective sealant or oil to enhance corrosion resistance and preserve the finish.

Advantages: This method delivers uniform results across all treated surfaces and is ideal for processing multiple parts simultaneously. It minimizes manual labor and is highly efficient for large-scale operations.
However, it requires significant initial investment in tanks and associated equipment, as well as sufficient workspace to accommodate the setup.

Key Considerations

Regardless of the method chosen, several factors are critical for success:

• Preparation is Key: Ensure surfaces are clean, degreased, and, if necessary, abraded to promote adhesion and uniform results.
• Follow Guidelines: Adhere strictly to the manufacturer’s instructions for reaction times to avoid over- or under-treatment.
• Protect the Finish: Always rinse thoroughly and apply a sealant to enhance the durability and longevity of the blackened surface.
• Prioritize Safety: Use appropriate personal protective equipment (PPE) and ensure proper ventilation when working with chemical solutions.

By selecting the method that best suits the project’s scale and complexity, you can achieve professional-quality blackened finishes with efficiency and precision.

Sealing and Finishing the Blackened Surface

Surface Preparation and Cleaning

Proper surface preparation is essential for achieving a durable and visually appealing finish. Begin by thoroughly cleaning the blackened stainless steel to remove any residual chemicals or contaminants that may interfere with the sealing process.

• Neutralizing and Rinsing: Rinse the surface thoroughly with water to remove any remaining chemicals. If needed, use a neutralizing agent like Rust Arrest to ensure all residues are eliminated.
• Drying: After rinsing, ensure the surface is completely dry to prevent rust or staining. Use compressed air or other suitable drying methods to achieve this.

Sealing Methods

Sealing the blackened surface enhances its durability, improves corrosion resistance, and maintains its appearance over time.

Sealant Application

Applying a sealant fills the microscopic pores in the black oxide layer, creating a protective barrier against moisture and contaminants. You can use various sealants such as clear lacquers, epoxies, or specialized metal sealants designed for blackened surfaces.

• Application Process: Apply the sealant evenly using a brush, sprayer, or immersion method. Follow the manufacturer’s instructions for drying and curing times to ensure optimal performance.

Oil or Wax

Oils and waxes are excellent options for adding additional protection while enhancing the surface’s aesthetic.

• Oil: This method enhances the blackened surface with a glossy finish and provides lubrication properties. It is ideal for applications where a shiny appearance is desired.
• Wax: Provides a matte finish and excellent corrosion resistance, making it ideal for applications where a non-glossy look is preferred.

Clear Lacquer or Powder Coating

For environments requiring extra protection, consider applying a clear lacquer or powder coating.

• Clear Lacquer: Creates a durable, transparent layer that shields the surface from environmental factors.
• Powder Coating: Offers a thicker, more resilient protective layer, especially suited for outdoor or high-wear applications.

Post-Treatment Finishing

Once the sealing process is complete, additional finishing techniques can further enhance the surface’s appearance and durability.

Oiling

Oiling the surface can deepen the black color while adding an extra layer of protection.

• Application: Spread a thin, even layer of oil across the surface, allowing it to soak in. Wipe away any excess to prevent residue buildup.

Burnishing

Burnishing allows you to adjust the intensity of the black color, giving you a variety of finish options.

• Technique: Use a fine abrasive material to lightly rub the surface. This process can create subtle variations in the finish, offering a customized appearance before sealing.

Factors Influencing the Finish

Several factors can impact the final appearance and durability of the blackened stainless steel surface.

• Surface Preparation: Thorough cleaning and degreasing are critical for achieving a uniform black oxide layer and ensuring proper sealant adhesion.
• Blackening Method: The blackening method you choose—whether chemical, electrochemical, or thermal—affects the properties of the black oxide layer and influences how well the sealant will adhere.
• Type of Stainless Steel: The composition and grade of the stainless steel can affect both the blackening process and the performance of the sealant.

By carefully following these steps and considering the specific requirements of your project, you can achieve a long-lasting, corrosion-resistant, and visually appealing blackened finish.

Safety Precautions and Health Considerations

Blackening of Stainless Steel: Causes, Risks, and Safety Measures

Stainless steel can blacken due to factors like high temperatures from welding, chemical reactions, or surface contaminants. This discoloration often results from the formation of a black oxide layer or other chemical changes on the surface, which may compromise its appearance and, in some cases, its performance.

Health Risks Associated with Blackening Processes

The blackening process and related operations, such as welding and grinding, can pose significant health risks if proper precautions are not taken.

• Inhalation Hazards: Inhaling particles generated during these processes can cause respiratory irritation, pulmonary fibrosis, or chronic iron poisoning. Prolonged exposure to these fumes and dust can have lasting effects on lung health and overall well-being.
• Skin and Eye Irritation: Handling stainless steel and blackening chemicals may irritate the skin and eyes. Corrosive substances used in the process, such as hydrochloric acid or selenious acid, can cause severe burns or eye injuries if contact occurs.
• Ingestion Risks: Accidental ingestion of blackening chemicals can result in gastrointestinal distress, liver damage, or other serious health complications.

Safety Measures

To minimize risks, it is crucial to follow strict safety protocols during blackening processes.

• Personal Protective Equipment (PPE): Always wear appropriate PPE, including masks to protect against inhalation hazards, chemical-resistant gloves, and protective eyewear to shield against splashes or debris.
• Ventilation: Work in well-ventilated spaces to reduce harmful fumes and maintain air quality.
• Chemical Handling: Store chemicals securely in tightly sealed containers and handle them carefully to avoid spills, splashes, or accidental mixing with incompatible substances.
• Emergency Preparedness: Have clear procedures in place for addressing accidents, such as moving individuals exposed to fumes to fresh air, rinsing skin or eyes with water in case of contact, and seeking immediate medical attention when necessary.

Cleaning and Maintenance

Regular cleaning and maintenance of stainless steel surfaces can help mitigate discoloration and prolong their lifespan.

• Cleaning Methods: Use non-abrasive tools, mild detergents, or specialized stainless steel cleaners to restore the material’s finish without causing damage.
• Preventive Measures: Prevent blackening by limiting exposure to high temperatures or corrosive substances and performing routine cleaning to remove contaminants.

By understanding the causes of blackening and implementing these safety and maintenance practices, you can effectively protect both the integrity of stainless steel and the health of those handling it.

Case Studies and Examples of Blackened Stainless Steel Applications

Architectural Applications

Blackened stainless steel is favored in modern architecture for its sleek look and durability. It’s commonly used in cladding, facades, and interior design to create striking, contemporary structures.

• Notable Example: In a high-profile urban development, blackened stainless steel panels were used for the exterior facade of a luxury hotel, providing a consistent matte black finish that complemented the surrounding glass and concrete, while offering long-term corrosion resistance in a humid coastal environment.
• Interior Design: Many high-end interior design projects incorporate blackened stainless steel for stair railings, furniture, and decorative trim. Its non-reflective surface adds a sophisticated touch to spaces like offices, restaurants, and retail stores.

Automotive and Aerospace Components

In the automotive and aerospace industries, blackened stainless steel is chosen for its ability to withstand extreme conditions while maintaining a high-quality finish. Its corrosion resistance and wear properties make it suitable for functional components exposed to harsh environments.

• Automotive Use Case: A top car manufacturer used blackened stainless steel for exhaust tips and trim on a premium SUV. The black finish added durability and heat resistance, enhancing the vehicle’s look while enduring high temperatures and road debris.
• Aerospace Application: Blackened stainless steel is used in non-critical aerospace components like cabin hardware and interior fittings. Its lightweight and corrosion-resistant nature makes it ideal, particularly when a low-glare finish is needed.

Consumer Electronics and Products

Blackened stainless steel is commonly used in the consumer electronics industry to create sleek, high-end finishes for devices like smartphones, laptops, and wearable technology.

• Smartphone Example: A global electronics brand introduced a flagship smartphone featuring blackened stainless steel bezels. The material provided a premium, fingerprint-resistant finish that enhanced the device’s durability and appeal.
• Luxury Watches: Many luxury watchmakers use blackened stainless steel for watch cases and bands, combining a modern aesthetic with superior resistance to scratches and corrosion.

Industrial and Machinery Applications

In industrial settings, blackened stainless steel is employed for components where both functionality and aesthetics are important. Its black oxide layer provides a durable surface that resists wear, corrosion, and chemical exposure.

• Machinery Case Study: A manufacturer of precision tooling adopted blackened stainless steel for machine parts such as gears and shafts. The black oxide coating reduced glare in brightly lit work environments and provided additional protection against wear caused by lubrication and movement.
• Pipeline Components: In the oil and gas sector, blackened stainless steel is used for valves and fittings. The blackened finish helps reduce maintenance needs and improves resistance to harsh chemicals.

Firearms and Tactical Equipment

Blackened stainless steel is widely used in the firearms industry to improve wear resistance and reduce reflectivity, which is critical for tactical applications.

• Firearm Example: A military-grade rifle manufacturer applied black oxide treatments to key stainless steel components, including barrels and triggers. The treatment enhanced wear resistance and minimized glare, making the firearm more suitable for covert operations.
• Tactical Tools: Blackened stainless steel is also used in knives and multi-tools, providing a durable, low-reflectivity finish that is resistant to environmental exposure.

Decorative and Artistic Installations

Artists and designers frequently use blackened stainless steel in sculptures, installations, and decorative items. Its deep, uniform black finish enhances texture and detail, making it a popular choice for creative projects.

• Art Installation: A renowned sculptor created a public art piece using blackened stainless steel panels. The material provided a visually striking matte finish that blended with the urban landscape while being resistant to weathering and vandalism.
• Furniture Design: Custom furniture makers use blackened stainless steel for table bases, shelving, and lighting fixtures. The material offers a modern, industrial look that complements a variety of interior styles.

Specialized Products and Solutions

Several proprietary blackening solutions have been developed to meet specific industry needs, offering tailored results for different applications.

• Insta-Blak SS-370: This product is often used for architectural and decorative applications, achieving a black finish in as little as five minutes. It is particularly effective for furniture and trim pieces exposed to outdoor environments.
• Presto Black® SSB: A room-temperature solution designed for easy application, this product is widely used in smaller-scale projects like firearm components and industrial tools. Its environmentally friendly formula makes it a preferred choice for manufacturers prioritizing sustainability.

By leveraging its unique properties, blackened stainless steel continues to find innovative applications across diverse industries, combining aesthetics with functionality.

Frequently Asked Questions

Below are answers to some frequently asked questions:

What are the different methods for blackening stainless steel?

The different methods for blackening stainless steel include chemical blackening, which involves submerging the metal in a hot alkaline salt solution to form a black oxide layer; electrochemical blackening, which uses an electric current in an electrolytic bath for controlled blackening at lower temperatures; thermal blackening, which heats the stainless steel in a controlled atmosphere to create a dark, adherent finish; and cold blackening, which applies a copper selenium compound at room temperature for a simpler, less hazardous process. Each method has its own advantages and limitations, such as varying levels of corrosion resistance, complexity, and equipment requirements.

How do I prepare the surface of stainless steel for blackening?

Preparing the surface of stainless steel for blackening is essential for achieving a uniform and durable finish. Begin by thoroughly cleaning the surface to remove dirt, grease, and contaminants using alkaline detergents, solvents like acetone, and distilled water for rinsing. Degreasing ensures oils and additives are eliminated, while mechanical cleaning—such as blasting, wire brushing, or light abrasion—removes scale and residues. Pickling with an acidic agent, like hydrochloric acid, activates the surface and removes oxides, followed by multiple rinsing cycles to eliminate residues. Optional surface activation with mild acids can further enhance receptivity to blackening, ensuring optimal results.

What are the steps involved in applying black oxide to stainless steel?

Applying black oxide to stainless steel involves several precise steps to ensure a durable and aesthetically pleasing finish. Begin with thorough cleaning and degreasing to remove contaminants, followed by rinsing with distilled water. If necessary, descale or pickle the parts using an acidic solution to remove rust and scales. Next, activate the surface with an alkaline solution. Immerse the stainless steel parts in a hot alkaline solution at around 130°C to chemically oxidize the nickel atoms, resulting in a deep black color. Finally, seal the parts with oil, wax, or lacquer to enhance corrosion resistance, as discussed earlier.

What safety precautions should I take when blackening stainless steel?

When blackening stainless steel, prioritize safety by wearing protective gear such as gloves, goggles, and long-sleeved clothing to prevent chemical burns or splashes. Work in a well-ventilated area or use fume extraction systems to avoid inhaling harmful fumes from chemicals like acids or alkaline solutions. Handle heat sources carefully to prevent burns, using heat-resistant gloves if necessary. Ensure the stainless steel surface is thoroughly cleaned to avoid adverse reactions, and dispose of chemical waste according to local regulations. Following these precautions minimizes risks and ensures a safe and effective blackening process.

Are there environmentally friendly methods for blackening stainless steel?

Yes, there are environmentally friendly methods for blackening stainless steel. One notable method is Tru Temp Stainless Black Oxide, which operates at lower temperatures and uses less caustic content compared to traditional processes, and contains zero chrome in its formulation, reducing environmental impact. Additionally, electrochemical blackening, which uses electrical currents to form the black oxide layer, avoids hazardous chemicals and operates at lower temperatures, making it a sustainable option. These methods, along with efficient process designs and thorough pre-treatment steps, significantly reduce the environmental footprint of blackening stainless steel.

What are the advantages of room-temperature blackening solutions?

Room-temperature blackening solutions, or cold blackening, offer several advantages, including enhanced safety by eliminating risks associated with hot caustic baths, reduced environmental impact due to lower energy use and fewer hazardous chemicals, and ease of application for quick, cost-effective processes. They also provide a protective layer that enhances corrosion resistance and maintain dimensional accuracy with a uniform finish. While particularly effective for ferrous materials, these solutions are not suitable for stainless steel, which requires specialized techniques. Overall, room-temperature blackening is a practical and eco-friendly option for many metalworking applications.
