When it comes to selecting the right material for your project, whether you’re building a skyscraper or crafting the perfect skillet, the choice between cast iron and steel can be pivotal. These two metals, though seemingly similar, have distinct compositions, strengths, and applications that can significantly impact your project’s outcome. Are you curious about which material offers superior durability, or which one can withstand the most wear and tear? Perhaps you’re pondering the pros and cons of each, or their resistance to rust and corrosion. Dive into this comprehensive comparison to discover the unique properties, strengths, and practical uses of cast iron and steel, and find out which metal is the best fit for your specific needs.
Choosing the right material for engineering and construction projects hinges on understanding the key differences between cast iron and steel. Both materials are widely used in various applications, but their distinct properties make them suitable for different purposes.
Cast iron, known for its durability and ease of casting, has been used since ancient times in constructing bridges, buildings, and machinery. Steel, with its superior strength and versatility, has become the backbone of modern infrastructure, revolutionizing industries such as construction, automotive, and manufacturing.
The makeup of cast iron and steel affects their properties and uses. Cast iron is an alloy primarily composed of iron and carbon, with a high carbon content that provides its characteristic hardness and brittleness. Steel, on the other hand, has a lower carbon content, making it more ductile and malleable. The addition of elements like chromium and nickel further enhances steel’s properties, offering improved strength and corrosion resistance.
Understanding the key properties of cast iron and steel is crucial for making informed decisions in material selection. Cast iron is known for its excellent compressive strength and wear resistance, ideal for heavy-duty applications. However, its brittleness limits its use in scenarios requiring high tensile strength. In contrast, steel offers superior tensile strength and toughness, making it suitable for applications that demand both strength and flexibility.
The distinct properties of cast iron and steel dictate their applications in various industries. Cast iron is commonly used in engine blocks, pipes, cookware, and decorative items due to its excellent casting ability and heat retention. Steel, with its superior strength and versatility, is extensively used in construction, automotive manufacturing, and industrial machinery.
Selecting the appropriate material for a specific application involves evaluating several factors, including strength, durability, machinability, and corrosion resistance. By understanding these factors and the inherent differences between cast iron and steel, engineers and builders can make informed decisions that optimize performance and cost-effectiveness.
In the next sections, we will explore the composition, properties, applications, and other critical aspects of cast iron and steel, offering a comprehensive understanding of these essential materials.
Cast iron is a robust iron-carbon alloy known for its high carbon content, which ranges from 1.7% to 4.5%. This significant carbon content imparts notable hardness and brittleness to the alloy. In cast iron, carbon can exist as free carbon (graphite) or combined carbon, such as cementite—a hard compound of iron and carbon that enhances the material’s hardness. Alongside carbon, cast iron comprises other elements like silicon (1 to 3%), manganese (0.4 to 1%), phosphorus (0.15 to 1%), and sulfur (0.02 to 0.15%), which collectively improve its castability and wear resistance.
Cast iron exhibits excellent compressive strength, typically ranging from 400 to 1000 N/mm², which makes it ideal for applications like engine blocks and manifolds. However, it has lower tensile strength, generally between 100 to 200 N/mm², limiting its use in applications dominated by tensile forces.
The material is known for its durability and wear resistance, well-suited for heavy-duty applications. Yet, its brittleness means it can fracture under impact or tensile stress.
One of cast iron’s standout features is its exceptional castability. Its lower melting temperature and superior fluidity allow for the creation of intricate shapes and detailed designs, with minimal shrinkage during cooling, facilitating complex castings.
Cast iron, especially softer variants like grey iron, offers excellent machinability, allowing for quick and precise machining, which makes it economically favorable for manufacturing.
Due to its brittle nature, welding cast iron can be challenging. Special techniques and precautions are necessary to prevent cracking during the welding process.
Cast iron generally resists corrosion well, although surface rust can occur. It does not match the corrosion resistance of stainless steel alloys.
Cast steel, another iron-carbon alloy, typically contains a lower carbon content compared to cast iron. The specific carbon content varies depending on the type of steel. Cast steel often includes alloying elements such as manganese and silicon, which enhance its strength, toughness, and wear resistance.
Unlike cast iron, cast steel generally boasts higher tensile strength, making it more suitable for applications involving tensile forces. It also maintains good compressive strength, although not as high as cast iron.
Cast steel is generally more ductile and tough than cast iron, allowing it to deform under stress without cracking. This enhances its applicability in various demanding environments. Its superior impact resistance further contributes to its durability in dynamic loading conditions.
Casting steel is more challenging than casting iron due to its higher melting point and lower fluidity. However, advancements in casting techniques have improved the ability to produce complex shapes with cast steel.
Cast steel is harder on tooling and takes longer to machine compared to cast iron. The machinability varies depending on the specific steel type and the presence of alloying elements.
Cast steel offers superior weldability over cast iron, making it more suitable for applications requiring welding, such as structures needing robust joints.
The corrosion resistance of cast steel depends on the steel type. Carbon steels typically have poor corrosion resistance, whereas stainless steel alloys offer superior rust protection, making them preferred for applications demanding high corrosion resistance.
Cast iron and steel are both highly valued for their strength, but they excel in different areas. Cast iron is renowned for its impressive compressive strength, which ranges from 400 to 1000 N/mm², making it ideal for applications like engine blocks and heavy machinery components. This ability to withstand high compressive loads without deformation is a significant advantage.
In contrast, steel’s compressive strength, while substantial, generally ranges from 250 to 550 N/mm². However, steel outshines cast iron in tensile strength, with values ranging from 400 to 1400 N/mm². This high tensile strength allows steel to endure significant pulling or stretching forces without breaking, making it perfect for beams, cables, and structural frameworks. Cast iron, with a lower tensile strength of 100 to 200 N/mm², is more brittle and less suited to applications requiring high tensile strength.
Steel is highly valued for its toughness and ability to resist impacts. It can absorb and dissipate energy from sudden impacts or dynamic loads without fracturing, which is crucial in industries like construction and automotive manufacturing. Cast iron, although strong under static loads, is more brittle and prone to cracking when subjected to sudden impacts, limiting its use in applications where dynamic stress is a factor.
Ductility and malleability are important properties for materials used in manufacturing processes. Steel excels in both, allowing it to be drawn into wires (ductility) or hammered into thin sheets (malleability). This versatility makes steel a preferred choice for extensive shaping, forming, and bending.
Cast iron, on the other hand, lacks these properties due to its high carbon content. It cannot be easily shaped or deformed without fracturing, which restricts its use to applications where these properties are not required.
Both cast iron and steel offer significant wear resistance. Cast iron is ideal for applications like brake discs and milling machines due to its self-lubricating graphite flakes that enhance wear resistance. Steel, especially alloy steels with elements like chromium and nickel, also offers high wear resistance. Stainless steel, for example, is not only resistant to wear but also to corrosion, making it suitable for harsh environments.
In summary, cast iron excels in compressive strength and wear resistance but is limited by its brittleness and low tensile strength. Steel, with its superior tensile strength, impact resistance, ductility, and overall toughness, is more versatile and durable. The choice between cast iron and steel ultimately depends on the specific requirements of the application, including the types of forces the material will need to withstand.
The automotive industry extensively utilizes both cast iron and steel due to their specific mechanical properties. Cast iron is frequently used in engine blocks and cylinder heads, benefiting from its excellent compressive strength and ability to absorb vibration. This makes cast iron ideal for parts that endure high pressure and need stability. Additionally, cast iron’s wear resistance is advantageous in producing brake drums and cylinder liners, where durability is critical.
Steel, particularly cast steel, finds its application in drivetrain components such as gears and crankshafts, where high tensile strength and toughness are paramount. Steel’s strength and toughness make it ideal for parts under constant stress and movement.
In the construction sector, the choice between cast iron and steel is driven by their respective strengths. Cast iron is often used for its compressive strength and is commonly found in applications like manhole covers, sewer pipes, and certain architectural elements where load-bearing capacity is essential. Its natural damping properties also make it suitable for use in machine tool bases, reducing vibration and noise in heavy equipment operations.
Steel, with its superior tensile strength and flexibility, is integral to structural frameworks, bridges, and beams. Its ability to deform under stress without cracking is crucial in construction, where materials must accommodate various loads and environmental conditions. Additionally, the high ductility and weldability of steel facilitate the construction of complex structures that require robust joints and long spans.
Both materials are pivotal in manufacturing and industrial settings. Cast iron’s machinability and ability to produce complex shapes make it ideal for machine tool components and housings that require precise dimensions and stability. Its excellent wear resistance also supports its use in milling machines and other high-friction environments.
Steel’s role in industrial equipment is often linked to its strength and durability. Components such as frames, supports, and high-pressure valves benefit from steel’s toughness and corrosion resistance, particularly in harsh or demanding environments. Stainless steel, in particular, is chosen for applications requiring hygiene and resistance to rust, such as food processing and pharmaceutical equipment.
In the domestic sphere, cast iron is famous for cookware like skillets and Dutch ovens because it retains and distributes heat well. Its aesthetic appeal and ease of casting also make it popular for ornamental items like gates, fences, and decorative light posts, where visual appeal is as important as functional properties.
Steel, especially stainless steel, is widely used in kitchen appliances and utensils where corrosion resistance and ease of cleaning are vital. Its sleek appearance and durability make it a staple in modern home design, from sinks and countertops to cutlery and cookware.
Certain applications demand the unique properties of either cast iron or steel. For example, cast iron’s heat resistance suits it for fireplace components and industrial furnaces, while steel’s adaptability makes it ideal for high-pressure pipelines and oil rigs, where strength, flexibility, and corrosion resistance are indispensable.
In summary, the selection between cast iron and steel in various applications is guided by their distinct mechanical properties, cost-effectiveness, and suitability for specific operational requirements. These materials continue to play vital roles across numerous industries, highlighting their importance in both traditional and modern engineering solutions.
When comparing the corrosion resistance of cast iron and steel, it’s important to consider their material composition and environmental exposure.
The high carbon content in cast iron makes it prone to rust and corrosion, with graphite creating micro-galvanic cells that accelerate this process when exposed to moisture and air. However, with proper protective coatings or paints, cast iron can resist corrosion better than expected. The formation of a surface layer of rust can sometimes protect the underlying material, but this is not a reliable long-term solution.
Steel, particularly when alloyed with elements such as chromium, can offer superior corrosion resistance. Stainless steel, which contains at least 10.5% chromium, forms a protective oxide layer on its surface that prevents rust and staining. Other alloying elements like nickel and molybdenum can further enhance the corrosion resistance of steel, making it suitable for use in harsh environments. Carbon steels, however, are less resistant to corrosion and require protective coatings or galvanization to improve their durability.
Both cast iron and steel require protective measures to prevent corrosion, especially in environments with high humidity or exposure to corrosive substances.
Steel, especially cast steel, is easier to weld than cast iron. This makes steel more suitable for fabrication and repair. Cast iron, due to its brittleness, requires special welding techniques to avoid cracking. These techniques include preheating and using nickel-based electrodes to achieve successful welds.
Cast iron is generally easier to machine than cast steel due to its graphite content, which acts as a natural lubricant during machining processes. This ease of machinability can reduce maintenance costs associated with tool wear and replacement. In contrast, cast steel is harder on tooling and takes longer to machine, increasing maintenance demands in manufacturing settings.
Regular inspection and maintenance are vital to prevent corrosion and ensure the longevity of both cast iron and steel components.
By implementing these maintenance strategies, both cast iron and steel can achieve optimal performance and extended service life in their respective applications.
Gray Iron
Gray iron is highly machinable because it is less hard and contains graphite flakes that naturally lubricate the material. This makes it easy to machine quickly and accurately, reducing tool wear and extending tool life. Its excellent machinability makes gray iron a cost-effective choice for components requiring precise dimensions and intricate details.
Ductile Iron
Ductile iron, though harder than gray iron due to its nodular graphite structure, is still easier to machine compared to steel. However, its increased hardness can lead to more tool wear and longer machining times. Ductile iron offers a good balance between strength and ease of machining, making it suitable for applications where both properties are desired.
Carbon Steel
The ease of machining carbon steel depends on its carbon content and other added elements. Low-carbon steels are generally easier to machine than high-carbon steels. High-carbon steels, while stronger and harder, can be more challenging to machine, leading to increased tool wear and slower machining speeds.
Alloy Steel
Alloy steels, which contain elements such as chromium, nickel, and molybdenum, can be more challenging to machine. These elements enhance the steel’s properties but also increase its hardness, making the machining process more demanding. Specific cutting tools and techniques are often required to machine alloy steels effectively.
Challenges in Welding Cast Iron
Welding cast iron is difficult due to its high carbon content and the presence of graphite flakes. These factors contribute to the material’s brittleness and the formation of hard, brittle phases in the heat-affected zone. If not managed properly, these phases can cause cracking during cooling.
Techniques for Welding Cast Iron
Specialized techniques are necessary to weld cast iron successfully. Preheating the cast iron before welding and using nickel-based electrodes can help reduce the risk of cracking. Post-weld heat treatment is often required to relieve residual stresses and improve the ductility of the welded joint. Due to these complexities, welding cast iron is typically reserved for repair work rather than for joining new components.
Carbon Steel
Steel generally offers better weldability than cast iron, with low-carbon steels being the most weldable. These steels can be welded using standard techniques without the need for extensive preheating or special electrodes. However, medium- and high-carbon steels may require preheating and controlled cooling to prevent cracking and ensure a strong weld.
Stainless Steel
Stainless steels, especially those with high chromium and nickel content, are known for their excellent weldability. These steels can be welded using various techniques, including TIG (Tungsten Inert Gas) and MIG (Metal Inert Gas) welding. Proper control of heat input and selection of appropriate filler materials are crucial to maintain the corrosion resistance and mechanical properties of the weld.
When choosing between cast iron and steel, it’s important to consider machinability and weldability. Cast iron is generally easier and cheaper to machine, making it suitable for components that require extensive machining. However, its challenging weldability limits its use in applications where welding is necessary.
Steel, while more demanding to machine, offers superior weldability, making it a better choice for structures and components that require reliable welded joints. The specific type of steel, whether carbon or alloy, should be selected based on the balance of machinability and weldability required for the application.

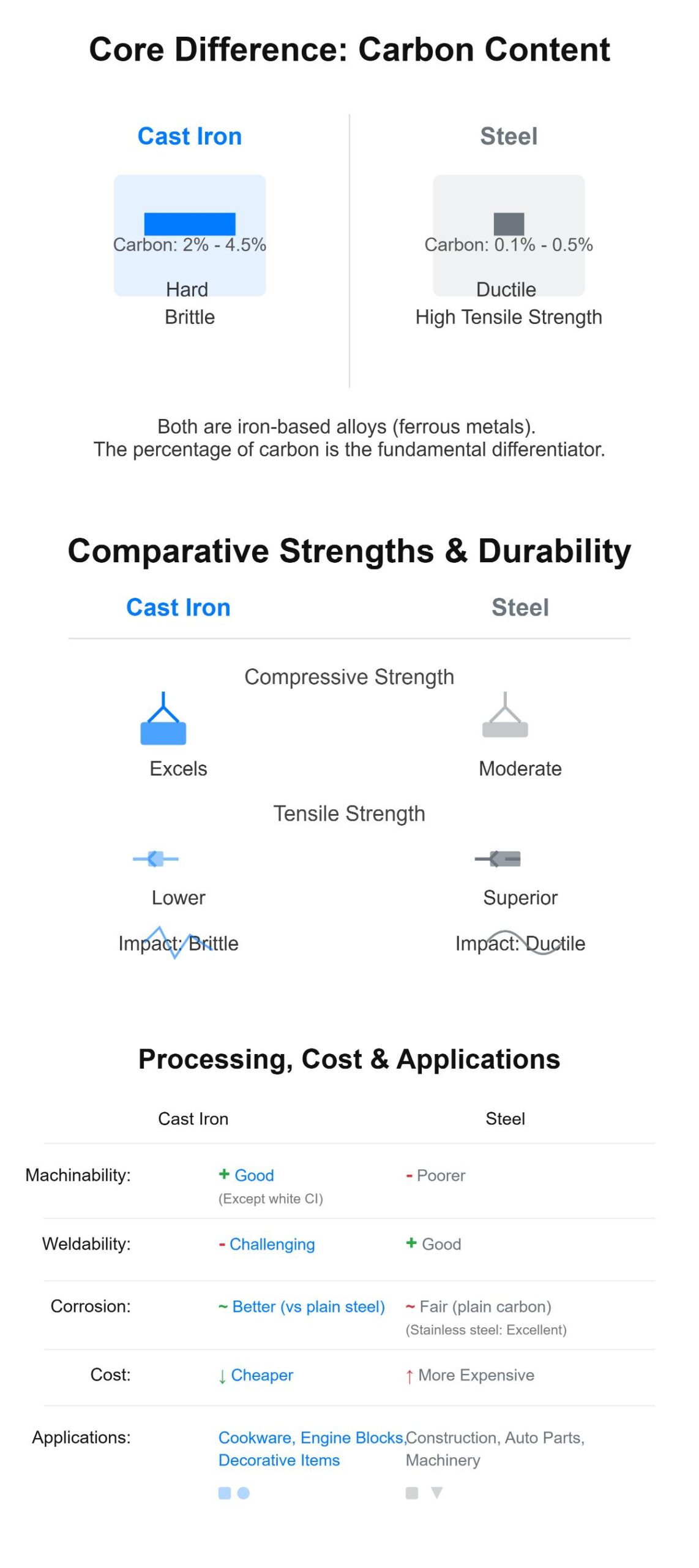

Choosing between cast iron and steel is crucial for many applications, as these iron-carbon alloys have distinct properties.
Cast iron typically contains 2% to 4% carbon along with iron and silicon, while steel contains less than 2% carbon and may include additional elements such as chromium, nickel, and manganese. These differences in composition lead to varied mechanical properties, which we will explore next.
Steel, especially stainless steel, offers better corrosion resistance compared to cast iron. Stainless steel contains chromium, which forms a protective oxide layer, preventing rust and corrosion. Cast iron, on the other hand, can corrode quickly if not properly protected, although coatings and paints can help mitigate this issue.
Cast Iron:
Commonly used in pipe fittings, farm equipment, machine parts, and cookware.
Excellent heat conductivity and compressive strength.
Generally cheaper to produce.
Steel:
Ideal for making tools, vehicles, infrastructure, and other structural components.
High tensile strength and durability.
Superior corrosion resistance.
Steel offers superior weldability compared to cast iron, which is a significant advantage in construction and manufacturing processes. This makes steel more suitable for applications requiring fabrication and repairs.
The choice between cast iron and steel depends on the specific requirements of the project. Cast iron is advantageous for applications needing high compressive strength, good heat conductivity, and ease of casting. However, steel’s versatility, durability, tensile strength, impact resistance, and corrosion resistance make it the preferred material for a wide range of structural applications, construction, and infrastructure projects.
Understanding these differences is essential for ensuring the longevity, performance, and cost-effectiveness of any project. While cast iron has unique strengths, steel’s overall durability and resistance to environmental factors make it a more widely used and preferred material in many industries.
Below are answers to some frequently asked questions:
The main differences in composition between cast iron and steel lie in their carbon content and other elemental components. Cast iron contains 2% to 4% carbon, while steel has a lower carbon content, typically between 0.1% and 0.5%. Additionally, cast iron includes 1% to 3% silicon and varying amounts of manganese, phosphorus, and sulfur, with possible alloying elements like nickel and chromium. These differences result in distinct microstructures and properties, making cast iron more brittle and easier to cast, while steel is stronger, more ductile, and easier to weld.
Steel is generally stronger and more durable than cast iron, particularly due to its higher tensile strength and toughness, making it better suited for a wide range of applications. Steel can withstand greater stress and strain without bending, deforming, or breaking, which is crucial for structural and mechanical uses. In contrast, cast iron is more brittle and prone to cracking under stress, though it excels in compressive strength and specific applications such as engine blocks and cookware. Overall, steel’s versatility and resilience make it the preferred choice for most demanding applications.
Cast iron and steel have distinct applications based on their properties. Cast iron, known for its high compressive strength and vibration-dampening capabilities, is commonly used in engine blocks, machine tool bases, brake drums, and ornamental castings. It is also utilized in pipes, valves, and various automotive parts due to its wear resistance and good castability. On the other hand, cast steel, with its high tensile strength and superior weldability, is ideal for gears, crankshafts, high-pressure valves, structural components, and construction equipment, making it suitable for applications requiring toughness and impact resistance.
In terms of corrosion resistance, cast iron generally fares better against surface rust compared to plain carbon steel, though both are susceptible to corrosion if unprotected. Cast iron’s moderate corrosion resistance surpasses that of carbon steel, but steel can achieve superior resistance when alloyed with elements like chromium to create stainless steel. Protective measures, such as coatings and treatments, can enhance the corrosion resistance of both materials. Therefore, while cast iron may resist initial rusting better, steel offers greater versatility through alloying and treatment options in environments where corrosion is a major concern.
As discussed earlier, cast iron is generally easier to machine due to its softer and more uniform graphite structure, which breaks away easily during machining. However, it is more challenging to weld because of its high carbon content, which can lead to increased brittleness and cracking. Cast steel, on the other hand, is more difficult to machine due to its harder and denser structure, but it is somewhat easier to weld than cast iron, provided proper preheating and techniques are used to minimize distortions and cracking.
The maintenance requirements for cast iron and steel vary significantly. Cast iron necessitates regular seasoning with high smoke-point oil to maintain its non-stick surface, thorough drying to prevent rust, and gentle cleaning without soap. Steel, on the other hand, demands frequent inspections for rust and wear, application of protective coatings like galvanization or paint, immediate rust spot treatment, and environmental monitoring to adjust maintenance practices. Both materials require protective measures against corrosion, but steel’s maintenance is more intensive due to its susceptibility to rust and structural integrity concerns.
