Metal casting involves pouring molten metal into a mold, letting it cool and solidify, and then removing it to create a finished product. This technique is renowned for its ability to create complex shapes and intricate designs that would be challenging to achieve through other manufacturing methods.
The versatility and efficiency of metal casting allow for the production of parts with complex geometries, creating components that are both functional and aesthetically pleasing. It is widely used across various industries, including automotive, aerospace, construction, and electronics.
Metal casting dates back to around 3200 BCE. Ancient civilizations utilized this technique to create tools, weapons, and decorative items. Over the centuries, advancements in technology and materials have refined the process, making it more precise and efficient.
Pros:
Cons:
Metal casting is employed in various industries to produce complex parts efficiently:
Metal casting offers a versatile and efficient method for manufacturing complex metal parts, supporting a wide range of applications across different industries.
Sand casting is a time-honored and adaptable method for creating metal parts. This process involves creating a mold from sand, where the sand is packed around a pattern of the desired shape. The pattern is then removed, and molten metal is poured into the cavity.
Investment casting, also known as lost-wax casting, involves creating a wax model of the final product. This wax model is coated with a refractory material to form a ceramic mold. The wax is melted out, and molten metal is poured into the cavity left behind.
Die casting is a high-pressure process that involves forcing molten metal into a metal mold, or die, under high pressure. This method is widely used for producing large quantities of small to medium-sized parts with high precision.
Centrifugal casting involves pouring molten metal into a rotating mold. The centrifugal force distributes the molten metal along the inner surface of the mold, forming a cylindrical part.
Gravity casting, also known as permanent mold casting, involves pouring molten metal into a preheated metal mold using gravity alone. This method is simple and cost-effective for producing high-strength parts.
The automotive industry relies on metal casting to produce essential vehicle components. Metal casting is crucial for manufacturing engine components such as blocks, cylinder heads, and pistons, as well as chassis parts like control arms, brackets, and cross members. These parts must withstand high temperatures and pressures, making casting an ideal method due to its ability to produce durable and heat-resistant components.
The aerospace industry uses metal casting to create lightweight, strong components that can withstand extreme conditions. Investment casting is particularly favored for producing turbine blades, engine casings, and other high-precision parts, as it provides exceptional surface finish and dimensional accuracy. Casting is also used for landing gear components and various airframe parts, where strength and weight savings are critical.
In the construction industry, metal casting plays a vital role in producing robust and durable components used in building infrastructure. Cast iron and steel pipes are used in plumbing and sewage systems for their strength and corrosion resistance. Fittings like joints and valves are also cast to ensure secure connections. Large structural components, including beams, columns, and brackets, are cast to provide necessary support and stability in buildings and bridges.
Metal casting finds applications in various other industries, contributing to the production of a wide range of products.
In the consumer goods sector, casting is used to produce items such as cookware, furniture fittings, and decorative hardware. The ability to create intricate designs and fine details makes casting an ideal method for these products.
The medical industry utilizes casting to manufacture implants, surgical instruments, and diagnostic equipment. The precision and biocompatibility of cast components are crucial for ensuring patient safety and the effectiveness of medical devices.
In the energy sector, casting produces components for power generation, including turbines, generators, and heat exchangers, ensuring durable and reliable operation.
Casting is widely used in the creation of art and decorative items, allowing artists to produce intricate and detailed sculptures, statues, and jewelry. The flexibility of casting techniques enables the replication of fine details and complex shapes, making it a popular choice for artistic endeavors.
The metal casting industry is increasingly turning to sustainable and lightweight alloys to reduce environmental impact and boost performance. Materials such as aluminum are gaining popularity due to their ability to enhance fuel efficiency and reduce emissions. These advancements are driven by regulatory pressures and consumer demand for greener products.
3D printing is transforming metal casting by allowing intricate designs and quick prototyping. This technology enables greater design freedom, accelerates product development cycles, and enhances manufacturing efficiency. By reducing the need for traditional molds and tooling, 3D printing minimizes material waste and lowers production costs.
Digital twins, which are virtual replicas of physical systems, enhance prediction and control in casting operations. AI algorithms help in predicting defects, improving quality control, and boosting efficiency. These technologies contribute to reduced downtime and ensure that castings meet precise specifications.
Automation increases precision and reduces errors. It also speeds up production. The integration of smart manufacturing technologies involves real-time monitoring and data-driven decision-making, which optimizes operations and predicts maintenance needs. This results in improved productivity and reduced operational costs.
The metal casting industry is focusing on sustainability and the circular economy by adopting energy-efficient technologies and recycling practices. Efforts to cut energy use and minimize waste are becoming more common. This approach supports environmental sustainability and leads to cost savings by optimizing resource utilization. The move towards a circular economy emphasizes the importance of reusing materials and reducing the overall environmental footprint.
Quality control in metal casting is essential to ensure that the final products meet the required specifications and are free from defects. This process includes various inspections and tests to identify and fix issues, enhancing the reliability and performance of the cast parts.
Materials inspection ensures that the raw materials used in casting meet quality standards, as the properties of the final product depend on the initial material quality.
Dimensional inspection checks that cast parts match the specified dimensions and tolerances. This involves measuring the parts and comparing them against the design specifications to detect any deviations that might affect the part’s performance.
Non-destructive testing (NDT) techniques are used to evaluate the internal and surface quality of the cast parts without causing any damage. Common NDT methods include:
Visual inspection is a straightforward method of quality control where the surface of the cast parts is examined for visible defects such as cracks, voids, or surface roughness. This is often the first step in the inspection process.
Metallurgical testing involves analyzing the chemical composition and mechanical properties of the cast parts. Tests such as hardness testing and tensile strength testing are conducted to ensure the castings have the desired properties and can perform as expected in their intended applications.
Various industry standards provide guidelines for quality control in metal casting. These standards ensure consistent and reliable quality across various applications and industries.
The American Petroleum Institute (API) standards focus on pressure-containing and load-bearing castings. They emphasize visual inspections, non-destructive evaluation (NDE) methods, and record retention for up to 10 years to ensure traceability and accountability.
The American Society for Testing and Materials (ASTM) specifications define the composition limits and tolerances for steel castings. These standards ensure the mechanical properties and corrosion resistance of the cast parts meet the required criteria.
The Manufacturers Standardization Society (MSS) provides guidelines for evaluating the quality of castings, particularly in valve applications. These standards help maintain the reliability and performance of valves used in various industrial systems.
Producing high-quality cast parts is challenging due to potential defects like porosity, shrinkage, and dimensional inaccuracies. Implementing rigorous quality control measures helps mitigate these challenges, but it requires careful monitoring and control throughout the casting process.
Effective quality control in metal casting offers several benefits:
By adhering to stringent quality control standards, manufacturers can produce high-quality cast parts that meet the expectations and requirements of various industries.
Sustainability in metal casting is crucial due to its significant environmental impacts, and efforts are underway to minimize waste, reduce energy consumption, and lower emissions while maintaining efficiency and quality.
Enhancing energy efficiency is a primary strategy for sustainable metal casting, achievable through energy-efficient furnaces and recycling scrap metal, which can cut energy consumption by up to 74% compared to processing virgin metals.
Waste reduction is essential for sustainability in metal casting. Using recyclable sand molds and low-emission binders can decrease waste and harmful pollutants. Additionally, modern technologies like 3D printing create precise molds, reducing material waste.
Green casting techniques aim to optimize processes and reduce environmental impact. Using recycled materials, efficient furnaces, and advanced equipment helps conserve resources and maintain high production standards.
Sustainable practices in metal casting offer cost savings, environmental benefits, and improved market perception. Innovations like Pyrotek’s Metal Casting System – Vacuum (MCS-V) enhance productivity while reducing energy needs and scrap rates, and life cycle assessments help manufacturers choose sustainable materials and technologies.
Below are answers to some frequently asked questions:

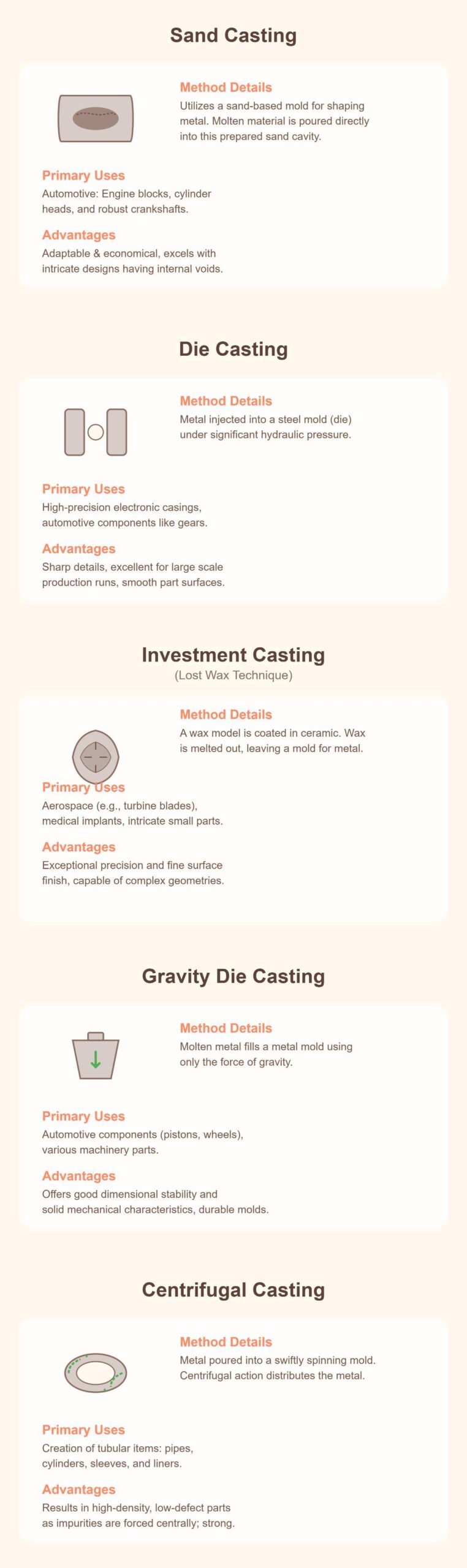

Metal casting is a manufacturing process where molten metal is poured into a mold to create complex shapes. There are several main types of metal casting, each with specific applications:
Each casting process has unique advantages and disadvantages, making them suitable for different applications across various industries.
Different casting processes offer a variety of advantages and disadvantages, each catering to specific needs and applications. Sand casting is cost-effective and suitable for complex shapes and large parts, but it has lower dimensional accuracy and often requires post-processing. Investment casting, or lost wax casting, provides high accuracy and detail for intricate parts, but can be expensive due to the need for wax patterns and investment materials.
Die casting is ideal for large-scale production, offering high precision and smooth surfaces, though it requires significant initial investment and is limited to non-ferrous metals. Centrifugal casting produces dense, homogenous structures with minimal porosity, perfect for cylindrical shapes like pipes, but is limited in shape variety and may collect impurities at the center.
Each process has its unique strengths and limitations, making them suitable for specific applications and materials. Understanding these factors helps in selecting the most appropriate method for manufacturing metal parts.
Choosing the right casting process for your project involves evaluating several key factors to ensure that the method aligns with your specific requirements. First, consider the material type and performance requirements, as different alloys are better suited to certain processes. For instance, die casting is generally not used for cast stainless steels or irons due to process limitations.
Next, assess the complexity and dimensional accuracy needed for the part. Intricate shapes requiring high precision are best suited for investment casting, while simpler shapes may be effectively produced using sand casting.
Production volume is another critical factor; high-volume productions are more economical with processes like die casting due to its speed and automation capabilities. On the other hand, sand casting is more cost-effective for low-volume projects.
Additionally, consider lead time and tooling costs. Processes that require complex dies, such as gravity die casting, have longer lead times and higher initial costs, though technological advancements are helping to reduce these lead times.
Recent trends in metal casting technology focus on enhancing efficiency, sustainability, and precision through innovative approaches. The adoption of advanced materials, such as lightweight and eco-friendly alloys like aluminum, is becoming prevalent to improve fuel efficiency and reduce emissions, particularly in the automotive sector.
3D printing, or additive manufacturing, is revolutionizing the field by enabling the creation of complex geometries and facilitating rapid prototyping, which accelerates product development cycles. Digital technologies like digital twins allow for real-time monitoring and quality assurance, ensuring castings meet specifications and reducing defects. Additionally, artificial intelligence (AI) and machine learning (ML) optimize casting processes, predict defects, improve material selection, and enable predictive maintenance.
Automation and smart manufacturing, utilizing robotics and IoT, enhance production precision, efficiency, and speed while minimizing errors. Sustainability efforts include reducing energy consumption and emissions, and promoting recycling and material reuse, aligning with circular economy principles. Emerging techniques such as semi-solid processing and hybrid casting improve material properties and manufacturing efficiency, further advancing the industry. These trends collectively drive the metal casting industry towards more efficient, sustainable, and high-quality production.
Quality control standards in metal casting ensure that castings meet the required specifications and performance criteria. These standards involve various inspection methods and adherence to industry specifications.
Inspection methods include visual inspections for surface defects, mechanical properties inspections like hardness and tensile testing, dimensional inspections using precise tools, chemical inspections to verify alloy composition, and non-destructive testing methods such as radiography and ultrasonic testing.
Industry standards like API, ASTM, and the ASME Boiler and Pressure Vessel Code provide detailed requirements for different types of castings. For example, API standards focus on pressure-containing castings, ASTM specifications cover chemical and mechanical properties, and ASME standards ensure safety and performance in high-temperature applications.
These quality control measures are crucial for ensuring the reliability and safety of cast components, especially in critical industries like automotive and aerospace. They help prevent defects, reduce the risk of failures, and enhance customer trust by guaranteeing the performance and longevity of the castings.
Sustainability significantly impacts the choice of casting processes in metal casting by emphasizing energy efficiency, waste reduction, and environmental responsibility. Processes that consume less energy and allow for the reuse of materials, such as sand casting, are often preferred. For example, recycling metal in casting can save up to 74% of the energy compared to using new materials. Minimizing waste through practices like reusing sand molds and remelting excess metal also supports sustainability. Additionally, reducing emissions by using recycled materials and advanced furnace technologies helps lower the environmental footprint. Companies adopting sustainable practices can also meet consumer demands for environmentally responsible products, enhancing their market competitiveness.
