Understanding 18 Gauge Sheet Metal Thickness
Ever wondered why 18 gauge sheet metal is so popular in various industries, yet the thickness seems to vary between…
When it comes to steel, the gauge measurement can make all the difference in its application and effectiveness. If you’ve ever wondered why 18 gauge steel is a go-to choice for a variety of industries, you’re in the right place. This comprehensive guide dives deep into the world of 18 gauge steel, exploring its unique properties, versatile applications, and the fabrication techniques that make it a staple in manufacturing and construction. We’ll compare it to other gauges, shedding light on why 18 gauge is often preferred, and we’ll delve into both standard and advanced fabrication methods, including laser cutting and CNC machining. Ready to uncover the secrets behind 18 gauge steel’s popularity and performance? Let’s get started.

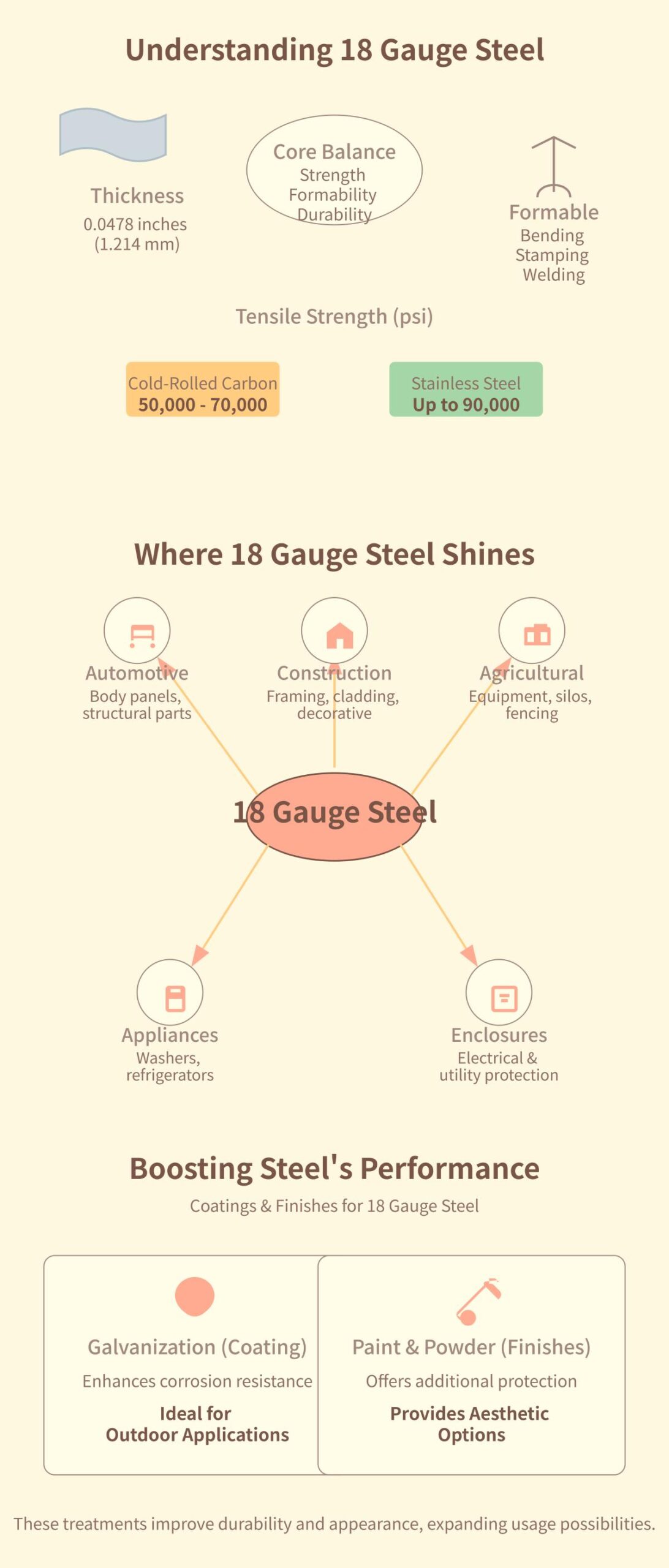

18 gauge steel is widely used in various industrial and commercial applications. This is due to its balance of strength, thickness, and formability.
The thickness of 18 gauge steel is approximately 0.0478 inches (1.214 mm). This makes it thicker than 20 gauge steel but thinner than 16 gauge steel, striking a balance between durability and workability. Various types of steel, including galvanized and stainless steel, can be made in 18 gauge, each with its own unique properties:
18 gauge steel exhibits mechanical properties like tensile strength, yield strength, and ductility that make it suitable for various applications:
The formability of 18 gauge steel is a significant advantage in manufacturing processes. It can be shaped through various techniques, including:
Welding 18 gauge steel is relatively straightforward, with both mild and stainless steel versions supporting common welding techniques such as MIG, TIG, and spot welding.
18 gauge steel has moderate thermal and electrical properties:
The corrosion resistance of 18 gauge steel depends on its type:
Due to its balanced properties, 18 gauge steel is used in numerous industries:
Choosing 18 gauge steel offers several benefits, including strength and durability, versatility, and cost-effectiveness.
Tensile strength is a key property of 18 gauge steel, indicating the maximum stress it can endure when stretched or pulled before breaking. For 18 gauge mild steel, the tensile strength typically ranges from 50,000 to 70,000 psi, providing sufficient strength for many industrial applications. Stainless steel variants can achieve even higher tensile strengths, up to 90,000 psi, making them more suitable for demanding environments requiring greater durability.
18 gauge steel is highly formable, meaning it can be easily bent, folded, drawn, roll-formed, stamped, and punched without significant risk of breaking. This high formability allows manufacturers to create complex shapes and structures, expanding the range of applications for 18 gauge steel.
18 gauge steel is excellent for welding, making it suitable for various methods like MIG and TIG welding. This ensures that the steel can be effectively joined while maintaining its structural integrity in welded components.
With a thermal conductivity of about 45 W/mK, 18 gauge steel is less efficient at heat management compared to materials like aluminum, which has a thermal conductivity of 205 W/mK. Consequently, 18 gauge steel is less ideal for applications requiring efficient heat dissipation, such as heat sinks or high-performance cooling systems.
The thickness of 18 gauge carbon steel sheets is around 0.0478 inches (1.214 mm). Galvanized versions of 18 gauge steel are slightly thicker, measuring about 0.0516 inches (1.311 mm) due to the zinc coating. This difference in thickness can be important in applications where precise dimensional control is required.
A standard 4′ x 8′ sheet of cold-rolled 18 gauge steel weighs approximately 63 pounds. However, the weight per square foot can vary depending on the material type. For instance, stainless steel sheets of the same gauge are heavier than mild steel sheets.
The thickness tolerance for 18 gauge carbon steel is ±0.002 inches. This tight tolerance ensures that the steel meets precise manufacturing standards, which is essential for applications where consistent thickness is critical for proper functioning.
The specific thickness and weight of 18 gauge steel are essential for its many applications.
18 gauge steel exhibits several mechanical properties that make it suitable for a wide range of applications:
The thermal and electrical properties of 18 gauge steel are important for its functionality in different environments:
18 gauge steel is available with various coatings and finishes to enhance its properties:
The thickness tolerance of 18 gauge steel is crucial for applications requiring precise dimensions:
The manufacturing process greatly affects the properties of 18 gauge steel:
18 gauge steel plays a crucial role in the automotive industry due to its balance of strength, formability, and weight.
18 gauge mild steel is widely used for vehicle body panels, doors, and hoods. This steel provides the necessary strength to ensure durability and safety while allowing for the creation of complex shapes. The lightweight nature of 18 gauge steel also contributes to better fuel efficiency and
18 gauge steel’s impact resistance is crucial for automotive design. It enhances vehicle safety by providing structural integrity during collisions. This impact resistance is an essential feature for components like bumpers and crash structures.
The construction and architecture industries leverage 18 gauge steel for its structural and aesthetic properties.
18 gauge steel is commonly used for metal stud framing in walls, providing structural integrity without adding excessive weight. Its strength and formability make it ideal for creating sturdy frameworks for buildings.
Besides structural applications, 18 gauge steel is used for cladding and trim, offering aesthetic versatility for various architectural designs, from modern commercial buildings to residential homes. The ability to form intricate designs makes it a preferred material for decorative elements.
18 gauge steel’s durability and efficiency make it popular for manufacturing household appliances.
18 gauge steel is used in the structural frames and panels of appliances such as refrigerators, washing machines, and ovens. Its moderate thickness ensures that these appliances can withstand daily wear and tear while maintaining a manageable weight.
Stainless steel versions of 18 gauge steel are particularly valued in kitchen appliances due to their resistance to corrosion and ease of cleaning. This makes them ideal for environments exposed to moisture and food particles.
In heating, ventilation, and air conditioning (HVAC) systems, 18 gauge steel is an essential material.
18 gauge steel’s flexibility and strength make it ideal for ductwork and ventilation components. It can be easily shaped into complex forms necessary for efficient air distribution, ensuring optimal air pressure and flow in HVAC systems.
18 gauge steel is used in various industrial applications due to its mechanical properties.
The strength and workability of 18 gauge steel make it suitable for fabricating machine parts and enclosures. These parts require a balance of durability and precision, which 18 gauge steel can provide.
18 gauge steel is used for protective enclosures for electrical components. Its ability to be precisely cut and formed ensures that it can protect sensitive equipment from physical damage and environmental exposure.
In the agricultural sector, 18 gauge steel is utilized for its durability and resistance to environmental factors.
18 gauge steel is used in the construction of agricultural equipment and structures such as barns, silos, and fencing. Its ability to withstand harsh environmental conditions makes it a reliable material for long-term agricultural use.
18 gauge steel is widely used in various industries due to its balance of strength, formability, and moderate thickness (approximately 0.0478 inches or 1.214 mm). Understanding the fabrication techniques for this material is crucial for maximizing its potential in applications ranging from automotive components to construction materials.
People find 18 gauge steel particularly amenable to bending and folding processes. These techniques create complex shapes and designs without compromising the material’s structural integrity. When bending 18 gauge steel, it is recommended to use a minimum inside bend radius of 1T-2T (about 0.063 inches) to prevent cracking and maintain a smooth bend. The slight springback characteristic of this steel gauge allows for precise and reliable shaping.
For producing seamless and cylindrical parts, deep drawing is effective. This technique stretches the steel into a die cavity, ideal for manufacturing items like automotive body panels and kitchen sinks. Roll forming creates continuous profiles such as beams and channels. It involves passing the steel through a series of rolls to achieve the desired cross-sectional shape, making it highly efficient for large-scale production.
Stamping and punching are essential for creating intricate designs and patterns in 18 gauge steel. These processes involve using a press to cut or shape the steel, ensuring precise and consistent results. Stamping is particularly useful for producing components with complex geometries, while punching is ideal for creating holes or cutouts in the material.
Both Metal Inert Gas (MIG) and Tungsten Inert Gas (TIG) welding suit 18 gauge steel. MIG welding typically uses a current range of 125-150 amperes with a wire diameter of 0.023-0.030 inches and a voltage between 18 and 20 volts. TIG welding, which is more precise, uses a 1/16 inch tungsten electrode and a current range of 60-80 amperes. These welding techniques ensure strong joints while maintaining the steel’s structural integrity.
When welding thin sheet metal like 18 gauge steel, specific techniques can help avoid issues such as distortion and burnthrough. Skip welding spaces out welds and performs them intermittently to control heat input and reduce warping. Tack welding places small welds at intervals to hold pieces together before fully welding them. Pulsed welding is also beneficial for thin materials, as it allows better control over heat input, minimizing the risk of defects.
For manual cutting of 18 gauge steel, using a fine blade with 24-32 teeth per inch (TPI) is recommended. This ensures clean and precise cuts. It is important to secure the material properly to prevent movement during cutting, which can lead to inaccuracies and potential injury.
Computer Numerical Control (CNC) plasma and laser cutting are ideal for achieving high precision and intricate patterns in 18 gauge steel. These methods offer excellent control over the cutting process, allowing for detailed and complex designs. Laser cutting, in particular, provides a high level of accuracy and is well-suited for applications requiring fine tolerances.
Galvanizing involves coating the steel with a layer of zinc to enhance its corrosion resistance. This treatment is especially useful for outdoor applications where the steel is exposed to moisture and harsh environmental conditions. A G90 coating, which provides substantial zinc protection, is commonly used for 18 gauge steel.
Other treatments like zinc phosphating, chromate conversion, powder coating, and paint primers further enhance the corrosion resistance and appearance of 18 gauge steel. These treatments protect the steel from rust and corrosion while improving its aesthetic appeal.
When handling 18 gauge steel, it is essential to use appropriate Personal Protective Equipment (PPE) to ensure safety. This includes cut-proof gloves, safety goggles, steel toe shoes, and back belts. For sheets with more than 50% active surface area, mechanical lifting equipment should be used to prevent injury and ensure safe handling.
People use 18 gauge steel in various industries due to its versatile properties. In the automotive industry, it is used for body panels, doors, and hoods. In construction, it is utilized for decorative screening features and wall cladding systems. Additionally, galvanized 18 gauge steel sheets protect electrical enclosures from environmental elements.
To ensure the quality and performance of 18 gauge steel, various tests are conducted:
Laser cutting is an advanced technique for fabricating 18 gauge steel. This method uses focused laser beams to melt and vaporize the material, achieving high precision and clean edges. Laser cutting is ideal for creating intricate designs and patterns with minimal thermal distortion, making it perfect for applications like electronic enclosures and detailed architectural elements.
CNC (Computer Numerical Control) machining uses computer-controlled machines for precise cutting, drilling, and milling of 18 gauge steel. This automation ensures consistent quality and repeatability, making it suitable for both prototype development and mass production.
The automotive industry uses laser cutting and CNC machining to produce high-precision components like engine brackets, dashboard panels, and structural reinforcements. The precision of these techniques ensures that parts fit together seamlessly, enhancing the
In construction and architecture, advanced fabrication techniques enable the creation of intricate steel frameworks and decorative elements, with laser cutting being particularly useful for custom-designed facades and structural supports that meet both aesthetic and functional needs.
In the manufacturing of industrial equipment, CNC machining has been employed to create durable and precise machine parts. These parts often require tight tolerances and complex geometries that can only be achieved through automated machining processes.
While plasma cutting is less precise than laser cutting, it is effective for general cutting tasks where high accuracy is not critical. Plasma cutting uses a high-velocity jet of ionized gas to melt and cut through 18 gauge steel, making it suitable for thicker materials and more robust applications.
Press brake bending is an advanced method for forming 18 gauge steel into various shapes. It uses hydraulic presses with precise dies to bend the steel accurately. This technique is widely used in the production of components with specific bend angles and radii.
Stamping combines shearing, bending, and stretching to create complex shapes, making it ideal for rapid production of detailed parts. Deep drawing, on the other hand, is used to form complex shapes with deep recesses by pulling the steel into a die cavity.
Galvanizing involves coating 18 gauge steel with a layer of zinc to enhance its corrosion resistance, making it suitable for outdoor applications. Zinc phosphating improves paint adhesion and offers moderate corrosion protection.
Powder coating provides a durable, weather-resistant finish with various aesthetic options. This surface treatment is commonly used for both functional and decorative purposes.
To ensure that 18 gauge steel meets the required specifications, various quality control tests are conducted, including tensile strength tests and hardness tests. These tests verify the material’s strength, durability, and suitability for its intended applications.
Proper handling and storage of 18 gauge steel are crucial to prevent damage and maintain its quality. Sheets should be stacked flat and horizontally, and protective coatings should be applied to prevent oxidation.
16 gauge steel is significantly thicker, measuring around 0.063 inches (1.59 mm), compared to 18 gauge steel, which measures about 0.0478 inches (1.214 mm). This additional thickness provides 16 gauge steel with greater strength and durability, making it the preferred choice for applications requiring high structural integrity, such as heavy-duty industrial frames or high-traffic areas.
16 gauge steel is more resistant to dents, which is important in places like storage facilities or for car parts. It also offers better noise reduction, crucial in environments where controlling sound levels is important, such as in machinery enclosures.
18 gauge steel is lighter and easier to handle, making it more suitable for applications where ease of installation or maneuverability is important. Additionally, it is more cost-effective, making it a popular option for less demanding applications where extreme strength is not necessary, such as decorative or light-duty structural elements.
20 gauge steel is thinner and more flexible than 18 gauge steel. This flexibility makes it ideal for applications requiring the steel to be bent or shaped into complex forms without cracking, such as in the production of small, intricately designed components.
However, 18 gauge steel offers a good balance of strength and flexibility, making it ideal for parts that need to be strong yet formable, like certain brackets or support frames. It can endure more stress compared to 20 gauge steel while still being malleable enough for various manufacturing processes.
Below are answers to some frequently asked questions:
18 gauge steel, with a thickness of approximately 0.0478 inches (1.214 mm), offers a balance of strength, formability, and durability. Cold-rolled carbon steel variants exhibit tensile strengths between 50,000 and 70,000 psi, while stainless steel can reach up to 90,000 psi. This makes it suitable for various forming processes like bending, stamping, and welding.
Its primary applications span multiple industries. In the automotive sector, it is utilized for body panels and structural components due to its moderate weight and strength. In construction, it is used for framing, cladding, and decorative elements, providing both structural integrity and aesthetic value. The agricultural industry employs it for equipment and structures like silos and fencing due to its durability. Additionally, it is used in appliance manufacturing for items such as washing machines and refrigerators, and in electrical and utility enclosures to protect components.
Coatings like galvanization enhance its corrosion resistance, making it suitable for outdoor applications, while finishes like paint and powder coating offer additional protection and aesthetic options.
18 gauge steel, with a thickness of approximately 0.0478 inches (1.214 mm), strikes a balance between strength and formability, making it suitable for various applications like automotive body panels, construction, and home appliances. Compared to other gauges, 16 gauge steel is thicker (0.063 inches or 1.59 mm), offering greater strength and durability, ideal for heavy-duty applications but less formable. On the other hand, 20 gauge steel is thinner, providing higher formability and ease of handling, but with less structural strength, making it better suited for lighter applications where flexibility is key. The choice between these gauges depends on the specific requirements for strength, formability, and application.
Common fabrication processes for 18 gauge steel include cutting, forming, welding, and coating/finishing. Cutting methods such as CNC plasma cutting and laser cutting are preferred for their precision, while simpler cuts can be performed using saw blades with a tooth count of 24-32 TPI. Forming operations should be done at temperatures between 60-75°F with a minimum inside bend radius of 1T-2T to prevent cracking. MIG and TIG welding are suitable for 18 gauge steel, with specific amperage and voltage settings to ensure strong welds. Coating options include hot-dip galvanizing, zinc phosphating, chromate conversion, powder coating, and paint primers for corrosion protection. Adhering to ASTM standards during testing and quality control ensures the material meets required specifications.
18 gauge steel offers several advantages in automotive applications due to its optimal balance of strength, weight, and formability. At approximately 0.0478 inches (1.214 mm) thick, it provides a robust structure suitable for body panels, doors, and hoods. Its tensile strength, ranging from 50,000 to 70,000 psi, ensures sufficient durability while maintaining a manageable weight.
The material’s excellent formability allows for various fabrication processes such as bending, deep drawing, and stamping, making it versatile for complex vehicle designs. Additionally, 18 gauge steel welds well, facilitating repairs and modifications. Its thickness also grants better impact resistance compared to thinner gauges, reducing deformation risks.
Cost-effectiveness is another key advantage, as it balances performance and expense, making it a preferred choice in the industry. Furthermore, its compatibility with coatings enhances corrosion resistance and aesthetic appeal, extending its lifespan even in harsh environments. These attributes collectively make 18 gauge steel a valuable material in automotive manufacturing.
The sheet metal gauge system is a standardized method to indicate sheet metal thickness, crucial for industries requiring precision. It has an inverse relationship: higher gauge numbers mean thinner sheets. Different materials like steel, aluminum, and copper have distinct gauge systems due to property and manufacturing standard differences. For example, 18-gauge carbon steel is about 0.0478 inches thick, while 18-gauge aluminum is around 0.0403 inches thick. This system helps in material selection, cost estimation, and project planning in manufacturing and fabrication.
The ASTM standards for 18 gauge steel primarily reference ASTM A1008, which specifies the requirements for cold-rolled, carbon steel sheets. The standard thickness for 18 gauge steel is approximately 0.0478 inches (1.214 mm). ASTM A1008 outlines the material properties, including mechanical properties such as an ultimate tensile strength of approximately 51 KSI, a yield tensile strength of approximately 31 KSI, and an elongation of 45% in 2 inches. These specifications ensure the material’s reliability for various applications, including automotive body panels, construction framing, and home appliances. Adherence to ASTM A1008 ensures that 18 gauge steel meets the necessary quality and performance standards for industrial use.
