Forging vs Casting: What’s the Difference?
In the world of metal fabrication, understanding the nuances between forging and casting can be the key to unlocking optimal…
In the intricate world of manufacturing, forging stands out as a pivotal process, crucial to shaping robust and reliable components. Yet, even the most precise forging techniques can encounter defects that compromise the integrity and performance of the final product. Ever wondered what these defects are and how they can be mitigated? This comprehensive guide dives deep into the realm of forging defects, unraveling their types, underlying causes, and effective remedies. From unfilled sections to die shifts, and from improper cooling to advanced automation solutions, we’ll explore how to master the art of defect-free forging. Ready to enhance your forging expertise and prevent those pesky defects from derailing your projects? Let’s get started.
Forging is a manufacturing process where metal is shaped by applying compressive forces. This technique typically employs tools such as hammers, presses, and rolls to deform the metal into desired shapes. The process can be performed at various temperatures, ranging from cold to hot, depending on the material and the intended properties of the final product.
Forging can be categorized into several types based on the temperature at which it is performed:
Forging is a critical process in manufacturing due to its ability to produce components with superior mechanical properties. The process offers several advantages that make it indispensable in various industries:
Forging improves the strength, toughness, and fatigue resistance of the metal. The compressive forces used in forging refine the grain structure, resulting in a more uniform and robust material. This makes forged parts ideal for high-stress applications such as aerospace, automotive, and industrial machinery.
Forged components exhibit excellent structural integrity and reliability. This method reduces internal defects like voids and inclusions that can affect performance. As a result, forged parts are preferred in critical applications where safety and dependability are paramount.
Forging is highly versatile, suitable for a wide range of metals, and capable of producing complex shapes with high accuracy. Despite high initial setup costs, it can be cost-effective for large-scale production due to reduced material waste and enhanced machining efficiency. Additionally, the durability of forged components leads to lower maintenance and replacement costs over the product’s lifecycle.
Understanding the forging process and its significance in manufacturing is crucial for producing high-quality components. By leveraging the advantages of forging, manufacturers can achieve superior mechanical properties, reliability, and cost-efficiency in their products. As technology advances, the forging industry continues to evolve, offering new possibilities for innovation and improvement in various applications.

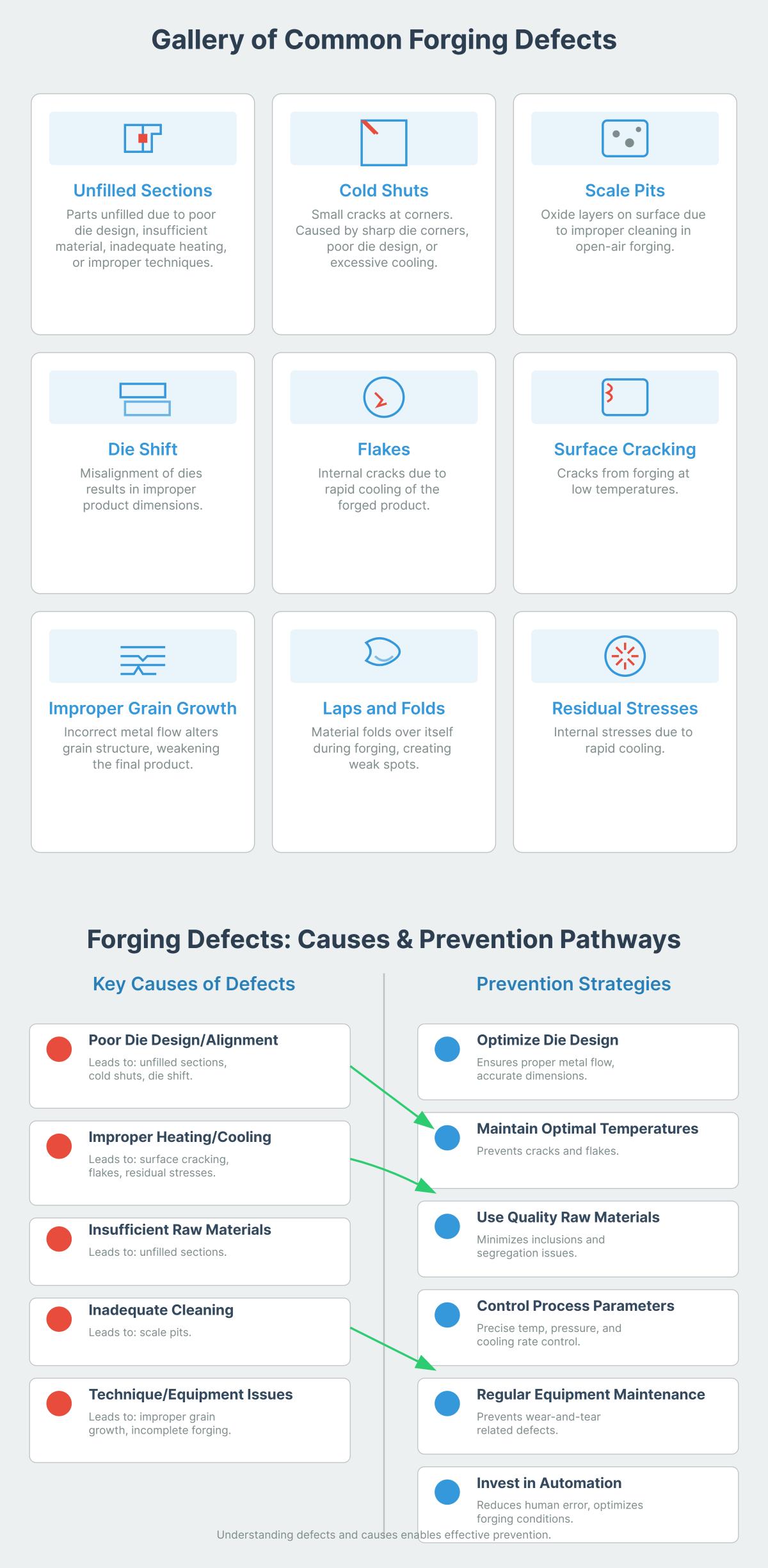

Forging defects are flaws that happen during the forging process, impacting the final product’s quality and strength. Understanding these defects is crucial for enhancing the reliability and performance of forged components. These flaws can stem from poor material handling, bad die design, or wrong processing settings.
Unfilled sections occur when parts of the die cavity are not completely filled with material. This defect can result from poor die design, insufficient heating, or inadequate raw material.
Remedies:
Cold shuts are small cracks or discontinuities that form at the corners or intersections of a workpiece. They are typically caused by sharp corners in the die, inadequate material flow, or excessive cooling.
Remedies:
Scale pits are surface defects caused by the presence of oxide layers. This happens when the workpiece surface isn’t properly cleaned before forging.
Remedies:
Die shift happens when the upper and lower halves of the die are misaligned, leading to improper dimensions and surface irregularities in the forged part.
Remedies:
Flakes are internal cracks caused by the rapid cooling of the workpiece. These cracks can significantly reduce the mechanical properties of the forged part.
Remedies:
Surface cracking is a defect characterized by the presence of cracks on the surface of the forged part. This issue often arises due to forging at low temperatures or excessive strain rates.
Remedies:
Laps and folds occur when the material folds over itself, creating weak spots in the forged part. This defect is usually caused by improper die design or inadequate material flow.
Remedies:
Overfilled sections result from excessive material in certain areas, while underfilled sections indicate insufficient material. Both defects can lead to dimensional inaccuracies and structural weaknesses.
Remedies:
Improper grain growth refers to irregular or non-uniform grain structures within the forged part. This defect can affect the mechanical properties and performance of the component.
Remedies:
Segregation is the uneven distribution of alloying elements within the forged part. This defect can lead to inconsistent mechanical properties and reduced performance.
Remedies:
One of the main causes of forging defects is design flaws. Poorly designed dies can lead to several issues, such as unfilled sections and cold shuts. When the die does not adequately facilitate the flow of material into all parts of the cavity, it results in incomplete filling, leading to unfilled sections. Similarly, sharp corners and inadequate fillet radii in the die design can cause cold shuts, as the material fails to flow smoothly, creating discontinuities.
The properties and quality of raw materials are crucial in the forging process, as inconsistent or low-quality materials can lead to various defects. For example, impurities or non-uniform material properties can result in improper grain growth and internal defects like flakes. Additionally, if the material is not adequately prepared before forging, such as insufficient cleaning leading to scale pits, it can compromise the final product’s integrity.
The parameters of the forging process, including heating, cooling, and force application, significantly influence the occurrence of defects. Insufficient heating can make the material too hard, causing it to crack during shaping. On the other hand, improper cooling rates can create internal stresses, resulting in defects like flakes and residual stresses. Insufficient force application can also cause incomplete forging penetration, leaving voids or unfilled sections in the forged part.
The operator’s skill and experience are crucial for executing the forging process correctly. A lack of expertise can result in mistakes that lead to defects. For instance, improper handling of the dies can cause die shift, where the upper and lower dies are misaligned, leading to dimensional inaccuracies. Similarly, inadequate control over heating and cooling rates can result in various thermal-related defects.
Environmental conditions during the forging process can also contribute to defects. High humidity can cause scale pits to form because of increased oxidation on the material’s surface. Additionally, fluctuations in ambient temperature can affect the cooling rates, potentially leading to thermal stresses and cracks in the forged parts.
The condition and maintenance of the forging equipment are critical for preventing defects. Worn-out or damaged dies can lead to improper material flow and surface defects. Regular inspection and maintenance of the equipment ensure that the dies and other tools are in good condition, reducing the likelihood of defects caused by equipment failure.
Die design is crucial for ensuring the quality of forged components. Poorly designed dies can lead to defects such as unfilled sections, cold shuts, and improper grain growth.
Maintaining the correct temperature throughout the forging process is essential for preventing defects such as surface cracking, flakes, and residual stresses.
Proper cooling methods are essential to prevent defects related to rapid or uneven cooling.
Using high-quality, uniform materials minimizes defects and enhances the
Regular maintenance of forging equipment and tooling is vital to prevent defects caused by equipment wear and tear.
By addressing these critical areas, manufacturers can significantly reduce the occurrence of forging defects and enhance the
Forging techniques can be broadly classified into hot forging and cold forging, each with its distinct characteristics, advantages, and limitations.
Hot forging involves deforming metal at temperatures above its recrystallization point. This process allows the material to flow more easily, reducing the forces required for deformation and making it suitable for producing larger parts with complex shapes.
Advantages:
Disadvantages:
Cold forging is performed at or near room temperature. This method relies on the material’s plasticity and strain hardening to achieve the desired shape, making it ideal for smaller parts with high precision.
Advantages:
Disadvantages:
Different forging techniques are employed based on the specific requirements of the parts being produced. Here are some commonly used techniques:
This technique involves deforming the material between two flat or simple-shaped dies. It is suitable for large parts and simple geometries.
Advantages:
Disadvantages:
Also known as impression die forging, this method uses dies that enclose the workpiece, allowing for more complex shapes and higher precision.
Advantages:
Disadvantages:
This technique involves passing the material through a set of rolls to reduce its cross-section and shape it. It is commonly used in the automotive industry for producing parts like axles and shafts.
Advantages:
Disadvantages:
Selecting the appropriate forging method depends on the part’s size, complexity, and production volume.
Die design plays a pivotal role in the quality of forged components. Advanced computer-aided design (CAD) and simulation tools can optimize die geometry to ensure smooth material flow and reduce defects.
Simulation software, like finite element analysis (FEA), helps engineers visualize material flow within the die cavity. This aids in identifying potential problem areas where defects like unfilled sections or cold shuts might occur. By adjusting the die design based on simulation results, manufacturers can minimize these defects.
Adding features like larger fillet radii and proper alignment notches to the die design can greatly reduce defects. Smooth transitions and rounded corners facilitate better material flow, preventing issues such as cold shuts and laps.
Maintaining precise temperature control throughout the forging process is critical for minimizing defects and ensuring high-quality outcomes.
Induction heating offers quick and even heating of the workpiece, essential for consistent forging temperatures. This method reduces the risk of thermal gradients that can cause internal stresses and defects like flakes.
Implementing controlled atmosphere cooling systems helps manage the cooling rate of forged parts, preventing rapid temperature changes that can lead to surface cracking and internal stresses. These systems create an inert environment that minimizes oxidation and maintains the integrity of the workpiece.
Automation and real-time monitoring technologies are revolutionizing the forging industry by enhancing process control and consistency.
Integrating sensors and monitoring systems, such as infrared cameras and thermal imaging, allows for real-time tracking of temperature and material flow during the forging process. This data enables immediate adjustments to prevent defects and ensure uniform quality.
Robotic systems can precisely and consistently manage tasks like material loading, die alignment, and part removal. These systems reduce human error, improve repeatability, and maintain tight tolerances, which are crucial for preventing defects like die shift and improper grain growth.
Artificial intelligence (AI) and machine learning (ML) are becoming integral to predictive maintenance in forging operations.
Machine learning algorithms analyze data from forging equipment to predict potential failures and maintenance needs. This proactive approach helps prevent equipment malfunctions that could lead to defects, ensuring that the forging process remains uninterrupted and efficient.
Condition monitoring systems track the health and performance of forging equipment in real-time. By detecting wear and tear early, these systems allow for timely maintenance, reducing downtime and preventing defects caused by equipment failure.
Innovative forging techniques are pushing the boundaries of what is possible in metal forming, offering new solutions to traditional challenges.
Thixoforming, or semi-solid metal forming, involves partially melting the metal to achieve a thixotropic state. This technique reduces the force required for deformation and improves the material’s flow characteristics, minimizing defects like cold shuts and laps.
Precision forging techniques focus on achieving near-net shapes with minimal post-processing. By closely controlling the forging parameters and die design, precision forging reduces material waste and enhances the dimensional accuracy of the final product.
Proper material handling and surface treatment are essential for preventing defects related to contamination and oxidation.
Robotic handling systems ensure that materials are moved and positioned accurately and consistently. This reduces the risk of contamination and mishandling, which can lead to defects like scale pits and die shift.
Using protective coatings and oxide inhibitors can prevent oxidation during heating. Thorough cleaning and preparation of the workpiece surface before forging are crucial for avoiding defects and ensuring high-quality outcomes.
In the automotive industry, a manufacturer faced high rejection rates due to scale pits and surface cracking in forged crankshafts. By implementing a combination of optimized die design and precise temperature control, the company significantly reduced these defects. The use of anti-scale coatings during heating minimized oxidation, while real-time temperature monitoring ensured consistent forging temperatures. These measures resulted in improved surface quality and a 5% reduction in rejection rates.
In the aerospace sector, a manufacturer encountered issues with die shift and flakes in titanium alloy components. By adding alignment notches and guides in the die design, they achieved precise die alignment, reducing die shift. Additionally, they implemented controlled atmosphere cooling to manage the cooling rate, preventing rapid temperature changes that caused flakes. These measures enhanced the integrity and reliability of the forged parts, meeting stringent aerospace standards.
A steel ring clamp used in aircraft engines fractured due to improper heating during forging. The overheating led to reduced mechanical properties, causing the clamp to fail under stress. This case underscored the importance of maintaining optimal forging temperatures and implementing gradual heating techniques to preserve material properties. The manufacturer subsequently adopted infrared sensors for real-time temperature monitoring, ensuring consistent heating and preventing similar failures.
A study in the heavy machinery industry highlighted the effectiveness of quality control tools in reducing forging defects. By employing statistical process control (SPC) methods and regular inspections, the manufacturer identified and corrected deviations in the forging process, leading to a 3% reduction in rejection rates. This proactive approach demonstrated the value of continuous monitoring and quality assurance in forging operations.
Manufacturers have successfully leveraged advanced simulation tools to optimize die designs, ensuring smooth material flow and reducing common defects like unfilled sections and cold shuts. By using finite element analysis (FEA), engineers can predict potential problem areas and adjust die geometry accordingly. This approach has proven effective in various industries, from automotive to aerospace, enhancing the quality and consistency of forged components.
The integration of real-time monitoring systems and automation has been pivotal in preventing forging defects. Sensors and thermal imaging cameras provide continuous feedback on temperature and material flow, allowing for immediate adjustments. Automated systems ensure precise die alignment and consistent handling of workpieces, reducing human error and enhancing process reliability. These technologies have been particularly beneficial in high-volume production environments, where maintaining consistent quality is critical.
Below are answers to some frequently asked questions:
Forging defects are flaws that can occur during the forging process, potentially compromising the quality and performance of the final product. Common types of forging defects include:
Understanding these defects and their causes helps in implementing remedies such as optimizing die design, controlling temperature, and ensuring proper material handling to enhance the quality of forged components.
To prevent forging defects, several strategies can be employed to ensure high-quality production. Optimizing die design is crucial; precise die design facilitates proper metal flow and accurate part dimensions. Maintaining optimal forging temperatures is essential, as improper temperature control can lead to defects like cracks and flakes. Using high-quality, uniform raw materials helps minimize issues such as inclusions and segregation. Additionally, precise control of process parameters, including temperature, pressure, and cooling rates, is vital for defect prevention. Regular equipment maintenance ensures consistent performance and prevents defects caused by wear and tear. Investing in forging automation can reduce human error and optimize forging conditions.
Forging defects are primarily caused by a combination of factors related to material properties, process parameters, and equipment used. Key causes include poor die design and alignment, improper heating and cooling techniques, insufficient raw materials, inadequate cleaning, and issues with forging techniques and equipment.
Poor die design can result in defects like unfilled sections, cold shuts, and die shift due to inadequate metal flow and misalignment. Improper heating and cooling can lead to surface cracking, flakes, and residual stresses, which weaken the forged product. Insufficient raw materials may cause unfilled sections, while inadequate cleaning can result in scale pits. Technique and equipment issues, such as incomplete forging penetration and improper grain growth, stem from inadequate control of the forging process.
To prevent these defects, it is crucial to optimize die design, maintain proper temperature and cooling rates, ensure die alignment, clean surfaces thoroughly, and use high-quality raw materials. Implementing automation in forging can enhance precision and reduce human error, leading to improved product quality.
Forging techniques vary significantly in their methods, advantages, and potential defects. Open-die forging, used for large components, provides uniform grain structure but can result in voids and surface cracking. Impression die forging, ideal for small and intricate parts, offers high precision and smooth finishes but may experience cold shuts and excess flash. Cold forging shapes metal at room temperature, yielding tight tolerances and good surface finishes, though it can cause burnishing due to friction.
Seamless rolled ring forging creates high-strength rings with controlled grain flow, minimizing defects but potentially causing die shift if misaligned. Precision forging aims for minimal secondary machining, with potential for voids and flash if not controlled. Incremental forging allows for complex shapes with high precision but may lead to surface cracking if material management is poor.
Understanding these differences helps manufacturers select the right technique to produce high-quality parts with minimal defects, ensuring optimal material properties and efficiency in the forging process.
AI plays a crucial role in modern forging processes by enhancing efficiency, precision, and quality control. By using AI and machine learning algorithms, forging operations can optimize key parameters such as press force and cooling rates, analyze real-time data to predict potential defects, and implement proactive maintenance to prevent downtime. AI systems also improve anomaly detection and quality control by identifying irregularities like temperature spikes or tool wear and adjusting operations to prevent defects. Additionally, AI supports the creation of complex part geometries and custom parts, enhancing scalability and adaptability in production. Integration with other technologies, such as robotics, IoT, and digital twins, further enhances the forging process, enabling real-time monitoring, precise adjustments, and simulations to identify inefficiencies.
Successful forging projects demonstrate the effective application of the forging process to produce high-quality metal components. These projects often involve careful attention to die design, temperature control, and material handling to avoid common defects such as unfilled sections, cold shuts, and die shifts. For example, automotive and aerospace industries frequently showcase successful forging projects through the manufacturing of engine components and aircraft parts. Forged crankshafts and landing gear components are known for their superior strength and fatigue resistance, which are crucial for performance and safety. Additionally, the creation of industrial tools and hardware, like wrenches and bolts, highlights forging’s ability to produce durable and reliable products. These projects exemplify the importance of precision and expertise in forging, ensuring the final products meet rigorous quality standards and application demands.
