Steel is the unsung hero of the railroad industry, bearing the weight of locomotives and cargo across continents. Have you ever wondered what makes the steel beneath our trains so uniquely resilient? This guide delves into the intricate world of railroad track steel, revealing the specific grades and their vital properties like tensile strength and hardness that ensure durability and performance. From the nuanced processes of manufacturing and heat treatment to the critical applications in railway infrastructure, this article provides a thorough exploration tailored for engineers and industry professionals. Curious about the role of sustainability in modern steel production or how to choose the right steel grade for your project? Read on to uncover the secrets behind the steel that keeps our world on track.
Carbon steel is commonly used for railroad tracks because it is strong, tough, and affordable. Typically, medium carbon steel grades, such as 1084 or higher, are employed. These grades contain around 0.7% to 0.8% carbon and 0.7% to 1% manganese, which enhances the steel’s mechanical properties, making it ideal for enduring the dynamic loads imposed by trains. Carbon steel’s versatility and reusability further contribute to its widespread adoption in railway applications.
Alloy steel, which includes elements like vanadium, titanium, chromium, and tin, is used for tracks needing extra strength and durability. This type of steel is particularly suited for tracks that must support heavier loads or accommodate high-speed trains. The inclusion of these alloying elements enhances the steel’s toughness and wear resistance, making it suitable for demanding rail environments.
Heat treated steel represents a category of both carbon and alloy steels that have undergone a special heating and cooling method. This treatment significantly increases the material’s hardness and strength, making it ideal for new railway installations or replacements. Deep heat treatment is especially beneficial for carbon steels with higher manganese content, as it maximizes the material’s durability and resistance to wear over time.
Railroad track steel must exhibit high tensile and yield strength to resist deformation under load. Hardness, often measured using the Brinell Test, is another critical factor, ensuring the steel can endure the constant rolling and environmental stresses. Moreover, the ability of the steel to undergo plastic deformation without breaking is vital for its long-term performance.
Steel grades for railroad tracks must ensure a smooth, stable, and continuous rolling surface, resisting high stress, fatigue, and wear. The choice of steel grade depends on the specific operational requirements, including train weight, speed, and environmental conditions. Rigorous quality testing ensures these standards are consistently met, providing reliable and safe rail infrastructure. Choosing the right steel ensures safe, reliable railways that meet operational demands.
Railroad track steel is classified based on its grade, determined by its composition, primarily the carbon and manganese content, along with other alloying elements. The grade depends on the amounts of carbon, manganese, and other alloying elements in the steel.
Carbon, which ranges from 0.40% to 0.80%, is crucial for the hardness and strength of railroad track steel. This range ensures a balance between durability and workability. Higher carbon content enhances the steel’s hardness and tensile strength, making it more resistant to wear and deformation under heavy loads.
Manganese, typically ranging from 0.6% to 1.4%, is another key component in railroad track steel. It enhances toughness and wear resistance, essential for the high-stress environment of railway tracks. Manganese also improves the steel’s hardenability and reduces the risk of brittle fracture.
In addition to carbon and manganese, railroad track steel often includes other elements that enhance its properties. Silicon, present in amounts from 0.15% to 0.9%, improves hardness and wear resistance. Copper, found in amounts from 0.10% to 0.40%, boosts fatigue and corrosion resistance. Phosphorus is strictly controlled to be no more than 0.04% to maintain the steel’s plasticity and toughness.
These carefully balanced components ensure that railroad track steel can withstand the demanding conditions of railway operations, providing durability and reliability.

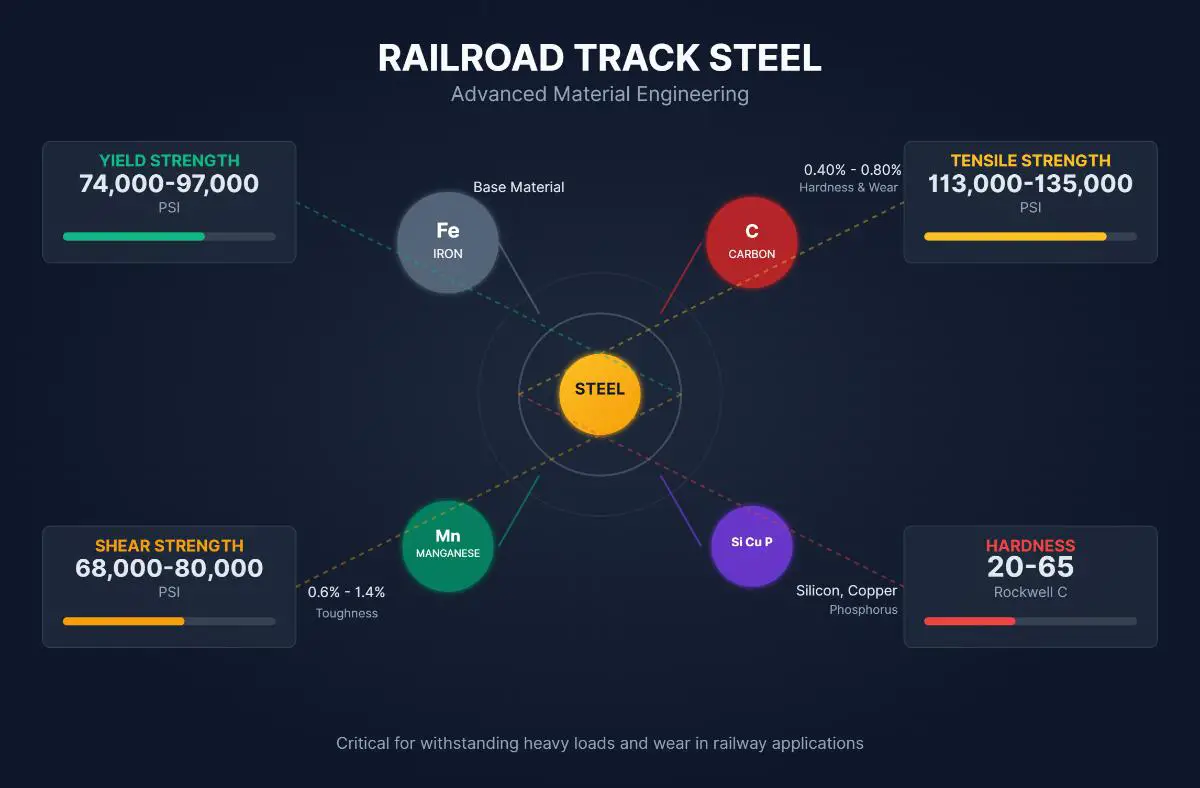

Tensile strength is a crucial property of railroad track steel, indicating its ability to endure tension without breaking. Modern railroad tracks typically have a tensile strength ranging from 113,000 to 135,000 PSI, which is essential for supporting heavy loads and resisting the wear from continuous train operations. This high tensile strength ensures that the rails can handle the dynamic forces exerted by moving trains, maintaining structural integrity over time.
Yield strength measures the stress level at which steel starts to deform permanently, usually ranging from 74,000 to 97,000 PSI for railroad track steel. This property is crucial for preventing permanent deformation under stress, enabling the steel to return to its original shape after the removal of the applied force. High yield strength ensures the tracks remain stable and aligned, providing a safe and reliable path for trains.
Hardness, assessed using the Rockwell scale, ranges from 20-27 Rc for annealed steel to 50-65 Rc for heat-treated steel, ensuring durability against constant contact with train wheels. The high hardness of railroad track steel is vital for its longevity, allowing it to withstand continuous rolling action and environmental factors. This resistance to surface wear prolongs the lifespan of the tracks, reducing maintenance needs.
Wear resistance is essential for the long-term performance of railroad track steel. The combination of high carbon and manganese content enhances the steel’s ability to resist wear. This property ensures that the tracks can endure the constant rolling action of train wheels without significant degradation. High wear resistance minimizes maintenance needs and extends the service life of the rails, contributing to cost-effectiveness in railway operations.
Fatigue resistance is the steel’s ability to withstand repeated stress from passing trains without developing cracks or failures. This property is critical for railroad tracks, which are subject to continuous cyclic loading. High fatigue resistance ensures the tracks remain safe and functional over time, reducing the likelihood of sudden failures that could lead to accidents.
Despite its hardness, railroad track steel maintains good ductility and malleability. These properties allow the steel to deform under stress without breaking, which is crucial for absorbing impacts and accommodating slight shifts in the track structure. Ductility and malleability contribute to the track’s resilience, enabling it to adapt to environmental changes and mechanical stresses.
Manufacturing railroad track steel starts with hot rolling, where steel slabs are heated in a soaking furnace to high temperatures. These slabs are then fed through a series of rolling mills that reduce their thickness and shape them into the characteristic T-shaped profile of railroad tracks. This process improves the steel’s mechanical properties and significantly lengthens it.
Heat treatment is crucial for making railroad track steel more durable and efficient. This involves controlled heating and cooling to change the steel’s internal structure and improve its properties.
Quenching and tempering are key heat treatments. Steel is first heated and then quickly cooled (quenched) to boost its hardness and strength. It’s then reheated at a lower temperature (tempered) to reduce brittleness and balance toughness.
Forced cooling, where hot steel rails are cooled with controlled air jets, ensures uniform cooling. This method enhances the steel’s structure and properties, leading to increased hardness, strength, and durability.
Forging, another method in making railroad track steel, shapes the steel under high pressure. This process refines the steel’s grain structure, boosting its strength, toughness, and resistance to fatigue—ideal for heavy railway use.
Sustainability is increasingly important in steel manufacturing. Modern production methods focus on reducing environmental impact through energy-efficient processes, recycling, and minimizing waste. Sustainable practices include using electric arc furnaces, which rely on scrap steel and reduce carbon emissions, and implementing closed-loop water systems to conserve water resources.
By following these advanced manufacturing and heat treatment processes, railroad track steel achieves the high quality and performance required for safe and efficient railway operations.
Steel is the main material for rail tracks because of its strength, durability, and ability to withstand heavy trains. Modern rail systems rely on steel rails to support immense weight and dynamic forces. The high tensile and yield strength of steel ensure that the tracks can maintain their structural integrity over long periods, despite constant use.
Steel’s remarkable strength-to-weight ratio makes it ideal for the impressive spans of railway bridges. This advantage is particularly important in constructing long-span bridges or those in corrosive environments, such as near the sea. The use of stainless steel helps mitigate corrosion, ensuring the longevity and safety of these structures.
Steel’s strength and stability enable the creation of large, open spaces in railway stations, supporting both functional and innovative architectural designs. Steel frames provide the necessary support and flexibility for modern station infrastructure, accommodating various practical and aesthetic needs.
In electrified railways, steel structures play a vital role in supporting overhead catenary systems, which supply power to trains. These steel structures must endure weather challenges like strong winds while keeping the overhead wires stable. Stainless steel is often used for catenary wires due to its strength and resistance to environmental factors.
Steel is integral to the construction and reinforcement of railway tunnels. Tunnel linings and ventilation systems often utilize steel components to ensure structural stability and safety. Steel reinforcements help prevent tunnel collapses and maintain the integrity of the tunnel walls, providing a secure passage for trains.
Steel is the preferred material for manufacturing railway maintenance equipment such as rail grinders, track tampers, and ballast regulators. These machines are essential for maintaining the alignment, level, and stability of railway tracks. The durability and strength of steel ensure that this equipment can withstand the demanding conditions of rail maintenance operations.
Innovations in steel, such as bainite rail steel—a type known for its wear resistance—have extended the lifespan of railway tracks. Such advancements allow for more efficient and cost-effective rail infrastructure. Additionally, protective measures like galvanization and the use of corrosion-resistant alloys enhance the durability of steel components in harsh environmental conditions, ensuring reliable railway operations worldwide.
Choosing the right grade of steel for railway applications requires understanding both the operational demands and the specific properties of different steel types. Key criteria include:
The steel must perform reliably in various temperatures and climates. In areas prone to corrosion, steel with added elements like copper may be necessary for improved corrosion resistance.
Understanding the specific requirements of the railway application is crucial:
High-speed tracks require steel grades that can endure high velocities and the associated dynamic forces. Alloy steels with added elements such as vanadium or chromium are often used to achieve the necessary strength and wear resistance.
For tracks that support heavy freight loads, steel grades with high tensile and yield strength, as well as excellent fatigue and wear resistance, are essential. Heat-treated steels are particularly suitable for these applications due to their enhanced durability.
Urban transit systems, which often feature tighter curves and frequent stops, benefit from steel grades with high plasticity and toughness. These properties help the rails withstand the stresses of constant acceleration and deceleration.
Compliance with industry standards ensures that the selected steel grade meets the necessary safety and performance criteria:
This European standard specifies the requirements for the production and quality of steel rails used in railway tracks. Grades such as R260 and R350HT fall under this standard and are widely used in European rail networks.
In North America, the American Railway Engineering and Maintenance-of-Way Association (AREMA) provides guidelines for the selection and use of rail steel. Compliance with these specifications ensures that the steel grades used are suitable for the specific operational demands of the railway.
Selecting the appropriate rail grade can be approached through different methods:
Traditional radii-based selection involves choosing rail grades based on the average yearly tonnage and the track radius. This broad guideline ensures the chosen steel meets the expected load and wear conditions. Alternatively, deterioration-based selection considers the actual track degradation behavior, correlating it with factors such as track radius, tonnage carried, and vehicle traffic type. By analyzing real-world performance data, this method allows for a more tailored selection of rail grades to match specific track conditions.
Recent advancements in steel manufacturing have led to the development of new grades such as the 400 UHC® HSH® rail grade. These advanced steels offer enhanced resistance to degradation, wear, and rolling contact fatigue, making them ideal for demanding applications such as heavy haul and high-speed railways.
By carefully evaluating these criteria and guidelines, railway operators can select the most appropriate steel grade for their specific needs, ensuring the longevity, safety, and efficiency of the railway tracks.
