Imagine a construction project where the stability of a rock formation can make or break the entire endeavor. Enter rock bolting—a pivotal technique in geological stabilization that has revolutionized the fields of mining, tunneling, and civil engineering. But what makes rock bolting so indispensable, and are there any downsides to its use? In this comprehensive guide, we delve into the intricate world of rock bolting, exploring its pros and cons, and examining its various applications. From understanding the different types of rock bolts to evaluating their effectiveness and cost, this guide aims to equip you with the knowledge needed to make informed decisions in your projects. Ready to uncover the secrets behind rock bolting’s success and its potential pitfalls? Let’s dive in.
Rock bolting is a crucial technique used in civil engineering, mining, and infrastructure projects to stabilize rock formations. This method involves inserting bolts into drilled holes in the rock mass to provide support and maintain stability. The primary purpose of rock bolting is to prevent rock falls and collapses, ensuring the safety and integrity of construction and mining sites.
The significance of rock bolting lies in its ability to adapt to various geological conditions, making it an essential tool for stabilizing rock in diverse environments. Rock bolting enhances the mechanical properties of rock masses, reducing the likelihood of structural failures and improving the overall stability of the surrounding rock. This is particularly important in projects involving tunnels, slopes, and underground excavations where rock stability is critical.
Earlier rock stabilization methods used timber supports and masonry structures, which were labor-intensive and less effective in difficult conditions. The introduction of steel rock bolts in the mid-20th century marked a significant advancement, providing stronger and more durable support mechanisms. Over the years, rock bolting techniques have continued to improve, incorporating advanced materials and installation methods. Modern rock bolting systems include mechanical bolts, grouted bolts, and cable bolts, each designed to address specific stabilization needs. Innovations in drilling technology and bolt design have further enhanced the efficiency and effectiveness of rock bolting, making it a preferred method for geological stabilization in various applications.
One of the key advantages of rock bolting is its adaptability to different types of rock and environmental conditions. Various types of rock bolts, including mechanical, grouted, and cable bolts, can be used depending on the project requirements. This versatility allows engineers to tailor the rock bolting system to the specific geological conditions of each site, ensuring optimal stability and safety.
Rock bolting can be installed quickly, enabling simultaneous excavation and support. This efficiency leads to significant savings in both materials and labor costs. Additionally, properly installed rock bolts provide sustained stability and support over long periods, even in challenging geological conditions. This long-term durability reduces the need for frequent replacements and maintenance, further enhancing the cost-effectiveness of rock bolting.
Despite its many advantages, rock bolting does present some challenges. The effectiveness of rock bolts is heavily dependent on the quality and condition of the rock, which can compromise stability if poor. Additionally, the initial investment in equipment and specialized labor can be high, although this is often offset by the long-term benefits.
The installation process requires precise drilling and insertion techniques, which can be complex and time-consuming if not done correctly. Proper training and adherence to safety protocols are essential to ensure the successful implementation of rock bolting systems.
Rock stabilization techniques are crucial for ensuring the safety and stability of geological structures in various engineering fields. These methods help prevent rock falls, landslides, and other forms of instability that can pose significant risks to construction and mining projects. Below, we explore several common rock stabilization methods and their roles in enhancing geological stability.
Rock bolting involves inserting bolts into drilled holes in the rock to provide support and reinforcement, and these bolts can be tensioned to actively resist shear forces, thereby increasing friction and shear resistance along potential failure surfaces. Rock bolting is effective in various rock types and is particularly useful in tunneling, mining, and slope stabilization.
Shotcrete involves spraying concrete onto a surface at high speed. This technique is used to cover exposed rock surfaces, providing a protective layer that prevents weathering and erosion. Shotcrete can be applied in combination with rock bolts to enhance surface stability and conceal bolt ends for aesthetic purposes. It is commonly used in tunnel linings and slope stabilization projects.
Retaining walls are frequently combined with other methods like rock bolting and shotcrete to stabilize landforms. These walls hold back soil or rock and prevent erosion. Retaining walls can be constructed from various materials, including concrete, masonry, and steel, and are essential in civil engineering projects where slope stability is critical.
Effective drainage is vital for rock stability, as water pressure can undermine rock structures. Drainage systems, such as horizontal drains, help manage water flow and reduce erosion risks. These systems are often integrated with rock bolting and other stabilization techniques to enhance overall slope stability.
While rock bolting is a versatile and widely used stabilization method, other techniques offer distinct advantages depending on the specific requirements of a project. For instance, shotcrete provides immediate surface protection, while retaining walls offer long-term structural support. Drainage systems address water-related stability issues, making them essential in areas prone to heavy rainfall or groundwater seepage.
Rock bolting plays a crucial role within the broader spectrum of stabilization techniques. It offers active reinforcement by increasing shear resistance and normal-force friction, making it ideal for projects requiring immediate and sustained support. Rock bolting can be integrated with other methods, such as shotcrete and drainage systems, to create comprehensive stabilization solutions that address multiple aspects of geological stability.
Mechanical rock bolts provide immediate support through mechanical anchorage, making them ideal for environments where rapid stabilization is essential.
Expansion shell bolts have an expandable shell at the end that anchors into the rock when tension is applied, making them highly adaptable to various rock conditions and capable of being prestressed for added stability.
These bolts use mechanical expansion to secure themselves in the rock, eliminating the need for grouting. They are ideal for situations where grouting is impractical and quick installation is necessary.
Grouted rock bolts use grout (cement or resin) to anchor the bolt within the rock. The grout fills the space between the bolt and the rock, creating a strong bond.
Full-length bonded bolts are completely encapsulated in grout, offering extensive anchoring along the entire length of the bolt.
Resin rock bolts use quick-setting resin as the anchoring agent, providing rapid stabilization and strong bonding.
Friction bolts, such as Split Set bolts, rely on the friction between the bolt and the rock to provide support. These bolts are inserted into slightly undersized holes, creating a tight fit that stabilizes the rock mass.
Cable bolts consist of steel cables that are grouted into drilled holes, providing high-strength reinforcement. They are particularly useful in large-scale projects where high load capacity is needed.
Self-drilling rock bolts combine drilling and grouting, making them ideal for difficult geologies. These bolts have a hollow bar with a drill bit, allowing for simultaneous drilling and grouting.
Prestressed rock bolts apply tension before any rock deformation occurs, providing immediate stabilization. This pre-tensioning improves the overall stability and strength of the rock mass.
The effectiveness of rock bolts is a critical consideration in selecting the appropriate type for specific applications. Each type of rock bolt offers distinct advantages and limitations based on geological conditions and project requirements.
Mechanical rock bolts, including expansion shell and mechanically anchored bolts, offer instant support by expanding within the rock. They provide immediate load-bearing capacity and quick installation without the need for grouting, making them suitable for various rock conditions. However, they may not provide long-term stability in highly fractured or soft rock, and their mechanical components can corrode over time if not properly protected. Mechanical rock bolts have a lower initial cost and installation expense due to their simple design and quick installation process. However, they may require more maintenance due to potential corrosion over time.
Grouted rock bolts, including full-length bonded bolts and resin rock bolts, use grout to achieve strong anchoring. They offer high tensile strength and bonding capability, ensuring long-term stability and resistance to dynamic loads. These bolts are suitable for a wide range of geological conditions but require more time and effort for installation compared to mechanical bolts. The grouting process can be challenging in wet conditions. Grouted rock bolts generally have a higher initial cost due to the need for grout and more complex installation, but they typically require low maintenance if installed correctly.
Cable bolts, which are steel cables grouted into drilled holes, offer high strength and flexibility. They provide substantial load-bearing capacity and are effective in conforming to rock movements, making them suitable for large-scale stabilization projects and complex rock formations. However, their installation process is more complex and involves higher initial costs. Despite this, cable bolts generally require low maintenance, provided the initial installation is precise.
Friction bolts, such as Split Set bolts, rely on friction between the bolt and the rock to provide support. These bolts are inserted into undersized holes, creating a tight fit. They are simple and quick to install, providing immediate support and effectiveness in dynamic environments. However, their load-bearing capacity is limited compared to grouted or mechanical bolts, and they may not be suitable for long-term stability in highly fractured rock. Friction bolts have a lower initial cost, similar to mechanical bolts, due to their simple design and quick installation process. Periodic inspection may be required to ensure the frictional contact remains effective.
Different types of rock bolts are suited to specific applications based on their characteristics and performance.
Mechanical rock bolts are ideal for rapid stabilization during initial excavation phases. Grouted rock bolts are suitable for long-term stability and high load-bearing requirements. Cable bolts are effective for large-span tunnels requiring substantial reinforcement. Friction bolts are useful for quick and temporary support during early stages of tunneling.
Mechanical rock bolts are commonly used for immediate support in mining operations. Grouted rock bolts are preferred for areas with high stress and dynamic loads. Cable bolts are essential for deep mining operations with complex geological conditions. Friction bolts are frequently used for rapid and temporary stabilization in mining environments.
Mechanical rock bolts are useful for quick stabilization of slopes and retaining walls. Grouted rock bolts are ideal for long-term support in infrastructure projects such as bridges and dams. Cable bolts are suitable for large-scale civil engineering projects requiring high load-bearing capacity. Friction bolts are effective for temporary support during construction phases.
Understanding the comparative advantages and limitations of each type of rock bolt allows engineers to select the most appropriate solution for their specific project needs, ensuring optimal performance and cost-efficiency.
Rock bolting is widely used in mining to support roofs and walls in underground mines. This technique prevents collapses during excavation, ensuring miner safety and site integrity. Rock bolts adapt to various geological conditions, making them essential for managing unpredictable rock behavior.
In tunneling projects, rock bolting reinforces tunnel walls and roofs, maintaining structural integrity both during and after construction. This reinforcement is crucial to prevent tunnel collapses and support the tunnel lining, allowing for safe and efficient excavation, especially in geotechnically challenging environments.
Rock bolting is crucial in civil engineering for stabilizing slopes, excavations, and retaining walls. By anchoring the rock mass, rock bolts help reduce the risk of landslides and rockfalls, which can be hazardous to construction sites and nearby infrastructure. This technique is often used in the construction of roads, bridges, and buildings where rock stability is critical.
In hydroelectric projects, rock bolting secures underground structures during dam construction and stabilizes the surrounding rock masses. This application ensures the structural integrity of dams and other hydroelectric facilities, which are often located in geologically complex areas, providing necessary support to withstand pressure and environmental stress.
Rock bolting improves safety in road tunnels and slopes by preventing rockfalls. In roadway construction, especially in mountainous regions, rock bolts stabilize rock faces along roads and highways, preventing rockfalls that could endanger motorists. This application is essential for the long-term stability and safety of transportation infrastructure.
In large subterranean spaces like storage facilities or power plants, rock bolting prevents collapses and maintains structural stability, ensuring the safe operation of underground facilities.
Rock bolting is employed to anchor unstable slopes using grouted or self-drilling bolts to resist erosion and seismic activity. This technique is vital in regions prone to earthquakes or heavy rainfall, where slope stability can be compromised.
In areas with water-rich, loose strata, self-drilling rock bolts integrate drilling, grouting, and anchoring in a single operation. This makes them ideal for stabilizing geologies that are difficult to manage with traditional methods, providing immediate and effective support.
Rock bolts are compatible with various types of bolts, such as mechanical, grouted, or cable bolts, depending on geological conditions. This adaptability ensures the most suitable type of bolt is used for each specific situation, enhancing overall effectiveness.
The use of rock bolting enables rapid excavation and mechanized support installation, reducing project timelines. This efficiency is particularly beneficial in large-scale construction and mining projects, where time and cost savings are critical.
Rock bolts offer lasting stability in high-stress environments, reducing the need for maintenance. Their durability ensures that once installed, they continue to support the rock mass effectively over extended periods, even in harsh environments.
Rock bolting is often paired with other reinforcement techniques, such as shotcrete, mesh, or dowels, to create comprehensive stabilization solutions. These hybrid approaches address multiple aspects of geological stability, providing robust and reliable support for various engineering applications.
Rock bolting offers numerous advantages, making it a widely adopted technique in various engineering fields such as mining, civil engineering, and tunnel construction.
Engineers can choose from different types of bolts, such as mechanical, grouted, and cable bolts, to customize the stabilization solution for specific project needs. This ensures the right type of bolt is chosen based on the rock’s characteristics and the project’s needs.
The quick installation process minimizes disruptions, allows for simultaneous excavation and support operations, and significantly reduces project timelines and labor costs. This efficiency accelerates project completion and lowers labor costs.
Properly installed rock bolts provide long-lasting support and stability, even in challenging geological conditions. This durability reduces the need for frequent replacements and maintenance, ensuring sustained stability over extended periods.
Rock bolting can be effectively combined with other support methods such as shotcrete, mesh, and rock dowels to achieve comprehensive stabilization. This combination enhances overall structural integrity and safety by addressing multiple aspects of geological stability.
Despite its many advantages, rock bolting also presents some challenges and limitations.
The effectiveness of rock bolts largely depends on the quality and condition of the surrounding rock. In soft or layered rock, bolts may not provide sufficient support, as the rock itself is the primary holding medium, not the bolt.
The complexity of the installation process, especially in difficult geological conditions, can increase time and labor requirements, making proper training and adherence to protocols crucial for achieving desired stabilization outcomes. Incorrect installation can lead to reduced bolt performance and safety risks.
While rock bolting can save costs in the long run, the initial investment in specialized equipment and materials can be substantial. This includes costs for drills, bolts, and grouting materials. For projects with tight budgets, the upfront expenses associated with rock bolting may pose a significant challenge. Additionally, ongoing maintenance and inspection costs should be considered to ensure the long-term effectiveness of the bolts.
There is a risk of over-engineering with rock bolting, such as using more bolts than necessary. Over-engineering can lead to increased costs without providing additional safety benefits. Proper design and analysis are crucial to avoid unnecessary expenditures and ensure that the rock bolting system is optimized for the specific project requirements.
Geotechnical standards are essential for the safe and effective use of rock bolting techniques. These standards provide guidelines for the design, testing, and installation of rock bolts to stabilize geological structures. Adhering to these standards helps prevent rockfalls and structural failures, ensuring the safety and integrity of engineering projects.
The International Organization for Standardization (ISO) provides comprehensive guidelines for rock bolt testing and performance. ISO/DIS 22477-6 specifies requirements for static load tests on rock bolts and soil nails. These standards ensure that rock bolting systems are designed and tested to support the necessary loads, providing reliable reinforcement for geological structures.
The American Society for Testing and Materials (ASTM) sets standards for material properties, design criteria, and testing methods, such as ASTM D4435 for rock bolt strength. These standards are essential for ensuring the quality and performance of rock bolting systems in various applications.
The German Institute for Standardization (DIN) and the International Society for Rock Mechanics (ISRM) offer additional recommendations for rock bolt design and testing. DIN standards focus on the technical specifications and testing procedures for rock bolts, while ISRM guidelines emphasize the practical aspects of rock reinforcement in mining and civil engineering projects.
Adhering to geotechnical standards is crucial for the successful implementation of rock bolting systems. Regulatory frameworks typically mandate adherence to local and international standards, ensuring that rock bolting projects meet safety and performance criteria.
Rock bolts must be designed according to empirical rules and tested to verify their load-bearing capacity. This involves conducting static and dynamic load tests to assess the bolts’ performance under various conditions. Compliance with ISO, ASTM, and DIN standards ensures that rock bolts can withstand the required loads and provide effective reinforcement.
Proper installation of rock bolts is crucial for achieving the desired stabilization. Best practices include accurate drilling, appropriate grouting techniques, and correct tensioning of bolts. Following these practices ensures that rock bolts are securely anchored and capable of providing long-term support.
Regular monitoring and maintenance of rock bolting systems are essential to prevent deterioration over time. This involves periodic inspections to check for signs of wear, corrosion, or displacement. Compliance with maintenance standards helps maintain the effectiveness and safety of rock bolting systems throughout their lifespan.
Geotechnical projects must follow regulatory frameworks that enforce compliance with established standards. These frameworks include local building codes, environmental regulations, and industry-specific guidelines. Ensuring compliance with these regulations is critical for the legal and operational success of rock bolting projects.
Local building codes specify requirements for the design and installation of rock bolting systems. These codes often incorporate international standards, such as those from ISO and ASTM, to ensure consistent quality and safety in construction projects.
Environmental regulations govern the impact of rock bolting activities on the surrounding ecosystem. This includes managing noise pollution, preventing groundwater contamination, and minimizing the environmental footprint of drilling and grouting operations. Compliance with these regulations is essential for sustainable engineering practices.
Industry-specific guidelines provide detailed instructions for rock bolting in various applications, such as mining, tunneling, and civil engineering. These guidelines address the unique challenges of each industry, ensuring that rock bolting systems are tailored to meet specific requirements and conditions.
Ensuring adherence to geotechnical standards and compliance with regulatory frameworks is crucial for the effective and safe implementation of rock bolting systems. By following established guidelines and best practices, engineers can achieve reliable geological stabilization, enhancing the safety and performance of construction and mining projects.
Below are answers to some frequently asked questions:

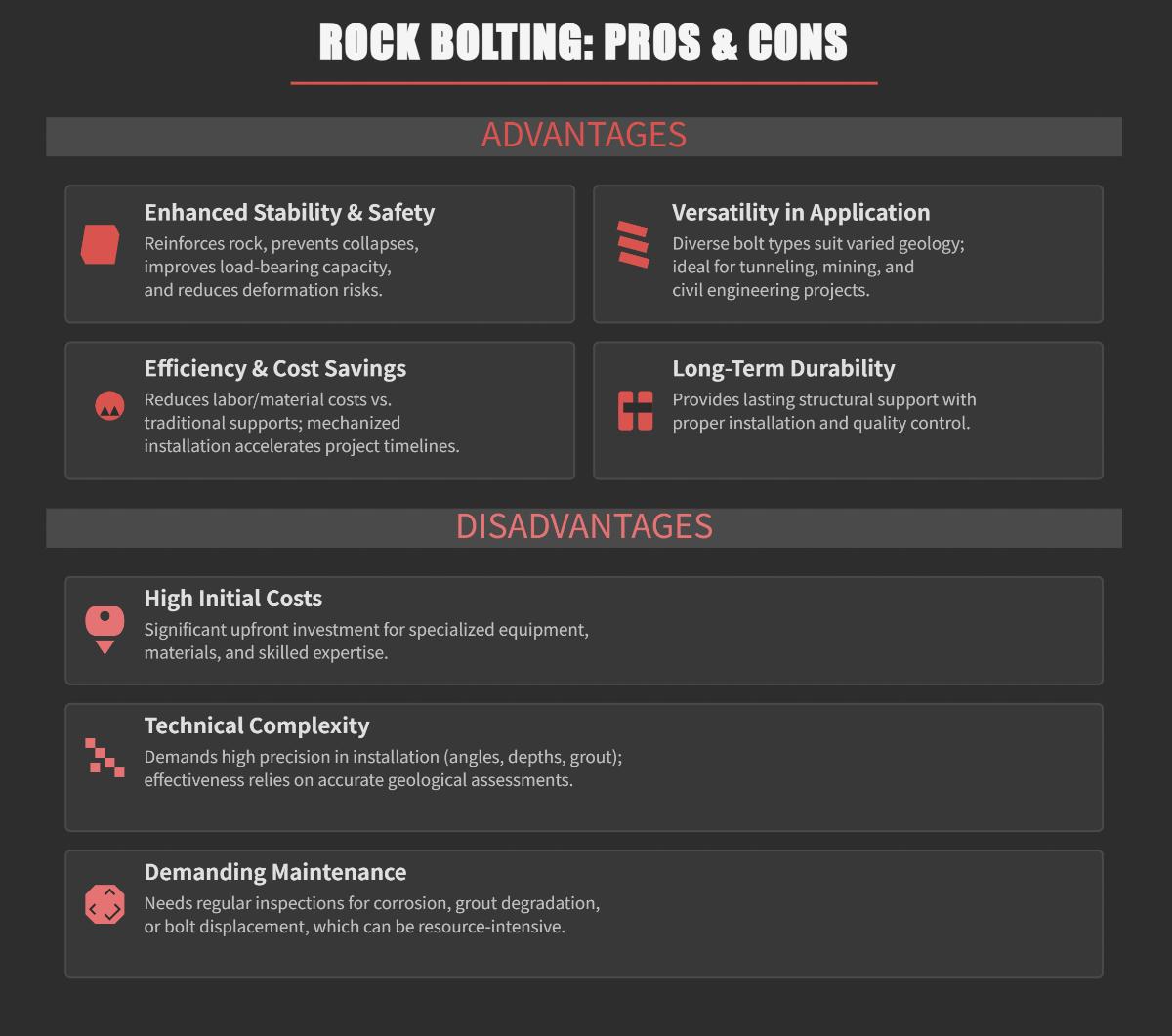

Rock bolting offers several advantages and disadvantages when used in construction projects.
Advantages:
Disadvantages:
Different types of rock bolts vary significantly in terms of effectiveness and cost. Rebar anchor bolts are the most economical, utilizing simple designs and readily available materials, but their multi-step installation can extend construction time. Hollow rock bolts are more expensive but save on labor costs by combining drilling and grouting in one step, making them versatile for many applications. Self-drilling rock bolts, integrating drilling, grouting, and anchoring, are the most costly but drastically reduce construction time and are ideal for complex geological conditions. Expansion shell rock bolts offer a balance between cost and effectiveness, suitable for stable rock conditions but may require more installation time. Swellex bolts, with high-pressure water expansion, are more expensive but provide high load-bearing capacity in weak rock conditions. Lastly, FRP bolts, made from fiber-reinforced polymer, are pricier but excel in durability and resistance to corrosion, fitting for harsh environments like coal mines. Each type’s selection depends on project-specific requirements, balancing cost, installation complexity, and geological conditions.
Rock bolting is extensively used in civil engineering for various stabilization and reinforcement applications. Common applications include:
These applications highlight rock bolting’s critical role in ensuring safety and stability in various civil engineering projects.
When using rock bolting in geotechnical projects, several standards must be met to ensure safety, effectiveness, and compliance. Key standards include:
Adhering to these standards involves considerations such as minimum bolt length and spacing, material specifications, and load testing protocols. Regular monitoring and testing, including grout-bond strength assessments, are essential to verify the ongoing performance and safety of rock bolting installations.
Rock bolting has significantly evolved since its inception in the mid-19th century, when it was first used as an alternative to timber supports in underground mining. Initially, the technique involved simple steel rods to reinforce rock formations. However, technological advancements over the decades have led to the development of more sophisticated designs, such as fully grouted and partially grouted bolts, which offer enhanced stability and durability.
In the early 20th century, key patents and the adoption of rock bolting in the U.S. and Germany marked the beginning of its widespread use. By the 1920s, companies like the St. Joseph Lead Company started utilizing rock bolts extensively. Over time, improvements in materials, such as the introduction of high-tensile steel and advanced grouting techniques, further enhanced the effectiveness of rock bolting.
The evolution also includes advancements in installation techniques, driven by better drilling technology, which has increased the efficiency and safety of rock bolting operations. Today, rock bolting is a standard practice not only in mining but also in civil engineering projects like tunnel construction and slope stabilization. This evolution reflects the ongoing adaptation and innovation in response to the demands of geological stabilization and structural integrity.
The installation of rock bolts faces several challenges that can impact the structural integrity and safety of the support system. One significant issue is incorrect water-cement ratios and insufficient cement dosages, which can weaken the grout mixture, leading to compromised bonding between the bolt and the rock. Another challenge is ensuring accurate horizontal anchor rod angles, as deviations from vertical can cause structural instability and leakage. Bolt positioning deviations and insufficient hole depths are also problematic, often resulting from inaccurate drilling techniques. Additionally, thread damage and resin mixing issues can weaken the installation if not handled correctly. Geological conditions, such as weak argillaceous rocks or highly fractured rock masses, pose further challenges for resin or cement grouting. Access to remote or difficult-to-reach locations can limit personnel and equipment maneuverability, complicating the installation process. Addressing these challenges involves precise geological assessments, quality control checks, advanced drilling equipment, careful handling of materials, and innovative techniques to ensure effective and reliable rock bolt installation.
