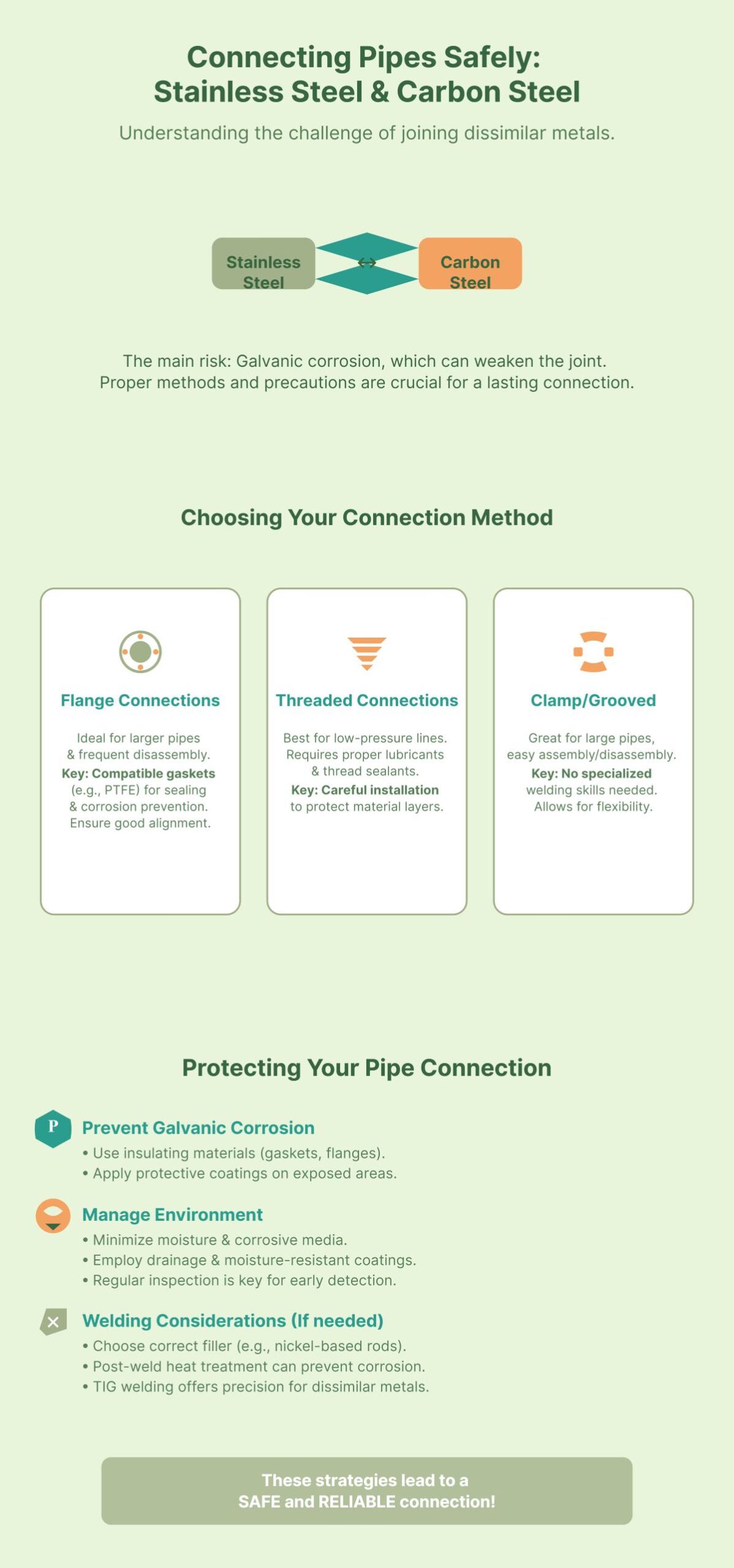

How to Connect Stainless Steel to Carbon Steel Pipe Safely

Imagine embarking on a critical plumbing project only to find yourself facing the challenge of connecting stainless steel to carbon steel pipes. The task might seem straightforward, but without the right knowledge, it can lead to significant issues like galvanic corrosion. How do you ensure a safe and effective connection between these two metals? In this guide, we’ll walk you through the essential steps and best practices for connecting stainless steel to carbon steel pipes. From understanding the intricacies of galvanic corrosion to exploring various connection methods and preventive measures, you’ll gain the insights needed to tackle this task with confidence. Ready to make those connections last? Let’s dive in.

Understanding Galvanic Corrosion

Definition and Importance

Galvanic corrosion happens when two different metals touch each other and are exposed to an electrolyte, like water. This type of corrosion is crucial to understand because it can significantly impact the durability and structural integrity of metal constructions, particularly in environments where moisture or other electrolytes are present.

How Galvanic Corrosion Occurs

Galvanic corrosion occurs under three specific conditions:

1. Presence of Dissimilar Metals: The metals involved must have different electrochemical potentials.
2. Electrical Contact: The metals must be in direct electrical contact.
3. Electrolyte Presence: There must be an electrolyte, such as water, which facilitates the flow of electrons between the metals.

When these conditions are met, the metal with the higher electrochemical potential (the cathode) will remain protected, while the metal with the lower potential (the anode) will corrode. This process is driven by the difference in electrical potential between the two metals, causing electrons to flow from the anode to the cathode, leading to the corrosion of the anode.

Impact on Stainless Steel and Carbon Steel Connections

Electrochemical Potential Difference

Stainless steel and carbon steel are common materials in industrial applications. However, their different electrical properties can cause galvanic corrosion when they are connected:

• Stainless Steel: Rich in chromium, stainless steel is more noble and acts as the cathode.
• Carbon Steel: Less noble, carbon steel acts as the anode and corrodes faster when paired with stainless steel in the presence of an electrolyte.

Environmental Factors

Certain environmental conditions can worsen galvanic corrosion between stainless steel and carbon steel:

• Moisture: Water acts as an electrolyte, facilitating the corrosion process.
• Saltwater: Saltwater, which is more conductive than fresh water, accelerates galvanic corrosion.
• Chlorides: Chlorides, often found in marine environments or de-icing salts, can increase corrosion rates.
• Oxygen Availability: Higher oxygen levels can increase the corrosion rate of the anode.

Understanding these factors is crucial for designing and maintaining systems that involve connections between stainless steel and carbon steel.

Solutions for Preventing Galvanic Corrosion

1. Insulation and Buffering
   • Non-Conductive Gaskets: Using gaskets made of non-conductive materials can prevent direct electrical contact between dissimilar metals.
   • Flanges and Washers: Nylon washers or other insulating materials can be used to separate metals.
2. Plating and Coatings
   • Galvanizing: Applying a zinc coating to carbon steel can protect it by acting as a sacrificial anode.
   • Corrosion-Resistant Coatings: Applying coatings to both metals can reduce their exposure to electrolytes.
3. Electrolyte Reduction
   • Drainage Solutions: Proper drainage can minimize water accumulation, reducing the electrolyte presence.
   • Waterproof Coatings and Sealants: These can prevent moisture ingress, protecting the metals from corrosion.
4. Sacrificial Anodes
   • Zinc or Magnesium Anodes: Installing these anodes can protect carbon steel by corroding in its place.
5. Design and Selection
   • Metal Selection: Choosing metals with similar electrochemical potentials can minimize galvanic corrosion risks.
   • Environmental Considerations: Designing systems with consideration for the operating environment can mitigate corrosion risks.

Understanding galvanic corrosion and using prevention strategies can extend the life and reliability of metal connections, especially between stainless steel and carbon steel.

Methods for Connecting Stainless Steel to Carbon Steel

Flange Connections

Flange connections are popular due to their strength and ease of disassembly, making them ideal for large-diameter pipes.

Required Tools and Materials

• Stainless steel and carbon steel flanges
• PTFE gaskets (to prevent galvanic corrosion)
• Bolts and nuts
• Torque wrench
• Alignment tools

Step-by-Step Guide

1. Preparation: Ensure the flange faces are clean and free from debris.
2. Gasket Placement: Place a PTFE gasket between the flanges to prevent direct metal-to-metal contact.
3. Alignment: Align the flanges properly using alignment tools to avoid stress and potential leaks.
4. Bolting: Insert the bolts and nuts, tightening them in a criss-cross pattern to ensure even pressure distribution.
5. Torque: Use a torque wrench to tighten the bolts to the specified torque value.

Pros and Cons

• Pros: Easy to assemble and disassemble, suitable for high-pressure applications.
• Cons: Requires precise alignment, potential for leaks if not installed correctly.

For example, in chemical processing plants and water treatment facilities, flange connections are preferred for their ease of maintenance.

Threaded Connections

Threaded connections work best for small pipes and low-pressure setups.

Overview and Application

Threaded connections involve screwing the pipes together using threaded ends. This method is straightforward and does not require welding.

Step-by-Step Guide

1. Thread Inspection: Check the threads on both pipes for any damage or debris.
2. Sealant Application: Apply a suitable thread sealant or Teflon tape to the male threads to ensure a leak-proof connection.
3. Threading: Carefully screw the pipes together, ensuring not to cross-thread.
4. Tightening: Use a pipe wrench to tighten the connection, taking care not to over-tighten and damage the threads.

Pros and Cons

• Pros: Simple and quick to assemble, does not require specialized tools.
• Cons: Not suitable for high-pressure or high-vibration applications, potential for thread damage.

Threaded connections are often used in residential plumbing and low-pressure industrial systems.

Clamp or Grooved Connections

These connections use grooved pipe ends and mechanical clamps, offering flexibility and easy installation.

Overview and Application

These connections are ideal for large-diameter pipes and systems requiring frequent assembly and disassembly.

Step-by-Step Guide

1. Grooving: Ensure the pipe ends are properly grooved using a grooving machine.
2. Gasket Placement: Place the gasket inside the clamp.
3. Clamp Positioning: Position the clamp over the grooved ends of the pipes.
4. Tightening: Tighten the bolts on the clamp to secure the connection.

Pros and Cons

• Pros: Allows for quick assembly and disassembly, accommodates pipe movement and vibration.
• Cons: Requires precise grooving, not suitable for extremely high-pressure systems.

Clamp or grooved connections are used in fire protection systems and HVAC installations where flexibility and ease of maintenance are important.

Welding

Welding creates a permanent bond between stainless steel and carbon steel, but it requires careful selection of techniques and materials.

Overview and Application

Welding involves melting the base metals and adding a filler material to create a strong bond. This method is suitable for high-pressure and high-temperature applications.

Step-by-Step Guide

1. Preparation: Clean the pipe ends and remove any oxidation or contaminants.
2. Filler Material Selection: Choose a compatible filler material that minimizes galvanic corrosion.
3. Welding: Use an appropriate welding technique (e.g., TIG, MIG) to join the pipes.
4. Inspection: Inspect the welds for any defects or discontinuities.

Pros and Cons

• Pros: Provides a strong, leak-proof connection, suitable for high-pressure applications.
• Cons: Requires skilled welders, potential for galvanic corrosion if not properly managed.

Welded connections are commonly used in oil and gas pipelines and high-pressure steam systems.

Best Practices for Corrosion Prevention

Importance of Corrosion Prevention

Corrosion prevention is essential for ensuring the longevity and reliability of connections between stainless steel and carbon steel. Effective prevention methods can significantly reduce maintenance costs and prevent failures that could lead to safety hazards and operational downtimes.

Using Anti-Corrosion Coatings

One of the most effective ways to protect metals from corrosion is by applying anti-corrosion coatings.

Types of Coatings

• Epoxy Coatings: These provide a tough, durable layer that resists moisture and chemicals.
• Polyurethane Coatings: Known for their excellent resistance to abrasion and UV degradation.
• Zinc-Rich Primers: These serve as sacrificial coatings, corroding in place of the underlying metal.

Application Methods

• Surface Preparation: Clean the metal surfaces thoroughly to remove contaminants and ensure proper adhesion.
• Primer Application: Apply a suitable primer to enhance the adhesion of the topcoat.
• Topcoat Application: Apply the chosen anti-corrosion coating in multiple layers to achieve the desired thickness and protection.

Using PTFE Gaskets

PTFE gaskets are highly effective in preventing galvanic corrosion by preventing electrical contact and resisting chemicals and temperature extremes.

Benefits of PTFE Gaskets

• Non-Conductive: Prevents electrical contact between stainless steel and carbon steel.
• Chemical Resistance: Resists a wide range of chemicals, making it suitable for various industrial environments.
• Temperature Resistance: Performs well under high and low temperatures without degrading.

How to Install PTFE Gaskets Correctly

1. Surface Cleaning: Ensure both flange surfaces are clean and free from debris.
2. Gasket Placement: Position the PTFE gasket evenly between the flanges.
3. Bolt Tightening: Tighten the bolts in a criss-cross pattern to ensure uniform pressure distribution.
4. Torque Verification: Use a torque wrench to verify that the bolts are tightened to the specified torque.

Insulating Materials

Insulating materials are crucial in breaking the electrical path between stainless steel and carbon steel.

Types of Insulating Materials

• Non-Conductive Gaskets: Made from materials like PTFE, rubber, or fiberglass.
• Insulating Flanges: Incorporate materials such as phenolic or plastic to separate the metals.
• Electrical Insulation Tapes: Wrap around the connection points to prevent direct contact.

Protective Coatings for Carbon Steel

Applying protective coatings to carbon steel can provide an additional layer of protection against corrosion.

High-Density Primers and Coatings

• Application: Apply a high-density primer to the carbon steel surface, followed by a topcoat of protective coating.
• Maintenance: Regularly inspect and maintain the coating to ensure its integrity over time.

Zinc Galvanization

• Process: Coat the carbon steel with a layer of zinc through hot-dip galvanizing or electroplating.
• Benefits: Zinc acts as a sacrificial anode, corroding in place of the carbon steel.

Minimizing Electrolyte Presence

Reducing the presence of electrolytes is essential in preventing galvanic corrosion.

Water-Repellent Coatings

• Application: Apply water-repellent coatings to surfaces exposed to moisture.
• Benefits: Reduces the likelihood of water acting as an electrolyte, thereby minimizing corrosion.

Cathodic Protection

• Sacrificial Anodes: Install zinc or magnesium anodes to protect the carbon steel by corroding in its place.
• Impressed Current Systems: Use an external power source to apply a protective current, which helps prevent corrosion of the carbon steel.

Welding Best Practices

When welding stainless steel to carbon steel, certain practices can help minimize corrosion risks.

Choose Appropriate Filler Metal

• Selection: Use 309L or 309 filler metals, which have higher nickel and chromium content, to reduce galvanic corrosion.

Control Heat Input

• Technique: Use lower heat levels during welding to avoid overheating and the formation of martensite, which can cause corrosion.

Passivation

• Process: Passivate the stainless steel after welding to restore its corrosion-resistant oxide layer.

Regular Inspection and Maintenance

Continuous inspection and maintenance are critical in preventing corrosion-related failures.

Environmental Assessment

Regularly assess the environment for corrosive factors like saltwater, chemicals, or humidity, and perform frequent inspections to catch early signs of corrosion for timely maintenance.

Environmental Factors Impacting Connections

Environmental Factors

Connecting stainless steel to carbon steel involves considering environmental factors that can affect the integrity and durability of the connection. Understanding and mitigating these factors is crucial to prevent corrosion and ensure the longevity of the piping system.

Moisture and Electrolytes

The presence of moisture or other electrolytes, such as saltwater, can trigger galvanic corrosion, causing carbon steel to act as the anode and corrode faster, while stainless steel acts as the cathode and remains protected.

Corrosive Media

Corrosive environments, like those with chemicals or saltwater, increase the risk of galvanic corrosion, making protective measures essential.

Temperature and Pressure

High temperatures and pressures can exacerbate mechanical stress at the connection point. Since carbon steel and stainless steel have different mechanical strengths, proper flange selection and materials are critical to handle these stresses effectively.

Solutions to Mitigate Environmental Factors

Use of Insulating Materials

Using non-conductive gaskets or flanges can prevent direct metal contact and reduce the risk of galvanic corrosion. PTFE (Teflon) gaskets are commonly used due to their excellent chemical resistance and non-conductive properties.

Protective Coatings

Applying anti-corrosion coatings to welds and threads, and using secondary galvanizing for carbon steel pipes, can enhance protection against corrosion.

Transition Flanges or Intermediate Layers

Using bimetallic flanges or inserting a stainless steel or other compatible intermediate layer between the carbon steel and stainless steel pipes can act as a barrier, reducing the risk of corrosion.

Waterproofing and Drainage

Reducing exposure to moisture is crucial. This can be achieved by using water-resistant coatings and ensuring proper drainage to prevent stagnant water accumulation. Incorporating weep holes or other drainage solutions can effectively mitigate this risk.

Connection Methods

• Flange Connections: Ideal for large diameters and frequent disassembly, but they require proper alignment and compatible gaskets to avoid leaks and corrosion.
• Threaded Connections: Suitable for low-pressure applications, but care must be taken to avoid damaging the protective layers of both materials.
• Clamp or Grooved Connections: Suitable for large-diameter pipes and easy assembly/disassembly. These connections preserve the pipeline’s characteristics and allow for quick adjustments without specialized welding skills.
• Welded Connections: Reliable, but the welding process must be carefully managed to avoid altering material properties and causing corrosion or cracking.

Frequently Asked Questions

Below are answers to some frequently asked questions:

How do I safely connect stainless steel to carbon steel pipes?

To safely connect stainless steel to carbon steel pipes, consider the following methods and precautions to prevent galvanic corrosion and ensure a durable connection.

Firstly, using flange connections is effective for larger diameters and applications requiring frequent disassembly. Ensure the use of compatible gaskets, such as PTFE, to prevent galvanic corrosion and maintain proper alignment to avoid leaks and stress concentration.

Threaded connections are suitable for low-pressure applications. Apply appropriate lubricants and thread sealants to prevent leaks and be careful not to damage the protective layers of either material during installation.

Clamp or grooved connections are another viable option, particularly for large-diameter pipes, as they allow for easy assembly and disassembly without the need for specialized welding skills.

To prevent galvanic corrosion, use insulating materials such as non-conductive gaskets, flanges, or transition materials like bimetallic flanges. Additionally, applying protective coatings to exposed areas, such as welds and threads, can further inhibit corrosion.

Environmental factors, such as moisture, saltwater, or other corrosive media, should be minimized by using drainage solutions and moisture-resistant coatings. Regular inspection of the connections for signs of corrosion or damage is essential to maintain the integrity of the joint.

Lastly, if welding is necessary, select appropriate filler materials, such as nickel-containing rods, and consider post-weld heat treatment to prevent corrosion in the heat-affected zone. Using TIG welding techniques can provide precision when welding dissimilar metals.

By implementing these strategies, you can achieve a safe and reliable connection between stainless steel and carbon steel pipes.

What are the best methods to prevent corrosion when connecting stainless steel and carbon steel?

To prevent corrosion when connecting stainless steel and carbon steel, several effective methods can be employed:

1. Use of Insulating Materials: Incorporate non-conductive materials such as plastics, PTFE (Teflon) gaskets, or coatings to electrically isolate the two metals, preventing galvanic corrosion.
2. Protective Coatings and Galvanization: Apply high-density primers or protective coatings to carbon steel to shield it from electrolytes. Galvanizing carbon steel with a zinc layer can also protect it, as zinc will corrode first.
3. Cathodic Protection: Utilize sacrificial anodes or apply an electrical current to provide cathodic protection, directing corrosion away from carbon steel.
4. Environmental Control: Minimize exposure to moisture and electrolytes by using water-repellent coatings and ensuring dry installation environments.
5. Welding Practices: When welding, use high-nickel filler metals like 309L and precise techniques such as MIG or TIG to mitigate corrosion risks and ensure a strong bond.
6. Regular Maintenance and Inspections: Conduct regular inspections to detect early signs of corrosion and take prompt action to prevent significant damage.

Implementing these strategies will help ensure safe and durable connections between stainless steel and carbon steel, minimizing the risk of corrosion.

What is galvanic corrosion and how can it be prevented?

Galvanic corrosion is an electrochemical process that occurs when two different metals are in contact with each other in the presence of an electrolyte, such as water or moisture. This leads to one metal (the anode) corroding more rapidly while the other (the cathode) is protected.

To prevent galvanic corrosion when connecting stainless steel to carbon steel, several strategies can be employed:

1. Material Selection: Choose metals with similar electrode potentials to minimize the potential difference that drives galvanic corrosion.
2. Insulation: Use non-conductive materials like polymer-based bushings or washers to break the electrical path between the metals.
3. Protective Coatings: Apply coatings or paints to prevent the metals from coming into contact with the electrolyte.
4. Dielectric Unions: Use dielectric unions to electrically separate the dissimilar metals.
5. Design Considerations: Ensure that the anodic areas are larger than the cathodic areas to reduce corrosion rates.

By following these practices, the risk of galvanic corrosion can be significantly reduced, ensuring a safer and more durable connection between stainless steel and carbon steel pipes.

Are there specific standards to follow for these connections?

Yes, there are specific standards to follow when connecting stainless steel to carbon steel pipes. The primary considerations involve ensuring material compatibility, preventing galvanic corrosion, and adhering to mechanical standards.

For pipe fittings, the ANSI B1.20.1 and ASTM A351 standards apply to stainless steel, while ASME B16.5 is relevant for carbon steel flanges. Material selection standards include ASTM A182 for stainless steel flanges and ASTM A105 for carbon steel flanges.

To prevent galvanic corrosion, use non-conductive gaskets or flanges and consider intermediate layers like stainless steel inserts. Protective coatings can also safeguard against corrosion, especially at welds and threads.

Following these standards helps ensure safe, reliable, and durable connections between stainless steel and carbon steel pipes.

What are the environmental factors that can impact these connections?

Environmental factors that can impact connections between stainless steel and carbon steel pipes include moisture, temperature variations, corrosive substances, physical damage, and mechanical loads. Moisture and electrolytes, such as saltwater or chlorides, can exacerbate galvanic corrosion, where carbon steel acts as the anode and degrades faster than stainless steel. Temperature fluctuations can cause differential thermal expansion, leading to stress and potential leaks. Corrosive media, like acids, can deteriorate carbon steel more quickly. Physical damage from abrasion or turbulence can expose vulnerable areas to corrosion. Finally, different mechanical strengths of the metals can create stress concentrations under high pressure. To mitigate these factors, use protective coatings, insulating components, and appropriate design adjustments.
