Aluminum Die Casting: A Comprehensive Step-by-Step Guide
Imagine transforming raw aluminum into complex, high-strength components with precision and efficiency. Welcome to the world of aluminum die casting—a…
Imagine a world where the precision and durability of metal parts are crucial to the success of countless industries, from automotive to aerospace. At the heart of this engineering marvel lies the art and science of die casting mold design. But how do you navigate the complexities of creating these molds to ensure they meet exacting standards? This comprehensive guide will unravel the intricacies of die casting mold design and manufacturing, providing you with a detailed roadmap to mastering this essential skill.
In this article, you will learn about the various types of die casting molds, the key principles behind their design, and the step-by-step process of bringing a mold from concept to reality. We’ll delve into the materials that make the best molds, such as hardened tool steel, and explore the tools and technologies that streamline the design process. Whether you’re looking to solve common design problems or seeking strategies for cost-efficient production, this guide has you covered. Ready to transform your die casting mold designs and elevate your manufacturing game? Let’s get started.
Die casting molds are crucial tools in manufacturing, enabling the production of metal parts with high precision and intricate details. These molds play a vital role in shaping molten metal under high pressure, ensuring the consistent quality and accuracy of components across various industries, such as automotive, aerospace, and electronics.
Die cast tooling includes the essential equipment used to create die-cast parts, with the mold being the central element. The mold consists of two main components: the fixed mold (stationary die) and the movable mold (cover die). The fixed and movable dies form the cavity where molten metal is injected and solidified, designed to match the final part’s geometry for high precision and surface finish. This setup allows the mold to open and close precisely, facilitating the injection and solidification of molten metal into the desired shape.
Core pins and inserts create internal features and intricate shapes in the casting, essential for producing parts with complex geometries. The ejector system removes the solidified part from the mold smoothly, ensuring the part’s quality and preventing damage. Cooling channels regulate the mold’s temperature during injection cycles, crucial for maintaining dimensional stability and high surface quality. Vents are incorporated into the mold design to allow gases and air to escape during the metal injection process, preventing defects such as porosity and ensuring high-quality castings.
Precision and accuracy are paramount in die casting mold design. The mold must be crafted to exact specifications to produce parts that meet stringent quality standards. Any deviation from the design can lead to defects, increased production costs, and inefficiencies. Advanced CAD software and mold flow simulation tools are employed to design and analyze the mold, ensuring optimal performance before manufacturing begins.
Selecting the appropriate material for die casting molds is critical to their durability and performance. Molds are typically made from robust, wear-resistant steels or steel alloys capable of withstanding high injection pressures and thermal cycling. Hardened tool steel is a common choice due to its excellent hardness and resistance to wear, extending the mold’s lifespan and maintaining the quality of the cast parts.
Single-cavity dies are molds designed to produce one part per cycle, making them suitable for simpler designs and lower production volumes. Their straightforward design allows for easier maintenance and lower initial costs, ideal for small-scale production runs or prototype development.
Multi-cavity dies contain multiple cavities within a single mold, enabling the simultaneous production of multiple identical parts. This design significantly increases production efficiency and reduces per-part costs, making it ideal for high-volume manufacturing. Industries such as automotive and electronics rely on multi-cavity dies to produce large quantities of consistent, uniform components.
Family molds are designed to produce different parts within the same mold cycle. These molds are particularly beneficial for manufacturing sets of parts typically used together, ensuring balanced inventories and reducing production times. This approach streamlines the fabrication of complex assemblies by producing multiple components simultaneously.
Combined molds offer flexibility, allowing the number and shape of cavities to be adjusted as needed, making them suitable for producing various parts in small to medium batches. This adaptability enables manufacturers to quickly respond to changing production requirements without the expense of creating entirely new molds.
Prototype molds are typically made using faster and less expensive methods, like 3D printing or rapid milling, allowing manufacturers to verify design concepts and make adjustments before full-scale production. This strategy minimizes the risk of costly errors and helps ensure that final production molds meet all specifications.
Rapid tooling uses accelerated manufacturing processes to create molds for medium production volumes, offering faster production speeds and lower costs compared to traditional methods. This technique is especially valuable when quick turnaround times and flexibility in mold design are priorities.
Production molds are designed for mass production and are typically fabricated from high-quality materials such as H13 or P20 steel. Engineered for durability and long service life, these molds ensure high production efficiency and consistent part quality over extended runs, which is essential for large-scale manufacturing operations.
Cell molds are a type of multi-cavity mold specifically designed for the mass production of relatively simple parts. By producing a large number of parts simultaneously, these molds excel in high-volume, low-complexity manufacturing contexts, common in consumer goods and packaging industries.
A key principle in die casting mold design is accounting for the part’s shape and complexity. The mold must precisely form intricate details and complex shapes, ensuring that the molten metal flows seamlessly into all areas without causing defects such as voids or incomplete fills. Complex geometries often require advanced design techniques to ensure that every part of the mold is filled correctly and that the final product meets the desired specifications.
Incorporating fillets and radii into the mold design is essential to reduce stress concentrations and improve the flow of molten metal. Fillets smooth out sharp corners and transitions, helping to avoid cracks and ensure better material flow, thus enhancing mold durability and casting quality by preventing defects. Properly designed fillets contribute to higher-quality castings by preventing issues that can arise from sharp edges and stress points.
A critical aspect of die casting mold design is the inclusion of a die draft angle. This angle facilitates the easy removal of the casting from the mold. The draft angle depends on the alloy type, mold depth, and casting shape. Typically, inner walls require a larger draft angle compared to outer walls to account for shrinkage and to ensure that the casting can be ejected without damage.
Placing parting lines, where the mold halves meet, is crucial for ensuring cast part quality. Proper alignment of these lines minimizes the occurrence of flash—a thin layer of excess metal at the parting line—and ensures a clean separation of the mold halves. The positioning of parting lines should be carefully planned to reduce defects and facilitate the easy removal of the cast part.
Ribs are structural elements added to the mold to increase the strength of the cast part without significantly increasing its thickness. Properly designed ribs support the part’s structural integrity while maintaining uniform wall thickness. External corners should be rounded to reduce stress concentrations and to facilitate easier mold release. These design considerations help in producing parts that are both strong and easy to manufacture.
Designing molds with holes and windows requires careful consideration to ensure proper filling and to avoid defects such as porosity. These features can pose challenges in the casting process, as they often lead to incomplete fills or weak points in the final product. Post-processing, such as tapping untapped holes, may be necessary to accommodate any shrinkage that occurs during cooling.
Consistent wall thickness is crucial to prevent uneven cooling and defects. Maintaining uniform wall thickness throughout the mold ensures even material flow and cooling, which is essential for producing high-quality cast parts. Variations in wall thickness can lead to issues such as warping or internal stresses, compromising the part’s integrity.
Incorporating symbols and markings into the mold design can be challenging but is often necessary for identification and functionality. These features should be designed with the casting process in mind to ensure they are produced accurately and legibly. Clear and precise markings are important for the usability and traceability of the final product.
Before manufacturing the mold, using simulation tools to predict material flow and detect potential issues is a key principle. Simulations can help optimize the mold design for better filling and reduced defects. Additionally, creating and testing prototypes is essential to validate the design and ensure that the final product meets all specifications. This step helps in identifying and rectifying any design flaws before full-scale production.
Choosing the right materials for die casting molds is crucial for ensuring efficient and high-quality production. These materials must endure high temperatures and pressures, ensuring the molds’ longevity and performance. The most commonly used materials include hardened tool steel, aluminum alloy, and copper alloy.
Hardened tool steel is the primary material used for die casting molds due to its outstanding durability and wear resistance. This material can withstand the high stresses and thermal cycling associated with the die casting process. It offers excellent thermal stability, which is essential for maintaining precise dimensions and high-quality surface finishes in the final products. Withstands repeated cycles of high pressure and temperature without significant wear. Maintains dimensional accuracy under varying temperatures. Reduces maintenance frequency and extends the mold’s lifespan.
Although aluminum alloy isn’t typically used for the main mold, it’s often used for parts of the die casting equipment. Its lightweight and corrosion-resistant properties make it suitable for auxiliary parts of die casting machinery.
Copper alloys have excellent thermal conductivity, making them ideal for mold components that need to quickly dissipate heat. Although not as prevalent as tool steel, copper alloys can be beneficial in specific applications within the die casting process.
Selecting the appropriate material for die casting molds involves evaluating several critical factors to ensure optimal performance and longevity.
The chosen material must endure the repeated injection of molten metal under high pressure. High strength and wear resistance are essential to prevent premature mold failure and ensure consistent production quality.
Good thermal conductivity is vital for distributing heat evenly across the mold. This property helps prevent thermal stress and ensures that the mold performs consistently throughout the casting process.
While tool steels generally exhibit good resistance to corrosion, it is essential to ensure that the mold material can withstand the chemical properties of the metal being cast. This factor is crucial in preventing mold degradation and ensuring long-term performance.
New advancements in materials science have created stronger and more heat-resistant tool steels, improving mold durability and performance. Additionally, there is growing interest in using advanced coatings and surface treatments to further enhance mold durability and reduce maintenance costs.
It’s crucial to understand the final product’s design, dimensions, tolerances, and functional requirements. This step ensures that the mold will produce parts that meet all specifications and performance criteria.
Evaluate the complexity of the part, its suitability for die casting, and factors like part geometry, material properties, and production volume to determine if die casting is the best approach.
Prepare detailed 2D drawings specifying critical dimensions, undercuts, draft angles, and surface finishes. These drawings serve as the blueprint for the mold design and must be precise to ensure the final product’s quality.
Using advanced CAD software is fundamental in creating an accurate and efficient die casting mold design.
Develop a detailed 3D model of the mold based on the part design. This model should include all features of the mold, such as the cavity, core, and any inserts.
Design the mold halves (core and cavity), runner systems, gates, vents, ejectors, and cooling channels. Each component must be precisely engineered to ensure proper function and durability.
Perform simulations to analyze molten metal flow, cooling rates, and potential defects such as air entrapment or cold shuts. These simulations help optimize the mold design and prevent issues during production.
Adjust design parameters to ensure uniform filling, reduce cycle time, and prevent defects. Proper layout optimization is key to achieving high-quality cast parts.
Choosing the appropriate materials is critical for the mold’s performance and longevity.
Typically, hardened tool steels such as H13 or P20 are selected for their durability, thermal conductivity, and resistance to wear and thermal fatigue. These properties are essential for withstanding the rigors of the die casting process.
The mold steel is often heat-treated to achieve the required hardness and toughness for prolonged service life. Proper heat treatment enhances the mold’s performance and durability.
Preparing the materials and performing rough machining are important steps in the mold-making process.
Cut steel billets to size according to the mold design. Accurate cutting ensures that the subsequent machining processes are efficient and precise.
Use CNC machines to roughly shape the mold plates and components, including the cavity, core, and base plates. This step lays the foundation for precision machining.
Ensure rough machining is within tolerance to allow precise finishing later. Maintaining tight tolerances at this stage is crucial for the final accuracy of the mold.
High-precision machining is essential to achieve the exact dimensions and surface finishes required for the mold.
Perform high-precision CNC machining to create the mold cavity and core surfaces. This process ensures that the mold meets all design specifications and produces high-quality parts.
Use EDM for intricate details, sharp corners, or hard-to-machine areas within the mold. EDM allows for precise machining of complex geometries.
Polish cavity surfaces to reduce friction, improve metal flow, and enhance the surface finish of the cast parts. Proper polishing is vital for achieving the desired part quality.
Assembling the mold components accurately is crucial for the mold’s performance.
Carefully assemble the core and cavity halves, including the runner, gate systems, ejector pins, and cooling lines. Proper assembly ensures that the mold functions correctly during casting.
Verify mold halves align perfectly to avoid flash or defects during casting. Precise alignment is necessary for producing high-quality parts.
Install and connect coolant passages to control mold temperature and optimize cycle time. Efficient cooling is essential for maintaining the mold’s performance and part quality.
Thorough inspection and testing are necessary to ensure the mold meets all design requirements.
Measure all critical mold dimensions using precision instruments to ensure compliance with design. Accurate measurements confirm that the mold will produce parts within specified tolerances.
Conduct initial die casting trials to test mold performance. These trials help identify any issues that need to be addressed before full-scale production.
Make necessary modifications based on trial results to improve filling, ejection, and surface quality. Fine-tuning the mold ensures optimal performance during production.
Once the mold is ready, it is important to monitor its performance and maintain it regularly.
After successful trials, proceed with mass production, monitoring mold performance continuously. Consistent monitoring helps maintain part quality and production efficiency.
Regularly clean, inspect, and repair the mold to extend its life and ensure casting quality. Proper maintenance is key to the long-term success of the die casting process.
The die casting mold-making process starts with a detailed analysis and design of the part. Using CAD software, engineers create a comprehensive 3D model, optimizing the design for die casting. This involves considering material properties, wall thickness, draft angles, and potential undercuts to ensure efficient mold filling and easy ejection. Proper design at this stage minimizes defects and enhances production efficiency.
Based on the part design, engineers select the appropriate mold type (single cavity, multi-cavity, or combination) and design the gating system, including runners, gates, and vents, to control the molten metal flow into the mold cavity. Cooling channels and ejector mechanisms are also incorporated to manage the cooling process and facilitate the ejection of the cast parts.
Using advanced CAD software, a comprehensive 3D model of the mold is created. This model includes all components such as cavity plates, cores, sliders, and inserts, ensuring precise machining and assembly planning.
High-quality tool steels, such as H13, P20, or specialized alloys, are chosen based on their wear resistance, thermal conductivity, and mechanical strength. These materials must withstand the high pressures and temperatures involved in the die casting process.
Steel pieces are cut and organized as per the mold design to make the best use of the material and get ready for machining.
CNC machines perform rough cutting to shape the basic mold components like cavity, core blocks, and base plates. This stage quickly removes large amounts of material to form the initial shape of the mold parts.
Fine machining and grinding are used to refine the mold surfaces for precise dimensions and a smooth finish. Electrical Discharge Machining (EDM) is often used for intricate or delicate features that are hard to machine with traditional methods.
Mold components undergo heat treatment to enhance their hardness and durability. This process ensures the mold can withstand the thermal fatigue and mechanical stresses encountered during the casting cycles.
Each machined mold component is inspected for dimensional accuracy and surface quality using precision measuring tools such as Coordinate Measuring Machines (CMM). This step ensures all components meet the stringent tolerances required for high-quality casting.
Once inspected, the mold components, including cavity plates, core blocks, ejectors, and cooling channels, are meticulously assembled. Proper assembly is crucial for smooth mold operation and efficient cooling during the casting process.
The assembled mold is installed on a die casting machine for trial runs. Molten metal is injected under high pressure to produce sample parts. This stage tests the mold’s performance, including filling behavior, cooling efficiency, and ejection.
Based on the trial results, adjustments are made to the mold or process to fix defects like porosity, cold shuts, or incomplete filling. This iterative process ensures the mold consistently produces high-quality parts.
After validation, the mold is used for full-scale production. Regular maintenance, including cleaning, lubrication, and inspection, is essential to prolong the mold’s life and maintain part quality.
Before each casting cycle, the mold surfaces are sprayed with lubricants or release agents to facilitate the smooth ejection of the cast parts and reduce wear on the mold.
CAD (Computer-Aided Design) and CAM (Computer-Aided Manufacturing) technologies are fundamental in die casting mold design. CAD software allows designers to create detailed 3D models of molds, including intricate details and complex shapes. These models are crucial for visualizing the final product and making necessary adjustments before production. CAM software converts these designs into instructions for CNC machines, which are crucial for accurately machining mold components.
CNC machining is a critical process in the creation of die casting molds. This technology uses computer-controlled machines to carve out mold components from raw materials with high precision. CNC machining’s high precision ensures superior surface finishes and dimensional accuracy, crucial for the quality of the final cast products.
Mold flow simulation technology plays a crucial role in optimizing die casting mold designs. This tool simulates the flow of molten metal within the mold cavity, allowing designers to predict and address potential issues such as air entrapment, cold shuts, and incomplete fills. By analyzing these simulations, designers can make informed decisions to improve mold performance and part quality.
The choice of materials and surface treatments for die casting molds is critical for their durability and performance. Advances in materials science have led to the development of high-performance tool steels and specialized coatings that enhance mold longevity and reduce maintenance requirements.
Recent advances in technology have greatly improved the efficiency and precision of die casting mold design and manufacturing. Innovations such as additive manufacturing (3D printing) for prototype molds and the integration of IoT (Internet of Things) for real-time monitoring are transforming the industry.
Selecting the appropriate material and applying the correct heat treatment processes are fundamental challenges in die casting mold design.
Effective thermal management is crucial to prevent mold failure and ensure consistent casting quality.
Rapid temperature changes can cause cracks and distortion in the mold, while overheating or insufficient preheating can lead to metal sticking to the mold. Inconsistent temperature distribution can result in variable casting quality.
Proper mold geometry and draft angles are crucial for smooth ejection and high-quality cast parts.
The ejection mechanism must be well-designed to avoid damaging the castings and ensure smooth operation.
A well-aligned and robust ejection system is essential to prevent damage to the castings and ensure smooth operation. Use ejector pins, sleeves, or stripper plates to apply uniform ejection force. Implement high-quality mold release agents compatible with the casting alloy to facilitate part release without damage.
Optimizing filling parameters is vital to prevent defects and ensure consistent casting quality.
Selecting the right materials for die casting molds is crucial for sustainability. Zinc alloys, for instance, are favored for their lower melting temperature, which reduces energy consumption during the melting process. This not only conserves energy but also lowers the carbon footprint associated with die casting operations. By selecting materials that require less energy to process, manufacturers can significantly diminish their environmental impact.
Designing molds for longevity is another critical factor in sustainable manufacturing. Durable molds that resist wear reduce the need for replacements, conserving resources and minimizing waste. Simplified mold designs that facilitate easy maintenance and optimize hydraulic pressure and flow management systems can extend the mold’s operational life, further contributing to sustainability. This approach reduces the frequency of new mold production, thus saving both materials and energy.
Optimizing the cooling channels within die casting molds is crucial for enhancing sustainability, as efficient cooling allows for quicker solidification of the molten metal, reducing the cycle time for each casting. This improvement means that more parts can be produced in less time, with less energy consumed per unit. Rapid cooling, especially when using materials like zinc alloys, enhances energy efficiency and supports sustainable manufacturing practices by lowering overall energy consumption.
Die casting molds designed for high-speed production can significantly reduce costs by maximizing output and minimizing material waste. Efficient gating and venting systems ensure optimal metal flow, reducing scrap production and lowering raw material costs. This not only lowers raw material costs but also decreases the need for extensive post-processing, leading to cost savings.
Although the initial cost of creating a die casting mold is high, it becomes very cost-effective at high production volumes. Once the mold is created, the cost per unit drops considerably due to the rapid cycle times and minimal manual intervention required. This scalability makes investing in precision mold design a financially sound decision for high-volume production scenarios.
The choice of mold design and materials used can significantly impact energy consumption. For example, molds designed for zinc die casting enable faster shot cycles due to zinc’s low melting point and quick cooling characteristics. This reduces energy consumption per part, leading to substantial long-term cost savings. By optimizing mold designs to enhance energy efficiency, manufacturers can lower their operational costs and improve production efficiency.
To achieve a balance between sustainability and cost efficiency, mold designers should consider the following strategies:
By focusing on these principles, the die casting industry can move towards more sustainable manufacturing practices while maintaining cost competitiveness. This comprehensive approach benefits manufacturers economically and supports environmental stewardship through reduced energy consumption and material efficiency.
A notable case study in die casting mold design involved improving the enclosure of a digital projector. Originally manufactured from two magnesium Thixomold parts assembled with seven bolts, the project aimed to simplify and enhance the design.
The enclosure was redesigned into a single magnesium die casting unit, eliminating the need for complex assembly processes and enhancing the structural integrity of the enclosure. The new design met stringent requirements for strength and rigidity while maintaining precise dimensional tolerances crucial for the projector’s focusing performance. This project demonstrated the benefits of mold design optimization and material consolidation, leading to superior performance and significant cost savings.
Another notable project focused on the production of a central component for a high-tech archery bow using aluminum die casting.
The archery bow component required both functional precision and a high-quality machined aesthetic. The die casting process achieved these demands, ensuring that the component met tight schedules aligned with promotional activities. This case highlighted how die casting mold design can balance performance, aesthetic requirements, and strict production deadlines effectively.
In the automotive industry, a sunroof component with complex geometry posed a challenge that was addressed through advanced mold design techniques.
The component featured intricate shapes and very thin areas, necessitating high precision. Engineers optimized the injection channels, tilted sliders, and ejectors, using MAGMASOFT simulation software to perfect the filling flow and ensure uniformity. This ensured uniformity and minimized defects, while advanced vacuum technology further guaranteed dimensional stability. The project underscored the importance of integrating simulation tools, mold design intricacies, and innovative technologies to meet stringent automotive standards.
A comparative study showcased the cost efficiency of die casting over CNC machining for a specific part.
The study revealed that CNC machining was significantly more expensive than die casting. By switching to die casting and optimizing the mold design, substantial cost savings were achieved without compromising on quality. This case emphasized how effective mold design and manufacturing can transform cost structures in precision component production.
Die casting projects have succeeded across various industries, each with specific needs and advantages.
Projects focused on enhancing performance and safety through lightweight and strong castings.
Demanded extreme precision and reliability, achievable through meticulous mold design.
Benefited from high-volume, high-quality die casting to meet rapid market demands.
| Project Focus | Mold Design/Manufacturing Highlights | Outcomes & Benefits |
|---|---|---|
| Digital Projector Enclosure | Consolidation from two parts into one; precision mold | 40% cost saving, 8% weight reduction, accuracy |
| Archery Bow Component | Precision aluminum casting with machined finish | Award-winning quality, on-time delivery |
| Automotive Sunroof Component | Complex geometry, thin sections, flow simulation, vacuum | Close tolerances, dimensional stability |
| CNC Machining vs Die Casting | Cost-effective die casting mold design | 80% cost reduction vs CNC machining |
| Cross-Industry Applications | Customized mold design for performance and volume | Enhanced safety, reliability, market responsiveness |
These case studies collectively demonstrate the critical role of comprehensive mold design and manufacturing strategies in achieving superior product quality, cost efficiency, and industry-specific performance standards. Integrating simulation tools like MAGMASOFT, innovative mold features, and process optimizations are common success factors across these projects.
Below are answers to some frequently asked questions:

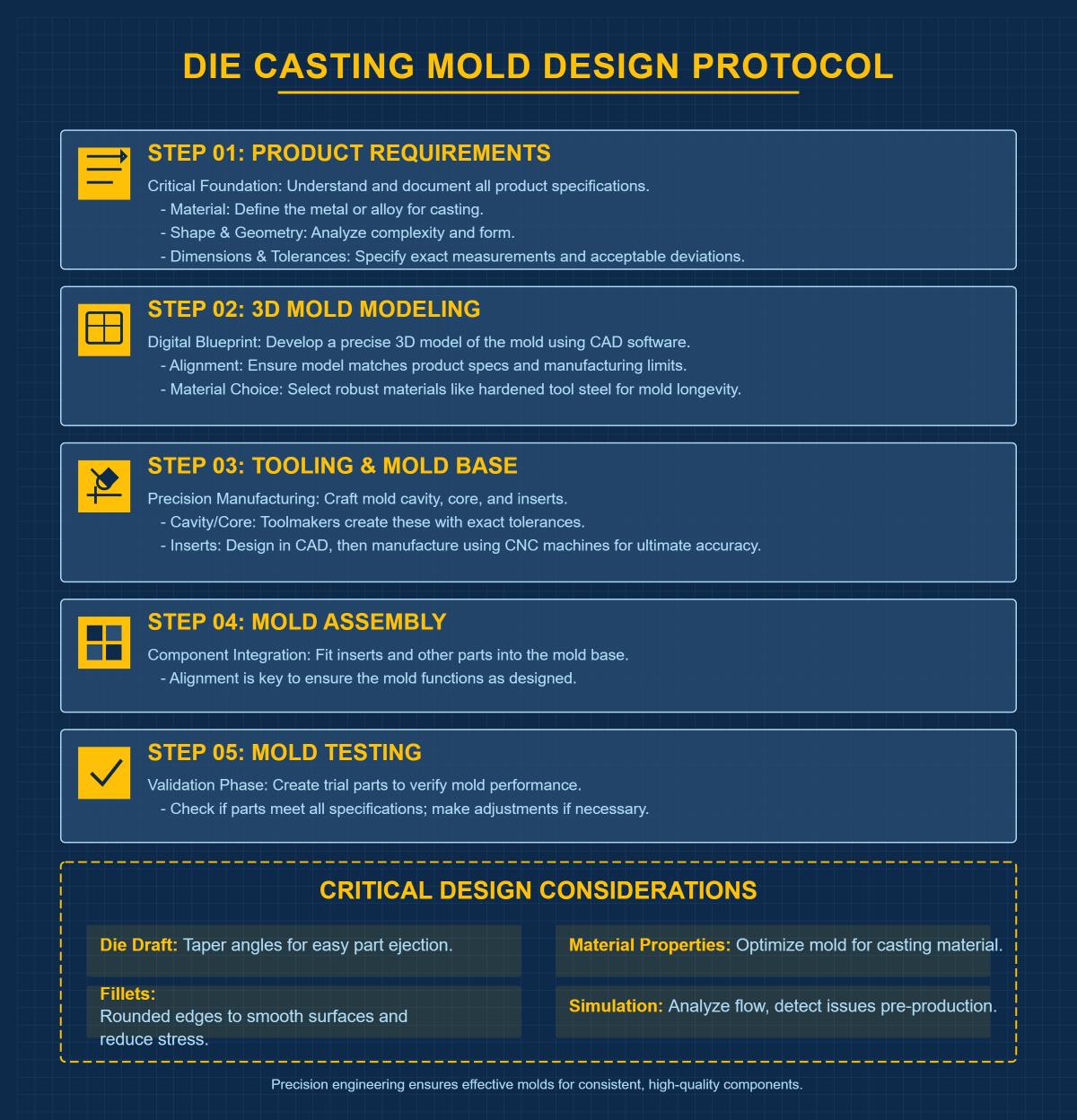

Designing a die casting mold involves several key steps to ensure the production of high-quality metal components. Begin by understanding the product requirements and specifications, including the material, shape, and dimensions of the part to be cast. This information is critical for creating a detailed mold design.
Next, use CAD software to develop a precise 3D model of the mold. This step ensures that the mold’s geometry aligns with the product specifications and manufacturing constraints. High-grade materials, such as hardened tool steel, are typically selected for their durability and ability to withstand the high temperatures and pressures involved in die casting.
After the initial design, tooling and mold base preparation are necessary. Toolmakers craft the mold cavity and core with precise tolerances. Designing mold inserts using CAD software ensures they fit perfectly into the mold and match the part design. These inserts are manufactured using CNC machines for accuracy.
Once the mold components are ready, assemble the mold by fitting the inserts into the mold base, ensuring proper alignment. Testing the mold by creating a trial part helps verify that it meets specifications and functions correctly, allowing for adjustments if needed.
Key factors in mold design include ensuring sufficient die draft for easy removal of the casting, incorporating fillets to smooth angled surfaces, and considering the material properties of the casting material to optimize mold performance. Simulation software can be used to analyze molten metal flow and detect potential issues before physical production.
By following these steps and considering these factors, manufacturers can design effective die casting molds that produce consistent and precise metal components.
Die casting molds, also known as dies, are typically made from materials that can endure the high thermal and mechanical stresses involved in the die casting process. The most common materials used for making die casting molds include various types of tool steels and, to a lesser extent, aluminum.
Tool steels are preferred for their hardness, toughness, wear resistance, and ability to withstand thermal fatigue. The most widely used tool steel is H13, a chromium-molybdenum hot-work tool steel, valued for its excellent hardness, toughness, and resistance to thermal cycling. NAK80, a pre-hardened tool steel, is chosen for applications requiring high precision and dimensional stability. Other tool steels like 8407 and P20 are also used, with 8407 offering high heat and corrosion resistance, and P20 being favored for its machinability in lower stress applications. Additionally, 420 stainless steel is used in environments where corrosion resistance is essential.
Aluminum is used for low-volume production or prototyping due to its lower cost and faster machining times compared to steel, though it has a shorter lifespan because of reduced wear resistance and durability.
These materials are selected based on their ability to maintain structural integrity and precision under the demanding conditions of die casting.
The die casting mold-making process involves several critical steps to ensure the production of high-quality molds that meet exact specifications. Here are the main steps:
These steps ensure the creation of a robust and precise die casting mold, crucial for the efficient and accurate production of metal parts.
To make your die casting mold design more sustainable, you can employ several key strategies. First, select sustainable materials, such as recyclable metals like aluminum and zinc, which are both eco-friendly and offer excellent mechanical properties. High-strength, lightweight alloys can also help reduce the overall weight of components, lowering energy consumption during production.
Second, focus on efficient heat management by incorporating advanced cooling systems and optimizing the thermal properties of the mold. This approach not only conserves energy but also minimizes waste by preventing mold failures.
Third, enhance your design by creating long-lasting molds that can endure high pressure and temperatures, reducing the need for frequent replacements. Additionally, design molds for reusability to further cut down on waste and environmental impact.
Lastly, consider eco-friendly casting processes, such as using advanced ceramic mold technologies, which reduce the need for harmful additives. By integrating these sustainable practices, you can achieve reduced environmental impact, cost savings, and improved operational efficiency in your die casting mold design.
Common problems in die casting mold design typically stem from material selection, thermal management, mold surface conditions, and process parameter mismanagement. These issues can significantly impact the quality of the castings and the longevity of the mold.
Firstly, using inappropriate mold materials or inadequate heat treatment can lead to rapid wear, cracking, and deformation. To mitigate these problems, selecting high-quality materials with good thermal conductivity and wear resistance is essential. Optimized heat treatment processes help enhance mold toughness and reduce internal stresses.
Secondly, poor thermal management can cause drastic temperature fluctuations, leading to thermal stress and surface defects. Maintaining stable mold temperatures through controlled heating and cooling channels, alongside uniform preheating, can improve metal flow and surface quality.
Thirdly, rough mold surfaces and improper draft angles can hinder part ejection and lead to defects like drags and soldering. Regular polishing and maintenance of mold surfaces, along with using high-quality release agents, can facilitate smooth ejection and reduce defects.
Lastly, flaws in mold design and process parameters, such as incorrect gating or injection speed, can cause defects like porosity and incomplete filling. Following design guidelines, using simulation software to optimize mold geometry, and adjusting injection parameters based on casting requirements can significantly improve the quality of the die-cast parts.
By addressing these common issues, manufacturers can enhance die casting mold performance and achieve higher-quality castings.
There are several types of die casting molds, each suited to different production needs and complexities.
These mold types cater to various production requirements, from initial prototyping to high-volume manufacturing, ensuring efficiency and cost-effectiveness in the die casting process.
