16 Common Types of Welding Defects, Causes, Remedies
Welding is a critical skill in construction and manufacturing, but even seasoned welders can encounter frustrating defects that compromise the…
When it comes to selecting the right stainless steel for your project, understanding the subtle yet significant differences between A4-70 and 316 stainless steel can make all the difference. Both materials are renowned for their durability and resistance to corrosion, but what sets them apart? This comprehensive comparison guide delves into the intricate details of their composition, mechanical properties, and suitability for various applications. Whether you’re curious about how cold working influences the tensile strength of A4-70 or which material excels in marine environments, this article has you covered. Dive in and discover which stainless steel meets your needs best—A4-70 or 316?
A4-70 stainless steel is a specialized grade of AISI 316 stainless steel known for its high performance and durability. It is distinguished by its excellent mechanical properties and superior resistance to corrosion. This grade of stainless steel is enhanced with molybdenum, which significantly improves its resistance to pitting and crevice corrosion, especially in saline or chloride-rich environments.
The chemical composition of A4-70 stainless steel includes:
A4-70 stainless steel is known for its robust mechanical properties:
Molybdenum boosts A4-70’s ability to resist corrosion from acids and chloride-rich environments. This makes it an ideal choice for applications in marine and chemical processing industries where high resistance to corrosion is critical.
A4-70 stainless steel can operate effectively at temperatures up to 870°C, making it suitable for applications that involve elevated temperatures.
A4-70 stainless steel’s combination of high strength, excellent corrosion resistance, and durability makes it suitable for a variety of demanding applications:
Molybdenum plays a crucial role in enhancing the properties of A4-70 stainless steel. It significantly improves the material’s resistance to pitting and crevice corrosion, particularly in chloride-rich environments, thereby extending the lifespan and reliability of components made from this steel.
Cold working strengthens metal by deforming it below its recrystallization point, increasing dislocation density and improving yield and tensile strength.
A4-70 stainless steel undergoes cold working to achieve its high tensile and yield strength. This process not only improves its mechanical properties but also refines its microstructure, leading to a more uniform and durable material. Cold working is especially useful for applications demanding strength and durability.
316 stainless steel, often called marine grade stainless steel, is an austenitic stainless steel that contains molybdenum, which enhances its corrosion resistance, especially in chloride-rich environments.
316 stainless steel is composed of 16-18% chromium, 10-14% nickel, and 2-3% molybdenum. It also contains up to 0.08% carbon and trace amounts of silicon, manganese, sulfur, and phosphorus, which fine-tune its properties.
316 stainless steel offers a balance of mechanical properties, including a tensile strength of approximately 515 MPa (75 ksi) and a yield strength around 205 MPa (30 ksi). It also exhibits good ductility with about 40% elongation at break.
316 stainless steel is known for its excellent corrosion resistance, making it ideal for various environments, including those with acids and alkalis. The molybdenum content significantly enhances its resistance to pitting and crevice corrosion in chloride environments like seawater.
Cold working involves deforming the metal below its recrystallization temperature, which increases its strength and hardness through strain hardening. This process can enhance the tensile and yield strength, hardness, and microstructure of 316 stainless steel, making it suitable for high-stress applications without compromising its corrosion resistance.

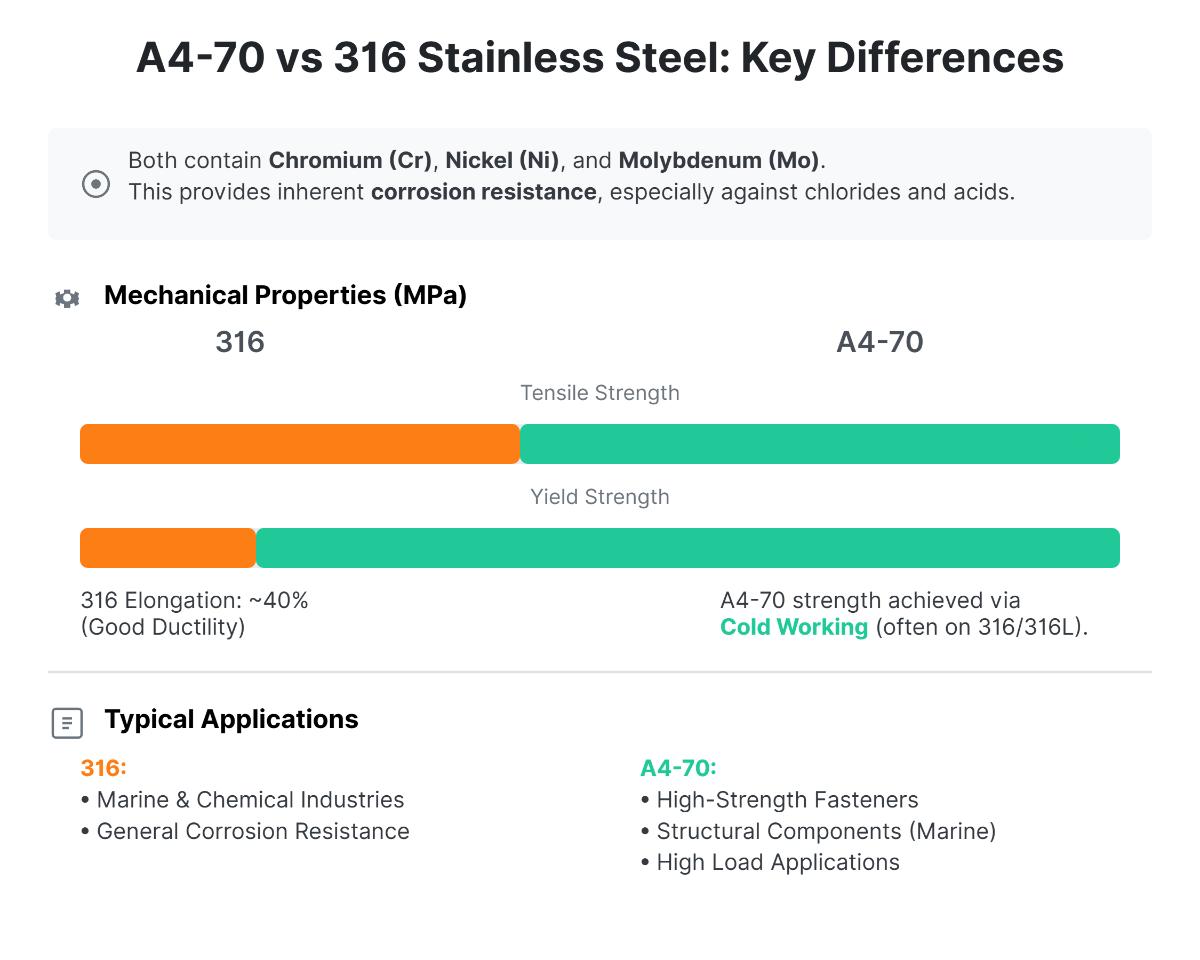

A4-70 and 316 stainless steels have similar core compositions but are tailored for different uses through distinct manufacturing methods:
Both A4-70 and 316 stainless steels offer excellent corrosion resistance, but there are notable differences:
The mechanical properties of these materials are critical in determining their suitability for various applications:
Molybdenum plays a vital role in both A4-70 and 316 stainless steels:
Cold working involves deforming the metal below its recrystallization temperature, increasing its strength through strain hardening.
Cold working strengthens A4-70 stainless steel, refines its microstructure, and boosts durability. This process is crucial for applications requiring high strength and reliability.
While 316 stainless steel can also undergo cold working to improve its strength, it is not typically as heavily cold-worked as A4-70. Cold working 316 increases its tensile and yield strength without significantly compromising its corrosion resistance, making it suitable for high-stress applications.
Tensile strength measures how much stress a material can endure before it breaks, making it a key factor in material selection. This property determines a material’s suitability for demanding applications, ensuring it can withstand mechanical loads without failure.
A4-70 stainless steel has a minimum tensile strength of 700 MPa. Cold working increases tensile strength, making A4-70 ideal for high-strength applications. This enhancement also improves its durability in challenging environments, particularly where mechanical stress is a concern. Additionally, A4-70’s corrosion resistance is excellent, thanks to the inclusion of molybdenum, which protects against pitting and crevice corrosion. This makes it especially suitable for environments with high chloride concentrations, such as marine settings.
316 stainless steel offers a tensile strength of approximately 515 MPa. Though lower than A4-70, 316’s tensile strength is adequate for many industrial and corrosive environments. Its corrosion resistance is among the best in its class, with molybdenum providing exceptional protection against pitting and crevice corrosion. This makes 316 stainless steel a preferred choice for industries like chemical processing and marine applications, where exposure to harsh conditions is common.
Both A4-70 and 316 stainless steels offer good ductility, with approximately 40% elongation at break, facilitating various fabrication processes. This balance of strength and flexibility ensures that both materials can be shaped, formed, and welded effectively, making them versatile for diverse applications.
The yield strength of A4-70 stainless steel is at least 450 MPa, demonstrating its ability to resist permanent deformation under stress. In comparison, 316 stainless steel has a lower yield strength of around 205 MPa. While A4-70 is better suited for applications requiring higher stress resistance, 316 remains reliable for less demanding structural uses.
A4-70 performs well up to 870°C, suiting high-temperature applications. Similarly, 316 stainless steel maintains its properties up to 870°C for continuous use and 925°C intermittently, making it versatile for various thermal conditions. Both materials resist oxidation effectively, ensuring durability in environments with fluctuating or elevated temperatures.
In marine applications, selecting the right material is crucial due to the constant exposure to saltwater and high humidity, which speed up corrosion. Both A4-70 and 316 stainless steels are well-suited for these conditions, but their performance differs slightly:
In chemical processing environments, which involve exposure to acids, alkalis, and chlorides, A4-70 is ideal for high-stress applications like fasteners and structural supports due to its high strength and enhanced corrosion resistance. This robustness ensures reliability in aggressive chemical conditions.
Heavy machinery requires materials that can endure mechanical stress, vibration, and environmental exposure without compromising performance:
Material cost and long-term efficiency are vital factors in application suitability. Both A4-70 and 316 stainless steels have distinct cost-performance balances:
The initial material costs of A4-70 and 316 stainless steels depend on several key factors. A4-70 stainless steel, being a cold-worked version of 316, generally incurs additional processing costs due to the cold working process that enhances its mechanical properties. This additional processing typically makes A4-70 more expensive, but its enhanced properties may justify the higher cost for demanding applications. In contrast, 316 stainless steel is priced higher primarily because of its significant molybdenum content, a costly alloying element. Its popularity in corrosive environments also drives up its cost.
Long-term maintenance and lifecycle costs are key to evaluating a material’s cost-effectiveness. A4-70 stainless steel, with its superior tensile and yield strength, offers excellent durability in high-stress environments, reducing maintenance and replacement needs. Similarly, 316 stainless steel excels in resisting pitting and crevice corrosion, particularly in chloride-rich environments, which minimizes upkeep in harsh conditions. Both materials deliver durability and low maintenance, but their specific advantages depend on the operating environment.
The efficiency and performance of these materials vary based on application requirements. A4-70 stainless steel, with its enhanced strength from cold working, is ideal for applications requiring high mechanical performance, such as heavy machinery and structural components. On the other hand, 316 stainless steel is highly effective in environments with significant exposure to corrosive agents, making it indispensable in marine and chemical processing industries. Each material provides distinct benefits tailored to its intended use.
The ROI of A4-70 and 316 stainless steels depends on their initial costs and long-term benefits. While A4-70 may involve a higher upfront investment due to its processing, its durability and strength in demanding applications often justify the expense. Similarly, the higher cost of 316 stainless steel is balanced by its exceptional corrosion resistance, extending its service life in challenging environments. The choice between the two should align with specific operational needs, balancing initial expenses with long-term performance advantages.
The marine industry extensively uses A4-70 and 316 stainless steels for their superior corrosion resistance and mechanical strength. A4-70 stainless steel is often used in shipbuilding and offshore platforms. Its high tensile and yield strength, enhanced through cold working, make it ideal for components such as fasteners, structural supports, and machinery parts that must endure high stress and corrosive seawater environments.
On the other hand, 316 stainless steel is frequently employed in marine applications such as boat fittings, coastal architectural structures, and pipelines. Its resistance to pitting and crevice corrosion, attributed to its molybdenum content, ensures long-term durability and minimal maintenance in saline conditions. The slightly lower mechanical strength of 316 compared to A4-70 is offset by its excellent corrosion resistance and ease of fabrication, making it a cost-effective choice for general-purpose marine hardware.
In chemical processing industries, A4-70 stainless steel is ideal for high-stress environments with aggressive chemicals and mechanical loads, while the choice between A4-70 and 316 depends on specific application requirements. A4-70 is particularly suited for equipment such as reactors, high-pressure vessels, and fasteners that must maintain integrity under harsh conditions.
Conversely, 316 stainless steel is widely used in chemical plants for its broad resistance to various chemicals, including acids and alkalis. It is commonly found in storage tanks, piping systems, and heat exchangers. The material’s excellent weldability and formability allow for the construction of complex systems that require both chemical resistance and structural reliability. While it may not offer the same high-strength properties as A4-70, 316 stainless steel provides a balanced solution for many chemical processing applications.
316 stainless steel is a preferred material in the medical industry, particularly for surgical instruments, implants, and medical devices. Its biocompatibility, non-reactivity with bodily fluids, and ease of sterilization make it an excellent choice for applications that require high levels of hygiene and resistance to corrosion. The 316L variant, with lower carbon content, further enhances its suitability for medical use by improving weldability and reducing the risk of carbide precipitation.
Although A4-70 is not usually used in medical implants due to its strength and processing methods, its durability and resistance to stress make it suitable for some medical equipment. For example, components of medical machinery that are exposed to high loads and corrosive environments could benefit from the enhanced properties of A4-70 stainless steel.
The heavy machinery sector frequently chooses A4-70 stainless steel for its high tensile and yield strength. This makes it suitable for critical components such as gears, bolts, and structural parts that must withstand significant mechanical loads and vibrations. The cold working process that A4-70 undergoes enhances its strength and durability, ensuring reliable performance in demanding applications.
316 stainless steel is also used in heavy machinery, particularly where corrosion resistance is a primary concern. Components exposed to moisture, chemicals, or other corrosive agents benefit from 316’s excellent resistance properties. While it may not provide the same level of mechanical strength as A4-70, 316 stainless steel offers a reliable and durable option for parts that require both strength and corrosion resistance.
The initial cost of A4-70 stainless steel is generally higher because of the cold working process and its superior mechanical properties. However, this initial expense is often justified by the material’s long-term performance and reduced maintenance needs in high-stress applications. The higher upfront cost can lead to lower lifecycle costs, making A4-70 a cost-effective choice for critical applications.
In contrast, 316 stainless steel offers a more economical option for applications where extreme strength is not required but corrosion resistance is critical. Its balance of mechanical properties and corrosion resistance makes it a versatile and cost-effective choice for a wide range of industries. The slightly lower cost compared to A4-70 can result in significant savings, especially in applications where large quantities of material are needed.
Below are answers to some frequently asked questions:
A4-70 and 316 stainless steel share similarities in their chemical composition, both containing chromium, nickel, and molybdenum, which contribute to their corrosion resistance. However, key differences arise in their mechanical properties and specific applications.
316 stainless steel has a tensile strength of approximately 515 MPa and a yield strength of around 205 MPa, with good ductility reflected by an elongation at break of about 40%. It is widely used in environments requiring high corrosion resistance, such as marine and chemical industries, due to its excellent resistance to chlorides and acids.
A4-70 stainless steel, often derived from 316 or 316L stainless steel, undergoes cold working to enhance its mechanical strength. This process results in a significantly higher tensile strength (700-850 N/mm²) and yield strength (approximately 700 N/mm² for fasteners), making it suitable for high-strength applications like fasteners and structural components in marine environments.
Cold working significantly enhances the tensile strength of A4-70 stainless steel. This process involves deforming the steel at room temperature, which increases its mechanical strength by creating dislocations within the crystal structure. As a result, A4-70 achieves a minimum tensile strength of 700 MPa, considerably higher than the approximately 515 MPa tensile strength of standard 316 stainless steel. Additionally, the yield strength of A4-70 is improved to at least 450 MPa, compared to 205 MPa for 316. However, this increase in strength comes with a reduction in ductility, making the material less formable and more brittle. This trade-off must be considered in applications requiring both high strength and flexibility.
A4-70 stainless steel is more suited for applications that require high mechanical strength and excellent corrosion resistance, particularly in environments where these properties are critical. Examples include marine and structural environments where the material’s enhanced tensile strength (minimum 700 MPa) is beneficial for fasteners and structural components exposed to harsh, corrosive conditions. Additionally, A4-70 is ideal for automotive and machinery applications where components must withstand significant stress and maintain durability. While 316 stainless steel is also corrosion-resistant, its primary advantages lie in chemical processing and marine environments due to its superior resistance to chlorides, and its better weldability makes it suitable for high-temperature applications.
A4-70 stainless steel generally costs more than standard 316 stainless steel due to its enhanced mechanical properties achieved through cold working. While both materials share similar chemical compositions, including chromium, nickel, and molybdenum, the cold-working process significantly increases A4-70’s tensile and yield strength, making it more suitable for high-load applications. This added strength comes with higher production costs. For instance, A4-70 fasteners can range from $0.01 to $1 per piece depending on size and quantity, whereas 316 stainless steel fasteners are typically less expensive due to lower manufacturing costs associated with annealed materials.
Both A4-70 and 316 stainless steel exhibit excellent performance in marine environments, largely due to their high corrosion resistance properties. A4-70 stainless steel, derived from 316 or 316L, includes chromium, nickel, molybdenum, and nitrogen, contributing to its superior resistance to seawater and chemical exposure. It boasts a high tensile strength of around 700 MPa, making it ideal for fasteners and structural components in harsh marine conditions.
On the other hand, 316 stainless steel is renowned for its resistance to chloride-induced corrosion, thanks to its molybdenum content. It is commonly used in marine equipment and fixtures where durability is crucial. While it has a lower tensile strength (around 515 MPa), it offers excellent weldability and toughness, suitable for various marine applications.
Yes, there are real-life examples where A4-70 or 316 stainless steel is preferred based on their unique properties. In the marine industry, A4-70 stainless steel is often chosen for fasteners due to its higher tensile strength, which ensures durability and resistance to seawater corrosion. On the other hand, 316 stainless steel is preferred for equipment exposed to seawater, such as marine hardware, due to its superior pitting resistance provided by its molybdenum content.
In the automotive industry, A4-70 is favored for its high mechanical strength in structural components, providing durability in harsh environments. Conversely, 316 stainless steel is used for parts requiring excellent formability and weldability, such as complex vehicle shapes.
In chemical processing plants, 316 stainless steel is commonly chosen due to its exceptional resistance to corrosive chemicals and chlorides, ensuring long-term performance and safety in harsh environments.
These examples illustrate how the distinct properties of A4-70 and 316 stainless steel make them suitable for different applications, emphasizing the importance of selecting the appropriate material based on specific requirements.
