CF8M vs. CF8 Stainless Steel: What’s the Difference?
When it comes to selecting the right stainless steel for your project, understanding the subtle yet significant differences between CF8M…
When it comes to selecting the right stainless steel for your project, understanding the nuances between different types can make all the difference. CF8M and CF3M stainless steel are two popular choices, but what sets them apart? Whether you’re concerned about corrosion resistance, mechanical properties, or specific applications, knowing the differences between CF8M and CF3M is crucial for making an informed decision. This article dives deep into the comparative analysis of these two austenitic stainless steels, exploring their chemical compositions, performance in various environments, and typical uses. Ready to uncover which stainless steel is better suited for your needs? Let’s delve into the specifics and find out.
Stainless steel is an iron-based alloy renowned for its excellent resistance to corrosion, thanks mainly to its chromium content. Stainless steel must contain at least 10.5% to 11% chromium, which forms a thin, protective layer of chromium oxide on the surface to prevent corrosion. If damaged, this protective layer can re-form in the presence of oxygen, maintaining the material’s resistance to rust and corrosion.
Stainless steel can be categorized into several types based on its microstructure:
Stainless steel’s unique properties make it indispensable in numerous industries. Its excellent corrosion resistance, strength, and durability are highly valued in sectors such as manufacturing, construction, food processing, and medical devices. In marine environments, stainless steel is chosen for its ability to endure harsh, corrosive conditions. It is also favored in food processing for its hygiene and resistance to food acids. In medical devices, its non-reactive nature and ability to be sterilized make it ideal for surgical instruments and implants.
Austenitic stainless steel has a unique crystal structure stabilized by nickel, giving it high ductility and excellent corrosion resistance. This structure grants it high formability and makes it the most commonly used type of stainless steel. Austenitic stainless steels typically contain chromium and nickel, and may also include elements such as molybdenum, nitrogen, and manganese to enhance specific properties.
CF8M and CF3M are both austenitic stainless steels, meaning they share the core characteristics of this group, including superior corrosion resistance and good mechanical properties. These grades are particularly significant in applications requiring high durability and resistance to corrosive environments, such as marine and chemical processing industries. The key difference between CF8M and CF3M is their chemical composition, which affects their mechanical properties and suitability for various applications. Understanding these differences is crucial for selecting the right material for specific industrial needs.
CF8M stainless steel, equivalent to AISI 316, is a cast austenitic alloy known for its robust chemical composition. Chromium makes up 18-21% of the alloy, which helps enhance its
CF8M stainless steel exhibits impressive mechanical properties. The tensile strength of about 540 MPa means CF8M can handle a large amount of pulling force without breaking. The yield strength, around 290 MPa, indicates the stress at which the material begins to deform plastically. With an elongation at break of up to 50%, CF8M can stretch significantly before fracturing, demonstrating excellent ductility. Typically, it has a hardness of 170 HBW (Brinell Hardness), balancing strength and ease of machining.
CF8M stainless steel stands out for its exceptional corrosion resistance. The presence of molybdenum enhances its ability to resist pitting and crevice corrosion in chloride environments. This makes CF8M an ideal material for applications in harsh and corrosive conditions.
CF8M stainless steel is utilized across various industries due to its robust properties. It is extensively used in marine applications for components like seawater pumps and ship fittings, owing to its superior resistance to chloride-induced corrosion. In the chemical processing industry, CF8M handles acids and chlorides, ensuring longevity and reliability in aggressive environments. The food and beverage industry values CF8M for its resistance to food products and cleaning agents, making it suitable for food processing equipment. Additionally, in the pharmaceutical and medical industries, CF8M is prized for its ease of cleaning and sterilization, making it ideal for medical devices and pharmaceutical equipment.
In the marine industry, CF8M stainless steel is used for manufacturing components like seawater pumps, ship fittings, and underwater pipelines. Its corrosion resistance ensures longevity and reduces maintenance costs, making it a cost-effective choice for maritime applications.
In food processing, CF8M’s corrosion resistance to food acids prevents contamination of food products. It is used for equipment such as mixers, conveyors, and storage tanks. This resistance helps maintain high hygiene standards and prolongs equipment life.
For medical devices, CF8M is used in surgical instruments and implants. Its biocompatibility, combined with resistance to sterilization processes, ensures patient safety and device reliability.
CF8M stainless steel complies with ASTM A351 standards, which specify the requirements for chemical composition and mechanical properties of cast austenitic stainless steel. This compliance guarantees that CF8M can be reliably used in critical applications where quality and performance are paramount.
CF3M stainless steel, part of the austenitic stainless steel family, features low carbon content, which enhances weldability and resistance to intergranular corrosion. Its typical chemical composition includes:
CF3M stainless steel exhibits notable mechanical properties, including a tensile strength of ≥70 KSI (483 MPa), yield strength of ≥30 KSI (207 MPa), elongation of ≥30%, and a hardness of approximately 200 HBW (Brinell Hardness). These properties indicate that CF3M has a balanced combination of strength and ductility, making it suitable for components requiring both toughness and formability.
CF3M stainless steel is highly resistant to corrosion, especially in environments with chloride – induced pitting and crevice corrosion. The addition of molybdenum enhances its ability to withstand aggressive conditions, making it ideal for marine and chemical processing applications.
In the marine industry, CF3M is used for components like valve bodies, pumps, and underwater fittings. Its excellent resistance to seawater corrosion ensures a long service life and reliability in harsh maritime environments.
CF3M is perfect for the chemical processing industry, as it resists corrosion from various chemicals, including chlorides and acids. Common applications include reactors, heat exchangers, and storage tanks.
The food processing industry benefits from CF3M’s corrosion resistance and ease of cleaning. It is used in applications such as food conveyors, mixers, and processing equipment where hygiene and durability are critical.
In the medical field, CF3M is utilized for surgical instruments and implants. Its biocompatibility and resistance to sterilization processes make it a preferred material for medical devices.
CF3M stainless steel complies with ASTM A351 standards, which define the requirements for the chemical composition and mechanical properties of cast austenitic stainless steel. This compliance ensures that CF3M can be reliably used in critical applications where quality and performance are essential.
Thanks to their chromium and molybdenum content, both CF8M and CF3M stainless steels are highly corrosion-resistant. However, there are nuances in their performance. CF8M’s 2-3% molybdenum content significantly enhances its resistance to pitting and crevice corrosion in chloride-rich environments, making it a top choice for marine applications where components are constantly exposed to seawater.
On the other hand, CF3M, with its lower carbon content (≤0.03%), has better resistance to intergranular corrosion. This is crucial for welded applications, as low carbon content reduces the risk of corrosion caused by carbide precipitation. In high-stress and chloride-containing environments, CF3M also shows good resistance to stress corrosion cracking, making it suitable for critical components like valve bodies.
With a Brinell hardness rating of about 200 HBW compared to CF8M’s 160 HBW, CF3M is notably harder. The higher hardness of CF3M gives it better wear resistance in some applications. However, it also makes CF3M more brittle, rendering it less suitable for forming or bending processes compared to CF8M.
Stress corrosion cracking (SCC) is a significant concern in many engineering applications. CF3M demonstrates better resistance to SCC, especially in environments with high chloride concentrations and tensile stress. This enhanced resistance is due to its low carbon content and specific alloying elements.
CF8M, while also resistant to corrosion, is more prone to SCC under certain conditions, especially if the material is exposed to high-stress levels and chloride-rich environments for extended periods. This makes CF3M a more reliable choice for applications at risk of SCC, such as chemical processing and high-pressure pipeline systems.
Knowing the chemical makeup of CF8M and CF3M stainless steels helps in choosing the right material for various uses.
Examining the mechanical properties of CF8M and CF3M provides insights into their suitability for different industrial applications.
Corrosion resistance is a key factor in determining the suitability of these materials for various environments.
Understanding the typical applications of CF8M and CF3M helps in selecting the right material for specific uses.
When selecting between CF8M and CF3M, it’s important to consider their cost and availability.
A comparative analysis of the advantages and disadvantages of CF8M and CF3M stainless steels can guide material selection.
Selecting the most suitable applications for CF8M and CF3M, based on their properties, ensures both optimal performance and cost-effectiveness.
Choosing the right stainless steel involves considering factors that ensure both performance and cost-effectiveness. The choice between CF8M and CF3M stainless steel depends on the specific requirements of your application, the operating environment, and budget constraints.
It’s crucial to understand the unique demands of your application, including the following aspects:
The operating environment significantly influences the performance and longevity of the material. Key environmental factors include:
Cost considerations play a pivotal role in material selection. While both CF8M and CF3M are widely available, their costs differ:
Different industries have unique requirements that influence the choice between CF8M and CF3M. Here are some recommendations based on industry needs:
Marine applications demand materials with high resistance to seawater corrosion. CF8M is ideal for components like seawater pumps, ship fittings, and underwater pipelines due to its excellent resistance to chloride-induced corrosion.
In food processing, maintaining hygiene and resistance to food acids is crucial. CF8M’s superior corrosion resistance to food products and cleaning agents makes it suitable for equipment such as mixers, conveyors, and storage tanks.
Medical devices require materials with high stress resistance and biocompatibility. CF3M is preferred for surgical instruments and implants due to its excellent resistance to stress corrosion cracking and ease of sterilization.
To make an informed decision, evaluate the specific needs of your project in terms of mechanical stress, environmental conditions, and budget. Align these requirements with the properties of CF8M and CF3M to choose the most suitable stainless steel for your application.
Below are answers to some frequently asked questions:

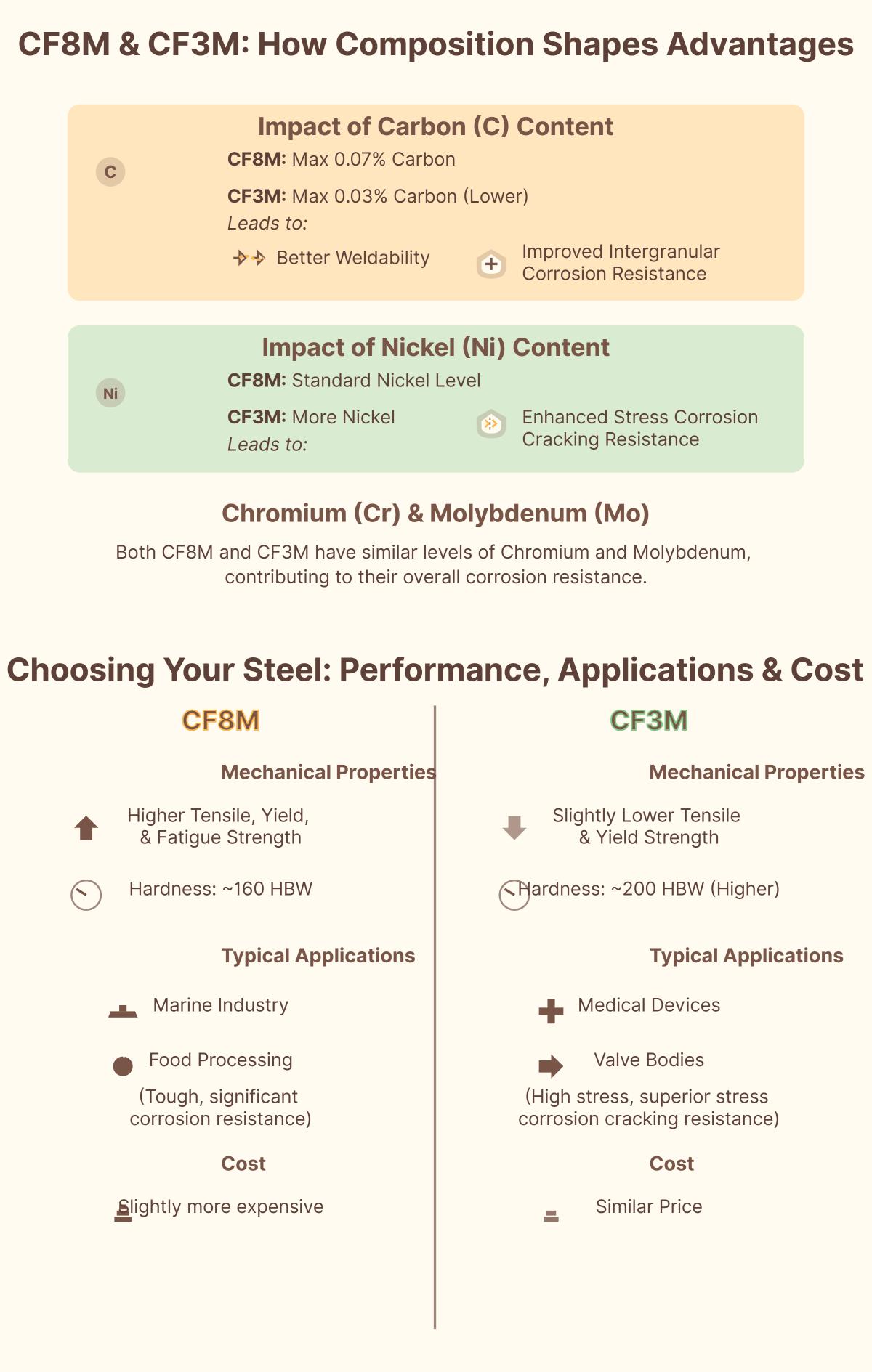

CF8M and CF3M stainless steels are both austenitic alloys with specific differences in their chemical composition, mechanical properties, and applications. CF8M contains higher carbon content (max 0.07%) compared to CF3M (max 0.03%), making CF3M more resistant to intergranular corrosion and more weldable. Both alloys have similar levels of chromium and molybdenum, but CF3M has more nickel, enhancing its resistance to stress corrosion cracking.
Mechanically, CF8M offers higher tensile, yield, and fatigue strength, with a Brinell hardness of about 160 HBW, making it suitable for tough applications requiring significant corrosion resistance, such as in marine and food processing industries. In contrast, CF3M, with a higher Brinell hardness (around 200 HBW) but slightly lower tensile and yield strength, is preferred for high-stress applications like medical devices and valve bodies due to its superior stress corrosion cracking resistance.
Cost-wise, both alloys are similarly priced, though CF8M might be slightly more expensive due to its higher alloy content.
Both CF8M and CF3M are austenitic stainless steels with good corrosion resistance. CF8M has superior corrosion resistance, especially in chloride – rich environments like marine and food processing applications, due to its higher chromium content (16.50% – 18.50%) and molybdenum which resists pitting and crevice corrosion. CF3M, with a higher nickel content, is better at resisting stress corrosion cracking, making it suitable for high – stress applications such as medical devices. So, for high – chloride environments, CF8M is better, while for high – stress conditions, CF3M is the preferred choice.
CF8M stainless steel is well-suited for applications in marine and high chloride environments, such as boat fittings and pipeline structures, due to its superior resistance to pitting and crevice corrosion. It is also extensively used in the food and beverage industry for tanks and valves, thanks to its resistance to corrosion from food products and cleaning agents. Additionally, CF8M is ideal for chemical processing applications involving mildly acidic and alkaline conditions, making it suitable for pumps and valves.
On the other hand, CF3M stainless steel is preferred for medical devices because it can withstand repeated sterilization without losing its properties and is resistant to stress corrosion cracking. It is also suitable for chemical processing and storage equipment that requires high corrosion resistance and weldability without the need for post-weld heat treatment. Moreover, CF3M is commonly used for valve bodies and pump casings in applications where welding is frequent, as its lower carbon content reduces the risk of intergranular corrosion.
CF8M typically costs more than CF3M primarily due to its higher molybdenum content, which enhances corrosion resistance, making it suitable for demanding applications like marine and food processing environments. CF3M, with its lower carbon content, offers better weldability and reduced risk of intergranular corrosion, often making it a preferred choice for medical devices and chemical processing equipment. However, despite CF3M’s potentially lower material cost, its increased hardness can lead to higher machining and processing costs. Therefore, the choice between CF8M and CF3M should consider both the specific performance requirements and the total budget for the project.
When choosing between CF8M and CF3M stainless steel, consider the following factors:
Yes, CF3M can be used in many of the same applications as CF8M, but the suitability depends on specific requirements. CF3M, with its lower carbon content (max. 0.03%), offers improved weldability and reduced risk of intergranular corrosion, making it ideal for applications requiring stress corrosion cracking resistance, such as medical devices and valve components. CF8M, on the other hand, has a higher carbon content (max. 0.07%), which provides better mechanical strength and is preferred in environments with high chloride corrosion, such as marine and chemical processing equipment. Therefore, while both alloys share good corrosion resistance, the choice between CF3M and CF8M should consider the specific needs of mechanical stress, corrosion risk, and the necessity for forming or welding processes.
