Comparing Steam Tracing and Electrical Heat Tracing
In the world of industrial heating, ensuring that pipes and processes maintain the right temperature is critical for safety, efficiency,…
Imagine a world where the smooth operation of piping systems is jeopardized by freezing temperatures or fluctuating heat levels. In industries where precision and reliability are paramount, heat tracing emerges as a vital solution, ensuring that pipes remain functional and efficient regardless of external conditions. But how exactly does heat tracing work in these systems, and what types of cables are best suited for industrial applications?
In this comprehensive guide, we’ll delve into the principles of heat tracing, exploring its importance in various industries, from petroleum to chemical processing. You’ll learn about the different types of heat tracing systems, including electric and self-regulating heating cables, and the role insulation plays in maintaining thermal efficiency. We’ll provide a step-by-step approach to designing these systems, alongside strategies for improving energy efficiency. By the end of this article, you’ll be equipped with everything you need to know to optimize and maintain your heat tracing systems effectively. Ready to uncover the secrets behind keeping your piping systems in top shape? Let’s dive in.

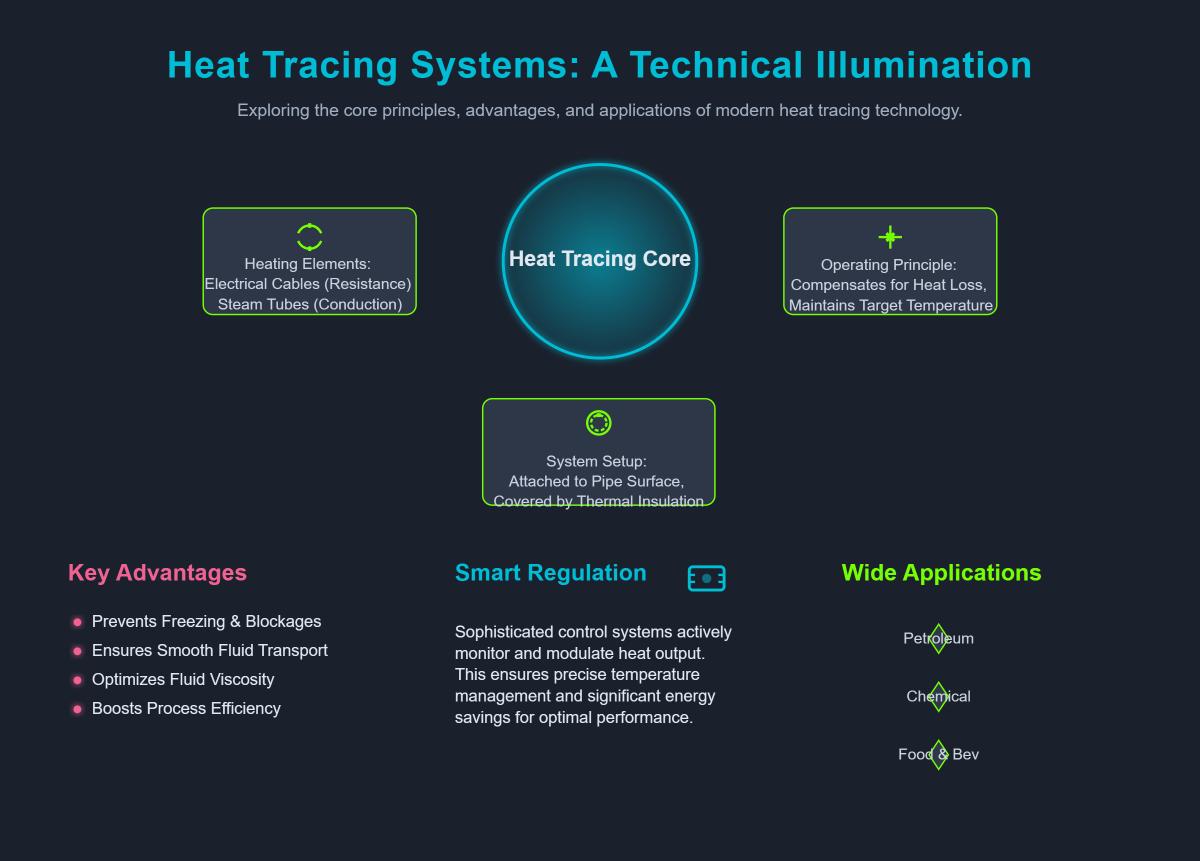

Heat tracing is a method used to maintain or increase the temperature of pipes and vessels by applying heat to counteract heat loss. This process is vital in preventing freezing in colder climates and ensuring consistent temperatures for various industrial applications, thereby safeguarding operations and equipment.
Heat tracing is essential across industries such as oil and gas, chemical processing, and food production. It prevents fluids from freezing, solidifying, or dropping below required temperatures, which could disrupt operations and damage equipment. By maintaining optimal temperatures, heat tracing systems enhance operational efficiency, safety, and reliability.
Temperature control is fundamental in heat tracing, requiring precise regulation to meet specific requirements. This involves selecting appropriate heat sources, like electric heating cables or steam tracing, and implementing control mechanisms to monitor and adjust heat output. Freeze protection is a primary application, especially in regions with freezing temperatures, preventing blockages, bursts, and significant damage by keeping pipe temperatures above freezing.
Electric heat tracing uses resistance cables to generate heat and can be self-regulating or constant wattage. Self-regulating cables adjust their heat output based on ambient conditions, providing efficient and reliable temperature maintenance without overheating.
Fluid heat tracing involves circulating a heated fluid, such as steam or glycol, around the pipe. This method is particularly effective in large-scale applications and offers rapid heating capabilities. Steam tracing is commonly chosen for its energy efficiency and quick response time.
Pipe size and material are crucial factors in designing a heat tracing system. Larger pipes require more heat, while materials with higher thermal conductivity need less heating compared to those with lower conductivity. Each application has specific temperature requirements that the heat tracing system must meet, whether for freeze protection or process temperature maintenance. Accurate heat loss calculations are essential, considering factors like ambient temperature, wind speed, and pipe exposure to determine the necessary heat input. High-quality insulation is vital for reducing heat loss and improving energy efficiency, with the type and thickness of insulation significantly impacting the overall performance of the heat tracing system. Proper insulation minimizes the amount of heat that escapes from the pipe, ensuring that the system operates efficiently and effectively.
Pipe-sensing controls adjust heat to maintain the set temperature, ensuring energy efficiency. Centralized control panels allow for adjustments and monitoring across multiple circuits, providing comprehensive control and oversight, though they may require a higher initial investment. Alarm functions for temperature, current, and fault detection ensure system reliability and enable prompt issue identification and resolution.
Regular maintenance is essential to ensure the longevity and efficiency of heat tracing systems. Inspections, record keeping, and the use of thermostats and monitoring tools help detect and address potential issues early, maintaining optimal performance.
Heat tracing is widely used in various industries:
The petroleum industry heavily relies on heat tracing systems to ensure the continuous flow of crude oil, natural gas, and other fluids through pipelines. In harsh environments, where temperatures can drop significantly, heat tracing prevents the solidification of hydrocarbons, which can lead to blockages and potential pipeline ruptures. It also helps maintain fluid viscosity, ensuring efficient transport from extraction to processing facilities.
In the petroleum industry, heat tracing systems must be designed to withstand extreme temperatures and harsh environmental conditions. Self-regulating heating cables are commonly used due to their ability to adjust heat output based on changes in surrounding temperatures, providing reliable performance without overheating. These systems are often paired with advanced control systems to monitor and maintain the desired temperatures precisely.
In the chemical industry, maintaining precise temperature control is essential for various processes, including reactions, distillation, and storage of chemicals. Heat tracing systems ensure that the temperature of chemical fluids is kept within specified limits to prevent unwanted phase changes or reactions that could compromise product quality and safety.
A major challenge in the chemical industry is handling highly corrosive substances and environments. Mineral insulated (MI) cables are particularly suited for such applications due to their robust construction and ability to operate at high temperatures. Best practices in this industry include regular maintenance and monitoring of heat tracing systems to ensure their reliability and efficiency.
In regions with freezing temperatures, freeze protection is a critical application of heat tracing systems. These systems prevent water and other fluids in pipes from freezing, which can cause blockages and significant damage to infrastructure. This is especially important for municipal water supply systems, industrial plants, and commercial buildings.
Effective freeze protection involves selecting the right type of heat tracing system and insulating the pipes adequately. Self-regulating heating cables are commonly used for their ease of installation and ability to provide consistent heat output. Additionally, proper insulation minimizes heat loss and improves the system’s efficiency.
In power generation facilities, heat tracing is used to maintain the temperature of various systems, including fuel lines, steam lines, and water supply lines. Maintaining these temperatures is crucial for ensuring efficient operation and preventing downtime.
Heat tracing in power generation can involve both electric and steam tracing systems. Electric heat tracing is often used for smaller, localized applications, while steam tracing is preferred for larger systems due to its high energy efficiency and rapid response time.
In the food and beverage industry, maintaining specific temperatures is vital for ensuring product quality, safety, and compliance with health regulations. These systems keep ingredients and products at the right temperature during processing, storage, and transport.
Maintaining consistent temperatures is crucial in this industry to prevent spoilage and contamination. Heat tracing systems are used to keep pipes and vessels at the required temperatures, ensuring that products remain within safe and optimal conditions throughout the production process.
Water and waste treatment plants use heat tracing systems to maintain optimal temperatures for biological processes and prevent freezing in water supply lines. This ensures the efficient operation of treatment processes and the continuous supply of treated water.
In these plants, maintaining the temperature of biological reactors is essential for effective treatment. Heat tracing systems help achieve this by providing consistent heat, thereby optimizing the conditions for biological activity and ensuring the efficiency of the treatment process.
By understanding and implementing heat tracing systems tailored to the specific needs of various industries, businesses can ensure the reliability and efficiency of their operations, prevent downtime, and maintain product quality and safety.
Electric heat tracing uses electrical cables to generate heat, maintaining the temperature of pipes and vessels. There are several types of electric heat tracing systems, each with distinct characteristics and applications.
Self-regulating heating cables adjust their heat output based on the surrounding temperature. The cables increase heat output as temperatures drop and decrease output as temperatures rise. This adaptability makes them ideal for environments with varying temperatures. Self-regulating cables are energy efficient and prevent overheating, making them suitable for freeze protection and temperature maintenance in various industrial applications.
Constant wattage heating cables provide a consistent amount of heat output along their entire length. Series cables have a fixed power output depending on their length and resistance, while parallel cables maintain consistent output regardless of length, making constant wattage cables ideal for uniform heat distribution in process temperature maintenance and freeze protection.
Mineral insulated cables are designed for high-temperature applications and feature a robust metal sheath that provides excellent resistance to corrosion and mechanical damage. Capable of operating at higher temperatures than other electric heating cables, MI cables are ideal for environments demanding durability and reliability. MI cables are commonly used in the chemical and power generation industries.
Fluid heat tracing systems use a heat transfer fluid, such as steam or organic fluids, to maintain the temperature of pipes. These systems are particularly effective in large-scale applications and environments where rapid heating is required.
Steam tracing involves running steam pipes adjacent to the product line. Steam transfers heat to the pipe, maintaining the desired temperature. Steam tracing is favored for its high latent heat and efficiency in heat transfer over long distances. There are three primary methods of steam tracing:
In situations where steam is not feasible, organic heat transfer fluids can be used. These fluids are heated and circulated through a system of pipes to maintain the temperature of the outer pipe. Organic fluids are often employed in applications where specific temperature control is required, and steam cannot be used due to process constraints.
When designing a heat tracing system, several factors must be considered to ensure optimal performance and efficiency:
By understanding the different types of heat tracing systems and their applications, industries can effectively manage temperature-sensitive processes, enhancing operational efficiency and ensuring safety.
Power-limiting heating cables adjust their heat output based on the surrounding temperature, making them very energy-efficient. These cables consist of a coiled resistor alloy heating element wrapped around parallel conductors. This design increases resistance as the temperature rises, reducing the power output and preventing overheating.
Benefits and Limitations:
Constant-wattage heating cables provide a uniform and consistent heat output along their entire length. They are designed with multiple constant electric power zones, each formed by fusing a heating element to exposed conductor wires.
Benefits and Limitations:
Self-regulating heating cables are designed with a conductive polymer core that adjusts the heat output based on the surrounding temperature. The core increases its resistance as the temperature rises, reducing the power output and vice versa.
Benefits and Limitations:
Mineral insulated cables are robust and designed for high-temperature applications. They feature a metal sheath and a densely packed mineral insulation, typically magnesium oxide.
Benefits and Limitations:
Insulation is a critical component of heat tracing systems, enhancing thermal efficiency and ensuring effective operation. Understanding the importance and application of insulation allows engineers and industrial professionals to optimize their systems for better performance and energy savings.
Insulation primarily functions to reduce heat loss from pipes. By minimizing heat escape into the environment, insulation helps maintain the desired temperature within the pipes, thereby reducing the energy required to keep the system operational.
Insulation helps retain heat, which means the system uses less energy to maintain the set temperature. This results in lower energy consumption and cost savings. Efficient insulation is crucial for achieving sustainable and cost-effective operations.
Insulation enhances safety by preventing burns and other hazards. By covering heated pipes and components, insulation reduces the risk of accidental contact with hot surfaces, making maintenance and operation safer for personnel.
Consistent temperature control is vital for the smooth operation of heat tracing systems. Insulation helps maintain steady temperatures, preventing issues such as cavitation and ensuring the smooth flow of liquids within the pipes. This is particularly important in industries where precise temperature maintenance is critical for product quality and process efficiency.
Various insulation materials are used in heat tracing systems, each with its own set of characteristics and suitability for different applications.
Removable insulation blankets are versatile, easy to install, and can be quickly removed and reinstalled, making them ideal for applications needing frequent maintenance access. These blankets are often used on valves, flanges, and other components that need regular inspection.
Fiberglass insulation is commonly used due to its excellent thermal properties and durability. It provides effective heat retention and is suitable for a wide range of temperatures. Fiberglass insulation is often used in both industrial and commercial heat tracing applications.
Cellular glass insulation is known for its high compressive strength and resistance to moisture. It provides excellent thermal insulation and is particularly suitable for environments where mechanical strength and moisture resistance are critical.
Custom thermal insulation is designed to fit specific components such as valves, flanges, and vessels. These custom solutions ensure a snug fit and optimal heat retention, making them ideal for applications with unique or irregularly shaped components.
Insulation reduces heat loss and maintains consistent temperatures, making the system more efficient and extending the heating elements’ lifespan by reducing the need for frequent heating cycles.
Effective insulation leads to substantial energy savings, which in turn reduces operational costs. By minimizing heat loss and maintaining efficient system performance, businesses can lower their energy bills and improve their bottom line.
Improving the energy efficiency of heat tracing systems through proper insulation also contributes to environmental sustainability. Reduced energy consumption means lower carbon emissions, helping industries meet their sustainability goals and comply with environmental regulations.
Selecting the right insulation material is crucial for the heat tracing system’s effectiveness. Factors to consider include the operating temperature, environmental conditions, and the specific requirements of the application.
Proper installation of insulation is essential for maximizing its benefits. This includes ensuring that the insulation is applied uniformly and securely, with no gaps or areas of exposed piping that could lead to heat loss.
Regularly check insulation for damage or wear and replace it as needed to maintain optimal system performance.
By understanding and implementing the appropriate insulation solutions, engineers and industrial professionals can significantly enhance the efficiency, safety, and performance of their heat tracing systems.
The first step in designing a heat tracing system is a thorough assessment of the requirements and environmental conditions. This involves understanding the specific needs of the system, the application, and the operating environment.
Accurate heat loss calculations are essential for selecting the appropriate heating cable and ensuring the system’s efficiency.
Based on the heat loss calculations and specific requirements, select the appropriate heat tracing materials.
Proper installation is crucial for the system’s performance and longevity.
Understanding and using heat tracing diagrams is essential for the design and installation process.
Selecting the right connection accessories and control systems ensures the efficient operation of the heat tracing system.
Optimizing heat tracing systems is essential for reducing operational costs and minimizing environmental impact. Here are some strategies to enhance energy efficiency:
Self-regulating heat trace cables are designed with a semiconductive polymer core that automatically adjusts its electrical resistance in response to ambient temperature changes. This dynamic adjustment results in increased heat output when temperatures drop and decreased output when temperatures rise.
Implementing advanced control systems can significantly enhance the energy efficiency of heat tracing systems.
Precise heat loss calculations are fundamental for optimizing energy efficiency in heat tracing systems.
Environmental factors significantly influence heat loss and energy efficiency in heat tracing systems.
Effective design and installation are critical for achieving energy efficiency in heat tracing systems.
Routine maintenance and monitoring are essential for maintaining energy efficiency in heat tracing systems.
Several technologies and components play a vital role in enhancing the energy efficiency of heat tracing systems.
Below are answers to some frequently asked questions:
Heat tracing in piping systems involves the use of heating cables or steam to maintain or elevate the temperature of fluids within pipes. This process is crucial in preventing freeze damage and ensuring the efficient flow of liquids, especially in cold climates. The system typically includes heating cables attached to the pipe’s surface, which generate heat through electrical resistance or steam conduction. Insulation covers the assembly to retain heat and protect the cables.
The heat tracing system operates by compensating for heat lost to the environment, thus maintaining the desired temperature of the pipe contents. Advanced control systems monitor and adjust the heat output, optimizing energy efficiency. This technology is essential in various industries, including petroleum, chemical manufacturing, and food processing, to prevent freezing, control fluid viscosity, and maintain operational efficiency.
Heat tracing cables are essential in industrial settings to maintain consistent temperatures and prevent freezing in pipes and equipment. The primary types of heat tracing cables available for industrial use include:
Choosing the right cable depends on various factors, including pipe size, exposure temperatures, insulation type, and specific temperature control requirements. Consulting with industry experts is often necessary for optimal system design and implementation.
In heat tracing systems, insulation is used to reduce heat loss from the heated pipes or vessels to the surrounding environment. This is crucial for maintaining the desired temperature within the pipes, ensuring optimal operational efficiency, and reducing energy consumption. By minimizing heat loss, insulation helps the heat tracing system to work more effectively, requiring less energy to maintain the set temperature, which leads to cost savings.
There are several types of insulation materials used in heat tracing systems, including fiberglass insulation, which is known for its thermal properties, and Foamglas cellular glass, which offers excellent thermal insulation and is impermeable to water and vapor. Removable insulation blankets are also used for their ease of application and removal, making maintenance and inspection tasks more convenient.
Self-regulating heating cables offer significant benefits in heat tracing systems for piping. These cables adjust their heat output according to ambient temperatures, which enhances energy efficiency by increasing wattage in colder conditions and reducing it in warmer conditions. This adaptive heating results in substantial energy and cost savings by minimizing unnecessary heat production.
Safety is another critical advantage, as the self-limiting feature of these cables prevents overheating, thereby avoiding damage to the cables and surrounding environment. This feature is particularly important for preventing hazards like frozen pipes and ice dams, which can lead to injuries or costly repairs.
Additionally, self-regulating heating cables are easy to install due to their flexibility; they can be cut to length as needed, reducing waste and simplifying setup. They also offer maintenance-free operation, as their self-regulating nature extends their lifespan and ensures consistent performance without frequent maintenance.
Optimizing a heat tracing system involves several techniques and tools that enhance efficiency, reduce costs, and ensure reliable performance. Accurate heat loss calculations are fundamental, considering the temperature difference between the ambient environment and the desired pipe temperature, and adjusting for insulation types and environmental factors such as wind speed. Selecting appropriate cables, like self-regulating cables for variable heat output or constant wattage cables for consistent power, is crucial. Advanced control and monitoring systems, including microprocessor-based controllers and mechanical thermostats, offer precise temperature management and energy efficiency. Proper insulation is vital for minimizing heat loss, directing heat to the target area, and achieving significant energy savings. Utilizing specialized design software and heat trace calculators ensures accurate estimation and system planning. Lastly, ensuring correct installation and regular maintenance are essential to avoid inefficiencies and prolong system life.
Heat tracing systems are essential in several industries where maintaining optimal temperatures is crucial for operational efficiency and safety. Key industries that benefit the most include:
Overall, heat tracing systems play a critical role in enhancing efficiency, safety, and reliability across these industries.
