How to Join Brass Fittings: A Step-by-Step Guide

When it comes to plumbing and metalworking, brass fittings are indispensable due to their durability and versatility. Whether you’re a novice DIY enthusiast or a budding professional, mastering the art of joining brass fittings is essential. But where do you start? How do you ensure a leak-free connection, and what techniques yield the strongest joints? In this comprehensive guide, we’ll walk you through the entire process, from selecting the right type of brass fitting to expertly installing them using PEX, compression, and brazing methods. Ready to transform your skills and achieve flawless connections? Let’s dive in!

Introduction to Brass Fittings

Brass fittings are components made from an alloy of copper and zinc that connect pipes or tubes in various systems. These fittings are essential in plumbing, HVAC (Heating, Ventilation, and Air Conditioning), and many industrial applications, ensuring a secure, leak-free connection critical for safe and efficient operation.

Brass fittings are highly valued in plumbing for their durability and resistance to corrosion, making them ideal for both hot and cold water systems due to their ability to withstand high temperatures and pressures. Additionally, brass fittings are less likely to crack or disintegrate over time, providing a long-lasting solution for water supply lines and fixtures.

In metalworking, brass fittings are used due to their ease of machining and forming. Their malleability allows them to be shaped into various complex forms without cracking, making them suitable for custom and specialized applications.

Key Properties of Brass Fittings

Brass fittings are strong and durable, meaning they can handle high pressure without changing shape. They also resist corrosion, especially from water and chemicals, making them perfect for plumbing. Their malleability allows for easy shaping and molding into different forms, which is essential for creating intricate and specific fitting designs.

Types of Brass Fittings

Threaded brass fittings have screw-threaded ends for a tight connection. Compression fittings use a nut and ring to create a seal without soldering. Flare fittings are used for high-pressure connections, especially in gas lines. Push-to-connect fittings allow quick connections without tools.

Applications of Brass Fittings

Brass fittings are versatile and reliable, used in residential plumbing to connect water lines, in HVAC systems for heating and cooling, in gas lines for secure connections, and in industrial equipment for fluid and air handling.

Comparison of Different Brass Fitting Types

Tees

Tees are T-shaped fittings that connect three pipes, enabling the flow to be split or merged. They are commonly used in systems where the flow needs to be divided or combined, such as in irrigation and HVAC systems.

Pros:

• Versatile for splitting or joining flows.
• Available in various sizes and configurations.

Cons:

• Can cause pressure drops due to changes in flow direction.
• May require additional supports due to multiple connections.

Best Use Cases:

• Splitting water supply lines.
• Combining fluid flows in heating systems.

Couplings

Couplings are used to connect two pipes end-to-end, ensuring a continuous flow. They are essential for extending the length of pipes or repairing sections.

Pros:

• Simple and quick to install.
• Available for various pipe sizes and materials.

Cons:

• May not be suitable for high-pressure applications without additional reinforcement.
• Potential for leaks if not installed correctly.

Best Use Cases:

• Extending plumbing lines.
• Repairing damaged pipe sections.

Elbows

Elbows are fittings that change the direction of the pipe flow, typically by 45 or 90 degrees. They are essential in navigating around obstacles in piping systems.

Pros:

• Efficiently redirect flow with minimal pressure loss.
• Available in different angles for various applications.

Cons:

• Can cause flow resistance and potential turbulence.
• Requires precise installation to avoid leaks.

Best Use Cases:

• Redirecting water flow in residential plumbing.
• Navigating around structural elements in HVAC systems.

Adaptors

Adaptors connect pipes of different sizes or types, making them versatile in mixed-material systems. They are crucial when transitioning between different piping materials.

Pros:

• Adaptors are flexible and easy to install, connecting various pipe types.

Cons:

• Potential for leaks if not properly sealed.
• May require additional fittings for secure connections.

Best Use Cases:

• Transitioning from copper to PEX pipes.
• Connecting pipes of different diameters in industrial systems.

Plugs

Plugs are used to temporarily or permanently seal off the ends of pipes. They are often employed during maintenance or to close off unused pipe sections.

Pros:

• Simple and effective for sealing pipe ends.
• Easy to install and remove.

Cons:

• Not suitable for permanent high-pressure sealing without additional measures.
• Potential for leaks if not properly tightened.

Best Use Cases:

• Sealing pipes during maintenance.
• Closing off unused branches in plumbing systems.

Unions

Unions allow for easy disconnection and reconnection of pipes without cutting. They are ideal for systems requiring frequent maintenance or adjustments.

Pros:

• Convenient for maintenance and repairs.
• Provides a strong, leak-proof connection.

Cons:

• Typically more expensive than standard couplings.
• May require precise alignment during installation.

Best Use Cases:

• Connecting gas lines in residential and industrial settings.
• Hydraulic systems requiring regular maintenance.

Wyes

Wyes are Y-shaped fittings that split the flow into two directions. They are commonly used in drainage and sewage systems to merge flows from different sources.

Pros:

• Efficiently splits flow with minimal resistance.
• Reduces potential for clogging compared to tees.

Cons:

• Larger footprint than some other fittings.
• Can be more expensive due to complex shape.

Best Use Cases:

• Merging drainage lines in residential plumbing.
• Splitting flows in irrigation systems.

Step-by-Step Installation Guide for PEX and Compression Fittings

Tools and Materials Needed

Before starting the installation, gather the following tools and materials:

• PEX tube cutter
• Deburring tool
• Calibration tool
• Wrench
• Brass PEX compression nut and ring (ferrule)
• PEX tubing

Preparing PEX Pipes for Fittings

Properly preparing PEX pipes is essential for a secure and leak-free connection.

Measure and Cut the PEX Tube

1. Use a measuring tape to mark the length of PEX tubing required.
2. Cut the PEX tubing using a PEX tube cutter. Ensure the cut is clean and straight to fit the compression fitting properly.

Deburr and Calibrate the Tube

Use a deburring tool to remove rough edges from the cut end of the PEX tube, then employ a calibration tool to ensure the tube is round and properly sized for the fitting.

Step-by-Step Guide to Installing Brass PEX Fittings

Follow these steps to install brass PEX fittings:

Slide the Compression Nut and Ring onto the Tube

Slide the compression nut onto the PEX tube, followed by the compression ring positioned about 1/4 inch from the end.

Insert the Tube into the Fitting

Push the PEX tube into the brass compression fitting until it reaches the stop. A slight twist can help seat the tube properly.

Tighten the Compression Nut

Hand-tighten the compression nut onto the fitting, then use a wrench to tighten it about a quarter turn further, being careful not to over-tighten.

Step-by-Step Guide to Installing Compression Fittings

Compression fittings can be used to join various types of pipes securely.

Gather Necessary Tools and Materials

• Compression fitting (compression nut, ring, and body)
• Pipe cutter or hacksaw
• Deburring tool
• Wrench

Measure and Cut the Pipe

1. Measure the required length of the pipe and mark it.
2. Cut the pipe using a pipe cutter or hacksaw. Ensure the cut is square and clean.

Deburr the Pipe

Use a deburring tool to remove any burrs or rough edges from the cut end of the pipe. This prevents damage to the compression ring and ensures a tight seal.

Assemble the Compression Fitting

1. Slide the compression nut onto the pipe, followed by the compression ring.
2. Insert the pipe into the compression fitting body until it reaches the internal stop.

Tighten the Compression Nut

Hand-tighten the compression nut onto the fitting body. Use a wrench to tighten the nut further, ensuring a secure connection. Be careful not to over-tighten, as this can damage the fitting.

Key Considerations for Installation

• Compatibility: Ensure that the fittings are compatible with your type of PEX pipe (PEX-A, PEX-B, PEX-C) or other piping materials.
• Pressure Rating: Select fittings that match or exceed your system’s maximum water pressure.
• Temperature Effects: Be aware of temperature changes that can affect PEX pipe flexibility and contraction times.
• Regular Maintenance: Conduct regular inspections to ensure ongoing system integrity and address any issues promptly.

Brazing Techniques for Brass

What is Brazing?

Brazing is a metal-joining process that involves using a filler metal with a lower melting point than the base metals. The filler metal is heated until it melts and flows into the joint, forming a strong bond as it cools. Unlike welding, brazing does not melt the base metals, which helps maintain their structural integrity.

Tools and Materials Needed for Brazing Brass

To braze brass fittings, you will need the following tools and materials:

• Brass fittings (the pieces to be joined)
• Brazing filler metal (commonly silver or brass alloys)
• Flux (to prevent oxidation and facilitate the flow of the filler metal)
• Brazing torch (e.g., oxy-acetylene or propane)
• Safety gear (gloves, goggles, and protective clothing)
• Cleaning tools (degreaser, wire brush, or abrasive pads)

Step-by-Step Brazing Process

Preparation of Brass Surfaces

1. Clean the Brass: Thoroughly clean the brass surfaces to remove dirt, grease, and oxides using a degreasing solvent or mechanical methods like wire brushing or sandpaper.
2. Remove Coatings: Remove any protective coatings to ensure good adhesion of the filler metal.

Apply Flux

1. Flux Application: Coat the joint area lightly with flux. This material is crucial as it prevents oxidation during the heating process and promotes the flow of the filler metal.

Assemble the Pieces

1. Fit the Brass Components: Ensure that the brass pieces fit tightly together. A close fit facilitates capillary action, allowing the filler metal to flow effectively into the joint. Use clamps or jigs if necessary to maintain alignment during heating.

Heat the Joint

1. Heating: Heat the joint evenly with a torch until the flux liquefies and the base metal reaches the brazing temperature, usually between 1,100°F and 2,000°F (593°C to 1,093°C). Avoid overheating, as this can weaken the brass.

Apply the Filler Metal

1. Introduce Filler Metal: Once the joint is adequately heated and the flux is flowing, introduce the brazing filler metal. It should melt upon contact and flow into the joint through capillary action. Ensure that it fills the joint completely without gaps.

Cooling and Inspection

1. Allow to Cool: Let the joint cool naturally to avoid thermal shock, which can lead to cracking. Do not quench in water.
2. Inspect the Joint: After cooling, inspect the joint for defects such as cracks or incomplete filling; a well-brazed joint should be smooth and uniform, without visible gaps or porosity.

Common Issues and Troubleshooting

Porosity

Porosity in the brazed joint can occur if the surfaces are not adequately cleaned or if the filler metal is not applied properly. Ensure that all surfaces are clean and that flux is used effectively to prevent this issue.

Weak Joints

Weak joints may result from overheating or improper filler metal selection. Always maintain the correct temperature and choose a filler metal that is compatible with the brass being joined.

Crimping Methods for Brass Fittings

Introduction to Crimping Brass Fittings

Crimping is a common technique to attach brass fittings to PEX pipes, providing a strong and durable connection. This method involves using a crimp tool and a metal ring, typically copper, to fasten the fitting onto the pipe. Brass fittings are favored for their strength and resistance to corrosion, making them suitable for various plumbing applications.

Tools and Materials Needed for Crimping

To successfully crimp brass fittings, you will need the following tools and materials:

• Crimp tool
• Crimp rings (usually copper)
• Brass PEX fittings
• PEX tubing
• PEX cutter
• Go/No-Go gauge

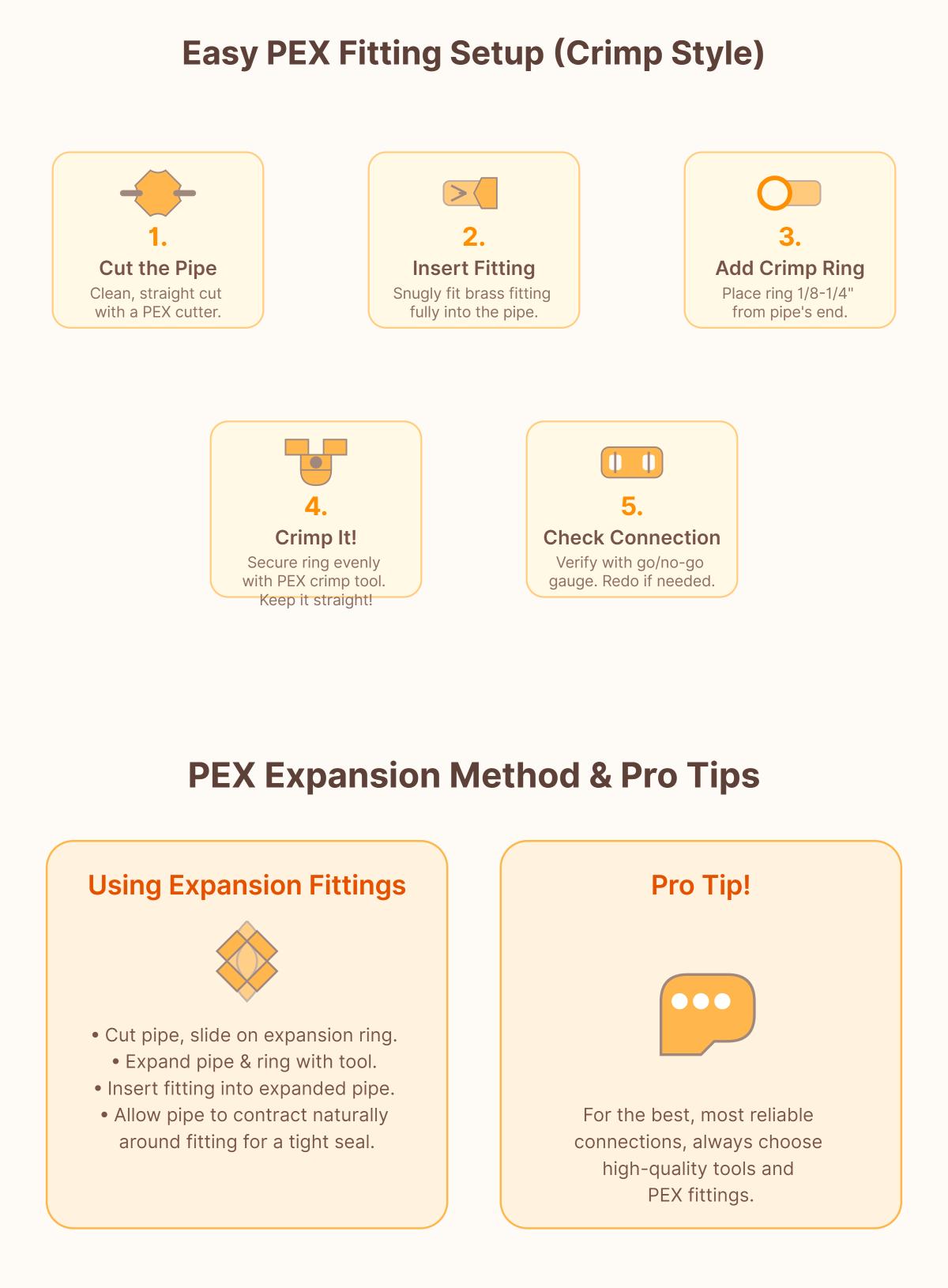

Step-by-Step Guide to Crimping Brass Fittings

Preparation

1. Cut the PEX Tubing: Use a PEX cutter to cut the tubing to the desired length. Make sure the cut is clean and straight for a proper fit.
2. Slide and Position the Crimp Ring: Slide the crimp ring over the end of the PEX tubing, positioning it about 1/8 inch from the end.

Installing the Brass Fitting

1. Insert the Brass Fitting: Push the brass fitting into the PEX tubing until it is fully seated. Ensure that the fitting is inserted straight to avoid any misalignment.

Crimping the Connection

1. Use the Crimp Tool: Place the crimp tool over the crimp ring. Make sure the tool is straight for an even crimp.
2. Compress the Ring: Squeeze the handles of the crimp tool to compress the crimp ring uniformly around the fitting and tubing. Apply steady pressure until the ring is fully compressed.

Verifying the Crimp

1. Check with a Go/No-Go Gauge: Use a Go/No-Go gauge to check the crimp. The gauge should slide easily over the crimped ring, but not over an uncrimped ring. This ensures that the crimp is neither too loose nor too tight.

Advantages of Crimping Brass Fittings

• Reliability: Properly crimped connections are highly reliable, offering excellent performance in both hot and cold water systems.
• Durability: The crimped connection provides a strong grip, ensuring long-term durability.
• Suitability: Crimped brass fittings are suitable for a wide range of plumbing applications, including residential and commercial systems.

Tips for Successful Crimping

• Use Quality Tools: Ensure that your crimp tool is calibrated and in good condition. Quality tools are essential for making secure connections.
• Follow Manufacturer Guidelines: Adhere to the manufacturer’s instructions for crimp ring placement and tool usage to avoid improper installations.
• Inspect Connections: Always inspect your crimped connections for leaks and ensure that the crimp ring is properly positioned and compressed.

Common Issues and Troubleshooting

• Over-Crimping: Over-crimping can damage the fitting and tubing. Check with the Go/No-Go gauge to confirm the crimp is correct.
• Incorrect Ring Placement: Ensure the crimp ring is positioned correctly, about 1/8 inch from the end of the tubing. Incorrect placement can lead to leaks.

By following these guidelines and using the proper tools and techniques, you can achieve secure and reliable connections with brass PEX fittings using the crimping method.

Common Issues and Troubleshooting Tips

Common Issues in Joining Brass Fittings

Properly joining brass fittings is crucial for ensuring leak-free and durable connections in plumbing and DIY projects. Here are some common issues you might encounter and how to troubleshoot them:

Leaks Due to Improper Installation

Cause: Over-tightening or under-tightening can damage the threads, leading to leaks.

Solution: Tighten the fittings until they are snug. Generally, this means hand-tightening, then giving an additional quarter to half turn with a wrench. Make sure the threads are properly aligned to prevent cross-threading.

Incompatible Sealants

Cause: Using the wrong type of sealant can result in poor sealing.

Solution: Apply Teflon tape or a pipe thread sealant that is compatible with brass and the specific application, whether it’s for water or gas. Make sure to apply it evenly to prevent excess material from entering the pipe.

Corrosion and Degradation

Cause: Brass with a high zinc content can corrode over time, especially in systems with poor water quality.

Solution: Use DZR (DeZincification Resistant) brass fittings or consider water quality improvements, such as chlorine removal.

Manufacturing Defects

Cause: Poor casting or machining can result in imperfections like cracks or uneven surfaces.

Solution: Inspect fittings before installation for visible defects and use precision tools to detect inconsistencies.

Misalignment and Incompatible Fittings

Cause: Incorrect fitting sizes or misalignment can lead to leaks.

Solution: Ensure fittings and pipes are compatible in size and type. Use templates or jigs for precise alignment.

Insufficient Preparation

Cause: Dirty or damaged threads can prevent a proper seal.

Solution: Clean threads thoroughly with a wire brush before applying sealant.

Troubleshooting Tips

Visual Inspection

Inspect all connections for any signs of leaks, like droplets or wet areas.

Testing for Leaks

Run water or air through the system and inspect joints using soapy water for air leaks.

Cleaning and Reapplying Sealant

If leaks are detected, disassemble the connection, clean the threads, and reapply sealant before reassembling.

Regular Maintenance

Perform yearly checks to spot early signs of wear and corrosion, so you can address them before they turn into major problems.

By addressing these common issues and following these troubleshooting tips, you can ensure secure, leak-free brass fittings in various applications.

Best Practices for Connecting Brass Fittings

Essential Tools and Materials

Gather these tools and materials before you start:

• Pipe Cutter: For making clean, straight cuts on brass pipes.
• Deburring Tool: To remove any burrs from the cut edges.
• Thread Sealant: Such as Teflon tape or pipe dope to ensure watertight connections.
• Wrenches: Adjustable or pipe wrenches for tightening fittings without damaging them.
• Safety Gear: Gloves and safety glasses to protect against sharp edges and chemical exposure.

Step-by-Step Guide

Measure and Cut the Pipe

1. Determine the Required Length:
   • Use a measuring tape to measure the length of the pipe needed.
   • Mark the cut point clearly with a marker.
2. Make a Clean Cut:
   • Use a pipe cutter to make a precise, straight cut on the marked point, ensuring a snug fit with the fittings.

Deburr the Pipe Ends

1. Remove Rough Edges:
   • After cutting, use a deburring tool to smooth out any rough edges or burrs from the pipe ends.
   • This ensures a smooth, leak-free connection.

Apply Thread Sealant

1. Wrap the Threads:
   • Wrap Teflon tape clockwise around the male threads (1.5 to 2 turns) to prevent unraveling when tightening.
   • Alternatively, apply a thin layer of pipe dope to the threads.
2. Ensure Compatibility:
   • Make sure the sealant used is appropriate for the type of fluid being transported, such as Teflon for water lines or pipe dope for gas lines.

Align and Hand-Tighten the Fittings

1. Align the Fittings:
   • Carefully align the brass fittings with the pipe ends to ensure proper threading.
   • Hand-tighten the fittings to engage the threads properly and prevent cross-threading.

Tighten with Wrenches

1. Secure the Connection:
   • Use two wrenches: one to hold the fitting body and the other to tighten the connection.
   • Avoid over-tightening as this can strip the threads or damage the fittings.
   • Tighten until the connection feels snug, then stop to prevent damage.

Test the Connection

1. Conduct a Pressure Test:
   • After assembly, run water, gas, or air through the system to test for leaks. If you find any, disassemble the connection, clean the threads, reapply the sealant, and reassemble.

Common Mistakes and Troubleshooting

Over-tightening

• Problem: Over-tightening can lead to stripped threads and leaks.
• Solution: Tighten fittings just enough to secure them without excessive force.

Dirty Threads

• Problem: Debris on threads can compromise the seal.
• Solution: Ensure threads are clean before applying sealant.

Corrosion Risk

• Problem: Outdoor applications are prone to corrosion.
• Solution: Use brass fittings with corrosion-resistant coatings to withstand harsh weather.

Regular Maintenance

• Inspection: Regularly (every few months) inspect brass fittings for signs of wear, corrosion, or leaks.
• Prompt Action: Address any issues promptly to maintain the integrity of the system.

Frequently Asked Questions

Below are answers to some frequently asked questions:

How do I install brass PEX fittings?

To install brass PEX fittings, follow these steps:

1. Cut the PEX Pipe: Use a PEX tubing cutter to make a clean, straight cut at the desired length.
2. Insert the Fitting: Slide the brass PEX fitting into the pipe until it is fully inserted and fits snugly.
3. Slide on the Crimp Ring: Position the crimp ring about 1/8 to 1/4 inch from the end of the pipe.
4. Crimp the Ring: Use a PEX crimp tool to secure the ring evenly around the tubing and fitting. Ensure the tool is straight for a proper seal.
5. Check Your Work: Use a go/no-go gauge to verify the crimp. If the gauge fits, the connection is secure; if not, redo the crimp.

For expansion style fittings, after cutting the pipe, slide the expansion ring onto the pipe, use a PEX expansion tool to expand both the pipe and the ring, insert the fitting, and allow the pipe to contract naturally around the fitting. Always use high-quality tools and fittings for reliable connections.

What are the best practices for connecting brass fittings?

When connecting brass fittings, follow these best practices to ensure secure and leak-free joints:

1. Inspect and Clean Components: Before assembly, check the brass fittings and pipes for any defects or impurities. Clean them thoroughly to remove any dirt, dust, or oil.
2. Measure and Cut Pipes Accurately: Use a pipe cutter for clean, straight cuts and ensure the pipe length is correct to prevent misalignment.
3. Deburr Pipe Ends: After cutting, remove any burrs or rough edges using a deburring tool. Smooth pipe ends help in forming tight connections.
4. Use Thread Sealant for Threaded Fittings: Apply Teflon tape or pipe dope on male threads to create a watertight seal. Wrap the tape in a clockwise direction to avoid unraveling during tightening.
5. Proper Tightening: Hand-tighten threaded fittings initially, then use two wrenches for final tightening—one to hold the fitting body and the other to turn the connection. Ensure fittings are snug but avoid over-tightening to prevent damage.
6. Correct Assembly of Compression Fittings: Slide the compression nut and ferrule over the tubing, insert the tubing into the fitting, and tighten the nut evenly with a wrench. Do not over-tighten.
7. Ensure Proper Engagement for Push-to-Connect Fittings: Push the pipe into the fitting until it clicks into place and lightly pull to confirm a secure connection.

Regularly inspect fittings for leaks or signs of wear, and perform pressure tests after installation to ensure system integrity. Use safety gear and follow precautions to prevent injuries and corrosion.

How do I braze brass for strong joints?

To braze brass for strong joints, start by cleaning the surfaces of both brass pieces to remove any contaminants like oil, grease, or oxide layers. This can be done using a degreaser or abrasive tools like steel wool. Ensure the brass pieces fit snugly together, as a tight fit is crucial for capillary action, which helps the filler metal flow properly.

Next, apply a thin, even layer of flux to the joint area to prevent oxidation during heating. Gradually heat the assembly using a torch, making sure to apply heat evenly to avoid overheating. Once the joint reaches the appropriate temperature (typically between 1,100 to 2,000 degrees Fahrenheit), apply the brazing filler metal. Common choices include silver-based alloys or phosphorus-copper alloys. The filler metal will be drawn into the joint by capillary action.

After brazing, let the joint cool down completely before handling it.

How do I choose the right type of brass fitting for my project?

Choosing the right type of brass fitting for your project involves several key considerations to ensure safety, efficiency, and durability. First, understand the specific requirements of your project, including the type of application (e.g., plumbing, gas lines, heating systems), as different applications may necessitate different fittings. Consider the operating conditions such as pressure, temperature, and the type of fluid or gas that will pass through the fittings to ensure compatibility.

Next, select the fitting type based on its function. Common types include elbow fittings for changing pipe direction, tee fittings for connecting three pipes, and compression fittings for joining pipes without soldering. Ensure that the size and thread type of the fittings match your pipes or tubing, with common thread types being NPT, BSP, and Metric threads.

Additionally, consider material compatibility to avoid galvanic corrosion, and ensure the fittings can withstand the system’s temperature and pressure. Prioritize high-quality fittings from reputable manufacturers for durability and safety, and consult experts if you have any doubts. By following these steps, you can select the appropriate brass fittings for a reliable and efficient connection in your project.

What tools are necessary for installing brass fittings?

To successfully install brass fittings, having the right tools is essential. Here are the necessary tools and materials:

• Brass Fittings: Choose the appropriate type (e.g., threaded, compression, push-fit) based on your project needs.
• Pipe: Ensure compatibility with the fittings, such as copper, PVC, or galvanized iron.
• Pipe Cutter or Hacksaw: For cutting pipes to the required length with a clean, straight cut.
• Deburring Tool or Emery Cloth: To smooth the edges of the cut pipe, removing burrs that could hinder a secure fit.
• Adjustable Wrench or Pipe Wrench: To tighten connections securely without damaging the threads.
• Teflon Tape or Pipe Joint Compound: For wrapping threads to ensure a watertight seal.
• Measuring Tape: To measure the exact length of pipe needed.
• Safety Goggles and Gloves: To protect yourself during the cutting and assembly processes.

By using these tools, you can achieve a reliable and leak-free installation of brass fittings.

How can I prevent leaks in brass fittings?

To prevent leaks in brass fittings, follow these key strategies:

1. Choose High-Quality Brass Fittings: Select fittings from reputable manufacturers to avoid defects such as cracks or uneven surfaces that can cause leaks.
2. Proper Installation Techniques: Ensure fittings are correctly aligned and hand-tightened initially to avoid cross-threading. Use a wrench to tighten securely but avoid over-tightening, which can damage threads.
3. Use Sealants and Tapes: Apply Teflon tape (PTFE tape) in a clockwise direction on male threads to create a tight seal. For additional protection, use a thread sealant paste.
4. Regular Maintenance: Conduct periodic inspections for signs of wear, corrosion, or leaks. Clean fittings and reapply Teflon tape or sealant as needed to maintain a secure connection.
5. Protect from Environmental Factors: Shield fittings from extreme temperatures, humidity, and chemicals to prevent accelerated wear and tear.

By following these steps, you can ensure leak-free connections in your brass fittings.
