Have you ever found yourself staring at a bolt or a screw, wondering just how to determine its thread size accurately? Whether you’re a DIY enthusiast, a budding mechanic, or simply someone looking to complete a home project, understanding how to measure thread size is a vital skill. This precision guide is designed to walk you through the process, step by step, ensuring you have all the knowledge and tools needed to measure thread size with confidence.
In this comprehensive tutorial, we’ll introduce you to the different types of threads and the essential tools required for the job. You’ll learn how to measure both internal and external threads accurately, utilizing calipers and a thread pitch gauge. We’ll also highlight common mistakes to avoid, ensuring your measurements are precise every time.
Ready to master the art of thread measurement? Let’s dive in and take the guesswork out of this essential task.
Thread measurement is crucial for ensuring threaded components fit together correctly and function reliably in different applications. Understanding the key parameters involved is the first step in mastering thread measurement.
Thread size refers to the diameter of the threaded part. For external threads, like those on a bolt, it’s the distance across the peaks of the threads. For internal threads, such as those inside a nut, it’s measured across the valleys. Thread size is typically expressed in inches for imperial measurements or millimeters for metric threads.
Thread pitch, the distance between adjacent threads, is expressed as threads per inch (TPI) in imperial measurements and in millimeters in metric systems. Matching the pitch is crucial; even if two components have the same diameter, they won’t fit if their pitches don’t align.
Threads are classified into various standards, such as ISO metric, Unified Thread Standard (UTS), and British Standard Pipe (BSP). Identifying the correct thread type is vital for ensuring compatibility across different systems and applications.
To measure threads accurately, you need the right tools. Here are some essential tools for thread measurement:
Calipers are versatile tools used to measure both the major diameter and pitch of threads with high precision. For external threads, place the calipers across the peaks. For internal threads, insert the calipers into the hole to measure the valleys.
A thread pitch gauge is specifically designed to measure thread pitch. It has teeth that match the thread spacing, making it ideal for frequent use and on-site measurements.
Optical comparators and digital systems reduce human error and improve accuracy, ideal for high-precision work.
Mastering these basics will provide a solid foundation for measuring threads accurately and ensuring the proper fit and function of threaded components in various applications.
Threads are critical components in various mechanical and construction applications. They come in different types, each designed for specific functions and compatibility. Here’s a breakdown of the primary types of threads you’ll encounter:
Straight threads, also known as parallel threads, maintain a consistent diameter throughout their length. These threads are used in applications needing a reliable mechanical fit, but they don’t naturally provide a seal. To ensure a leak-proof connection, additional sealing methods such as gaskets, O-rings, or thread sealant tapes are often used.
Tapered threads decrease in diameter along their length, allowing them to form a tighter, self-sealing fit as they are screwed together. This design is especially useful in plumbing and hydraulic systems, as it ensures a leak-proof connection without extra sealing materials.
The Unified Thread Standard (UTS) is widely used in the United States and includes both coarse and fine thread series. UTS threads are identified by their diameter and threads per inch (TPI), and are widely used in general engineering, automotive, and aerospace applications.
Metric threads are the international standard, characterized by their diameter and pitch in millimeters. Widely used in engineering and manufacturing, these threads follow the ISO metric system.
British Standard Pipe (BSP) threads are commonly used in plumbing and pipework. There are two types of BSP threads: BSPT (tapered) and BSPP (parallel).
National Pipe Thread (NPT) is a U.S. standard for tapered threads used to join pipes and fittings. NPT threads are designed to create a seal through the threads’ tapering.
Understanding the different types of threads and their applications is essential for selecting the right component for your project. Each thread type has unique characteristics that make it suitable for specific applications, ensuring compatibility, reliability, and performance.
When it comes to measuring thread size accurately, having the right tools is essential. Here are some fundamental tools you will need:
Calipers are versatile tools for measuring the main diameter of threads. They come in three main types:
To use calipers for measuring threads: Open the calipers wider than the thread diameter, then gently close the jaws until they touch the thread crests (for external threads) or valleys (for internal threads).
A thread pitch gauge measures the spacing between threads or threads per inch (TPI). It consists of multiple leaves with different spacings.
To use a thread pitch gauge:
Combination tools, such as the Gorilla Bolt Sizer & Thread Pitch Gauge, integrate multiple functions to measure bolt diameter, thread pitch, and bolt grade, offering convenience and efficiency.
Nut/bolt gauges are specialized tools that quickly identify fastener sizes. They work by comparing the fastener against various predefined sizes.
Calibration tools ensure that your measurement instruments are accurate and reliable. These tools can include calibration software and devices for checking the precision of inspection gages.
Determining whether the thread is straight (parallel) or tapered is the first step. Straight threads maintain a consistent diameter, while tapered threads change diameter along their length.
Use calipers to measure the major diameter of the thread. Ensure the calipers are aligned with the thread crests (for external threads) or valleys (for internal threads).
Using a thread pitch gauge, determine the thread pitch or TPI. Align the gauge teeth with the thread until you find a match.
Compare your measurements with standardized thread charts to identify the correct thread size.
Keep your tools clean and well-maintained, perform measurements at room temperature with minimal contact pressure, and take multiple measurements for consistency.
Properly measuring thread size is crucial to ensure that parts fit together seamlessly.
First, identify whether you have straight (parallel) or tapered threads. Straight threads maintain a consistent diameter along their length, while tapered threads gradually decrease in diameter, which helps create a seal in pipe fittings.
Choose a blade from the gauge that closely matches the thread spacing. Align the blade’s teeth with the thread grooves and ensure a snug fit. If it fits perfectly, you have the correct pitch.
Use the measured diameter and pitch to identify the thread size on a standardized chart.
Poor lighting can cast shadows and make it difficult to see the thread profiles clearly. Use natural daylight or bright, diffused lighting to ensure your work area is well-lit and avoid misreading thread sizes.
Temperature changes can make metal expand or contract, causing inaccurate measurements. Measure threads at a consistent room temperature, ideally around 20°C (68°F), to align your measurements with standardized specifications.
Excessive pressure when measuring can distort threads and cause incorrect readings. Use minimal pressure when using tools like calipers or thread gauges, and gently close the tool until it just makes contact with the thread without forcing it.
Dirt and debris on measuring tools can interfere with accurate readings. Clean your tools thoroughly before each use to ensure that both the thread and the measuring tool are free from any contaminants.
Misaligned threads can result in inaccurate measurements and poor fitting. Ensure that the threaded object is properly aligned. For external threads, make sure the object is straight. For internal threads, ensure the tool is inserted correctly.
Worn or damaged threads can give false measurements, leading to improper fitting. Inspect threads for signs of wear or damage before measuring. Replace any worn or damaged parts to ensure accurate measurements.
Improper use of measuring tools can result in inaccurate readings. Familiarize yourself with the correct usage of tools like calipers and thread pitch gauges. For example, when using calipers, measure across multiple thread peaks for a more accurate diameter.
Different thread types (e.g., NPT vs. compression) can look similar but have different measurements. Learn to identify different thread types. Use specific gauges designed for the thread type you are measuring to ensure accuracy.
Systematically record your measurements. Consistent documentation helps maintain accuracy and reliability across projects.
Compare your measured data to standard thread charts to verify accuracy and identify the correct thread size. This practice ensures that your measurements are aligned with industry standards.
Below are answers to some frequently asked questions:

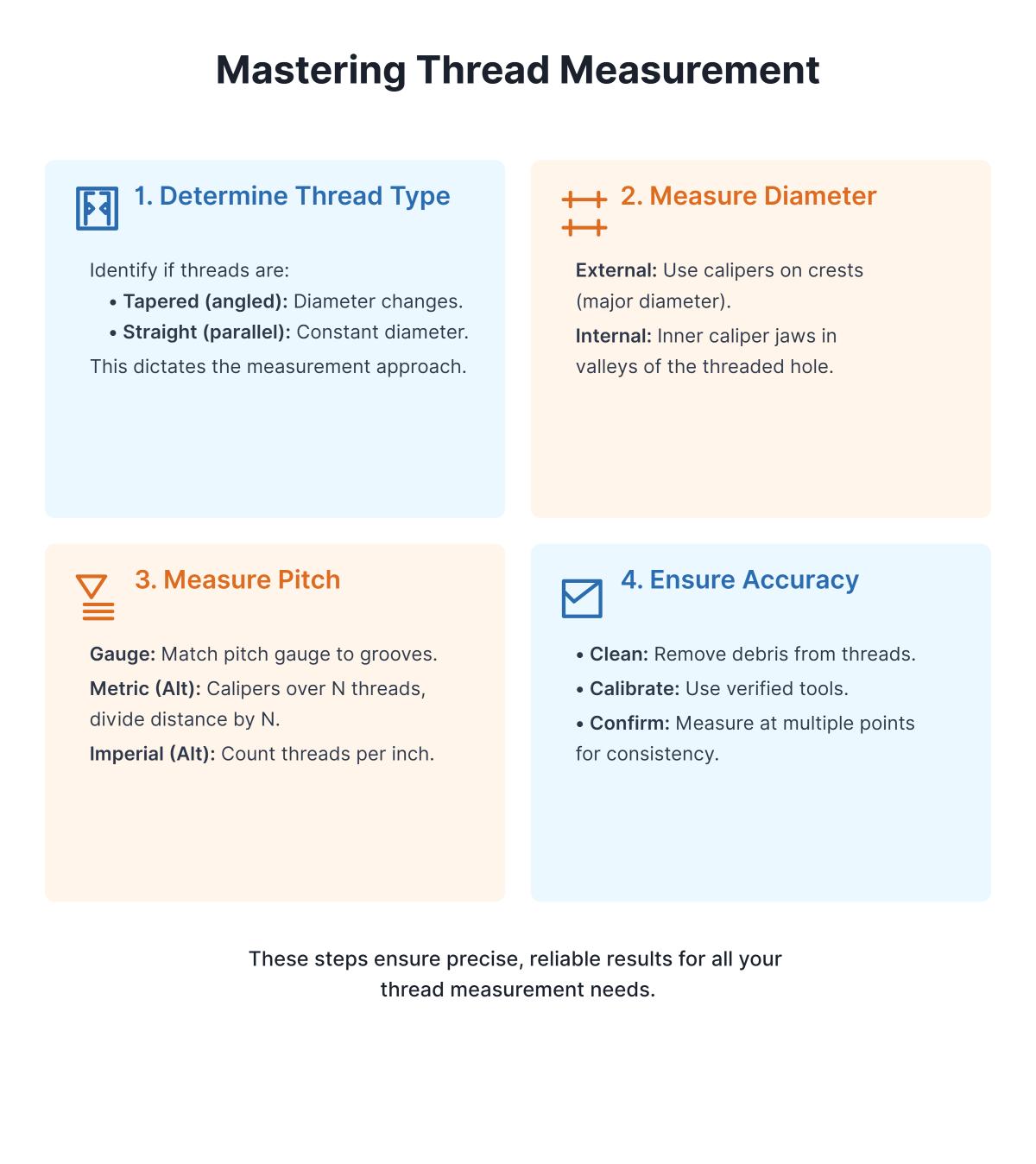

To measure thread size accurately, follow these steps:
Using these methods and tools will help you achieve precise and reliable thread size measurements.
To measure thread size accurately, you need a few essential tools:
These tools ensure accurate measurements, essential for compatibility and proper functioning of threaded components.
To measure worn or damaged threads accurately, start by identifying the thread type, whether straight or tapered. Use calipers to measure the major and minor diameters of external threads, and for internal threads, insert the caliper jaws to measure these diameters. Employ thread gauges to ensure the correct fit without force: internal thread gauges should fit perfectly into the threaded hole, while external thread gauges should fit onto the threaded portion.
Next, measure the thread pitch using a thread pitch gauge, aligning it with the thread profile to find the perfect fit. Alternatively, measure the distance between two adjacent thread crests. For precise measurements, especially for worn threads, consider the Three-Wire Method for external threads or the Three-Point Method for internal threads.
When troubleshooting worn threads, use a combination of thread gauges and calipers, and potentially a microscope for detailed inspection. Ensure your measuring tools are clean and calibrated for accuracy, and take multiple measurements around the thread to account for irregularities. Regular maintenance of your tools is essential to maintain their precision. Following these steps will help you effectively measure worn or damaged threads, ensuring the integrity of threaded components.
Metric and imperial thread measurements differ primarily in their units and standards. Metric threads use millimeters (mm) for both diameter and pitch, which is the distance between threads. These threads typically have a 60° angle and follow International Organization for Standardization (ISO) guidelines, ensuring high precision and uniform strength.
Imperial threads, on the other hand, use inches to measure diameter and threads per inch (TPI) for pitch. Various standards exist within the imperial system, such as Unified National Coarse (UNC), Unified National Fine (UNF), and British Standard Whitworth (BSW). These threads may have different angles and are less standardized globally compared to metric threads.
Understanding these differences is essential for accurate thread measurement and ensuring compatibility in engineering and manufacturing projects.
