Milling hardened steel is no simple task—it requires precision, expertise, and the right tools. If you’re looking to elevate your milling game, you’re in the right place. Hardened steel, known for its durability and strength, is a staple in industries like aerospace and automotive, making it a critical material to master. In this comprehensive guide, we delve into the nuances of milling hardened steel, from selecting the best cutting tools to optimizing your CNC milling process. Whether you’re curious about the benefits of carbide tools, how to set the correct feed rates and cutting speeds, or integrating advanced AI techniques, we’ve got you covered. Ready to transform your milling operations and achieve flawless results? Let’s dive in and explore the best practices and expert tips to conquer hardened steel milling.
Hardened steel is a type of steel that has undergone a heat treatment process to increase its hardness and strength. The process usually involves heating the steel to a high temperature and then quickly cooling it, often using oil or water. The heat treatment results in a material with high hardness, often up to 64 HRC on the Rockwell scale, and enhanced properties like increased wear resistance, durability, and the ability to maintain a sharp edge, making it ideal for high-stress applications.
In the aerospace industry, hardened steel is used extensively for components that require high strength and durability. These include landing gear parts, engine components, and various structural elements. The ability to withstand extreme conditions and maintain integrity under high stress makes hardened steel indispensable in this field.
The automotive sector benefits from hardened steel in the manufacturing of critical components such as gears, shafts, and bearings. These parts must withstand constant friction and wear while maintaining precise tolerances, making hardened steel ideal. Additionally, the use of hardened steel in safety components, like seatbelt mechanisms and crash-resistant structures, enhances vehicle safety.
Hardened steel is a cornerstone material in the tool and die industry, where it is used to make cutting tools, molds, and dies. The high hardness and wear resistance of the material allow for the production of tools that can cut and shape other metals with precision and longevity. This reduces downtime and maintenance costs, improving
Milling hardened steel presents several challenges due to its high hardness and toughness. Traditional machining methods may not be effective, and specialized tools and techniques are required. Key challenges include:
Choosing the right cutting tools is critical for milling hardened steel. Tools made from materials such as coated carbide, cubic boron nitride (CBN), and ceramics are preferred due to their high wear resistance and ability to withstand the high cutting forces encountered during machining. Additionally, tool coatings like AlTiN provide enhanced heat resistance, which is crucial for maintaining tool performance at high speeds.
Optimizing machining parameters is vital for successful milling of hardened steel. Key parameters include:
The machine tool itself must be capable of handling the demands of milling hardened steel. High static and dynamic rigidity, often achieved with polymer concrete bases, is essential to minimize vibrations and ensure precision. Additionally, solid spindles and precision tool holding systems are necessary to maintain tool stability and accuracy.
Using effective milling strategies can improve efficiency and surface quality. Techniques such as ascending milling can reduce cutting forces and result in smoother surfaces. High-speed milling systems, which are suitable for aggressive feed rates and small depths of cut, optimize both speed and precision. Dry machining is often preferred to prevent heat-related tool wear, but air/oil mist can be used to mitigate built-up edge issues.
Hard milling offers several advantages over traditional machining methods, including:

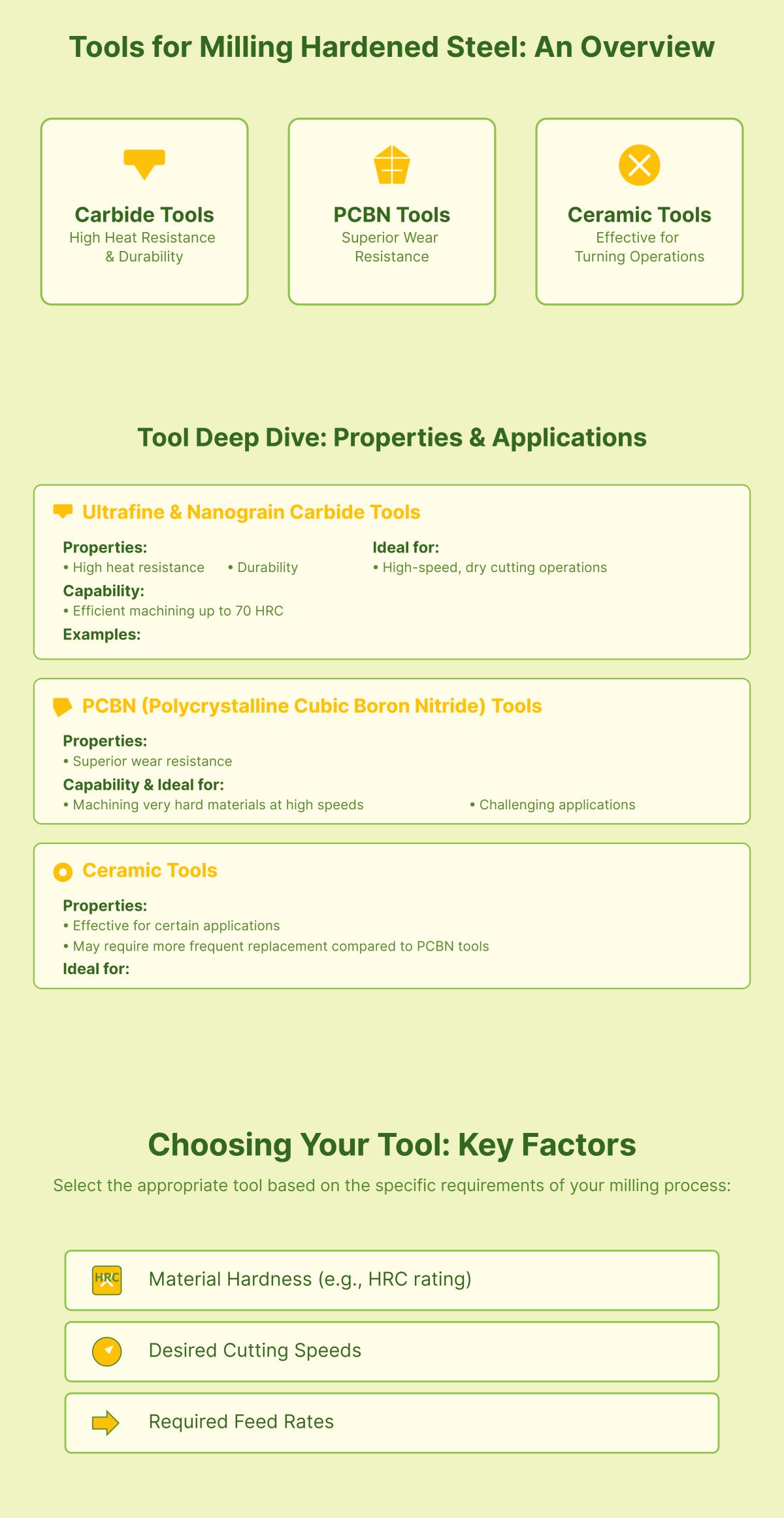

Choosing the right material for cutting tools is essential for effectively milling hardened steel. Here are the primary materials to consider:
Coated carbide tools are effective for hardened steels up to 45 HRC. These tools, often coated with materials like TiAlN or AlTiN, offer good wear resistance and can handle higher cutting speeds. They are ideal for general milling applications where the steel hardness is moderate.
For steels up to 70 HRC, consider ceramic, CBN, or nanograin carbide tools. Ceramic tools are best for continuous cuts, while CBN excels in finishing operations. Nanograin carbide, like YG-1 X5070 Blue cutters, offers excellent performance with enhanced toughness.
The design and geometry of cutting tools significantly impact their performance in milling hardened steel.
Corner radius end mills are recommended for their strength and reduced chipping risk when milling hardened steel. The rounded edges help distribute cutting forces more evenly, enhancing tool life.
Multi-flute end mills, typically with four to seven flutes, offer greater rigidity and produce smaller chips. This design leads to more efficient cutting and reduced vibration, which is critical for maintaining precision and surface quality in hardened steel milling.
The machine tool itself must be capable of handling the demands of milling hardened steel.
High machine rigidity is crucial for maintaining precision and achieving high cutting speeds. Machines with polymer concrete bases can effectively absorb vibrations, ensuring stable and accurate machining.
Advanced CNC controls and glass scales are necessary for precise positioning and handling high feed rates. This precision is critical for achieving the desired surface finish and dimensional accuracy.
Optimizing machining parameters is vital for efficient and effective milling of hardened steel.
Cutting speeds typically range from 200 to 1,000 sfm, depending on the hardness of the steel and the tool material. Faster speeds help maintain tool sharpness but must be balanced to prevent overheating.
Adjust feed rates to 1-4% of the tool diameter to account for the lower ductility of hardened steel. Proper feed rates ensure efficient chip removal and reduce the risk of tool breakage.
Dry machining is often preferred to prevent thermal shocking and tool wear. However, air or mist coolant can be used to help manage heat and maintain tool performance.
Understanding the benefits of hard milling can help justify the investment in the appropriate tools and techniques.
Carbide tools are favored for milling hardened steel because they are durable and can handle high cutting speeds. These tools are made from tungsten carbide, a very hard material, often coated with Titanium Aluminum Nitride (TiAlN) or Aluminum Titanium Nitride (AlTiN) to enhance their wear resistance and thermal stability.
Carbide tools are ideal for milling applications where the steel hardness is up to 45 HRC. They excel in operations requiring high-speed cutting and where tool longevity is critical. For even harder steels and more precise finishes, consider PCBN tools.
PCBN tools are designed for machining very hard materials, including steel up to 70 HRC. Made by bonding CBN particles with a metallic binder, these tools offer extreme hardness, second only to diamond.
PCBN tools are used for high-precision finishing operations on hardened steels with hardness levels up to 70 HRC. They are ideal for applications where surface finish and dimensional accuracy are paramount. For high-speed, continuous cutting operations, ceramic tools might be a better choice.
Ceramic tools are known for their high hardness and thermal resistance, making them suitable for high-speed machining of hardened steel up to 70 HRC. These tools are made from aluminum oxide or silicon nitride.
Ceramic tools are best used for high-speed, continuous cutting operations on hardened steel up to 70 HRC. They are particularly effective in finishing operations where high precision and surface quality are required.
Carbide tools are essential for milling hardened steel due to their durability, high hardness, and ability to maintain a sharp cutting edge under extreme conditions. These tools are typically made from tungsten carbide, a compound known for its strength and wear resistance, often enhanced with various coatings to improve performance.
Carbide tools are extremely hard, enabling them to cut through hardened steel with ease. They can handle steels with hardness levels up to 45 HRC, making them suitable for a wide range of milling applications.
One of the key advantages of carbide tools is their thermal resistance. Coatings like Titanium Aluminum Nitride (TiAlN) and Aluminum Titanium Nitride (AlTiN) provide additional protection against the heat generated during milling, ensuring the tools remain effective even at high temperatures.
Carbide tools are known for their excellent wear resistance. The combination of tungsten carbide and protective coatings helps maintain sharpness and effectiveness over extended periods, reducing the need for frequent tool changes and minimizing downtime.
These tools are capable of operating at high cutting speeds, which enhances productivity by reducing machining time. High-speed milling with carbide tools can significantly improve efficiency and surface finish quality.
Carbide tools are highly durable, maintaining their cutting edge and performance even under the demanding conditions of milling hardened steel.
Carbide tools are versatile and can be used for various milling operations, including roughing and finishing. This flexibility makes them a preferred choice for many machining tasks.
Although carbide tools may have a higher initial cost compared to some other tool materials, their long lifespan and reduced need for replacement make them cost-effective in the long run. Their ability to handle high-speed operations further contributes to
Carbide tools work well on steels up to 45 HRC but may struggle with harder materials. For steels above this hardness level, alternative tools such as PCBN or ceramic may be required.
Carbide tools can be prone to chipping if not used correctly. High impact forces or improper handling can lead to tool damage, necessitating careful operation and appropriate machining parameters.
Carbide tools are ideal for milling applications involving hardened steel up to 45 HRC. They excel in situations where high-speed cutting is required and where tool longevity is crucial. These tools are particularly effective in general milling operations, roughing, and finishing tasks, providing a balance of performance, durability, and cost-efficiency.
Optimal cutting speeds for hardened steel typically range from 200 to 1,000 sfm, depending on the hardness and tool material.
Feed rates should be adjusted to 1-4% of the tool diameter to manage high cutting forces and heat. In some cases, the feed per tooth should not exceed the width of the tool land.
Light depths of cut are recommended, often around 0.010″ to 0.020″ per surface, to minimize stress on the tool and machine.
PCBN (Polycrystalline Cubic Boron Nitride) tools are designed to machine extremely hard materials, like hardened steel, which can have hardness levels up to 70 HRC. PCBN is made by combining CBN particles with a metal binder, resulting in tools that offer exceptional hardness and wear resistance, second only to diamond.
PCBN tools are incredibly hard, allowing them to cut through tough, hardened steels with minimal wear. This hardness ensures that the cutting edge remains sharp for extended periods, reducing the frequency of tool changes and increasing productivity. PCBN tools’ wear resistance is especially useful in fast and precise milling operations.
Another critical characteristic of PCBN tools is their excellent thermal stability. They can withstand high temperatures generated during the milling process without losing their hardness or undergoing thermal deformation. This property makes them ideal for dry machining, where coolant usage is minimized to avoid thermal shock and contamination.
PCBN tools are renowned for their ability to produce superior surface finishes and maintain high dimensional accuracy. This precision is crucial in industries such as aerospace and automotive, where component tolerances are stringent, and surface integrity is paramount.
Although PCBN tools are more expensive upfront, they can save money over time because they last longer and need fewer replacements. This longevity translates into fewer interruptions in production, lower tooling costs, and increased
One of the primary limitations of PCBN tools is their brittleness. While extremely hard, they are also more susceptible to chipping and fracture under high-impact conditions or interrupted cuts. This brittleness necessitates careful handling and specific machining strategies to avoid tool damage.
The advanced manufacturing process and material properties of PCBN tools contribute to their higher cost. Therefore, their use is often justified in applications where the benefits of extended tool life, precision, and surface finish outweigh the initial investment.
PCBN tools are most effective in high-precision finishing operations where surface quality and dimensional accuracy are critical. They excel in applications involving hardened steels with hardness levels up to 70 HRC, providing consistent performance and superior results.
The thermal stability of PCBN tools makes them ideal for dry machining applications. By reducing the need for coolant, manufacturers can avoid issues related to thermal shock and contamination, further enhancing the efficiency and cleanliness of the machining process.
Choosing the appropriate tool geometry is essential for maximizing the performance of PCBN tools. Tools with a corner radius are recommended for milling hardened steel as they help distribute cutting forces more evenly, reducing the risk of chipping.
Follow supplier-recommended cutting data to ensure optimal performance. This includes setting appropriate cutting speeds, typically between 200-1,000 sfm, and feed rates of 1-4% of the tool diameter. Adjust these parameters based on the specific material properties and tool characteristics to achieve the best results.
High-precision tool holders and machine setups are crucial for maintaining the accuracy and longevity of PCBN tools. Ensure that run-out is kept below 0.0004 inches to optimize tool life and achieve the desired surface finish.
Continuously monitor the machining process and make necessary adjustments to prevent overheating and maintain tool durability. Properly controlling the engagement angle of the cutter and maintaining a constant chip load are key strategies for extending tool life and ensuring efficient machining.
Ceramic tools are highly effective for milling hardened steel due to their exceptional properties, which include high hardness, thermal resistance, and wear resistance. These tools are typically made from materials like aluminum oxide (Al2O3) or silicon nitride (Si3N4), which provide significant advantages in high-speed machining applications.
Ceramic tools can withstand temperatures up to about 4,000°F, significantly higher than the capabilities of carbide tools. This allows them to maintain their hardness and cutting efficiency even under intense heat generated during the milling process.
Ceramic materials are harder than carbide, which gives them superior wear resistance. This leads to longer tool life and less frequent tool changes, enhancing
Ceramic tools can operate at higher spindle speeds compared to carbide tools. This capability allows for faster material removal rates, improving the efficiency and productivity of the milling process.
Ceramic tools’ ability to operate at high speeds and withstand high temperatures results in faster material removal rates. This enhances
Ceramic tools provide stable performance, which translates to better surface finishes on the machined parts. This is particularly important in applications where surface quality and precision are critical.
Despite their higher initial cost, ceramic tools can be more cost-effective in the long run. Their extended tool life and reduced need for replacements make them a cost-efficient alternative to other cutting tools, such as CBN tools, for certain applications.
Ceramic end mills are highly effective for machining hardened steels, including tool steels and other alloys with hardness levels over 45 HRC. They can maintain their sharpness and efficiency where carbide tools might wear out more quickly.
The abrasive nature of cast iron is well-handled by ceramic tools. Their wear resistance reduces the frequency of tool changes, making them suitable for machining cast iron components.
Ceramic tools excel in machining nickel-based alloys, such as Inconel 718. They can handle the high temperatures and wear associated with these materials without rapid dulling.
Ceramic tools designed for milling hardened steel often feature unique geometries that enhance cutting edge strength and durability. These geometries help to minimize heat buildup and maintain the integrity of the cutting edge.
Using faster cutting speeds helps maintain the sharpness of ceramic tools. However, it is essential to balance these speeds to prevent overheating, which can negatively affect the tool and the workpiece.
Adjustments in feed rates are necessary to accommodate the reduced ductility of hardened materials. Typically, feed rates are set at 1-4% of the tool diameter to ensure efficient chip removal and maintain tool integrity.
Ensure that tool holders are properly aligned and calibrated to handle the demands of hard milling. A secure and precise setup minimizes the risk of tool breakage and enhances machining accuracy.
Proper clamping of the workpiece is crucial to prevent movement during machining. A stable workpiece ensures consistent cutting conditions and better surface finishes.
Advanced methods like Grey-Taguchi or NSGA-II can optimize machining parameters. These methods involve systematic approaches to find the best combination of cutting speeds, feed rates, and other parameters to achieve optimal performance.
Ceramic tools, with their unique properties and advantages, are a valuable choice for milling hardened steel, particularly in high-speed and high-temperature applications. By following best practices and optimizing machining parameters, manufacturers can maximize the benefits of using ceramic tools in their operations.
CNC milling of hardened steel requires careful preparation to ensure precision and efficiency. The following steps outline the essential preparations:
A robust and accurate machine setup is crucial for milling hardened steel. Ensure the CNC machine is capable of high rigidity and stability to minimize vibrations and maintain precision. Machines with polymer concrete bases are preferred for their excellent vibration dampening.
Safety is paramount when milling hardened steel due to the high forces and potential hazards involved.
Following a systematic approach to CNC milling will help achieve the desired results with efficiency and precision.
Choose the appropriate cutting tool based on the hardness of the steel and the desired milling operation.
Optimization of machining parameters is essential for achieving the best results in CNC milling of hardened steel.
Utilizing advanced toolpath strategies can significantly enhance the milling process.
Artificial Intelligence (AI) can play a pivotal role in optimizing CNC milling processes.
It’s crucial to ensure the CNC machine’s rigidity when milling hardened steel. The machine should possess high-rigidity spindles capable of maintaining high RPMs with minimal runout. Polymer concrete machines are preferred due to their superior dampening capabilities, which help reduce vibrations and enhance machining precision. Additionally, using high-precision tool holders is essential to minimize runout and secure the cutting tool firmly.
Properly clamping the workpiece is essential to prevent any movement during the milling process. Utilize high-quality fixtures and secure them tightly to ensure stability. The workpiece should be firmly held to avoid any displacement that could affect the machining accuracy and surface quality.
Operators must wear appropriate PPE, such as safety glasses, gloves, and hearing protection, because milling hardened steel involves high forces and significant heat, making proper protective gear essential for safety.
Ensure all machine guards are in place and functional to protect against flying chips and debris. Coolants should be handled safely to avoid skin contact and inhalation of fumes. Proper management of coolants is critical to prevent accidents and ensure a safe working environment.
Choosing the right tools is vital for milling hardened steel, with coated carbide, ceramic, or PCBN being the preferred materials. These materials offer extended tool life and high metal-removal rates, making them suitable for the demanding conditions of milling hardened steel.
Tools designed for hardened steel often feature unique geometries that enhance the cutting edge’s strength and durability. These specialized geometries help minimize heat buildup and prevent premature tool wear, ensuring efficient and precise machining.
Properly setting cutting speeds and feeds is key to optimal performance. For hardened steel, cutting speeds typically range from 200 to 1,000 surface feet per minute (sfm), while feed rates should be adjusted to 1-4% of the tool diameter. Balancing speeds and feeds helps maintain a constant chip load, preventing tool wear and overheating.
Dry machining is often preferred for hardened steel to avoid heat-related tool wear. However, it is crucial to ensure adequate cooling or use cutting tools designed for dry conditions. If necessary, use air or mist cooling to manage heat and prolong tool life while avoiding thermal shock to the tool and workpiece.
Using advanced CAM software to generate precise toolpaths that maintain a constant engagement angle of the cutter is vital for reducing tool wear and improving machining efficiency.
Optimize toolpaths to avoid shocking the tool, especially when using ceramic tools. Techniques such as reducing feed rates on entry and exit, and using circular or ramped toolpaths, can help manage tool stress and enhance the
Properly secure the workpiece to prevent any movement during machining, which can compromise the quality of the output. Ensure that the clamping setup is robust and stable to maintain precise and accurate machining conditions.
Continuously monitor the milling process to ensure optimal performance. Use sensors and software to track tool wear, cutting forces, and temperatures. Make necessary adjustments to feed rates, cutting speeds, and toolpaths based on real-time data to maintain efficiency and precision.
To begin the milling process, ensure your CNC machine is properly calibrated. This involves:
Install the selected cutting tool into the machine. Make sure the tool is properly aligned in the holder and tightly secured to avoid any movement during milling.
Choosing the appropriate cutting tool is crucial for milling hardened steel effectively.
Opt for tools with:
Select suitable radial and axial depths of cut based on the tool and workpiece. Light depths of cut, usually around 0.010″ to 0.020″ per surface, help reduce cutting forces and heat generation.
Keep a steady chip load to extend tool life and enhance machining quality. Adjust feed rates and spindle speeds as needed based on real-time data.
For optimal milling of hardened steel, machine rigidity is crucial. High-rigidity spindles are essential for maintaining high RPMs with minimal runout. Polymer concrete machines offer superior dampening capabilities compared to traditional cast iron machines, reducing vibrations and enhancing precision during the milling process.
Integrating advanced CAM software like HyperMILL and PowerMILL can significantly improve machining efficiency. These tools help generate complex toolpaths and support advanced machining techniques, ensuring error-free operations, especially for intricate geometries.
Choosing the right tool material is key to effectively milling hardened steel. Tools made from coated carbide, ceramic, or PCBN are ideal due to their durability and ability to withstand high pressures. Coated carbide tools are suited for steels up to 45 HRC, while ceramic and PCBN tools excel in machining steels with hardness levels up to 70 HRC.
Tools designed for hardened steel typically feature negative grinding, shallow grooves, and thick cores. These geometrical characteristics enhance the tool’s strength and durability, allowing for high-speed operations with shallow depths of cut.
The cutting speed must be adjusted according to the steel’s hardness. For hardened steel, cutting speeds usually range between 200 and 1,000 surface feet per minute (sfm). While faster speeds help maintain tool sharpness, they must be balanced to avoid overheating, which can adversely affect both the tool and the workpiece.
Feed rates should be carefully calibrated to 1-4% of the tool diameter, depending on the material’s hardness. For very hard materials, use lower feed rates to extend tool life, while combining higher feed rates with shallow depths of cut to optimize performance and efficiency.
Radial and axial depths of cut should be optimized based on the material’s hardness and the desired surface finish. For very hard materials (60+ HRC), reducing depths can preserve tool life and ensure high-quality surface finishes. Shallow depths of cut, typically ranging from 0.3 to 1.6 mm, are often used with aggressive feed rates to achieve efficient machining.
Dry machining is preferred when milling hardened steel to prevent heat-related tool wear. This technique helps manage the significant heat generated during machining, ensuring the tool remains effective. Ensure adequate airflow to remove chips and control tool temperature.
Utilizing dynamic motion technology can maintain a constant engagement angle of the cutter, reducing tool wear and improving machining efficiency. This technology helps ensure a consistent chip load, enhancing the
Begin with conservative machining parameters and gradually increase them. This approach minimizes friction and heat generation, extending tool life and improving chip formation. Starting conservatively allows for fine-tuning of the parameters based on real-time performance and material response.
Employing advanced methods like the Grey-Taguchi and NSGA-II can further optimize machining parameters. These techniques systematically evaluate and adjust cutting speeds, feed rates, and other parameters to achieve the best possible performance and efficiency in milling hardened steel.
Carbide Tools:
PCBN Tools:
Carbide Tools:
PCBN Tools:
Cost Considerations:
Automotive Industry:
Aerospace Industry:
Tool and Die Industry:
Below are answers to some frequently asked questions:
When milling hardened steel, the best tools to use are ultrafine and nanograin carbide tools, PCBN (Polycrystalline Cubic Boron Nitride) tools, and ceramic tools.
Ultrafine and nanograin carbide tools, such as YG-1 X5070 Blue Milling Cutters and YG-1 X-Power Pro, are excellent for their high heat resistance and durability, enabling efficient machining of hardened steel up to 70 HRC. These tools are ideal for high-speed, dry cutting operations.
PCBN tools are known for their superior wear resistance and ability to machine very hard materials at high speeds, making them suitable for challenging applications involving hardened steel.
Ceramic tools are also used for milling hardened steel, particularly in turning operations. Although they may require more frequent replacement compared to PCBN tools, they are effective for certain applications.
Selecting the appropriate tool depends on the specific requirements of the milling process, including material hardness, desired cutting speeds, and feed rates.
To optimize your CNC milling process for hardened steel, focus on several key areas:
By integrating these strategies, you can enhance the efficiency, precision, and cost-effectiveness of your CNC milling process for hardened steel.
When milling hardened steel, several safety considerations must be addressed to ensure operator safety and high-quality machining results. Firstly, always wear appropriate personal protective equipment (PPE) such as safety glasses or goggles to protect your eyes from flying debris, and hearing protection if the operation is noisy. Ensure that your clothing is secure to prevent entanglement with the machine.
Proper training on the specific milling machine is essential, and the workpiece must be securely clamped to prevent movement. Use sharp, high-quality tools designed for hard milling, and avoid using damaged or blunt tools as they can cause accidents.
Never leave the milling machine unattended during operation, and always have emergency procedures in place. Maintain a clean working environment to prevent respiratory hazards and potential fire risks. Ensure all machine guards and shields are in place, and that the machine setup is stable and free from excessive vibration.
If you feel unwell or unable to concentrate, avoid operating the machinery to prevent accidents. Use tools made from suitable materials, such as ultrafine or nanograin carbide, which are designed for hard milling. Consider dry machining to avoid heat-related tool wear, but use coolants if necessary based on the material being machined. Adjust machining parameters according to the material’s hardness to prevent tool breakage. Following these guidelines will help ensure a safe and efficient hard milling process.
To maintain and prolong the life of cutting tools when milling hardened steel, consider the following strategies:
By implementing these strategies, you can efficiently mill hardened steel while extending the life of your cutting tools, enhancing productivity, and reducing operational costs.
Hardened steel milling is highly beneficial across several key industries due to the material’s exceptional strength, wear resistance, and precision. The automotive industry utilizes hardened steel for components like gears, bolts, and coupling parts, benefiting from its high strength-to-weight ratio and ability to withstand shock loads. In the mold and die industry, hardened steel enhances the durability and lifespan of molds, reducing the need for frequent replacements and improving
Integrating AI for optimizing milling parameters involves leveraging machine learning algorithms to enhance efficiency, surface quality, and tool life during the milling process of hardened steel. Techniques such as Artificial Neural Networks (ANNs), Support Vector Machines (SVMs), and Genetic Algorithms (GAs) can predict surface roughness and optimize cutting parameters based on real-time machining data. These algorithms analyze vibration signals and cutting conditions like spindle speed, feed rate, and depth of cut to determine optimal milling settings.
Multi-objective optimization algorithms, such as the Non-dominated Sorting Genetic Algorithm (NSGA-II), are used to balance conflicting objectives, such as minimizing surface roughness while maximizing material removal rates. Validating AI models through controlled experiments ensures accuracy and applicability in real-world scenarios. AI can also assist in real-time monitoring and adjustments, improving overall manufacturing efficiency. Future advancements may include integrating more sophisticated AI techniques and developing robust online monitoring systems for continuous optimization.
