Wedge Anchor vs J-Bolt: What’s the Difference?
When it comes to securing structural elements to concrete, the choice of fastener can make all the difference between a…
When it comes to securing heavy loads in construction, the type of bolt you choose can make all the difference. But how do you decide between a J-Bolt and an Anchor Bolt? These seemingly similar fasteners each have unique design features and load-bearing capacities that make them suitable for different applications. Whether you’re anchoring a steel column or securing a concrete foundation, understanding the key differences between these bolts is crucial for ensuring structural integrity and safety. In this article, we’ll delve into the design, load capacities, and typical uses of J-Bolts and Anchor Bolts, providing you with the insights needed to make an informed decision for your next project. So, what sets these two types of bolts apart, and how can you determine which one is right for your construction needs? Let’s explore.
J-bolts are characterized by their distinctive J-shape, which includes a curved or hook-like end and a threaded portion. This design allows them to be embedded into wet concrete during the pouring process. The hook-shaped end provides strong resistance to vertical pull-out forces, making them reliable for anchoring purposes.
J-bolts are typically made from various grades of steel, including carbon steel, stainless steel, and sometimes alloy steel. The choice of material depends on the specific application requirements, such as load capacity and environmental conditions. For instance, stainless steel J-bolts are preferred in corrosive environments due to their superior resistance to rust.
Anchor bolts come in multiple designs, including straight, L-shaped, and headed configurations. The straight anchor bolt is a rod-like shape with a threaded end, while headed anchor bolts have a load-bearing member, such as a plate or nut, attached to the embedded end.
Anchor bolts are also made from various grades of steel, including carbon steel, stainless steel, and alloy steel. The material choice is guided by the application’s load requirements and environmental factors. High-strength steel is often used for heavy-duty applications to ensure durability and performance.
| Feature | J-Bolts | Anchor Bolts |
|---|---|---|
| Shape | J-shaped with a hook, ideal for embedding in concrete | Various shapes including straight, L-shaped, and headed, suitable for different load requirements |
| Threaded Portion | Single threaded end for attachment | Threaded end, sometimes with additional load-bearing features for enhanced performance |
| Load Distribution | Concentrated at the hook, providing strong pull-out resistance | Even distribution, especially with headed designs, for better load management |
The load capacity of J-bolts is influenced by several factors. The material and diameter of the bolt are crucial; higher-grade steels and larger diameters generally offer greater strength and load capacity. Additionally, the length of the embedded portion in the concrete affects how well the bolt can resist pull-out forces. A longer embedment length provides more surface area for the concrete to grip, increasing the pull-out resistance.
J-bolts are typically used for applications involving light to medium loads. In terms of vertical pull-out resistance, they can handle loads ranging from a few hundred pounds to several thousand pounds, depending on their size and material. For example, a small-diameter J-bolt made of carbon steel might have a pull-out capacity of around 500-1000 pounds, while a larger, high-strength alloy steel J-bolt could handle up to 5000 pounds or more. However, they are less effective in handling dynamic or lateral stresses.
The material and size of anchor bolts greatly influence how much weight they can hold. High-strength steels are often used for heavy-duty applications to ensure durability. The design of the anchor bolt also plays a vital role. Headed anchor bolts, for instance, distribute loads more evenly across a larger area of concrete, enhancing their load-bearing capacity. The type of concrete in which they are embedded, including its strength and density, also affects how much load the anchor bolt can support.
Anchor bolts are designed to handle much higher loads compared to J-bolts. They are commonly used in heavy-duty applications such as industrial equipment foundations and skyscraper construction. For large-scale projects, anchor bolts can have load capacities in the tens of thousands of pounds. In seismic regions, where both vertical and lateral forces need to be resisted, anchor bolts are engineered to withstand significant dynamic loads, ensuring the stability of the structure.
When comparing J-bolts and anchor bolts, it’s clear that anchor bolts can support heavier loads. J-bolts are limited to light to medium loads, mainly excelling in vertical pull-out resistance. Anchor bolts, on the other hand, can handle heavy loads and are versatile in resisting both vertical and lateral forces.
For projects with light to medium load requirements, such as securing light poles, signage, or small-scale structures, J-bolts are a suitable choice. Their relatively lower load capacity is sufficient for these applications, and their simple design makes them easy to install. For heavy-duty applications like industrial machinery foundations, large bridges, and skyscrapers, anchor bolts are essential due to their high load capacity and ability to distribute stress effectively.

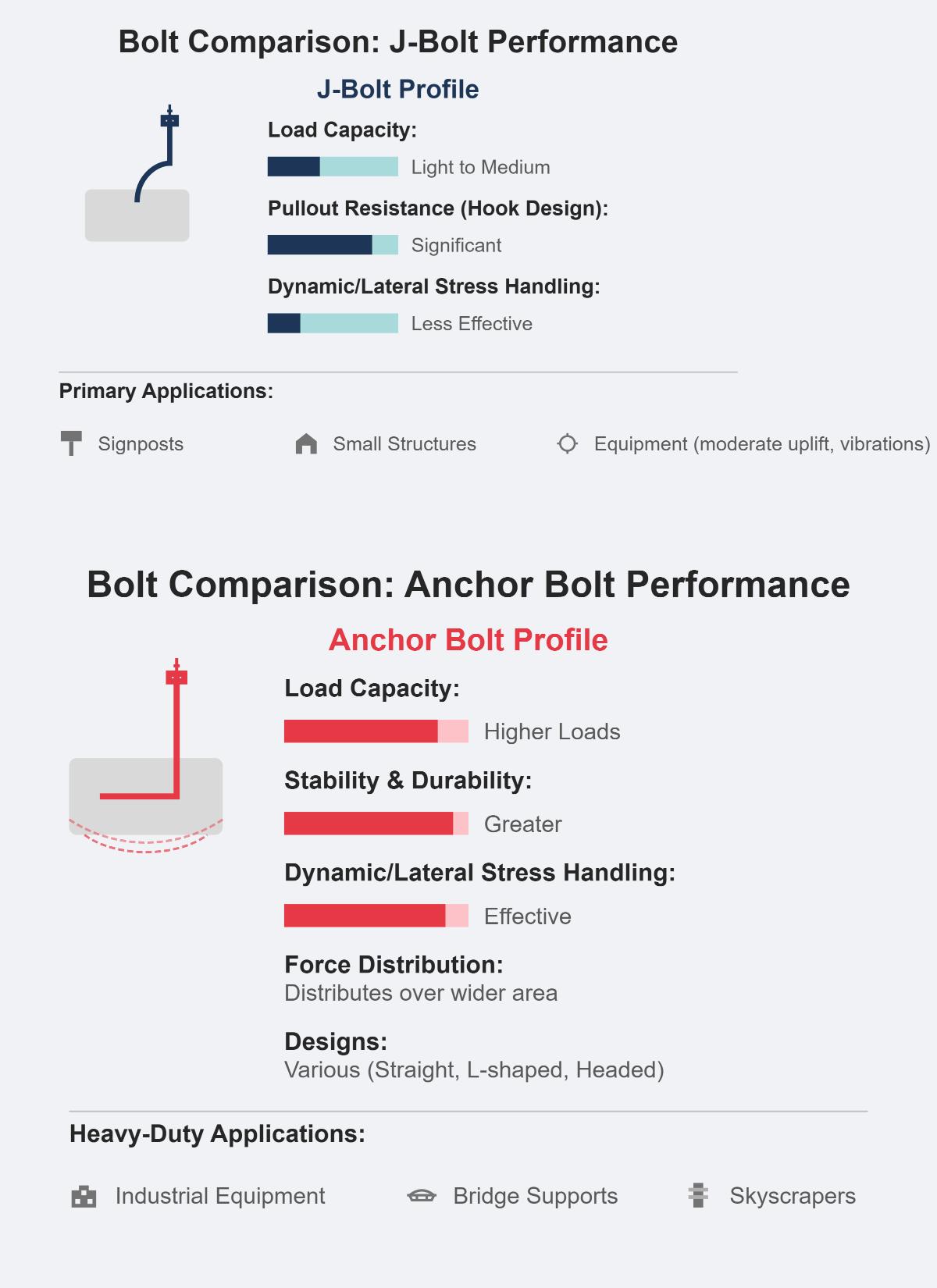

Visual aids, such as graphs or diagrams, can effectively illustrate the load capacity differences between J-bolts and anchor bolts. A graph could show the relationship between the diameter of the bolts and their load-bearing capacity for both types. Diagrams could also demonstrate how anchor bolts distribute loads more evenly across the concrete compared to J-bolts, highlighting their superior performance in heavy-load situations.
J-bolts are widely used in various construction projects, particularly those with light to medium load requirements. They are commonly employed in utility pole installations due to their straightforward design and ease of use. J-bolts are also utilized for securing signage to concrete surfaces, providing a reliable anchor point. In small-scale building projects, such as decks and sheds, J-bolts fasten columns and beams to concrete foundations effectively.
In the industrial sector, J-bolts are used for equipment mounting. They can secure small machinery to concrete floors, ensuring stability during operation. Additionally, J-bolts are used in the installation of conveyor systems, offering a cost-effective and efficient way to anchor the system to the ground.
The main benefit of J-bolts is their ease of installation. They can be embedded in wet concrete during the pouring process, eliminating the need for drilling holes in cured concrete. This simplifies installation and reduces the risk of damaging the concrete. J-bolts also offer good pull-out resistance, making them suitable for applications where vertical forces are the primary concern.
A real-life example of J-bolt application is the installation of streetlights. The J-bolts are embedded in the concrete base during pouring, and the streetlight pole is then attached to the bolts using nuts and washers. Another example is the construction of a small storage shed, where J-bolts secure the shed’s columns to the concrete foundation.
Anchor bolts are essential in large-scale construction projects, such as high-rise buildings and bridges. They anchor the structural components of these buildings to the concrete foundations, providing necessary stability and resistance to various forces. In building construction, anchor bolts secure columns, beams, and walls to the foundation, ensuring the
In the industrial sector, anchor bolts are used for heavy machinery anchoring. They can withstand the high loads and vibrations generated by large equipment, such as generators and compressors. Anchor bolts are also used in the installation of safety barriers and handrails, providing a secure attachment to the concrete surface.
The main advantage of anchor bolts is their high load capacity and ability to distribute forces evenly. They are designed to handle heavy loads and resist both vertical and lateral forces, making them suitable for demanding applications. Anchor bolts also offer better durability and long-term performance, ensuring the safety and stability of the structure over time.
A real-life example of anchor bolt application is the construction of a skyscraper. Anchor bolts secure the building’s steel frame to the concrete foundation, ensuring that the building can withstand strong winds and seismic activity. Another example is the installation of a large industrial furnace, where anchor bolts anchor the furnace to the concrete floor, preventing it from shifting during operation.
When comparing J-bolts and anchor bolts, it is clear that each type has its own strengths and limitations. J-bolts are more suitable for light to medium load applications, where ease of installation and cost-effectiveness are important factors. They are ideal for small-scale construction projects and equipment mounting. On the other hand, anchor bolts are designed for heavy-duty applications, where high load capacity and resistance to various forces are required. They are essential in large-scale construction projects and industrial machinery anchoring.
Anchor bolts offer greater versatility due to their various designs, including straight, L-shaped, and headed configurations. This allows them to be customized based on specific load and installation requirements. J-bolts, with their simple J-shaped design, are more limited in terms of application but excel in providing strong pull-out resistance.
The choice between J-bolts and anchor bolts depends on the specific requirements of the project, including load capacity, environmental conditions, and installation constraints. By understanding the differences in their applications, construction and engineering professionals can make informed decisions when selecting the appropriate type of bolt for their projects.
Concrete foundations are crucial for most construction projects, providing essential support and stability. They distribute the building’s weight evenly, preventing settlement and structural damage, and directly impact the structure’s Concrete foundations are fundamental in construction and engineering, ensuring buildings can withstand various loads and environmental conditions. They are designed to withstand various stresses and environmental conditions. Properly designed foundations prevent structural failures, ensuring the longevity and safety of the building.
Integrating J-bolts and anchor bolts with concrete foundations involves careful planning and execution to ensure structural integrity.
Maintaining structural integrity when integrating bolts into concrete foundations requires several considerations:
Visual aids can help illustrate the proper integration of bolts with concrete foundations:
These visual aids can serve as practical guides for construction professionals, ensuring that bolts are installed correctly and that the structural integrity of the foundation is maintained.
When selecting the appropriate bolt for construction needs, several factors must be taken into account to ensure optimal performance and safety. These include load requirements, environmental conditions, and the type of structure being built.
Determining the right bolt for your application depends largely on its load-bearing capacity. While J-bolts are ideal for light to medium loads with good pullout resistance, anchor bolts excel in handling higher loads, offering superior stability and durability. Therefore, for heavy-duty projects that demand high structural integrity and resistance to both tension and shear forces, anchor bolts are the preferred choice.
The environment where the bolts will be used is also crucial in the selection process. For instance, in corrosive environments, such as coastal areas or industrial sites, stainless steel bolts are preferred due to their superior resistance to rust and corrosion. Both J-bolts and anchor bolts are available in various materials, including carbon steel, stainless steel, and alloy steel, allowing for customization based on environmental conditions.
The type of structure determines the appropriate bolt. J-bolts are commonly used in smaller structures, such as light poles, signage, and small buildings, where ease of installation and cost-effectiveness are important. Anchor bolts, on the other hand, are essential for large-scale structures like skyscrapers, bridges, and industrial facilities, where high load capacity and resistance to dynamic forces are critical.
Selecting the right bolt can be simplified by following a structured decision-making guide. Consider the following criteria to determine whether a J-bolt or an anchor bolt is more suitable for your project:
In the installation of light poles, J-bolts are often used due to their simple design and ease of installation. They are embedded in the concrete base during pouring, providing a secure anchor point for the pole.
For constructing a skyscraper, anchor bolts are indispensable. They secure the steel framework to the concrete foundation, ensuring the building can withstand both vertical and lateral forces, such as wind and seismic activity.
In industrial settings, where heavy machinery needs to be anchored securely, anchor bolts are preferred. Their ability to handle high loads and resist dynamic forces makes them ideal for ensuring the stability and safety of the equipment.
By considering these factors and using the decision-making guide, professionals can select the right bolt, enhancing project safety, reliability, and longevity.
Below are answers to some frequently asked questions:
When comparing the load-bearing capacities of J-Bolts and Anchor Bolts, key differences emerge. J-Bolts are typically used for light to medium load applications, offering significant pullout resistance due to their curved hook design embedded in concrete. However, they are less effective in handling dynamic or lateral stresses. They are suitable for securing signposts, small structures, and equipment that require moderate uplift resistance, often in environments with vibrations.
In contrast, Anchor Bolts are designed to handle higher loads, providing greater stability and durability. They distribute forces across a larger concrete area, making them ideal for heavy-duty applications such as industrial equipment foundations, bridge supports, and skyscraper construction. Anchor Bolts manage both vertical and lateral forces effectively and are available in various designs (e.g., straight, L-shaped, headed) that offer specific advantages, such as distributing stress over a wider area to enhance stability.
J-Bolts and Anchor Bolts are both essential components in construction, but they serve different purposes and are used in distinct applications.
J-Bolts, with their distinctive J-shape, are typically used in heavy-duty applications. They are commonly embedded in concrete to anchor structural elements like columns and beams in high-rise buildings, bridges, and industrial settings. Their curved end hooks around rebar, providing a secure and reliable anchor point for significant loads.
On the other hand, Anchor Bolts encompass a broader category of fasteners, including J-Bolts, L-Bolts, and other types. They are used to attach structural components to concrete or masonry. Applications range from residential projects to large commercial and industrial constructions. For example, L-type anchor bolts are often used in smaller-scale projects like residential buildings due to their ease of installation and suitability for lighter loads.
Choosing the right type of bolt for specific construction needs involves evaluating several factors: project scale, load requirements, installation complexity, environmental conditions, and budget constraints.
For heavy-duty projects with high load-bearing demands, such as skyscraper foundations or industrial machinery installations, anchor bolts are ideal due to their superior resistance to tension and shear forces. They come in various designs, including straight, L-shaped, and headed configurations, offering greater stability and durability.
In contrast, J-bolts, with their distinctive J-shaped hook, are better suited for lighter applications like securing utility poles or mounting equipment to concrete floors. They are easier and more cost-effective to install, making them suitable for projects with moderate load capacities and simpler requirements.
Environmental conditions also play a crucial role. In areas prone to seismic activity or high vibrations, anchor bolts are preferred for their robust performance. Budget considerations may lead to selecting J-bolts for their affordability and ease of installation in less demanding scenarios.
J-bolts and anchor bolts each have distinct features tailored to specific construction needs.
J-bolts are characterized by their J-shaped hook and threaded end, making them ideal for securing structural elements like beams to concrete foundations. They excel in providing resistance against vertical pullout forces and are typically used in light to medium load applications such as residential decks and small structures. J-bolts are embedded during the concrete pouring phase, ensuring a strong bond and simplifying installation. They are often made from stainless or galvanized steel for excellent corrosion resistance.
Anchor bolts, on the other hand, come in various designs including straight, L-shaped, and headed configurations, which allow them to handle a range of load types and provide superior structural support. These bolts are designed for higher load-bearing applications, suitable for heavy-duty projects like high-rise buildings and industrial facilities. Anchor bolts can be installed both before and after concrete has set, offering flexibility in construction. They generally have a higher installation cost due to their complex design and the tools required.
The installation methods for J-bolts and anchor bolts differ primarily in timing and complexity. J-bolts are typically embedded in fresh concrete during the pouring process. This method ensures the bolt is securely set as the concrete hardens, making it a simpler and more straightforward process requiring fewer tools and less labor.
In contrast, anchor bolts can be installed either during the concrete pour or post-installation. The latter involves drilling into cured concrete and securing the bolt with adhesives or expansion mechanisms. This flexibility allows for installation in existing structures but adds complexity, necessitating additional tools and preparation. Consequently, while J-bolts offer ease of installation in new concrete pours, anchor bolts provide greater versatility for various construction scenarios.
J-Bolts and Anchor Bolts cannot be used interchangeably in construction due to their distinct designs and specific applications.
J-Bolts have a J-shaped hook design, which provides significant pullout resistance. They are typically used for light to medium load applications and are simpler to install, making them ideal for securing items like light poles or smaller structures where vertical pullout forces are a concern.
In contrast, Anchor Bolts come in various designs, such as straight, L-shaped, or headed, and are engineered to handle higher loads. They distribute forces more evenly across the concrete, making them suitable for demanding applications like skyscraper foundations and areas prone to seismic activity. Their installation process is more complex and they are designed to ensure higher structural integrity and resistance to both tension and shear forces.
Therefore, the specific requirements of the construction project, including load capacity, environmental conditions, and structural demands, dictate the choice between J-Bolts and Anchor Bolts, preventing them from being interchangeable in all scenarios.
