Understanding the Magnetic Properties of Steel
Imagine holding a small magnet near a piece of steel and watching as it snaps into place. This seemingly simple…
Have you ever wondered why some pieces of steel can cling to your refrigerator while others slide off without a hint of attraction? This phenomenon is rooted in the magnetic properties of steel, a subject that intertwines the fascinating principles of material science with practical engineering. As we embark on this comprehensive guide, we’ll delve into what makes steel magnetic, exploring the intricate roles of ferromagnetism, microstructure, and alloying elements. We’ll uncover how heat treatment can alter steel’s magnetic properties and examine various types of steel to understand their unique magnetic behaviors. Prepare for a technical deep dive that will unravel the secrets of steel’s magnetism and provide valuable insights for both enthusiasts and professionals alike. So, what exactly is it that imbues steel with its magnetic allure? Let’s find out.

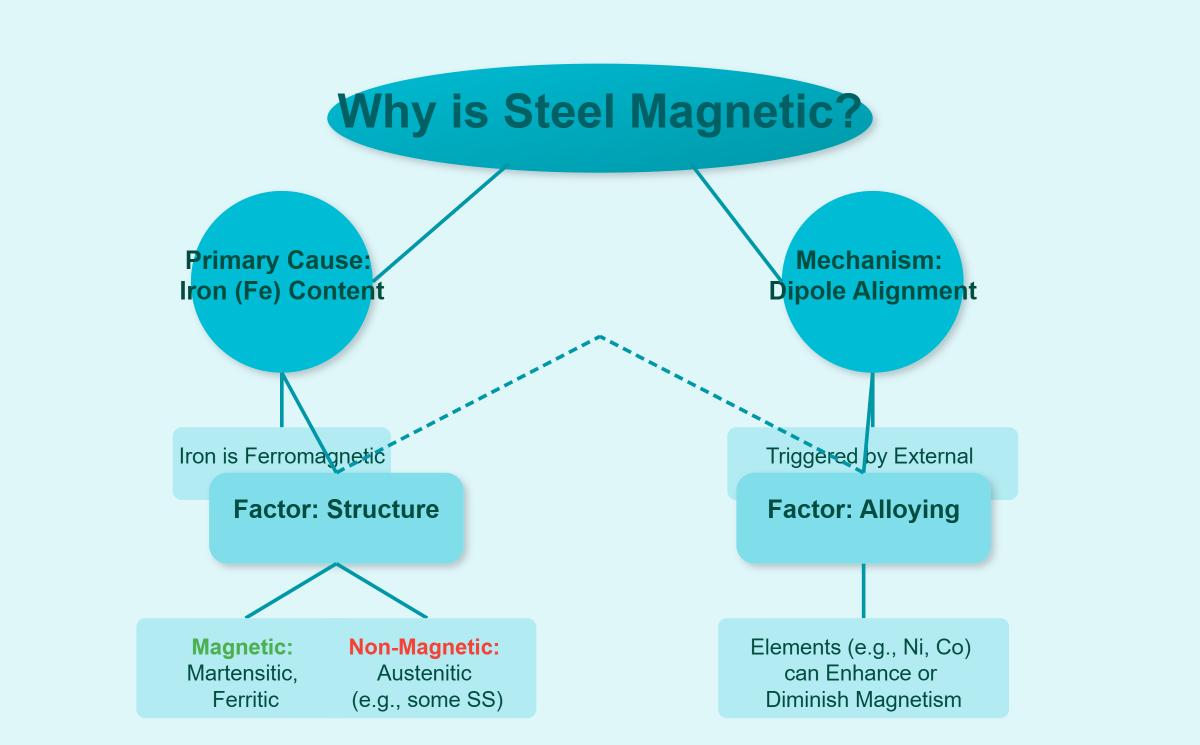

Steel, an alloy mainly composed of iron and carbon, exhibits notable magnetic properties because of its ferromagnetic nature. The iron content in steel is the key factor behind its ferromagnetic behavior. Iron atoms possess magnetic moments that can align with an external magnetic field, causing the material to become magnetized.
Carbon content also impacts magnetism, with high-carbon steels typically showing stronger magnetization due to changes in their crystal structure. The interaction between iron and carbon atoms affects how magnetic moments are arranged, thus influencing the steel’s magnetic properties.
Carbon steel is typically magnetic. Its high iron content and distinct crystal structure contribute to this property. The iron atoms in carbon steel align readily with an external magnetic field, enabling it to be easily magnetized.
Stainless steel presents a more complex picture. Different types of stainless steel have varying magnetic properties:
In an external magnetic field, the iron atoms in steel align their magnetic moments. This alignment leads to the magnetization of the steel, a characteristic behavior of ferromagnetic materials.
Steel has the ability to retain magnetism even after the external magnetic field is removed. Under certain conditions, this can result in permanent magnetization. Hysteresis is essential for applications needing a stable magnetic field.
Magnetized steel carries an induced charge. This charge is a result of the realignment of electrons within the material. The induced charge can interact with other charged objects, which has practical implications in various electrical and magnetic applications.
Understanding the magnetic properties of steel requires a deep dive into several core material science concepts. These principles help explain how and why steel exhibits magnetism, and how its magnetic properties can be tailored through various processes and alloying techniques.
The magnetic behavior of steel originates at the atomic level, primarily involving the magnetic moments of iron atoms. Iron atoms have magnetic moments due to the spin of their electrons. In ferromagnetic materials like steel, these magnetic moments can align parallel to each other under an external magnetic field, resulting in a net magnetic field.
The arrangement of atoms in the crystal lattice of steel also plays a crucial role. Steel can have different crystal structures, such as body-centered cubic (BCC) and face-centered cubic (FCC). The BCC structure, found in ferritic and martensitic steels, is typically magnetic, while the FCC structure, common in austenitic steels, is generally non-magnetic unless altered by mechanical or thermal treatments.
The microstructure of steel, which refers to the arrangement and distribution of its phases and grain structures, significantly influences its magnetic properties. Smaller grain sizes generally enhance the magnetic permeability of steel, making it easier to become magnetized, while the presence of different phases, such as ferrite and martensite, affects its magnetism. Dislocations and defects, like imperfections in the crystal structure such as dislocations and grain boundaries, can pin magnetic domain walls, affecting the material’s magnetic properties.
Ferromagnetism is the phenomenon where certain materials, like steel, exhibit strong magnetic properties. This behavior is due to the presence of magnetic domains, which are regions within the material where the magnetic moments are aligned. When an external magnetic field is applied, these domains align with the field, causing the material to become magnetized.
Adding different elements to steel can modify its magnetic properties. Increasing carbon content generally enhances the potential for magnetization but can reduce magnetic permeability due to changes in the microstructure. Chromium, found in stainless steels, can stabilize certain phases like ferrite or austenite, influencing magnetism. High nickel content, especially in austenitic stainless steels, can reduce magnetism by stabilizing the FCC structure.
Heat treatment processes can alter the microstructure and, consequently, the magnetic properties of steel. Annealing, which involves heating and slowly cooling steel, can relieve internal stresses and refine grain structure, improving magnetic properties. Quenching and tempering involve rapid cooling followed by reheating to transform the microstructure, creating magnetic phases like martensite, while normalizing involves heating steel and air cooling to produce a uniform microstructure that enhances magnetic performance.
Two critical concepts in understanding steel’s magnetic properties are hysteresis and magnetic permeability:
These material science concepts form the foundation for understanding and manipulating the magnetic properties of steel. By controlling factors like microstructure, alloy composition, and heat treatment, engineers can tailor steel to meet specific magnetic requirements for a wide range of applications.
Heat treatments such as annealing, quenching, and tempering change the crystal structure of steel, which directly affects its magnetic properties. Different heat treatments can either enhance or reduce the magnetic properties of steel. The resulting microstructure after heat treatment determines whether the steel becomes more or less magnetic. For example, quenching and tempering can create magnetic phases like martensite, increasing magnetism.
Non – metallic inclusions in steel can act as pinning sites for domain walls. These sites hinder the movement of magnetic domains, affecting how easily the material can be magnetized.
Carbon steel, widely used in various industries, is primarily influenced by its iron and carbon content. Its magnetic properties are largely determined by these elements, with iron being inherently ferromagnetic. The varying amounts of carbon can alter the steel’s microstructure, impacting its magnetism. Generally, higher carbon content enhances magnetization due to lattice distortion, increasing magnetic permeability. Carbon steel’s robust magnetic properties make it suitable for electromagnets, transformers, and other applications requiring strong magnetism, and it is prevalent in construction and automotive sectors.
Stainless steel is renowned for its corrosion resistance, but its magnetic properties vary significantly across different types.
Ferritic stainless steels are magnetic due to their high iron content and body-centered cubic (BCC) crystal structure. Common grades include 409, 430, and 439. These steels are ideal for applications needing both corrosion resistance and magnetism, like automotive exhaust systems and industrial equipment.
Martensitic stainless steels also exhibit magnetism, featuring high iron content and a body-centered tetragonal (BCT) crystal structure. Common grades include 410, 420, and 440. They are frequently used in applications demanding high strength and hardness, such as cutlery, surgical instruments, and certain types of valves and pumps.
Duplex stainless steels, with a mix of austenite and ferrite, offer moderate magnetic properties. Common grades include 2205. These steels are utilized in environments that require a balance of strength, corrosion resistance, and some magnetism, such as chemical processing and marine applications.
Austenitic stainless steels are generally non-magnetic due to their face-centered cubic (FCC) crystal structure, which prevents magnetic domain alignment. Common grades include 304 and 316. Under specific conditions like mechanical working or thermal treatment, austenitic steels may become weakly magnetic due to martensite formation.
Alloy steels contain various alloying elements such as nickel, chromium, and molybdenum, influencing their magnetic properties. The magnetic behavior of alloy steels depends on the specific elements and their concentrations. Nickel tends to reduce magnetism by stabilizing the FCC structure, whereas chromium can enhance magnetism by stabilizing the BCC structure. Alloy steels are used in diverse applications, including those requiring tailored magnetic properties, such as power generation equipment, automotive components, and aerospace structures.
The atomic arrangement in steel’s crystal lattice greatly affects its magnetic properties. BCC and BCT structures, found in ferritic and martensitic steels, promote magnetic alignment, whereas FCC structures in austenitic steels do not.
Elements like nickel and chromium can modify the steel’s microstructure, impacting its magnetism. Nickel generally reduces magnetism, while chromium can enhance it depending on its concentration and interaction with other elements.
Heat treatments like annealing, quenching, and tempering can alter steel’s microstructure and thus its magnetic properties. For instance, quenching and tempering can induce martensitic phases, which are magnetic.
Understanding these magnetic properties is essential for selecting the right steel for specific applications, ensuring that engineers consider composition, crystal structure, and processing methods to achieve desired magnetic performance in their designs.
Steel has magnetic properties because it’s ferromagnetic, mainly due to its high iron content. The iron atoms in its crystal structure form magnetic domains. This makes steel easily magnetized and able to keep its magnetism even when the external magnetic field is removed.
Several factors can change the magnetism in steel. These include its composition, crystal structure, and heat – treatment processes.
Iron is ferromagnetic. So, more iron in steel means stronger magnetic properties. The magnetic moments of iron atoms align more easily, increasing the
Higher carbon content can boost the magnetization of steel, especially after heat treatment. Heat treatment can form martensite, a ferromagnetic phase, which enhances the steel’s magnetism.
Alloying elements have a big impact on steel’s magnetism:
The crystal structure of steel decides its magnetic behavior:
Heat treatment processes like quenching, annealing, and tempering can change the steel’s crystal structure and its magnetic properties:
To make steel more magnetic, increase its iron content (due to iron’s ferromagnetic nature), have a higher carbon content (to form martensite after heat treatment), and add cobalt (since it’s ferromagnetic).
To reduce steel’s magnetism, use high nickel content (to stabilize the non – magnetic austenitic structure), high chromium content (to disrupt magnetic domain alignment), or use austenitic stainless steels (which are generally non – magnetic because of their high nickel and chromium content).
Given the ability to manipulate steel’s magnetic properties through composition and processing, it finds crucial uses in various industries. In electrical systems, transformers and electromagnets rely on steel’s magnetic properties for efficient operation. Metal sorting and lifting in manufacturing processes, such as in scrap metal recycling, depend on the magnetism of steel. In consumer electronics, speakers and hard drives use magnetic steel for their functionality.
Magnetic steel plays a crucial role in the automotive industry, especially for electric motors and generators. These components are essential for electric and hybrid vehicles, contributing to improved fuel efficiency and reduced emissions. Additionally, magnetic steel is used in the construction of vehicle bodies and frames, enhancing both safety and durability. Sensors and actuators in modern vehicles also rely on magnetic steel for accurate performance and reliability.
Magnetic steel is essential in electronics for making transformers and inductors, crucial for power distribution and device functionality. Household appliances such as motors in washing machines, refrigerators, and air conditioners also utilize magnetic steel to ensure efficient and reliable operation. The durability and energy efficiency provided by magnetic steel make it a preferred choice in these applications.
Magnetic steel is used in wind turbine generators to convert mechanical energy into electrical energy, requiring materials that withstand variable loads and environmental conditions, making it an ideal choice. In solar panels, magnetic steel is employed in mounting systems to ensure stability and longevity.
Magnetic steel is vital in the medical field, especially in the construction of MRI machines, which require strong and stable magnetic fields for accurate imaging. Other medical devices also benefit from magnetic steel’s durability and safety, ensuring reliable performance in critical applications.
The aerospace industry utilizes magnetic steel in various components and systems, including electric motors, sensors, and actuators. The high strength-to-weight ratio and magnetic properties of steel make it suitable for demanding aerospace applications, where reliability and performance are paramount.
In the construction industry, magnetic steel is used for structural purposes such as steel framing and in temporary structures like scaffolding. The magnetic properties of steel aid in the alignment and stability of components, ensuring safe and efficient construction processes.
A leading automaker integrated magnetic steel sheeting into their electric vehicle (EV) motors, resulting in higher efficiency and longer driving ranges. The enhanced magnetic properties of the steel improved the performance of the electric motors, contributing to the
A major renewable energy company switched to magnetic steel sheeting for their wind turbine generator components. This change significantly improved energy output and reliability, demonstrating the advantages of magnetic steel in renewable energy applications.
A leading hospital used magnetic steel sheeting in their MRI machines, resulting in better imaging quality and lower maintenance costs. The stability and strength of the magnetic fields produced by the steel contributed to more accurate diagnostic results and improved patient outcomes.
Below are answers to some frequently asked questions:
Steel is magnetic primarily due to its iron content, a ferromagnetic material that can be magnetized. When exposed to an external magnetic field, the atomic dipoles within the iron align, causing the steel to exhibit magnetic properties. The crystal structure of the steel also plays a significant role; for instance, martensitic and ferritic structures facilitate this alignment, making the steel magnetic. In contrast, austenitic structures, typically found in some stainless steels, are generally non-magnetic due to their face-centered cubic arrangement. Additionally, alloying elements like nickel and cobalt can influence steel’s magnetism, either enhancing or diminishing it depending on their magnetic characteristics.
Alloying elements significantly affect steel’s magnetism by altering its microstructure and crystal arrangement. For instance, carbon can enhance magnetism by promoting martensite formation, but too much may reduce permeability. Chromium at high concentrations (>12%) can shift steel to a non – magnetic austenite phase, especially with nickel. Nickel in small amounts enhances magnetism, while high concentrations (>8%) make steel non – magnetic. Manganese promotes austenite, reducing magnetism. Cobalt is ferromagnetic and boosts steel’s ability to retain magnetization. Silicon typically degrades magnetism by impeding magnetic domain movement.
Heat treatment significantly impacts the magnetic properties of steel by altering its microstructure. Processes such as austenitization, quenching, and tempering change the phase composition and distribution within the steel. For instance, austenitization transforms steel into a non-magnetic austenite phase, which can become magnetic martensite upon rapid cooling. Quenching increases hardness and can modify magnetic properties by changing the steel’s phases, while tempering adjusts these properties by controlling the temperature and reducing brittleness. Additionally, reaching the Curie point during heat treatment can temporarily cause steel to lose its magnetic properties, but this effect is reversible upon cooling. Understanding these impacts is crucial for optimizing steel in applications where magnetic properties are essential.
Steel’s magnetism can be enhanced or reduced through various methods that impact its composition, microstructure, and processing techniques. To enhance magnetism, cold working processes like rolling, bending, and stretching can induce phase transformations in austenitic steels, increasing their magnetic properties. Heat treatment methods such as quenching and tempering can also enhance magnetism by modifying the steel’s internal structure.
Conversely, magnetism can be reduced through annealing, which restores the steel’s original crystal structure, particularly effective for austenitic stainless steels. Demagnetization techniques, including the application of alternating magnetic fields, can randomize the magnetic domains and reduce residual magnetism.
Understanding these methods is crucial for optimizing steel’s performance in various industrial applications, such as electromagnets, transformers, and magnetic separation processes.
Magnetic steel, due to its ferromagnetic properties, has diverse applications. In the automotive industry, it’s used for exhaust systems, sensors, and ABS brake systems. Electrical and electronic applications include electromagnets in motors, generators, and lifting magnets, as well as transformers for efficient energy transfer. Consumer electronics like speakers and hard drives rely on it for magnetic fields. In medical and food industries, it’s used in surgical tools, food processing equipment, and magnetic separators. It also finds use in building materials, industrial equipment, and data storage devices.
For engineers working with magnetic steel, several practical tips can enhance their effectiveness and ensure optimal outcomes:
By following these tips, engineers can effectively manage the magnetic properties of steel in various applications, ensuring safety, efficiency, and desired magnetic performance.
