When it comes to metal plating, the choice between nickel and tin can significantly impact the performance, appearance, and longevity of your projects. Whether you are an engineer searching for the most durable option for electrical components, or a manufacturer looking to balance cost and quality for corrosion-resistant surfaces, understanding the differences between these two plating types is crucial. This comprehensive guide delves into the distinct properties, applications, and economic considerations of nickel and tin plating. By the end of this article, you’ll be equipped with the knowledge to make an informed decision that best suits your specific needs and industry requirements. Dive in to discover which plating option offers the optimal balance of durability, conductivity, and cost-effectiveness for your next project.
"Tin and nickel plating are popular choices in various industries, each offering unique benefits. Understanding their differences in appearance and chemical properties can help you select the right material for your needs.
Tin Plating: Tin plating has a bright, silvery white appearance with a glossy finish, making it visually appealing.
Nickel Plating: Nickel plating has a grayish-white hue with a relatively dull finish, providing a smoother surface texture.
Corrosion Resistance: Tin plating offers excellent corrosion resistance, making it ideal for harsh environments like food cans and moist areas. Nickel plating also provides corrosion resistance, though it’s generally less effective than tin. Thicker layers or duplex systems can enhance its protection.
Oxidation: Tin plating is less prone to oxidation, maintaining its appearance and integrity over time. Nickel plating, however, is more susceptible to oxidation, which can affect its performance.
Reactivity: Tin is less reactive and hypoallergenic, making it suitable for applications involving direct human contact. Nickel, on the other hand, can cause allergic reactions, which is important to consider for items like jewelry or wearable devices.
To distinguish between tin and nickel plating, you can use visual inspection, chemical tests, or advanced techniques. Tin plating is brighter and shinier, while nickel plating is duller. Chemical tests like DMG for nickel or lye water for tin can help, but may damage the surface. Non-destructive methods like XRF, EDX, or SEM provide accurate analysis without causing damage.
By understanding the differences in appearance and chemical properties of tin and nickel plating, you can make informed decisions for your specific applications, ensuring optimal performance and longevity.
Nickel plating is known for its superior hardness compared to tin plating. This hardness contributes significantly to its durability and wear resistance. Nickel-plated surfaces can withstand greater mechanical stresses and are less prone to scratches and dents. In contrast, tin plating, being softer, is more susceptible to surface wear and mechanical damage, which can affect the longevity and appearance of the coated item.
Nickel has a significantly higher melting point, making it more suitable for high-temperature applications. This property allows nickel-plated components to maintain structural integrity and performance under thermal stress, which is crucial for industries such as aerospace and automotive. Tin plating, with its lower melting point, is less suited for high-temperature environments but is adequate for applications where thermal exposure is minimal.
Tin plating generally offers better electrical conductivity, which is beneficial for electronics where efficient connections are essential. Nickel, while still conductive, has a lower conductivity compared to tin. However, nickel’s conductivity is often sufficient for many electrical applications, and its other properties, such as corrosion resistance and durability, make it a valuable choice in situations where these factors are prioritized.
Nickel-plated components endure prolonged use and mechanical abrasion, making them ideal for applications requiring long-lasting protection. Nickel plating excels in these aspects due to its higher hardness and resistance to wear and tear. Tin plating, while offering good corrosion resistance, is less durable in terms of physical wear. Its softer nature means that tin-plated surfaces can degrade faster under mechanical stress, which might necessitate more frequent maintenance or replacement.
Tin’s softer nature and superior solderability make it easier to work with in manufacturing processes requiring soldering. This is particularly important in the electronics industry, where reliable and efficient solder connections are crucial. Nickel plating can also be soldered but typically requires specific techniques and materials, like appropriate fluxes, to ensure effective soldering.
Tin plating is more vulnerable to fretting corrosion and prone to forming tin whiskers, which can cause short circuits and other electrical failures. Nickel plating does not exhibit this whisker formation issue, making it a more reliable choice in applications where electrical reliability is paramount.
Tin plating is resistant to many dilute acids, making it suitable for applications where chemical exposure is a concern. Nickel plating offers good stability in alkaline environments but can oxidize at high temperatures, which might limit its use in some high-heat applications.
By understanding these physical properties and durability aspects, you can better evaluate which type of plating—nickel or tin—will best meet the requirements of your specific application, ensuring optimal performance and longevity.
Nickel plating is widely used in various industries because of its unique properties that enhance the performance and durability of metal components.
Nickel-plated copper is extensively used in electrical applications for components like connectors, terminals, and other electrical contacts, where its good conductivity, heat resistance, and durability ensure stable electrical performance under varying conditions.
Nickel plating is ideal for parts in industrial machinery, automotive, and aerospace applications because it withstands extreme temperatures.
Nickel plating protects against wear and corrosion, making it essential for parts used in marine, chemical processing, and oil and gas industries.
Nickel plating is also valued for its smooth, attractive finish, enhancing the visual quality of consumer goods like kitchen utensils, bathroom fixtures, and jewelry.
Tin plating is chosen for a variety of applications due to its excellent solderability, corrosion resistance, and cost-effectiveness.
Tin plating is ideal for electrical terminals, battery connectors, and switchgear due to its excellent solderability.
Tin plating offers good resistance to oxidation and corrosion, making it suitable for food storage containers, plumbing, and HVAC systems.
Tin plating is an inexpensive option that performs well in large-scale manufacturing, balancing cost and performance.
Nickel-plated conductors are essential in industrial and aerospace wiring for their wear resistance and stability at high temperatures.
In semiconductor applications, nickel plating protects delicate electronic components during manufacturing and use.
Tin plating on electrical wire and cable conductors prevents corrosion and oxidation, enhancing solderability and reliability in both consumer electronics and industrial applications.
Tin electroplating is used for electric contacts and switchgear due to its low and stable contact resistance, ensuring efficient electrical performance.
In semiconductor manufacturing, tin plating is used for bump plating or copper pillar plating, where a solder cap is required, benefiting from tin’s excellent solderability and corrosion resistance.
When comparing nickel and tin plating, cost is a significant factor to consider.
Nickel plating tends to be more expensive. Nickel as a raw material is pricier than tin, directly impacting the overall cost. Additionally, the nickel plating process involves more steps and requires precise control, increasing labor and operational costs. The equipment used for high-quality nickel plating is often more advanced and costly.
In contrast, tin plating is less expensive due to cheaper material costs, a simpler process, and the use of standard equipment.
Nickel plating is more durable and requires less frequent maintenance, making it cost-effective in the long run. Although the initial cost is higher, its durability can lead to lower maintenance expenses over time.
Tin plating, while less durable, is sufficient for many applications. The lower initial cost may be offset by higher maintenance costs over time, especially in demanding environments.
Nickel plating generates hazardous waste and can cause skin irritations, necessitating proper disposal and treatment. This adds to the overall cost and poses health risks.
Tin plating, on the other hand, is more environmentally friendly and poses fewer health risks, making it a safer option in applications involving direct human contact.
In electrical applications, nickel plating is preferred for its excellent conductivity and durability. Despite the higher initial cost, it can be more cost-effective due to enhanced performance and longevity. Tin plating is chosen for its ease of soldering and cost-effectiveness, making it a practical solution for many electrical applications.
In harsh environments, nickel plating’s durability justifies its higher cost. Tin plating provides good corrosion resistance and is easier to apply, making it more economical for less demanding conditions.
By weighing the initial and long-term costs, as well as the specific needs of your application, you can choose the most cost-effective plating option.
To ensure its durability and effectiveness, nickel plating needs regular maintenance, including polishing to maintain its appearance and prevent tarnishing. Over time, it can develop porosity, compromising its protective qualities and requiring re-plating or additional protective measures. In high-humidity or corrosive environments, frequent inspections and maintenance are crucial to prevent oxidation and corrosion. On the other hand, tin plating is generally easier to maintain. However, due to its softer nature, it may need lubrication to prevent fretting corrosion, especially in applications involving frequent contact or movement. Regular inspections are essential to identify any signs of wear or damage. Tin plating’s high chemical stability reduces the need for frequent maintenance, but monitoring for issues like whisker growth in electronic applications is still important.
Tin plating provides superior electrical conductivity compared to nickel plating, making it ideal for applications where efficient electrical connections are critical. Tin’s conductivity ranges from 11 to 14 micro-ohm-cm, whereas nickel’s is around 8 micro-ohm-cm. This makes tin plating particularly valuable in the electronics industry for components like connectors and terminals.
Nickel plating is excellent for high-temperature environments due to its higher melting point and thermal stability. It’s suitable for industries like aerospace and automotive, where components face significant thermal stress. Tin plating, with a lower melting point, is less suited for high-temperature applications but performs well in environments with minimal thermal exposure.
Both nickel and tin plating provide excellent corrosion resistance, but they excel in different conditions. Nickel plating offers better protection against corrosion in high-temperature environments, although it can oxidize at temperatures above 600 degrees Celsius. Tin plating, while less resistant to high temperatures, remains stable in many chemical environments and is less prone to oxidation, making it suitable for applications like food storage and plumbing.
Nickel plating is harder and more durable, making it more resistant to wear and tear. This makes it ideal for applications where mechanical stress is a concern, such as industrial machinery or automotive parts. Tin plating, being softer, is more susceptible to surface wear and mechanical damage, affecting the longevity and performance of the plated item.
Tin plating is highly valued for its excellent solderability, crucial in the electronics industry. It allows for easy and reliable solder connections, making it the preferred choice for components like printed circuit boards and electronic connectors. While nickel plating is also solderable, it can be more challenging and usually requires specific techniques and materials, such as appropriate fluxes, to achieve effective solder joints.

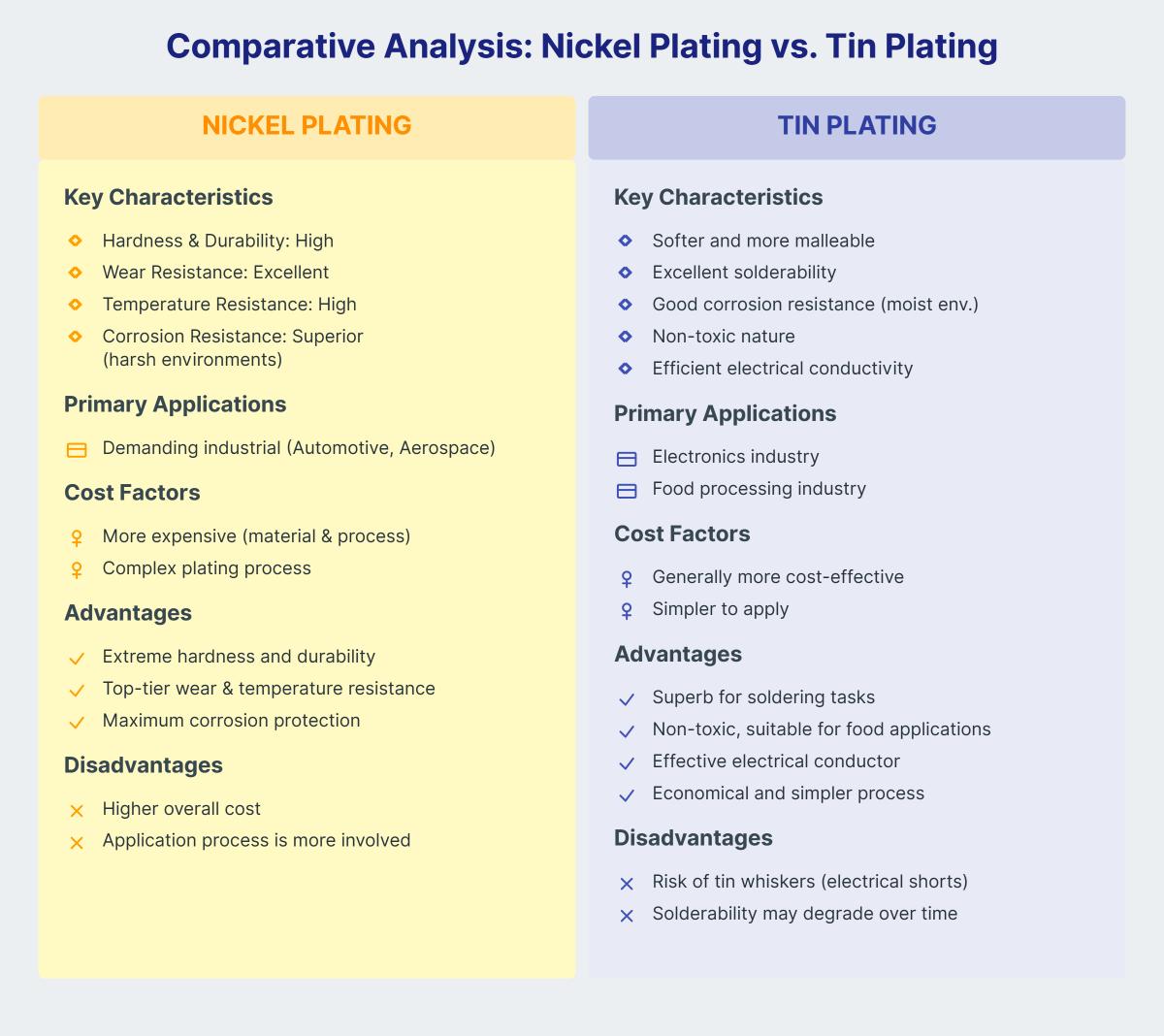

In summary:
Nickel plating can pose several health risks, especially for workers involved in the process.
Nickel often causes skin irritation, such as nickel dermatitis, a common allergic reaction. This severe condition has led to regulations aimed at limiting exposure. Inhaling nickel particles can irritate the nose, throat, and lungs, and long-term exposure is linked to higher risks of lung and nasal cancers.
Nickel can be absorbed through the skin and lungs, causing widespread health issues. Nickel exposure can lead to organ damage, kidney disease, and reproductive issues.
Although safer than nickel plating, tin plating still carries health risks, mainly due to the chemicals used. Tin is less likely to cause skin irritation or allergies, but the plating process involves hazardous acids that pose risks without proper safety measures.
Both nickel and tin plating can harm the environment, as metals can contaminate water supplies and enter food chains, causing long-term health issues.
Using personal protective equipment (PPE) like gloves, masks, and eye protection is essential. Effective ventilation systems and regular maintenance reduce airborne fumes and skin problems. Implementing proper hygiene practices and skin protection measures can help prevent dermatitis and other skin-related issues.
Tin-nickel alloys have been developed to reduce the health risks of nickel plating. These alloys, made of about 65% nickel and 35% tin, form a protective layer that greatly reduces nickel release.
Companies must follow regulations to ensure worker and environmental safety. Regular audits and compliance with these standards are crucial. By understanding the health and safety considerations associated with nickel and tin plating, industries can implement appropriate measures to protect workers and minimize environmental impact.
Below are answers to some frequently asked questions:
Nickel plating and tin plating differ in several key aspects. Nickel plating is generally more expensive but offers superior durability and wear resistance. It provides excellent corrosion resistance, especially in high-temperature environments, and maintains a smooth, attractive finish, making it suitable for both functional and cosmetic applications. Nickel plating also has better electrical conductivity compared to tin plating.
On the other hand, tin plating is more cost-effective and excels in applications where solderability is crucial, such as in electronic components and printed circuit boards. While it offers good corrosion resistance, it is less robust than nickel plating in high-temperature conditions. Tin plating can have either a bright or matte finish and is less likely to cause allergic reactions, making it safer for applications involving skin contact.
In summary, the choice between nickel and tin plating depends on the specific requirements of the application, including cost, durability, corrosion resistance, conductivity, appearance, and ease of soldering.
Nickel plating offers better corrosion resistance compared to tin plating. Nickel is more resistant to corrosion and wear, especially in harsh environments and at high temperatures. It provides a durable, pore-free surface that effectively seals the substrate from atmospheric exposure, preventing corrosion. Conversely, tin plating, while protective, is less effective and more prone to issues like galvanic corrosion if the coating is damaged or porous. Nickel’s superior properties make it more suitable for applications requiring high durability and resistance to aggressive conditions.
Tin plating is commonly used in several industries due to its unique properties such as corrosion resistance, excellent solderability, and non-toxicity. In the electronics industry, it is used for terminals, circuit breakers, semiconductor device leads, and printed wiring boards. In the food processing sector, tin plating is applied to equipment, containers, and cookware to ensure food safety. The automotive and hardware industries use tin plating on parts like pump parts, piston rings, and marine hardware for its lubricity and corrosion resistance. In the aerospace industry, it is valued for its corrosion resistance and solderability. Additionally, the solar industry benefits from tin plating’s corrosion resistance and electrical conductivity, particularly in solar panels. Tin plating is also used for fasteners and general hardware to provide corrosion protection and good electrical conductivity, and for decorative purposes due to its shiny finish.
Yes, nickel plating is generally more expensive than tin plating. This higher cost is attributed to the more expensive nickel material and the complex plating process required. Additionally, nickel plating offers superior durability, corrosion resistance, and electrical conductivity, which further justifies its higher cost compared to tin plating.
Yes, there are significant health concerns associated with nickel plating. Occupational exposure to nickel can lead to respiratory problems, including asthma and an increased risk of lung and nasal cancers. Skin contact with nickel can cause dermatitis, affecting a notable portion of the population. Chronic exposure is linked to cancer, respiratory issues, organ damage, and potential neurological and reproductive effects. Therefore, adequate protective measures and health monitoring are essential for workers in nickel plating industries.
Nickel plating generally requires less maintenance due to its high durability, hardness, and resistance to corrosion and wear. It can be maintained with a mild commercial detergent, and its long-lasting performance minimizes the need for frequent repairs or replacements. However, if removal is necessary, it can be challenging due to the plating’s robustness.
In contrast, tin plating requires more frequent maintenance. Tin is prone to oxidation, which can affect its solderability, necessitating careful storage and periodic inspections to ensure it remains functional. Tin-plated components may also need more frequent checks for corrosion, especially in harsh conditions. Additionally, tin plating can form tin whiskers, which requires regular inspection to prevent electrical issues. Combining nickel and tin plating can enhance overall performance and reduce some maintenance needs associated with tin plating alone.
