Shut-off Valve vs. Gate Valve: What’s the Difference?
Imagine you’re in the middle of an urgent plumbing project or an industrial setup, and you need to make a…
Shut-off valves and stop valves are both crucial in fluid control systems, but they serve different purposes: shut-off valves are used to fully isolate fluid flow, while stop valves regulate it. Understanding the distinctions between these two types of valves will help you select the right valve for specific applications, whether in residential plumbing, industrial systems, or irrigation networks.
Shut-off valves are designed to completely stop the flow of fluid when closed. These valves are essential for isolating sections of a system, allowing maintenance or repairs without disrupting the entire system. Shut-off valves come in various designs, but all share the common characteristic of fully opening or closing the flow path.
Ball Valves: Ball valves are known for their simplicity and reliability. They feature a rotating ball with a hole in the center; a 90-degree turn of the valve handle either fully opens or closes the valve. This makes ball valves ideal for quick shut-offs. They are often used in residential plumbing systems, where ease of use and reliable performance are critical. Ball valves are highly durable, easy to operate, and rarely leak, making them suitable for both residential and industrial applications.
Gate Valves: Gate valves use a metal gate that rises or lowers to control fluid flow. These valves are typically employed in larger systems, such as municipal water lines, where full flow control is necessary. While gate valves can completely stop fluid flow when closed, they are less effective at modulating the flow rate and are prone to wear over time, especially with frequent use. Gate valves are commonly found in older plumbing systems and are known for their robust construction, but they are less efficient for situations requiring fine flow control.
Stop valves, sometimes referred to as globe valves, are used primarily to regulate the flow of water or other fluids. Unlike shut-off valves, which completely block fluid flow, stop valves allow for finer control, enabling gradual adjustments to the flow rate.
Stop valves consist of a valve body with an internal stopper or plug that moves up and down in a passageway. The stopper regulates the flow by partially or gradually closing or opening the valve, allowing for precise flow control. This mechanism is ideal for applications where you need to adjust the fluid flow over time. However, frequent adjustments can cause wear on the internal components, leading to potential leaks or difficulty in operation over time.
Residential Plumbing: Stop valves are often used at individual fixtures, such as sinks, toilets, or appliances, where fine control of water flow is required. These valves are especially useful for regulating water pressure or reducing flow to fixtures during maintenance or repairs.
Irrigation Systems: Stop valves are also used in irrigation systems, where they help regulate the flow of water to various sprinkler heads or lines. This allows for efficient water distribution in large-scale agricultural or landscaping projects.

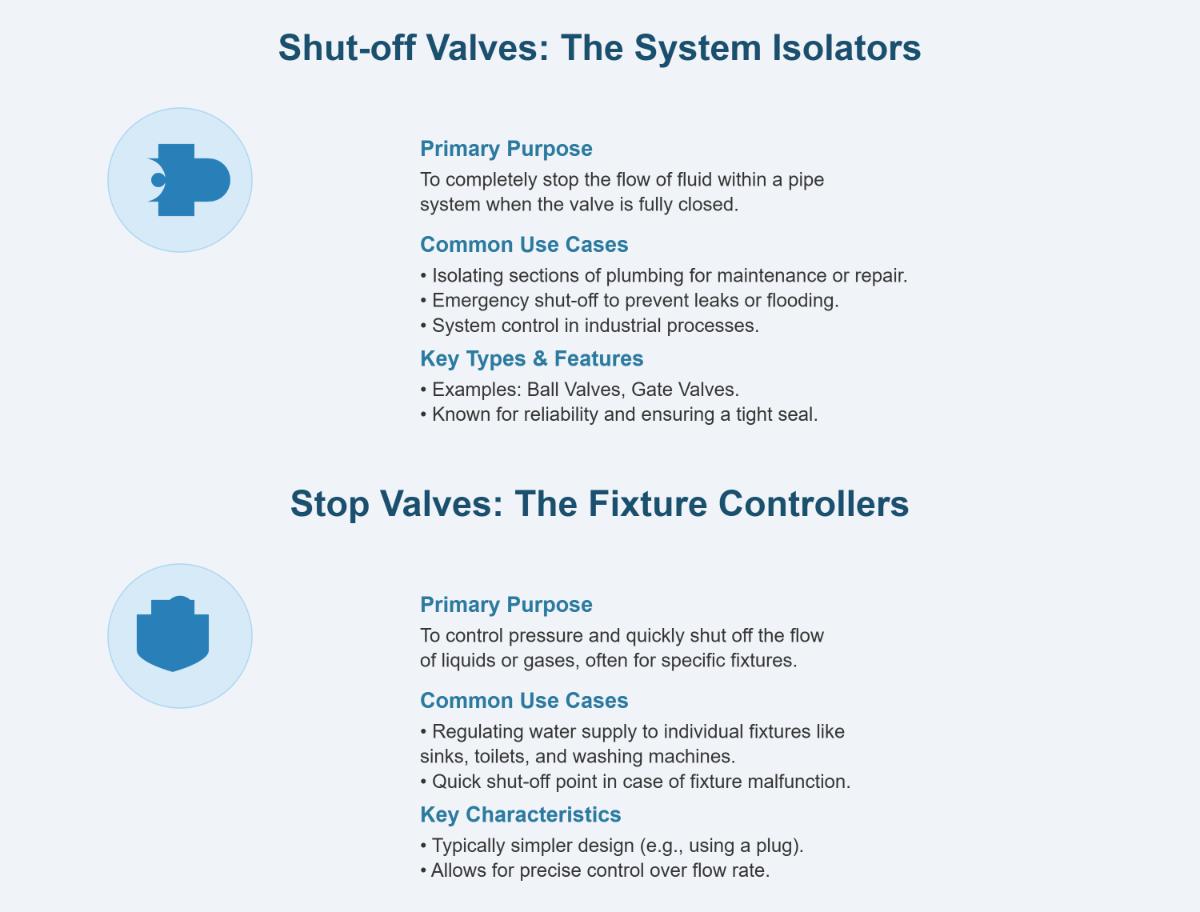

The primary distinction between shut-off and stop valves lies in their functionality, design, and application.
Functionality: Shut-off valves are designed for complete isolation of fluid flow, making them suitable for situations where you need to cut off the flow entirely, such as during system maintenance. Stop valves, on the other hand, are used to regulate or modulate flow, offering fine control over the fluid movement in the system.
Design: Shut-off valves, such as ball and gate valves, are designed to either fully block or allow the complete flow of fluid. Stop valves use a moving stopper or plug inside the valve to control the flow incrementally, providing more nuanced control.
Applications: Shut-off valves are typically used in mainline applications where a complete shut-off is needed, such as in residential or industrial water supply systems. Stop valves are more commonly used for individual fixture control, such as controlling the flow to faucets or regulating pressure in irrigation systems.
Durability and Maintenance: Shut-off valves tend to be more durable and less prone to leakage than stop valves. The internal components of stop valves, particularly the moving stopper, can wear down over time with frequent adjustments, potentially leading to operational issues or leaks. Regular maintenance, such as cleaning and checking for corrosion, can help extend the lifespan of both types of valves.
Both shut-off and stop valves require regular maintenance to ensure optimal performance. Shut-off valves, especially ball valves, are generally low-maintenance due to their simple design, but they should still be inspected periodically for leaks or wear. Gate valves, on the other hand, may require more frequent maintenance, as the moving gate is susceptible to corrosion and wear over time, which can impair their functionality.
Stop valves, particularly globe valves, are more complex and prone to internal wear from frequent flow adjustments. Over time, the internal components of stop valves may degrade, leading to leaks or difficulty in turning the valve. To extend the life of stop valves, regular inspection and replacement of worn-out parts, such as seals or stems, are recommended.
Understanding these maintenance needs can help ensure that both shut-off and stop valves function effectively throughout their lifespan, reducing the likelihood of leaks or system failures.
Shut-off valves and stop valves are essential components in fluid control systems, each designed for specific functions based on flow requirements, environmental factors, and maintenance considerations. Selecting the appropriate valve type can significantly impact system efficiency, reliability, and longevity. Below, we explore the most common types of these valves, focusing on their design, functionality, advantages, limitations, and ideal applications.
Ball valves are highly versatile and widely used due to their simple design, durability, and quick operation. They feature a spherical ball with a hole through its center, allowing or blocking flow when the valve handle is turned 90 degrees.
Gate valves are designed for applications requiring full isolation of flow. They use a flat gate that moves up or down within the valve body to control flow. These valves are ideal for systems where the valve remains mostly in one position (open or closed).
Globe valves, commonly known as stop valves, are designed for precise flow regulation. Their internal mechanism allows fine adjustments, making them suitable for applications where throttling is required.
Stop-and-waste valves are commonly used in irrigation systems for winterization. These valves not only control the flow but also allow drainage to prevent freezing.
Needle valves are designed for fine flow control in low-pressure systems. Their needle-like mechanism allows precise adjustments, making them indispensable for specific industrial and laboratory applications.
Compression stop valves are commonly used in residential plumbing due to their ease of installation and reliability. They use a compression fitting to create a secure seal on copper pipes.
Butterfly valves provide compact, lightweight flow control for large systems. A rotating disc within the valve body restricts or allows flow, making them versatile for various industries.
Three-way shut-off valves are used to divert flow between two outlets, offering flexibility in system design and operation.
By understanding the unique advantages, limitations, and applications of each valve type, users can select the most suitable option for their specific needs, ensuring efficient and reliable operation in fluid control systems.
Gate valves operate by moving a flat or wedge-shaped gate vertically within the valve body to control the flow of fluid. When the gate is fully lowered, it creates a tight seal, completely stopping fluid passage. To open, the gate is raised, allowing the fluid to flow through an unobstructed path. This simple, linear mechanism makes gate valves highly effective for on/off control.
Gate valves are typically categorized into two designs: rising stem and non-rising stem. Rising stem designs are favored in above-ground applications, such as industrial plants, where visibility of the valve’s position is important. Non-rising stem valves are often used in underground pipelines or confined spaces.
Gate valves are designed primarily for on/off or isolation purposes. When fully open, they offer minimal resistance to flow, making them suitable for high-flow applications. However, using a gate valve in a partially open position is not recommended, as this can create turbulence, accelerate wear, and damage the gate.
For example, in the oil and gas industry, gate valves are commonly used in wellhead isolation systems where their full bore design ensures maximum flow efficiency and minimal turbulence.
Gate valves are constructed from materials such as cast iron, stainless steel, brass, and bronze, each selected for specific environmental and operational needs. Stainless steel is widely used in corrosive environments like chemical processing plants, while cast iron is more economical for non-corrosive, low-pressure applications such as municipal water systems.
Proper material selection also affects the valve’s lifespan. For example, brass gate valves are often chosen for potable water systems due to their resistance to rust, while stainless steel is preferred for handling corrosive fluids or extreme temperatures. Regular maintenance is required to prevent issues like sticking or corrosion, particularly in valves exposed to harsh conditions or infrequent use.
Material choice also influences the suitability of different valve types. Wedge gate valves, for instance, are typically made of robust materials to withstand high pressures and temperatures in power plants, while knife gate valves, used in mining, are designed from materials resistant to abrasion.
For instance, knife gate valves are often employed in slurry pipelines in mining operations, where their ability to handle abrasive materials ensures reliable performance.
Gate valves are used extensively in systems requiring reliable flow isolation. Their versatility and efficiency make them indispensable across various industries:
By understanding the functionality, design, and applications of gate valves, users can select the most appropriate type and material for their specific needs, ensuring optimal performance and long service life.
Stop valves, commonly known as globe valves, are a specialized type of valve designed for precise control over fluid flow. They stand out among other valve types, such as gate or ball valves, due to their unique design that allows for incremental flow regulation. Unlike gate valves, which are primarily used for on/off control, or ball valves, known for their minimal pressure drop, stop valves excel at throttling applications where fine adjustments are essential. This makes them ideal for scenarios where precise flow control is more important than the need for low-resistance flow.
The design of stop valves incorporates a spherical body, which is where the term "globe valve" originates, and features several critical components that enable accurate flow management.
Stop valves are designed for applications requiring gradual flow control. Their unique internal configuration allows for fine adjustments, making them well-suited for systems where precise flow regulation is crucial.
When the handwheel is rotated, the stem moves the disc vertically, enabling the user to incrementally adjust the flow. The threaded stem provides controlled, gradual movement, allowing users to make small changes in flow rate without causing sudden shifts in pressure. This functionality is especially useful in applications where even minor flow adjustments can significantly impact system performance.
Stop valves are optimized for intermediate flow control:
The disc-to-seat design provides effective sealing, which is crucial in high-pressure and high-temperature environments. This reliable seal minimizes the risk of leaks, enhancing safety in critical applications, such as chemical processing, where leak prevention is essential for operational safety. To improve durability and tightness, materials like PTFE—a durable, heat-resistant material—or rubber-coated discs are often used, especially in applications where fluids are abrasive or corrosive. Effective sealing not only prevents fluid loss but also extends the valve’s lifespan, reducing the need for frequent maintenance or replacement.
Due to their unique design and functionality, stop valves are widely used across various industries. Their ability to provide precise flow control makes them suitable for both industrial and residential applications.
In industrial settings, stop valves play a critical role in managing flow within cooling systems, HVAC, and refrigeration setups. They enable operators to adjust water flow to maintain efficient cooling and stable temperatures, which is crucial for equipment longevity and performance.
Stop valves are essential in chemical plants where they handle corrosive or viscous fluids. The precise control they offer is vital for maintaining reaction conditions within safe parameters. Additionally, their robust sealing characteristics ensure that hazardous chemicals are contained, enhancing both safety and compliance with regulatory standards.
In water and wastewater treatment facilities, stop valves are used to control flow rates in filtration and distribution systems. Consistent flow control is essential to optimize treatment processes, maintain pressure balance, and reduce operational costs, making stop valves a valuable component in such environments.
In the oil and gas sector, stop valves are crucial for controlling fluid flow in pipelines, especially where precise throttling or pressure regulation is required. Their ability to withstand high pressures and temperatures makes them ideal for managing flow in extraction and processing facilities.
Stop valves are frequently used in irrigation systems, where they control water flow to specific zones or sprinkler heads. This precise flow control allows for efficient water distribution, conserving resources while ensuring adequate coverage across agricultural fields.
In residential settings, stop valves control water flow to fixtures such as toilets, sinks, dishwashers, and washing machines. They are especially useful for isolating water flow for repairs or maintenance without impacting the entire system.
To ensure optimal performance, several factors must be taken into account when selecting and maintaining stop valves:
Proper selection and regular maintenance of stop valves are crucial for ensuring system efficiency and safety. When well-maintained, stop valves provide reliable, precise flow control, contributing to the longevity and stability of complex fluid systems.
Ball valves are a widely-used type of shut-off valve known for their reliability, simple design, and rapid operation. These valves are suitable for a variety of applications across residential, industrial, and commercial settings due to their durability and effective sealing characteristics. This section provides an in-depth overview of the design, functionality, and applications of ball valves, highlighting why they are one of the most popular choices in fluid control systems.
Ball valves consist of several critical components that contribute to their effective performance and long lifespan.
Ball valves come in various designs, each suited to specific requirements.
| Valve Type | Bore Profile | Advantages | Ideal Applications |
|---|---|---|---|
| Full Bore (Full Port) | Full diameter | Minimal pressure drop, high flow | High-flow systems, gas, oil transport |
| Reduced Bore (Reduced Port) | Smaller diameter | Compact, cost-effective | Low-flow applications, general use |
| V-Port | V-shaped bore | Precise flow control, throttling | Flow modulation, regulating systems |
Ball valves are known for their ease of use and versatility, capable of functioning as both shut-off and control valves.
Ball valves operate with a simple quarter-turn rotation:
This quarter-turn mechanism allows for quick shut-off, which is beneficial in emergency situations or applications requiring immediate flow control.
Ball valves can be actuated manually or automatically, with various options depending on the application and operating conditions.
Manual Actuation: A handle or lever allows for direct, quick operation, commonly used in residential and smaller commercial applications. Manual actuation is cost-effective and easy to install but may require more physical effort in large valves. Additionally, manual operation can introduce water hammer if turned too quickly in high-flow situations.
Electric Actuation: An electric motor drives the ball’s rotation, allowing for remote operation and smoother control. Electric actuators reduce the risk of water hammer in high-pressure systems but tend to be more expensive and require more complex installation and maintenance.
Pneumatic Actuation: A pneumatic actuator uses compressed air to control the valve. Pneumatic actuators are ideal for larger valves where electric actuation may not be cost-effective. They are commonly used in industrial applications where fast and precise control is necessary. Pneumatic actuators are reliable and generally easier to maintain than electric actuators but may require a continuous air supply.
While primarily used for on/off control, ball valves can also modulate flow, especially those with V-port or trunnion-mounted designs. The tight sealing capability, achieved through the seats and ball interface, ensures minimal leakage, even in high-pressure applications. This reliable sealing characteristic makes ball valves an ideal choice for applications where preventing leaks is crucial, such as in gas or oil pipelines.
However, ball valves have limitations in throttling applications. The sharp edges of the ball may cause turbulence in the flow when partially opened, which can lead to erosion over time in high-cycle applications. In these cases, alternative valve types like globe valves or control valves may be more suitable for precise flow regulation.
Ball valves are valued for their adaptability and durability, making them suitable for a wide range of applications across various industries. Below are some specific examples and case studies illustrating their use.
Ball valves are commonly used for main water shut-offs, branch line control, and appliance connections in both residential and commercial plumbing systems. Their easy operation and reliable sealing make them ideal for applications where reliable shut-off is necessary. For example, in a large apartment complex, ball valves are used to isolate individual units from the main water supply for repairs, preventing water loss and minimizing disruption.
Ball valves play a crucial role in industrial systems, particularly in oil and gas, chemical processing, and power generation.
Oil and Gas Industry: Full-bore ball valves are commonly used in oil and gas pipelines. Their design minimizes flow restriction, making them ideal for the transportation of oil and gas over long distances. For instance, in a large-scale pipeline transporting crude oil, ball valves are installed at key points to ensure quick shut-off during emergencies, preventing leaks and ensuring system integrity.
Chemical Processing: In chemical plants, stainless steel ball valves are employed to handle hazardous or corrosive chemicals. Their tight sealing capability prevents leaks and minimizes the risk of contamination. A real-world example is a chemical processing plant where ball valves control the flow of highly corrosive acids. The valves’ resistance to chemical erosion ensures the safety and longevity of the system.
Power Generation: In power plants, ball valves are used to control the flow of cooling water, steam, and other fluids. Trunnion-mounted ball valves, in particular, are suitable for high-pressure steam systems where their reduced torque and reliable sealing are vital. For example, in a thermal power station, ball valves are used to regulate the flow of steam into turbines, ensuring efficient operation under high pressure.
Ball valves are widely used in water treatment plants and municipal water systems. In water treatment facilities, they control the flow of water through filtration and treatment stages. For example, at a municipal water treatment plant, ball valves are installed at various stages to isolate different parts of the treatment process. Their durability and ease of operation make them ideal for managing flow in high-volume systems, such as pipelines for distributing potable water.
In heating, ventilation, and air conditioning (HVAC) systems, ball valves regulate the flow of refrigerants and other fluids essential for temperature control. Their compact design and reliable sealing help maintain system efficiency and prevent leaks in HVAC loops. A case study in a commercial building shows that ball valves are used in HVAC systems to control the flow of chilled water, ensuring efficient cooling while preventing system failures.
Ball valves are often installed in fire suppression systems due to their reliability in high-pressure conditions and quick shut-off capabilities. They allow for rapid isolation of sections of the system in case of a fire, ensuring effective control in emergencies.
In agricultural irrigation, ball valves are used to control the flow of water to various zones or sections of an irrigation system. Their durability and simplicity make them suitable for frequent adjustments and for withstanding outdoor conditions. A farm that uses ball valves for irrigation systems has the ability to precisely control water distribution, reducing water waste and improving crop yields.
Selecting the right ball valve requires an understanding of the system’s pressure, temperature, and fluid characteristics.
Shut-off valves and stop valves are designed for different roles in fluid control systems, each serving specific needs in various applications.
Shut-Off Valves: These valves are primarily used to completely stop or allow the flow of fluid. Their main function is to isolate sections of a system for maintenance, repairs, or emergency situations. Shut-off valves are typically employed when a rapid on/off control is necessary, such as in residential water shut-offs or emergency gas line isolation. For example, in a fire protection system, a shut-off valve can be quickly closed to isolate a section of piping for repairs without affecting the entire system.
Stop Valves: In contrast, stop valves are designed for regulating or controlling the flow of fluid, allowing precise adjustments to flow rates. Stop valves are ideal for applications requiring fine control, such as in HVAC systems, where they can adjust the flow of chilled or heated water through a network of pipes to maintain consistent temperature and pressure. In these systems, the ability to modulate flow ensures energy efficiency and comfort control.
The internal mechanism of each valve type determines how it operates and how easily it can be controlled.
Shut-Off Valves: Shut-off valves typically operate through a straightforward mechanism. For example, ball valves use a quarter-turn rotary motion to align or block a central hole within a spherical ball, enabling full flow when open or complete isolation when closed. Gate valves, on the other hand, use a vertical gate that moves up and down to either block or allow the flow. These mechanisms are designed for quick action and efficiency, allowing for full open or fully closed states with minimal effort. However, they are not suitable for controlling flow rates, as their primary function is binary—either on or off.
Stop Valves: Stop valves, such as globe valves, rely on a linear motion of a plug or disc that moves up or down against a seat to regulate flow. This mechanism allows for more precise control of fluid flow but requires several turns to open or close fully. While stop valves are excellent for modulating flow, their slower operation and increased number of turns make them less suitable for emergency situations where quick action is necessary.
This difference in mechanical design impacts the valves’ flow control capabilities, as discussed in the next section.
The ability to control fluid flow is a key differentiator between shut-off valves and stop valves, influencing their suitability for specific applications.
Shut-Off Valves: These valves are designed for binary control—either fully open or fully closed. They are not intended to regulate or throttle flow, as attempting to use them for this purpose can lead to turbulence, noise, and potential damage. For example, in a pipeline system, a shut-off valve may be used to isolate sections for maintenance but would not be suitable for adjusting the flow to specific levels, as this could cause inefficient operation.
Stop Valves: Stop valves excel in applications where precise flow adjustments are needed. Their design allows operators to gradually control the flow of fluid, making them ideal for systems requiring consistent regulation, such as in irrigation systems or industrial equipment. For instance, in a chemical processing plant, stop valves are used to regulate the flow of raw materials to reactors, ensuring the correct mixture and pressure are maintained throughout the process.
Mechanical design differences also impact the durability and wear of each valve type, which influences their maintenance needs over time.
Shut-Off Valves: Shut-off valves, such as ball and gate valves, are designed for minimal wear, as they operate in either fully open or fully closed positions. The absence of partial movement reduces stress on internal components, leading to longer service lives and requiring less frequent maintenance. For example, a ball valve used in a main water supply line can last for many years with little more than occasional inspections to ensure no leaks or corrosion.
Stop Valves: The internal components of stop valves, especially the plug or disc, experience more wear due to their constant movement to regulate flow. Exposure to high-pressure or high-temperature fluids can accelerate the degradation of seat and sealing materials, which requires regular maintenance to prevent leaks or operational issues. In HVAC systems, for example, the constant adjustments to flow can lead to wear on the seals, necessitating periodic maintenance to ensure efficient operation.
Pressure drop and flow efficiency are critical factors that affect the performance of fluid systems, especially in applications where energy savings and performance are priorities.
Shut-Off Valves: Shut-off valves, particularly ball and gate valves, are designed with minimal resistance to flow. A "full bore design" refers to the valve having the same diameter as the pipe, allowing fluid to pass through without significant restriction. This makes shut-off valves ideal for applications where efficiency and minimal pressure loss are important, such as in large-scale industrial systems or water distribution networks.
Stop Valves: Due to their throttling design, stop valves typically create more resistance to flow and can result in a higher pressure drop. For example, in a long-distance fluid transport system, using a stop valve to adjust the flow could lead to significant energy losses due to the pressure drop caused by the internal mechanism. Therefore, stop valves are less suitable for systems where low pressure loss and high flow efficiency are critical.
Each valve type is chosen based on the specific demands of the application.
Shut-Off Valves: These valves are commonly used in situations where rapid isolation of a system is necessary. Examples include residential water shut-off valves, which allow homeowners to quickly turn off the water supply during an emergency, or in industrial pipelines that require quick isolation during maintenance. Shut-off valves are also found in fire suppression systems, where immediate control over water or foam flow is critical in an emergency situation.
Stop Valves: Stop valves are typically found in systems requiring precise control over flow, such as in individual fixture connections, HVAC systems, or irrigation networks. For instance, in a heating and cooling system, stop valves regulate the flow of water to maintain proper pressure and temperature, ensuring the system operates efficiently. Similarly, stop valves in irrigation systems allow farmers to adjust water flow to different zones for optimal crop growth.
Maintenance requirements differ between shut-off valves and stop valves, primarily due to the nature of their mechanisms.
Shut-Off Valves: Shut-off valves generally require less maintenance, as their simple design involves fewer moving parts. Regular inspections for leaks, corrosion, and general wear are usually sufficient to ensure their continued reliability. For instance, a ball valve used in a home water system typically only requires maintenance if it begins to show signs of leakage or difficulty opening and closing.
Stop Valves: Stop valves require more frequent maintenance because of the moving components, such as the plug or disc, which are subject to wear over time. In systems with high flow rates or variable pressure, regular checks for leaks, seat wear, and valve function are necessary. In industrial applications, such as water treatment plants, periodic maintenance might involve replacing seals or reconditioning worn seats to prevent flow issues.
By understanding these key differences, users can select the most appropriate valve type for their specific needs, ensuring both efficient operation and long-term reliability in their fluid control systems.
Selecting the correct valve for an application involves a detailed evaluation of system requirements, operational conditions, and fluid properties. The decision should optimize performance, safety, and cost-efficiency. Here’s a structured guide to choosing the right valve based on various considerations.
For systems requiring quick and reliable isolation of flow, shut-off valves such as ball valves and gate valves are ideal.
Ball Valves: Ball valves offer fast, quarter-turn operation, making them suitable for applications where rapid shutoff is needed. They are highly durable and provide a tight seal, even under high pressures. However, they may suffer from wear and potential leakage over time if used in throttling applications.
Gate Valves: Gate valves, with their wedge-shaped gate, are commonly used for larger pipes and systems where full flow control is required. They are excellent for isolating flow, but their operation is slower compared to ball valves. Gate valves are more prone to wear and require regular maintenance, especially in systems with high-frequency cycling or where sealing surfaces may degrade over time.
Common uses for both valves include:
For applications requiring precise control of flow, stop valves (globe valves) or needle valves should be chosen.
Globe Valves: Globe valves are well-suited for regulating flow in systems where precise adjustments are necessary. They offer smooth, fine control over flow rates, making them ideal for regulating pressure in industrial and HVAC systems. However, they tend to have higher pressure drops due to their internal flow path and may wear out faster in high-flow systems.
Needle Valves: Needle valves are ideal for very low flow rates and fine adjustments. These valves provide excellent control in systems where precise metering of flow is critical, such as laboratory applications. However, needle valves are less suitable for higher flow applications due to potential issues with wear on the fine threads and increased resistance to flow.
Common uses include:
For systems requiring control over the flow direction, check valves or three-way ball valves are suitable.
Check Valves: Check valves are automatic valves that prevent backflow by allowing fluid to flow in only one direction. They are typically used in applications where backflow could cause damage or contamination. While reliable, check valves can be prone to failure if not properly maintained, especially in systems with high turbulence or variable flow rates.
Three-Way Ball Valves: These valves are useful for diverting flow in different directions, allowing fluid to be either mixed or split between two outlets. They offer quick operation and are highly durable. However, three-way valves are more complex than check valves and can be more expensive, making them better suited for more specialized applications.
Examples include:
For preventing system damage from overpressure, pressure relief valves are essential.
Applications include:
The valve must be capable of withstanding the operating temperature and pressure of the system.
High-Temperature Systems: Valves made from stainless steel, bronze, or special alloys like Inconel are suitable for handling steam or thermal oil, which may reach extremely high temperatures. These materials are designed to maintain strength and integrity under heat stress.
Low-Temperature Applications: Thermoplastics such as PVC or CPVC work well in chilled water systems and other low-temperature applications. However, they may be susceptible to cracking or brittleness in extremely low temperatures.
For handling corrosive or abrasive fluids, select valves made from resistant materials.
Chemical Processing: Valves made from Hastelloy, Monel, or PTFE-lined valves offer excellent resistance to aggressive chemicals, preventing corrosion and degradation in highly reactive environments. Hastelloy and Monel are particularly useful in applications where exposure to acids, alkalis, or seawater is common.
Marine Applications: In highly saline environments, bronze or duplex stainless steel valves provide enhanced resistance to rust and corrosion from saltwater.
Valves should match the flow rate requirements of the system to avoid turbulence or cavitation.
High-Flow Systems: Full-bore ball valves provide minimal resistance to flow, ensuring that high-volume systems can operate efficiently with little pressure drop or flow disruption. These valves are ideal for large-scale applications like water treatment or pipeline transportation.
Low-Flow Systems: Needle valves are the best choice for small, precise flow rates. They provide excellent control over fluid movement in applications such as laboratory experiments or small-scale industrial processes.
Note: Cavitation refers to the formation of vapor bubbles in a fluid due to rapid pressure drop, which can cause damage to the valve and piping system. It is important to avoid cavitation in high-pressure systems.
The valve material must be compatible with the media to prevent corrosion, contamination, or wear.
Potable Water Systems: Brass or stainless steel valves are preferred for potable water systems due to their non-reactive properties and resistance to rust, ensuring safe, contaminant-free water distribution.
Oil and Gas Lines: Carbon steel is a popular material for oil and gas pipelines due to its strength and resistance to high pressures. However, for systems exposed to highly corrosive environments, high-alloy materials such as 316 stainless steel or monel may be necessary to avoid degradation.
Highly Corrosive Environments: For extreme corrosive conditions, titanium valves offer superior resistance to many aggressive chemicals and are suitable for industries like petrochemical refining or pharmaceutical manufacturing.
Choose valves based on their ease of maintenance and expected service life.
Low-Maintenance Applications: Ball valves, with their simple design and fewer moving parts, require minimal servicing. They are highly reliable for systems that are not frequently adjusted or that require quick shutoff, such as residential water lines.
Frequent Adjustment Systems: Globe valves, while ideal for precise flow control, often require more maintenance due to the higher wear on their internal components when used in high-flow applications.
The type of connection affects ease of installation, leak prevention, and long-term maintenance.
Threaded Ends: Common in residential and small-scale systems, threaded connections are easy to install and seal effectively at lower pressures. However, they are less ideal for high-pressure systems where the risk of leaks increases.
Flanged Ends: Flanged valves are preferred in industrial applications because they offer strong, reliable sealing, are easier to maintain, and can handle higher pressures. They are particularly useful for larger pipe sizes, such as in municipal water systems.
Welded Ends: Welded connections are the best choice for high-pressure or high-temperature systems, as they provide an almost leak-proof seal. However, installation is more complex and can be costly.
In heating, ventilation, and air conditioning systems, globe valves or butterfly valves are commonly used.
Butterfly Valves: These valves offer a compact design and quick operation, making them suitable for large, complex systems where space is limited.
Globe Valves: Globe valves provide precise flow regulation, making them ideal for applications like temperature control in heating and cooling systems.
Gate valves are often used for large pipelines due to their durability and full-bore design. These valves offer minimal resistance to flow, making them ideal for controlling water distribution across extensive networks. Maintenance concerns for municipal water systems include ensuring proper sealing and monitoring valve operation to avoid leaks or malfunctions over time.
For chemical and pharmaceutical industries, where strict hygiene and corrosion resistance are critical, PTFE-lined butterfly valves or stainless steel ball valves are commonly used. These materials provide excellent corrosion resistance and can meet the high standards required for these industries, ensuring both safety and compliance.
Below are answers to some frequently asked questions:
A shut-off valve and a stop valve both serve the purpose of halting the flow of fluids, but they differ in scope and functionality. A shut-off valve is a broad term encompassing various types of valves, such as ball valves, gate valves, and globe valves, that can completely stop fluid flow. These valves are used in diverse applications, including main water shut-offs, fixture shut-offs, and industrial systems. They are designed for reliability and ease of use, with mechanisms tailored for specific needs, such as quick operation or durability.
In contrast, a stop valve is a more specific type of valve often used where quick and straightforward shut-off is required, such as in plumbing systems. Stop valves typically have a rising stem mechanism where the handwheel moves up or down to control a plug that blocks the fluid flow. They are less precise in controlling the flow rate and are commonly used in emergency scenarios or where flow precision is not critical.
In summary, the key distinction lies in the generality of shut-off valves, which include multiple valve types and applications, versus the specific design and quick-shut-off purpose of stop valves. The choice between the two depends on the context, such as the required precision, fluid type, and operational needs.
Yes, a stop valve can be used to completely shut off water flow. Stop valves, also referred to as shut-off valves, are designed to block the flow of water entirely when fully closed. These valves are commonly used in plumbing systems for various purposes, including isolating specific fixtures or cutting off the main water supply during maintenance or emergencies.
Different types of stop valves, such as gate valves and ball valves, function effectively to shut off water flow. Gate valves operate by turning a handle clockwise multiple times to lower a gate that blocks the flow of water, while ball valves use a lever that requires a simple 90-degree turn to fully open or close. For localized control, fixture shut-off valves are used to stop water flow to individual appliances or fixtures like sinks or toilets without affecting the rest of the system.
To ensure proper operation, it is essential to close the valve completely, as partial closure can result in leaks or reduced performance. Stop valves play a crucial role in managing water flow and are indispensable for addressing issues like leaks, frozen pipes, or maintenance work. Their reliability makes them a fundamental component in residential and commercial plumbing systems.
Gate valves and stop valves have distinct characteristics that affect their durability and maintenance needs. Gate valves are generally more durable in terms of providing a tight seal and handling harsh conditions such as high pressures or fluids with solids and particulates. However, the presence of more moving parts—such as the gate and the stem—makes them prone to wear and tear over time, which can lead to increased maintenance requirements. The complexity of their design, while contributing to their functionality, also means they can require more frequent servicing and repairs.
On the other hand, stop valves are simpler in design with fewer moving parts, which generally results in less maintenance and fewer issues related to wear. However, they are typically not as robust in handling high-pressure systems or more demanding applications, such as those involving viscous fluids or solids. Despite this, their simpler construction makes them less prone to failure from mechanical wear compared to gate valves.
In conclusion, gate valves tend to be more durable in certain contexts due to their better sealing capabilities and ability to manage complex fluids, but they require more maintenance. Stop valves, with their simpler design and fewer moving parts, are more maintenance-friendly and can be considered more durable in terms of reliability over time, though they may not perform as well in all conditions. The durability of each valve type ultimately depends on the specific application and operating environment.
Ball valves are commonly used in residential plumbing due to their reliability, ease of operation, and durability. They are frequently installed under sinks and behind toilets as stop valves, allowing homeowners to control the water supply to these fixtures with a simple quarter-turn action. This makes them convenient for quickly shutting off water in case of maintenance or emergencies, and they cause minimal flow restriction compared to other valve types.
Additionally, ball valves are often found on main water lines and branch lines, serving as shutoff valves for isolating sections of the plumbing system or stopping the water flow entirely. They are ideal replacements for gate valves in these applications due to their dependable sealing and quick operation.
In outdoor plumbing, ball valves are used for faucets and other utility fixtures, where immediate water control is crucial, especially in freezing weather to prevent pipe damage. Ball valves are also commonly installed on water heaters, allowing the water supply to the heater to be turned off independently, facilitating maintenance without affecting the water supply to the rest of the home.
Beyond these specific uses, ball valves can be found throughout general plumbing systems, including water supply lines, drainage, irrigation, HVAC, and even fire protection systems. Their versatility allows them to be installed in various orientations and for bi-directional flow, which, combined with their durability and low maintenance needs, makes them an essential component in residential plumbing.
Choosing the best valve type for your needs requires careful consideration of several factors to ensure it functions effectively for your specific application. First, identify the primary function of the valve. For simple on/off control, ball, gate, or plug valves are reliable options, with ball valves being particularly cost-effective. If precise flow regulation is required, needle or globe valves are better suited due to their ability to provide gradual and accurate flow adjustments.
Next, consider the characteristics of the media being controlled. Ensure the valve material is compatible with the fluid or gas, particularly for corrosive environments where materials like PTFE or PFA may be necessary. Additionally, take into account the temperature and pressure requirements of the system, as metal valves typically handle high temperatures and pressures better than plastic ones.
The size and flow rate of the valve are critical. Use the flow coefficient (Cv) to select the appropriate size, ensuring it aligns with your system’s flow needs without being oversized, which can lead to inefficiencies. Physical dimensions and connection types should also match your system’s requirements.
Decide on the actuation method based on how the valve will be operated. Manual valves are simple and low-cost, while automated valves with electric, pneumatic, or hydraulic actuators provide enhanced control and efficiency, particularly in industrial settings.
Maintenance requirements should also influence your choice. For ease of maintenance and reliability, ball valves are a popular choice, as they resist clogging and are easy to service. Lastly, consider environmental and operational conditions such as pressure drops and the frequency of valve operation. For applications with frequent cycling, choose a valve type designed for durability and longevity.
By evaluating these factors, you can select the most suitable valve type, ensuring it meets the performance, safety, and operational needs of your application.
