CF8M vs. CF8 Stainless Steel: What’s the Difference?
When it comes to selecting the right stainless steel for your project, understanding the subtle yet significant differences between CF8M…
When it comes to selecting the right stainless steel for engineering projects, the choice between CF8M and 316 Stainless Steel can be pivotal. Both materials boast impressive properties, but understanding their differences is essential for making an informed decision. In this article, we will delve into the chemical compositions, mechanical properties, and corrosion resistance of CF8M and 316, offering a clear comparison that addresses their suitability for high-corrosion environments. We’ll also explore how the casting process influences CF8M’s characteristics and review cost considerations and industrial applications. By the end, you’ll have a comprehensive understanding of which material best fits your specific needs. So, which one will prove superior for your next project? Let’s find out.
CF8M is a highly durable type of austenitic stainless steel, specifically designed for casting applications. Its unique composition provides exceptional corrosion resistance and strength, making it ideal for demanding environments.
Below is a comparison of the chemical compositions of CF8M and 316 stainless steel:
| Element | CF8M (%) | 316 Stainless Steel (%) |
|---|---|---|
| Carbon (C) | ≤ 0.08 | ≤ 0.08 |
| Manganese (Mn) | ≤ 1.50 | ≤ 2.0 |
| Silicon (Si) | ≤ 1.50 | ≤ 1.0 |
| Sulfur (S) | ≤ 0.040 | ≤ 0.03 |
| Phosphorus (P) | ≤ 0.040 | ≤ 0.045 |
| Chromium (Cr) | 18.0-21.0 | 16.0-18.0 |
| Nickel (Ni) | 9.0-12.0 | 10.0-14.0 |
| Molybdenum (Mo) | 2.0-3.0 | 2.0-3.0 |
The higher chromium content in CF8M (18.0-21.0%) compared to 316 stainless steel (16.0-18.0%) enhances its corrosion resistance. Additionally, 316 stainless steel contains slightly more nickel (10.0-14.0%) than CF8M (9.0-12.0%), which helps improve its ductility and corrosion resistance.
The differences in chemical composition between CF8M and 316 stainless steel affect their mechanical properties and suitability for various applications. CF8M’s higher chromium content makes it ideal for high-stress environments, while 316 stainless steel’s higher nickel content enhances its formability and weldability.
Stainless steel casting is a process used to create complex and high-strength components from stainless steel alloys. This method involves pouring molten stainless steel into a mold to produce parts that can withstand harsh environments and demanding applications.
CF8M is a cast austenitic stainless steel that is often produced using two primary casting methods: investment casting and sand casting.
The casting process can significantly influence the mechanical properties of CF8M:
CF8M’s higher chromium and molybdenum content provides excellent corrosion resistance, making it ideal for components like valve bodies, pump casings, and marine hardware. The casting process allows CF8M to be formed into complex shapes with high dimensional accuracy, which is crucial for components used in demanding industrial applications.
Tensile strength measures how much stress a material can endure before breaking when stretched or pulled. CF8M has a tensile strength of about 540 MPa, while 316 stainless steel ranges between 550 and 620 MPa, making it slightly stronger in wrought forms.
Yield strength measures the stress at which a material begins to deform plastically. CF8M has a higher yield strength of around 290 MPa, compared to 316 stainless steel, which generally ranges from 240 to 290 MPa depending on its form and processing.
Hardness is the measure of a material’s resistance to deformation, particularly permanent deformation, scratching, cutting, or abrasion. CF8M has a Brinell hardness of about 170 HBW, contributing to its durability in cast applications. 316 stainless steel exhibits a slightly higher hardness, but this can vary based on the specific form and processing method.
Elongation at break measures a material’s ability to withstand deformation under tensile stress, indicating ductility. CF8M can elongate up to 50% before breaking, showing its ductility and suitability for forming. 316 stainless steel generally provides similar elongation properties, but this can vary depending on its form and processing history.
Fatigue strength is the measure of a material’s ability to withstand cyclic loading without failure. CF8M demonstrates a higher fatigue strength of about 280 MPa, making it more suitable for components under cyclic loading. 316 stainless steel has a slightly lower fatigue strength compared to CF8M.
Both CF8M and 316 stainless steel are excellent in resisting corrosion, especially in chloride-rich environments, with CF8M being particularly good against pitting and crevice corrosion.
The mechanical properties of these materials make them suitable for different applications. CF8M is ideal for casting complex components that require high pressure and corrosion resistance, such as pump housings, valves, and flanges. 316 stainless steel is preferred for wrought applications like sheets, pipes, and bars, offering greater versatility for structural and aesthetic uses. Both CF8M and 316 stainless steel share many mechanical property similarities but also have distinct differences that make them suited to specific applications. The choice between these materials depends on the requirements of the project, including mechanical performance, corrosion conditions, and the form of the material needed.
Corrosion resistance is crucial when choosing materials for industrial applications because it prevents material degradation and extends the life of components. In environments where exposure to corrosive elements is high, such as marine, chemical processing, and high-salinity areas, selecting a material with superior corrosion resistance is essential to ensure the durability and reliability of the components.
Molybdenum and chromium are key alloying elements that significantly enhance the corrosion resistance of stainless steels. Molybdenum, found in both CF8M and 316 stainless steel at 2-3%, improves the material’s ability to withstand pitting and crevice corrosion, especially in chloride-rich environments. Chromium, with a slightly higher content in CF8M (18-21%) compared to 316 stainless steel (16-18%), forms a passive oxide layer on the surface, protecting it from further oxidation and corrosion. This higher chromium content makes CF8M particularly suitable for environments where general corrosion is a concern.
Saltwater in marine environments can cause severe pitting and crevice corrosion.
Chemical processing environments expose materials to aggressive chemicals and high pressures, demanding strong corrosion resistance.
On offshore oil platforms, CF8M components have shown superior corrosion resistance, reducing maintenance costs and extending the service life of valves and pumps.
In a chemical processing plant, CF8M was used for pump casings and valve bodies due to its excellent resistance to corrosive chemicals and high-pressure environments. The material’s durability ensured reliable operation and minimized downtime, proving its effectiveness in demanding applications.
When comparing CF8M and 316 stainless steel, the initial cost is an important factor to consider. CF8M typically incurs a higher initial cost due to its specialized casting process and the higher content of molybdenum and nickel. These elements enhance the material’s In contrast, 316 stainless steel generally has a lower initial cost. This is because it is widely produced and readily available, making it a more economical choice for general applications. The versatility and ease of fabrication associated with 316 stainless steel also help in keeping the costs down.
Although CF8M has a higher upfront cost, it can lead to significant savings over the long term, especially in corrosive environments. The superior corrosion resistance of CF8M means components made from this material often need less frequent maintenance and replacement. This can be particularly advantageous in industries such as chemical processing and marine applications, where exposure to harsh conditions is common.
While 316 stainless steel might be more economical initially, it may incur higher long-term costs in aggressive environments. The material may need more frequent maintenance and replacements due to its relatively lower resistance to certain types of corrosion, such as pitting and crevice corrosion in chloride-rich settings.
CF8M’s enhanced corrosion resistance and durability make it a cost-effective choice over the lifespan of the component. Its ability to withstand harsh environments reduces the likelihood of unexpected failures and costly downtime. This is particularly important in industries where reliability and longevity are crucial.
316 stainless steel, although durable and resistant to many forms of corrosion, may not match the longevity of CF8M in the most aggressive environments. In such cases, the ongoing costs associated with maintenance and replacements can add up, making it less cost-effective over time despite its lower initial investment.
CF8M may require specialized welding techniques and post-weld treatments, which can increase fabrication costs. The casting process itself, whether through investment casting or sand casting, involves additional steps that can drive up the 316 stainless steel offers greater ease of machining and forming, which can result in lower fabrication and processing costs. The material’s widespread use and availability in various forms mean that standard fabrication techniques can be employed, reducing the need for specialized processes and thereby keeping costs manageable.
The choice between CF8M and 316 stainless steel Industries such as marine, chemical processing, and oil & gas often prefer CF8M for its ability to withstand demanding conditions, despite the higher initial cost. Meanwhile, 316 stainless steel is widely used in food processing, pharmaceutical, and structural applications where its versatility and lower cost make it an attractive option.
In the chemical processing industry, CF8M and 316 stainless steel are both popular choices due to their excellent resistance to corrosive chemicals.
CF8M is particularly suitable for components exposed to aggressive chemicals and high pressures, such as valves, pumps, and fittings. The casting process used for CF8M allows for the creation of complex shapes and intricate details, which are often necessary for the specialized equipment used in chemical plants.
316 stainless steel is commonly used in tanks, pipes, and reactors where durability and uniformity are essential. The material’s formability and ease of fabrication make it an ideal choice for large-scale installations and systems.
Marine environments are highly corrosive due to the presence of saltwater, making material selection critical for longevity and performance.
CF8M’s high chromium and molybdenum content provide excellent protection against pitting and crevice corrosion, making it perfect for use in marine environments. Components such as pump casings, valve bodies, and marine hardware benefit from CF8M’s ability to withstand the harsh conditions of seawater exposure.
316 stainless steel is well-known for its outstanding resistance to chloride-induced corrosion, which is prevalent in marine environments. It is commonly used in the construction of marine equipment, including boat fittings, coastal architectural structures, and offshore platforms. Its versatility and strength make it a preferred choice for various marine applications.
The food processing industry requires materials that are not only corrosion-resistant but also safe for contact with food products.
CF8M is used in food processing equipment where durability and resistance to corrosion are essential. Its casting process allows for the creation of complex parts that are crucial in food production machinery, such as valves, pumps, and fittings. The material’s ability to maintain structural integrity under high-pressure and high-temperature conditions makes it an excellent choice for this industry.
316 stainless steel is widely used in food processing because it is highly resistant to corrosion and easy to clean, which is crucial for maintaining hygiene. It is commonly found in equipment such as conveyor belts, tanks, and piping systems. The material’s formability allows for the creation of seamless and sanitary designs that are critical in food processing environments.
The pharmaceutical industry demands materials that can withstand aggressive cleaning agents and sterilization processes while ensuring biocompatibility.
CF8M is used in pharmaceutical manufacturing equipment where corrosion resistance and mechanical strength are paramount. The material’s ability to be cast into complex shapes is beneficial for the specialized machinery used in drug production, including reactors and valve components.
316 stainless steel is extensively utilized in the pharmaceutical industry due to its excellent corrosion resistance, biocompatibility, and ability to withstand rigorous cleaning and sterilization. It is commonly used in equipment such as medical implants, surgical instruments, and processing equipment. The material’s uniformity and ease of fabrication ensure that it meets the stringent requirements of the pharmaceutical sector.
ASTM International sets global standards for materials, products, systems, and services. Compliance with ASTM standards ensures materials meet specific quality and performance criteria, which is critical in industrial applications.
CF8M is a type of austenitic stainless steel commonly used in applications that demand high corrosion resistance and mechanical strength. Several ASTM standards define the quality and specifications for CF8M:
316 stainless steel is known for its excellent corrosion resistance and is available in various forms such as plate, sheet, bar, and forged parts. Several ASTM standards ensure the material’s quality and performance:
CF8M is primarily used in cast components such as pump housings, valve bodies, and marine hardware due to its compliance with ASTM standards for castings. In contrast, 316 stainless steel is used in various forms, including sheets, pipes, bars, and structural components, making it versatile for a broader range of applications.
CF8M, with higher chromium content (18-21%) compared to 316 stainless steel (16-18%), offers enhanced corrosion resistance, especially in environments exposed to aggressive chemicals and high salinity. The molybdenum content in both alloys further improves their resistance to pitting and crevice corrosion.
CF8M has a higher yield strength (290-450 MPa) because of its ferrite content, which makes it more resistant to stress corrosion cracking. 316 stainless steel, depending on its form and processing, offers a range of mechanical properties suitable for different applications, including high-temperature services.
Weldability is a key factor in material selection. CF8M requires re-annealing after welding to maintain its corrosion resistance, whereas 316 stainless steel, particularly in its low-carbon variant 316L, can maintain corrosion resistance without post-weld treatments, offering greater ease in fabrication.
Understanding the ASTM standards compliance for CF8M and 316 stainless steel is crucial for selecting the appropriate material for specific industrial applications. Each material’s compliance with these standards ensures optimal performance, reliability, and safety in demanding environments.
Below are answers to some frequently asked questions:

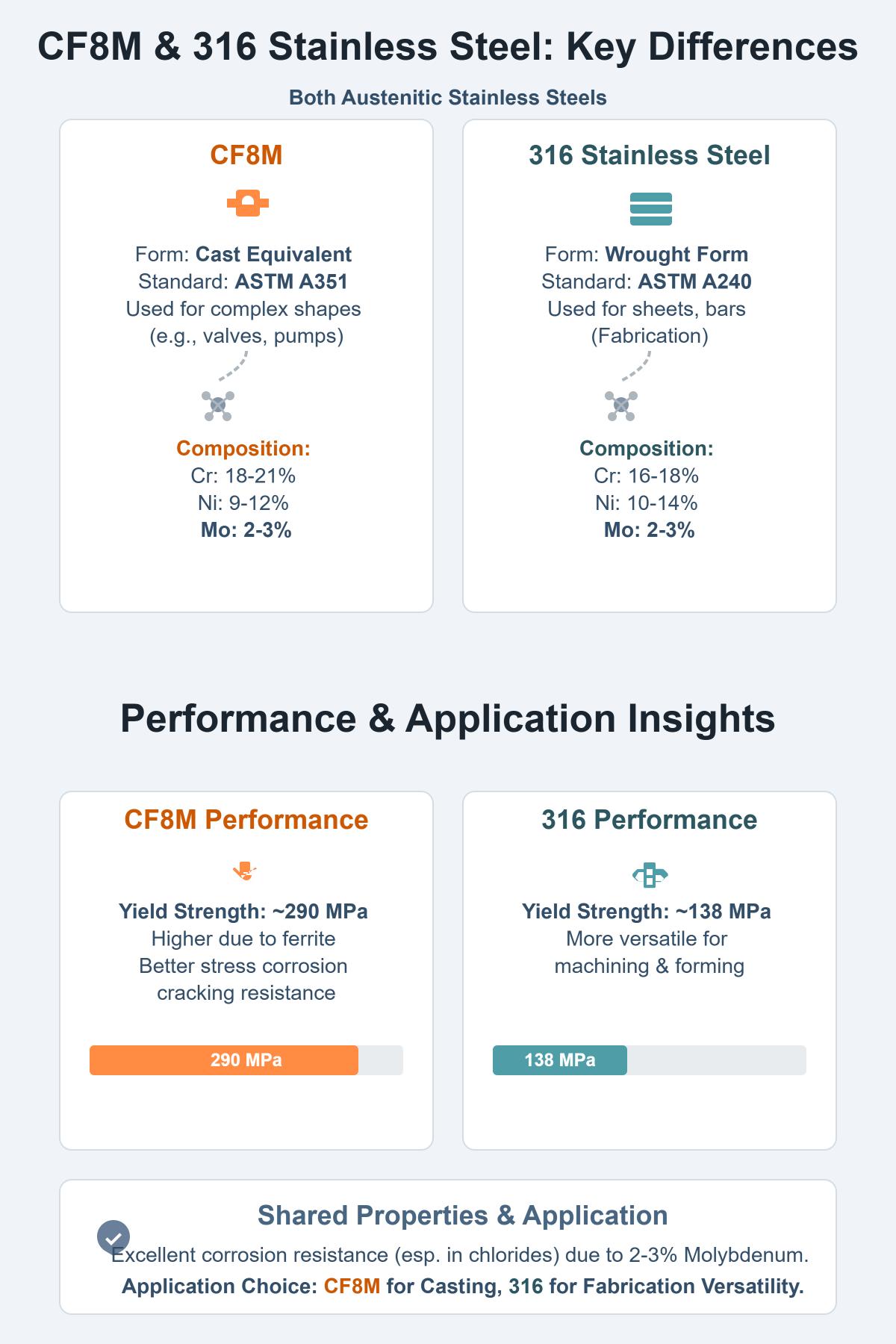

CF8M and 316 stainless steel are both austenitic stainless steels, but they differ in their form, specific properties, and applications. CF8M is the cast equivalent of 316 stainless steel, typically used for casting complex shapes like pump housings and valves. It is defined by ASTM A351 standards, featuring a chemical composition that includes 9-12% nickel, 18-21% chromium, and 2-3% molybdenum. In contrast, 316 stainless steel is primarily used in wrought forms such as sheets and bars, defined by ASTM A240 standards, with 10-14% nickel, 16-18% chromium, and 2-3% molybdenum.
Mechanically, CF8M offers higher yield strength (approximately 290 MPa) due to the presence of ferrite, making it more resistant to stress corrosion cracking. However, 316 stainless steel, with a yield strength of around 138 MPa, is more versatile for machining and forming. Both materials provide excellent corrosion resistance, particularly in chloride-rich environments, due to their molybdenum content. The choice between CF8M and 316 stainless steel depends on the specific requirements of the application, including the need for casting complex shapes or the versatility of fabrication.
For high-corrosion environments, CF8M is generally more suitable than 316 stainless steel. CF8M is a cast version of 316 stainless steel, containing similar amounts of molybdenum (2-3%) but with slightly higher chromium content (18-21%), which enhances its general corrosion resistance. Additionally, the casting process of CF8M introduces 5-20% ferrite, improving its yield strength and resistance to stress corrosion cracking, making it ideal for cyclic stress conditions.
In contrast, while 316 stainless steel is excellent for marine and chemical processing applications due to its molybdenum content, it has a lower chromium content (16-18%) and a uniform austenitic structure, which makes it more prone to stress corrosion cracking in high-corrosion environments. Therefore, for cast components in harsh environments, CF8M is the preferred choice due to its superior mechanical properties and corrosion resistance.
The casting process significantly impacts the properties of CF8M, a cast austenitic stainless steel alloy. Compared to its wrought counterpart, 316 stainless steel, CF8M benefits from the casting process in several ways.
Firstly, CF8M undergoes a heat treatment process, heating to a minimum of 1900°F (1040°C) followed by quenching, which helps achieve the desired microstructure and mechanical properties. This process introduces a small amount of ferrite into CF8M, enhancing its resistance to stress corrosion cracking and increasing its yield strength compared to the fully austenitic structure of 316 stainless steel.
Secondly, the casting process allows for better castability due to the presence of molybdenum, resulting in more precise and defect-free components. This makes CF8M ideal for complex shapes and high-pressure applications.
The cost differences between CF8M and 316 stainless steel primarily stem from their production processes and application-specific requirements. CF8M, a cast stainless steel, is designed for complex shapes and components such as pump housings and valves, making it more suitable for high-strength, precision-cast applications. This casting process can result in higher initial costs due to the specialized nature of casting.
On the other hand, 316 stainless steel is typically used in wrought forms like sheets, pipes, and bars, which are more versatile and widely available, leading to more economical options for general-purpose fabrication projects. While both materials contain similar amounts of molybdenum, contributing to their corrosion resistance, the production method and specific application needs drive the cost differences.
Yes, CF8M can be used in food processing applications. CF8M is a cast austenitic stainless steel known for its high corrosion resistance, particularly in environments rich in chlorides. It contains 18% chromium, 8% nickel, and 2-3% molybdenum, which enhances its resistance to pitting and crevice corrosion. This makes it suitable for food processing where such resistance is crucial.
Additionally, CF8M’s surface is non-toxic and easy to clean, meeting the hygiene standards required in food manufacturing and packaging. Its mechanical properties, including high tensile and yield strength, make it durable and resistant to wear and tear, ensuring longevity in demanding food processing environments. Therefore, CF8M is a reliable choice for components such as pumps, valves, and fittings in the food industry.
Yes, several case studies highlight the corrosion resistance of CF8M and 316 stainless steel. For instance, in marine environments, both materials demonstrate excellent resistance to chloride-induced corrosion. CF8M is frequently used for complex components such as valve bodies and pump casings due to its enhanced casting properties. In chemical processing, CF8M and 316 are effective in handling various acids, including citric, oxalic, and phosphoric acids, owing to their high molybdenum content, which improves pitting and crevice corrosion resistance. Additionally, while 316L, a variant of 316, offers better resistance to intergranular corrosion post-welding, CF8M’s casting process can introduce microstructural variations affecting its weldability. These case studies underscore the importance of choosing the right material based on the specific environmental and application requirements.
