When it comes to industrial piping systems, the term “pipe ends” might not immediately spark interest, but understanding their types is crucial for anyone involved in plumbing, construction, or mechanical engineering. The way a pipe ends can significantly impact its functionality, ease of connection, and In this beginner’s guide, we’ll explore the various types of pipe ends, such as plain end, beveled end, threaded end, and grooved end pipes. You’ll learn how each type connects to fittings and flanges, their common uses, and the advantages and disadvantages they bring to the table. Whether you’re just starting out or looking to refine your knowledge, this article will provide a comprehensive technical deep dive into the essential aspects of pipe ends.
Ready to unravel the intricacies of pipe ends and how they contribute to the seamless operation of industrial piping systems? Let’s dive in and discover which type is best suited for your next project.

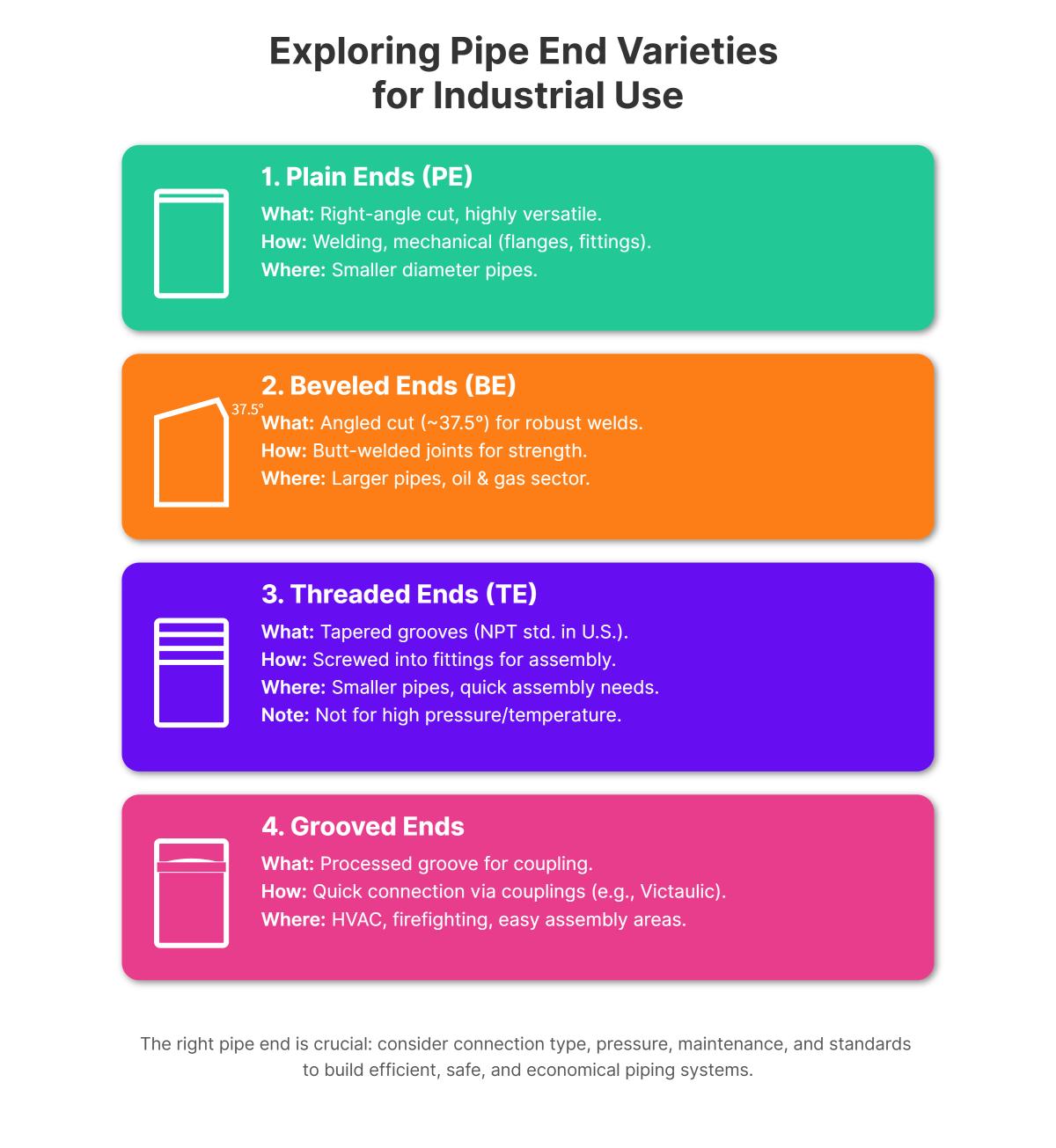

Understanding the different types of pipe ends is crucial for designing and maintaining efficient piping systems. Different pipe ends serve specific purposes and are suited to various applications, from simple water supply systems to complex industrial networks.
Plain ends are cut at a right angle to the pipe length, providing a flat termination. Plain ends are often used with slip-on flanges and socket weld fittings, making them ideal for small diameter systems and applications requiring welding. These pipes are often manufactured from materials such as stainless steel, duplex, and nickel-alloys.
Beveled ends are angled, typically at 37.5 degrees, to facilitate welding and create strong butt-welded joints. This design is essential for larger diameter applications, such as those in the oil and gas industry, where strong welding is necessary. Beveled end pipes are crucial for ensuring a secure, leak-proof connection in high-pressure environments.
Threaded ends feature tapered grooves, usually following the National Pipe Thread (NPT) standard in the U.S. These ends are typically used for smaller diameters (3 inches or less), providing a quick assembly and disassembly option. However, threaded ends are not suitable for high-pressure systems due to their potential for leakage under stress.
Grooved ends have grooves that allow for quick connections using gaskets. These ends are suitable for non-critical applications such as HVAC and firefighting systems. Grooved ends enable easy disassembly and reassembly without damaging the pipe or components, making maintenance straightforward.
The choice of pipe end type significantly impacts the system’s integrity, especially in high-pressure or high-temperature applications. Each pipe end type requires specific connection methods, such as welding, threading, or mechanical joints. Understanding these connection methods and industry standards ensures compatibility and safety across different systems.
Pipe ends are often designated using abbreviations like PE for plain ends, BE for beveled ends, and TE for threaded ends. Common combinations include TOE (threaded one end) and TBE (threaded both ends). Familiarity with these abbreviations is crucial for selecting the appropriate pipe end type for specific applications.
In chemical plants, plain ends are often paired with slip-on flanges, which allow for easy disassembly and maintenance. These ends are used for their ease of welding and compatibility with various fittings, making them ideal for systems that need regular maintenance. This is particularly important in environments that require frequent equipment changes.
In the oil and gas industry, beveled ends enable strong, reliable welds for high-pressure pipelines. This is critical in maintaining the integrity of pipelines transporting oil, gas, and other hazardous materials. In petrochemical plants, the strong welds provided by beveled ends are vital in environments dealing with high-temperature and high-pressure fluids, ensuring safety and reliability.
In gasoline stations, threaded ends allow for quick and easy assembly and disassembly. This reduces the risk associated with welding in potentially explosive environments. These ends are also ideal for residential and commercial plumbing, where their ease of installation and maintenance is highly valued.
Grooved ends are ideal for HVAC systems due to their ease of assembly and disassembly, which is beneficial during maintenance or system reconfigurations. They enable rapid installation, reducing downtime. Grooved ends are also suitable for firefighting systems due to their quick and non-damaging connection and disconnection, ensuring reliability and speed.
Pipe fittings are essential components used to connect, control, and redirect fluid flow in plumbing and industrial systems. Understanding the various types of pipe fittings is crucial for designing efficient and reliable piping networks.
There are several types of couplings used to connect two pipes in a straight line, enabling the extension of the pipeline:
Elbows change the direction of fluid flow, typically by 90° or 45°. They are crucial for directing pipelines around obstacles.
Tees create a branch in the piping system, allowing fluid to flow in two different directions. They are commonly used in applications where the flow needs to be split or redirected.
Unions have three parts: a nut, a female end, and a male end. They are designed for easy disassembly, making them ideal for maintenance and repair situations where pipes need to be frequently disconnected.
Flanges are used to connect pipes, valves, and other equipment. They consist of flat, circular discs with bolt holes around the perimeter. Flanges are ideal for high-pressure applications and offer a secure, leak-proof connection.
Pipe ends are the terminations of pipes that ensure proper connections and seals. Different types of pipe ends are suited for various applications.
Plain ends are flat terminations used with slip-on flanges and socket weld fittings. They are ideal for small diameter systems and applications requiring welding.
Threaded ends feature tapered threads that provide a secure seal. They are commonly used for smaller pipes and are quick to assemble and disassemble.
Beveled ends have an angled termination, typically at 37.5 degrees, used for butt welding. They are crucial for creating strong, leak-proof connections in high-pressure environments.
Grooved ends have a machined groove that facilitates quick connections using gaskets. They are suitable for non-critical applications, such as HVAC and firefighting systems, where ease of assembly and disassembly is important.
Selecting the appropriate pipe fittings and ends is vital for the integrity and efficiency of the piping system. Keep these factors in mind:
Proper installation and maintenance are crucial for the longevity and efficiency of piping systems:
Understanding pipe fittings and connections is essential for anyone involved in plumbing or industrial systems. By focusing on compatibility, pressure ratings, and proper installation techniques, you can design and maintain safe and efficient piping networks.
Plain end pipes have ends that are cut at a 90-degree angle, creating a clean, square finish without threading or beveling. This simplicity makes them versatile and easy to handle.
Plain end pipes are utilized in a wide range of applications due to their versatility and ease of use. Some of the most common applications include:
Plain end pipes can be connected using several methods, depending on the material and application. Some of the common joining techniques include:
Recently, there has been a growing trend towards the use of high-density polyethylene (HDPE) for plain end pipes, especially in drainage systems. HDPE plain end pipes are popular for their strength, durability, and ease of installation. They are particularly valued in civil engineering applications for their ability to withstand heavy loads and pressure.
A beveled end pipe features an angled cut at the end of the pipe, typically at a 37.5-degree angle. This design is primarily used to facilitate welding, particularly in butt-welded joints. The angled cut provides more surface area for welding, making the weld stronger and higher in quality. Beveled ends are crucial for ensuring a secure, leak-proof connection, especially in high-pressure environments.
Various industries use beveled end pipes because they enable strong, reliable welds. Some of the common applications include:
When selecting a beveling method, consider the following factors:
Understanding the characteristics, applications, and methods associated with beveled end pipes is essential for selecting the right type for your specific needs. By ensuring accurate and consistent bevels, you can enhance the reliability and safety of your piping systems.
Threaded end pipes are pipes with threads cut into their ends, allowing them to be securely connected to other threaded fittings. These threads can be either male (external) or female (internal) and are designed to screw together with corresponding fittings. The most widely used threading standard in the United States is the National Pipe Thread (NPT), which ensures compatibility and a tight seal.
Threads are made by cutting spiral grooves into the ends of the pipes. These grooves form ridges and valleys, which interlock with the threads of the mating fitting, ensuring a tight and secure connection. Properly threaded pipes prevent leaks and maintain smooth fluid or gas flow.
Threaded pipes are typically made from materials that can withstand the threading process and maintain structural integrity. Common materials include:
The most common standard in the U.S. is NPT, which features tapered threads for a tight seal. Other regional standards include BSPT and BSPP.
Threaded end pipes are versatile and widely used in various industries due to their ease of assembly and disassembly:
When assembling threaded connections, fittings should typically be hand-tightened to about 30%-50% of the thread depth to avoid over-tightening, which can cause damage.
To ensure a leak-proof seal, Teflon tape or pipe dope is often used. Teflon tape is preferred for its reliability and ease of application.
Using the correct wrench size is crucial for tightening fittings without causing damage. For instance, use a 12-inch wrench for 1/2-inch pipes and larger wrenches for 3/4-inch pipes.
A typical grooved end pipe system includes the following components:
There are two primary types of grooved couplings, each serving different applications:
Flexible grooved couplings allow for a limited amount of movement between the connected pipes. This flexibility can accommodate thermal expansion, contraction, and slight misalignments, making them ideal for applications where some degree of pipe movement is expected.
Rigid grooved couplings do not permit any movement between the connected pipes. These couplings are used where the pipeline must remain static, providing rigidity similar to flanged or welded joints.
Grooved end pipes can be assembled and disassembled quickly without damaging the pipes. This is particularly beneficial for systems needing regular maintenance or modifications, as it reduces both downtime and labor costs.
The absence of welding in the installation process minimizes the risk of fire hazards and makes the process faster and safer. This advantage is crucial in environments where welding poses significant safety concerns.
The combination of the gasket and coupling housing provides a reliable and leak-tight seal, capable of withstanding various pressure conditions. This ensures the integrity of the piping system and prevents leaks.
Grooved end pipes are versatile and used in various industries due to their ease of installation and maintenance. Common applications include:
They are widely used in water, gas, and fire suppression systems. The reliability and ease of maintenance of grooved end pipes make them suitable for these critical applications.
Grooved end pipes are ideal for heating, ventilation, and air conditioning systems due to their quick assembly and disassembly, which facilitate system modifications and repairs.
In firefighting systems, the ability to quickly assemble and disassemble pipes without causing damage is crucial, ensuring that fire suppression systems can be easily maintained and reconfigured.
When selecting and using grooved end pipes, several factors should be considered:
Pipe fittings are crucial for connecting pipes, controlling flow, and ensuring leak-proof systems. They come in various types and sizes to accommodate different pipe end types and applications.
Different pipe end types are designed to work with specific fittings to ensure secure and leak-proof connections.
Plain ends are flat and unthreaded. They are versatile and can be connected in various ways.
Threaded ends have threads that allow them to be screwed into matching fittings. This makes them easy to assemble and disassemble, making them suitable for low-pressure applications.
Beveled ends are angled to facilitate butt welding, providing strong and leak-proof joints.
Grooved ends have a machined groove that allows for quick and easy connections using mechanical couplings.
When connecting pipe ends to fittings, several factors must be considered to ensure a secure and reliable system.
Ensure the materials of pipes and fittings are compatible to prevent corrosion and extend the system’s lifespan. For example, using stainless steel fittings with stainless steel pipes can help prevent galvanic corrosion.
Accurately match the size and type of pipe ends with the appropriate fittings. Using mismatched components can lead to leaks and system failures.
Adhere to industry standards and regulations, such as ASME and ASTM, to ensure safety and performance. These standards specify the dimensions, materials, and pressure ratings for pipes and fittings.
Proper installation techniques are crucial for secure and leak-proof connections. For example, when using threaded fittings, apply Teflon tape or pipe dope to the threads to ensure a tight seal. For welded connections, ensure that the welds are performed correctly and inspected for integrity.
Knowing the standards for pipe ends is essential for ensuring compatibility, safety, and reliability in piping systems. Standards provide guidelines for dimensions, materials, and construction, ensuring that components from different manufacturers can be used together seamlessly.
ASME B1.20.1 is the standard for pipe threads, specifically the National Pipe Thread (NPT). This standard outlines the dimensions, tolerances, and thread forms necessary for creating a tight seal. NPT threads are tapered to help form a leak-proof connection, making this standard essential for threaded end pipes in various applications, including plumbing and industrial systems.
ASME B16.25 covers the preparation of buttwelding ends, including beveled ends. This standard specifies the dimensions and shapes of bevels to ensure proper alignment and penetration during welding. Following this standard ensures welded connections are safe and perform well.
Several other standards and regulations are relevant to pipe ends, each addressing different aspects of pipe construction and usage.
The American Society for Testing and Materials (ASTM) provides a range of standards covering various materials and their properties. For example:
The International Organization for Standardization (ISO) also provides global standards for pipe ends, ensuring compatibility and quality across international borders. For instance:
Adhering to industry best practices ensures that pipe ends are selected and used correctly, enhancing the safety and efficiency of piping systems.
Selecting the appropriate material for pipe ends is crucial. For example, stainless steel is often used for its corrosion resistance, while carbon steel is chosen for its strength in high-pressure applications. Ensuring material compatibility with the transported fluid and environmental conditions is essential.
Following proper installation techniques is vital for creating secure and leak-proof connections. This involves using the right tools, making precise cuts, and following manufacturer guidelines for welding, threading, or coupling.
Regular inspections and maintenance help in identifying and addressing potential issues before they lead to system failures. This includes checking for signs of wear, corrosion, and ensuring that connections remain secure over time.
When selecting pipe ends, consider the following factors to ensure the best fit for your application:
Assess the specific needs of your application, such as pressure, temperature, and fluid type. For high-pressure systems, beveled ends may be necessary for their strong welds, while threaded ends might be suitable for low-pressure, easily disassembled systems.
Ensure that the pipe ends are compatible with the fittings used in your system. This includes matching thread types for threaded ends or ensuring proper alignment for buttweld fittings with beveled ends.
Choose pipe ends that comply with relevant industry standards, such as ASME or ASTM, to ensure quality and compatibility. Compliance with these standards is essential for maintaining system integrity and safety.
Below are answers to some frequently asked questions:
In industrial applications, several types of pipe ends are commonly used, each serving specific purposes and offering distinct advantages. The main types include:
Choosing the appropriate pipe end depends on factors like the connection method, system pressure, maintenance needs, and industry standards, ensuring efficient, safe, and cost-effective piping systems.
Different pipe ends connect to fittings and flanges in various ways, each suited to specific applications and requirements.
Plain end (PE) pipes are typically connected through welding methods such as butt welding and socket welding. They can also be used with slip-on flanges, which slide over the pipe and are welded in place. Beveled end (BE) pipes are specifically designed for butt welding, where the beveled edge allows for a full penetration weld, creating a strong and reliable joint.
Threaded end (TE) pipes feature threads that enable them to be screwed into corresponding threaded fittings and flanges. This connection method is convenient for low-pressure systems and applications where pipes may need to be frequently assembled and disassembled.
Grooved end pipes have grooves that allow them to be connected using mechanical couplings. These couplings provide a secure fit and are easy to install and remove, making grooved end pipes popular in HVAC and fire protection systems.
Understanding these connections helps in selecting the appropriate pipe end type for different industrial applications, ensuring system integrity and ease of maintenance.
Plain end (PE) pipes and beveled end (BE) pipes differ primarily in the way their ends are prepared for connections.
Plain end pipes have ends cut at a 90-degree angle to the pipe’s length, resulting in a flat surface. These pipes are versatile and can be used with various fittings, such as socket welds or slip-on flanges, making them suitable for smaller diameter applications and systems where flexible connections are needed. They are easy to manufacture and connect, but the reliability of the connection depends on the quality of the welding or fittings used.
Beveled end pipes, on the other hand, have ends cut at an angle, typically 37.5 degrees. This beveled angle is designed to facilitate butt welding, which is essential for creating strong, leak-proof joints. Beveled ends are commonly used in larger diameter pipes and high-pressure applications, such as in the oil and gas industry, where pipe integrity is critical. The bevel allows for full penetration of the weld, enhancing the strength and durability of the connection. However, beveling requires precision and is often automated to ensure consistency and safety.
Threaded end pipes offer several benefits that make them a favored choice in various applications. Firstly, they are easy to install and disassemble, requiring no special tools or welding skills, which is ideal for DIY projects and maintenance tasks. This feature also makes them suitable for systems needing frequent adjustments. Secondly, they are cost-efficient; threaded fittings are generally more affordable than other joining methods like welding and can be reused, leading to long-term savings. Thirdly, when properly installed, threaded connections provide a tight seal, minimizing the risk of leaks and ensuring efficient fluid flow. They often use thread-sealing tapes or compounds to enhance the seal further. Additionally, threaded fittings are versatile and widely compatible, available in various materials and sizes, making them adaptable to different projects and environments. They can connect pipes of the same or different diameters and materials with the help of adapters and reducers. Lastly, threaded end pipes are suitable for low to medium pressure systems, such as residential plumbing, irrigation, and certain industrial processes, though they are not recommended for high-pressure or high-temperature systems due to potential leakage risks.
Grooved end pipes feature a groove around the end of the pipe, designed for quick and efficient connections using mechanical couplings. This is distinct from other pipe end types like threaded, beveled, or plain ends, which require different methods of connection.
The primary differences are:
These features make grooved end pipes particularly useful in HVACR and firefighting systems, where quick assembly and ease of maintenance are crucial.
The best pipe end for your specific application depends on several factors such as system pressure, temperature, ease of assembly, and the required integrity of the connections.
Plain end pipes are versatile and ideal for small diameter systems where welding or mechanical connections are preferred. Beveled end pipes are suited for larger diameter applications needing strong weld joints, like in the oil and gas industry. Threaded end pipes are useful for smaller diameter systems that require quick assembly and disassembly, such as plumbing and gas distribution, but they are not suitable for high-pressure or high-temperature environments. Grooved end pipes are excellent for systems needing frequent maintenance, like HVAC and firefighting systems, due to their ease of assembly.
Consider these factors and the specific demands of your project to choose the appropriate pipe end.
