Understanding Gauge: A Comprehensive Guide
Have you ever wondered why a higher gauge number means a thinner wire, or how this seemingly counterintuitive system came…
Have you ever wondered what makes a sturdy steel structure, or why some metal sheets are thicker than others? If so, you’re in the right place. Understanding the concept of steel gauge, particularly 10 gauge steel thickness, is fundamental for anyone stepping into the world of metalworking or construction. But what exactly does “10 gauge” mean, and how thick is it compared to other gauges?
In this beginner’s guide, we will unravel the mystery behind steel gauge measurements, explain how the sheet metal gauge system works, and dive into the specifics of 10 gauge steel thickness. You will learn how to convert gauge to inches and millimeters, compare different gauges, and understand the impact of thickness on material properties. Whether you are curious about its practical applications or need to select the right gauge for your project, this guide will provide the essential knowledge you need. Ready to demystify steel gauge measurements? Let’s get started!
Steel gauge is a system used to measure the thickness of steel products such as sheets, coils, tubes, and wires. The gauge system is unique because it operates inversely; as the gauge number increases, the thickness of the steel decreases, meaning a higher gauge number corresponds to a thinner material.
The steel gauge measurement system is crucial in metalworking for several reasons:
For beginners, understanding steel gauge measurement involves grasping a few key concepts:
The steel gauge system is widely used in industries such as construction, fabrication, and manufacturing. It helps professionals choose the appropriate thickness of steel for various projects, ensuring that the material meets the specific requirements for strength, durability, and flexibility.
Understanding steel gauge measurement is essential for anyone involved in metalworking. It provides a reliable and standardized way to specify and select materials for various applications.
The sheet metal gauge system is a numerical scale used to measure the thickness of sheet metal, essential in industries like construction, manufacturing, and aerospace. Sheet metal gauges are commonly used to measure a variety of materials, including steel, aluminum, and copper. The gauge system, originating from the British iron wire industry, assigns numbers to represent thickness, with higher numbers indicating thinner sheets and lower numbers representing thicker sheets.
Here are some common gauges and their corresponding thicknesses for steel:
The relationship between gauge number and thickness is inverse, meaning as the gauge number increases, the sheet metal becomes thinner. For example, a 22 gauge sheet is thinner than an 18 gauge sheet. This system allows for a standardized way to specify material thickness, which is crucial for ensuring consistency across different projects and applications.
Choosing the right gauge is crucial for optimizing material costs, as thinner materials are generally less expensive and suitable for applications where heavy-duty strength is not required. The gauge of sheet metal plays a significant role in various aspects of manufacturing and construction:
10 gauge steel is a specific thickness of steel widely used in industrial and construction projects because of its strength and versatility.

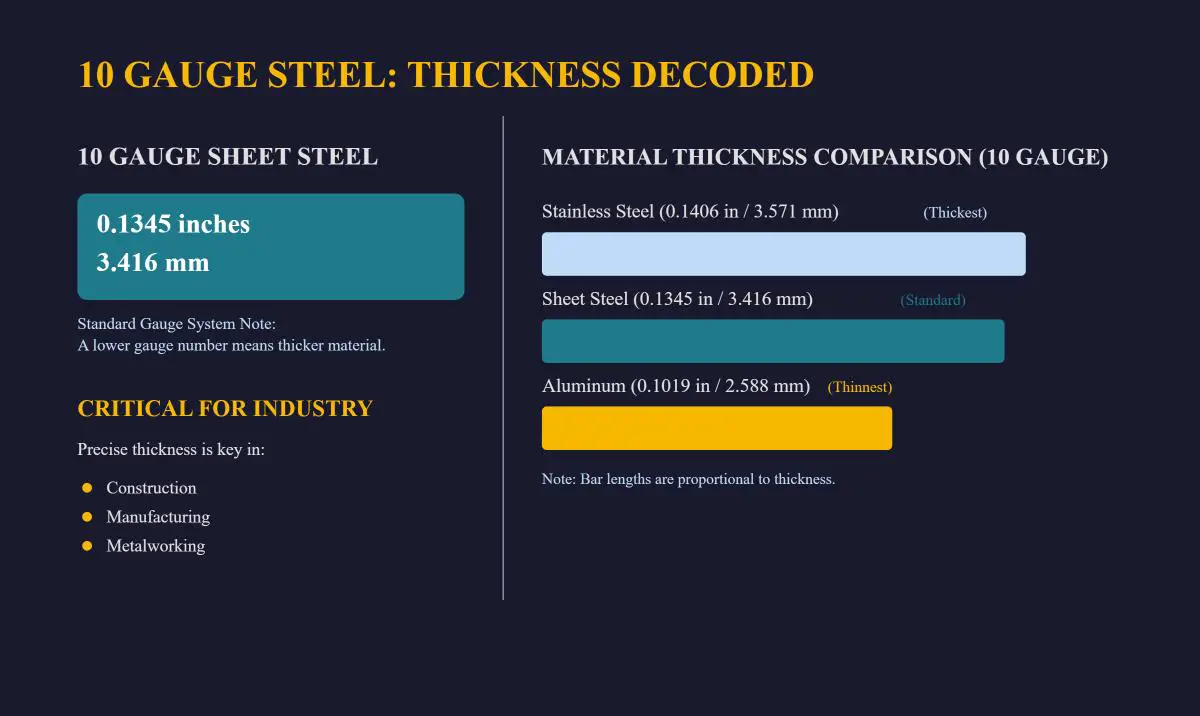

10 gauge mild steel is about 0.1345 inches (3.416 mm) thick, galvanized steel is around 0.1382 inches (3.510 mm) due to its zinc coating, and stainless steel measures roughly 0.1406 inches (3.571 mm). These measurements provide a basic understanding of the physical dimensions of 10 gauge steel, which is essential when selecting materials for specific applications.
The tolerance levels for 10 gauge mild steel typically fall between 0.128 and 0.140 inches. This range accounts for slight variations during the manufacturing process, ensuring that the steel meets precise specifications required for its intended use.
Common uses of 10 gauge steel include construction (e.g., decks, fences), manufacturing (e.g., equipment panels, automotive parts), and storage solutions (e.g., cabinets, paneling). These applications demonstrate the versatility and practicality of 10 gauge steel in different industries.
When choosing 10 gauge steel, consider the specific type: galvanized steel resists corrosion, making it suitable for outdoor use; stainless steel is rust-resistant, ideal for areas prone to moisture; and mild steel is a cost-effective option for general fabrication. Understanding these differences helps in choosing the right type of 10 gauge steel for specific needs.
Using the correct gauge chart is crucial because different materials have unique thicknesses at the same gauge number. For example, 10 gauge stainless steel and 10 gauge aluminum have different thicknesses, so always refer to specific gauge charts for accuracy. Selecting the correct gauge involves considering factors such as structural strength, material characteristics, purpose, and environmental factors. Assessing these elements ensures that the chosen steel gauge meets the requirements of the project while optimizing cost and performance.
Converting gauge measurements to inches or millimeters is crucial for accurately determining the thickness of sheet metal in various applications.
The gauge system assigns numbers to different thicknesses of sheet metal, with higher numbers indicating thinner materials, such as 10 gauge steel being thicker than 20 gauge steel. This inverse relationship can be confusing for beginners, but it is a standard method for specifying material thickness.
Converting gauge to inches or millimeters involves using standard charts that outline the corresponding thickness for each gauge number. Use a conversion chart to find the thickness in inches and millimeters, which are widely available and provide precise measurements. Here’s how you can understand and use these conversions:
Here is a quick reference chart for common steel gauges and their thicknesses in both inches and millimeters:
| Gauge | Inches | Millimeters |
|---|---|---|
| 4 | 0.204 | 5.19 |
| 6 | 0.162 | 4.12 |
| 8 | 0.128 | 3.26 |
| 10 | 0.102 | 2.59 |
| 12 | 0.081 | 2.05 |
| 14 | 0.064 | 1.63 |
Understanding how to convert gauge to inches or millimeters is crucial in various fields:
Understanding the differences between various steel gauges is crucial for selecting the right material for your project. In the gauge system, lower numbers mean thicker steel, while higher numbers mean thinner steel. This inverse relationship can be initially confusing but is essential for standardizing material specifications.
To compare the thicknesses of different steel gauges, it’s helpful to look at specific measurements. For example, let’s compare 10 gauge steel to other common gauges:
As shown, 10 gauge steel is thicker than 12 gauge and 16 gauge steel but thinner than 7 gauge steel. These measurements highlight how the gauge system provides a clear, standardized way to specify material thickness.
Steel thickness can vary by type; for instance, galvanized steel, with its protective zinc coating, is slightly thicker than mild steel of the same gauge. Stainless steel, known for its corrosion resistance, can also have slight variations in thickness. These differences matter for specific project needs.
Each steel gauge is suited to different applications depending on its thickness and strength:
When choosing the right gauge for your project, consider these factors:
By understanding the differences between various steel gauges and their respective applications, you can make informed decisions that ensure the success and durability of your projects.
Gauge thickness plays a crucial role in determining the strength and structural integrity of metal materials. A lower gauge number corresponds to a thicker sheet, which inherently provides greater strength. Thicker metals are better suited for high-load applications, such as construction beams and heavy machinery parts, because they can withstand more stress and force without deforming. This increased strength ensures stability and longevity in structures exposed to extreme weather conditions or heavy usage.
Thinner gauge metals (higher gauge numbers) are easier to bend, cut, and shape, making them ideal for detailed work and manipulation, such as in automotive body panels and decorative architectural elements. On the other hand, thicker metals (lower gauge numbers) are more challenging to work with due to their rigidity but provide superior support and durability.
Thicker metals are heavier, which can be advantageous for enhancing stability and reducing vibration in construction, but may be a drawback in applications where weight is critical, like in aerospace or automotive industries. For example, in construction, the added weight of thicker metals can enhance stability and reduce vibration, contributing to a more robust structure. However, in applications where weight is a critical factor, using thinner metals can help reduce the overall mass of the structure, leading to improved fuel efficiency and performance.
The cost of materials is another important factor influenced by gauge thickness. Thicker metals generally cost more due to the increased amount of material used. This can result in higher initial costs for projects requiring thicker gauge metals. However, the durability and reduced need for maintenance and replacements can lead to long-term savings. While thinner metals are less expensive upfront, they might require additional reinforcement or more frequent replacements, potentially increasing long-term costs.
While gauge thickness does not directly correlate with corrosion resistance, thicker metals can offer a longer lifespan before corrosion becomes a significant issue. The increased thickness provides more material to corrode, delaying the point at which the structural integrity of the metal is compromised. This is particularly important in environments where exposure to moisture, chemicals, or other corrosive elements is frequent.
Gauge thickness also affects the thermal and acoustic properties of metals. Thicker metals provide better thermal mass, aiding in temperature stability in buildings and offering improved sound insulation to reduce noise transmission. These properties are particularly beneficial in applications such as building construction and manufacturing of soundproof equipment enclosures.
When selecting the appropriate gauge thickness for a project, it is essential to consider the specific requirements of the application. Factors such as the required strength, flexibility, weight constraints, cost, environmental conditions, and desired thermal or acoustic properties should all be taken into account. By carefully evaluating these factors, you can choose the right gauge thickness that balances performance, cost, and durability for your specific needs.
10 gauge steel is a highly versatile material, widely used across different industries for its balanced properties of strength and thickness.
In construction and manufacturing, 10 gauge steel is prized for its durability and ability to withstand heavy loads, making it ideal for general fabrication tasks, equipment panels, walkways, catwalks, and conveyor systems.
The automotive industry benefits significantly from the properties of 10 gauge steel. It’s used in automotive panels and vehicle chassis, providing the necessary strength and durability for safety and performance.
10 gauge steel is also popular in storage and architectural applications, offering both functionality and aesthetic appeal. Steel cabinets made from 10 gauge steel provide secure and durable storage solutions for tools, equipment, and other valuable items. Its use in architectural paneling enhances building designs by adding a combination of structural support and visual appeal, suitable for both interior and exterior applications.
When selecting 10 gauge steel, consider material properties, environmental conditions, and budget to ensure the best fit for your project. Choose the type of steel (mild, galvanized, or stainless) based on the specific requirements, such as corrosion resistance, strength, and cost. Assess the environmental conditions where the steel will be used, with galvanized steel being ideal for outdoor projects due to its resistance to rust and corrosion. Evaluate the cost implications and performance needs to select the optimal material that meets both financial and functional requirements.
Accurate measurement tools are crucial for ensuring compliance with industry standards. Use calipers or laser measurement tools to verify the thickness and dimensions of the steel accurately, and adhere to standards like ASTM A1011 to maintain quality and safety in projects involving 10 gauge steel. Understanding the practical applications of 10 gauge steel and considering key factors for project selection can help ensure successful outcomes in various industrial and construction projects.
Below are answers to some frequently asked questions:
The thickness of 10 gauge steel is approximately 0.1345 inches, which is equivalent to 3.416 millimeters. This measurement is based on the standard gauge system used for sheet steel, where a lower gauge number indicates a thicker material. It is important to note that the exact thickness can vary slightly depending on the type of steel or other materials. For example, 10 gauge stainless steel is slightly thicker at about 0.1406 inches (3.571 mm), while 10 gauge aluminum is thinner at about 0.1019 inches (2.588 mm). Understanding these measurements is crucial for applications in construction, manufacturing, and metalworking where precise material specifications are required.
10 gauge steel has a thickness of approximately 0.1345 inches (3.416 mm) for mild steel. When comparing 10 gauge steel to other gauges, the key point to understand is that lower gauge numbers indicate thicker and stronger steel, while higher gauge numbers indicate thinner and less strong steel. For instance, 7 gauge steel is thicker at 0.1875 inches (4.76 mm), making it stronger and more suitable for heavy-duty applications than 10 gauge steel. Conversely, 12 gauge steel is thinner at 0.105 inches (2.67 mm) and less robust, suitable for lighter applications. This comparative understanding helps in selecting the appropriate gauge based on the required strength and durability for specific projects.
Gauge is crucial in metalworking because it directly determines the thickness of the metal sheet, which impacts several key aspects of the material’s performance and application.
Firstly, the gauge number inversely correlates with the thickness: a lower gauge number indicates a thicker and stronger sheet, while a higher gauge number indicates a thinner and more flexible sheet. This relationship is essential for determining the material’s durability and strength. Thicker sheets (lower gauge) are necessary for applications requiring high strength, such as structural elements in construction or heavy machinery. Conversely, thinner sheets (higher gauge) are preferred for applications needing flexibility and lightness, such as automotive body panels.
Additionally, the correct gauge selection influences economic efficiency. Thicker gauges are more expensive due to higher material costs and longer production times, whereas thinner gauges are less costly and quicker to process. Proper gauge selection also ensures structural integrity and safety by matching the material’s strength to the load it will bear, reducing the risk of failure.
Therefore, understanding and choosing the correct gauge is vital for optimizing performance, safety, and cost in metalworking projects.
To convert gauge to thickness, you can use either conversion charts or formulas. Gauge is an inverse measure of thickness, meaning higher gauge numbers indicate thinner materials.
For example, a common conversion for 10 gauge steel is approximately 0.1345 inches or 3.416 millimeters. Charts available from resources like Metalsupermarkets provide these conversions for various materials and are highly reliable.
Alternatively, you can use formulas. For steel, the formula is: [ \text{mm} = 11.684 – (0.934 \times G) ] where ( G ) is the gauge number. Plugging in 10 for the gauge number: [ \text{mm} = 11.684 – (0.934 \times 10) = 2.344 \, \text{mm} ]
Using charts is often preferred for accuracy and ease, especially for beginners.
10 gauge steel, which has a thickness of approximately 0.1345 inches (3.42 millimeters), is commonly used in construction due to its balance of strength and workability. Its applications in construction are diverse and include several key areas:
Gauge thickness has a substantial impact on the material properties of steel. Lower gauge numbers correspond to thicker steel, which generally offers greater strength and durability. This makes thicker steel ideal for high-load applications such as construction beams and heavy machinery, where structural integrity is crucial. Conversely, higher gauge numbers represent thinner steel, which is less strong but more flexible. This flexibility is beneficial for applications requiring extensive bending and shaping, like automotive body panels.
Thicker steel also provides better resistance to environmental stresses, such as wind and impact, enhancing safety in buildings, especially in extreme weather conditions. Additionally, thicker steel can improve energy efficiency by offering better insulation properties.
However, thicker steel tends to be more expensive due to the greater amount of material used, although it may reduce long-term costs by minimizing repairs and replacements. Thinner steel, while cheaper and easier to work with, might require more frequent replacements if it doesn’t meet durability standards.
Overall, choosing the right gauge thickness involves balancing these factors to meet specific project requirements and ensure optimal performance.
