Imagine a world where electrical systems fail to operate efficiently due to unreliable materials. Copper, with its exceptional conductivity, stands as the backbone of modern electrical infrastructure. But what exactly dictates its resistivity, and how can we harness this knowledge to optimize its use? In this comprehensive guide, we delve into the intricate world of copper resistivity, exploring the key factors that influence it, such as temperature, impurities, and material defects. We’ll provide you with detailed formulas and practical examples to help you calculate resistivity accurately. Furthermore, you’ll discover copper’s critical applications in electrical systems, from wiring to power distribution. Ready to deepen your understanding and enhance your technical prowess? Let’s dive in.
Copper resistivity is a key property that measures how much the material resists the flow of electric current. Copper, with its low resistivity of approximately (1.7×10−8) Ohm meters at 20°C, is one of the most efficient conductors available.
The resistivity of copper increases with temperature. Higher temperatures cause the atoms within the copper to vibrate more vigorously, leading to more frequent collisions between the electrons and the atoms. This increase in collisions impedes the flow of electrons, thereby increasing the resistivity. Copper’s resistivity increases by about 0.393% for each degree Celsius rise in temperature.
Impurities in copper can significantly increase its resistivity. Foreign atoms disrupt the orderly copper structure, creating scattering centers that impede electron flow. For instance, oxygen-free high conductivity (OFHC) copper, which has very low levels of impurities, exhibits lower resistivity compared to commercially pure copper. The presence of elements such as phosphorus, sulfur, or iron can greatly increase the resistivity.
Defects in the crystal structure of copper, such as grain boundaries, dislocations, and vacancies, also contribute to increased resistivity. These defects obstruct electron movement, causing more scattering and resistance. Cold working, which involves deforming the copper at room temperature, introduces many of these defects and slightly increases the resistivity. In contrast, annealing, a heat treatment process, can reduce resistivity by relieving internal stresses and promoting a more uniform crystal structure.
This technique is commonly used to measure the resistivity of thin materials. It involves placing four collinear probes on the surface of the copper sample. A current is passed through the outer two probes, and the voltage is measured across the inner two probes. The resistivity is then calculated using the measured voltage and current values, along with the geometric dimensions of the sample.
The Van der Pauw method is suitable for measuring the resistivity of small, irregularly shaped samples. This method involves placing electrical contacts at the periphery of the sample and measuring the resistance in different configurations. By applying a series of mathematical transformations, the resistivity can be derived from these resistance measurements.
Copper’s low resistivity is crucial in various electrical applications. It ensures minimal energy loss in the form of heat, leading to more efficient power transmission and distribution. Copper is widely used in electrical wiring, cabling, and components where high conductivity is essential. Understanding and optimizing the factors affecting copper’s resistivity can enhance the performance and efficiency of electrical systems.

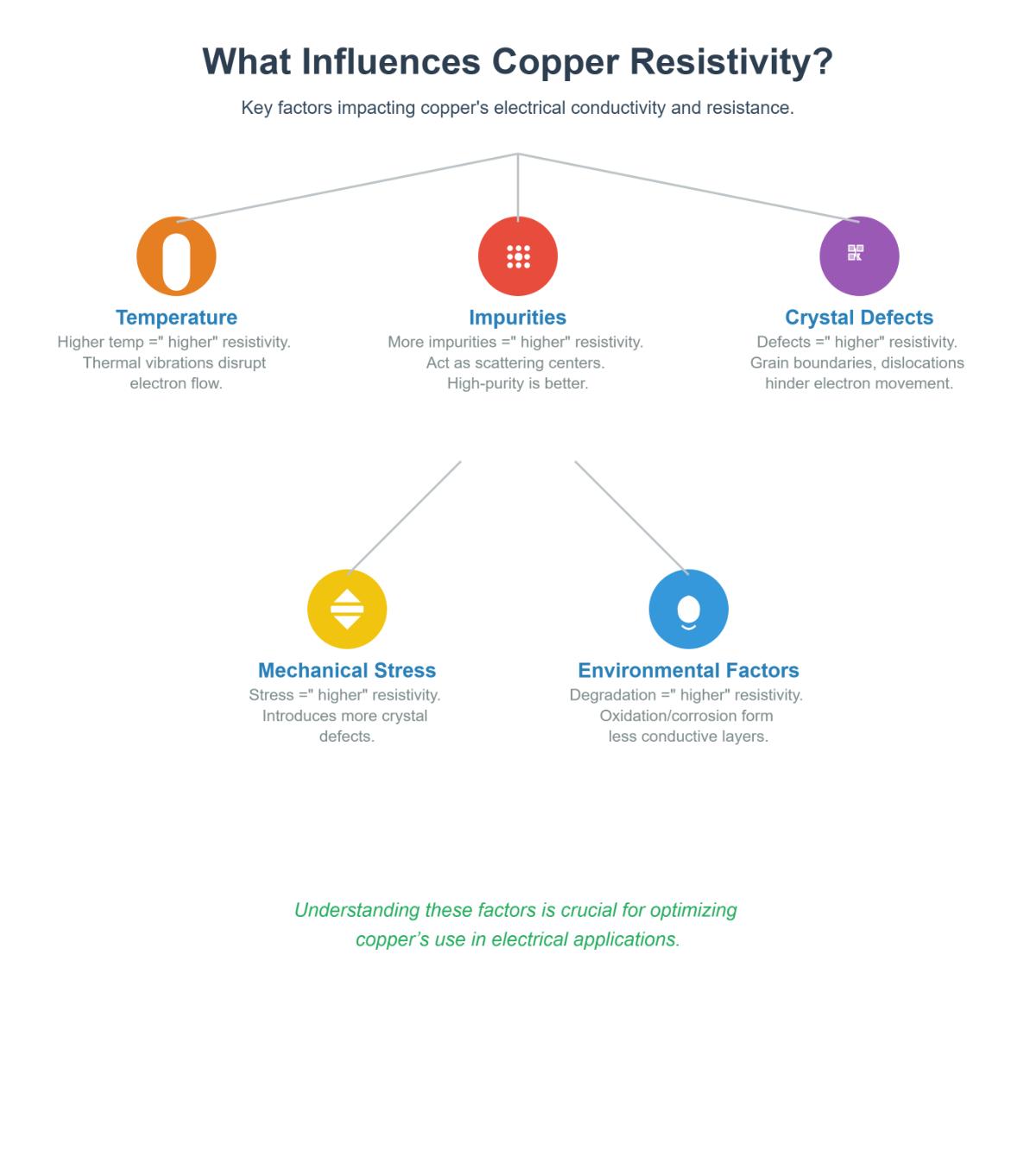

As temperature increases, copper atoms vibrate more, causing more collisions with electrons. This interference raises resistivity. The relationship is approximately linear, with resistivity increasing by about 0.39% per degree Celsius. The temperature coefficient of resistivity for copper is around 0.00393/°C, meaning that for every 1°C increase, the resistivity increases by about 0.393%.
High-purity copper, like electrolytic tough pitch (ETP) or oxygen-free high conductivity (OFHC) copper, has lower resistivity, while even small amounts of impurities can significantly increase resistivity. Impurities and alloys act as scattering centers, disrupting the regular lattice structure of copper and hindering the smooth flow of electrons.
Defects such as grain boundaries, dislocations, and vacancies hinder electron movement, increasing resistivity. Cold working introduces these defects, while annealing reduces them by allowing atoms to rearrange into a more orderly structure. During annealing, the copper atoms have the opportunity to re-arrange themselves, resulting in lower resistivity.
Mechanical stress deforms copper’s crystal structure, creating defects that impede electron flow and increase resistivity. Proper stress management is essential in applications to maintain low resistivity.
Over time, copper can oxidize or corrode, forming layers with higher resistivity. Regular maintenance is necessary to remove these layers and keep resistivity low.
To calculate the resistance ((R)) of a copper conductor, use the formula:
Here, (ρ) is the resistivity of copper, (L) is the length of the conductor, and (A) is the cross-sectional area. The resistivity (ρ) of copper at 20°C is approximately (1.72×10−8Ω⋅m).
To find the resistivity (ρ), rearrange the formula to
This requires knowing the values of resistance (R), cross-sectional area (A), and length (L) of the copper conductor.
Copper’s resistivity changes with temperature. As temperature rises, resistivity increases due to more atomic vibrations. Use the formula to find the resistivity at a given temperature.
In this formula, (α) is the temperature coefficient (0.00393/°C for copper), and (Tref) is typically 20°C.
Consider a copper wire that is 10 meters long with a cross-sectional area of 2×10−6m2). At 20°C, using the resistivity
we can calculate the resistance (R) using
Substitute the values:
If the temperature of the wire increases to 50°C, we first calculate the new resistivity (ρT).
Here, (T = 50°C), (Tref=20°C), and (α=0.00393/°C), (ρref=1.72×10−8Ω⋅m).
Then we can recalculate the resistance at 50°C using the new resistivity and the same length and cross-sectional area.
Engineers designing copper cables for power distribution need to calculate resistance carefully to minimize power loss. This ensures efficiency and safety in the system. Using these formulas, they can choose the right cable size based on the cable length and expected current flow.
In electronic circuit design, knowing the resistivity of copper helps in calculating the resistance of copper traces on printed circuit boards (PCBs). This is crucial for ensuring proper signal transmission and preventing overheating due to excessive resistance.
Copper is renowned for its exceptional electrical conductivity, surpassed only by silver. This property makes copper indispensable in various electrical systems. It ensures minimal energy loss during power transmission, leading to enhanced efficiency and performance in numerous applications.
Copper wiring is the standard in residential, commercial, and industrial settings. In buildings, its high conductivity allows for efficient electrical flow, reducing the risk of overheating and energy loss. Additionally, copper’s resistance to corrosion ensures longevity and durability, making it ideal for both indoor and outdoor installations. In industrial environments, it is essential for machinery, power distribution networks, and control systems. Its robustness and ability to handle high electrical loads without significant degradation make it a preferred choice for heavy – duty applications.
Copper is crucial for electrical power distribution. It is used extensively in transformers, switchgears, and power generation equipment. The material’s excellent conductivity minimizes energy losses during long – distance power transmission, thereby ensuring efficient delivery of electricity from power plants to consumers. In transformers, copper windings are used to transfer electrical energy between circuits with minimal losses. Switchgears, which control and protect electrical networks, also rely on copper for its reliability and conductivity.
Copper is a fundamental material in the electronics industry. It is used in printed circuit boards (PCBs) to create conductive pathways that connect various components. Copper’s support for high – speed data transmission is essential in modern electronics, ensuring fast and reliable signal transmission, which is necessary for the proper functioning of electronic devices such as computers and smartphones.
Copper is integral to the efficiency of solar panels. It is used in the wiring and connections that transport electricity generated from sunlight. The material’s durability and conductivity enhance the
In wind turbines, copper is used in the generators and power cables. Its high conductivity ensures that the electricity generated from wind energy is transmitted efficiently with minimal losses, contributing to the effectiveness of renewable energy solutions.
The transition to electric vehicles (EVs) heavily relies on copper for various components, including wiring, motors, and charging stations. Copper’s excellent conductivity and durability make it ideal for the high – power demands of EVs, facilitating efficient energy transfer and reliable operation. Copper is also critical in the development of EV charging infrastructure. It is used in the cables and connectors that ensure safe and efficient charging of electric vehicles. The material’s reliability and performance under high electrical loads are essential for the growing EV market.
Copper’s high electrical conductivity reduces energy losses, making it more efficient than most other metals. This makes it especially valuable for energy – efficient applications.
Copper is resistant to corrosion and can withstand mechanical stresses, making it a reliable choice for various electrical applications. Its durability ensures long – term performance, reducing the need for frequent replacements.
Copper’s flexibility allows it to be used in a wide range of applications, from fine wires in electronic devices to thick cables in power distribution systems. Additionally, copper can tolerate high temperatures without significant degradation, making it suitable for environments with high thermal demands.
Below are answers to some frequently asked questions:
Copper resistivity is influenced by several key factors that can impact its performance in electrical systems. Firstly, temperature plays a significant role; as temperature increases, so does copper’s resistivity due to enhanced thermal vibrations of the lattice atoms, which disrupt electron flow. Secondly, impurities in copper, such as other metals, act as scattering centers, increasing resistivity by interfering with the regular lattice structure. High-purity copper exhibits lower resistivity compared to copper with impurities. Thirdly, defects in the crystal structure, including grain boundaries and dislocations, hinder electron movement, leading to higher resistivity. Mechanical stress can also introduce additional defects, further increasing resistivity. Lastly, environmental factors such as oxidation and corrosion can degrade copper over time, forming a less conductive layer on its surface. Understanding these factors is crucial for optimizing copper’s use in electrical applications.
Copper resistivity is calculated using the formula:
where (ρ) represents the resistivity in ohms per meter (Ω⋅m), (R) is the resistance in ohms (Ω), (A) is the cross-sectional area in square meters (m2), and (L) is the length in meters (m). This formula helps determine how much a copper conductor resists the flow of electric current.
To apply this formula in practical scenarios, measure the resistance of the copper conductor, its length, and its cross-sectional area. Plug these values into the formula to calculate the resistivity. This is essential in electrical engineering to ensure the material’s efficiency and reliability for specific applications, considering factors like temperature and impurities that can affect resistivity, as discussed earlier.
Copper is widely used in electrical systems due to its excellent electrical conductivity, durability, and resistance to corrosion. Common applications include:
These applications underscore copper’s vital role in ensuring efficient, reliable, and sustainable electrical systems.
To use the resistivity formula in real-world electrical projects, start with the fundamental equation ( R=ρ×L/A ), where ( R ) is resistance, ( ρ ) is resistivity, ( L ) is the length of the conductor, and ( A ) is its cross-sectional area. This formula helps in determining the resistance of copper conductors used in various applications.
By understanding and applying the resistivity formula, you can design efficient and reliable electrical systems tailored to specific requirements, optimizing performance and minimizing energy losses.
Impurities can significantly increase copper resistivity. Phosphorus, even in small amounts like 50 ppm, can modify copper’s behavior and reduce oxygen content, though it’s a deoxidant. Sulfur accumulates at grain boundaries, causing embrittlement and higher resistivity, and can combine with other elements. Bismuth and lead form low melting point grain boundary films, contributing to hot and cold shortness. Gallium and arsenic disrupt the atomic structure, raising resistivity even at low concentrations. These impurities increase resistivity through electron scattering, grain boundary accumulation, and structural changes.
Yes, there are several online tools available that can help you easily calculate the resistivity of copper. Websites like Circuit Digest offer resistivity calculators where you can input the resistance, length, and cross-sectional area to determine the resistivity of copper. Additionally, platforms such as Chemandy Electronics provide wire resistance calculators that allow you to calculate the DC resistance of a copper wire using its resistivity, length, and cross-sectional area or diameter. These tools simplify the calculation process, making it more accessible for users involved in electrical system design and analysis.
