Understanding Flatness in GD&T: A Step-by-Step Guide
Imagine designing a component that must perfectly mate with another surface, but even the slightest deviation disrupts the entire assembly.…
Imagine a world where every manufactured part fits together perfectly, with no inconsistencies or alignment issues. This level of precision is what Geometric Dimensioning and Tolerancing (GD&T) aims to achieve, and understanding the concept of flatness is a crucial part of this journey. Flatness, a fundamental aspect of GD&T, ensures that surfaces are even and free from waviness, playing a pivotal role in the assembly and functionality of mechanical components. But how is flatness defined and measured, and how can it be effectively applied in engineering drawings? In this comprehensive guide, we delve deep into the intricacies of flatness, exploring its representation, measurement techniques, and practical applications. Ready to master the art of precision engineering? Let’s dive in.
Geometric Dimensioning and Tolerancing (GD&T) is a system of symbols used on engineering drawings and 3D models to precisely define the geometry of a part and its tolerances. It communicates the design intent for the geometry of a part, ensuring the manufactured part meets the intended functionality by precisely defining its shape, orientation, location, and size. Unlike traditional dimensioning methods that mainly focus on linear measurements, GD&T provides a more comprehensive and accurate way to describe the geometry of a part.
In precision engineering and manufacturing, GD&T plays a crucial role. When parts are made according to GD&T specifications, they can be easily replaced or assembled without custom fitting, reducing production time and cost. Moreover, GD&T helps in improving product quality by minimizing variations in the manufacturing process. By precisely defining the tolerances, it ensures that each part functions as intended, reducing the risk of product failure. In industries such as aerospace, automotive, and medical device manufacturing, where precision is of utmost importance, GD&T is indispensable.
Datums are exact reference points, axes, or planes used to define the coordinate system of a part and establish the location and orientation of its features. They are essential for defining the coordinate system of a part and are often represented by letters on the engineering drawing.
Tolerances in GD&T define the allowable variation in the geometry of a part. There are different types of tolerances, including form tolerances (such as flatness, straightness, circularity, and cylindricity), orientation tolerances (such as perpendicularity, parallelism, and angularity), location tolerances (such as position, concentricity, and symmetry), and runout tolerances.
Feature control frames specify the geometric tolerances for a feature on a part, including the geometric characteristic symbol, tolerance value, and any relevant modifiers or datum references.

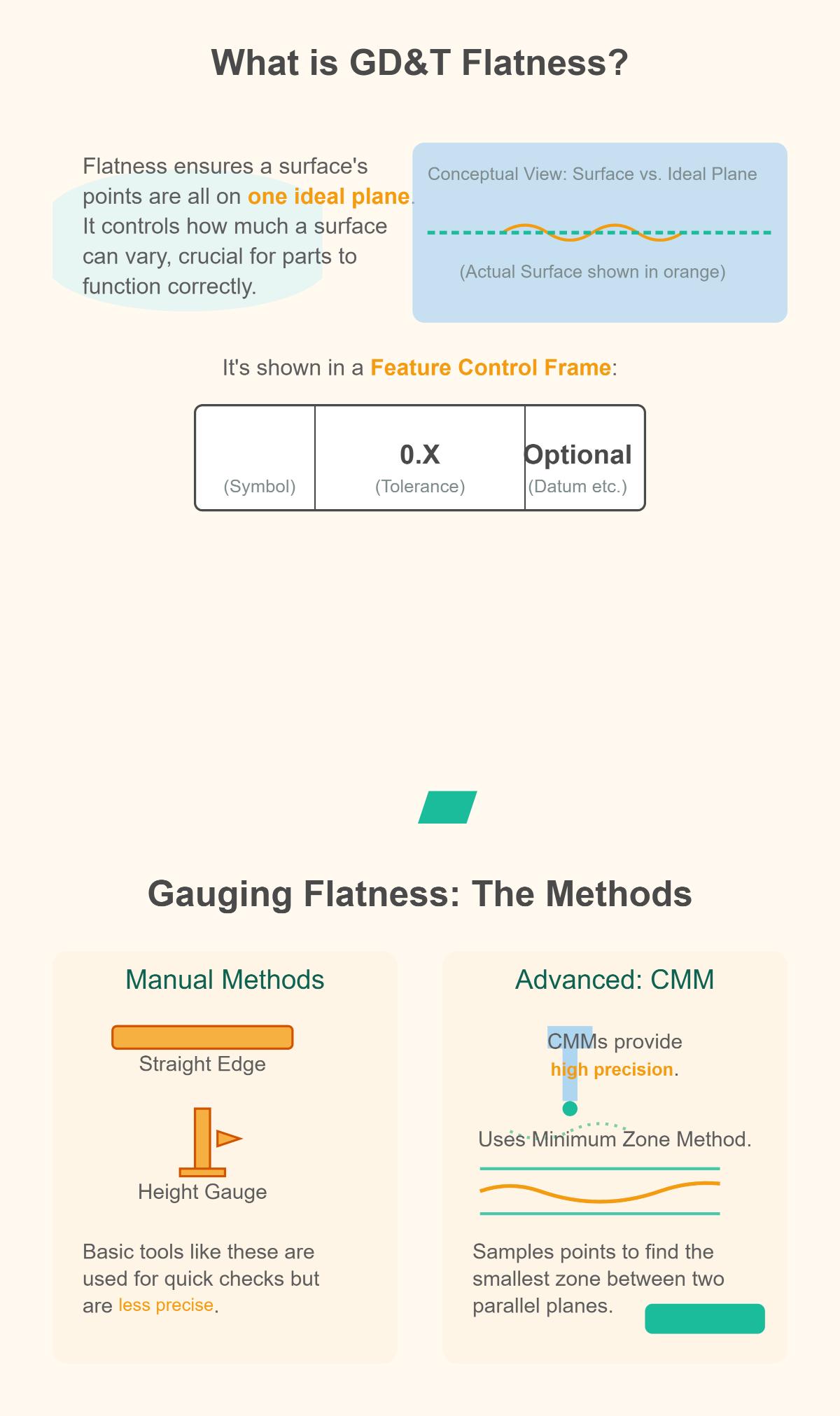

Flatness is a key form tolerance in Geometric Dimensioning and Tolerancing (GD&T). Flatness ensures that a surface stays level and is defined by two parallel planes creating a tolerance zone, irrespective of orientation or size. This tolerance is independent of datum references, making inspection easier.
In GD&T, a specific symbol represents flatness on engineering drawings. The flatness symbol is a parallelogram (“▱”) placed within a feature control frame, followed by the tolerance value. This clear visual representation on the drawing communicates to manufacturers and inspectors the required flatness level for the part.
Flatness is crucial for part functionality and longevity, ensuring proper assembly with uniform contact between components. Flat surfaces reduce wear and tear, prevent misalignment, and minimize the risk of leaks, especially in applications like sealing surfaces. Additionally, flatness helps in reducing stress concentrations, which is critical in components such as the jaws of mechanical vices. Moreover, flatness can be applied to derived median planes for features of size, which is beneficial in stacked components, ensuring that the overall assembly maintains its intended dimensions and tolerances. This is particularly important in high-precision industries such as aerospace, automotive, and electronics, where even minor deviations can lead to significant performance issues or failures.
Tolerance zones are crucial in Geometric Dimensioning and Tolerancing (GD&T) as they define the acceptable limits within which a part feature can deviate from its ideal geometry. These zones ensure that parts fit and function correctly, despite slight deviations during manufacturing.
A tolerance zone is a defined region within which the controlled feature must lie. In the case of flatness, the tolerance zone is the space between two parallel planes. The distance between these planes is the tolerance value, indicating the maximum allowable deviation from perfect flatness. This approach ensures that even if a surface is not perfectly flat, it remains within acceptable limits for proper function.
Feature control frames in GD&T specify geometric controls on a part’s feature, providing a standardized way to communicate tolerance requirements for clarity and consistency in manufacturing and inspection.
A feature control frame consists of several key elements:
Feature control frames are used to convey all necessary information about the geometric control on a part’s feature. For flatness, the frame will include the flatness symbol and the tolerance value. This clear and concise representation ensures that the part meets the required quality standards by specifying the type of tolerance, its extent, and any relevant references.
Flatness is a fundamental form tolerance that ensures surfaces are sufficiently flat for their intended function. It is represented by the flatness symbol within a feature control frame, followed by the tolerance value.
Flatness ensures surfaces fit together properly, providing uniform contact and preventing leaks or misalignment. This is especially important in applications where parts must fit together precisely, such as sealing surfaces or interfaces between mechanical components.
Flatness can be measured using various techniques, from manual tools to advanced metrology equipment:
Composite feature control frames provide multiple levels of control for patterns of features, allowing for refined and detailed geometric requirements.
Composite tolerances are used to specify tighter control over feature patterns. In the context of flatness, composite frames may not be as commonly applied, but they highlight the flexibility and complexity of GD&T in controlling various geometric characteristics.
Understanding tolerance zones and feature control frames is essential for effectively applying GD&T principles, ensuring that parts meet functional requirements and maintaining high-quality standards in manufacturing. By mastering these concepts, engineers can achieve precise control over part geometry, enhancing the performance, reliability, and interchangeability of components.
Measuring flatness is essential for ensuring the quality and functionality of manufactured parts. There are two main categories of methods for measuring flatness: manual and digital. Each method has its own advantages and limitations, and the choice of method depends on the required precision, the size of the part, and the available resources.
Straight edges are simple, cost-effective tools for basic flatness checks. Place the straight edge on the surface and look for any visible gaps. If you see gaps, the surface is not flat. This method is good for detecting large deviations but not for high-precision needs.
Feeler gauges, used alongside straight edges, help quantify gaps. These gauges have thin metal strips of various thicknesses. Insert a strip into the gap to measure the deviation. This method is best for rough measurements and lacks high precision.
Height gauges provide more accurate measurements than straight edges and feeler gauges. Place the part on adjustable columns and move the height gauge probe across the surface. The needle’s movement shows the surface’s flatness. However, height gauges may not be precise enough for very tight tolerances.
CMMs are the top choice for high-precision flatness measurements. These machines sample multiple points on the surface using a probe. The CMM records the coordinates and uses algorithms to calculate the surface’s deviation from a flat plane.
The Best-Fit Method calculates a plane that best matches the measured points. However, it is less accurate for complex surfaces or high-precision needs.
The Minimum Zone Method, the most accurate per ASME Y14.5 standards, finds the smallest distance between two parallel planes that encompass all points. This method ensures ISO standard compliance and is ideal for critical applications.
Specifying flatness tolerances in engineering drawings is crucial to ensure parts function correctly and fit together properly.
Choosing an appropriate flatness tolerance balances part functionality and manufacturing feasibility. A tolerance that’s too tight can raise costs and complexity, while one that’s too loose might hinder performance. The tolerance should meet the part’s functional needs and align with manufacturing capabilities.
A feature control frame specifies flatness tolerances in drawings. It includes the flatness symbol (a parallelogram) and the tolerance value, placed next to the controlled surface to indicate the requirement clearly.
For example, a feature control frame specifying a flatness tolerance of 0.05 mm would appear as:
This indicates that the surface must lie within two parallel planes 0.05 mm apart.
Flatness usually doesn’t need a datum reference, but material condition modifiers like Maximum Material Condition (MMC) or Least Material Condition (LMC) can be used for features of size. These modifiers ensure the part functions correctly under different material conditions.
In some cases,
For example:
Applying flatness tolerances can present several challenges:
In precision manufacturing, ensuring flatness is essential for the functional performance of parts. Flat surfaces guarantee proper assembly and fitting, which is vital in industries such as aerospace and automotive where high precision is non-negotiable. In aerospace, even the slightest misalignment due to lack of flatness can lead to catastrophic failures. For example, in aircraft engines, flat components ensure efficient fuel combustion and power generation. In automotive transmissions, flat gears and shafts prevent noise, vibration, and harshness (NVH) issues, providing a smooth driving experience.
A flat surface plays a significant role in load distribution by spreading the load evenly across the surface, reducing stress concentrations and preventing premature component failure. In heavy machinery, such as construction equipment, flat contact surfaces between parts like hydraulic cylinders and pistons ensure that high-pressure loads are distributed uniformly. This not only extends the lifespan of the components but also enhances the overall efficiency and safety of the machinery. Proper load distribution minimizes the risk of mechanical failures, reduces maintenance costs, and ensures that the equipment operates smoothly under demanding conditions.
Flat surfaces are important in industries where appearance matters, such as consumer electronics and automotive. In smartphones, flat screens and backs give a sleek and modern look. In the automotive sector, flat body panels create a smooth and visually appealing exterior. The flatness of these surfaces is a key factor in attracting consumers and enhancing brand image.
Flat components simplify the assembly process, reducing labor costs and production time, especially in mass-production settings like electronics manufacturing. Uneven parts can complicate the assembly process, leading to increased labor costs and longer production times. In mass-production settings, such as electronics manufacturing, flat components can be easily and quickly assembled using automated machinery. This reduces the need for manual adjustments and rework, streamlining the production process and increasing overall efficiency.
Flatness is crucial for accuracy in subsequent machining operations like drilling or milling, ensuring precise holes and cuts. If the surface is not flat, the drill or mill may deviate from the intended path, resulting in inaccurate holes or cuts. In the manufacturing of printed circuit boards (PCBs), a flat substrate is necessary for precise drilling of component holes. This precision is crucial for the proper functioning of the electronic devices that use these PCBs.
To achieve and maintain flatness during machining, several strategies can be employed. Material selection is key; choosing materials with lower coefficients of thermal expansion helps reduce warping. Appropriate fixtures should be used to minimize movement and vibration during machining. Controlling machining parameters such as cutting speed, feed, and depth of cut can prevent excessive heat generation that causes warping. Machining parts in stages allows for better control of material removal and reduces the risk of deformation. Additionally, post-processing treatments like stress relief can eliminate internal stresses that may lead to warpage.
Recent advancements in CNC technologies have significantly improved flatness control. Sophisticated controls and tooling integrated into CNC machines can now achieve higher levels of flatness. Looking forward, emerging technologies in materials and machine controls are expected to refine flatness optimization further. The integration of advanced measurement techniques and artificial intelligence in CNC machining is likely to set new standards for precision and quality in manufacturing processes.
Below are answers to some frequently asked questions:
Flatness in Geometric Dimensioning and Tolerancing (GD&T) refers to the condition of a surface having all its points in the same plane. It is a measure of how much a surface can deviate from an ideally flat plane, ensuring the part meets its functional requirements. In engineering drawings, flatness is represented by a feature control frame containing the flatness symbol (a parallelogram) followed by the tolerance value, indicating the allowable deviation.
To measure flatness, various methods can be employed. Basic manual methods include using height gauges and straight edges, but these are less precise. More accurate measurements are obtained using Coordinate Measuring Machines (CMMs), which sample the surface at multiple points and use algorithms to determine the smallest gap between two parallel planes that encompass all measured points. This method, known as the Minimum Zone Method, aligns with ASME Y14.5 standards and provides high precision in flatness evaluation.
To apply flatness tolerances in engineering drawings, you need to use a feature control frame that includes the flatness symbol (a parallelogram) and the specified tolerance value. This frame is placed next to the controlled surface on the drawing. For example, a flatness tolerance of 0.01 mm would be indicated as ⏥ 0.01. Flatness controls the form of a surface independently of any other features, so no datum reference is required.
Additionally, consider the material conditions like Maximum Material Condition (MMC) or Least Material Condition (LMC) if relevant. These conditions ensure that the flatness is maintained even at the part’s extreme material states. For large or complex surfaces, you might specify local flatness per unit area to ensure functional requirements in critical zones.
Flatness in Geometric Dimensioning and Tolerancing (GD&T) is measured using several tools and methods to ensure surfaces lie within specified tolerance zones. Common tools include:
These tools range from basic manual methods to advanced digital techniques, providing varying levels of precision to meet different manufacturing needs.
Flatness is important in manufacturing because it ensures the functional performance, durability, and aesthetic quality of components. Flat surfaces enable precise fitting of parts, preventing misalignment that could compromise assembly functionality, especially in critical applications like seals in the automotive and aerospace industries. Additionally, flatness ensures even load distribution, which is crucial for avoiding stress concentrations that can lead to premature failure of components. This is particularly significant in high-stress environments.
Furthermore, flatness contributes to the visual appeal of products, which is important in industries like automotive and consumer electronics. It also simplifies the assembly process, reducing labor costs and time. Ensuring flat surfaces is essential for subsequent machining operations, where precision is paramount.
Flatness tolerance in the GD&T framework plays a crucial role in ensuring the geometric accuracy of individual surfaces. It is a form control that guarantees a surface lies within two parallel planes, maintaining a specified distance apart. This is important for ensuring proper part functionality, especially in applications requiring smooth contact or precise alignment.
Flatness tolerance affects the GD&T framework by providing a method to control the shape of surfaces without needing a datum reference, making it versatile and applicable to various parts. It can be combined with other GD&T tolerances, allowing designers to refine part dimensions while maintaining necessary surface conditions.
By defining precise tolerance zones, flatness ensures that parts meet the required geometric criteria, contributing to the overall quality and performance of the final product. This is particularly critical in high-precision industries such as aerospace, automotive, and medical devices, where even minor deviations can lead to significant issues. Properly specified flatness tolerance helps in reducing manufacturing errors, improving assembly fit, and ensuring reliable operation of mechanical systems.
In manufacturing, achieving flatness in the context of Geometric Dimensioning and Tolerancing (GD&T) involves several practical challenges. One significant challenge is the warping caused by residual stresses from processes like machining, welding, and heat treatment. These processes can distort surfaces and affect flatness. Another challenge is selecting the appropriate flatness tolerance. Overly stringent tolerances can increase production costs and difficulty, while lenient tolerances may compromise part functionality.
Measurement accuracy is also a concern, as traditional methods can be affected by human error, environmental factors, and equipment calibration. Material properties, such as thermal expansion and internal stresses, can further complicate maintaining flatness. Additionally, environmental conditions like temperature and humidity can impact both materials and measurement accuracy.
To overcome these challenges, manufacturers can implement process controls such as stress relief techniques and optimize tolerance selection by balancing functional requirements with manufacturing capabilities. Utilizing advanced measurement technologies like Coordinate Measuring Machines (CMMs) can enhance accuracy. Controlling material and processing conditions, such as choosing suitable materials and employing symmetric machining, can help maintain flatness. Finally, training and educating staff on the importance of flatness and proper measurement techniques can reduce errors and improve quality control.
