In the world of modern manufacturing, few materials are as crucial as high-speed steel (HSS). Known for its remarkable ability to cut faster than other steels, HSS has revolutionized industries ranging from automotive to aerospace. But what exactly makes this material so exceptional? In this article, we delve into the key properties that set high-speed steel apart—such as its unparalleled wear resistance, toughness, and heat resistance. We’ll also explore its diverse applications, including its pivotal role in cutting tools and machining processes. Along the way, you’ll gain insights into industry standards and how HSS compares to other materials like carbide and high-carbon steel. Ready to uncover the secrets behind this indispensable material? Let’s dive in.
High-speed steel (HSS) is a type of tool steel known for its exceptional performance in high-speed cutting and machining operations. It is distinguished by its remarkable hardness, wear resistance, and ability to retain these properties even at elevated temperatures. This unique combination of characteristics makes HSS an essential material in the manufacturing of cutting tools, molds, and various mechanical components.
The composition of high – speed steel is a carefully balanced mix of key alloying elements including tungsten (W), molybdenum (Mo), chromium (Cr), vanadium (V), and sometimes cobalt (Co). Tungsten provides hot hardness, allowing the steel to maintain its form and strength under high – temperature conditions. Molybdenum contributes to the steel’s toughness, making it more resistant to cracking and chipping during machining. Chromium enhances the steel’s hardenability and corrosion resistance, while vanadium forms hard carbides that significantly improve wear resistance. Cobalt, when added, further enhances the steel’s heat resistance, making it more effective in high – speed and high – temperature tasks.
Developing high – speed steel marked a significant milestone in metalworking history. In the late 19th and early 20th centuries, as industrial production was rapidly expanding, there was a growing need for cutting tools that could operate at higher speeds and with greater efficiency. The discovery and refinement of high – speed steel enabled a substantial increase in cutting speeds, revolutionizing manufacturing processes. Ongoing research and development have produced various grades of high – speed steel, each designed for specific applications and performance needs.

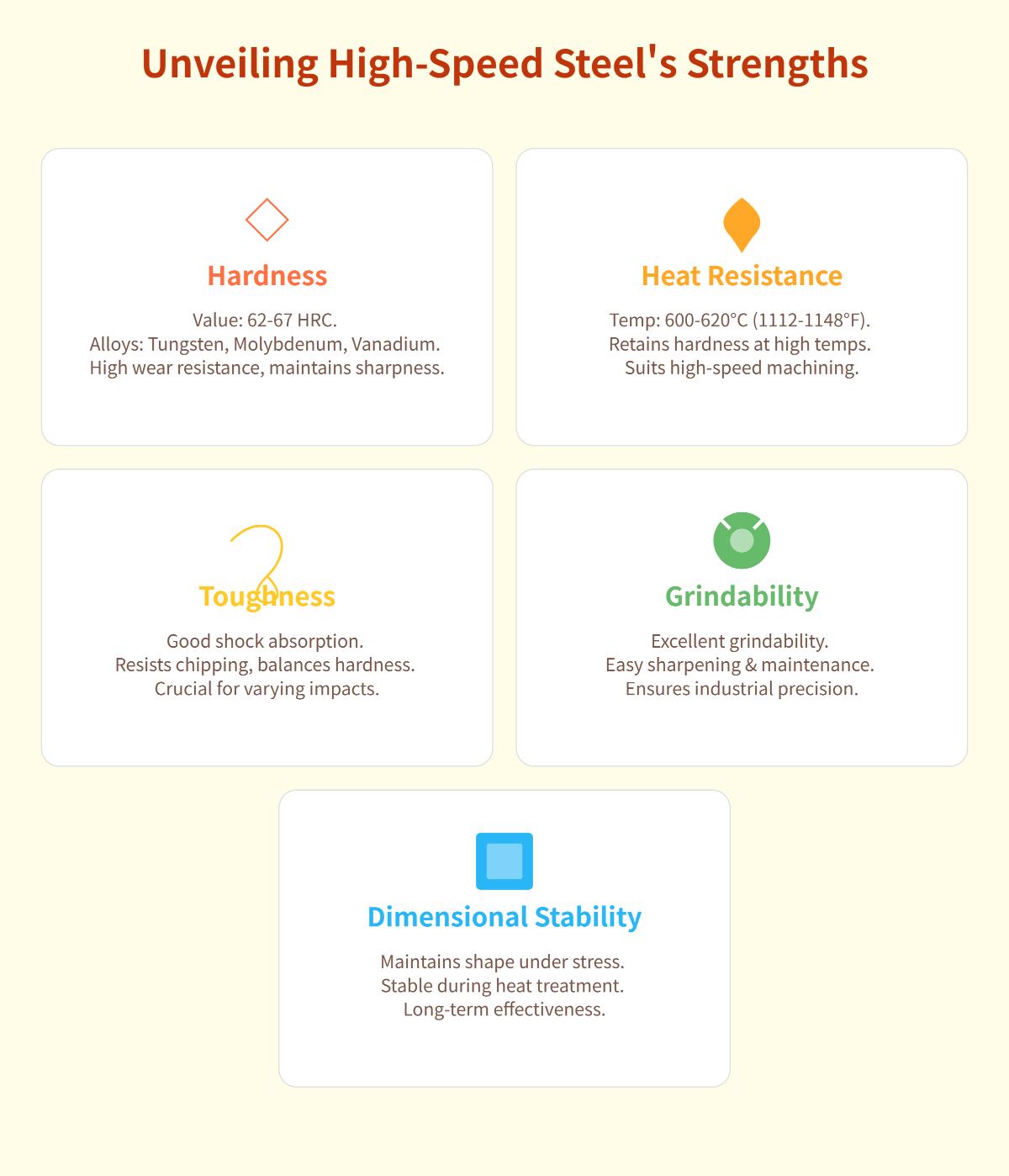

High-speed steel (HSS) is known for its exceptional hardness and wear resistance, which is largely due to the formation of hard carbides within the steel matrix. HSS typically has a hardness rating above 60 Rockwell C, allowing tools to maintain sharp cutting edges under intense use and heat. The presence of hard carbides within the steel matrix also provides remarkable wear resistance, extending the operational life of cutting tools by minimizing edge degradation.
HSS retains its hardness and structural integrity at high temperatures, a property known as red hardness. It can maintain its hardness at temperatures up to 620°C (1148°F), making it ideal for high-speed machining operations where tools are subjected to significant thermal stress. The alloying elements tungsten and cobalt play a vital role in enhancing the heat resistance of HSS, with tungsten contributing to red hardness and cobalt helping maintain the cutting edge’s effectiveness under thermal stress.
Despite its high hardness, HSS offers good toughness, which is essential for reliable performance in various applications. The toughness of HSS ensures resistance to chipping and cracking, which is particularly important in CNC operations where tools undergo repetitive and intense use.
The chemical composition of HSS includes several key alloying elements that contribute to its superior properties:
HSS is widely used in manufacturing drills, taps, end mills, and reamers due to its ability to cut precisely at high speeds. It is also employed in processing non-metallic materials such as wood and plastics.
HSS is available in different grades and types, each designed for specific applications and performance needs. The M-Series, such as M2 and M42, offers a balance of toughness and performance, while the T-Series, like T1 and T15, provides superior wear resistance and red hardness. HSS undergoes hardening and tempering processes to achieve its final properties, enhancing its hardness, wear resistance, and toughness.
HSS has several advantages, including high temperature resistance, long tool life due to superior wear resistance, and cost-effectiveness compared to carbide materials. However, it is relatively brittle, with lower impact toughness and bending strength compared to other tool steels.
High-speed steel (HSS) stands out for its exceptional durability. HSS achieves its durability through a combination of high hardness, wear resistance, and toughness, with hard carbides in the steel matrix enhancing wear resistance and allowing tools to maintain their cutting edges for extended periods, even under demanding conditions. This makes HSS tools less prone to frequent replacements, thereby reducing downtime and maintenance costs.
High-speed steel is renowned for its ability to retain its hardness and cutting efficiency at elevated temperatures, a property known as red hardness. This characteristic is particularly crucial in high-speed machining operations where cutting tools are subjected to intense thermal stress. HSS can maintain its structural integrity and sharpness at temperatures up to 620°C (1148°F). This high-temperature performance is attributed to the presence of alloying elements such as tungsten and cobalt, which enhance the steel’s resistance to thermal degradation. As a result, HSS tools can operate at higher cutting speeds, improving High-speed steel is more cost-effective than other cutting tool materials like carbide, making it a preferred choice for many applications. While carbide tools may provide superior performance in some aspects, they are also significantly more expensive to produce. HSS, on the other hand, strikes a balance between performance and cost, making it accessible for a wide range of industries. Additionally, the grindability of HSS allows for easy reshaping and resharpening, further extending the tool life and providing additional cost savings over time.
High-speed steel is highly versatile, making it suitable for a broad spectrum of applications beyond metal cutting. HSS tools are used in machining operations, including drilling, milling, and turning, as well as in non-metallic material processing such as woodworking and plastic cutting. This versatility comes from HSS’s ability to perform well across various materials and operating conditions. The adaptability of HSS tools to various machining environments enhances their utility and makes them a preferred choice in diverse manufacturing processes.
Applying modern coatings can further boost the performance of high-speed steel. Coatings such as titanium nitride (TiN), titanium carbonitride (TiCN), and aluminum titanium nitride (AlTiN) can significantly improve the wear resistance, hardness, and thermal stability of HSS tools. These coatings reduce friction, minimize heat generation, and protect the tool surface from abrasion, thereby extending tool life and improving machining efficiency. The combination of HSS’s inherent properties and advanced coatings results in tools that can handle more demanding applications and provide better Despite the higher production costs associated with the complex alloying elements in high-speed steel, it remains a sustainable choice for precision cutting applications. The long tool life and reduced need for frequent replacements contribute to lower material waste and reduced environmental impact. Moreover, the ability to resharpen and reuse HSS tools aligns with sustainable manufacturing practices, making HSS a preferred material for industries aiming to minimize their ecological footprint.
High-speed steel (HSS) is widely used for making cutting tools because it is extremely hard, wear-resistant, and can keep a sharp edge even at high temperatures. Common cutting tools made from HSS include:
HSS plays a crucial role in various machining processes, where precision and durability are essential. Key machining applications include:
In construction, HSS tools are prized for their toughness and ability to work under tough conditions. Common applications include:
HSS is crucial for many manufacturing processes, improving both efficiency and product quality. Key applications in manufacturing include:
High-speed steel’s versatile properties make it indispensable across these industries, providing the necessary performance and durability to handle demanding applications.
The American Society for Testing and Materials (ASTM) sets various standards to ensure the quality, consistency, and performance of materials, including high-speed steel (HSS). These standards cover a range of specifications for the composition, processing, and application of HSS, ensuring that the material meets industry requirements for high-performance cutting tools and other applications.
The primary ASTM standard for high-speed steel is ASTM A600. This specification defines the chemical composition, mechanical properties, and heat treatment requirements for both tungsten-type and molybdenum-type HSS.
ASTM A600 outlines the permissible ranges for key alloying elements in HSS, which include:
These elements are critical for achieving the desired properties of HSS, such as high hardness, wear resistance, and red hardness.
The specification also lists the following mechanical properties for HSS:
Proper heat treatment is essential for achieving the optimal properties of HSS. ASTM A600 provides guidelines for the heat treatment process, including:
ASTM A600 covers various grades of high-speed steel, categorized primarily into tungsten-based and molybdenum-based types:
Examples include T1 and T2, which are characterized by their excellent wear resistance and ability to retain hardness at high temperatures.
Examples include M1 and M2, known for their balance of toughness and hardness, making them suitable for a wide range of cutting applications.
Compliance with ASTM standards is crucial for manufacturers to ensure the reliability and performance of their HSS products. This involves:
Adhering to ASTM standards helps manufacturers produce high-quality HSS that meets the demands of various industrial applications. It ensures that the steel used in cutting tools, machining, and other high-performance applications maintains its integrity under extreme conditions, providing reliability and safety in critical operations.
Recent advancements in HSS technology, such as the development of new alloy compositions and surface treatments, continue to be guided by ASTM standards. For example, the addition of niobium as an alloying element can improve the steel’s wear resistance and strength. These innovations aim to enhance the performance characteristics of HSS, including improved wear resistance and temperature stability, to meet the evolving needs of modern manufacturing processes.
When it comes to choosing between high-speed steel (HSS) and high-carbon steel, understanding their key differences is essential. HSS contains elements like tungsten, molybdenum, chromium, and vanadium, while high-carbon steel is primarily defined by its high carbon content.
HSS is extremely hard, reaching up to HRC 70 on the Rockwell C scale, whereas high-carbon steel, although also hard, does not reach the same levels of hardness. When it comes to heat resistance, HSS excels, retaining its hardness at high temperatures, unlike high-carbon steel, which loses its hardness significantly as the temperature rises.
In terms of toughness, high-carbon steel is more brittle and has lower toughness, making it more prone to breakage. HSS, although not as tough as high-carbon steel, still offers moderate toughness. These differences lead to distinct applications: HSS is ideal for high-speed cutting tools, while high-carbon steel is commonly used for making knives and springs.
When comparing HSS with tool steel, several key distinctions emerge. HSS has a high content of tungsten, molybdenum, and sometimes cobalt, whereas tool steel has lower levels of these elements. HSS offers higher hardness, especially at elevated temperatures. Although tool steel has lower hardness, it compensates with higher toughness. HSS’s superior heat resistance allows it to maintain its properties under high heat, while tool steel’s hot work grades offer some heat resistance, but not to the same extent.
Tool steel excels in toughness, making it ideal for impact tools. HSS, with its moderate toughness, is better suited for high-speed cutting tools. Tool steel is used in general tool-making, such as punches, dies, and molds, whereas HSS is the go-to material for high-speed cutting applications.
When pitting HSS against carbide, composition is a primary difference. Carbide, made of tungsten carbide particles in a cobalt matrix, is extremely hard and wear-resistant, often surpassing HSS in these aspects. Carbide can maintain its hardness at much higher temperatures, making it suitable for high-speed machining and applications requiring extreme precision and wear resistance. However, carbide is more brittle than HSS.
HSS offers better toughness than carbide, making it less likely to chip or break under certain conditions. In terms of cost, carbide is generally more expensive than HSS. HSS is a cost-effective option for many applications where the extreme performance of carbide is not necessary. Carbide is used for high-precision machining of hard materials and high-volume production, while HSS is suitable for a broader range of general cutting and machining tasks.
Recent advancements in high-speed steel (HSS) have significantly improved its properties, making it more suitable for demanding applications. Researchers are focusing on enhancing the composition and microstructure of HSS to achieve better toughness, wear resistance, and heat tolerance. Techniques such as powder metallurgy are being employed to create new HSS grades with superior performance compared to traditional wrought HSS. These advancements are particularly beneficial for industries requiring high precision and durability, such as aerospace and automotive sectors.
Sustainability has become a major focus in the production of high-speed steel. Manufacturers are adopting eco-friendly practices to reduce the environmental impact of HSS production. This includes using recycled materials, reducing energy consumption, and minimizing waste during manufacturing. Innovations in production techniques aim to lower emissions and promote the use of non-toxic chemicals, aligning with the broader steel industry’s push towards sustainability.
The integration of digital technologies such as the Internet of Things (IoT) and artificial intelligence (AI) is revolutionizing the high-speed steel market. These technologies allow real-time monitoring and control of production processes, ensuring consistent, high-quality HSS products. AI-driven analytics support predictive maintenance, which improves operational efficiency and reduces downtime. Smart manufacturing techniques are becoming increasingly important for maintaining competitive advantage in the HSS industry.
Additive manufacturing, commonly known as 3D printing, is making significant inroads into the high-speed steel market. This technology allows for the production of complex geometries with high precision and minimal waste. Additive manufacturing opens up new possibilities for customized tooling and rapid production cycles, benefiting niche applications in various industries. The ability to produce intricate HSS components quickly and efficiently is driving adoption in sectors like aerospace and medical device manufacturing.
The demand for high-speed steel is growing, particularly in the automotive and aerospace industries. These sectors require materials that can withstand high wear and heat resistance. As advancements continue in electric vehicles and aircraft technology, the need for high-quality HSS is expected to increase. The properties of HSS make it ideal for high-performance applications in these industries, ensuring reliability and longevity of the components.
Advanced coatings and surface treatments have greatly improved HSS tool performance. Coatings such as titanium nitride (TiN) and aluminum titanium nitride (AlTiN) enhance the hardness, wear resistance, and heat resistance of HSS tools. These coatings extend the tool life and improve cutting performance, making HSS tools more competitive against other materials. The continuous development of new coatings is essential for maintaining the high performance of HSS tools in various applications.
The high-speed steel market is experiencing significant growth in emerging economies, particularly in regions like Asia-Pacific and Latin America. Rapid industrialization and infrastructure development in these areas are driving the demand for high-quality tooling materials. The expansion of manufacturing capabilities in these regions is creating new opportunities for the HSS market, as industries seek reliable and durable materials for their operations.
Below are answers to some frequently asked questions:
High-speed steel (HSS) is distinguished by several key properties that make it highly effective for cutting tools and machining applications. These properties include:
These properties collectively ensure that high-speed steel remains a preferred material for various cutting tools, including drills, milling cutters, and saw blades, across multiple industries.
High-Speed Steel (HSS) is primarily utilized in the manufacturing of cutting and machining tools due to its excellent hardness, wear resistance, and ability to maintain these properties at high temperatures. Common applications include drills, taps, end mills, and gear cutters, which are essential for precision cutting, milling, and turning operations in CNC machining. HSS is also used in rolling equipment for metal forming processes. Additionally, the aerospace and automotive industries rely on HSS for engine parts, gears, and shafts, where high wear resistance and heat tolerance are crucial. HSS is also valuable in the medical field for surgical instruments and dental drill bits, as well as in woodworking for planers and router bits. Its cost-effectiveness and durability make it a preferred choice across these diverse applications.
High-Speed Steel (HSS) is an alloy of iron, carbon, and elements like tungsten, molybdenum, chromium, and vanadium, suitable for high-speed cutting. Carbide, or cemented carbide, consists of tungsten carbide particles and a binder metal. In terms of performance, carbide is harder and more wear-resistant than HSS, making it better for machining abrasive materials at high speeds. HSS, however, is more flexible and less brittle, reducing breakage in tough materials. HSS can handle moderate to high speeds but wears faster at extreme speeds, while carbide supports high to extreme speeds. HSS is generally cheaper and ideal for low-volume production, while carbide offers longer tool life for high-speed, precision work.
Cobalt high-speed steels, such as M42, offer several advantages over standard high-speed steels. The addition of cobalt significantly enhances the steel’s hardness and heat resistance, allowing it to maintain its strength and performance at high temperatures. This property, known as high red hardness, is crucial for prolonged machining operations where tools are subject to intense heat and wear.
Moreover, cobalt high-speed steels exhibit increased durability and longevity, leading to extended tool life and reduced maintenance or replacement needs. These steels also enable higher cutting speeds and shorter machining cycle times, thereby improving While cobalt high-speed steels are more expensive than some other high-speed steels, they provide a cost-effective solution compared to carbide tools due to their balanced performance and lower frequency of tool changes. Additionally, their versatility makes them suitable for a wide range of machining applications, including working with high-strength and difficult-to-machine materials.
The primary ASTM standard for high-speed steel (HSS) is ASTM A600. This specification covers both tungsten-type and molybdenum-type high-speed steels, detailing their chemical composition, manufacturing processes, and physical properties. It includes various forms such as annealed, hot-rolled bars, forgings, plate, sheet, strip, and annealed, cold-finished bars or forgings. ASTM A600 recognizes seven tungsten types (e.g., T1, T2) and seventeen molybdenum types (e.g., M1, M2), along with intermediate types like M50 and M52. These standards ensure the quality and performance of HSS used in cutting tools, maintaining consistency in material composition and manufacturing processes essential for achieving desired properties in high-speed steel applications.
Heat resistance is essential for high-speed steel (HSS) applications because it allows the material to maintain its hardness and cutting efficiency at elevated temperatures, which is critical during high-speed machining operations. When cutting or drilling at high speeds, significant heat is generated due to friction. HSS can withstand temperatures up to 600°C to 620°C without losing its structural integrity or becoming soft. This characteristic ensures that tools made from HSS remain sharp and effective, leading to better operational efficiency, tool durability, and precision in machining tasks. The composition of HSS, which includes elements like tungsten, molybdenum, and chromium, enhances its heat resistance and overall performance in demanding industrial environments.
