Understanding Stainless Steel Conductivity
Is stainless steel truly conductive? This seemingly simple question opens the door to a fascinating exploration of a material renowned…
When selecting materials for cutting tools, industrial equipment, or construction projects, understanding the hardness of stainless steel becomes crucial. Have you ever wondered why certain grades of stainless steel can withstand more wear and tear than others? This article delves into the intricacies of stainless steel hardness, exploring the various grades and their respective strengths. Additionally, we’ll uncover the mysteries of the Mohs hardness scale—a tool traditionally used to measure the hardness of minerals—and see how it compares to the hardness scales used for metals. Join us as we dissect these concepts and reveal the factors influencing stainless steel’s durability and its application in demanding environments. Ready to discover what makes stainless steel tough enough for the job?
Stainless steel is well-regarded for its diverse applications, primarily because of its excellent mechanical properties, including hardness. The hardness of stainless steel measures its resistance to deformation, which is crucial for determining its suitability in various industrial applications.
Austenitic stainless steels, such as grades 304 and 316, typically exhibit a hardness range of 70 to 90 HRB (Rockwell B) in their annealed condition. Although these steels are not hardenable by heat treatment, they can achieve increased hardness through cold working processes.
Martensitic stainless steels, like grades 410 and 420, can reach much higher hardness values, ranging from 40 to 60 HRC (Rockwell C) after heat treatment. For example, grade 420 can attain a hardness of 50 to 60 HRC after heat treatment, while in its annealed state, it ranges from 30 to 40 HRC.
Ferritic stainless steels, such as grade 430, have a hardness range of 60 to 90 HRB in their annealed condition. These steels are known for their good corrosion resistance and moderate mechanical properties.
Several factors contribute to the hardness of stainless steel:
The presence of elements like chromium, nickel, and molybdenum significantly influences the hardness and corrosion resistance of stainless steel. Higher carbon content increases hardness but may reduce corrosion resistance.
Heat treatment processes, such as quenching and tempering, can significantly alter the microstructure and hardness of stainless steel. Quenching enhances hardness but can increase brittleness, while tempering helps improve toughness while maintaining a degree of hardness.
Cold working processes, such as cold rolling and cold drawing, induce work hardening, which increases the hardness of stainless steel. However, excessive cold working can lead to brittleness, necessitating a balance between hardness and ductility.
The hardness of stainless steel is usually measured using the Rockwell hardness scale, which includes the Rockwell B (HRB) and Rockwell C (HRC) scales. The HRB scale is used for softer materials, while the HRC scale is suitable for harder materials. This measurement involves using an indenter to gauge the depth of penetration under a specific load, providing a numerical hardness value.
Understanding the hardness of stainless steel is essential for selecting the appropriate grade for specific applications, ensuring optimal performance, durability, and resistance to wear and deformation.
Austenitic stainless steels are the most widely used type, prized for their excellent corrosion resistance and strong mechanical properties.
Grade 304 stainless steel is one of the most commonly used austenitic stainless steels, with a hardness range of 70 to 90 HRB (Rockwell B) in its annealed condition. Grade 316 stainless steel is similar to grade 304 but includes molybdenum, enhancing its resistance to chlorides and other industrial solvents. Both grades are not hardenable by heat treatment but can achieve increased hardness through cold working processes.
Martensitic stainless steels can be hardened by heat treatment, making them much stronger and harder. These steels typically have higher carbon content compared to austenitic and ferritic stainless steels.
Grade 410 stainless steel is a basic martensitic stainless steel that can achieve a hardness of 40 to 60 HRC (Rockwell C) after heat treatment. In its annealed state, it exhibits lower hardness, typically around 20 to 30 HRC. This grade is commonly used in applications requiring high strength and moderate corrosion resistance.
Grade 420 stainless steel offers higher hardness compared to grade 410, with the ability to reach 50 to 60 HRC after proper heat treatment. This grade is often used in the manufacturing of cutlery, surgical instruments, and other applications where high hardness and wear resistance are essential.
Grade 440C stands out as one of the hardest martensitic stainless steels, reaching a hardness of 58 to 62 HRC with proper heat treatment. This makes it suitable for high-wear applications such as ball bearings and knife blades.
Ferritic stainless steels are characterized by their high chromium content and low carbon content, providing good corrosion resistance and moderate mechanical properties. These steels are magnetic and not hardenable by heat treatment.
Grade 430 stainless steel is a common ferritic grade with a hardness range of 60 to 90 HRB in its annealed condition. It offers good corrosion resistance and is often used in automotive trim, kitchen utensils, and appliances.
Duplex stainless steels combine the best properties of austenite and ferrite, resulting in high strength and excellent corrosion resistance.
Grade 2205 duplex stainless steel has a hardness range of 25 to 35 HRC in its annealed state. It is known for its high strength and resistance to stress corrosion cracking, making it suitable for applications in the chemical processing and oil and gas industries.
Precipitation-hardening stainless steels can achieve high strength and hardness through heat treatment processes that create fine precipitates within the microstructure.
Grade 17-4 PH stainless steel is a widely used precipitation-hardening grade that can achieve a hardness of 40 to 47 HRC after heat treatment. This grade is used in aerospace, chemical, and petrochemical industries due to its excellent mechanical properties and corrosion resistance.
The Mohs hardness scale, created by German geologist Friedrich Mohs in 1812, measures how easily minerals can scratch each other. This scale ranges from 1 to 10, with each number corresponding to a specific mineral that can scratch all minerals with a lower number.
The scale works by testing if one mineral can visibly scratch another. To find a mineral’s hardness, you scratch it with minerals from a reference set. If the tested mineral scratches the reference mineral but is scratched by a harder mineral, its hardness falls between the two reference points.
Each level of the Mohs scale is defined by a specific mineral:
Despite its usefulness, the Mohs scale has limitations:
The Mohs scale is essential for identifying minerals, though more precise methods are used in industrial settings.

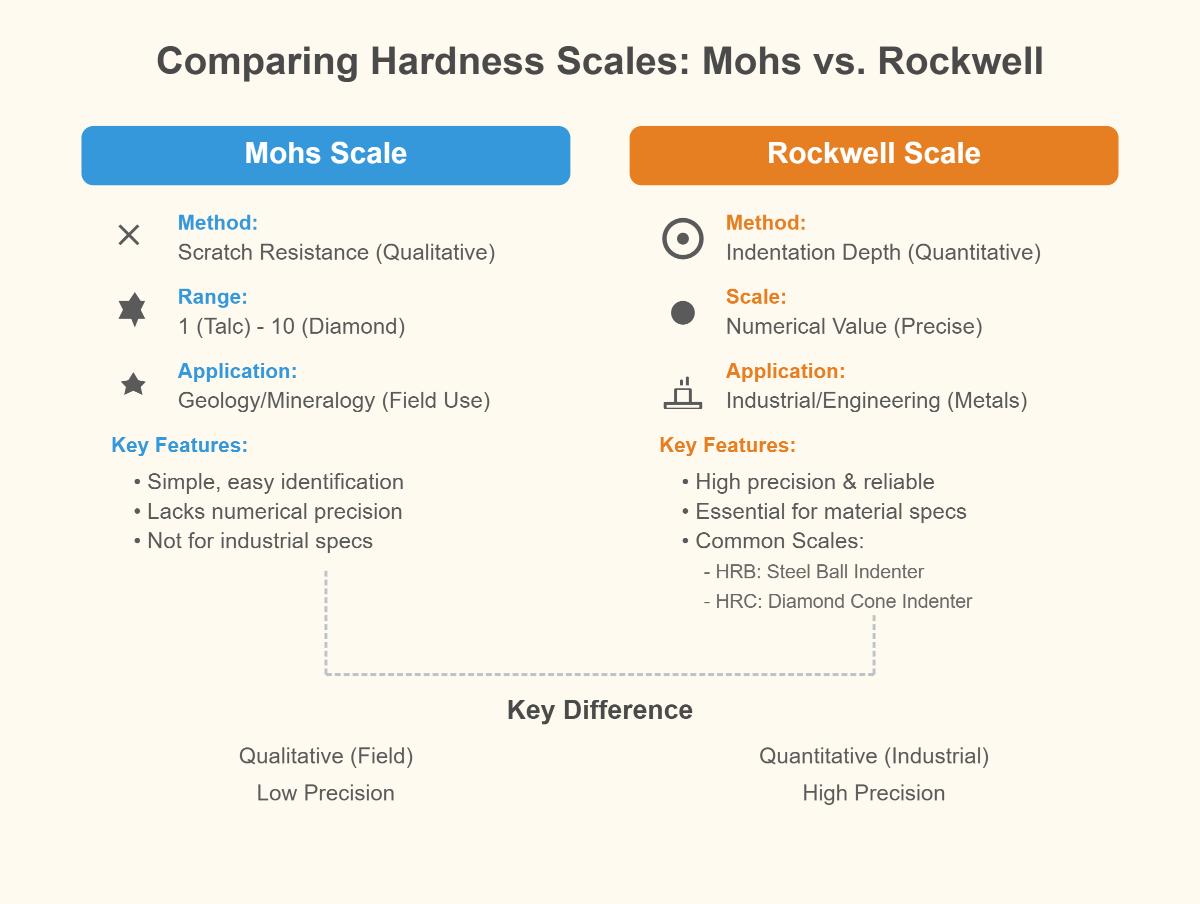

Stainless steel hardness is typically assessed using the Rockwell Hardness Scale, a quantitative method that measures the depth of penetration of an indenter under a specific load, providing a numerical value that reflects the material’s resistance to deformation. This scale includes different levels, such as HRB and HRC, tailored to various hardness ranges.
The Mohs Hardness Scale, on the other hand, is a qualitative ordinal scale primarily used for minerals. It ranks materials based on their ability to scratch one another, ranging from 1 (softest) to 10 (hardest). While simple, it lacks the precision necessary for industrial materials.
The Rockwell Hardness Scale is widely used in industries to determine if stainless steel is suitable for specific applications, such as in tools and structural parts. Its precise measurements are crucial for quality control and material specifications.
Conversely, the Mohs scale is mainly used for educational and mineralogical purposes. It helps in identifying minerals in the field but is not applicable for engineering materials like metals, due to its qualitative nature and lack of precision.
The Rockwell scale provides detailed data that can predict the performance of stainless steel under stress, which is essential for engineering applications. In contrast, the Mohs scale is useful for identifying minerals but lacks the precision needed for industrial use. While stainless steel is significantly harder than most minerals on the Mohs scale, its hardness cannot be accurately represented by this system.
Understanding these differences is crucial for selecting the appropriate method to assess material hardness in various contexts.
The chemical composition of stainless steel significantly affects its hardness. Chromium enhances corrosion resistance, Nickel adds toughness and ductility, and Molybdenum increases strength and resistance to pitting and crevice corrosion. Carbon is crucial for boosting hardness, especially in martensitic stainless steels, though too much can decrease corrosion resistance.
Heat treatment methods like quenching, tempering, and annealing are key to adjusting the hardness of stainless steel. Quenching involves rapid cooling to significantly increase hardness, particularly in martensitic grades, though it may also increase brittleness. Tempering, conducted after quenching, reduces brittleness while maintaining a desired level of hardness, achieving a balance between hardness and toughness. Annealing, on the other hand, reduces hardness and enhances ductility, making the material easier to form and machine.
Cold working processes such as cold rolling and cold drawing can enhance the hardness of stainless steel through work hardening. The degree of cold working correlates with increased hardness; however, excessive cold working can lead to brittleness, necessitating a balance between hardness and ductility.
The microstructure, including grain size and phase composition, greatly influences hardness, with finer grains and martensitic phases generally leading to harder materials.
Understanding these factors is essential for selecting and processing stainless steel to meet specific application requirements, ensuring optimal performance in terms of wear resistance, corrosion resistance, and machinability.
Martensitic stainless steels, like grades 420 and 440C, are highly valued for their wear resistance, making them essential for knives, cutting tools, and other sharp, durable equipment. Their hardness, achieved through heat treatment, ranges from 50 to 62 HRC (Rockwell C), making them ideal for these applications.
In industrial and mechanical settings, high-hardness stainless steels are crucial for producing components like bearings and molds. Their ability to withstand wear and abrasion ensures these components maintain their structural integrity and performance over time. Thanks to their enhanced hardness, these steels excel in harsh operating conditions.
Precipitation hardening (PH) stainless steels like grades 17-4 and 15-5 are extensively used in aerospace and petroleum industries for their high strength, corrosion resistance, and hardness. These properties make them ideal for high-pressure, corrosive environments. Additionally, they can be heat-treated to meet specific hardness levels needed for various components.
The hardness of stainless steel plays a crucial role in quality control and machinability. While high-hardness materials are more challenging to machine, they offer superior surface finish quality. Conversely, lower hardness materials are more ductile and easier to form but may lack the same wear resistance. Thus, understanding and controlling stainless steel hardness is essential to ensure it meets specific application requirements, balancing machinability, ductility, and wear resistance.
Below are answers to some frequently asked questions:
The hardness of different grades of stainless steel varies significantly. Austenitic stainless steels like grades 304 and 316 have a hardness range of 70 to 90 HRB (Rockwell B). Ferritic stainless steels, such as grade 430, generally have a hardness range of 60 to 90 HRB. Martensitic stainless steels, including grades 410, 416, and 420, can achieve hardness values up to 60 HRC (Rockwell C) after heat treatment, with grade 440C reaching 58 to 62 HRC. Precipitation hardening stainless steels like 17-4PH can achieve around 37 to 40 HRC after heat treatment.
The Mohs hardness scale, developed by Friedrich Mohs in 1812, is a qualitative ordinal scale that ranks minerals from 1 to 10 based on their ability to resist scratching by other minerals, with talc rated as the softest (1) and diamond as the hardest (10). Each mineral can scratch those below it and be scratched by those above it. While primarily used in geology and mineralogy, this scale is not applicable to metals like stainless steel, which are measured using quantitative scales such as the Rockwell hardness scale, as discussed earlier.
Stainless steel cannot be accurately measured using the Mohs hardness scale because this scale is designed for assessing the scratch resistance of minerals, not metals. The Mohs scale lacks the precision and quantitative capacity required for metals like stainless steel. Instead, standardized tests such as Rockwell, Brinell, and Vickers are used to measure stainless steel hardness, offering more precise and relevant evaluations of its mechanical properties. These tests provide specific hardness ranges for different grades of stainless steel, making them suitable for determining the material’s performance in various applications.
High-hardness stainless steels, such as martensitic and precipitation hardening grades, are essential in applications requiring high strength, wear resistance, and corrosion resistance. These include cutting tools and knives, mechanical and engineering components, automotive engine parts, aerospace and petroleum industry components, medical devices, and food processing and chemical equipment. Their robust properties make them suitable for environments that demand durability and longevity, ensuring reliable performance across various industries.
Temperature significantly affects the hardness of stainless steel through processes such as heat treatment, which includes quenching and tempering, and aging or precipitation hardening. Quenching increases hardness but can cause brittleness, while tempering reduces brittleness while maintaining hardness. Aging enhances hardness and corrosion resistance. Elevated temperatures can cause softening, particularly in martensitic stainless steels, and embrittlement, impacting ductility and impact strength. Additionally, high temperatures can lead to creep and rupture, affecting long-term durability. Therefore, temperature control is crucial in optimizing the mechanical properties of stainless steel for various applications.
Yes, there are several alternatives to the Mohs hardness scale for measuring stainless steel hardness, which is better suited for minerals. The Rockwell hardness test is commonly used, providing quick and reliable results in various scales like HRC, suitable for hardened stainless steel. The Vickers hardness test, known for its high precision and versatility, uses a diamond pyramid indenter to create an indentation for measurement. The Brinell hardness test, ideal for materials with coarse grain structures, calculates hardness by measuring the diameter of an indentation made by a steel or carbide ball. These methods offer more precise and objective measurements for metals.
