Weldolet vs. Sweepolet: What’s the Difference?
Choosing the right branch fitting for your piping system can be a critical decision that impacts efficiency, safety, and cost-effectiveness.…
In the complex world of piping connections, selecting the right component can significantly impact system performance and safety. For those working with branch connections, understanding the key differences between weldolets and threadolets is crucial. While both serve the purpose of creating sturdy junctions on pipes, their design, installation, and pressure-handling capabilities vary considerably. Are you curious which option stands out for high-pressure environments or what typical scenarios call for one over the other? This article breaks down the essential distinctions and applications of weldolets and threadolets, helping you make an informed choice tailored to your industrial needs. So, what truly sets these two apart, and how does that influence their practical use in demanding systems?
Piping connections are essential parts of any piping system, allowing pipes to branch, change direction, or join together. These connections ensure the smooth movement of fluids, gases, or solids across different sections of an industrial setup, maintaining the integrity and efficiency of the system.
In industrial applications, proper piping connections are crucial for preventing leaks and ensuring the system can handle the required pressure and flow rates. Efficient piping connections reduce flow resistance and pressure drops, optimizing the performance of the system. Reliable connections minimize the risk of accidents and ensure safe operation under varying conditions. Additionally, these connections allow for easy maintenance, expansion, and modifications to the system, adapting to changing industrial needs.
Various types of piping connections are used in industrial systems, each suited to specific requirements:
Welded connections, like Weldolets, offer strong, permanent joints that are perfect for high-pressure and high-temperature environments. These connections are butt welded to the run pipe and the branch pipe, providing superior mechanical strength and leak prevention.
Threaded connections, such as Threadolets, use threads to connect the branch pipe to the fitting. These are typically used in low-pressure applications and small-diameter pipes, offering ease of installation and maintenance without the need for welding.
Flanged connections bolt two flanges together, forming a strong joint that can be easily taken apart. They are commonly used in systems requiring frequent maintenance or modifications.
Piping connections play a pivotal role in the overall efficiency of a piping system. Properly designed connections minimize turbulence and pressure drops, ensuring smooth flow. Compact connections allow for efficient use of space, accommodating complex piping layouts. Different connections are compatible with various materials, ensuring the right fit for specific industrial requirements.
Understanding the differences between various piping connections, such as Weldolets and Threadolets, helps in selecting the appropriate fittings for specific applications, ensuring optimal system performance and reliability.
Understanding the various components used in piping systems is essential for ensuring their efficiency and reliability. Each component plays a specific role in the overall system, contributing to its functionality and performance.
Pipes are the primary components that transport fluids, gases, or solids within a system. Pipes are available in different materials, including steel, copper, and plastic. Each material is suited to specific applications depending on factors such as temperature, pressure, and chemical compatibility.
Fittings connect pipes and facilitate changes in direction, branching, and diameter adjustments, with common types including elbows, tees, reducers, and couplings. The choice of fittings impacts the system’s efficiency, as they must handle the required pressure and flow rates without causing significant resistance.
Valves control the flow of fluids within the piping system. They can start, stop, and regulate flow to ensure safe and efficient system operation. Types of valves include gate valves, ball valves, and check valves, each designed for specific functions and operating conditions.
Flanges are used to connect pipes, valves, and other components, forming a secure, leak-proof joint. They are bolted together, making them easy to assemble and disassemble, which is beneficial for maintenance and system modifications.
The efficiency of a piping system heavily depends on the proper selection and integration of its components. Each component must be chosen based on its compatibility with the system’s requirements, such as pressure, temperature, and flow rate.
Properly designed and installed components minimize turbulence within the system, ensuring smooth and efficient flow. For example, using the correct type of elbow can reduce flow resistance and prevent pressure drops.
Compact components allow for efficient use of space, accommodating complex piping layouts in confined areas. This is particularly important in industrial settings where space is limited, and every inch matters.
Choosing components made from materials compatible with the transported substances is crucial for preventing corrosion and ensuring longevity. For example, stainless steel is often used in applications involving corrosive fluids due to its resistance to rust and chemical reactions.
Weldolets and Threadolets are two common types of branch connections used in piping systems. Understanding their differences helps in selecting the appropriate fitting for specific applications.
Weldolets, designed for butt weld connections to the main pipe, provide strong, permanent joints ideal for high-pressure and high-temperature environments. Weldolets are commonly used in critical services such as oil and gas pipelines, petrochemical plants, and power generation facilities.
Threadolets feature a female threaded connection for attaching the branch pipe. They are suited for low-pressure applications and are easier to install, as they do not require welding. Threadolets are often used in instrumentation lines, control systems, and small process piping in various industries.

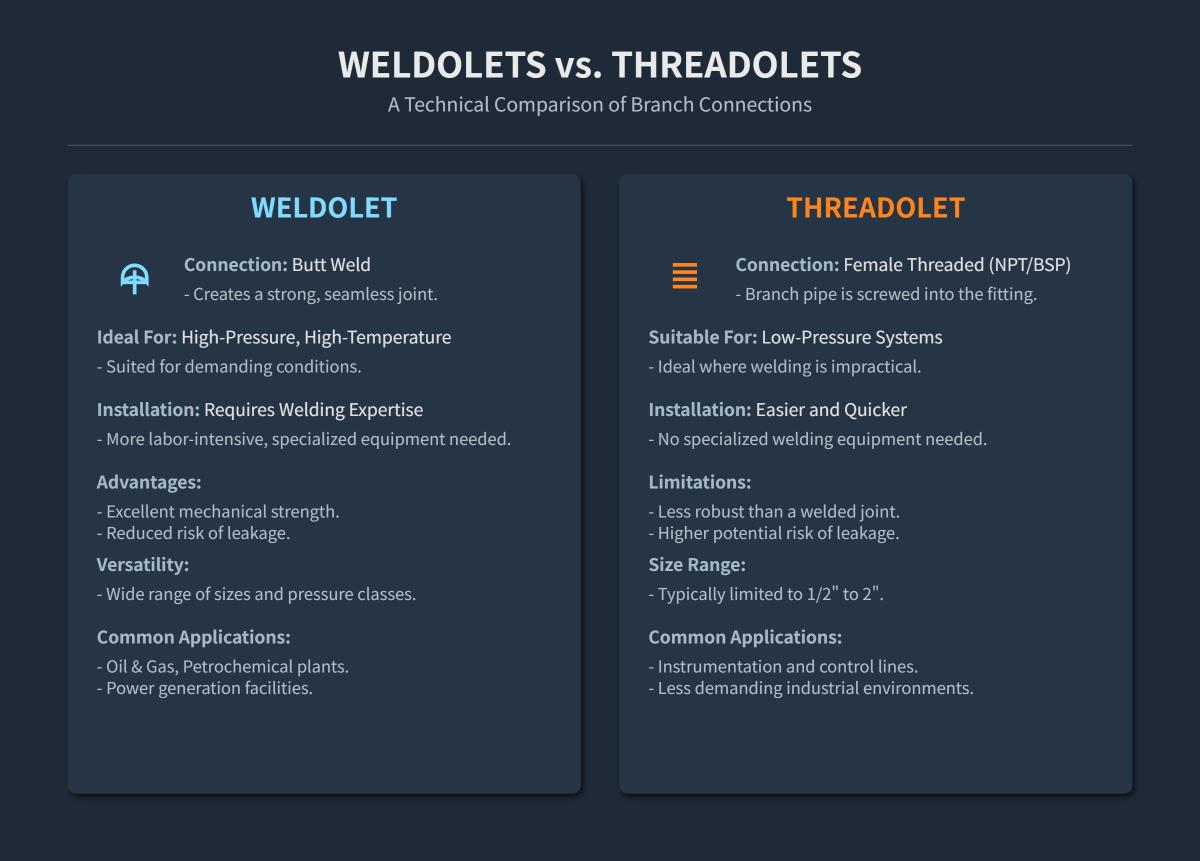

| Aspect | Weldolet | Threadolet |
|---|---|---|
| Connection Type | Butt weld | Threaded connection (female NPT) |
| Pressure Handling | High pressure | Low pressure |
| Installation | Labor-intensive, requires welding | Quick and easy, no welding required |
| Applications | Critical services | Low-pressure systems |
| Mechanical Strength | High | Moderate |
Weldolets are usually made from forged steel, offering high strength and durability. Threadolets, on the other hand, are often made from cast steel or stainless steel, suitable for less demanding applications.
Weldolets require welding to connect the branch pipe, which is labor-intensive but ensures a strong, leak-proof joint. Threadolets use threading, making installation quicker and easier, especially in retrofit situations or temporary setups.
Weldolets are designed for high-pressure systems, capable of handling significant stress and temperature variations. Threadolets are better suited for low-pressure applications, with pressure classes typically limited to 3000 and 6000.
Weldolets tend to be more expensive due to their material and installation requirements. Threadolets are generally cheaper and more readily available, making them a cost-effective choice for less critical applications.
Weldolets require minimal maintenance once installed, as their welded joints are robust and durable. Threadolets may need more frequent inspection and maintenance, especially in systems where threading can lead to wear and tear.
A Weldolet is a specialized fitting used to connect a branch pipe to a main pipe using a butt weld. This method ensures a strong, seamless joint that minimizes leakage risks.
The butt weld connection of a Weldolet provides a strong and durable joint, ensuring smooth internal flow and reducing turbulence. Its versatility and high-pressure handling make it suitable for diverse applications.
A Threadolet is a branch fitting that connects the branch pipe to the main run pipe using a female threaded connection. Typically, the Threadolet is welded to the main pipe (using socket weld or butt weld), and the branch pipe is screwed into the threaded opening of the Threadolet. This method simplifies the installation process, especially for smaller diameter and low-pressure systems.
Threadolets offer quicker and easier installation because the branch pipe is simply screwed into the threaded opening, eliminating the need for welding. They are cost-effective and suitable for low-pressure applications.
| Feature | Weldolet | Threadolet |
|---|---|---|
| Connection Type | Butt weld (BW) | Threaded (female NPT/BSP) |
| Branch Pipe Attachment | Welded | Screwed into threaded fitting |
| Main Pipe Attachment | Butt welded | Welded (socket or butt welded) |
| Pressure Rating | High-pressure applications | Low-pressure applications, limited classes (3000, 6000) |
| Size Availability | Wide range, any size to fit requirements | Limited sizes, typically 1/2″ to 2″ |
| Typical Applications | Oil & gas, petrochemical, power plants, thermal wells | Instrument lines, control lines, small diameter low-pressure pipes |
| Installation Complexity | More labor-intensive (requires welding) | Easier and quicker (threaded connection) |
| Strength & Durability | High strength, reinforced connection | Moderate strength, suitable for less demanding applications |
| Cost Consideration | Higher initial cost due to welding | Lower cost and faster installation |
Weldolets are ideal for high-pressure pipelines in industries such as oil and gas, petrochemical plants, and power plants. Their robust design ensures leak-proof and durable connections in demanding environments.
Threadolets are preferred for less demanding, low-pressure applications like instrument lines and control systems. They offer quick and cost-effective solutions for small-diameter piping needs in various manufacturing processes.
Weldolet and Threadolet differ primarily in their connection types. Weldolet uses a butt weld connection, where the fitting is welded directly to the main pipe, creating a seamless, strong joint. This method ensures high-quality, leak-resistant, and durable connections suitable for demanding conditions. In contrast, Threadolet features a female threaded connection, typically NPT threads as per ASME B1.20.1 standards. The branch pipe is screwed into the Threadolet, forming a mechanical connection.
The pressure rating and size availability of these fittings also differ significantly:
The applications and use cases for Weldolet and Threadolet vary based on their connection type and pressure handling capabilities:
Both fittings are typically made from high-quality forged materials to ensure durability:
Weldolet and Threadolet fittings are designed to be smaller and lighter than traditional tees and elbows:
High-pressure piping systems are designed to handle fluids and gases at elevated pressures, often exceeding 1000 psi. These systems are critical in various industries, such as oil and gas, petrochemical, and power generation, where maintaining system integrity under high pressure is paramount. Selecting the right fittings, such as Weldolet and Threadolet, is crucial for ensuring the reliability and safety of these systems.
Weldolets use a butt weld connection, forming a strong and permanent joint with the main pipe. This connection type is ideal for high-pressure applications as it minimizes potential leakage points and provides excellent mechanical strength. The butt weld provides a smooth transition between the branch and main pipe, reducing stress and improving the piping system’s structural integrity.
Weldolets are specifically designed to withstand high-pressure and high-temperature environments. They can be used in applications where pressures exceed 1000 psi and temperatures reach several hundred degrees Celsius. Weldolets, made from materials like carbon steel, stainless steel, and various alloys, are highly resistant to corrosion and thermal stress, making them ideal for extreme conditions.
Weldolets are commonly used in critical sectors such as oil and gas pipelines, petrochemical plants, and power generation facilities. In these industries, the ability to handle high pressures and temperatures is essential for maintaining operational safety and efficiency. Weldolets’ robust design ensures long-term reliability and minimal maintenance, making them a preferred choice for high-stress environments.
Threadolets feature a threaded connection, which is easier to install compared to welding. This makes them suitable for applications where quick installation and maintenance are necessary. However, threaded connections are less robust than welded joints, limiting their use in high-pressure environments.
Threadolets are generally designed for low to moderate pressure applications, typically up to 3000 or 6000 psi. The threaded joint can be susceptible to leakage and mechanical failure under high pressure and temperature conditions. This makes Threadolets less suitable for critical high-pressure applications where system integrity and reliability are paramount.
Threadolets are often used in less demanding environments, such as water treatment plants, cooling systems, and small-diameter piping where welding is impractical or impossible. They are ideal for low-pressure systems where ease of installation and cost-effectiveness are more critical than the ability to handle high pressures.
| Feature | Weldolet | Threadolet |
|---|---|---|
| Connection Type | Butt weld (strong, permanent) | Threaded (easier installation, less robust) |
| Pressure Suitability | Suitable for high pressure and temperature | Suitable for low to moderate pressure |
| Structural Integrity | Minimizes stress concentration | Higher stress concentration risk |
| Material Options | Broad (carbon steel, stainless steel, alloys) | Limited (typically carbon steel, stainless steel) |
| Common Industries | Oil & gas, petrochemical, power plants | Water treatment, cooling systems |
| Installation Complexity | More labor-intensive, requires welding | Easier, no welding required |
Weldolets are the preferred choice for high-pressure applications due to their superior mechanical strength, seamless butt weld connections, and ability to handle extreme conditions. Threadolets, while easier to install, are better suited for low-pressure systems where the demands on the fittings are less rigorous.
Weldolet and Threadolet fittings are crucial components in various industrial sectors, each serving unique roles in enhancing the efficiency and reliability of piping systems.
Oil & Gas Industry
Weldolets are extensively used in the oil and gas industry for high-pressure pipelines. They facilitate branching from the main run pipe to auxiliary lines, thermal wells, and instrumentation lines. Their sturdy design ensures leak-proof, durable connections, critical for maintaining system integrity under high-pressure and high-temperature conditions.
Petrochemical Plants and Power Generation
In petrochemical plants, Weldolets handle corrosive fluids under high pressure and temperature. Their reinforced connections are ideal for creating reliable branches in processing units, refineries, and chemical plants, where system failure can lead to significant safety hazards and operational disruptions. Similarly, power plants rely on Weldolets for steam, coolant, and auxiliary pipelines. These environments demand fittings that can withstand extreme conditions, providing the necessary strength and durability for reliable, leak-proof connections essential for the plant’s safety and efficiency.
Water and Wastewater Treatment
Weldolets are used in water and wastewater treatment facilities for pipeline branching to valves, meters, and monitoring equipment. Their robust connections help maintain system reliability by preventing leaks and ensuring the smooth flow of fluids under various pressure conditions.
HVAC Systems
In heating, ventilation, and air conditioning (HVAC) systems, Weldolets are applied for branching ducts and piping. Their capacity to manage fitting angles and pressure makes them ideal for complex HVAC layouts with space and pressure constraints.
Low-Pressure Fluid Systems
Threadolets are perfect for low-pressure fluid distribution networks, such as water and air systems. Their threaded connections simplify installation and maintenance, making them suitable for applications where welding is impractical or undesirable.
Instrumentation, Control Lines, and Manufacturing
In instrumentation and control lines, Threadolets offer quick and easy installation for small diameter pipes. They are commonly used in systems requiring frequent maintenance or replacement, as the threaded connections allow for easy disassembly. Similarly, manufacturing and power plants benefit from Threadolets where non-welded connections are preferred. Their ease of assembly and disassembly makes them suitable for applications requiring flexibility and quick modifications.
Compressed Air and Water Distribution
For compressed air and water distribution systems that do not require high-pressure resistance, Threadolets provide a cost-effective and efficient solution. Their threaded connections facilitate rapid installation, reducing downtime and labor costs.
Weldolets and Threadolets each offer distinct advantages tailored to specific industrial needs, ensuring system integrity, safety, and efficiency in piping networks.
The American Society of Mechanical Engineers (ASME) sets widely recognized standards for engineering equipment and practices, including piping systems. Adhering to ASME standards guarantees the safety, reliability, and efficiency of components in various industrial settings. For Weldolet and Threadolet fittings, adherence to specific ASME standards is crucial for ensuring their suitability in different piping systems.
Weldolets, governed by ASME B16.25, must meet stringent criteria for weld quality, structural integrity, and performance under demanding conditions. Additionally, ASME B31.3, which covers process piping, also applies to Weldolets used in high-pressure and high-temperature environments.
Threadolets comply with ASME B16.11, which addresses forged threaded fittings, and MSS SP-97, which covers integrally reinforced branch outlet fittings. These standards provide guidelines for the design, dimensions, and pressure ratings of Threadolets, ensuring their reliability in low-pressure applications.
Weldolets typically use materials such as ASTM A105 (carbon steel) and ASTM A234 (wrought carbon/alloy steel). These materials are selected for their ability to withstand high pressures and temperatures, providing the necessary strength and durability for critical applications.
Threadolets also employ ASTM A105 for their construction, focusing on precise machining for the threaded connections. The use of high-quality forged materials ensures that Threadolets can maintain their integrity in low-pressure systems.
Weldolets require full-penetration welding onto the run pipe, ensuring a strong, leak-proof joint. This method is essential for high-pressure applications where structural integrity is paramount. The welding process must comply with ASME B16.25 standards, which mandate strict weld preparation and alignment procedures.
Threadolets use female NPT threads for connecting to the branch pipe, eliminating the need for welding in low-pressure or non-critical systems. The threaded connection must meet ASME B16.11 standards for dimensions and tolerances, ensuring a leak-proof and secure fit.
Weldolets are commonly used in 6000# and higher pressure classes, making them suitable for severe service conditions. Their sturdy design and welded connections allow Weldolets to withstand high pressures and temperatures while maintaining safety and performance.
Threadolets are typically limited to 3000#–6000# pressure classes, making them less suitable for extreme conditions. The threaded joints are ideal for moderate-pressure applications where ease of installation and maintenance are prioritized.
Below are answers to some frequently asked questions:
Weldolets and Threadolets are both types of branch connections used in piping systems, but they differ significantly in their design, installation, and applications. Weldolets are designed with a butt weld connection, creating a strong and seamless joint that is ideal for high-pressure and high-temperature applications. This type of connection requires welding expertise and equipment, making the installation more labor-intensive but providing excellent mechanical strength and reducing the risk of leakage.
On the other hand, Threadolets feature a female threaded connection, typically National Pipe Thread (NPT) or British Standard Pipe (BSP), which allows the branch pipe to be screwed into the fitting. This design makes Threadolets easier and quicker to install, suitable for low-pressure systems where welding is impractical. However, the threaded connection is generally less robust than a welded joint and may pose a higher risk of leakage under certain conditions.
Weldolets are versatile, accommodating a wide range of sizes and pressure classes, making them suitable for critical applications in oil and gas, petrochemical, and power plants. Threadolets are limited to smaller sizes, typically from 1/2” to 2”, and are commonly used in instrumentation, control lines, and less demanding industrial environments.
For high-pressure applications, Weldolets are better suited than Threadolets. Weldolets utilize a butt weld connection that ensures a seamless integration with the main pipe, providing superior mechanical strength and structural reinforcement. This makes them ideal for high-pressure and high-temperature environments, such as those found in the oil and gas industry, thermal wells, and power plants. They are designed to handle any pressure class and size, offering greater flexibility and reliability in critical systems.
In contrast, Threadolets feature a female threaded connection that is typically limited to lower pressure classes (3000/6000) and smaller diameters (½″–2″). These characteristics restrict Threadolets to low-pressure systems and non-critical applications, such as instrument lines or small-diameter utilities. Consequently, Threadolets are not recommended for high-pressure services where leak-proof integrity and robust mechanical strength are essential.
Thus, for high-pressure applications, Weldolets provide the necessary durability and performance to ensure system integrity and safety.
Weldolets are primarily used in high-pressure and high-temperature piping systems due to their robust butt-weld connections. They are commonly employed in the oil and gas industry for connecting branch pipelines to main lines, in petrochemical plants for handling various fluids under extreme conditions, and in power plants for connecting auxiliary pipelines. Additionally, they are used in water and wastewater systems for strong, leak-resistant connections, and in HVAC systems where space constraints or specific angles are required.
Threadolets, on the other hand, are used in low-pressure systems where welding is not feasible or desirable. They feature a female threaded outlet, making them suitable for water, air, and other low-pressure piping networks. Threadolets are also ideal for instrumentation and control lines in industries like petrochemical and manufacturing, compressed air and water distribution systems, and environments where welding is impractical due to safety or accessibility concerns.
Weldolets and threadolets comply with specific ASME standards, ensuring their mechanical integrity, dimensions, material quality, and pressure ratings. Weldolets conform to ASME B16.9 and ASME B16.25 standards, which define requirements for butt-welding fittings. They are typically made from materials like ASTM A234 and ASTM A105, suitable for high-pressure and high-temperature applications. The design of weldolets facilitates smooth flow transitions and requires fewer welds, making them ideal for critical piping systems.
Threadolets, on the other hand, comply with ASME B16.11 standards, which cover forged fittings with threaded connections. They are often manufactured from ASTM A105 carbon steel forgings and feature NPT threads per ASME B1.20.1, ensuring compatibility and sealing integrity. Threadolets are better suited for moderate pressure and temperature applications, offering ease of installation without the need for welding.
Both fittings meet stringent ASME standards, but their applications differ based on pressure requirements and installation preferences.
When comparing the cost implications of using weldolets versus threadolets, several factors need consideration, such as installation complexity, material durability, and application requirements.
Weldolets typically incur higher installation costs due to the need for extensive preparation and machining. This complexity is justified in high-pressure applications where the secure socket weld connection they provide is crucial for system integrity. Made from durable materials designed to withstand high-pressure and high-temperature conditions, weldolets are a more expensive upfront investment but offer long-lasting performance, making them ideal for critical applications.
Threadolets, on the other hand, are easier to install, which translates to lower installation costs and quicker project completion. They are cost-effective for low-pressure systems and are suitable for scenarios where frequent maintenance is required due to their ease of disassembly. While they offer robust connections, they may not match the durability of weldolets in extreme conditions and are typically limited to Class 3000 and Class 6000 pressure classes.
