Comprehensive Guide to Shape Memory Alloys
Imagine a metal that remembers its original shape and can return to it after deformation, almost like magic. This is…
Imagine a material that can remember its original shape, exhibit extraordinary elasticity, and withstand the harshest of environments. Enter Nitinol, a remarkable alloy of nickel and titanium, whose unique properties have revolutionized multiple industries. From medical devices that save lives to critical components in aerospace technology, Nitinol’s applications are as diverse as they are groundbreaking. But what exactly makes Nitinol so special? In this comprehensive guide, we will delve into its intricate composition, explore its fascinating properties, and uncover the myriad ways it is transforming technology and medicine. Ready to discover the wonders of Nitinol and its potential for future innovations? Let’s dive in.
Nitinol is a remarkable nickel-titanium alloy developed in the 1960s at the Naval Ordnance Laboratory. Its name is a blend of its elemental components, nickel (Ni) and titanium (Ti), along with the laboratory’s acronym (NOL). Nitinol is highly prized due to its amazing properties, like shape memory and superelasticity. These unique characteristics have led to its widespread use in various fields, revolutionizing product design in areas such as medical devices and aerospace components.
Nitinol is generally composed of nearly equal parts of nickel and titanium. The precise ratio of these two elements is crucial, as it directly affects the alloy’s transformation temperatures and mechanical properties. Small amounts of other elements like carbon and cobalt can be added to boost specific properties, tailoring Nitinol for different applications.
Nitinol, an alloy composed of roughly equal parts nickel and titanium, is celebrated for its shape memory and superelasticity. This balanced composition is key to its unique properties.
Nickel (Ni) typically accounts for about 50% of Nitinol’s weight. It is essential for the shape memory effect and superelasticity. Nickel atoms enable the reversible transformation between the austenite and martensite phases, which allows the alloy to return to its original shape upon heating. However, nickel’s presence also raises biocompatibility concerns, especially in medical applications, due to its potential as an allergen.
Titanium (Ti), also comprising about 50% of the alloy, enhances Nitinol’s biocompatibility and corrosion resistance. These properties make it ideal for medical devices implanted in the human body, such as stents and orthodontic wires. Titanium also improves the alloy’s durability, ensuring it withstands harsh bodily conditions without degrading.
Precise control of the nickel-to-titanium ratio is crucial in Nitinol manufacturing. Even minor variations can significantly impact the alloy’s transformation temperatures and mechanical properties. For example, increasing the nickel content can lower the transformation temperature. This meticulous control allows manufacturers to tailor Nitinol’s properties for specific applications, ensuring optimal performance.
In addition to nickel and titanium, small amounts of other elements may be added to Nitinol to enhance specific properties. These minor elements include:
Nitinol’s unique properties stem from its ability to undergo a reversible phase transformation between two crystal structures: austenite and martensite.
The transformation between these phases can be triggered by changes in temperature or by applying mechanical stress, making Nitinol versatile for various applications.
Understanding Nitinol’s composition is crucial for optimizing its performance in different uses, ensuring its remarkable properties are effectively harnessed.
The production of Nitinol starts with the extraction and purification of its primary components: nickel and titanium. These metals are refined to high purity levels by mining, smelting, and refining to ensure the alloy’s performance and consistency.
The alloying of nickel and titanium to form Nitinol typically involves advanced melting techniques to ensure a homogeneous mixture:
Maintaining low levels of carbon and oxygen is critical in Nitinol production. These elements can form inclusions that negatively affect the material’s mechanical properties and performance, particularly in medical applications where biocompatibility is paramount.
After melting, the Nitinol ingot undergoes hot working processes to refine its microstructure:
Heat treatment is essential for establishing Nitinol’s final properties:
Nitinol’s unique properties make it challenging to machine and cut using conventional methods. Specialized techniques are employed to achieve precision without compromising the alloy’s integrity:
Powder metallurgy provides an alternative method for fabricating Nitinol:

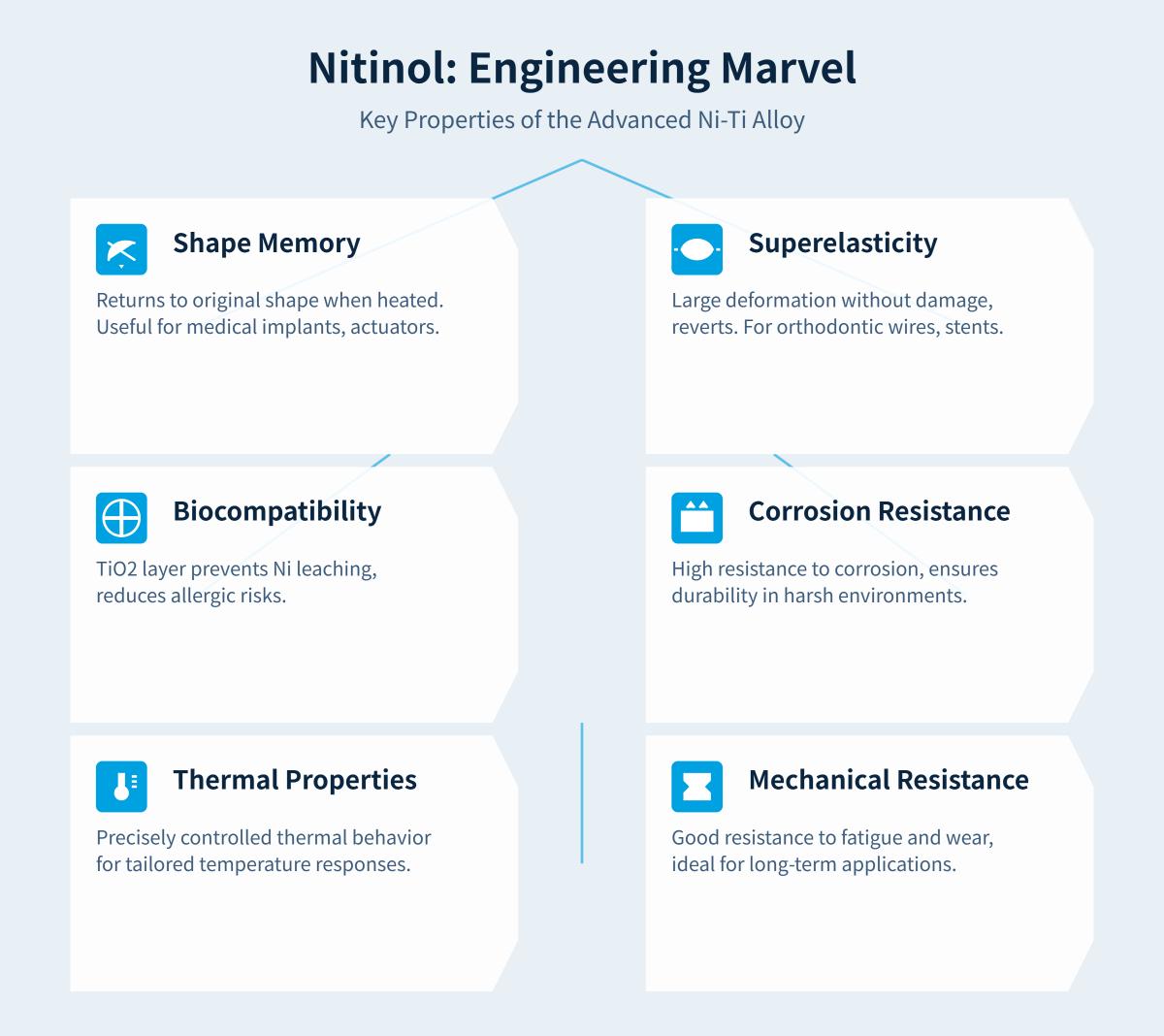

The shape memory effect is one of the most remarkable properties of Nitinol. This phenomenon allows Nitinol to return to its original shape after deformation when exposed to a specific temperature. This transformation involves two crystal structures: austenite and martensite. At lower temperatures, Nitinol is in the martensite phase, which is relatively soft and can be deformed. Upon heating, it transforms to the austenite phase, which is more rigid and allows the material to revert to its pre-deformed shape. This property is extensively utilized in medical devices such as self-expanding stents, orthodontic wires, eyeglass frames, and various medical instruments.
Nitinol exhibits superelasticity, also known as pseudoelasticity, which allows it to undergo large deformations and return to its original shape upon unloading without a temperature change. This is due to the stress-induced transformation between the austenite and martensite phases. Superelasticity is particularly valuable in applications where flexibility and resilience are critical.
Nitinol’s thermal properties are directly related to its phase transformations. The temperatures at which the alloy transforms between the austenite and martensite phases are known as the transformation temperatures. These include the martensite start (Ms) and finish (Mf) temperatures, and the austenite start (As) and finish (Af) temperatures. Precise control of these transformation temperatures is essential for tailoring Nitinol’s behavior for specific applications. For example, the transformation temperatures can be adjusted by varying the nickel-titanium ratio or by incorporating minor alloying elements.
Nitinol’s mechanical properties are unique and highly desirable for various applications. These include:
Although it contains nickel, an allergen, Nitinol’s biocompatibility comes from a stable titanium oxide layer on its surface. This oxide layer acts as a barrier, preventing nickel ions from leaching into the surrounding environment and causing adverse reactions. This property is crucial for implants and other medical devices that come into direct contact with bodily tissues.
Nitinol demonstrates excellent corrosion resistance, which is vital for both medical and industrial applications. The stable titanium oxide layer not only contributes to biocompatibility but also protects the alloy from corrosive environments. This makes Nitinol suitable for use in harsh conditions, including exposure to bodily fluids or industrial chemicals.
Nitinol’s high strength-to-weight ratio is another significant property that enhances its utility in various fields. This characteristic is particularly beneficial in aerospace and automotive industries, where reducing weight while maintaining strength is crucial for improving efficiency and performance.
Nitinol’s ability to withstand repeated stress cycles without significant degradation is a key property for applications requiring reliability and endurance. This fatigue resistance is a result of the reversible phase transformations that occur in the material, allowing it to absorb and dissipate energy effectively.
Nitinol has revolutionized the medical field with its unique properties, particularly its shape memory effect and superelasticity. These attributes enable the development of medical devices that are both minimally invasive and highly effective.
Nitinol is extensively used in cardiovascular stents and guidewires. The shape memory effect allows these devices to be compact during insertion and expand to their functional shape once deployed within the body. This is crucial for angioplasty, as the stent must adapt to the vessel’s shape and support it to stay open.
In orthodontics, Nitinol wires are preferred for their consistent and gentle force application, which helps align teeth more comfortably and effectively compared to traditional materials. The superelasticity of Nitinol ensures that the wires can withstand repetitive forces involved in dental corrections without losing their shape.
Nitinol is also pivotal in neurosurgery, where its use in flow diverters and embolic coils helps treat vascular disorders. These devices leverage Nitinol’s ability to conform to complex anatomical structures, minimizing trauma and enhancing the precision of surgical interventions.
In catheter systems, Nitinol’s flexibility and strength ensure that the tubing can navigate through the body’s intricate pathways without kinking or collapsing. This enhances the reliability and safety of various minimally invasive procedures.
The aerospace industry benefits significantly from Nitinol’s properties, particularly its lightweight and reliable performance under varying conditions. Nitinol is used in actuators and sensors due to its ability to undergo controlled deformations, which are crucial for adaptive systems in aircraft, such as wing morphing mechanisms that adjust to optimize aerodynamics during flight. Additionally, in space applications, Nitinol’s shape memory effect is utilized in deployable structures that need to be compact during launch and expand once in orbit. This includes components like antennas and solar panels, which can deploy autonomously in response to environmental triggers.
Nitinol’s unique properties make it ideal for actuators and couplings in various engineering applications. These components can change shape in response to thermal or electrical stimuli, making them suitable for precise control systems. The material’s ability to return to its original shape after deformation allows for the creation of components that are both durable and adaptable, which is essential for maintaining performance in dynamic environments.
Nitinol continues to find new applications in emerging technologies, driven by ongoing research and innovation.
In robotics, Nitinol’s superelasticity and shape memory effect are harnessed to create flexible and adaptive components. These let robots do complex moves and work in tight spaces, enhancing their functionality in various applications from medical surgery to industrial automation.
Nitinol is increasingly used in the automotive industry for components that require adaptive responses to temperature changes. This includes temperature-sensitive vents and safety systems that can adjust automatically to enhance passenger comfort and vehicle performance.
Recent Nitinol research aims to improve its properties and expand uses. Innovations in manufacturing processes aim to improve efficiency and reduce costs, making Nitinol more accessible for various industries.
There is significant interest in developing new biomedical devices that leverage Nitinol’s unique characteristics. This includes more sophisticated stents, improved orthopedic implants, and advanced neurosurgical tools that offer better outcomes for patients.
The integration of Nitinol into robotics and automation continues to grow, with ongoing research exploring its potential in creating more flexible and adaptive robotic systems. This includes applications in surgical robots, industrial automation, and consumer electronics.
Efforts are also being made to address the environmental impact and sustainability of Nitinol production. This includes developing more eco-friendly extraction and processing methods, as well as exploring recycling options to reduce waste.
The future of Nitinol is closely tied to ongoing innovations aimed at enhancing its properties and expanding its applications across various industries. Key areas of development include biomedical devices, robotics, and advanced manufacturing techniques.
In the medical field, Nitinol continues to play a crucial role in the development of next-generation devices. Researchers are focusing on creating more sophisticated stents and implants that offer improved performance and patient outcomes. One significant advancement is combining drug-eluting technologies with Nitinol stents to lower restenosis rates and improve biocompatibility. Additionally, the development of Nitinol-based neurosurgical tools and orthopedic implants is set to revolutionize minimally invasive procedures, offering greater precision and reduced recovery times for patients.
Nitinol’s unique properties are also being leveraged in the realm of robotics and automation. The material’s superelasticity and shape memory effect are ideal for creating flexible and adaptive robotic components. These components can be used in various applications, from surgical robots that require precise movements within the human body to industrial robots that need to operate in complex and dynamic environments. The development of Nitinol-based actuators and sensors is particularly promising, as they can provide enhanced control and responsiveness in automated systems.
Advanced manufacturing techniques are crucial for optimizing the production and performance of Nitinol. Innovations in 3D printing and powder metallurgy are opening new possibilities for creating complex Nitinol structures with tailored properties. These techniques allow for precise control over the material’s microstructure and composition, leading to improved mechanical properties and performance. Additionally, advancements in surface modification technologies are enhancing the biocompatibility and corrosion resistance of Nitinol, making it even more suitable for medical and industrial applications.
Despite its remarkable properties, the manufacturing of Nitinol presents several challenges that need to be addressed to ensure its widespread adoption and efficient production.
One of the primary challenges in Nitinol manufacturing is the high production cost. The complex processes of alloying, shaping, and treating Nitinol demand significant energy and advanced equipment, resulting in higher costs than other materials. Efforts are being made to develop more cost-effective manufacturing methods that can reduce energy consumption and streamline production processes without compromising the material’s quality.
Maintaining consistent quality in Nitinol production is critical, especially for medical applications where precision and reliability are paramount. Quality control issues such as impurities, inclusions, and variations in alloy composition can significantly impact the material’s performance. Advanced monitoring and testing techniques are being developed to ensure that Nitinol products meet stringent quality standards and perform reliably in their intended applications.
The environmental impact of Nitinol production is another challenge that needs to be addressed. The energy-intensive nature of the manufacturing processes contributes to carbon emissions and other environmental concerns. Researchers are exploring eco-friendly alternatives and sustainable practices to minimize the ecological footprint of Nitinol production. This includes developing recycling methods for Nitinol products and reducing waste generated during the manufacturing process.
As the demand for Nitinol continues to grow, addressing its environmental impact and sustainability is becoming increasingly important. Efforts to improve the sustainability of Nitinol production focus on several key areas.
Enhancing energy efficiency in Nitinol production is crucial for reducing its environmental impact. This involves optimizing existing processes to consume less energy and exploring new methods that are less energy-intensive. For example, advancements in induction melting and powder metallurgy techniques can help reduce the energy required for alloying and shaping Nitinol.
Minimizing waste and promoting recycling are crucial for enhancing the sustainability of Nitinol production. Researchers are developing methods to recycle Nitinol scrap and byproducts, converting them back into usable material without compromising quality. This not only reduces waste but also helps conserve resources and lower production costs.
Exploring eco-friendly alternatives to traditional Nitinol production methods is another area of focus. This includes the development of new alloy compositions that require less energy to produce and have a lower environmental impact. Additionally, researchers are investigating the use of renewable energy sources in the manufacturing process to further reduce carbon emissions.
The future of Nitinol is bright, with ongoing research and development aimed at unlocking new applications and enhancing its properties. Innovations in manufacturing techniques, material science, and application development are expected to drive the continued growth and adoption of Nitinol across various industries.
Future research is likely to focus on enhancing the material properties of Nitinol to meet the specific needs of different applications. This involves boosting fatigue resistance, corrosion resistance, and biocompatibility through advanced alloying techniques and surface modifications. Enhanced Nitinol materials will be better suited for demanding applications, offering improved performance and longevity.
As the understanding of Nitinol’s properties and potential grows, new applications are expected to emerge. This includes the development of Nitinol-based components for emerging technologies such as flexible electronics, smart textiles, and adaptive structures. Nitinol’s versatility makes it perfect for innovative solutions across various fields.
Sustainability will continue to be a key focus in the future development of Nitinol. Researchers are working on creating more sustainable production methods that reduce energy consumption, minimize waste, and utilize eco-friendly materials. These efforts will help ensure that Nitinol remains a viable and environmentally responsible material for future applications.
The U.S. Food and Drug Administration (FDA) provides comprehensive guidelines for medical devices made with Nitinol. These guidelines focus on material composition, manufacturing processes, and surface treatments. Adherence to recognized consensus standards, such as ASTM F2063, is recommended to ensure consistency and reliability in Nitinol-based medical devices.
ASTM International has developed standards covering terminology, chemical composition, physical properties, thermomechanical behavior, and metallurgical characteristics of Nitinol. ASTM F2063 is particularly important as it specifies the requirements for Nitinol alloys used in medical devices, ensuring they meet stringent quality and performance criteria.
Manufacturers must also ensure that Nitinol stents and other medical devices comply with international regulations, such as the CE Mark in Europe. These regulations are designed to guarantee device safety and performance across different markets, emphasizing the need for thorough testing and documentation.
Precise control over the composition of Nitinol, primarily nickel and titanium, is crucial. The ratio of nickel to titanium affects the alloy’s transformation temperatures and mechanical properties. Any variations can impact biocompatibility and corrosion resistance, which are critical for medical applications.
The manufacturing methods used to produce Nitinol, including hot working, cold working, and heat treatments, significantly influence the material’s properties. Detailed documentation of these processes is essential for regulatory submissions, ensuring that the final product meets all necessary standards.
Surface processing techniques, such as polishing and passivation, are vital for enhancing Nitinol’s biocompatibility and reducing the risk of corrosion and nickel leaching. These processes help maintain the material’s integrity and ensure it performs reliably in medical environments.
Specifying the transformation temperatures, such as the Active Austenite Finish Temperature (Active A(f)), is essential for achieving the desired shape memory or superelastic behavior in Nitinol devices. Accurate control of these temperatures ensures that the devices function correctly under varying conditions.
Nitinol is known for its biocompatibility and resistance to corrosion. Maintaining these properties requires careful control over the material’s composition and surface processing. Ensuring high standards in these areas is essential for the safety and efficacy of medical devices.
For medical devices that have prolonged contact with patients, comprehensive information on material composition, manufacturing processes, and surface treatments must be included in premarket submissions. This detailed documentation helps regulatory bodies assess the device’s safety and performance.
Manufacturers should refer to device-specific guidance documents to ensure compliance with all relevant regulatory requirements. These documents provide detailed instructions on the necessary testing and documentation for different types of medical devices.
The information required for regulatory submissions varies based on the device’s classification and intended use. Higher-risk devices may require more extensive testing and documentation to demonstrate their safety and efficacy.
Ensuring regulatory compliance for Nitinol-based medical devices involves adhering to rigorous standards set by organizations like the FDA and ASTM. Accurate control over material composition, manufacturing processes, and surface treatments is critical for maintaining the biocompatibility and performance of these devices. Compliance with international standards ensures that Nitinol stents and other devices meet the necessary criteria for global markets.
Below are answers to some frequently asked questions:
Nitinol, a nickel – titanium alloy, has several unique properties. It exhibits a shape memory effect, meaning it can return to its original shape when heated above a specific temperature, useful for medical implants and actuators. Its superelasticity allows it to undergo large deformation without permanent damage and revert to its original form after stress release, as seen in orthodontic wires and stents. Nitinol is biocompatible due to a titanium oxide layer preventing nickel leaching, reducing allergic risks. It also has high corrosion resistance, thermal properties that can be precisely controlled, and good mechanical resistance to fatigue and wear, making it suitable for various long – term applications.
Nitinol, an alloy of nickel and titanium, is highly valued for its superelasticity and shape memory effect, making it suitable for a diverse range of applications. In the medical field, Nitinol is extensively used in self-expanding stents, catheters, and heart valves for minimally invasive procedures due to its ability to expand at body temperature. It is also used in orthodontics for wires and brackets that apply consistent force, and in surgical instruments for precise and flexible operations.
In aerospace and robotics, Nitinol is utilized in actuators and sensors for its precise movement capabilities, and in robotic components requiring flexibility and reliability. The consumer electronics industry benefits from Nitinol’s durability in smartphone hinges and connectors, and its resilience is ideal for eyeglass frames that return to their original shape after deformation. In the automotive industry, Nitinol enhances fuel efficiency and reduces maintenance in fuel injectors, and is used in safety systems and engine components for its high temperature resistance.
Additionally, in industrial settings, Nitinol’s shape memory and superelasticity are advantageous for actuators, valves, and thermal sensors in fluidics systems. Despite challenges such as fatigue failures and nickel release concerns, ongoing research continues to expand Nitinol’s applications and improve its properties.
Nitinol is a metal alloy composed mainly of nickel and titanium in approximately equal atomic percentages. Typically, it contains around 50 – 51% nickel by atomic percent (about 55 – 56% by weight). The precise ratio of these elements is crucial for its unique properties like shape memory and superelasticity. Small amounts of other elements such as carbon, cobalt, copper, and chromium may also be present in trace amounts, but they generally don’t significantly alter its primary characteristics.
Manufacturing Nitinol, a nickel-titanium alloy known for its shape memory and superelastic properties, poses several significant challenges. One major issue is the sensitivity to composition; even slight variations in the nickel-titanium ratio can dramatically affect its transformation temperatures and Additionally, Nitinol is notoriously difficult to machine due to its high toughness and tendency to work harden, leading to excessive tool wear and surface degradation. This makes traditional machining processes challenging and costly.
The alloy is also highly susceptible to oxidation, requiring stringent atmospheric control during processes like additive manufacturing to prevent alterations in its mechanical properties. Maintaining a low oxygen environment is critical for consistent quality.
Moreover, the complex supply chain and high demand for Nitinol add to production capacity and lead time challenges. Ensuring compliance with strict quality standards, such as ASTM F2063 for medical applications, requires rigorous testing and quality control measures, further complicating the manufacturing process.
Lastly, the high energy consumption needed for melting and shaping Nitinol, along with the management of byproducts, poses environmental and sustainability concerns. Addressing these challenges requires ongoing innovations and advancements in production techniques.
Nitinol, a nickel-titanium alloy, significantly contributes to sustainability in various ways. Its shape memory effect and superelasticity enable the creation of simpler, more energy-efficient mechanical systems, reducing In the medical field, Nitinol’s biocompatibility and shape memory properties facilitate minimally invasive procedures, leading to reduced medical waste and shorter hospital stays. In aerospace and automotive sectors, Nitinol’s lightweight yet durable nature improves fuel efficiency and reduces emissions. Its ability to form adaptive and self-repairing structures further enhances sustainability by lowering maintenance needs.
However, the high cost and complex manufacturing processes of Nitinol pose challenges. Efficient recycling methods are also needed to fully harness its sustainable potential.
Regulatory standards for Nitinol products, particularly in the context of medical devices, are established by organizations such as the FDA, ASTM, and ISO. The FDA provides detailed guidance covering material composition, manufacturing processes, mechanical testing, biocompatibility, and labeling requirements. ASTM standards define the chemical, physical, thermomechanical, and metallurgical properties of Nitinol alloys, ensuring consistent quality and performance. ISO standards, including ISO 10993-1, address the biological safety of medical devices. Collectively, these regulations ensure the safety, efficacy, and reliability of Nitinol products through rigorous testing and comprehensive documentation processes.
